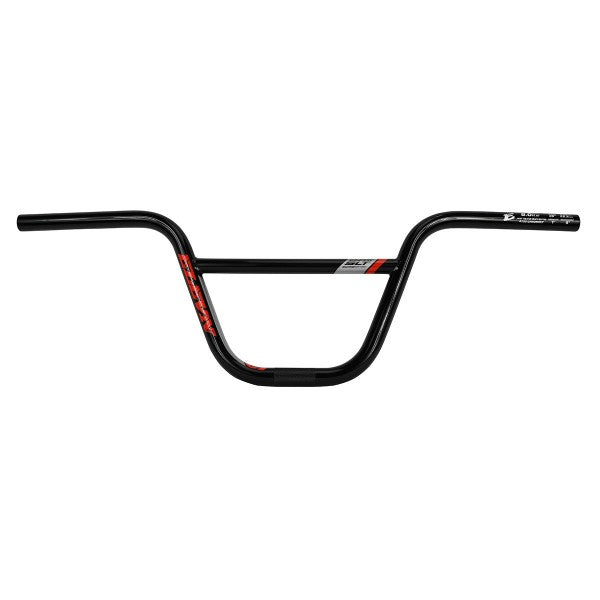

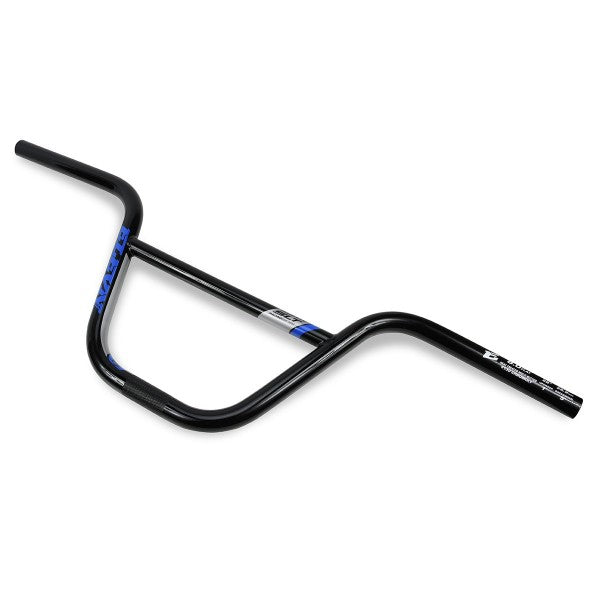

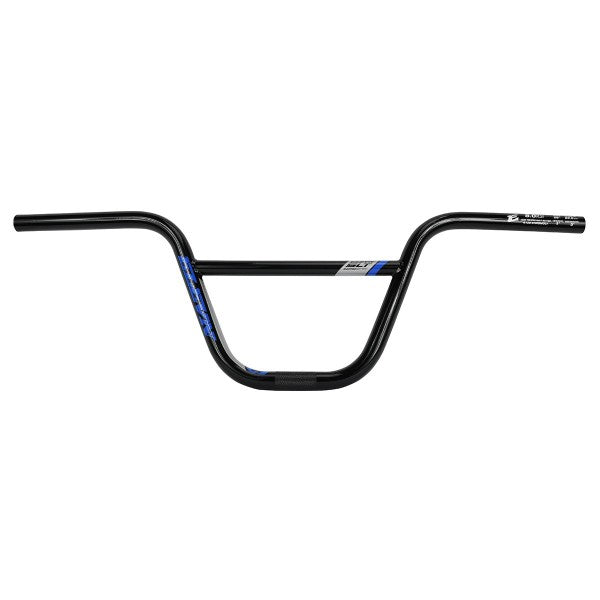

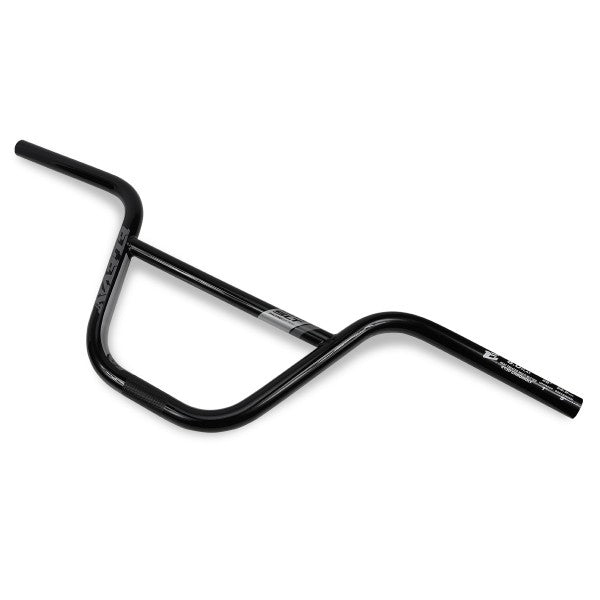

ELEVN 22.2 SLT FLAT 8.0" HANDLEBARS

Product Overview

The Elevn 22.2 SLT Flat 8.0" Handlebars are heat-treated 4130 chromoly handlebars with 13 butted sections and flatter bend geometry. Featuring 8.0" rise, 28" width, 5-degree back sweep, and 1-degree up sweep, they weigh 747g and are designed for riders who prefer minimal sweep for improved gate starts and control with standard 22.2mm stem compatibility.

Key Features

• 100% 4130 heat-treated chromoly – Heat treatment increases material strength and fatigue resistance, providing durability for high-stress racing use
• 13 butted sections – Variable wall thickness removes material from low-stress areas while maintaining strength where needed, reducing weight without sacrificing durability
• Flat bend geometry – 5-degree back sweep and 1-degree up sweep provide a flatter, more forward hand position compared to standard bars; preferred by top pro riders for gate starts and overall control
• 3/4" (19.05mm) crossbar – Reinforced crossbar diameter adds stiffness and reduces flex during hard pulling
• Pro rider-approved geometry – Used by top racers including Joris Daudet, Connor Fields, and Izaac Kennedy

Technical Specifications

• Material: 4130 chromoly steel, heat-treated
• Construction: 13 butted sections (variable thickness)
• Diameter Clamp (Stem): 22.2mm standard
• Bar Grip Size: 22.2mm standard
• Handlebar Height (Rise): 8.0" / 203.2mm
• Handlebar Width: 28" / 711.2mm
• Back Sweep: 5°
• Up Sweep: 1°
• Crossbar Diameter: 3/4" / 19.05mm
• Weight: 747g / 26.34 oz

Compatibility and Ideal Use Cases

These handlebars require a standard 22.2mm stem and are not compatible with oversized stems (25.4mm, 31.8mm). The grip area is standard 22.2mm, so they work with all BMX grips. Ideal for riders who prefer flatter bend geometry with minimal sweep (5-degree back, 1-degree up) for improved gate starts and a more aggressive, forward hand position. The reduced sweep compared to standard bars positions hands flatter and more forward, which many riders find beneficial for explosive gate starts and overall control. The 8.0" rise suits riders who prefer moderate handlebar height with a more neutral riding position. The 28" width is slightly narrower than the 8.5" version, offering riders who prefer less width an option while maintaining the same flat sweep geometry. Best suited for racers who want pro-level handlebar geometry with heat-treated chromoly construction and prefer less sweep and slightly narrower width than traditional bars.

Colors: Black with blue, red, white, and Neon Yellow graphics, with white specification graphics on bar grip area.

Bar Location Helper: In the Elevn “E” graphic located to the left of the Knurled area, there is a line to help you line your bars with your stem for ease to get back to your desired position after removal.
