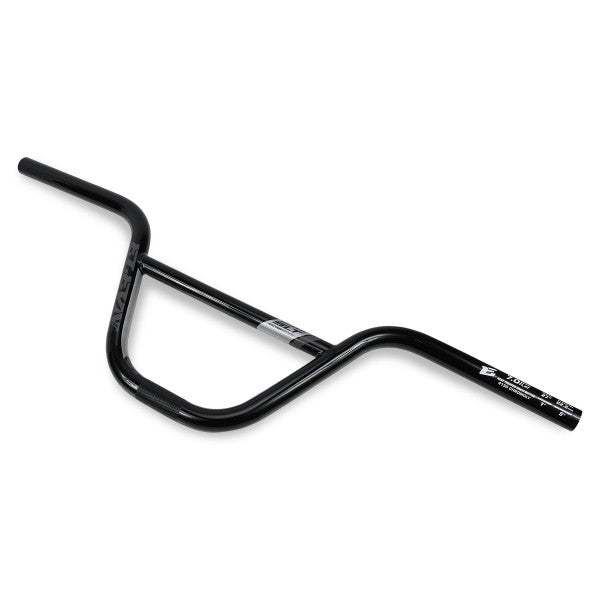

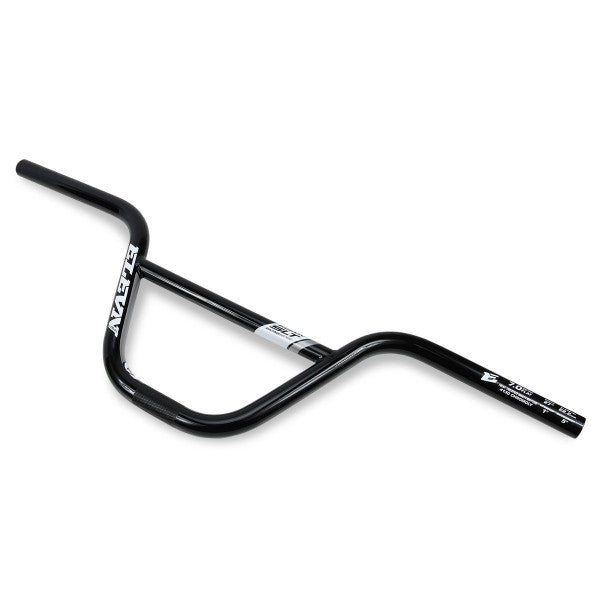

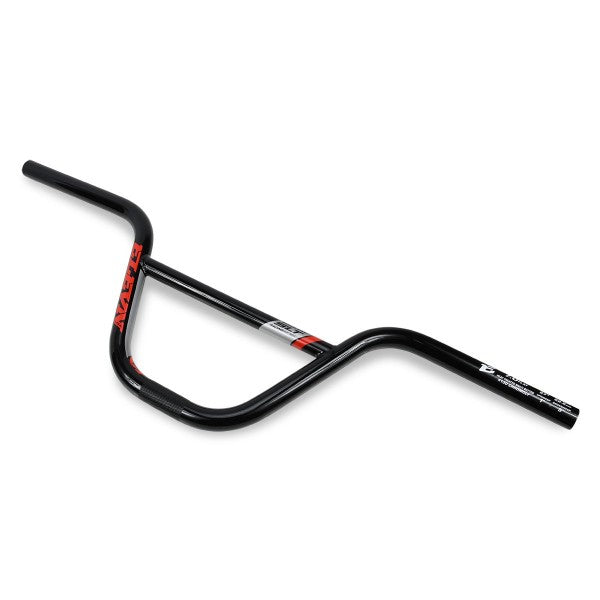

Elevn 22.2 Slt Standard 7.0" Handlebars

Elevn 22.2 SLT Standard 7.0" Handlebars

Product Overview

The Elevn 22.2 SLT Standard 7.0" is a race-focused handlebar featuring traditional sweep geometry in a taller format, optimized for track control and responsive handling. Built from 4130 heat-treated chromoly with 13 butted construction, it delivers proven stiffness and predictable performance for competitive racing with extended bar height for varied rider preferences.

Key Features

• Traditional Sweep Geometry — 10° back and 2° up sweep angles provide a familiar, comfortable riding position that enhances control through rhythm sections and jump sequences
• Extended Rise Format — 7.0" height offers increased leverage and control point for riders preferring taller bars or seeking enhanced maneuverability in technical sections
• 4130 Heat-Treated Chromoly — Premium material provides superior strength and impact resistance under rigorous race conditions
• 13 Butted Construction — Variable wall thickness reduces weight while maintaining critical stiffness in high-stress zones
• Race-Proven Design — Geometry developed and tested by competitive racers for responsive handling and consistent control across varied track surfaces
• Cross Bar Support — 3/4" (19.05mm) cross bar reinforcement adds lateral stiffness for responsive pedaling and maneuverability during technical sections
• Bar Location Helper — Etched line in the Elevn "E" graphic aids quick repositioning after handlebar removal, ensuring setup consistency between sessions
• Multiple Graphics Options — Black finish with blue, red, white, or neon yellow graphics; white specification graphics on grip area for visual clarity

Technical Specifications

• Material: 4130 Heat-Treated Chromoly
• Construction: 13 Butted with variable wall thickness
• Clamp Diameter: 22.2mm
• Height: 7.0" (177.8mm)
• Width: 26" (660.4mm)
• Sweep Angle: 10° back, 2° up
• Cross Bar Diameter: 3/4" (19.05mm)
• Weight: 727g (25.64 oz)
• Finish Options: Black with blue, red, white, or neon yellow graphics

Compatibility and Ideal Use Cases

Compatible with any 22.2mm clamp stem. Designed for cruiser racing applications where track control, rhythm consistency, and technical maneuverability are priorities. The 7.0" height suits riders seeking extended leverage and control for varied track conditions and jumping sections. Ideal for competitive racers, intermediate to advanced riders, and those building dedicated race bikes with taller bar preferences. The bar location helper simplifies setup adjustments during training and race preparation.

• Material: 100% 4130 heat treated Cro-mo
• Butted: 13 (variable thickness)
• Features:
• Rise: 7.0’’ / 177.8 mm
• Width: 26’’ / 660.4 mm
• Sweep: 10° / Up Sweep: 2°
• Cross Bar: 3/4’’ / 19.05mm
• Weight: 25.64 Oz / 727g

Colors: Black with blue, red, white, and Neon Yellow graphics, with white specification graphics on bar grip area.

Bar Location Helper: In the Elevn “E” graphic located to the left of the Knurled area, there is a line to help you line your bars with your stem for ease to get back to your desired position after removal.
