Elevn 22.2mm Overbite Stem 1-1/8"

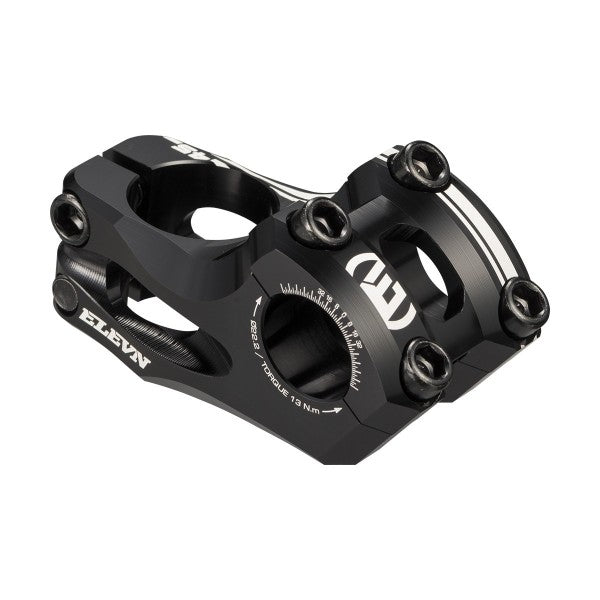

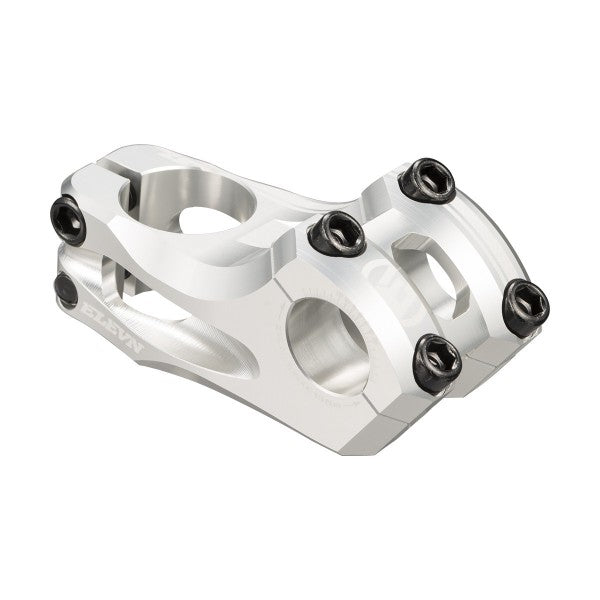

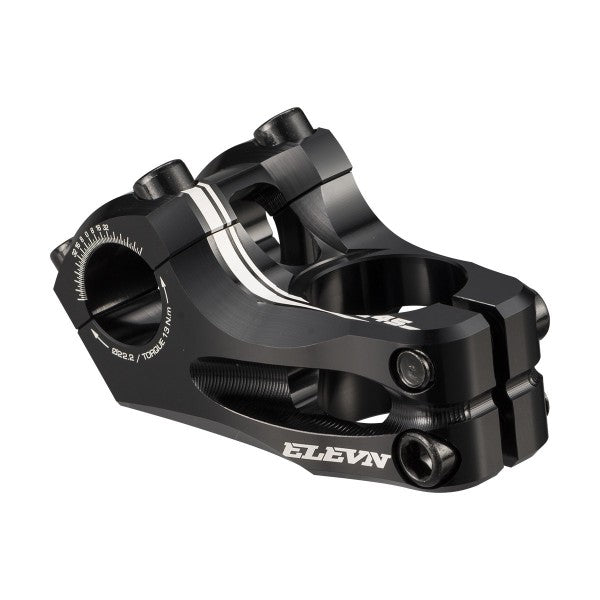

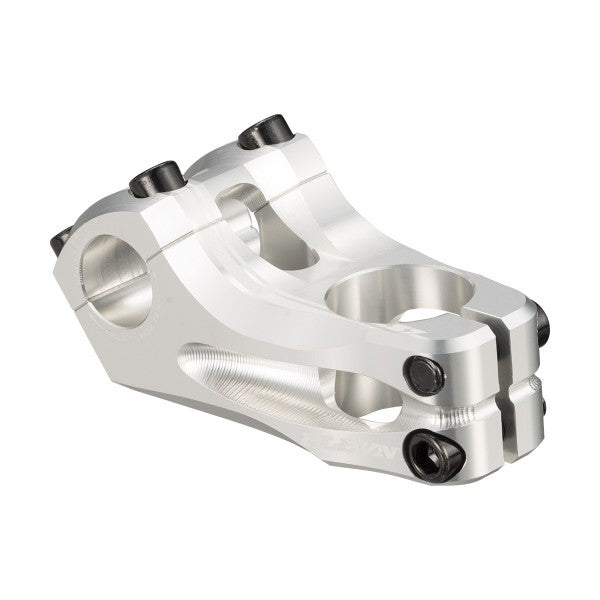

The Elevn 22.2mm Overbite Stem is a top-load BMX race stem for standard 22.2mm bars and 1-1/8" steerer forks, offered here in Black or Polish. It's CNC-machined from 6061-T6 aluminum with a low 31mm stack, laser-etched bar alignment gauges and a minimal-weight top cap system, in five reach lengths from 45mm to 60mm.

Features

• CNC-machined 6061-T6 aluminum with beveled edges and a rounded profile
• 31mm stack height for a lower bar position
• Laser-etched alignment gauges to center your bars without measuring
• 12.9 grade steel M8 bolts with 6mm Allen heads for strong clamping
• 29.93mm rise, the same across every length

Specs

• Bar clamp: 22.2mm
• Steerer: 1-1/8" only
• Material: 6061-T6 aluminum
• Clamping type: Top load
• Bolts: 12.9 grade steel, M8 x 1.25 x 25mm, 6mm Allen head
• Steerer clamp: 2 bolts
• Bar clamp: 4 bolts
• Stack height: 31mm
• Rise: 29.93mm
• Lengths: 45mm, 50mm, 53mm, 57mm, 60mm
• Colors: Black, Polish
• Weight: 45mm (226g / 7.97oz) | 50mm (235g / 8.3oz) | 53mm (241g / 8.5oz) | 57mm (250g / 8.8oz) | 60mm (258g / 9.1oz)

Fitment

Fits standard 22.2mm BMX handlebars and 1-1/8" steerer forks. Not compatible with oversized 31.8mm bars or 1" steerers.
