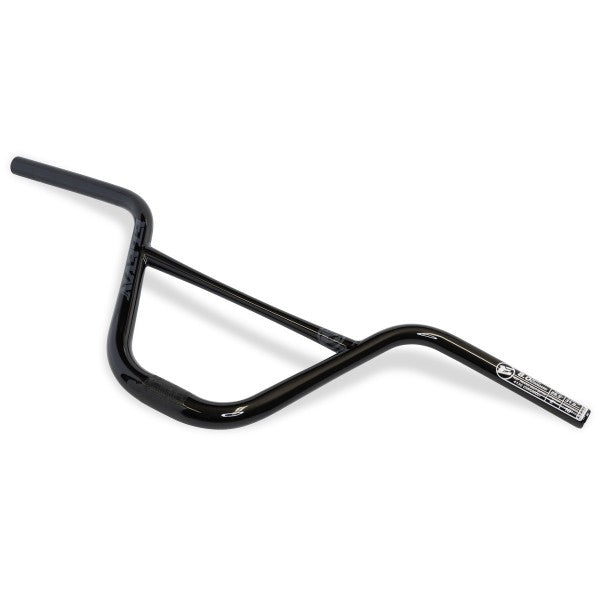

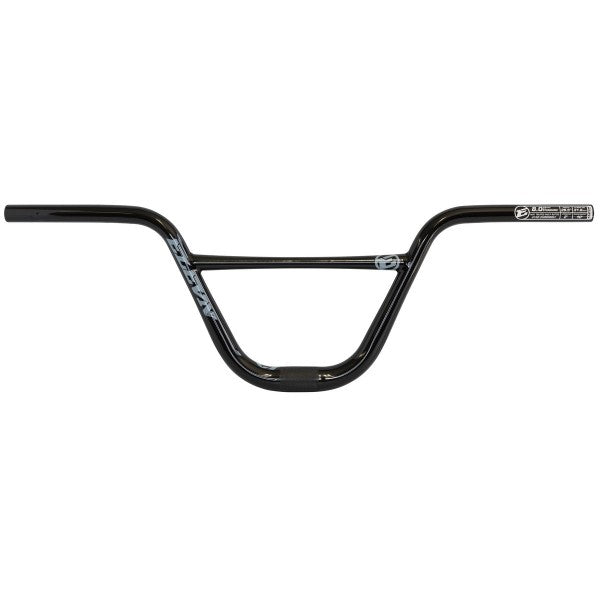

Elevn 31.8 Standard 8.0" Handlebars

Product Overview

The Elevn 31.8 Standard is a 4130 chromoly handlebar designed for BMX racing and cruiser applications with 31.8mm stem compatibility. Built on championship-winning geometry from Elevn's proven 22.2 line, it delivers a taller 8.0" rise with traditional sweep angles for comfort and control. The larger clamp diameter provides a stiffer front-end feel compared to standard-diameter bars, ideal for riders prioritizing responsive handling.

Key Features

• 100% 4130 heat-treated chromoly – Aerospace-grade steel tubing provides superior strength, impact resistance, and durability compared to aluminum
• Post-weld heat treatment – Thermal treatment after welding strengthens chromoly welds and tubing for maximum durability under racing loads
• 13-stage variable butting and tapering – Strategic material thickness throughout the bar length reinforces high-stress zones (clamp and bend areas) while reducing weight where possible
• Swedge design cross bar – Reinforced center cross bar with optimized profile adds structural rigidity and improves overall bar stiffness for responsive feedback
• 31.8mm clamp diameter – Larger clamping surface integrates with 31.8mm stems to eliminate adapter sleeves and create a more rigid cockpit interface
• Championship-winning geometry – Proven bend angles derived from Elevn's successful 22.2 racing bars, adapted for larger diameter
• Traditional SLT sweep geometry – 10° back sweep and 2° up sweep create a comfortable, familiar hand position that promotes control during racing
• 8.0" rise – Tall profile positions your body upright for maximum leverage, comfort, and visibility during extended racing sessions and jumping
• 28.5" width – Wide stance provides stability and body positioning control throughout technical sections and turns
• Alignment helper – Knurled section with Elevn "E" graphic includes a reference line to realign bars with stem for consistent positioning after removal
• Durable graphics – Multiple color options (black base with white, blue, red, grey, sand, slate, or teal) with specification graphics remain visible on grip area
• Lightweight at 820g – Optimized tubing construction minimizes handlebar weight without sacrificing strength or stiffness

Technical Specifications

• Material: 4130 heat-treated chromoly steel
• Clamp diameter: 31.8mm
• Grip diameter: Standard 22.2mm
• Rise (height): 8.0" (203.2mm)
• Width: 28.5" (723.9mm)
• Back sweep: 10°
• Up sweep: 2°
• Cross bar design: Swedge design for added stiffness
• Tubing construction: 13-stage variable butting and tapering
• Weight: 820g (28.92 oz)

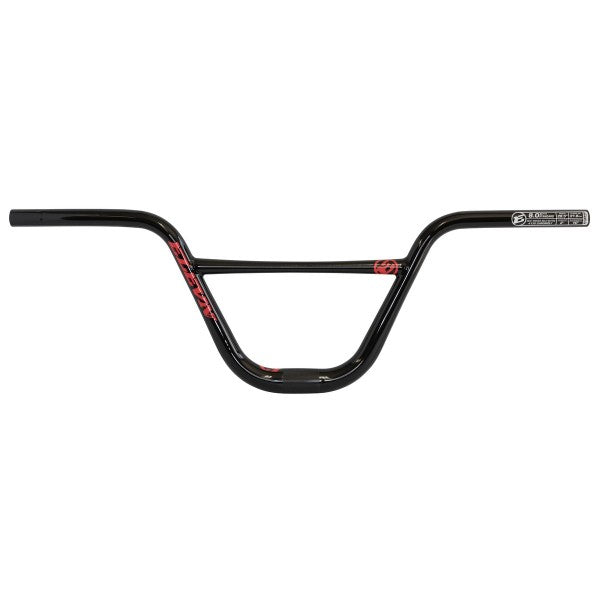

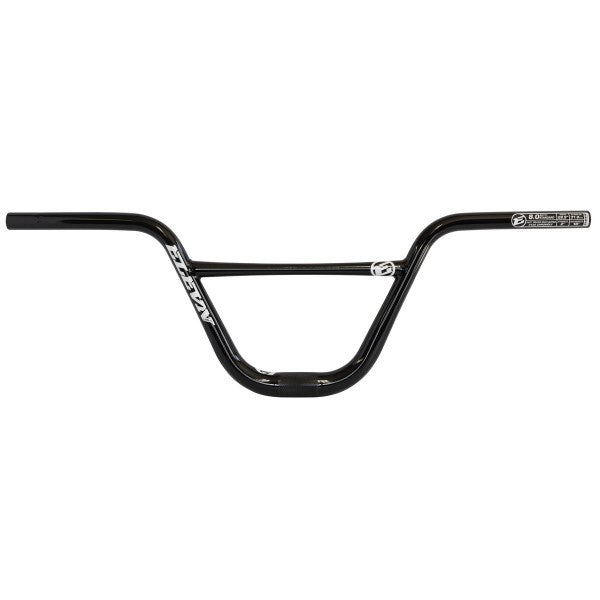

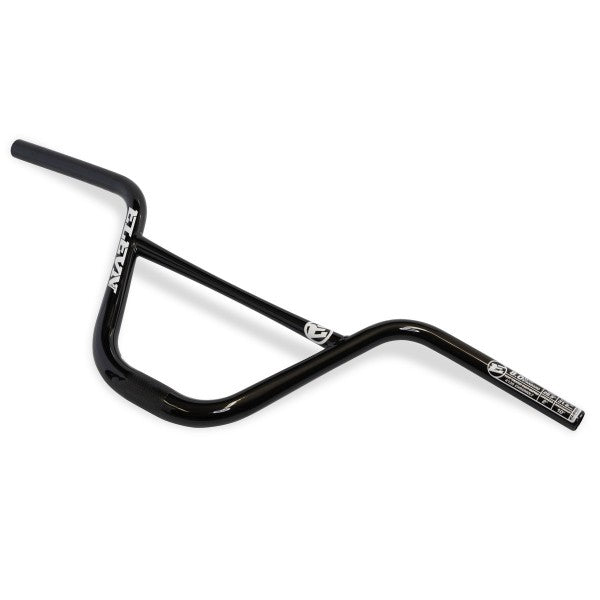

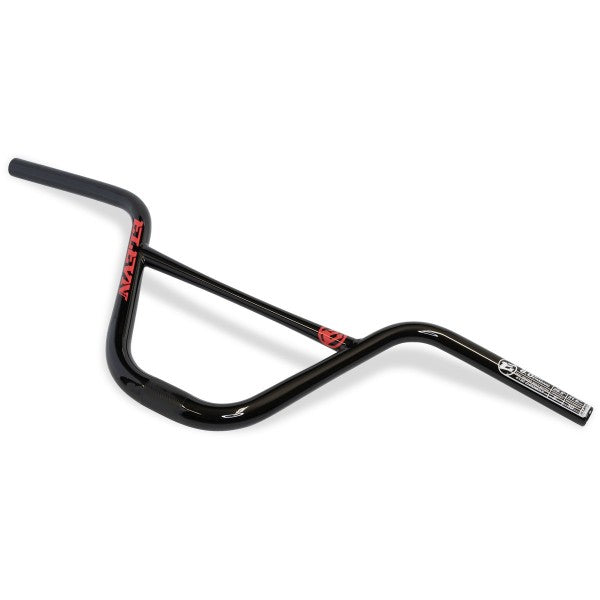

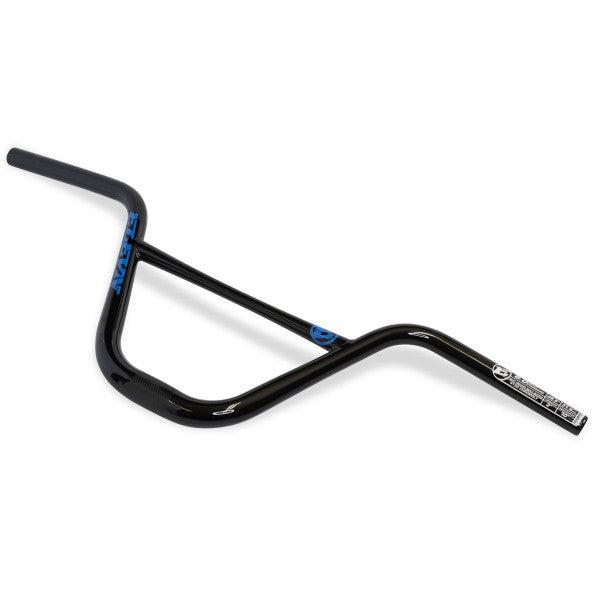

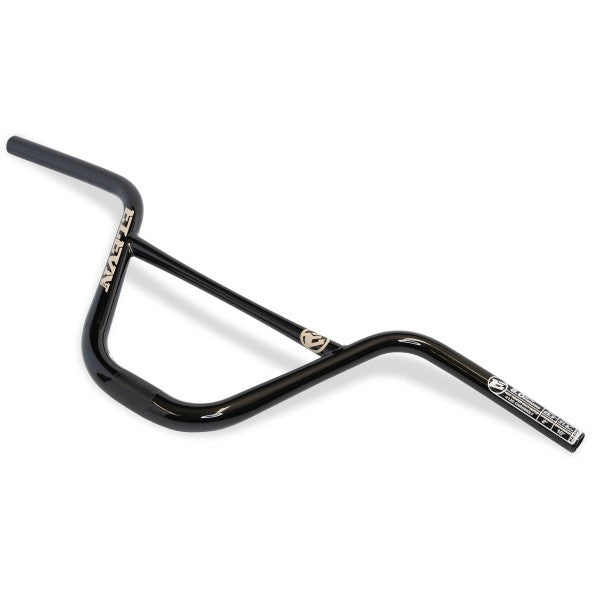

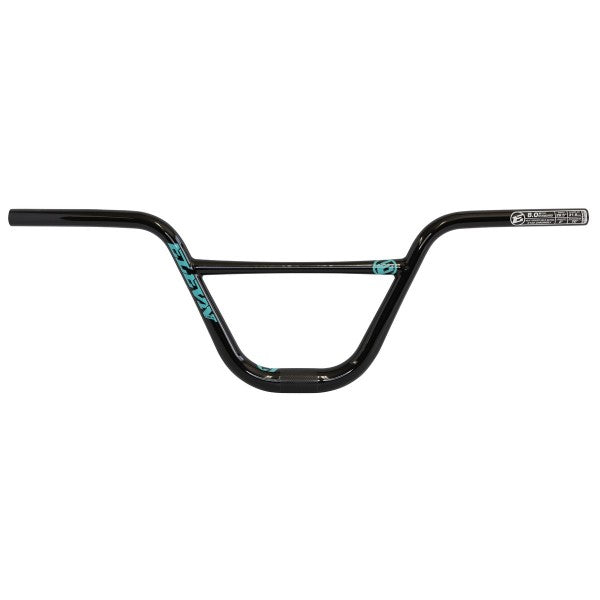

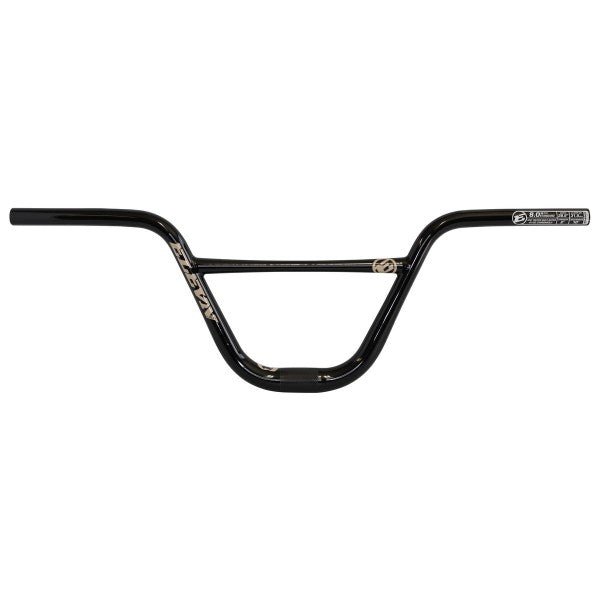

• Available colors: Black with white, blue, red, grey, sand, slate, or teal graphics
• Finish: Post-weld heat-treated chromoly with specification graphics on grip area

Compatibility & Ideal Use Cases

This bar fits any 31.8mm clamp stem and is designed for BMX cruiser racing and riders seeking an upright, tall cockpit position. The 31.8mm clamp diameter creates a stiffer interface compared to 22.2mm bars, benefiting riders who prioritize responsive feedback and minimal flex. The extra rise suits riders seeking maximum upright positioning for comfort during extended track sessions and jumping. The chromoly construction makes it ideal for heavier riders and those demanding maximum durability in aggressive racing. Best suited for racers prioritizing control, comfort, and a stable riding position over minimal weight. Compatible with all standard 31.8mm stems and clamps designed for BMX cruiser applications.

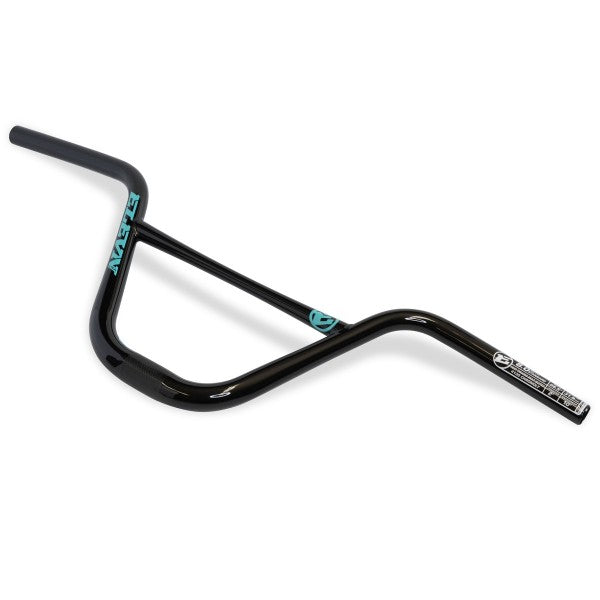

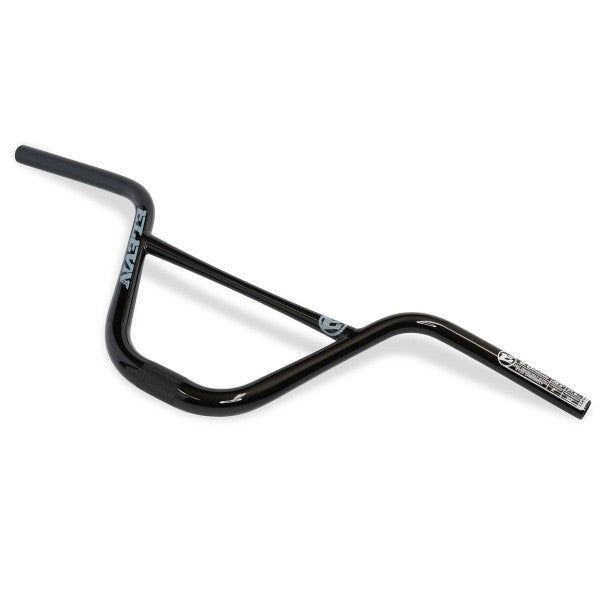

Colors: Black with White, Blue, Red, Grey, Sand, Slate and Teal graphics, with white specification graphics on bar grip area.
