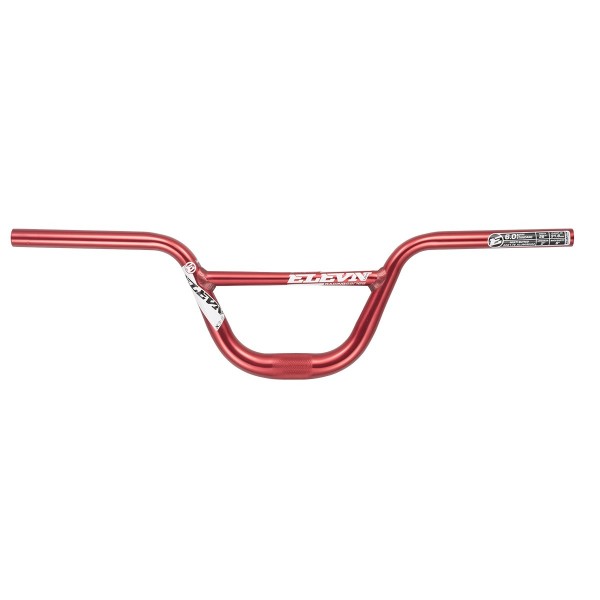

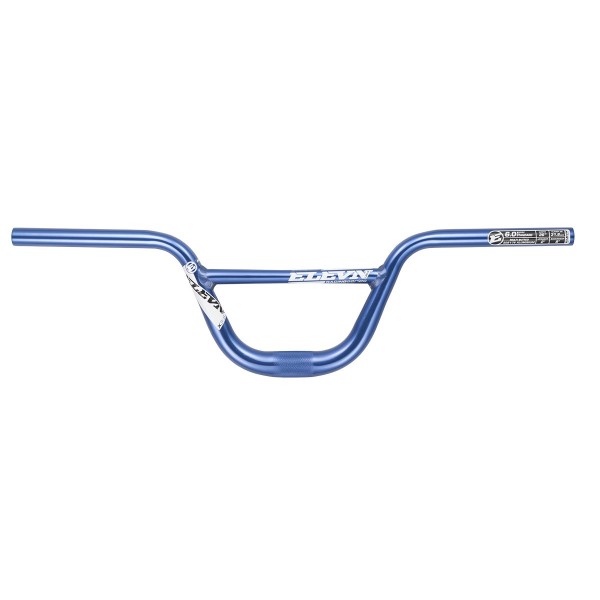

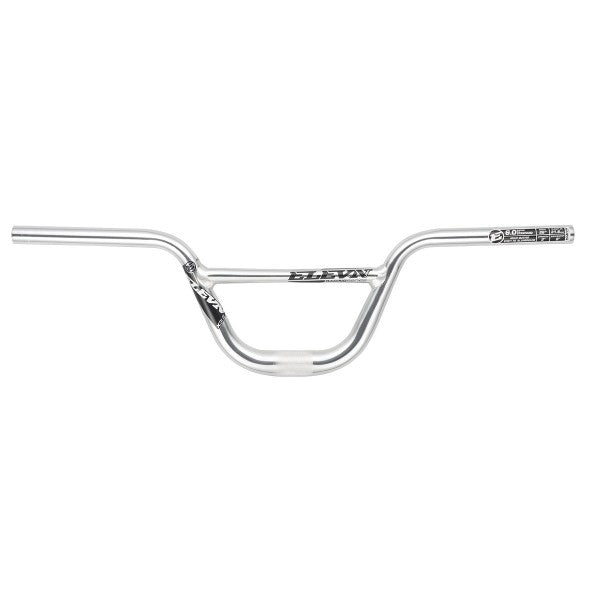

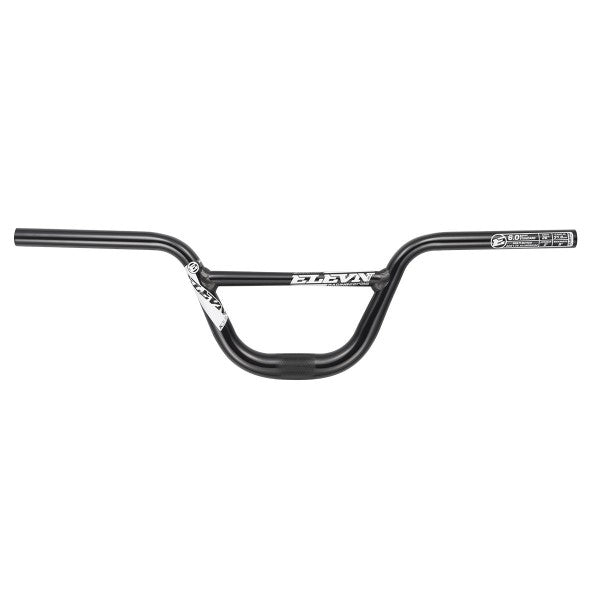

Elevn 31.8mm Alloy Handlebar 6.0"

Product Overview

The Elevn 31.8mm alloy handlebar is a lightweight BMX bar built from 6061-T6 aluminum with tapered and multi-butted tubing. Designed to deliver both strength and minimal weight, it provides a stiff, responsive front end while maintaining control and durability. The 31.8mm clamp diameter integrates seamlessly with modern stems and clamps for a rigid cockpit setup.

Key Features

• 6061-T6 aluminum alloy - Industry-standard aerospace-grade aluminum provides excellent strength-to-weight ratio and corrosion resistance
• Tapered and multi-butted tubing - Tubing diameter varies along the bar length, using thicker material at high-stress clamp and bend zones while reducing weight in lower-stress areas
• 31.8mm clamp diameter - Standard modern clamp size ensures compatibility with current stem designs and eliminates the need for adapter sleeves
• Optimized geometry - 8° back sweep and 2° up sweep position your hands naturally for control and comfort during technical riding
• Stiff front end feel - The combination of tapered tubing, solid aluminum construction, and precise geometry creates responsive bar feedback without flex
• Lightweight construction - 438g total weight keeps your cockpit responsive while maintaining structural integrity under stress
• Consistent quality - CNC-precision manufacturing ensures uniform wall thickness and consistent performance across each bar

Technical Specifications

• Material: 6061-T6 aluminum alloy
• Clamp diameter: 31.8mm
• Height: 6.0" (152.4mm)
• Width: 26" (660.4mm)
• Back sweep: 8°
• Up sweep: 2°
• Weight: 438g (15.45 oz)
• Tubing construction: Tapered and multi-butted
• Rider weight limit: 45kg / 100lbs

Compatibility & Ideal Use Cases

This bar fits any 31.8mm clamp stem and is designed for BMX riders weighing up to 100lbs. It's ideal for racing, park, and street riders seeking a lightweight bar with responsive feel and proven strength. The geometry and weight make it well-suited for technical tricks and precise control. Not recommended for riders exceeding the 100lb weight limit, as the bar is designed specifically for lighter-weight BMX applications. Compatible with all standard 31.8mm stems and clamps.

RIDER WEIGHT LIMIT: 45kg / 100lbs

Features:

• Aluminum 6061 T6 Handlebar.
• Tapered & Multi-butted tubing.
• Clamp size: 31.8mm.
• Height: 6.0’’ (152.4mm).
• Width: 26’’ (660.4mm).
• Back sweep: 8 °.
• Up sweep: 2 °.
• Weight: 438 g / 15.45 oz
• RIDER WEIGHT LIMIT: 45kg / 100lbs
