Elevn 7.0 LT Pro 20" 20mm Tapered Fork

Product Overview

The Elevn 7.0 LT Pro Tapered Fork is a 4130 chromoly racing fork designed for tapered integrated headtube frames (1-1/8" top to 1.5" bottom). It features an integrated fork race for 1.5" bottom bearing, heat-treated construction, and modern 20mm thru-axle compatibility delivering professional-grade performance at 1.09 kg total weight with top cap.

Key Features

• Tapered Steerer Tube (1-1/8" to 1.5") - Precisely stepped steerer accommodates tapered headtube geometry; top diameter fits standard 1-1/8" upper bearing while 1.5" lower section engages tapered bottom bearing

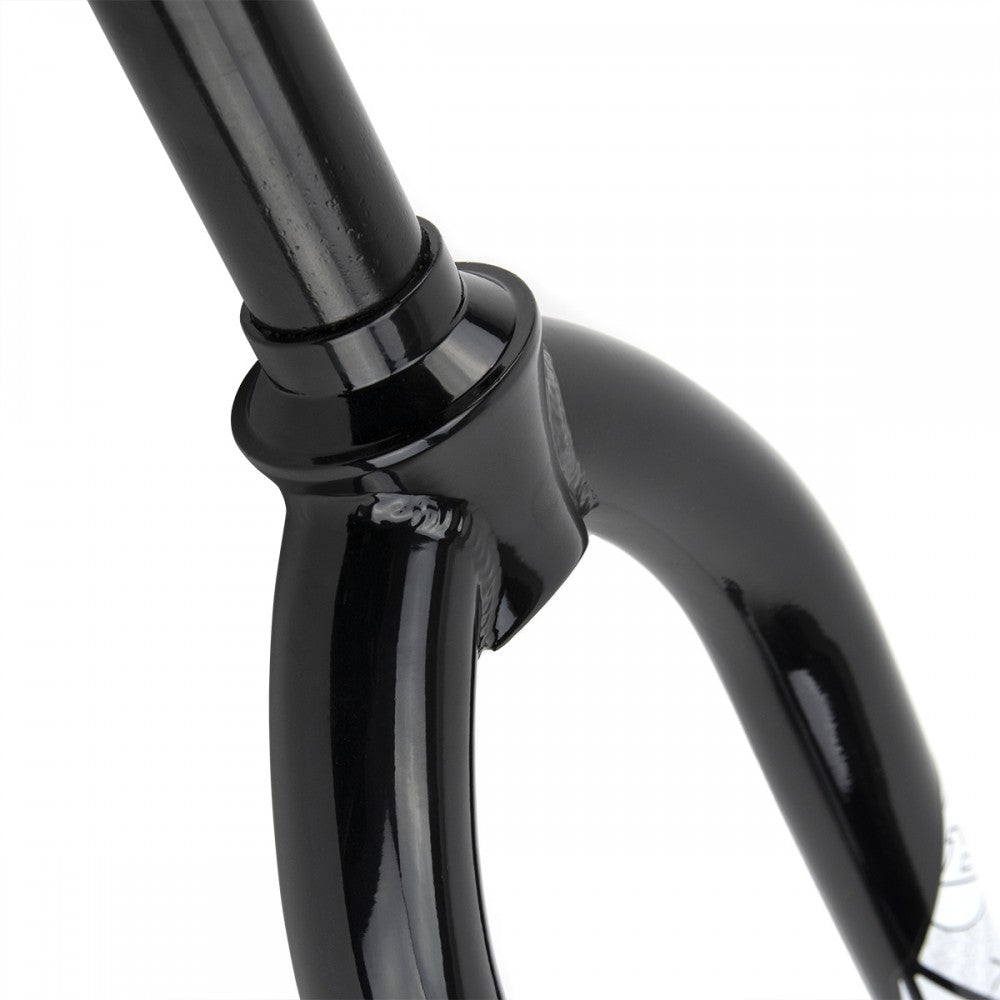

• Integrated Fork Race - Built-in 1.5" bottom bearing race eliminates separate cup component; simplifies headset assembly and improves bearing alignment for consistent steering performance
• 4130 Chromoly Construction - Chrome-molybdenum steel tubing provides proven durability and impact resistance; heat-treated for increased hardness and fatigue resistance
• Threading for Compression Cap - Steerer tube threads accommodate standard compression-style top caps; allows tool-free bearing preload adjustment without stem removal
• Alloy Compression Cap Included - Black anodized aluminum cap included with fork; enables immediate setup without additional purchases
• Double-Butted Tapered Legs - Reinforced tubing at stress points with strategic taper reduces weight in non-critical areas; optimizes strength-to-weight ratio
• 20mm Thru-Axle Support - Modern 20mm dropouts compatible with current-generation BMX hubs and quick-release systems

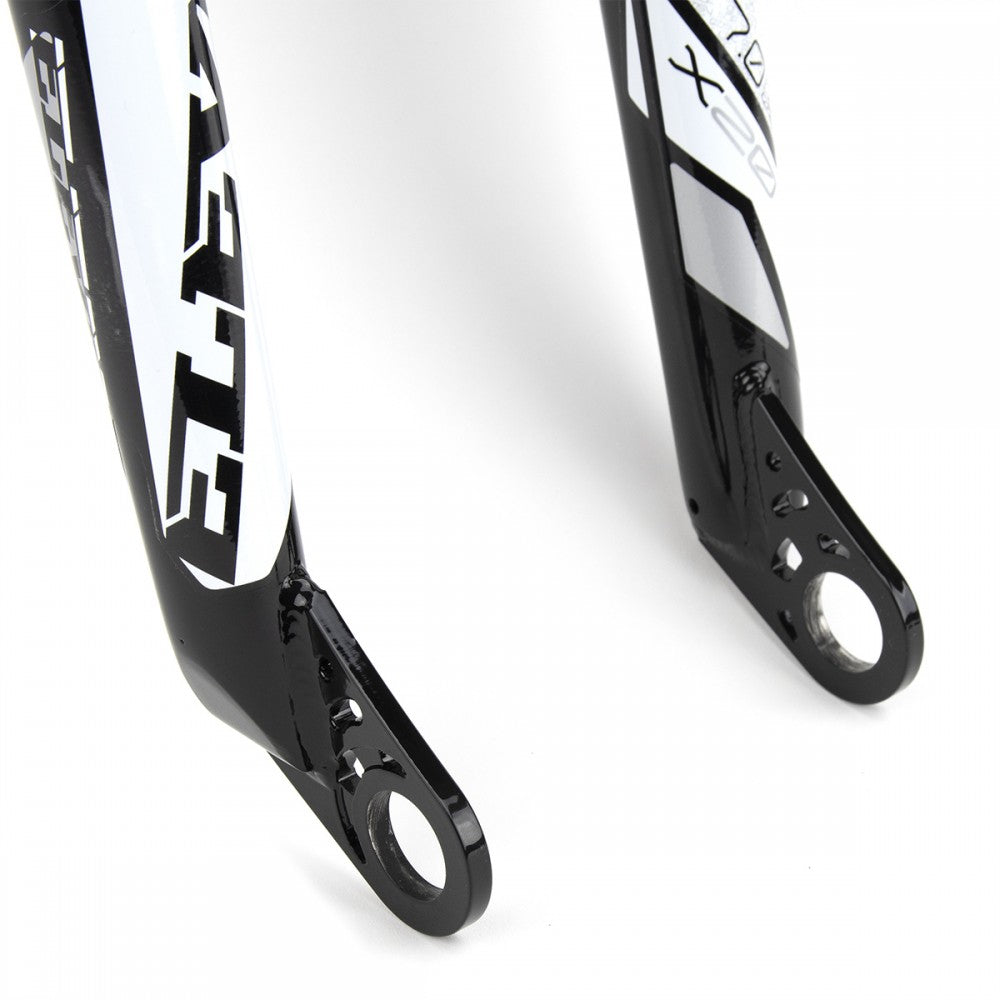

• CNC Machined Dropouts - Precision computer-aided machining ensures consistent geometry and tight tolerances; delivers reliable axle engagement
• 31mm Offset - Optimized rake geometry provides predictable handling characteristics and trail compatibility with tapered headtube frames

Technical Specifications

• Material - 100% 4130 chromoly steel (heat-treated, double-butted legs)
• Steerer Tube - Tapered 1-1/8" top to 1.5" bottom, 173mm length, threaded for compression cap
• Integrated Feature - Built-in 1.5" bottom fork race
• Fork Size - 20" wheels
• Axle Specification - 20mm thru-axle dropouts
• Fork Offset - 31mm
• Axle to Crown - 315mm
• Weight - 1.09 kg (2.4 lbs / 38.5 oz) including top cap
• Finish - Black paint with white graphics
• Included Components - Alloy compression cap (black anodized)

Compatibility and Ideal Use Cases

• Frame Compatibility - Fits only tapered integrated headtube frames with 1-1/8" top and 1.5" bottom bore; not compatible with standard 1-1/8" or external headset frames
• Wheel Size - Designed for 20" wheel BMX bikes; standard wheel size for competitive BMX racing
• Axle Compatibility - 20mm thru-axle dropouts; compatible with modern 20mm hub axles and quick-release systems
• Headset Compatibility - Requires tapered integrated headset designed for 1-1/8" top and 1.5" bottom bearing; integrated fork race simplifies bearing setup
• Rider Level - Engineered for competitive and professional racers with tapered headtube frame setups
• Ideal For - Modern BMX racing frames featuring tapered geometry; UCI-sanctioned events; riders with integrated tapered headtube bikes
• Brake Compatibility - Standard U-brake bosses; compatible with rim brake systems
• Setup Advantage - Integrated fork race and threaded steerer eliminate separate cup and star nut components; simplifies assembly and improves bearing alignment precision
• Durability - Heat-treated chromoly resists fatigue and cracking; can be repaired if bent using proper fork-straightening tools
• Maintenance - Standard chromoly fork care; inspect for cracks or paint damage; heat-treated chromoly offers superior corrosion resistance; bearing preload adjustable via included top cap
• Performance Use - Tapered design and integrated race deliver responsive handling with minimal steering play; optimized for precision racing with modern frame geometry
• Value - Delivers professional-grade tapered fork performance including top cap; modern 20mm axle support and integrated components justify pricing for frame-specific setups
• Not Compatible With - Standard 1-1/8" headtubes, external headset frames, 10mm axle systems, or non-tapered frame geometries
