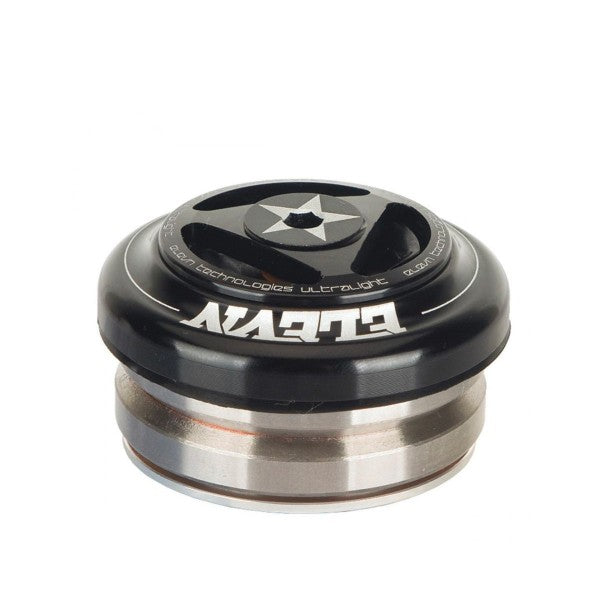

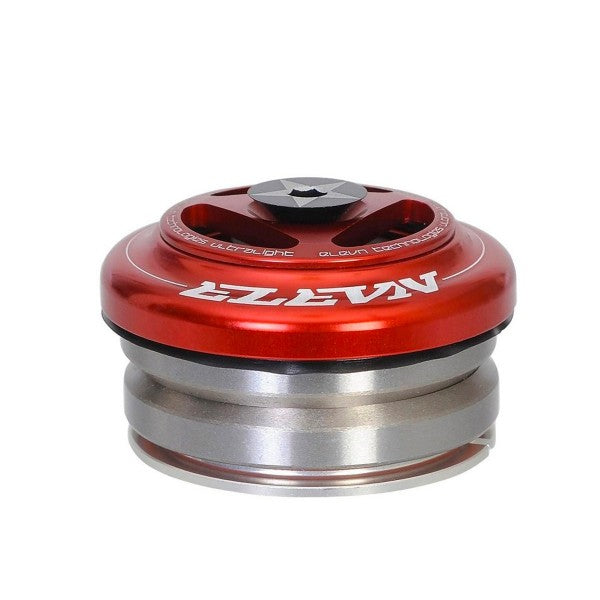

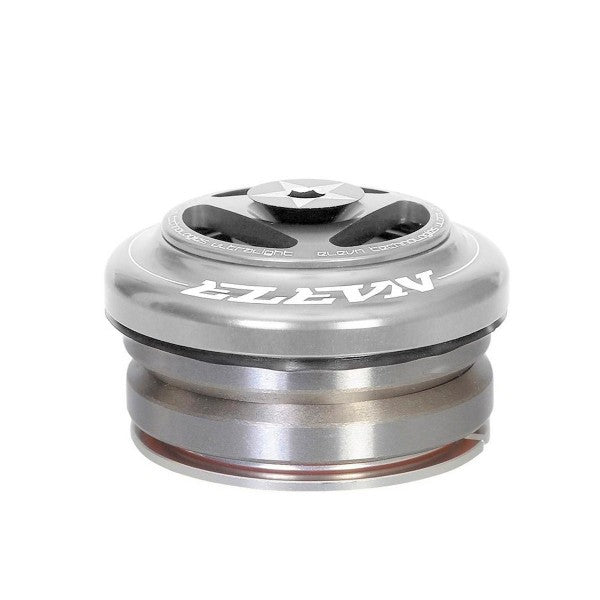

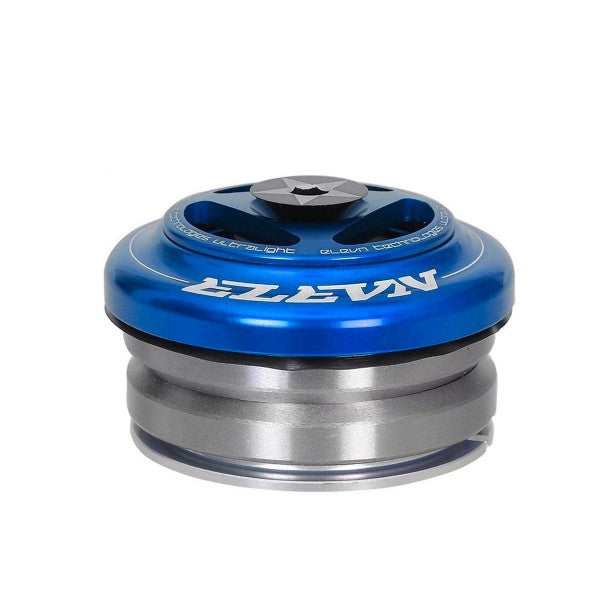

Elevn Integrated Headset 1"

Product Overview

The Elevn integrated headset is a race-focused BMX headset designed for 1" steerer tubes and integrated headset cups. Built with sealed 45/45° bearing geometry and 6061 aluminum construction, it provides smooth steering response and reliable performance across BMX racing, park, and street riding. The sealed bearing design keeps dirt and moisture out while maintaining the low drag characteristics essential for competitive racing.

Key Features

• Sealed 45/45° bearing geometry – Precision ball bearings angled at 45 degrees in both upper and lower cups reduce steering friction while maintaining tight tolerances and smooth rotation
• Sealed bearing design – Integrated seals protect internal bearings from dirt, moisture, and contamination during outdoor riding, extending service life and reducing maintenance
• 6061 aluminum construction – CNC-machined aluminum cups provide lightweight strength without adding unnecessary weight to your cockpit
• Integrated cup design – Press-fit cups work with integrated headset frames and forks, eliminating the need for external cups and creating a cleaner, more streamlined appearance
• 41.8mm external diameter – Compact profile fits standard BMX frame head tubes without modifications or adapters
• Low-profile bearing set – Optimized for quick steering response and minimal drag, critical for racing applications and technical riding
• CNC precision machining – Tight tolerances ensure consistent bearing preload and smooth steering feel throughout the headset's lifespan

Technical Specifications

• Headset type: Integrated (press-fit cups)
• Steer tube size: 1" (standard BMX steerer tubes)
• Bearing configuration: 45/45° sealed bearings (upper and lower)
• Cup material: 6061 aluminum alloy
• External cup diameter: 41.8mm
• Weight: 72g
• Sealed: Yes (sealed bearing design)

Compatibility & Ideal Use Cases

This headset is designed for BMX bikes with 1" steerer tubes and integrated headset cups. It's ideal for BMX racing, where smooth steering and minimal friction are essential for competitive performance. Also suitable for park and street riders seeking reliable, low-maintenance bearing performance. Compatible with standard 1" BMX forks and integrated headset frames; not compatible with threaded or external cup headset systems.
