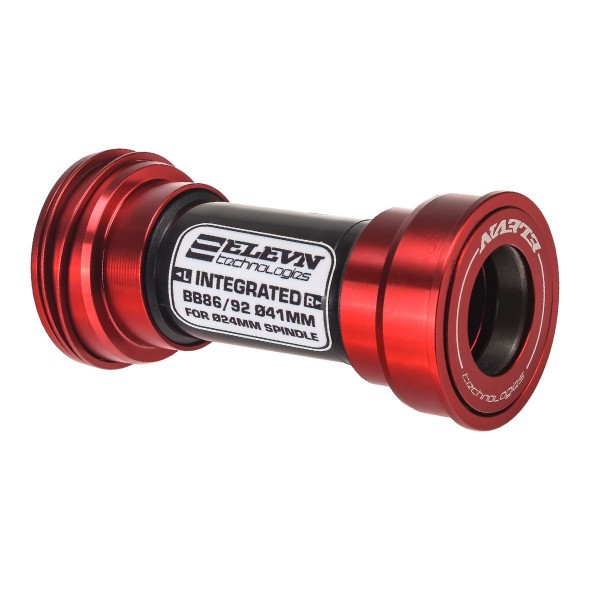

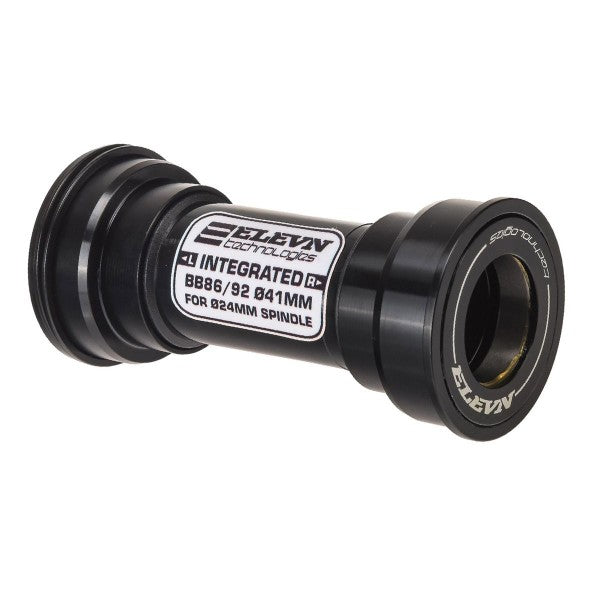

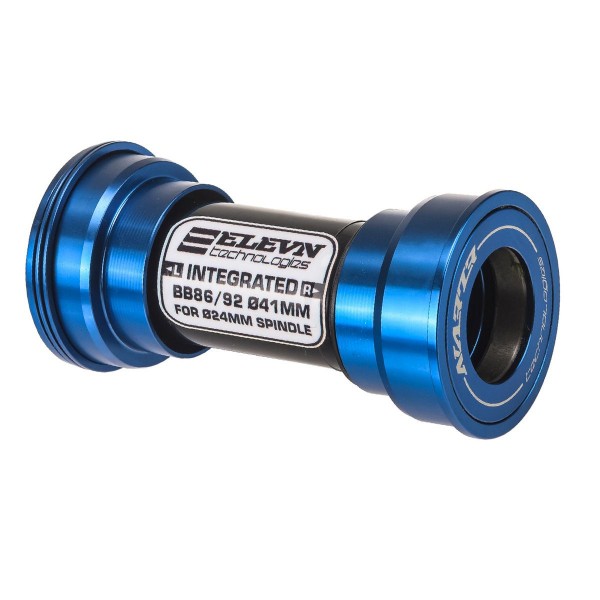

ELEVN PF24 86-92mm Press Fit Bottom Bracket

Product Overview

The ELEVN PF24 is a press fit bottom bracket designed for frames with 86-92mm shell widths and 41mm internal diameter. Featuring sealed cartridge bearings, this bottom bracket accommodates 24mm spindle cranks for modern BMX race and freestyle applications. Provides smooth, low-maintenance bearing performance with press-in installation.

Key Features

• Press fit design – Press-in bearing cups eliminate threaded installation for lighter weight and simplified manufacturing tolerances
• Sealed cartridge bearings – Factory-sealed bearings protect against dirt and moisture while providing smooth, low-friction performance
• 86-92mm shell compatibility – Fits frames with shell widths ranging from 86mm to 92mm using appropriate spacers or shims
• 41mm internal diameter – Standard press fit bore size for modern press fit bottom bracket systems
• 24mm spindle compatibility – Designed for cranks with 24mm diameter spindles—common on modern BMX and mountain bike cranks
• Low-maintenance operation – Sealed bearings require minimal service compared to loose ball or unsealed systems

Technical Specifications

• Brand: ELEVN
• Model: PF24
• Type: Press Fit bottom bracket
• Shell width compatibility: 86-92mm
• Shell internal diameter: 41mm
• Spindle diameter: 24mm
• Bearing type: Sealed cartridge bearings
• Installation method: Press fit (requires bottom bracket press tool)
• Material: Not specified (likely aluminum bearing cups with steel bearings)
• Recommended use: BMX racing, freestyle, modern crank systems

Compatibility and Ideal Use Cases

Critical: This bottom bracket fits frames with press fit bottom bracket shells only—specifically shells with 86-92mm width and 41mm internal diameter. It will NOT fit threaded bottom bracket shells (BSA/English, Italian, etc.) or other press fit standards with different bore sizes. Verify your frame's bottom bracket type, shell width, and internal diameter before ordering. Common frame compatibility includes modern BMX race frames and some freestyle frames using press fit standards. The 24mm spindle compatibility works with cranks featuring 24mm diameter axles—common on many modern BMX, mountain bike, and road bike cranks. This will NOT fit cranks with 19mm, 22mm, or other spindle sizes. Verify your crank's spindle diameter before purchasing. Installation requires a bottom bracket press tool or professional installation—attempting to install without proper tools can damage bearings, cups, or frame. Some frames may require specific spacers or adapters depending on exact shell width within the 86-92mm range—consult frame manufacturer specifications. Ideal for riders upgrading to 24mm spindle cranks on press fit frames, replacing worn bottom brackets, or building modern BMX race bikes with press fit BB standards. The sealed bearing design reduces maintenance and performs well in dusty or wet conditions where unsealed systems would require frequent service. Best suited for racing and riding where the press fit system's weight savings and modern crank compatibility matter. Not compatible with older American/one-piece BB shells or threaded mid BB systems—those require completely different bottom bracket types.
