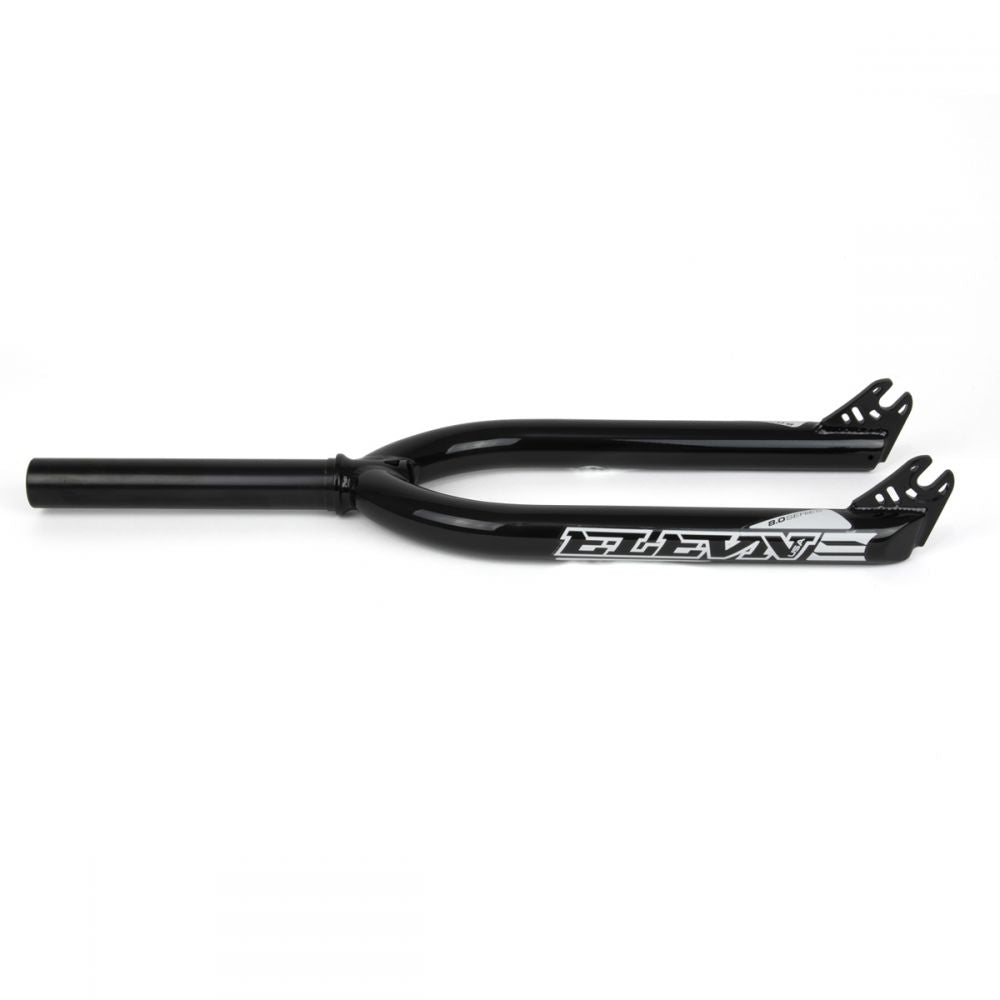

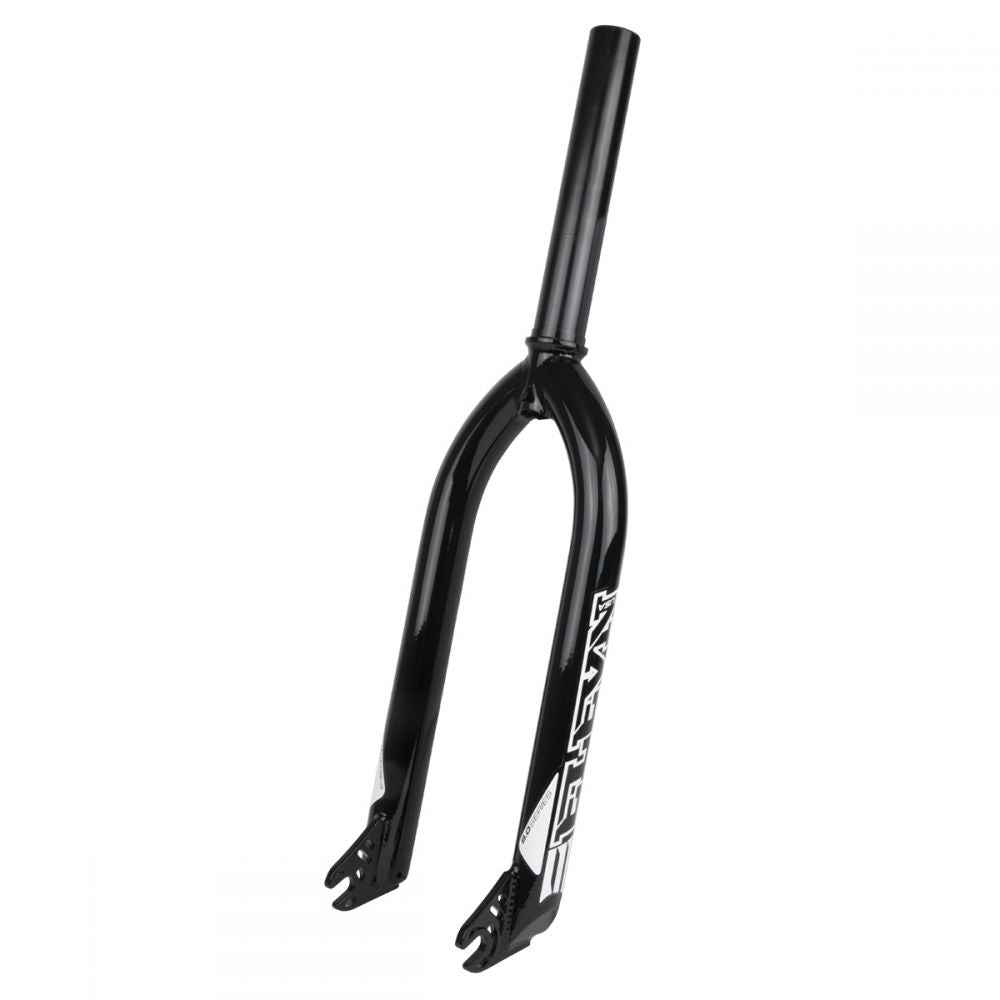

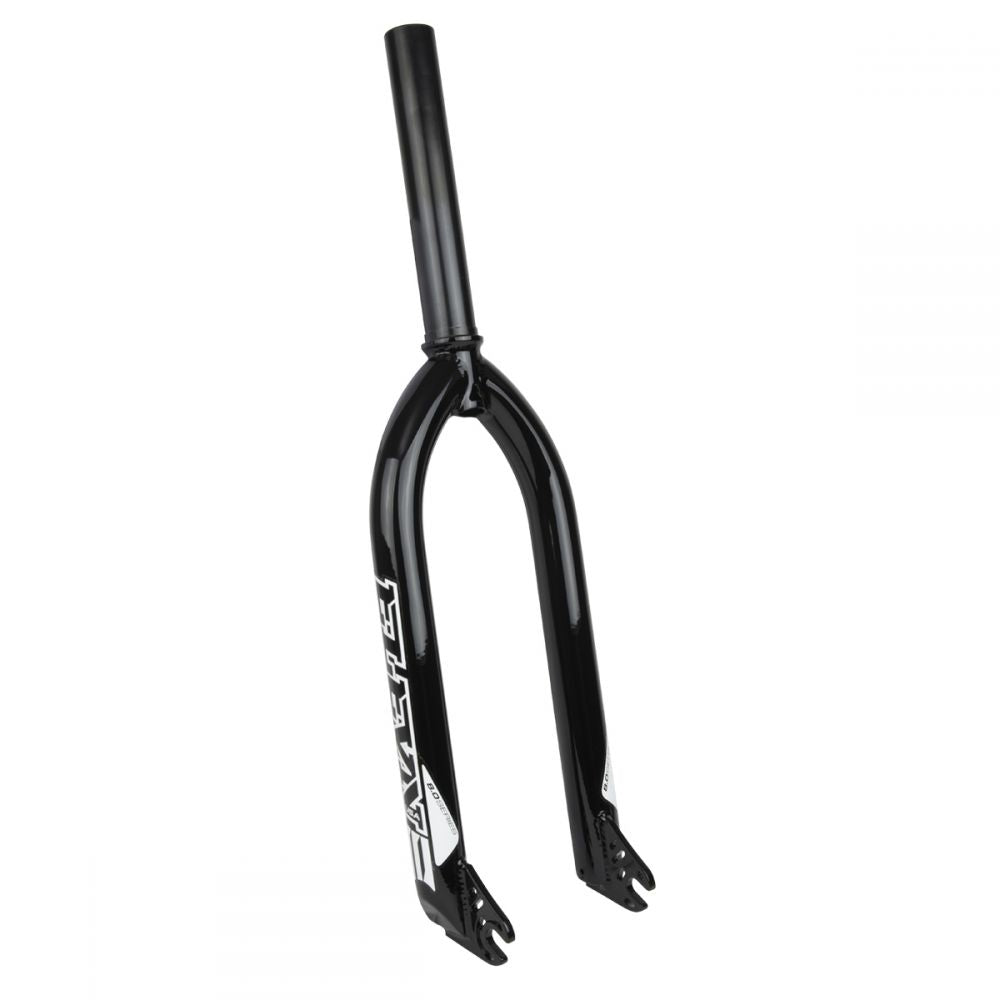

Elevn V2 8.0 Pro 20" 10mm Fork

Product Overview

The Elevn V2 8.0 Pro is a reinforced 4130 chromoly racing fork designed for 20" BMX bikes with 10mm axles. It features double-butted tapered legs, CNC-machined dropouts, and heat-treated construction engineered to handle heavier riders (80+ kg) while maintaining lightweight performance at 821 g.

Key Features

• 4130 Chromoly Construction - Chrome-molybdenum steel tubing provides proven durability and impact resistance; industry-standard material for BMX racing forks across all disciplines
• Reinforced for Heavier Riders - Engineering optimized for riders 80 kg and above; increased wall thickness and tubing diameter provide necessary stiffness and durability under higher loads
• Double-Butted Tapered Legs - Reinforced tubing at stress points with strategic taper reduces weight in non-critical areas; optimizes strength-to-weight ratio without sacrificing stiffness
• CNC Machined Dropouts - Precision computer-aided machining ensures consistent geometry and tight tolerances; delivers reliable axle engagement and eliminates play
• Lightweight Design - 821 g total weight reduces unsprung mass at the front end; improves acceleration and handling responsiveness despite reinforced construction
• 31mm Offset - Optimized rake geometry provides predictable handling characteristics and trail compatibility with standard BMX race frames
• Vinyl Sticker Graphics - Applied graphics add visual detail without added weight

Technical Specifications

• Material - 4130 chromoly steel (double-butted, reinforced, heat-treated)
• Fork Size - 20" wheels
• Steerer Tube - 1-1/8" non-threaded internal, 172mm length
• Axle Specification - 10mm standard dropouts
• Leg Design - Double-butted tapered chromoly blades (reinforced)
• Fork Offset - 31mm
• Weight - 821 g
• Finish - Chromoly with vinyl graphics
• Rider Weight Range - Optimized for 80 kg and above

Compatibility and Ideal Use Cases

• Frame Compatibility - Fits standard BMX race frames with 1-1/8" integrated or threadless headtubes
• Wheel Size - Designed for 20" wheel BMX bikes; standard wheel size for competitive BMX racing
• Axle Compatibility - Standard 10mm dropouts; compatible with 10mm axle quick-releases and bolt-through systems
• Rider Weight - Engineered specifically for heavier riders (80+ kg); reinforced construction handles increased loads and impact forces
• Ideal For - BMX racing, competitive riding, and heavier-weight riders seeking durable chromoly performance without compromising responsiveness
• Brake Compatibility - Standard U-brake bosses; compatible with rim brake systems
• Steerer Setup - Internal steerer tube design integrates cleanly with integrated headset systems; non-threaded interface fits standard BMX headsets; requires separate star nut lock system
• Installation Note - Fork does not include top cap or washer; purchase headset with included star nut and top cap components for complete setup
• Durability - Reinforced chromoly resists fatigue and cracking; can be repaired if bent using proper fork-straightening tools
• Maintenance - Standard chromoly fork care; inspect for cracks or paint damage; chromoly construction provides good corrosion resistance
• Performance Use - Reinforced design maintains stiffness and responsiveness for riders over 80 kg; avoids excessive fork flex during hard racing
• Value - Delivers durable, rider-weight-optimized fork performance at lower cost than carbon alternatives
