Elevn V2 LT Cruiser 24" 10mm Fork

Product Overview

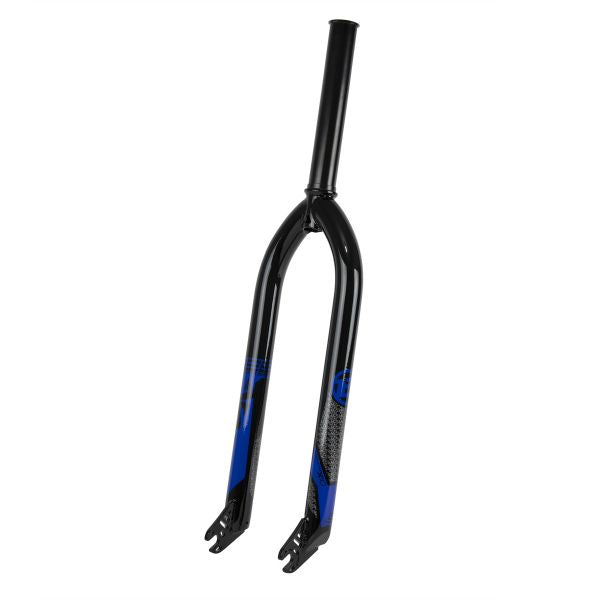

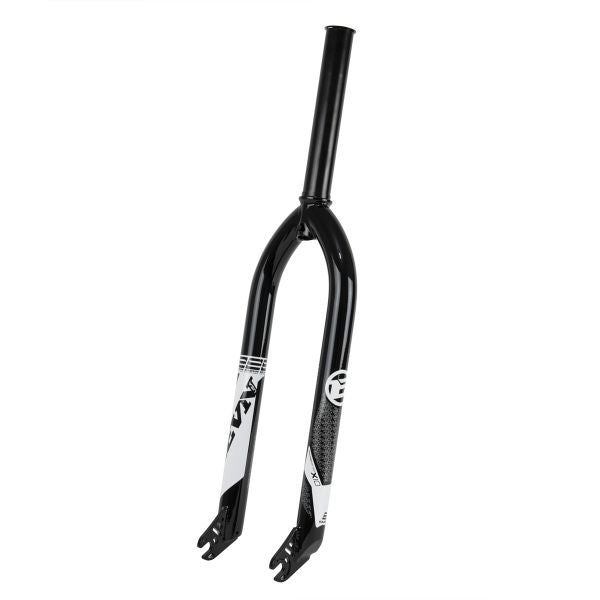

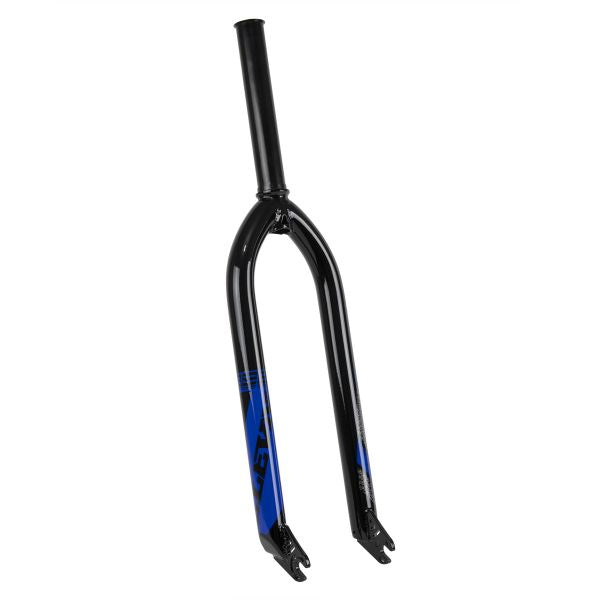

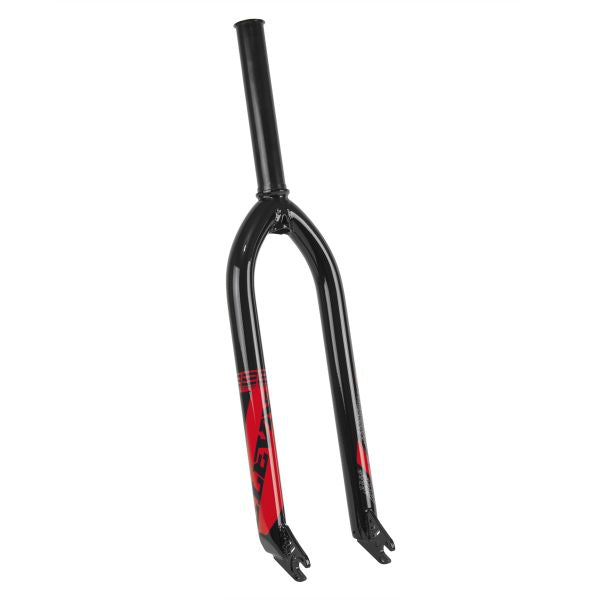

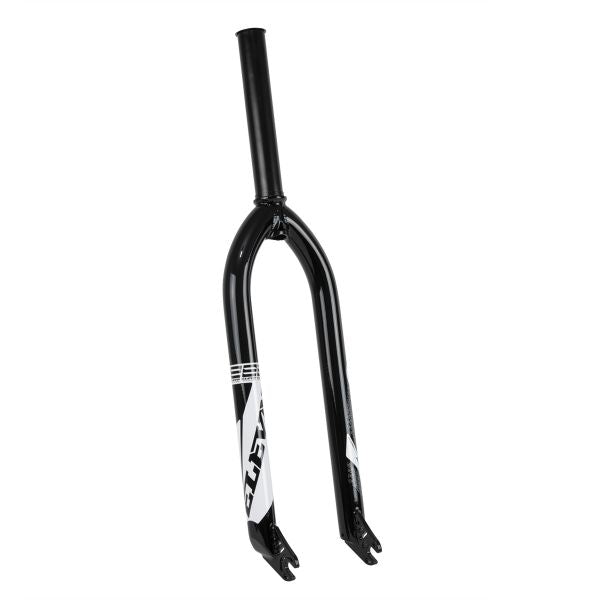

The Elevn V2 LT is a 4130 chromoly BMX racing fork designed for 24" cruiser wheels. Built with double-butted tapered legs, CNC-machined dropouts, and a 1-1/8" internal steerer tube, it delivers the strength and precision required for competitive BMX racing. The 31mm offset and optimized geometry maintain responsive steering while providing the durability needed for high-impact racing applications.

Key Features

• 100% 4130 heat-treated chromoly – Aerospace-grade steel tubing withstands impact and stress better than aluminum, providing reliability and longevity in racing conditions
• Double-butted tapered legs – Variable wall thickness in the fork legs reduces weight while reinforcing high-stress zones near the crown and dropouts
• CNC-machined dropouts – Precision-cut axle slots ensure consistent wheel alignment and secure 10mm axle retention without play or movement
• Heat treatment – Post-weld heat treatment strengthens the chromoly welds and tubing for maximum durability under racing loads
• 1-1/8" internal steerer tube – Non-threaded (integrated) design compatible with modern integrated headsets and eliminates threaded interfaces that can loosen
• 31mm offset – Moderate fork rake provides responsive steering geometry while maintaining stability through turns and jumps
• 172mm steerer tube length – Sufficient length for integration into standard 24" cruiser frames with room for headset and stem setup

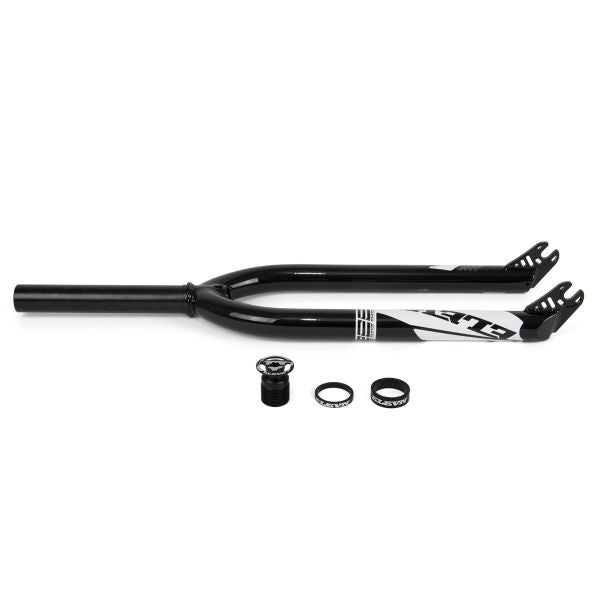

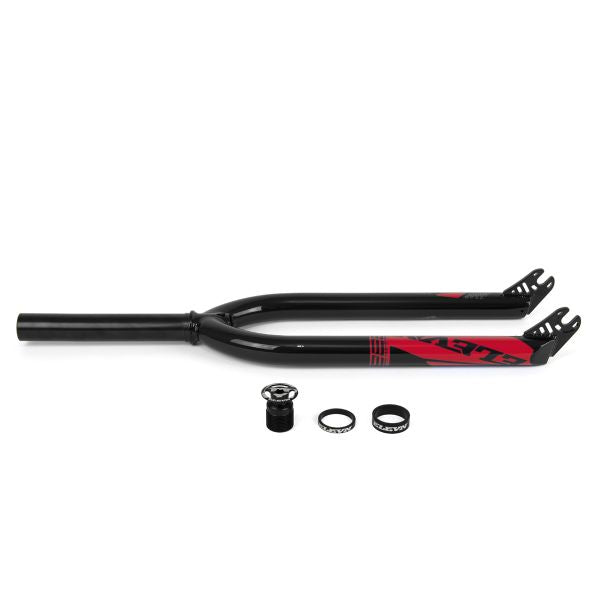

• Included hardware – Sold with top cap and washers for immediate installation into compatible 1-1/8" integrated headsets

Technical Specifications

• Material: 4130 heat-treated chromoly steel
• Wheel size: 24"
• Axle size: 10mm (standard BMX)
• Steerer tube: 1-1/8" non-threaded (integrated)
• Steerer tube length: 172mm
• Fork offset (rake): 31mm
• Leg construction: Double-butted tapered tubing
• Dropouts: CNC-machined
• Weight: 844g
• Included components: Top cap and washers

Compatibility & Ideal Use Cases

This fork is designed for 24" BMX cruiser frames with 1-1/8" integrated headsets and 10mm axle spacing. It's ideal for competitive BMX racing where durability, precise geometry, and responsive steering are essential. The chromoly construction suits heavier riders and those prioritizing strength over minimal weight. Compatible with standard 24" wheels, 10mm axles, and any 1-1/8" integrated headset. Not compatible with threaded headsets or frames requiring 20" or smaller wheels.
