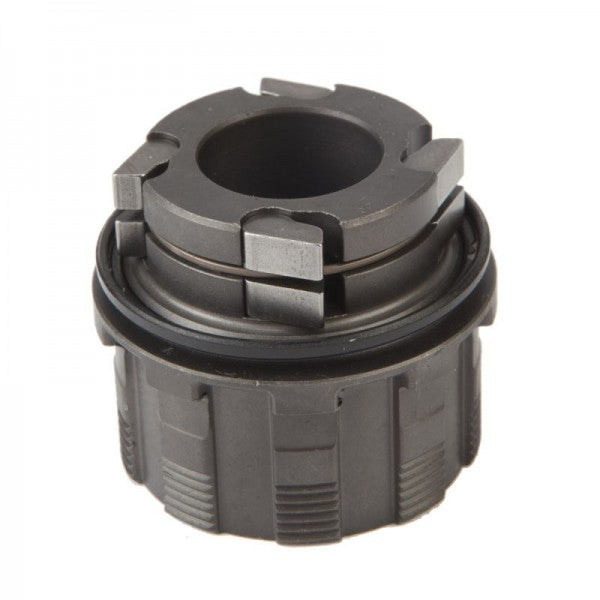

Excess Cromo Cassette Body – Chase Edge Bikes 4 Pawls

Product Overview The Excess Cromo Cassette Body is a replacement freehub body engineered for Chase Edge complete wheels and Excess GT Gen 1 hubs. The chromoly construction with 4 double-pawl engagement system delivers crisp power transfer and reliable ratcheting. The complete unit includes bearings, pawls, and springs—ready for cog installation. Compatible with Shimano-standard cassette cogs across all Chase Edge bike sizes.

Key Features

• Chromoly Construction – Cr-Mo material resists bending and cracking; provides strength and durability for competitive racing and training
• 4 Double-Pawl Engagement System – Four pawls with double-engagement design ensure immediate, responsive power transfer during acceleration and gate starts; crisp ratcheting with minimal freewheeling lag
• Complete Assembly – Includes integrated bearings, pawls, and springs; ready for immediate cog installation without additional component purchases
• Shimano-Standard Cassette Compatible – Works with any Shimano-style rear cog (Excess, Elevn, Shimano, etc.); enables cog swapping and upgrades
• Precision Manufacturing – Engineered to exact Chase Edge specifications for seamless hub body replacement
• Sealed Bearing System – Integrated sealed bearings eliminate water and dirt ingress; reduce maintenance and extend freehub life

Technical Specifications

• Material: Chromoly (Cr-Mo)
• Freehub Type: Cassette body (Shimano-standard threaded)
• Engagement System: 4 double pawls
• Included Components: Bearings, pawls, springs
• Cog Compatibility: Shimano-standard cassette (all brands)
• Hub Compatibility: Excess GT Gen 1 wheels; Chase Edge 2016–2021 hubs (all sizes)
• Quantity: Sold as one complete unit

Additional Components Needed

• Spacers: Sold separately (0.5mm and 1mm options available)
• Lock Ring: Sold separately (Shimano-standard compatible)
• Rear Cog: Sold separately (16T, 17T, 18T, etc.)

Compatibility and Ideal Use Cases

• Fits: Excess GT Gen 1 wheels; Chase Edge complete wheels 2016–2021 (all frame sizes)
• Best For: Cassette body replacement due to wear, damaged pawls, or loss of engagement; freehub upgrade or refresh
• Ideal Riders: All skill levels; those maintaining or upgrading rear hub freehub systems
• Installation Requirement: Intermediate mechanical knowledge; hub disassembly and reassembly needed; spacer and lock ring selection required
• Not Recommended For: Excess XLS hubs (incompatible threading); non-Chase Edge or non-GT Gen 1 hubs; incompatible hub body standards

Installation Notes Remove rear wheel and disassemble hub body from axle. Install new cassette body onto hub axle, aligning splines. Select appropriate spacers (0.5mm and/or 1mm) based on cog thickness. Install selected cog onto cassette body threads. Thread lock ring hand-tight until cog seats firmly. Tighten progressively in alternating directions (left-right) to ensure even clamping pressure. Verify cog rotation is smooth and free before wheel reassembly.

Maintenance Notes The 4 double-pawl system provides reliable engagement across extended riding and racing. Periodically inspect pawl teeth for wear; if engagement becomes sluggish or delayed, the pawl and spring kit can be replaced separately without full cassette body replacement. Sealed bearings require no regular greasing.

Performance Note Double-pawl design delivers immediate, responsive power transfer critical for competitive gate-start racing. The 4-pawl configuration provides redundancy—if one pawl wears, three others maintain full engagement until replacement.

Note Not compatible with Excess XLS hubs. Verify hub model before purchase to ensure proper fitment.
