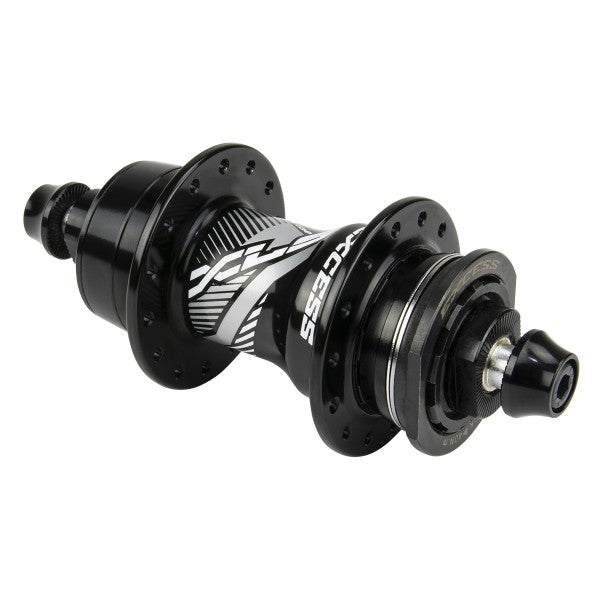

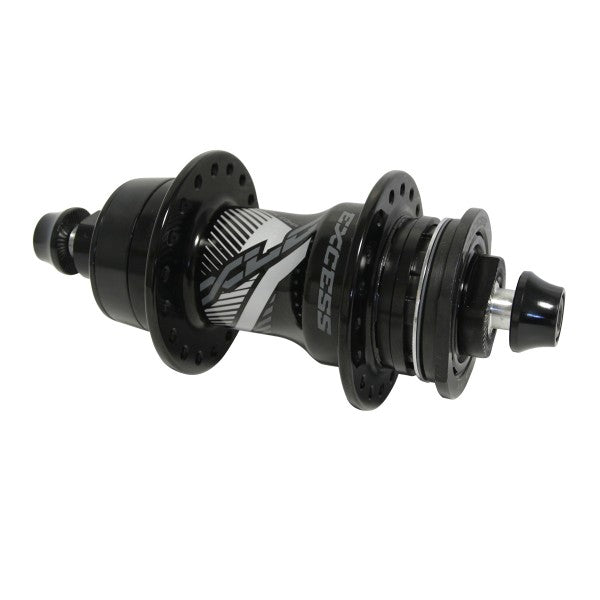

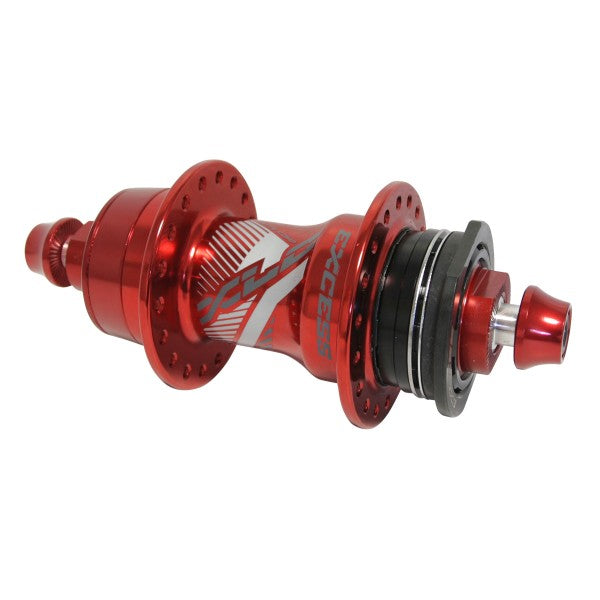

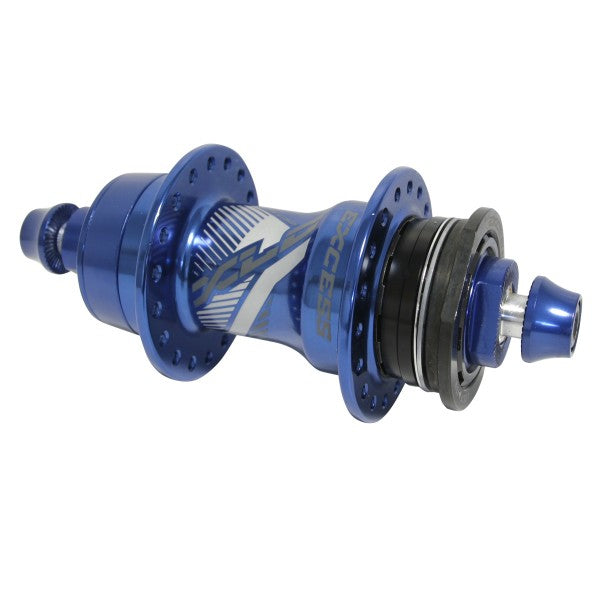

Excess Mini Expert 28h P3x1 R24 Rear Hub

Product Overview

The Excess Mini Expert is a lightweight cassette-style rear hub designed for 20" BMX race wheels in Mini and Expert age classes. Built with a 3-pawl, single-engagement system that locks into a 24-tooth ratchet ring, it provides reliable drive engagement with reduced weight. Features four sealed bearings and an alloy axle for minimal rotational mass.

Key Features

• 3-pawl, 24-ratchet engagement – Single-engagement pawl system locks into a 24-tooth ratchet ring for dependable power transfer with 15-degree engagement intervals

• Four sealed bearings – Cartridge bearings on both axle and driver reduce friction and protect internal components from dirt and moisture

• Alloy axle – Lightweight aluminum axle reduces rotational weight compared to chromoly while maintaining sufficient strength for race applications in younger age classes

• Chromoly driver body – Steel freehub body accepts Shimano-compatible cassette cogs with included chromoly spacers (1.0mm and 0.5mm) for precise alignment and improved durability

• Center Lock disc brake compatibility – Optional Center Lock adapter can replace the standard lock ring to mount disc rotors (adapter sold separately)

Technical Specifications

• Spoke holes: 28h
• Weight: 363 g (12.8 oz)
• Axle diameter: 10mm
• Axle material: Alloy (aluminum)
• Bolt type: M6 with CNC alloy bolt caps
• Bearings: 4 sealed cartridge bearings
• Driver type: Chromoly cassette driver (Shimano-compatible)
• Engagement system: 3-pawl, single-engagement into 24-tooth ratchet ring
• Engagement angle: 15 degrees
• Driver spacers included: 1× 1.0mm chromoly, 1× 0.5mm chromoly, lock ring
• Disc brake option: Center Lock adapter compatible (adapter not included)

Compatibility and Ideal Use Cases

Designed for rear wheels on 20" BMX race bikes using cassette drivetrains in Mini and Expert age classes. The 28-hole drilling pairs with lightweight race rims for reduced rotational weight while maintaining adequate strength for younger riders. Accepts Shimano-compatible cassette cogs from brands including Excess, Elevn, and Shimano (cog sold separately). Best suited for competitive racing where weight reduction improves acceleration and handling for younger riders while maintaining reliable engagement for gate starts. Optional Center Lock adapter allows disc brake rotor mounting. Standard 10mm alloy axle with M6 bolt configuration fits most race frames designed for Mini and Expert classes.

Note: Rear cog and Center Lock disc adapter sold separately.

CENTER LOCK DISC ADAPTER OPTION
Center lock disc adapter and disc sold separately.
