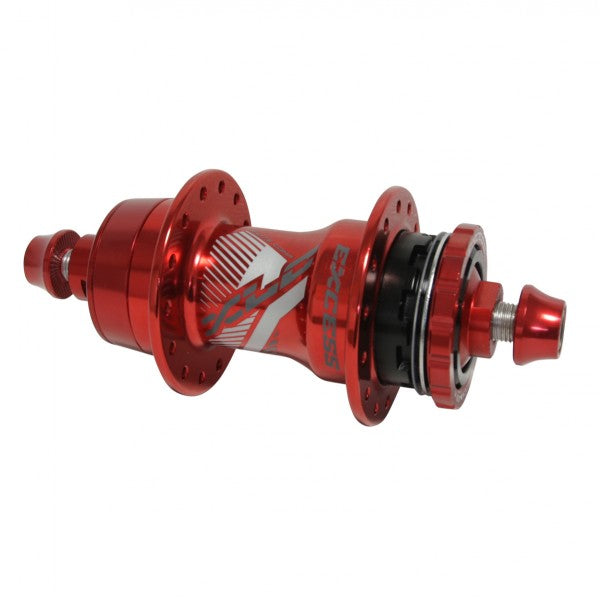

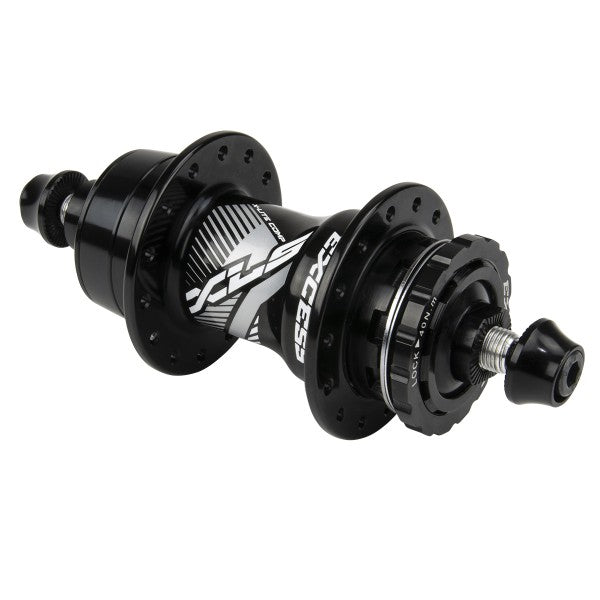

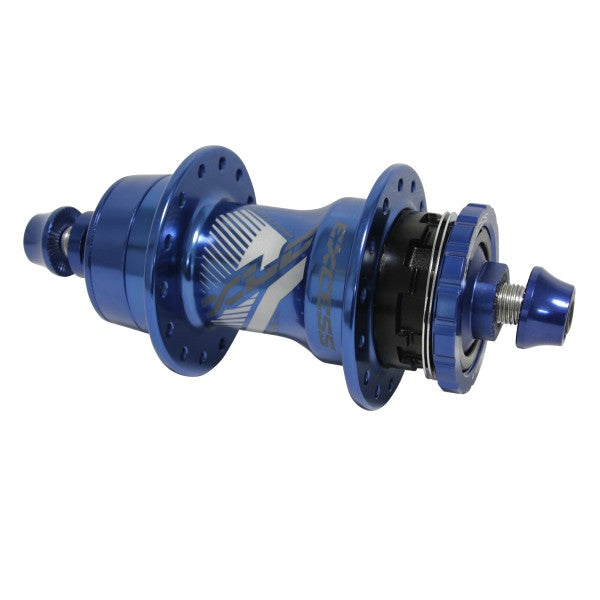

Excess Mini Expert 36h P3x5 R120 Rear Hub

Product Overview

The Excess Mini Expert is a high-engagement cassette-style rear hub designed for 20" BMX race wheels. Built with a 3-pawl, 5-fin engagement system that locks into a 120-tooth ratchet ring, it provides fast engagement for explosive gate starts and instant power transfer. Features four sealed bearings and a lightweight alloy axle for reduced rotational weight.

Key Features

• 3-pawl, 5-fin, 120-ratchet engagement – Each pawl has five engagement fins that lock into a 120-tooth ratchet ring, delivering 3-degree engagement intervals for near-instant drivetrain response

• Four sealed bearings – Cartridge bearings on both axle and driver reduce friction and protect internal components from dirt and moisture

• Alloy axle with M6 bolts – Lightweight 10mm aluminum axle reduces rotational weight compared to chromoly while maintaining sufficient strength for race applications

• Alloy driver body – Lightweight aluminum freehub body accepts Shimano-compatible cassette cogs with included chromoly spacers (1.0mm and 0.5mm) for precise alignment

• Center Lock disc brake compatibility – Optional Center Lock adapter can replace the standard lock ring to mount disc rotors (adapter sold separately)

Technical Specifications

• Spoke holes: 36h
• Weight: 304 g (10.6 oz)
• Axle diameter: 10mm
• Axle material: Alloy (aluminum)
• Bolt type: M6 with CNC alloy bolt caps
• Bearings: 4 sealed cartridge bearings
• Driver type: Alloy cassette driver (Shimano-compatible)
• Engagement system: 3-pawl with 5-fin engagement into 120-tooth ratchet ring
• Engagement angle: 3 degrees
• Driver spacers included: 1× 1.0mm chromoly, 1× 0.5mm chromoly, alloy lock ring
• Disc brake option: Center Lock adapter compatible (adapter not included)

Compatibility and Ideal Use Cases

Designed for rear wheels on 20" BMX race bikes using cassette drivetrains in Mini and Expert age classes. The 36-hole drilling pairs with standard race rims for strong, lightweight wheel builds. Accepts Shimano-compatible cassette cogs from brands including Excess, Elevn, and Shimano (cog sold separately). Best suited for competitive racing where fast engagement and low weight are prioritized for quick gate starts and sprint acceleration. Pairs with Excess 6mm Mini Chain Tensioner for proper chain tension adjustment (tensioner sold separately). Optional Center Lock adapter allows disc brake rotor mounting. Standard 10mm alloy axle fits most race frames with M6 bolt-on dropout configurations.

Note: Rear cog and Center Lock disc adapter sold separately.

CENTER LOCK DISC ADAPTER OPTION
Center lock disc adapter and disc sold separately.
