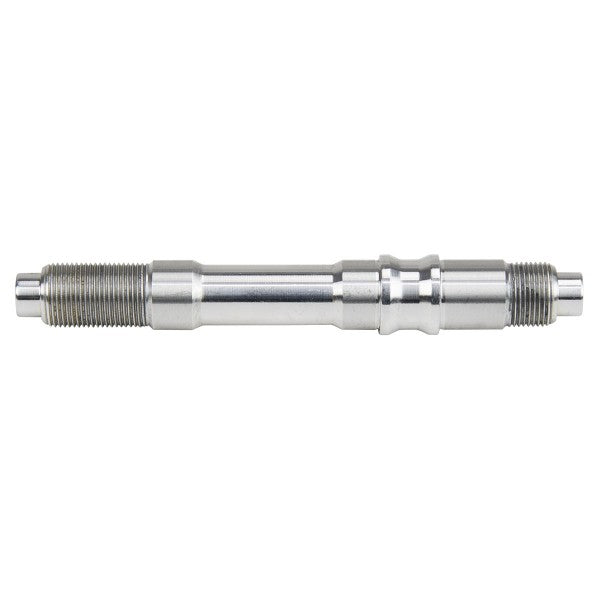

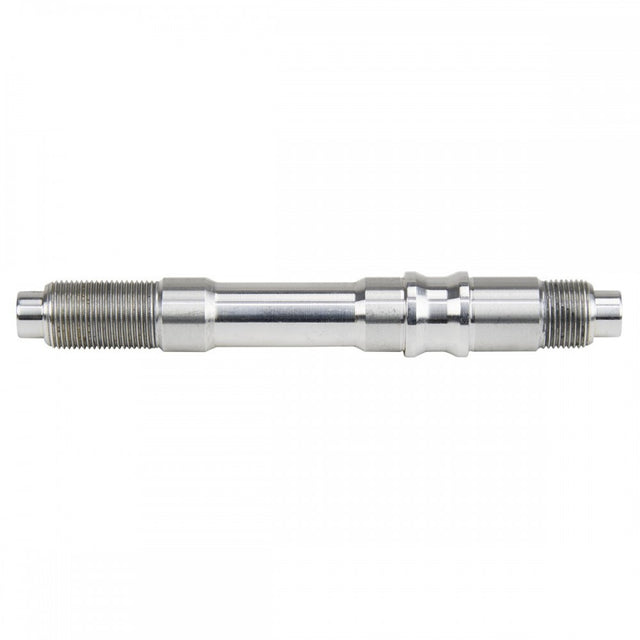

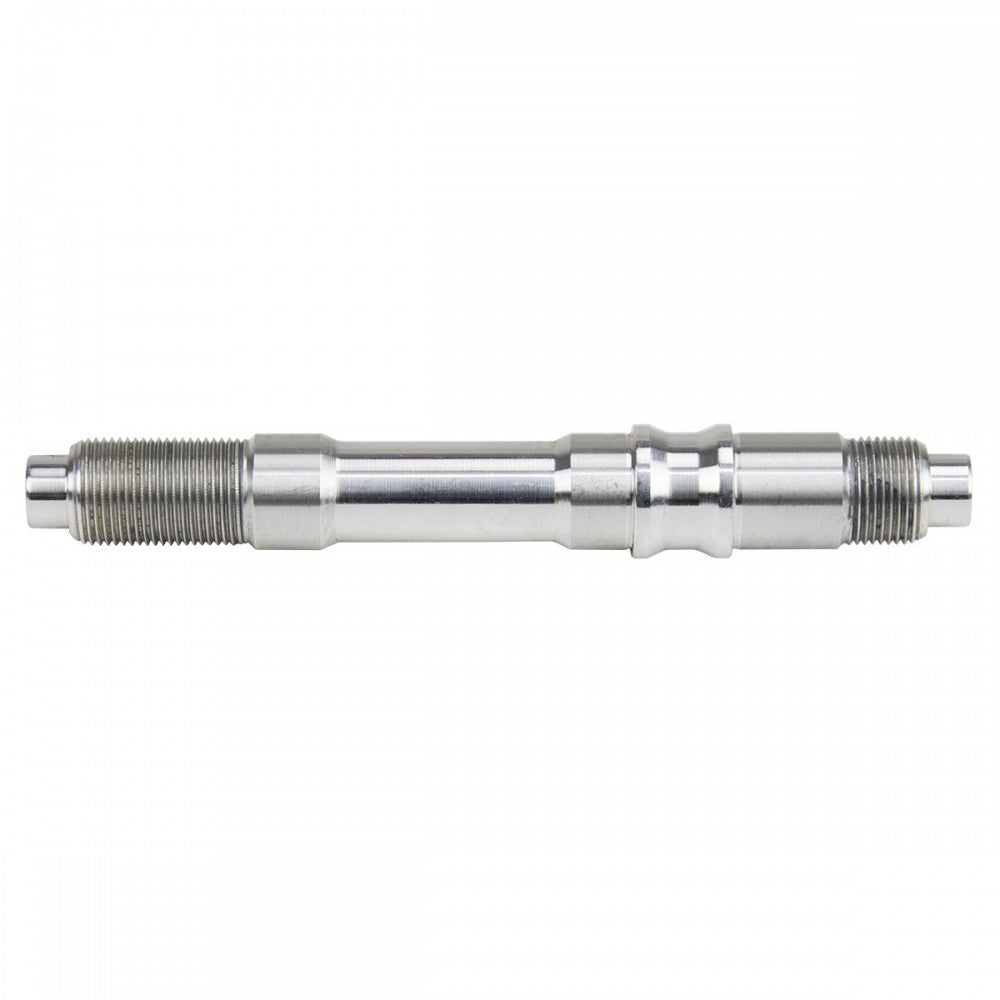

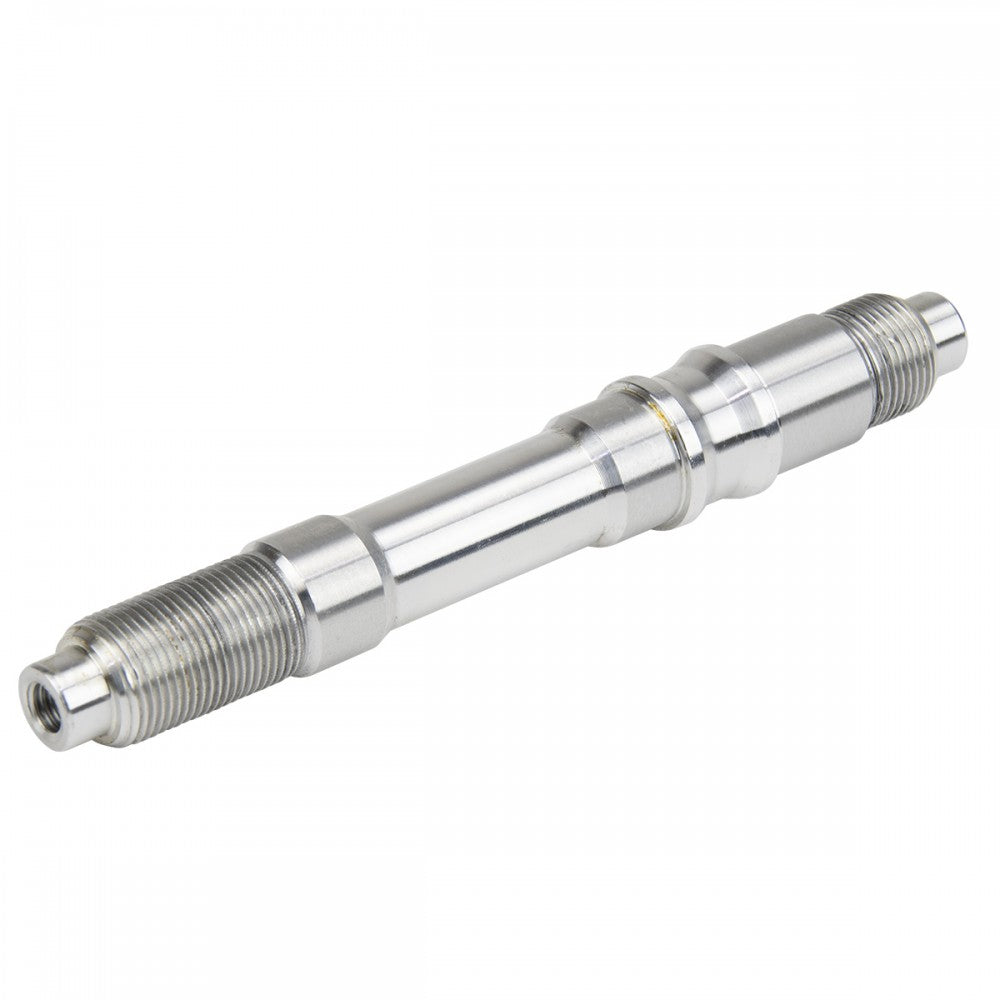

Excess Mini/Expert Alloy Rear M6 Axle For P3x1 R24 Hub

Product Overview The Excess Mini/Expert Alloy Rear M6 Axle is a replacement axle engineered for Excess Mini/Expert P3x1 R24 rear hubs and XLS-1 wheels. The aluminum construction reduces weight while maintaining adequate strength for 24" racing and training. The M6 BTR (bolt through rotor) screw clamping system enables secure wheel retention on modern disc-brake BMX frames.

Key Features

• Aluminum Construction – Lightweight alloy reduces overall wheel and bike weight; resists corrosion and maintains durability for extended use
• M6 BTR Compatibility – Engineered for M6 bolt through rotor screw clamping system; enables secure wheel retention on disc-brake equipped frames
• P3x1 R24 Specific – Precision-engineered for Excess Mini/Expert P3x1 R24 rear hub specifications; ensures proper bearing and hub body alignment
• XLS-1 Wheel Compatible – Direct compatibility with Excess XLS-1 (451 ETRTO) wheel builds
• Direct Replacement – Drop-in compatibility with original Excess Mini/Expert axles; no modification required for installation
• Lightweight Design – Aluminum material contributes to overall weight reduction without sacrificing structural integrity
• Sold Individually – Purchase single axle for rear wheel or as needed for maintenance

Technical Specifications

• Material: Aluminum
• Bolt Standard: M6 BTR (bolt through rotor) screw clamping
• Hub Compatibility: Excess Mini/Expert P3x1 R24 rear hubs only
• Wheel Compatibility: Excess XLS-1 (451 ETRTO) wheels
• Size: Mini/Expert
• Manufacturing: Precision-engineered to Excess specifications

Compatibility and Ideal Use Cases

• Fits: Excess Mini/Expert P3x1 R24 rear hubs; Excess XLS-1 wheels (451 ETRTO)
• Best For: Axle replacement due to bending, cracking, or damage; hub rebuild or reassembly; drivetrain upgrades on 24" bikes
• Ideal Riders: All skill levels; 24" racers and riders maintaining Excess Mini/Expert P3x1 R24 rear hubs
• Installation Requirement: Basic mechanical knowledge; requires removal and installation with M6 BTR bolts; disc rotor installation (if needed)
• Not Recommended For: Other Excess hub models (Pro, XLC-2/XLC-3); non-M6 bolt standards; non-disc brake frames

Installation Notes Remove rear wheel and disassemble axle from hub. Clean axle seat in frame dropouts. Install new axle through frame dropouts and hub body. Thread M6 BTR bolts hand-tight through both dropouts into axle. If using disc rotor, install rotor onto axle before final tightening. Tighten progressively in alternating sequence (left-right-left-right) to ensure even clamping pressure and proper wheel alignment. Final tightness should be snug but not excessive—over-tightening can strip threads or crack dropouts.

Maintenance Notes Check M6 bolt tightness regularly before riding, especially after extended riding sessions or impacts. Loose bolts compromise wheel retention and handling precision. Replace axle if threads become stripped, if axle bends, or if bolts loosen repeatedly despite proper tightening. Verify disc rotor alignment after installation if rotor is installed.

Performance Note Properly installed and tightened axle ensures consistent wheel alignment and eliminates lateral play that can affect steering precision and overall bike control—critical for competitive 24" racing performance.

Compatibility Reminder Compatible with Excess Mini/Expert P3x1 R24 rear hubs and XLS-1 wheels (451 ETRTO) only. Verify your hub model (P3x1 R24) and wheel specification before purchase—incompatible with Alloy P3x5 R120, Pro-size, or other Excess rear hub variants.
