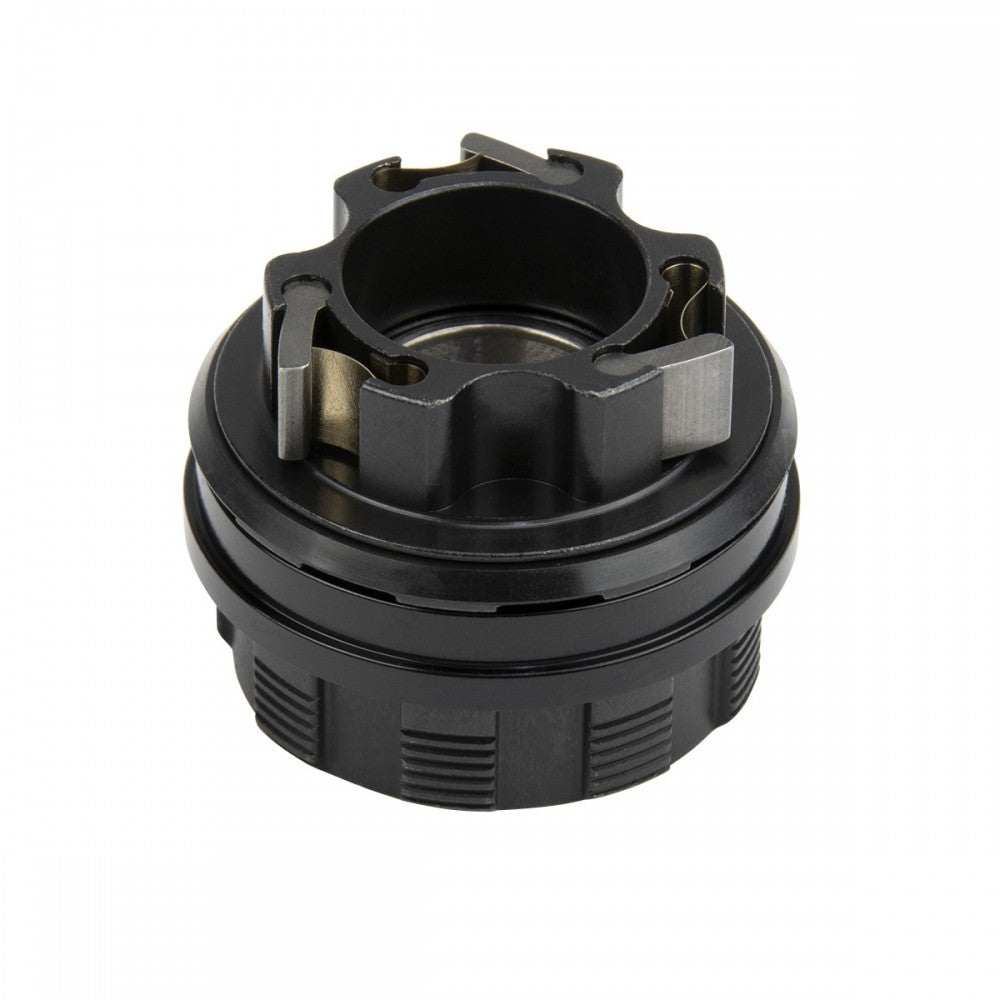

Excess Mini/Expert Cromo Body For P3x1 R24 Hub

Product Overview The Excess Mini/Expert Cromo Body is a replacement cassette body engineered for Excess XLC-1 wheels and Excess Mini/Expert 28H or 36H P3x1 R24 rear hubs. The chromoly construction with 3-pawl engagement system locking into a 24-tooth roller delivers reliable power transfer and smooth ratcheting. The complete unit includes bearings, pawls, and springs—ready for cog installation. Compatible with Shimano-standard cassette cogs.

Key Features

• Chromoly Construction – Cr-Mo material resists bending and cracking; provides strength and durability for competitive racing and training across all rider sizes
• 3-Pawl Engagement System – Three simple pawls engage a 24-tooth roller for immediate, reliable power transfer during acceleration and gate starts
• 24-Tooth Roller Design – 24-tooth engagement provides smooth, responsive ratcheting with minimal lag; suitable for competitive racing and training
• Complete Assembly – Includes integrated bearings, pawls, and springs; ready for immediate cog installation without additional component purchases
• Shimano-Standard Cassette Compatible – Works with any Shimano-style rear cog (Excess, Elevn, Shimano, etc.); enables cog swapping and upgrades
• Precision Manufacturing – Engineered to exact Excess specifications for seamless hub body replacement
• Sealed Bearing System – Integrated sealed bearings eliminate water and dirt ingress; reduce maintenance and extend freehub life
• Mini/Expert Size – Fits both 28-hole and 36-hole Mini/Expert hub configurations

Technical Specifications

• Material: Chromoly (Cr-Mo)
• Hub Size: Mini/Expert
• Freehub Type: Cassette body (Shimano-standard threaded)
• Engagement System: 3 pawls on 24-tooth roller
• Included Components: Bearings, pawls, springs
• Cog Compatibility: Shimano-standard cassette (all brands)
• Hub Compatibility: Excess XLC-1 wheels (451 ETRTO); Excess Mini/Expert 28H or 36H P3x1 R24 rear hubs
• Quantity: Sold as one complete unit

Additional Components Needed

• Spacers: Sold separately (0.5mm and 1mm options available)
• Lock Ring/Cassette Clamp: Sold separately (Shimano-standard compatible)
• Rear Cog: Sold separately (16T, 17T, 18T, etc.)

Compatibility and Ideal Use Cases

• Fits: Excess XLC-1 wheel hubs (451 ETRTO); Excess Mini/Expert 28H or 36H P3x1 R24 rear hubs only
• Best For: Cassette body replacement due to wear, damaged pawls, or loss of engagement; freehub upgrade or refresh on P3x1 R24 systems; 24" wheel maintenance
• Ideal Riders: Competitive 24" racers; riders across all skill levels; Mini and Expert category riders
• Installation Requirement: Intermediate mechanical knowledge; hub disassembly and reassembly needed; spacer and lock ring selection required
• Not Recommended For: Excess Mini/Expert Alloy P3x5 R120 hubs; Excess Pro-size hubs; incompatible hub standards; wheels other than XLC-1

Installation Notes Remove rear wheel and disassemble hub body from axle. Install new cassette body onto hub axle, aligning splines. Select appropriate spacers (0.5mm and/or 1mm) based on cog thickness. Install selected cog onto cassette body threads. Thread lock ring hand-tight until cog seats firmly. Tighten progressively in alternating directions (left-right) to ensure even clamping pressure. Verify cog rotation is smooth and free and engagement occurs immediately without delay.

Maintenance Notes The 3-pawl engagement system provides reliable power transfer across extended racing and training. Periodically inspect pawl teeth for wear; if engagement becomes sluggish or delayed, individual pawl and spring components can be replaced without full cassette body replacement. Sealed bearings require no regular greasing.

Performance Note 24-tooth roller design delivers smooth engagement suitable for riders across all skill levels and disciplines on 24" bikes. Chromoly construction provides durability essential for competitive racing and intensive training.

Compatibility Reminder Compatible with Excess XLC-1 wheels (451 ETRTO) and Excess Mini/Expert 28H or 36H P3x1 R24 rear hubs only. Verify your hub specification matches P3x1 R24 and Mini/Expert size before purchase—incompatible with Alloy P3x5 R120, Pro-size, or other Excess rear hub variants.
