Excess Pro 36h P3x1 R24 Rear Hub

Product Overview

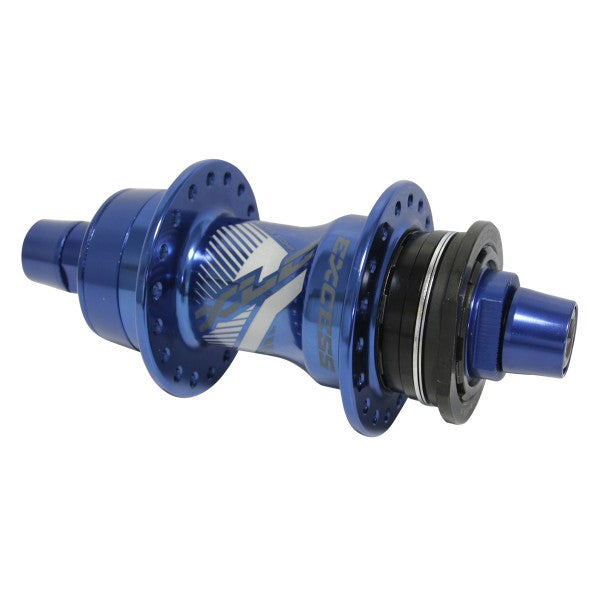

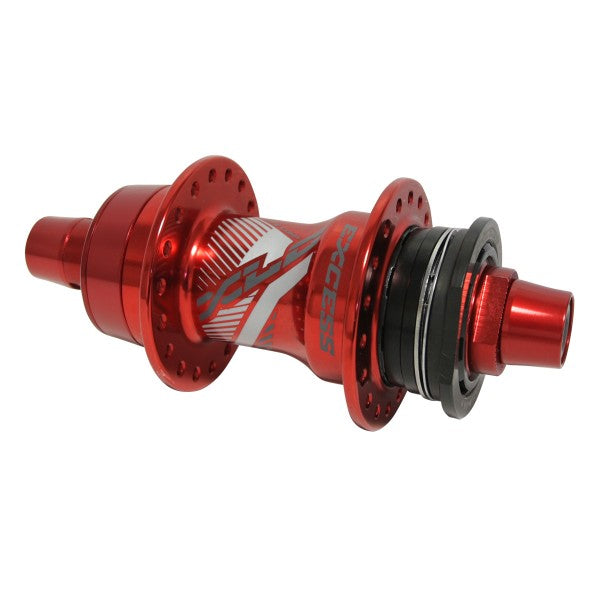

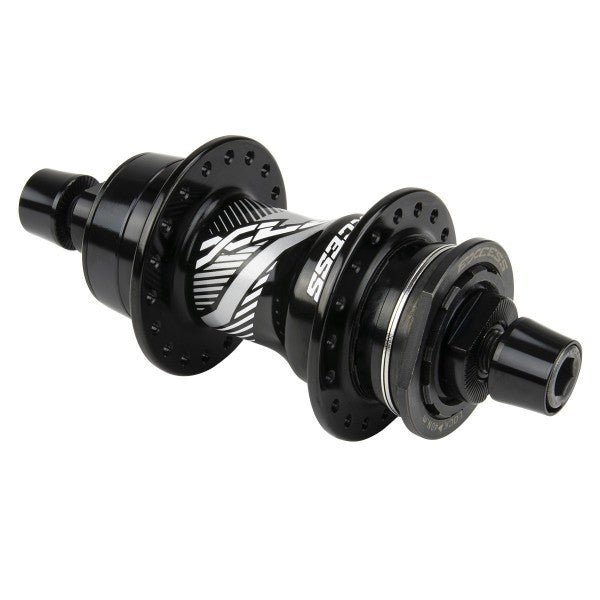

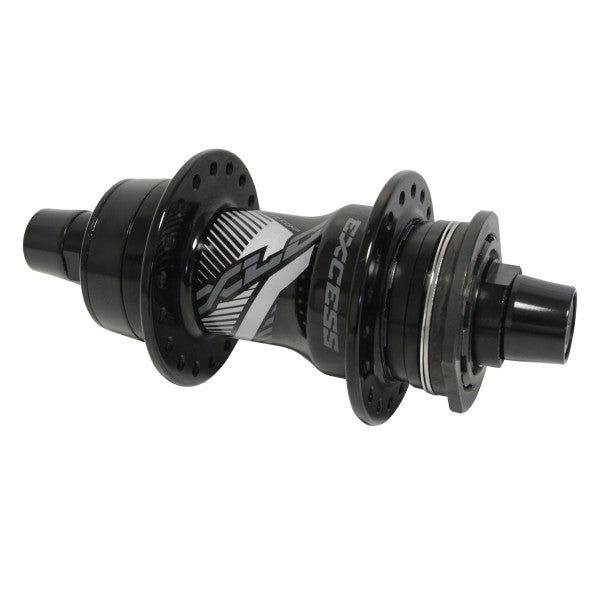

The Excess Pro is a cassette-style rear hub designed for 20" BMX race wheels. Built with a 3-pawl, single-engagement system that locks into a 24-tooth ratchet ring, it provides reliable drive engagement for gate starts and sprints. Features four sealed bearings and a chromoly axle for durability under race conditions.

Key Features

• 3-pawl, 24-ratchet engagement – Single-engagement pawl system locks into a 24-tooth ratchet ring for dependable power transfer with 15-degree engagement intervals

• Four sealed bearings – Cartridge bearings on both axle and driver reduce friction and protect internal components from dirt and moisture

• Chromoly axle – Heat-treated steel axle resists bending under hard pedaling and landing impacts

• Alloy driver body – Lightweight aluminum freehub body accepts Shimano-compatible cassette cogs with included chromoly spacers (1.0mm and 0.5mm) for precise alignment

• Center Lock disc brake compatibility – Optional Center Lock adapter can replace the standard lock ring to mount disc rotors (adapter sold separately)

Technical Specifications

• Spoke holes: 36h
• Weight: 434 g (15.3 oz)
• Axle diameter: 10mm
• Axle material: Chromoly
• Bolt spacing: 3/8" with CNC alloy bolt caps
• Bearings: 4 sealed cartridge bearings
• Driver type: Alloy cassette driver (Shimano-compatible)
• Engagement system: 3-pawl, single-engagement into 24-tooth ratchet ring
• Engagement angle: 15 degrees
• Driver spacers included: 1× 1.0mm chromoly, 1× 0.5mm chromoly, lock ring
• Disc brake option: Center Lock adapter compatible (adapter not included)

Compatibility and Ideal Use Cases

Designed for rear wheels on 20" BMX race bikes using cassette drivetrains. The 36-hole drilling pairs with standard race rims for strong, impact-resistant wheel builds. Accepts Shimano-compatible cassette cogs from brands including Excess, Elevn, and Shimano (cog sold separately). Best suited for competitive racing where reliable engagement and low maintenance are prioritized. Optional Center Lock adapter allows disc brake rotor mounting for riders transitioning from rim brakes. Standard 3/8" axle fits most race frames and dropout configurations.

Note: Rear cog and Center Lock disc adapter sold separately.

CENTER LOCK DISC ADAPTER OPTION
Center lock disc adapter and disc sold separately.
