Excess Pro Cromo Body For P3x1 R24 Hub

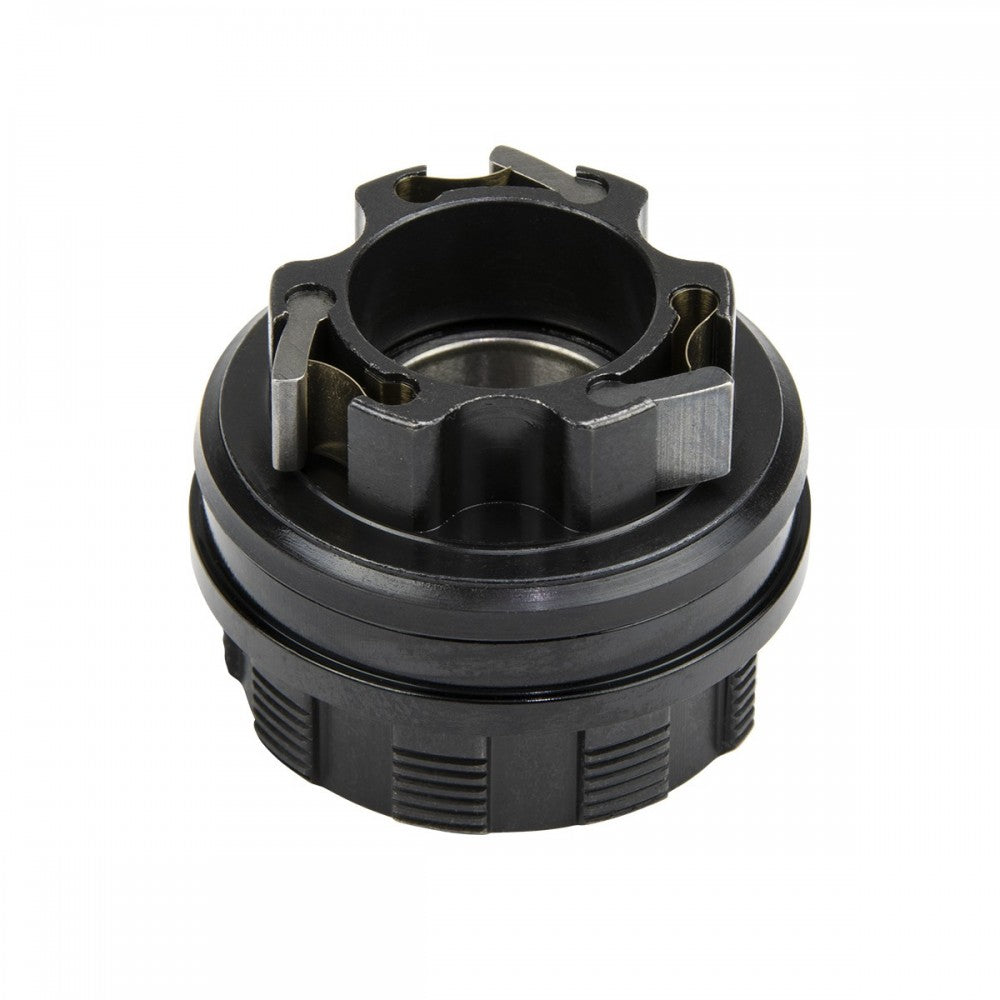

Product Overview The Excess Pro Cromo Body is a replacement cassette body engineered for Excess XLS-1 wheels and Excess Pro 36H P3x1 R24 rear hubs. The chromoly construction with 3-pawl engagement system locking into a 24-tooth roller delivers reliable power transfer and smooth ratcheting. The complete unit includes bearings, pawls, and springs—ready for cog installation. Compatible with Shimano-standard cassette cogs. Also compatible with all Chase Element (2020–2023) and Chase Edge (2022–2023) complete bikes.

Key Features

• Chromoly Construction – Cr-Mo material resists bending and cracking; provides strength and durability for competitive racing and training across all rider sizes
• 3-Pawl Engagement System – Three simple pawls engage a 24-tooth roller for immediate, reliable power transfer during acceleration and gate starts
• 24-Tooth Roller Design – 24-tooth engagement provides smooth, responsive ratcheting with minimal lag; suitable for competitive racing and training
• Complete Assembly – Includes integrated bearings, pawls, and springs; ready for immediate cog installation without additional component purchases
• Shimano-Standard Cassette Compatible – Works with any Shimano-style rear cog (Excess, Elevn, Shimano, etc.); enables cog swapping and upgrades
• Precision Manufacturing – Engineered to exact Excess specifications for seamless hub body replacement
• Sealed Bearing System – Integrated sealed bearings eliminate water and dirt ingress; reduce maintenance and extend freehub life
• Chase Complete Bike Compatible – Universal fitment across all Chase Element (2020–2023) and Chase Edge (2022–2023) frame sizes (micro to Expert XL)

Technical Specifications

• Material: Chromoly (Cr-Mo)
• Hub Size: Pro (standard)
• Freehub Type: Cassette body (Shimano-standard threaded)
• Engagement System: 3 pawls on 24-tooth roller
• Included Components: Bearings, pawls, springs
• Cog Compatibility: Shimano-standard cassette (all brands)
• Hub Compatibility: Excess XLS-1 wheels (406 and 507 ETRTO); Excess Pro 36H P3x1 R24 rear hubs; all Chase Element 2020–2023; all Chase Edge 2022–2023
• Quantity: Sold as one complete unit

Additional Components Needed

• Spacers: Sold separately (0.5mm and 1mm options available)
• Lock Ring/Cassette Clamp: Sold separately (Shimano-standard compatible)
• Rear Cog: Sold separately (16T, 17T, 18T, etc.)

Compatibility and Ideal Use Cases

• Fits: Excess XLS-1 wheel hubs (406 and 507 ETRTO); Excess Pro 36H P3x1 R24 rear hubs; all Chase Element complete bikes 2020–2023 (all frame sizes); all Chase Edge complete bikes 2022–2023 (all frame sizes)
• Best For: Cassette body replacement due to wear, damaged pawls, or loss of engagement; freehub upgrade or refresh on P3x1 R24 systems; complete bike maintenance
• Ideal Riders: All skill levels; BMX racers using Chase Element or Chase Edge bikes; riders performing rear hub service
• Installation Requirement: Intermediate mechanical knowledge; hub disassembly and reassembly needed; spacer and lock ring selection required
• Not Recommended For: Excess Pro Alloy ISO, P3x5 R120, or other non-P3x1 R24 hubs; incompatible hub standards

Installation Notes Remove rear wheel and disassemble hub body from axle. Install new cassette body onto hub axle, aligning splines. Select appropriate spacers (0.5mm and/or 1mm) based on cog thickness. Install selected cog onto cassette body threads. Thread lock ring hand-tight until cog seats firmly. Tighten progressively in alternating directions (left-right) to ensure even clamping pressure. Verify cog rotation is smooth and free and engagement occurs immediately without delay.

Maintenance Notes The 3-pawl engagement system provides reliable power transfer across extended racing and training. Periodically inspect pawl teeth for wear; if engagement becomes sluggish or delayed, individual pawl and spring components can be replaced without full cassette body replacement. Sealed bearings require no regular greasing.

Performance Note 24-tooth roller design delivers smooth engagement suitable for riders across all skill levels and disciplines. Chromoly construction provides durability essential for competitive racing and intensive training.

Chase Compatibility Reminder Compatible with all Chase Element (2020–2023) and Chase Edge (2022–2023) frame sizes, including micro and Expert XL—all require a Pro-size cassette body. Verify your hub specification before purchase to ensure P3x1 R24 compatibility.
