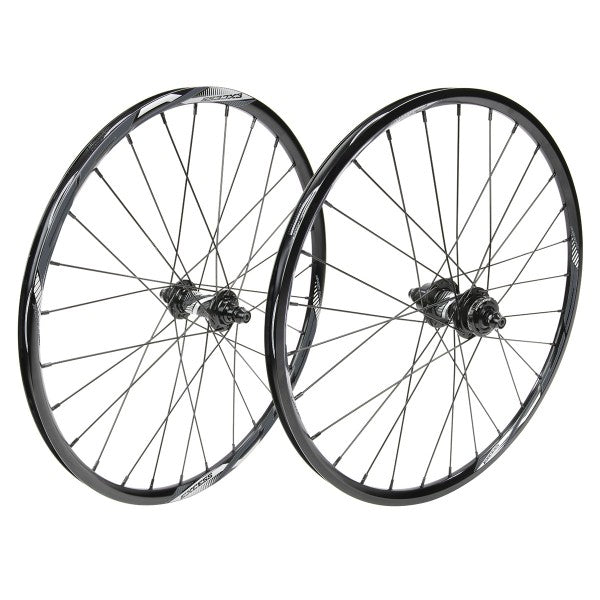

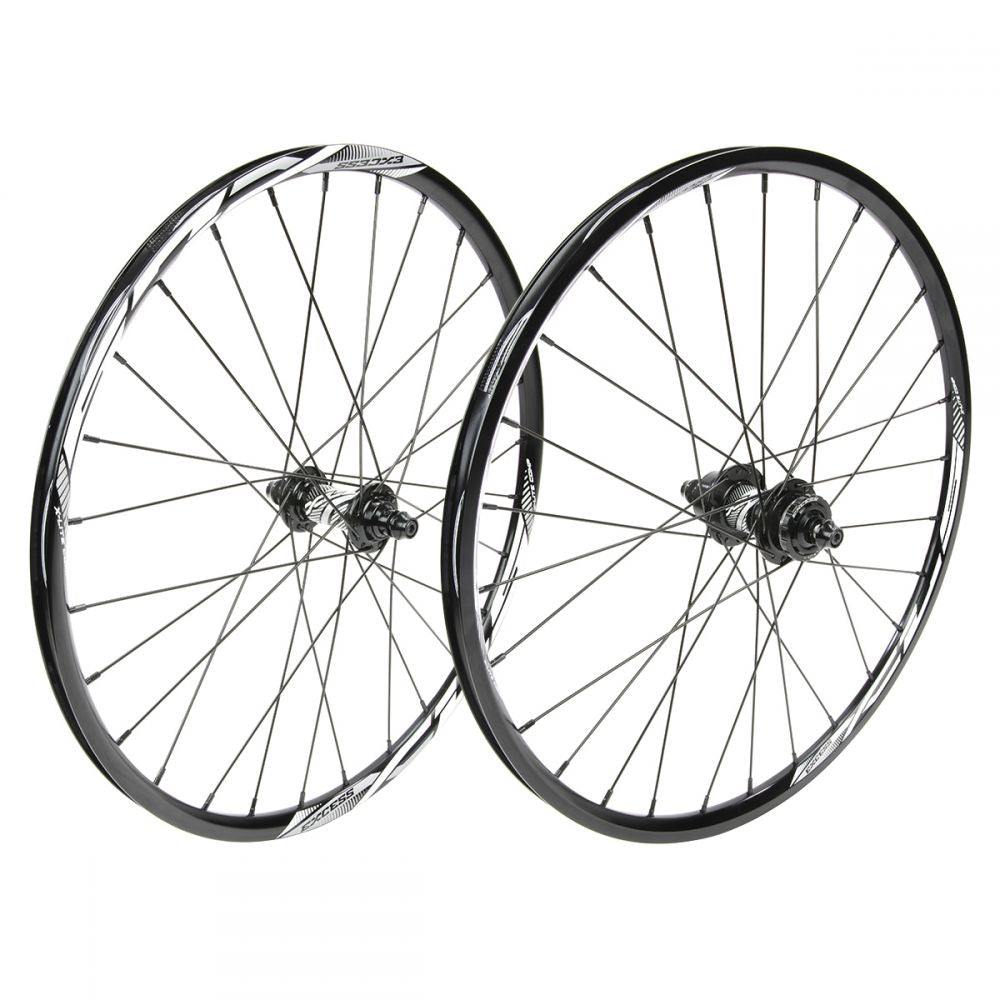

Excess XLS-2 451 28h / 36h Alloy Wheelset

Product Overview

The Excess XLS-2 is a complete wheelset designed for 20" BMX racing. Built with double-wall 6061-T6 aluminum rims and high-engagement cassette hubs, this wheelset delivers reliable performance for competition and training. Features a 3-pawl, 5-tooth engagement system with a 120-tooth ratchet for fast drivetrain response and is compatible with both V-brake and disc brake systems.

Key Features

• High-engagement rear hub – 3-pawl system with 5 teeth per pawl locks into a 120-tooth ratchet ring, providing 3-degree engagement intervals for instant power transfer at gate starts

• Dual brake compatibility – Rear hub is configured for V-brake use out of the box and accepts optional Center Lock disc brake rotors for riders transitioning to disc systems

• Double-wall XLS rims – 6061-T6 aluminum construction with optimized profiles for front and rear applications balances strength and weight for race conditions

• Sealed bearing hubs – Cartridge bearings protect internal components from contamination and reduce friction for consistent rolling performance

• Chromoly freehub body – Steel driver accepts Shimano-compatible cassette cogs and resists wear from cog engagement under load

• Ready to ride – Complete with spokes, nipples, and rim tape; only requires cassette cog installation

Technical Specifications

• Rim size: 20" × 1 1/8" to 1 3/8" (451mm BSD)
• Rim model: Excess XLS 451×19.5mm double-wall aluminum 6061-T6
• Spoke holes: 28h or 36h (select at purchase)
• Weight (wheelset): 1392 g (Front: 595 g / Rear: 797 g)
• Axle diameter: 10mm
• Axle material: Aluminum with M6 BTR clamping
• Front hub: Excess XLS Expert M6 with 2 sealed bearings
• Rear hub: Excess XLS Expert Cassette Center Lock M6 with 4 sealed bearings
• Engagement system: 3-pawl with 5-tooth engagement, 120-tooth ratchet
• Engagement angle: 3 degrees
• Freehub type: Chromoly cassette driver (Shimano-compatible)
• Spokes: Excess 14G steel with aluminum nipples
• Brake compatibility: V-brake (standard), Center Lock disc brake (with optional adapter)
• Included: Rim tape

Compatibility and Ideal Use Cases

Designed for 20" BMX race bikes with 10mm M6 bolt-on dropouts. Fits frames and forks configured for V-brake or disc brake systems. Accepts Shimano-compatible cassette cogs from brands including Excess, Elevn, and Shimano. Best suited for competitive racing in Mini, Expert, and Junior classes where fast engagement, low weight, and dual brake compatibility are valued. 451mm BSD rims fit standard 20" × 1 1/8" to 1 3/8" race tires. Center Lock disc brake adapter and ISO converter sold separately for disc brake conversions.

Note: Rear cog, Center Lock disc adapter, and ISO converter sold separately.
