Excess Xls-3 507 36h Carbon Wheelset Color

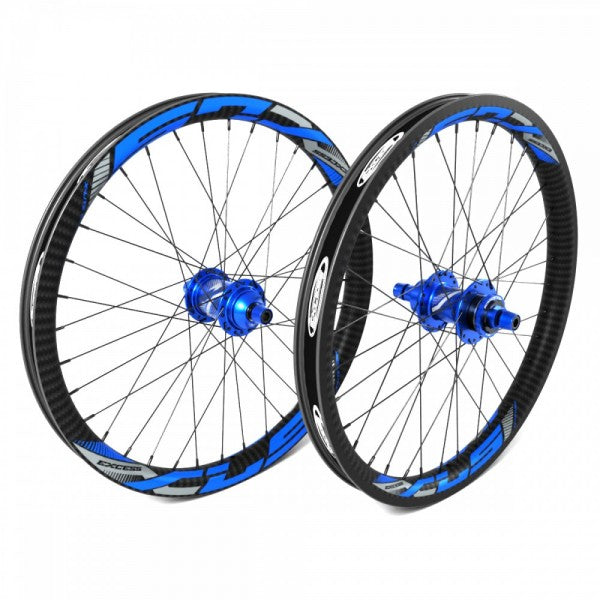

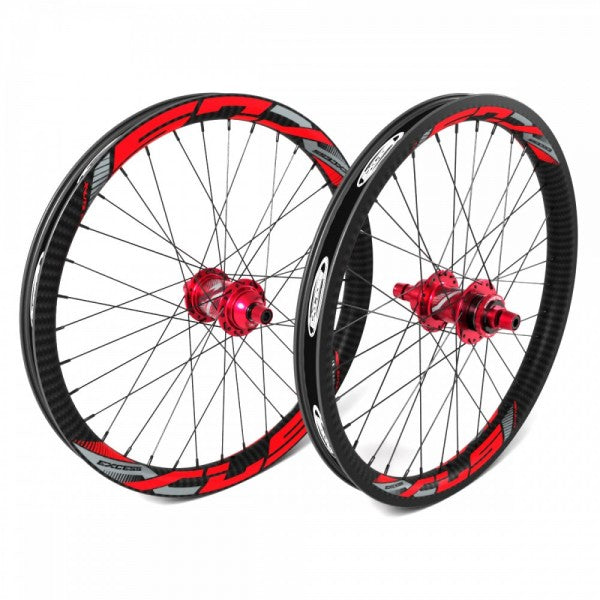

Excess XLS-3 507 36h Carbon Wheelset

Product Overview

The Excess XLS-3 is a high-end BMX race wheelset engineered with Toray T700 3-layer carbon fiber rims and sealed engagement hubs. Featuring a 5-tooth 3-pawl engagement system on a 120-tooth ratchet, it delivers instant power delivery and reliable performance for competitive BMX racing with v-brake or disc brake compatibility.

Key Features

• Toray T700 3-Layer Carbon Fiber Rims — Premium carbon construction optimizes strength, rigidity, and lightweight performance specifically engineered for BMX race applications
• EXCESS XLS 507x30mm Rim Specification — 24" (507mm ETRTO) rims with 30mm external width and low-profile aero geometry reduce rotational mass while maintaining spoke bed durability
• Efficient Engagement System — 5-tooth 3-pawl mechanism on 120-tooth internal ratchet provides responsive power delivery and reliable reengagement on grid launches and acceleration
• Sealed Bearing Hubs — Precision sealed bearings reduce friction and resist contamination across varied environmental conditions and extended racing sessions
• V-Brake Compatible — Standard rim braking surface accepts mechanical v-brake systems for straightforward setup and reliable stopping power
• Disc Brake Ready — CenterLock disc brake rotor bracket on rear hub enables post-braking conversion with optional CenterLock/ISO converter (sold separately)
• Front Axle Convertibility — Standard 10mm front axle convertible to 20mm (conversion kit sold separately) for drivetrain flexibility and hub compatibility options
• Alloy Freehub Body — Lightweight freehub construction reduces rotating mass while maintaining durability and reliable cassette retention
• Chromoly Axles with BTR Clamping — Precision-engineered axles with bearing-to-race clamping system ensure accurate wheel alignment and durability under racing loads
• Steel Spokes with Aluminum Nipples — 14G spokes and aluminum nipples optimize weight distribution and maintain precise wheel geometry under high spoke tension
• Included Rim Tape — Pre-installed EXCESS rim tape simplifies setup and ensures proper tubeless or tube compatibility

Technical Specifications

• Wheelset Type: 24" BMX race pair (front and rear)
• Rim Material: Toray T700 3-layer carbon fiber
• Rim Specification: EXCESS XLS 507x30mm (24x1.50"/1.75")
• Rim Height: 30mm (low-profile aero)
• Spoke Count: 36-hole (both wheels)
• Spoke Type: EXCESS 14G steel with aluminum nipples
• Front Hub: EXCESS XLS Pro 10mm 36-hole
• Rear Hub: EXCESS XLS Pro Cassette CenterLock 10mm 36-hole
• Freehub Body: Alloy construction, Shimano standard cassette compatible
• Engagement System: 3 pawls with 5 teeth, 120-tooth internal ratchet
• Front Axle: 10mm standard (convertible to 20mm with kit)
• Rear Axle: 10mm chromoly with BTR clamping
• Bearing System: Sealed bearings (front and rear)
• Brake Compatibility: V-brake (standard) and disc brake (CenterLock, converter required)
• Total Weight: 1,996g (pair); Front 960g, Rear 1,036g
• Finish: High-gloss carbon with color options
• Included: Rim tape, BTR clamping axles
• Not Included: Cog, CenterLock/ISO disc brake converter

Compatibility and Ideal Use Cases

Compatible with 36-hole hubs, 10mm axles (standard), and v-brake or disc brake frame mounts. Front axle convertible to 20mm with optional conversion kit. Rear hub accepts Shimano standard cassettes and CenterLock disc rotors (converter required). Ideal for competitive BMX racers, gate start specialists, and those prioritizing instant engagement response and minimal rotating weight. Suited for 24" cruiser racing, junior and professional racing applications, and riders seeking premium carbon wheel performance. The efficient engagement system benefits racers requiring responsive power delivery on launches and reacceleration. Recommended for complete racing setups where weight optimization and engagement reliability are non-negotiable performance factors.
