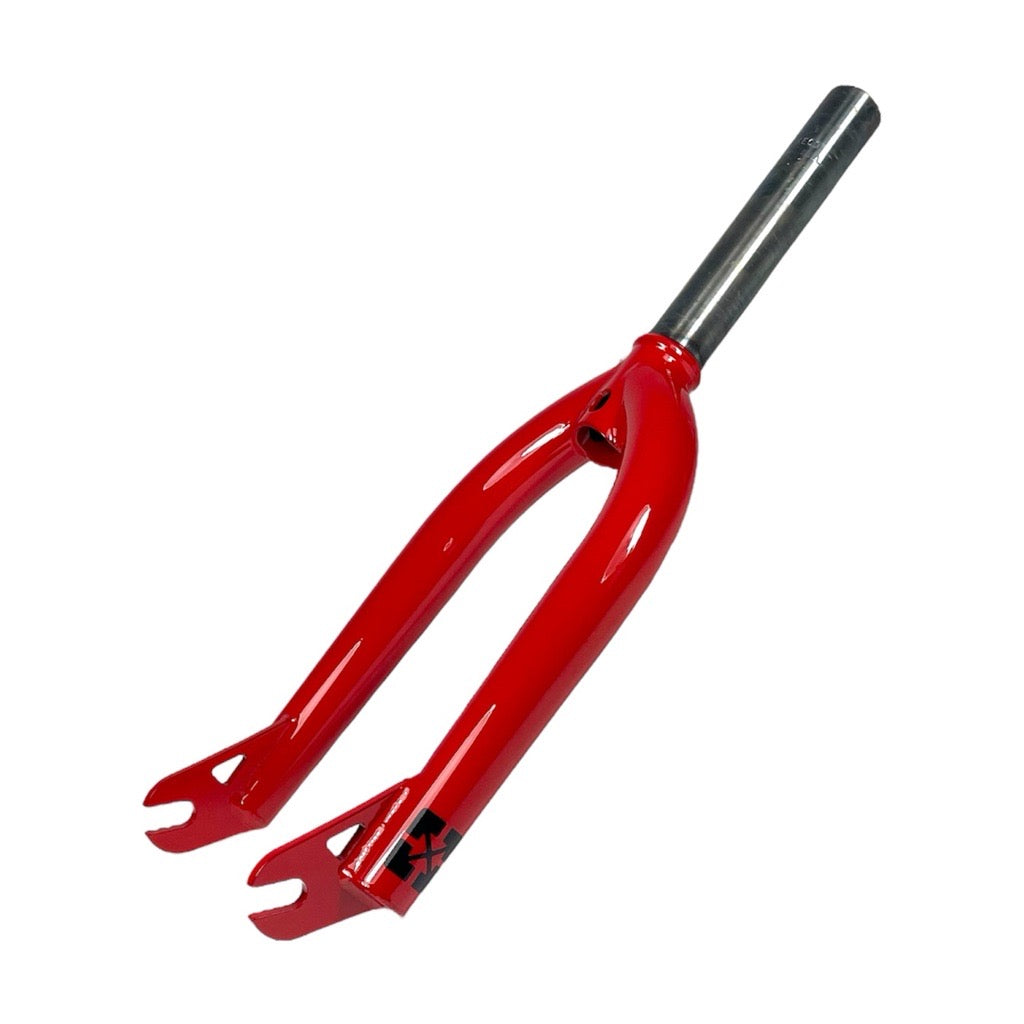

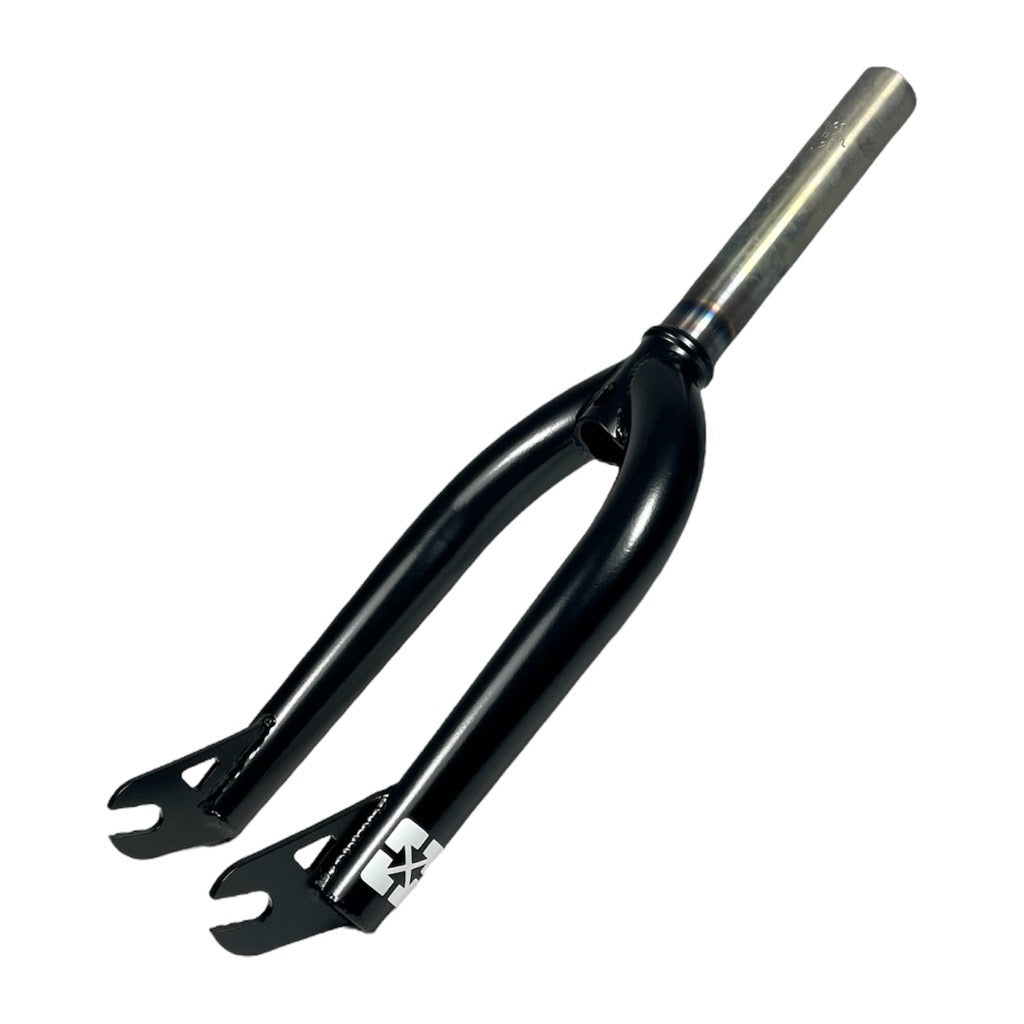

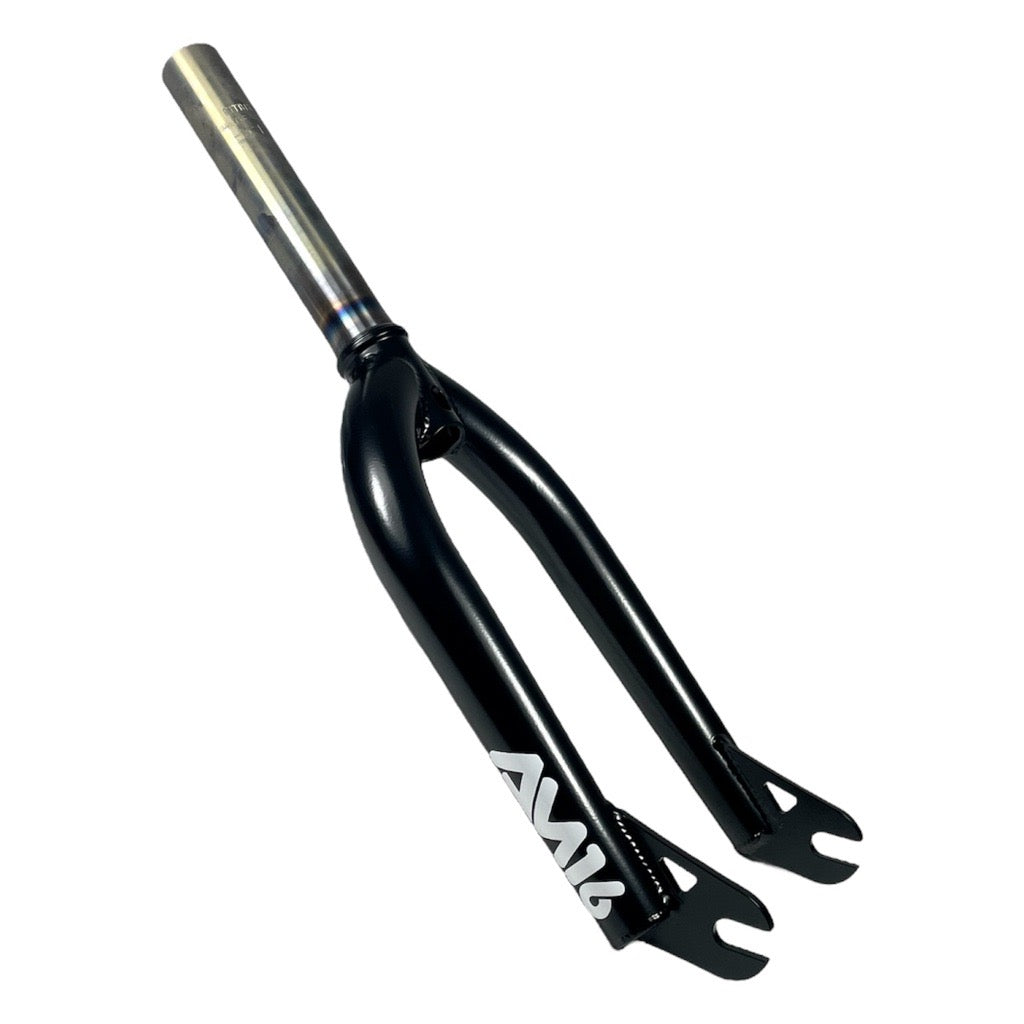

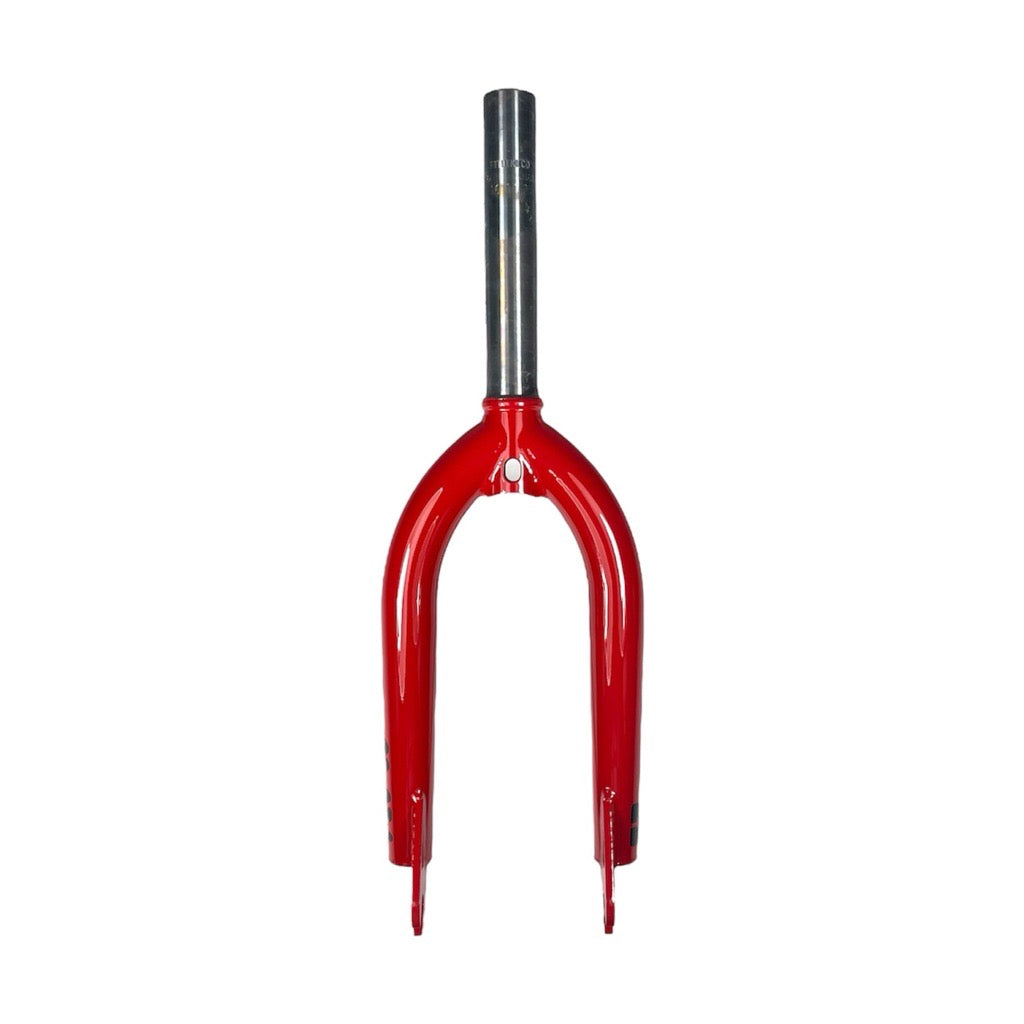

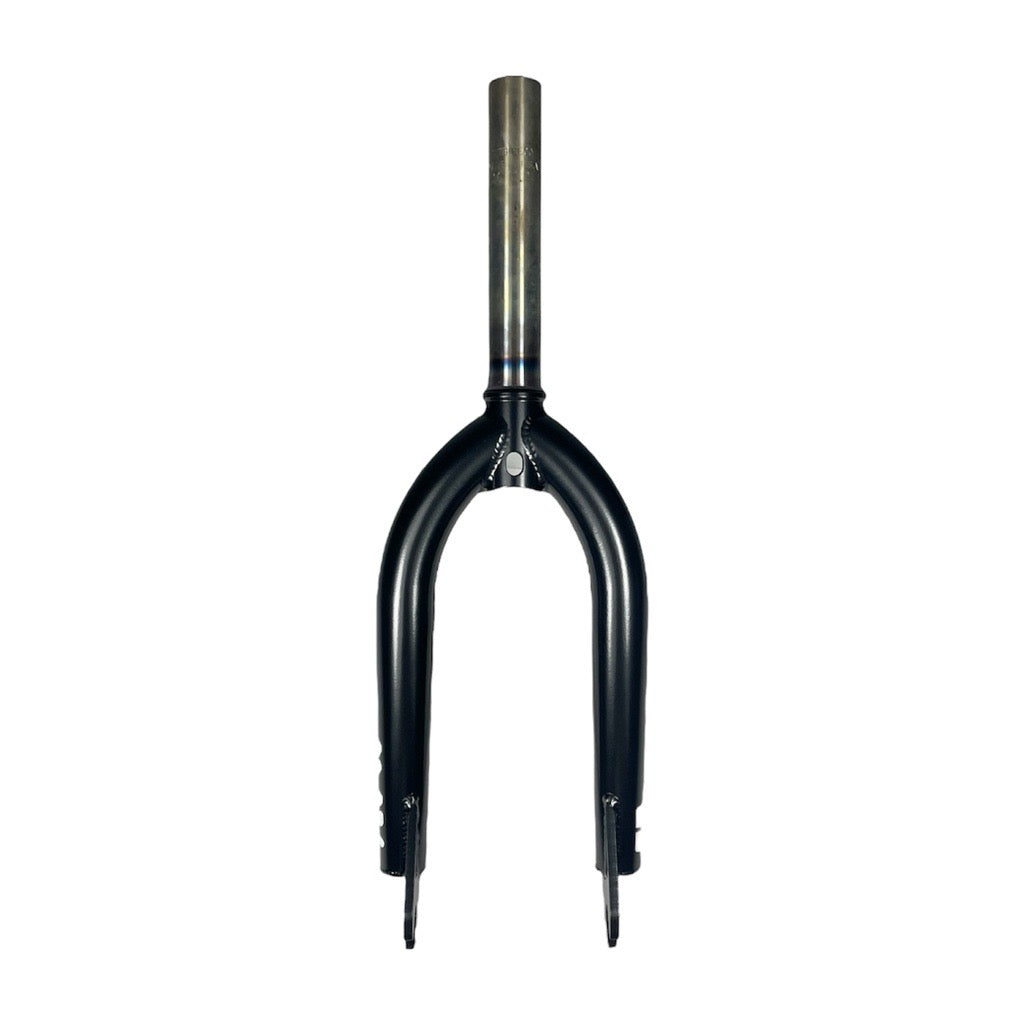

Fit Bike Co Am 16″ Fork (Black and Red Avail)

FIT AM 16″ Fork

The FIT AM16 fork is a performance-oriented 16″ fork designed specifically for younger riders progressing their BMX skills. Built from heat-treated 4130 chromoly with double-butted, tapered legs, this fork prioritizes light weight and strength over standard kids' bike components. The short offset and increased axle-to-crown height provide handling characteristics closer to full-size BMX bikes, making technical riding more accessible for smaller riders.

Key Features

• Double-butted, tapered chromoly legs – variable wall thickness reduces weight where possible while maintaining strength at high-stress areas; tapered profile increases stiffness and impact resistance
• Short 1″ offset – reduced rake improves front-end responsiveness and makes the bike easier to manual, hop, and control during technical tricks compared to longer-offset kids' forks
• Increased axle-to-crown height – 10.75″ A-C measurement is 0.330″ taller than standard 16″ forks, raising the front end for better geometry and handling balance
• One-piece CNC-machined steerer tube – integrated race design eliminates the pressed race cup, reducing weight and potential failure points while maintaining precise headset fit
• Generous tire and peg clearance – accommodates up to 2.4″ tires and provides room for pegs without rubbing, supporting progression into street and park riding
• Made in USA – manufactured domestically with 4-quadrant post-weld heat treatment for consistent strength and quality

Technical Specifications

• Wheel size: 16″
• Legs: Double-butted, tapered 4130 chromoly
• Dropouts: Laser-cut 3/8″ slots
• Steerer tube: One-piece CNC-machined 4130 chromoly, integrated race
• Steerer tube length: 160mm (designed to be cut to length)
• Compression: Star nut compatible (star nut not included)
• Axle-to-crown height: 10.75″
• Offset: 1″ (25.4mm)
• Tire clearance: Up to 2.4″
• Weight: 1.75 lbs
• Heat treatment: 4-quadrant baked post-weld
• Country of origin: USA

Compatibility and Ideal Use

This fork is optimized for the FIT AM16 frame but works with any 16″ BMX bike using an integrated headset and 3/8″ front axle. The taller axle-to-crown height may alter geometry on frames not designed for it—verify compatibility before installation. Best suited for young riders advancing beyond entry-level skills who need a lighter, stronger fork that handles more like a full-size BMX bike. Ideal for riders tackling park, street, and technical riding where weight and responsive handling make a significant difference in progression and confidence.
