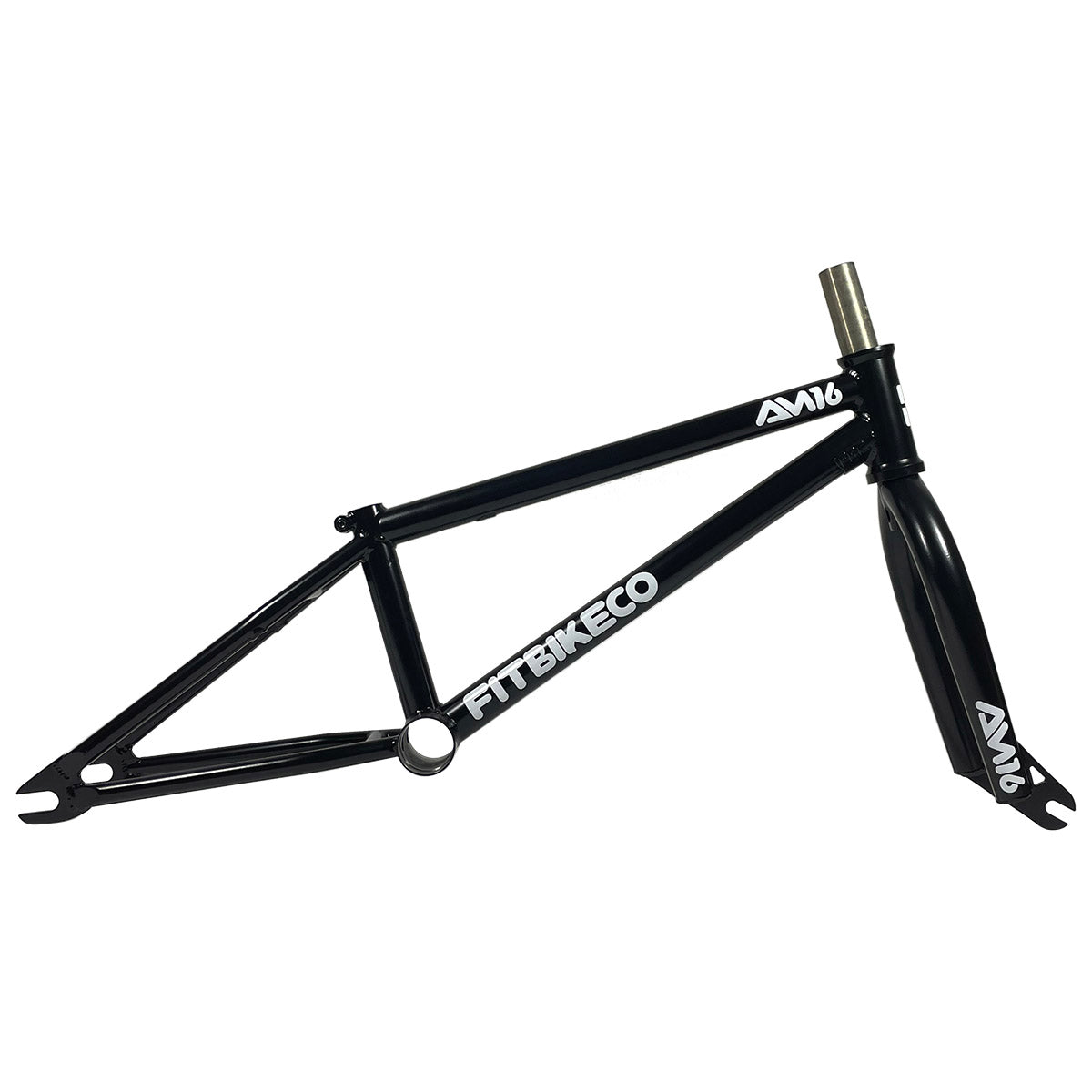

FIT Bike Co AM 16" Frame/Fork Combo

Product Overview

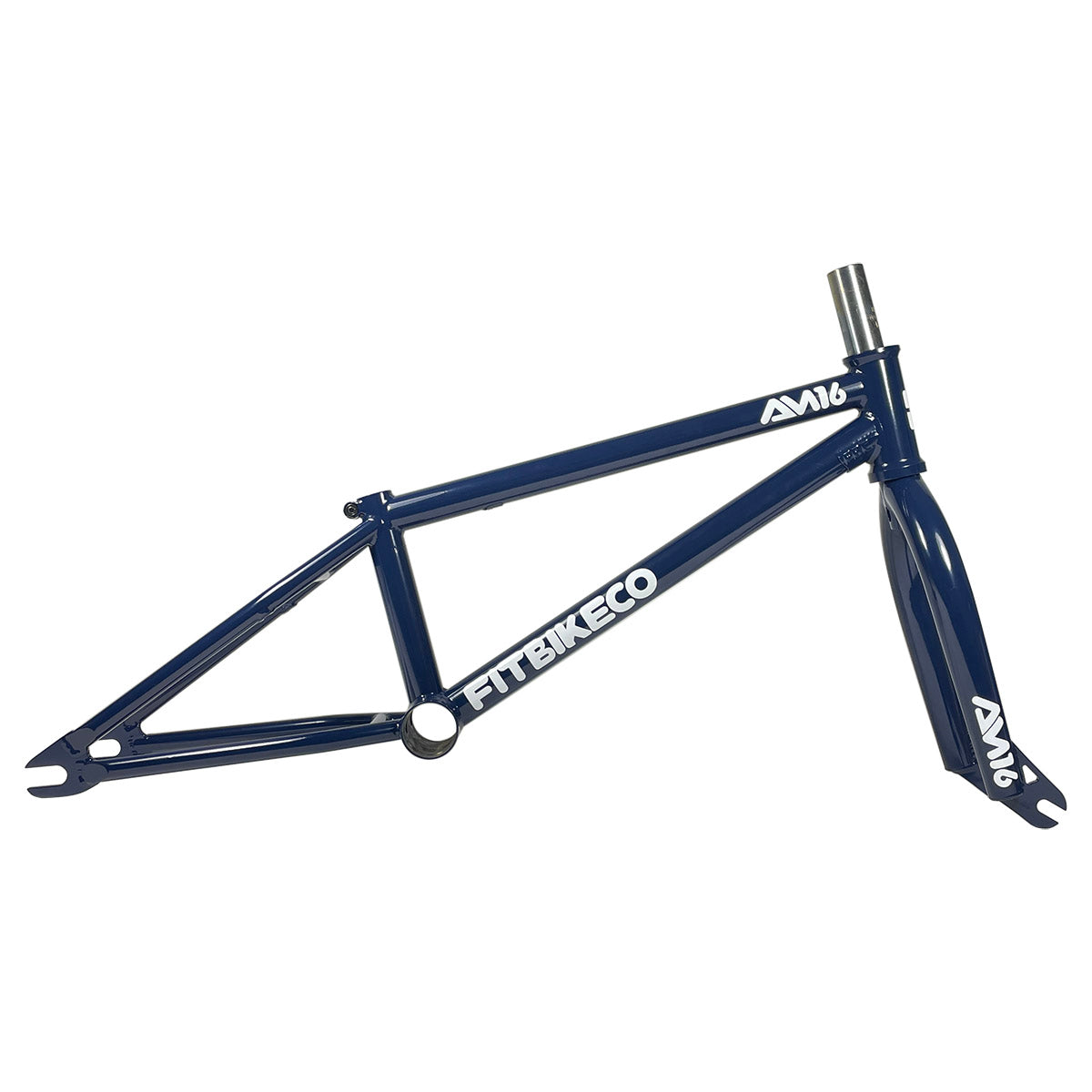

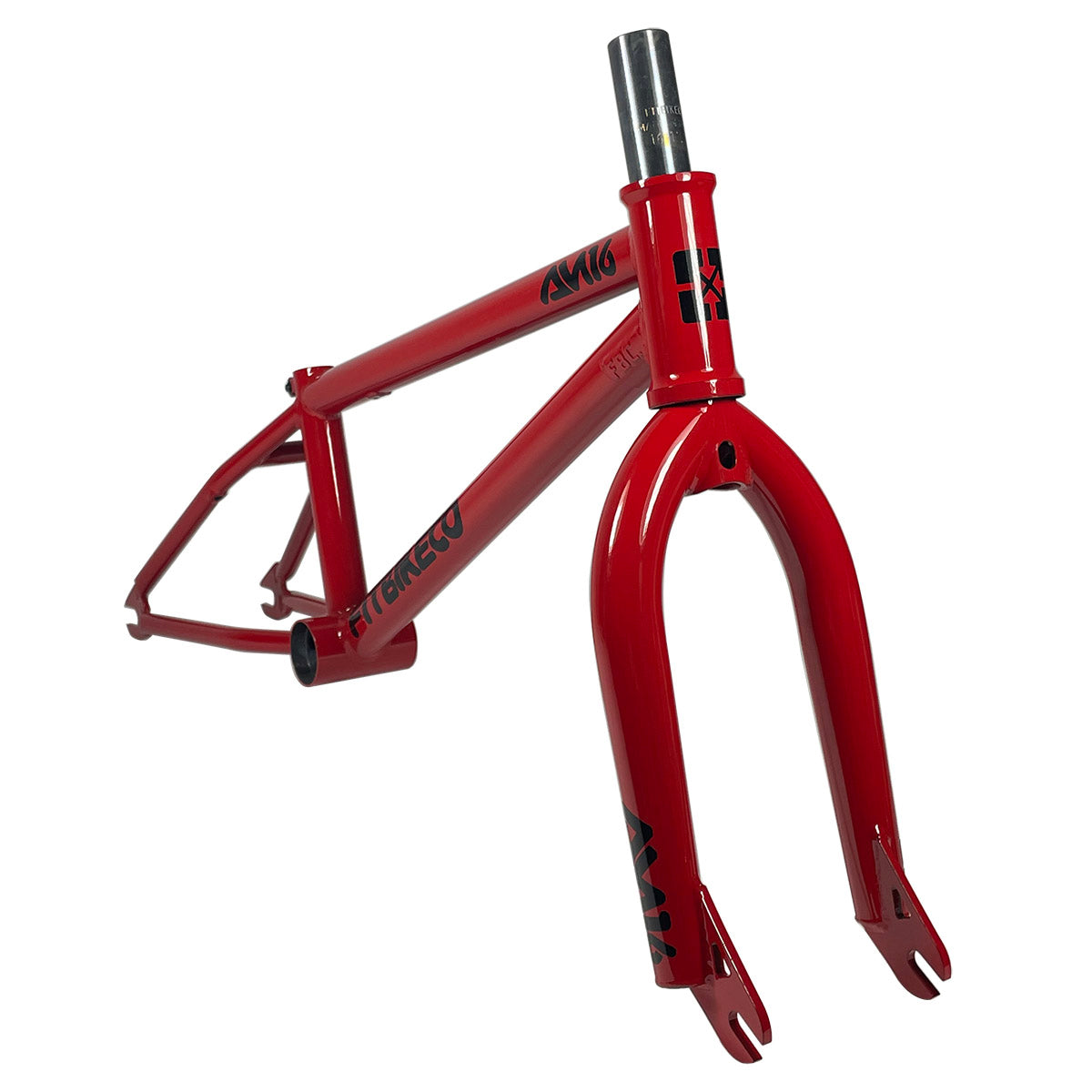

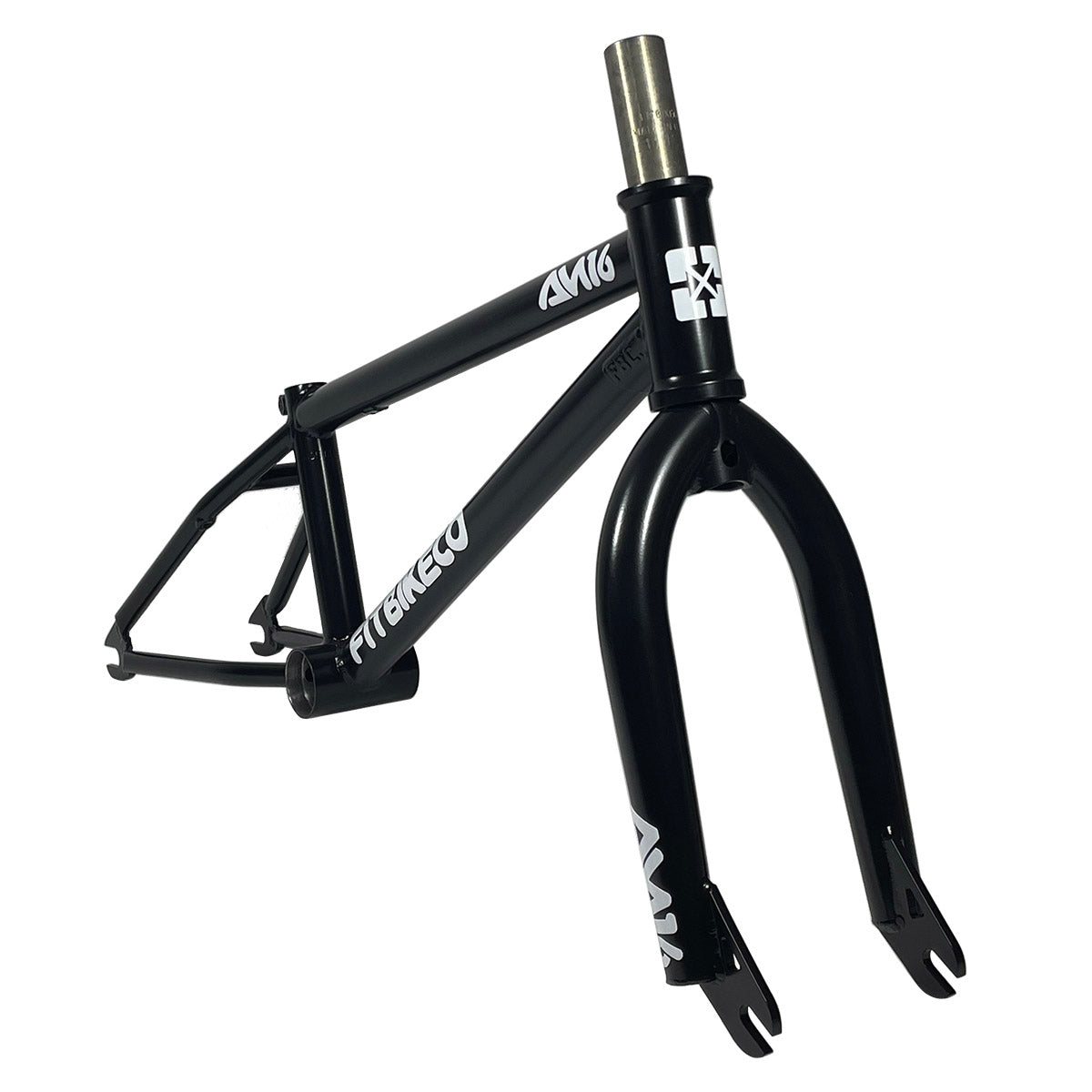

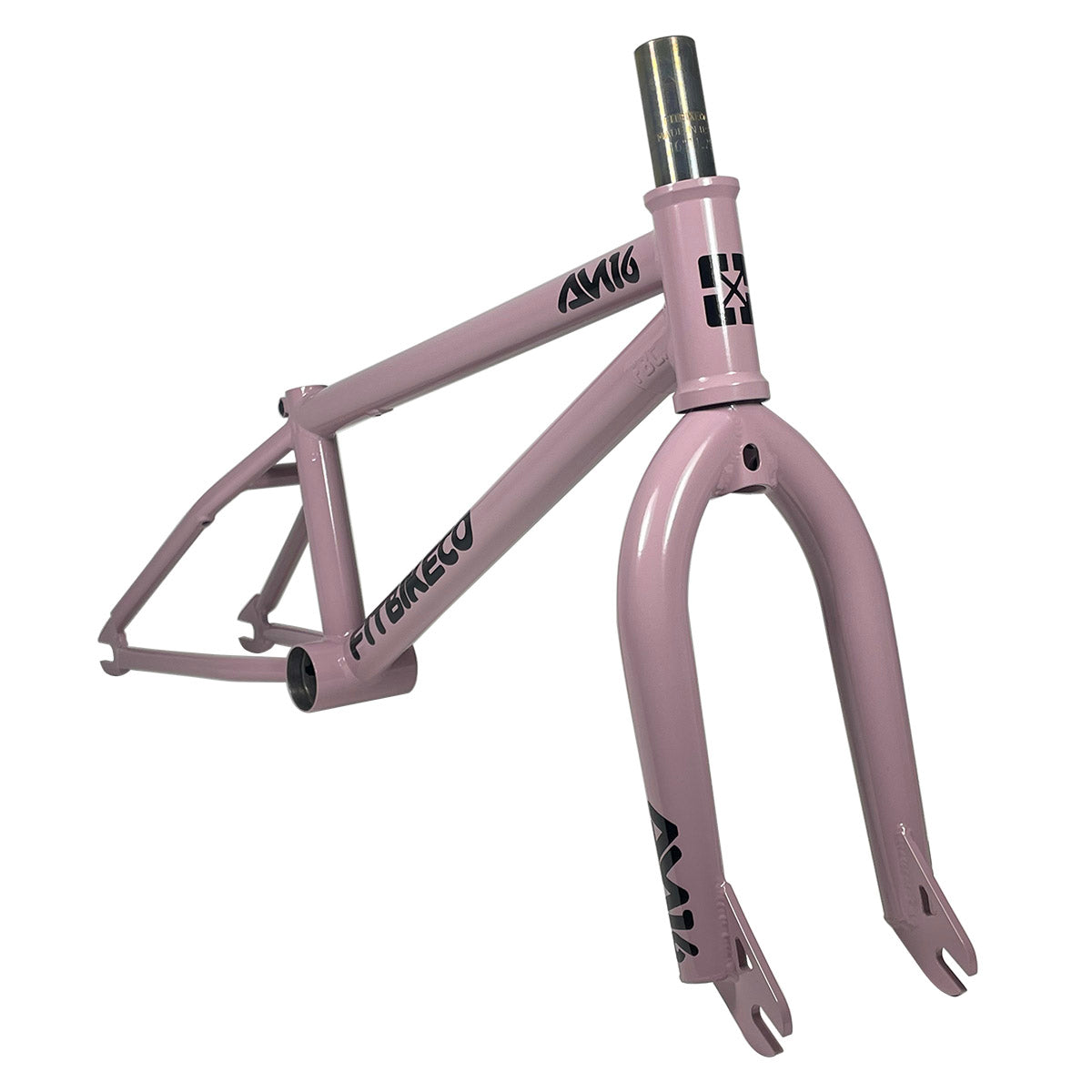

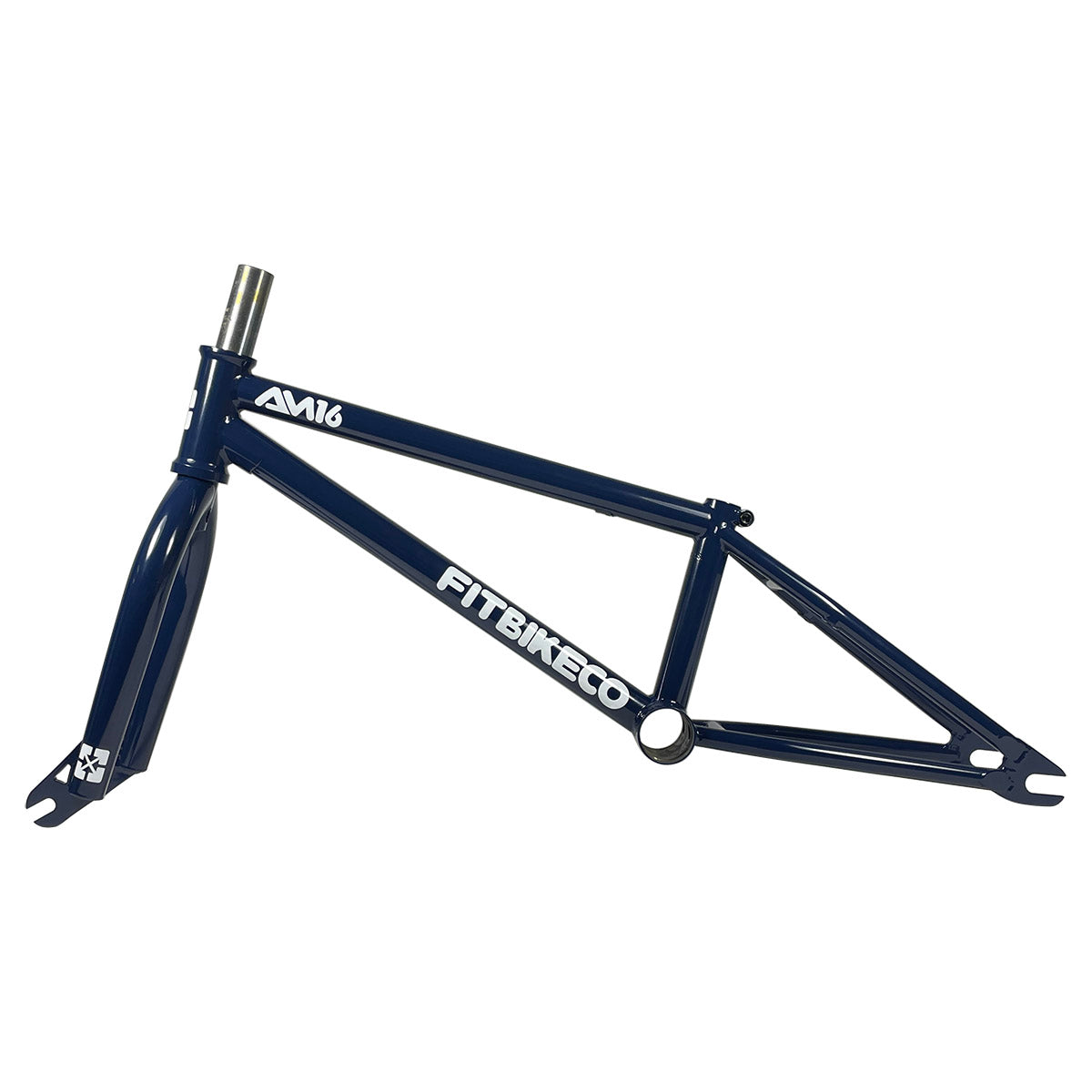

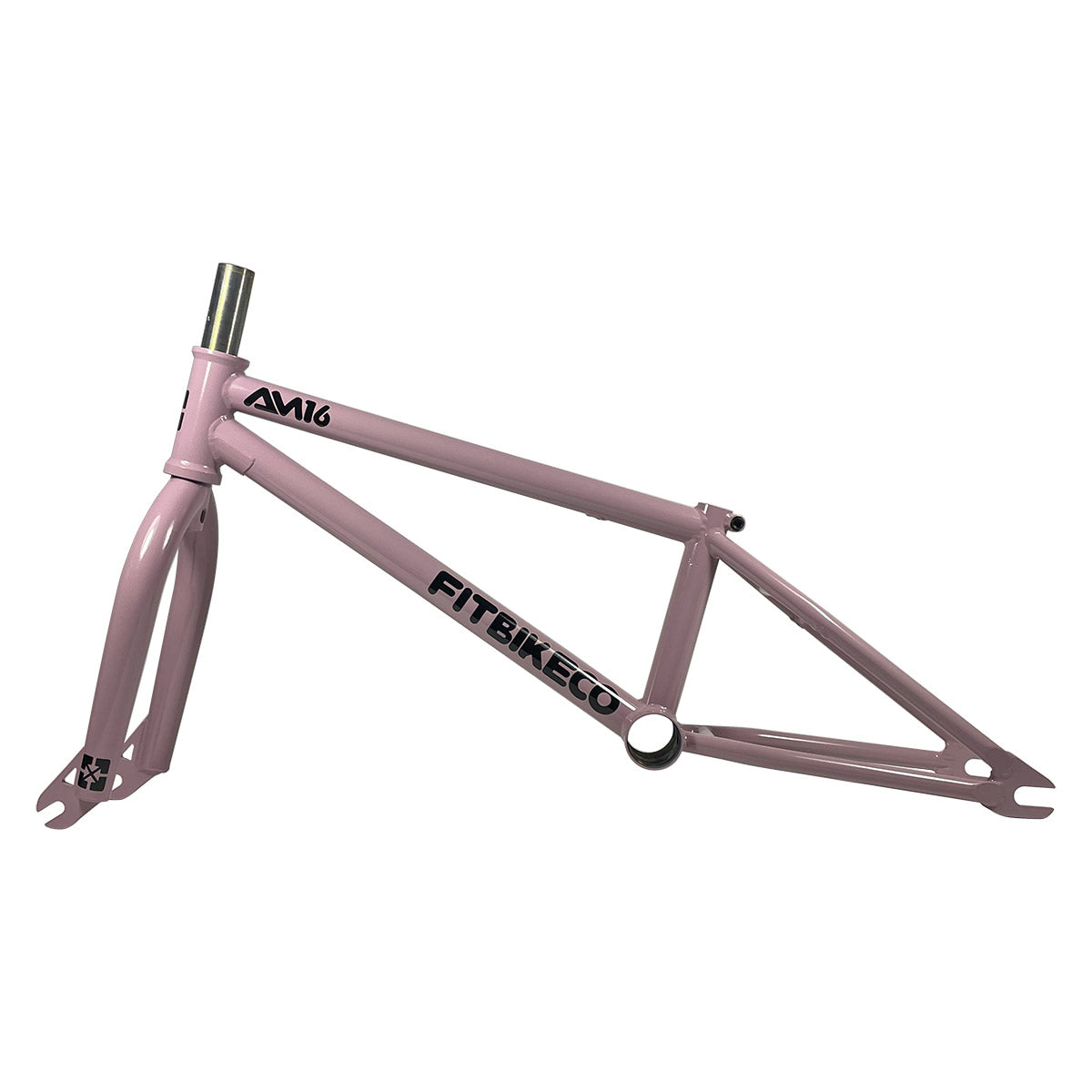

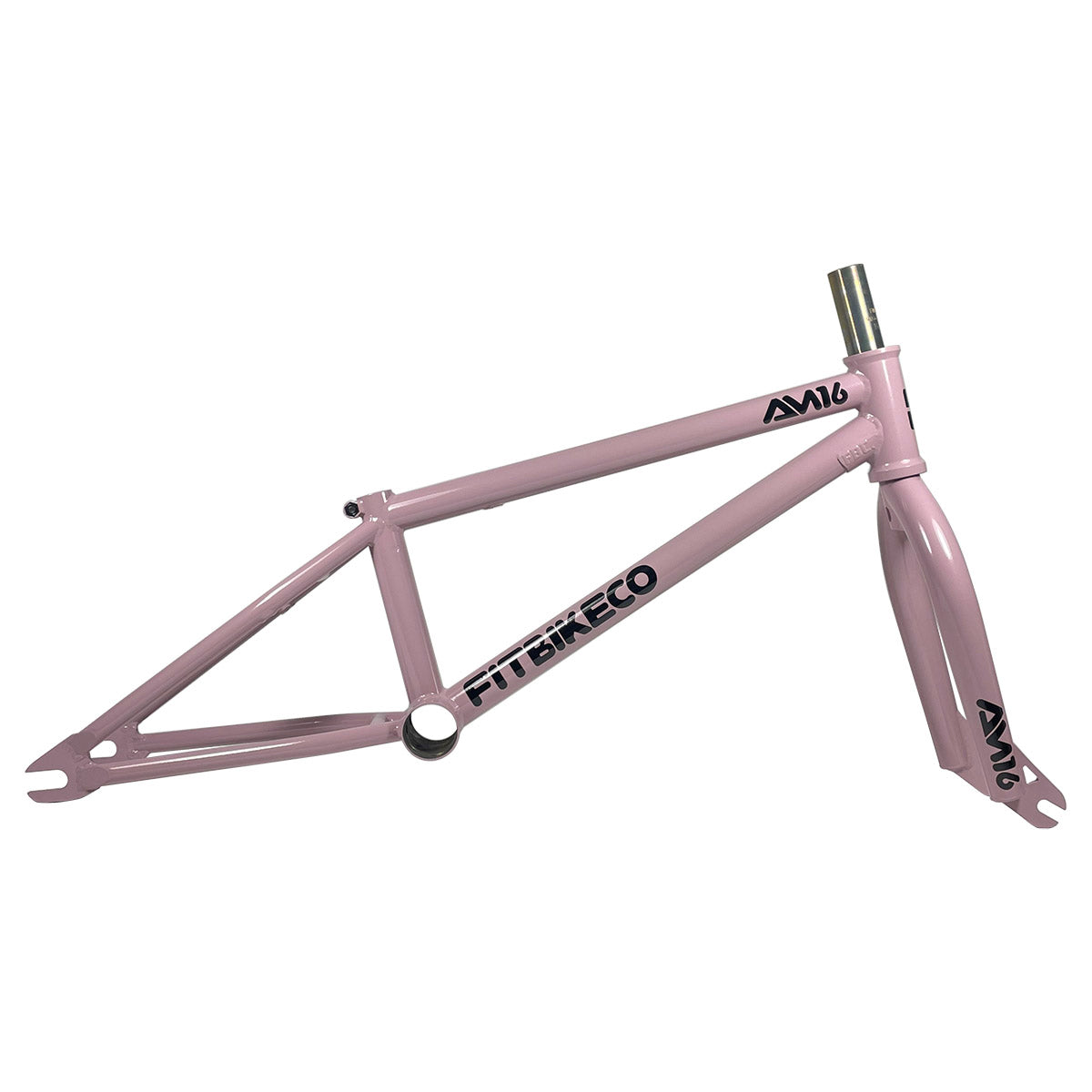

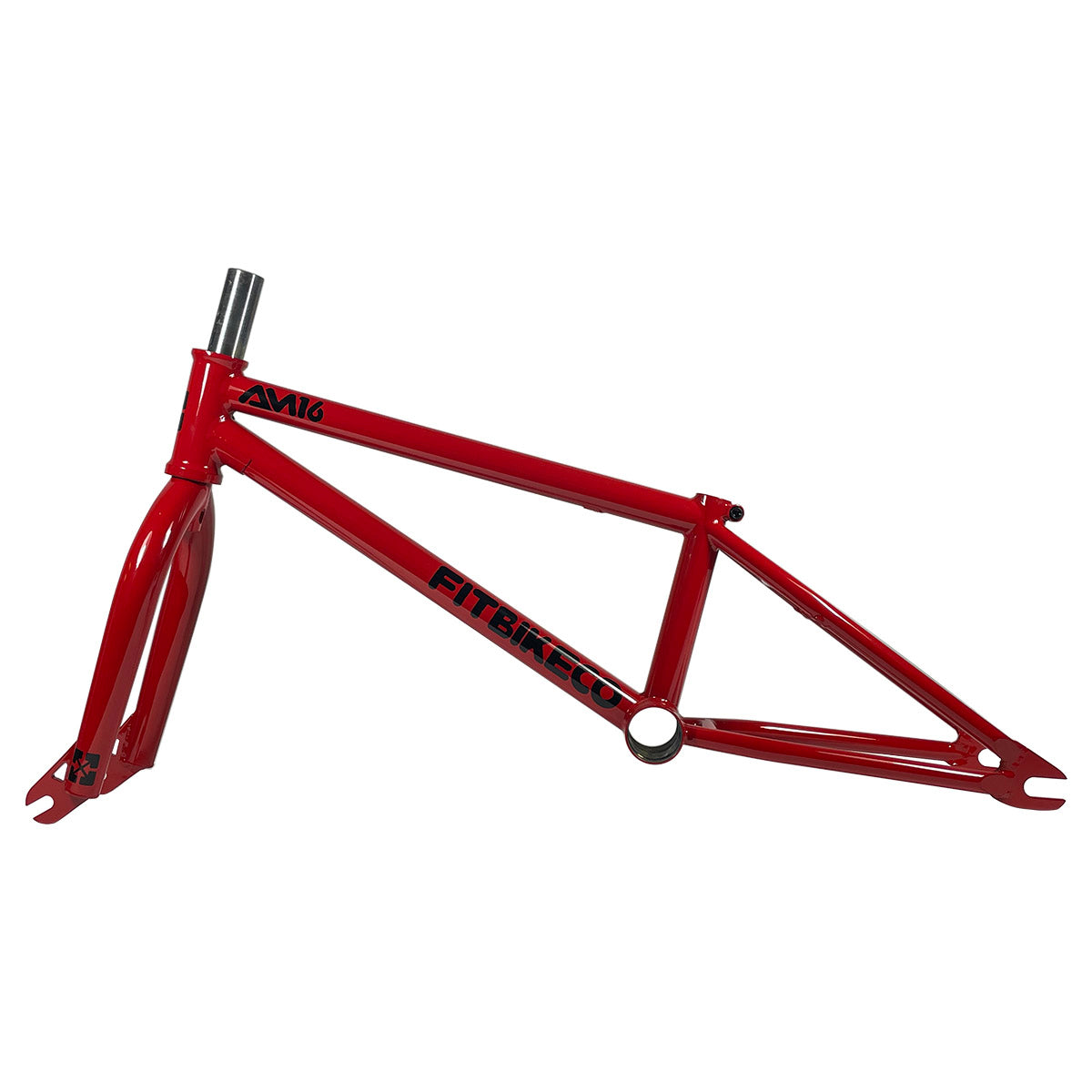

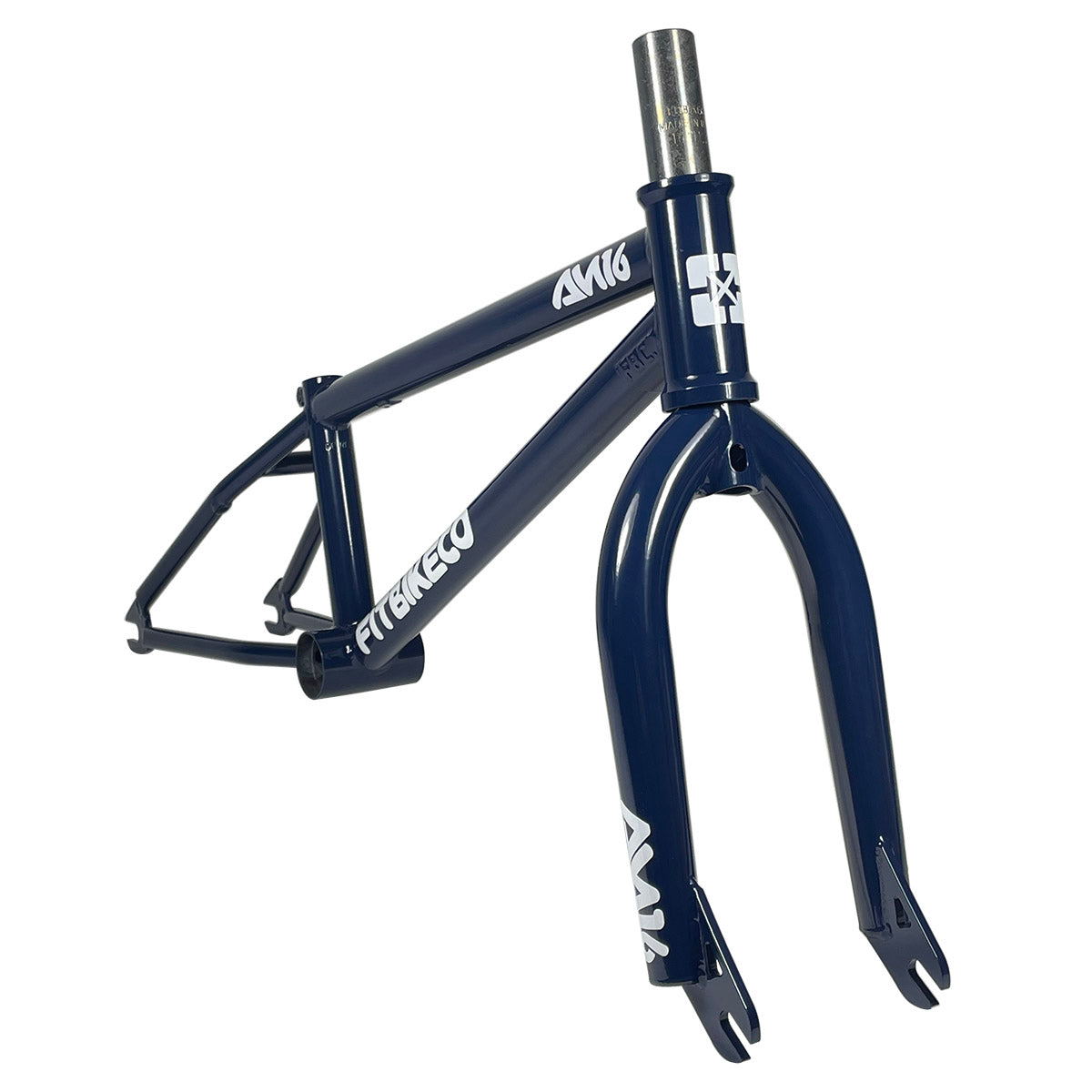

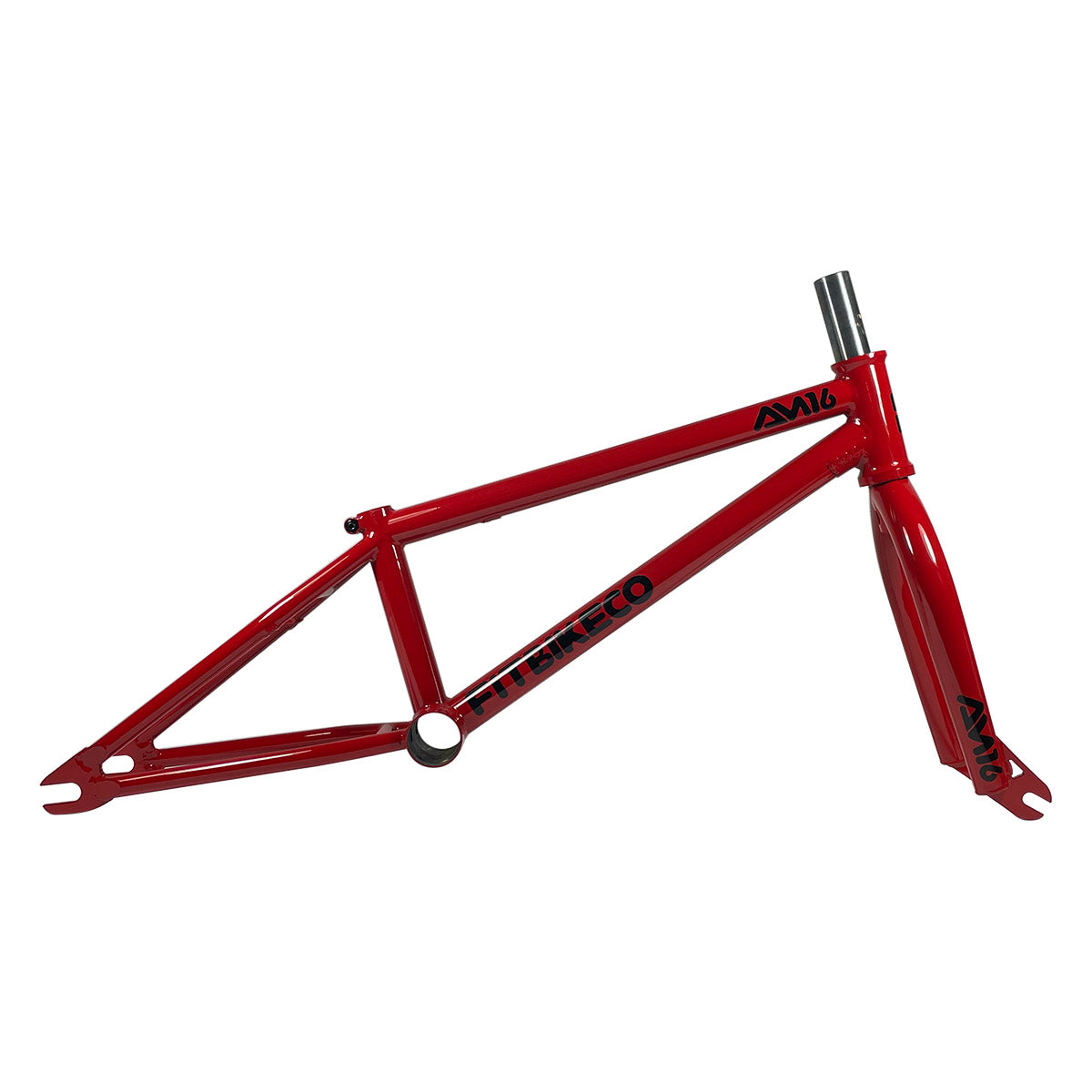

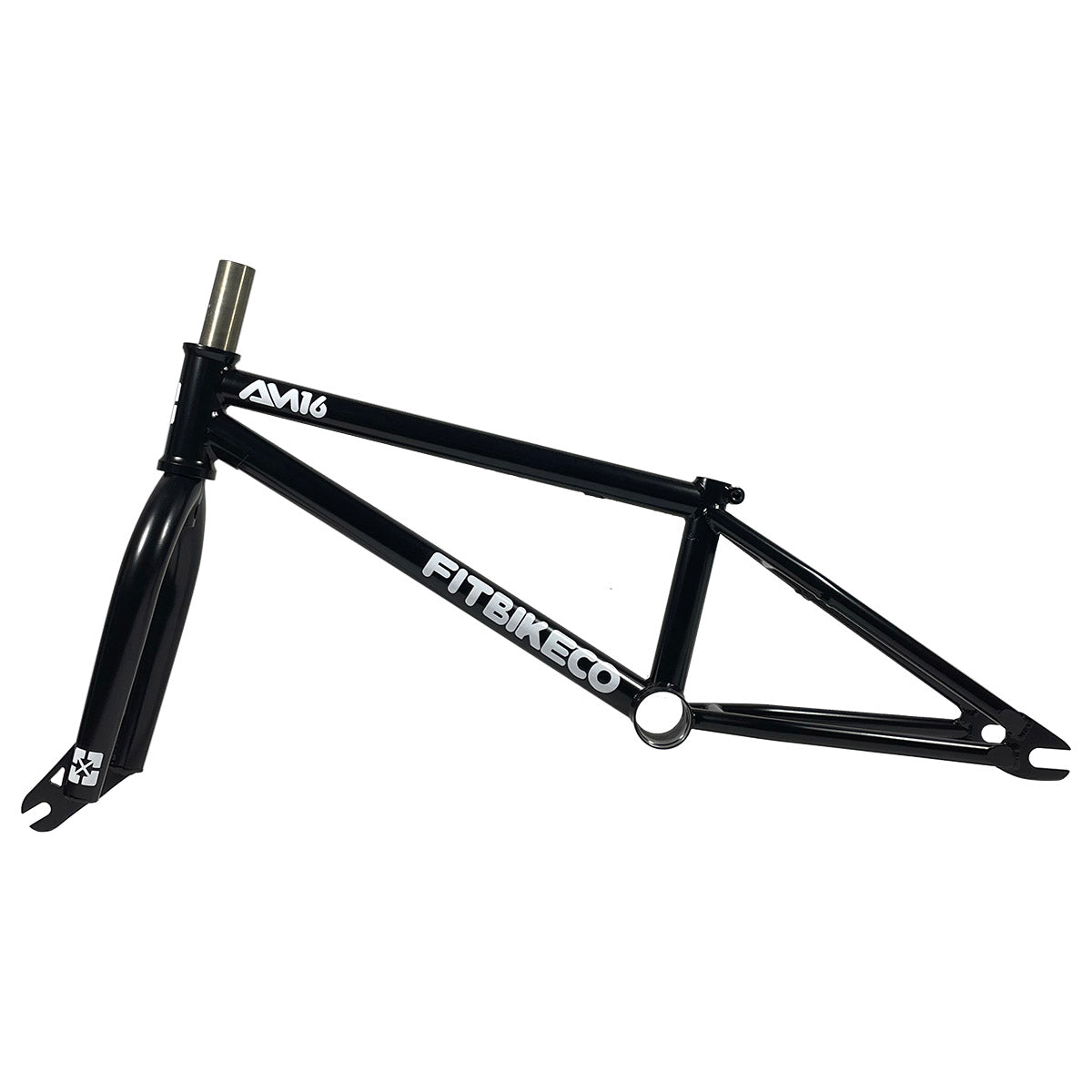

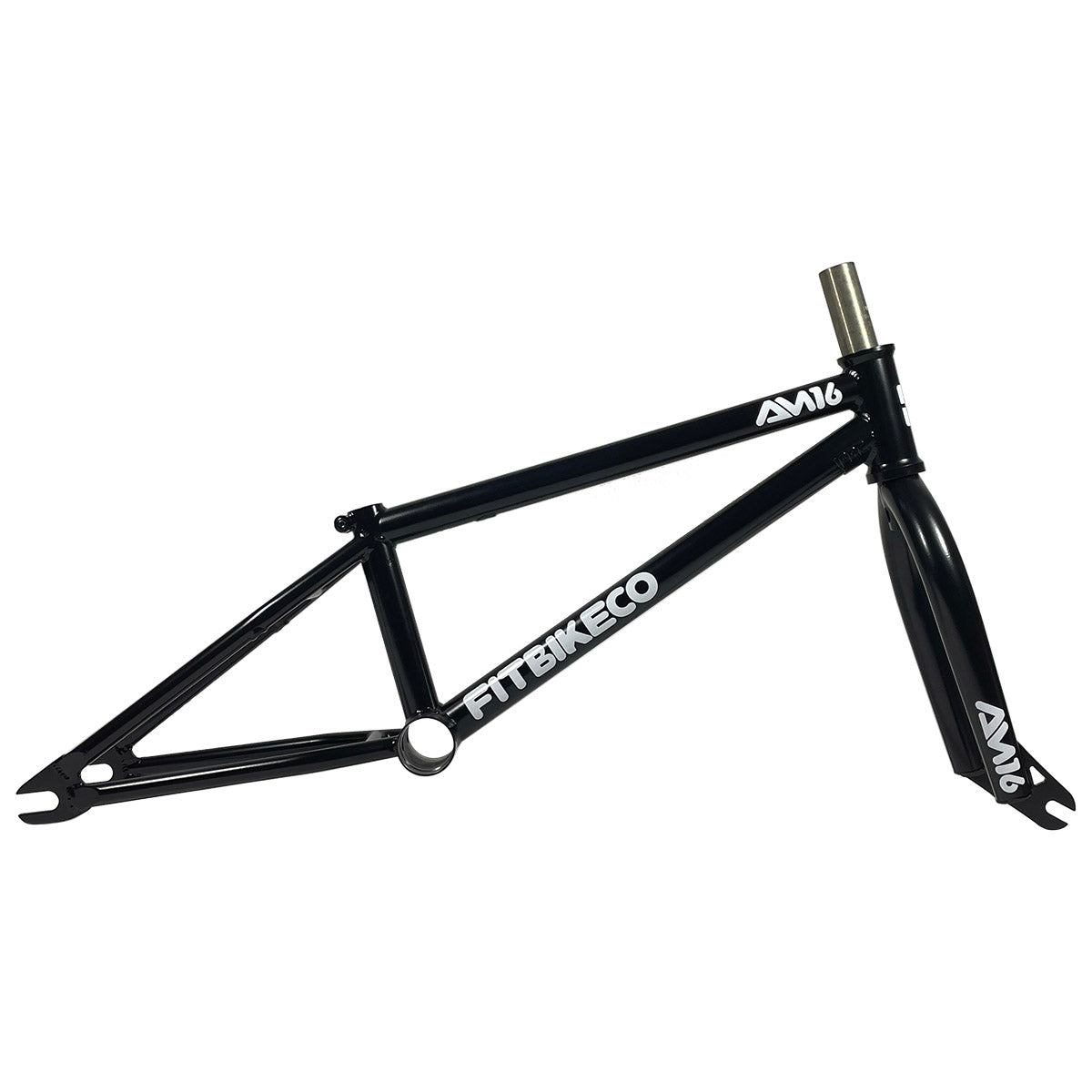

The FIT AM16 is a USA-made, full-chromoly frame and fork combo engineered specifically for 16" BMX bikes. Designed to be the lightest 16" setup available, it features performance-oriented geometry with lower standover height and a shorter rear end to improve handling and control for younger riders. The matching fork is designed to work with the frame but can also be used to upgrade other 16" bikes.

Key Features

• Full chromoly construction – Frame and fork built entirely from 4130 chromoly steel for superior strength-to-weight ratio compared to hi-tensile steel frames common in kids' bikes
• USA-made welding and manufacturing – Domestic construction ensures consistent quality control and precise geometry
• Vari-wall Thermal-X tubeset – Tubes with varying wall thickness place material where strength is needed and reduce it where it's not, minimizing weight without sacrificing durability
• Integrated seat clamp – Built-in clamp reduces parts count and potential failure points while keeping weight down
• 4" integrated headtube – 45°/45° angular contact bearings (41.8mm) provide smooth steering with sealed bearing protection from dirt and moisture
• Double-butted tapered fork legs – Legs are thicker at stress points and thinner in the middle; taper improves stiffness and clearance for pegs and wider tires
• 4Q baked post-weld heat treat (fork) – Heat treatment process after welding restores material strength lost during welding, increasing overall fork durability
• Short 1" offset fork – Reduced offset improves handling responsiveness and reduces front-end flex for more predictable steering
• Laser-cut 3/8" slot dropouts – Precision-cut dropouts ensure accurate wheel alignment and accommodate standard 3/8" axles
• One-piece CNC-machined steerer tube – Machined from solid chromoly bar stock for maximum strength in a critical stress area

Technical Specifications

Frame:

• Top tube length: 16.25"
• Rear end length: 10.65"
• Head tube angle: 74.5°
• Seat tube angle: 71°
• Standover height: 6.5"
• Bottom bracket height: 10.75"
• Head tube: 4" integrated (45°/45°, 41.8mm)
• Bottom bracket: Mid
• Seat clamp: Integrated
• Seat post size: 25.4mm (1")
• Brake mounts: Thread-on (sold separately)
• Dropouts: 14mm
• Gyro tabs: None
• Tubeset: Vari-wall Thermal-X
• Weight: 3.3 lbs

Fork:

• Legs: Double-butted, tapered, 4130 chromoly
• Dropouts: Laser-cut 3/8" slot
• Steerer tube: Integrated race, one-piece CNC-machined 4130 chromoly
• Steerer tube length: 160mm
• Compression: None (designed to be cut and use star nut)
• Axle to crown height: 10.75" (0.330" longer than standard 16" fork)
• Offset: 1" (25.4mm)
• Heat treat: 4Q baked post-weld
• Tire clearance: 2.4"
• Weight: 1.75 lbs

Compatibility and Ideal Use Cases

Designed for younger riders transitioning from balance bikes or looking to upgrade from entry-level 16" BMX bikes. Works with mid bottom bracket cranks, 25.4mm seat posts, 14mm rear axles, and 3/8" front axles. The 41.8mm integrated headset requires compatible bearings. Thread-on brake mounts allow brake installation (mounts sold separately). Lower standover height and optimized geometry suit riders who need better bike control and reduced weight for learning tricks, pumping, and riding varied terrain. The extended fork height and 2.4" tire clearance accommodate larger tires for improved traction and comfort.
