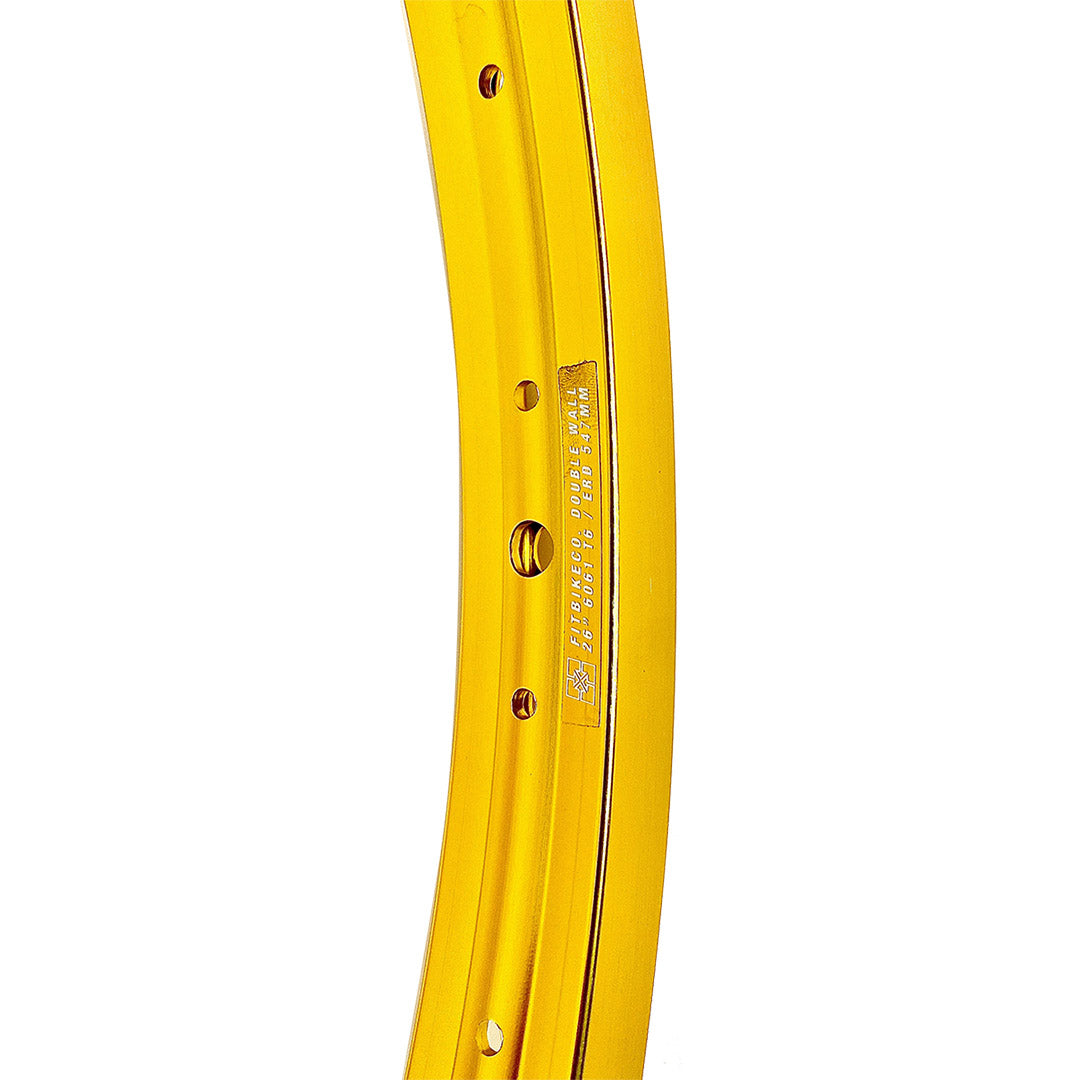

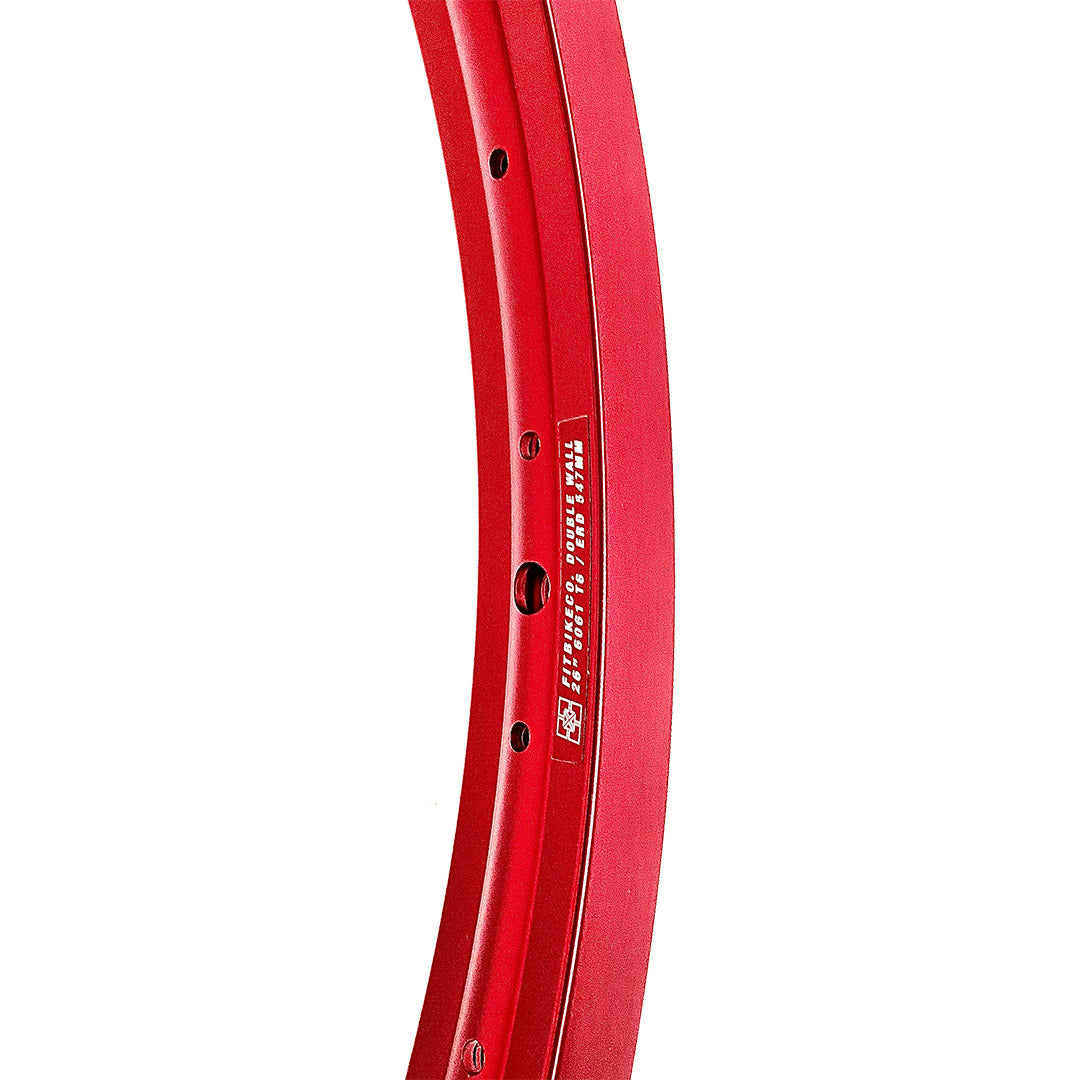

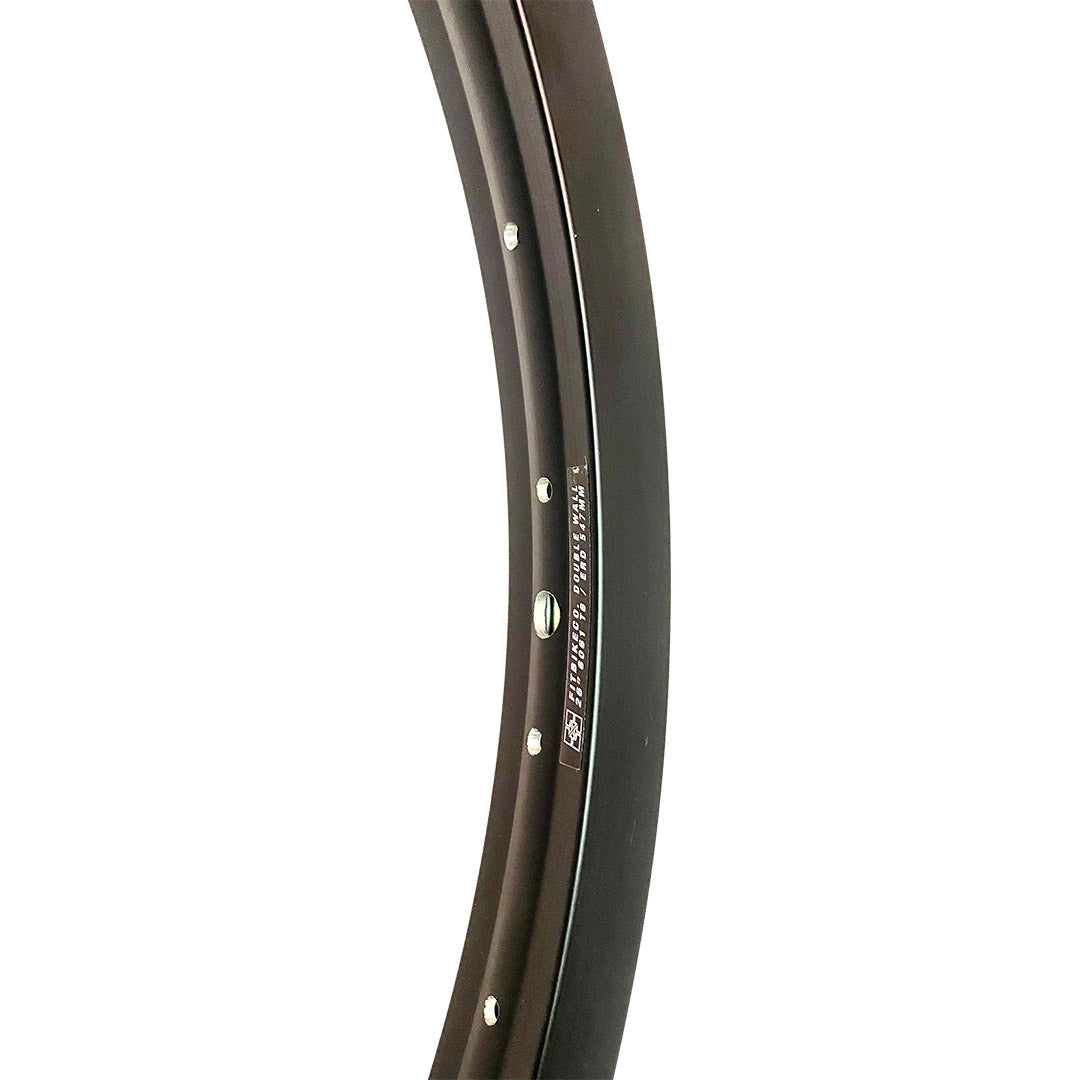

FIT DOUBLE-WALL 26″ RIM

Product Overview

The FIT Double-Wall 26″ Rim is a 6061-T6 aluminum rim designed for 26″ dirt jump, trail, and street builds. Featuring a pinned joint and double-wall construction, this rim provides strength and impact resistance for riders who need durability on jumps and rough terrain. At 33mm wide and 17mm tall with a 547mm ERD, it's built to handle wider tires and hard landings without excessive weight.

Key Features

• Double-wall construction – Two-chamber design increases strength and dent resistance compared to single-wall rims, allowing the rim to handle hard impacts from drops and landings
• 6061-T6 aluminum – Heat-treated aluminum alloy provides a balance of strength, weight, and affordability for everyday riding
• Pinned joint – Sleeve-pinned connection at the rim seam adds strength and prevents the joint from separating under impact
• 33mm width – Wide profile supports larger tire volumes and provides a stable base for improved traction and cornering performance
• 36-hole drilling – Standard 36H spoke count offers strong, reliable wheel builds with even spoke tension distribution

Technical Specifications

• Wheel size: 26″
• Hole count: 36H
• Construction: Double-wall
• Material: 6061-T6 aluminum
• Joint: Pinned
• Width: 33mm
• Height: 17mm
• ERD (Effective Rim Diameter): 547mm
• Weight: 1.75 lb

Compatibility and Ideal Use Cases

This rim works with 26″ tires and requires 36-hole hubs for wheel builds. The 547mm ERD is used to calculate proper spoke length when lacing wheels. The 33mm width is optimized for wider 26″ tires commonly used on dirt jump and trail bikes. Best suited for riders building or rebuilding 26″ wheels for dirt jumping, pump tracks, trails, or street riding where durability and impact resistance are priorities over ultra-light weight.
