HT T2-SX Pedal Mechanism Rebuild Kit

Product Overview

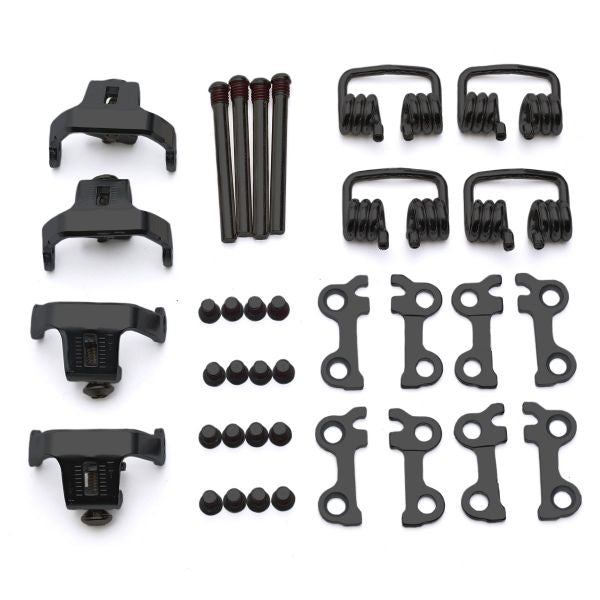

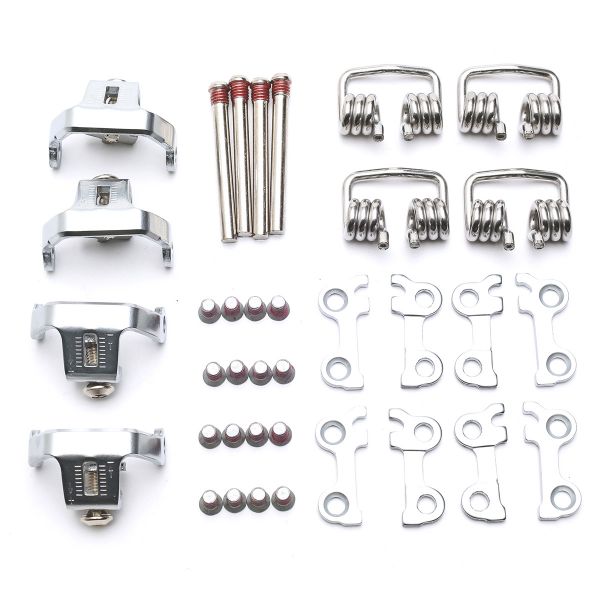

The HT T2-SX Mechanism Kit is a complete rebuild package for HT T2 and T2-SX clipless pedals. This kit includes all serviceable wear components—springs, engagement hooks, mounting hardware, and back plates—to restore pedal function and cleat retention. Designed specifically for HT's proprietary cleat system used on T2 and T2-SX models.

Key Features

• Complete mechanism replacement – All critical engagement and retention components included for full pedal rebuild
• X2 springs (4 included) – New tension springs restore cleat engagement force and release consistency
• 8 hook small plates – Replacement engagement hooks that interface with cleats; these wear over time and affect entry/exit feel
• 16 torx screws (7mm) – All necessary mounting hardware for secure installation of new components
• 4 T1 back plate sets – Rear retention plates that support the mechanism and distribute cleat pressure
• HT proprietary system – Works exclusively with HT cleats; not compatible with SPD or other cleat standards

Technical Specifications

• Compatibility: HT T2, HT T2-SX pedals only
• Cleat system: HT exclusive (not SPD-compatible)
• Springs included: 4 × X2 springs
• Hook plates included: 8 small engagement hooks
• Mounting hardware: 16 × 7mm torx screws
• Back plates: 4 × T1 back plate sets
• Tool required: 7mm torx driver (not included)

Compatibility and Ideal Use Cases

This kit is designed exclusively for HT T2 and T2-SX clipless pedal models and will not fit other pedal brands or models. Ideal for riders experiencing worn engagement (loose cleat retention, inconsistent release, or difficulty clipping in) or those performing routine maintenance after extended use. All components are direct OEM replacements. Requires basic mechanical skills and a 7mm torx driver for installation. Not compatible with Shimano SPD or other two-bolt cleat systems.
