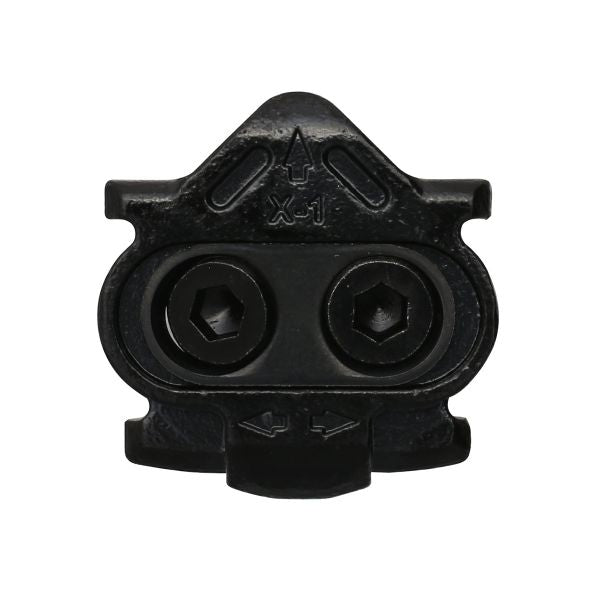

HT X1 Cleats

Product Overview

The HT X1 Cleats are replacement cleats for HT clipless pedal systems engineered with 4-degree side float and 13-degree release angle. Compatible with multiple HT pedal models, they deliver minimal foot movement and maximum pedal platform control suited for technical riding and precise foot positioning.

Key Features

• 4-degree side float — Minimal lateral movement provides the tightest foot control among HT cleat options for enhanced pedal platform stability
• 13-degree release angle — Moderate release setting provides reliable disengagement without accidental unclipping during aggressive riding
• Wide platform compatibility — Work with multiple HT pedal models including X1, X2, T1, M1, 878, X3, X2-SX, and T2-SX
• Complete hardware assortment — Includes long and short bolts with composite and metal spacers for flexible installation on various shoe types
• Precise cleat geometry — Engineered for predictable clip-in and release mechanics with minimal float tolerance

Technical Specifications

• Cleat type: HT X1 platform
• Material: Hardened steel or composite (standard HT specification)
• Side float: 4 degrees
• Release angle: 13 degrees
• Compatibility: HT X1, HT X2, HT T1, HT M1, HT 878, HT X3, HT X2-SX, HT T2-SX

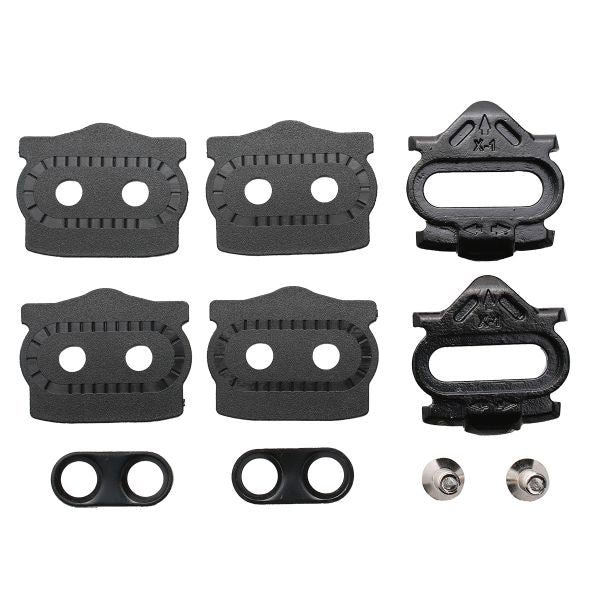

• Included hardware: Pair of cleats, four long bolts, four short bolts, four composite spacers, two metal distance plates, two washers
• Quantity: One pair (left and right)

Compatibility and Ideal Use Cases

Compatible exclusively with HT X1, X2, T1, M1, 878, X3, X2-SX, and T2-SX pedal platforms. Essential for riders requiring replacement cleats or seeking maximum foot stability and control. Ideal for BMX, street, and technical terrain riders using compatible HT pedal systems. Minimal float suits riders prioritizing platform security over biomechanical flex. Composite and metal spacer options accommodate varied shoe sole thicknesses. Requires shoe-mounted cleat attachment points compatible with HT system.
