HT X2-SX Mechanism Spare Parts Kit

Product Overview

The HT X2-SX mechanism kit is a complete replacement parts package for HT X2 and X2-SX clipless pedals. Containing springs, cleats hardware, adjustment components, and back plates, it allows full reassembly or repair of worn or damaged pedal mechanisms. The kit includes all necessary fasteners and adjustment components for proper pedal function and customization.

Key Features

• HT exclusive cleats system – Parts are designed specifically for HT's proprietary clipless cleat interface and are not compatible with other pedal systems
• Complete mechanism rebuild – Kit contains all internal components needed for full pedal reassembly or comprehensive repair
• 4 replacement springs – New tension springs restore proper cleat engagement and release feel after wear or damage
• 8 hook small plates – Cleat retention hardware ensures secure foot positioning and consistent engagement
• 16 torx fasteners – Precision screws secure internal components with proper torque for reliable, rattle-free operation
• 4 spring bolts – Hardware secures spring assemblies to mechanism body for proper tension maintenance
• 4 adjustment screws – Allow fine-tuning of cleat engagement tension and release feel to personal preference
• 4 adjustment plates – Enable height and angle adjustments for optimal cleat positioning and foot comfort
• 4 back plates – Pedal body components that house the internal mechanism and interface with cleat hardware
• Professional-grade components – Precision-manufactured parts maintain OEM performance and reliability standards

Technical Specifications

• Pedal compatibility: HT X2, HT X2-SX
• System type: Clipless pedal mechanism
• Cleat system: HT exclusive (proprietary)

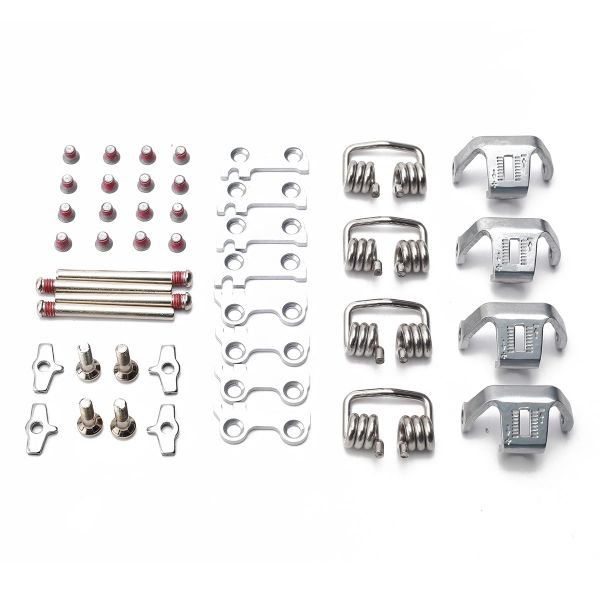

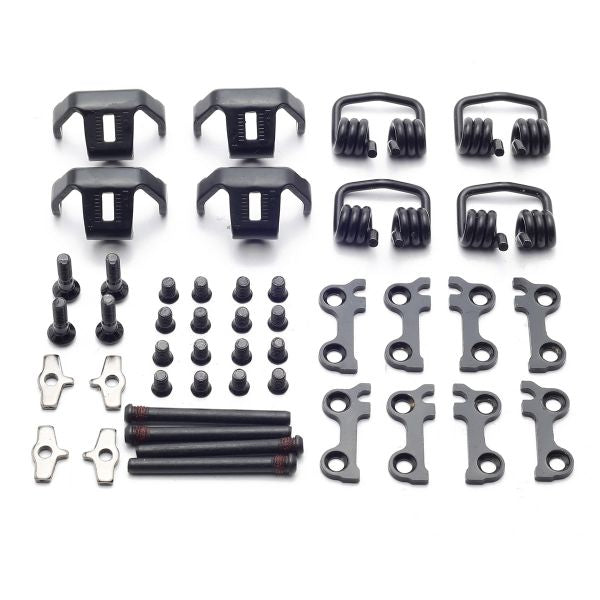

• Kit contents:
  • 4 X2 new springs
  • 8 hook small plates
  • 16 torx screws
  • 4 spring bolts
  • 4 adjustment screws
  • 4 adjustment plates
  • 4 X2 back plates
• Fastener type: Torx screws (precision)
• Application: Repair, rebuild, or maintenance of HT X2 and X2-SX pedals

Compatibility & Ideal Use Cases

This mechanism kit is designed exclusively for HT X2 and X2-SX clipless pedals and is not compatible with other pedal brands or systems. It's ideal for riders with worn or damaged pedal mechanisms seeking to restore full function without replacing entire pedals. The kit allows complete disassembly and reassembly for deep cleaning, customization of engagement/release tension, or repair of individual component failure. Best suited for experienced mechanics or riders comfortable working with precision pedal assemblies. Not compatible with HT's other pedal systems or non-HT cleats. Replacement springs and adjustment components allow fine-tuning of pedal feel after reassembly.
