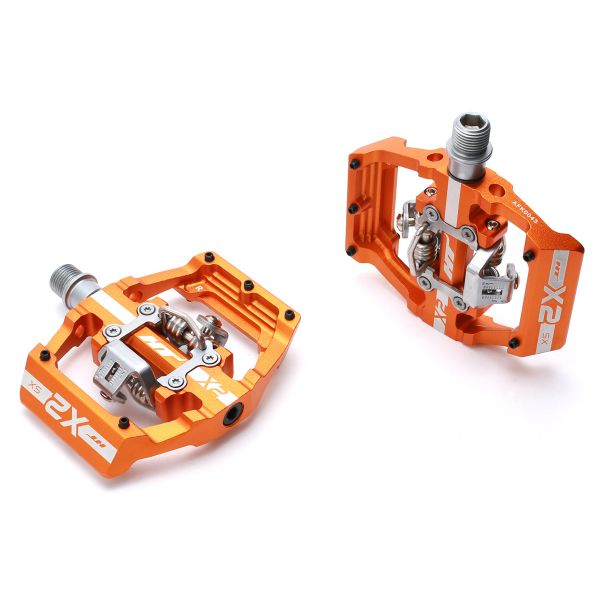

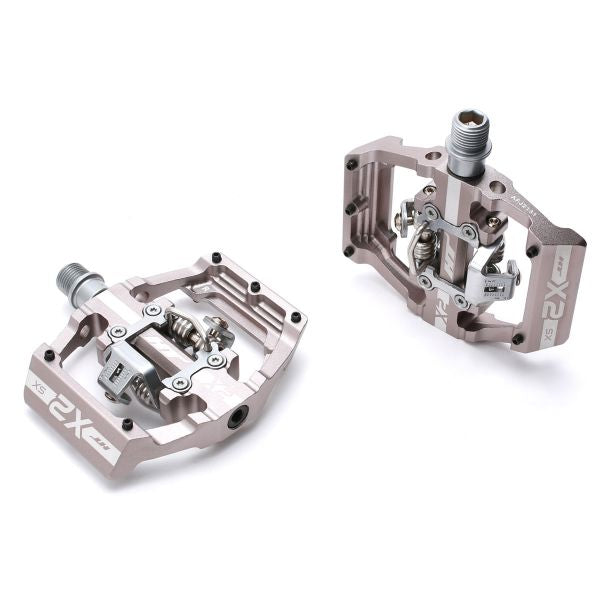

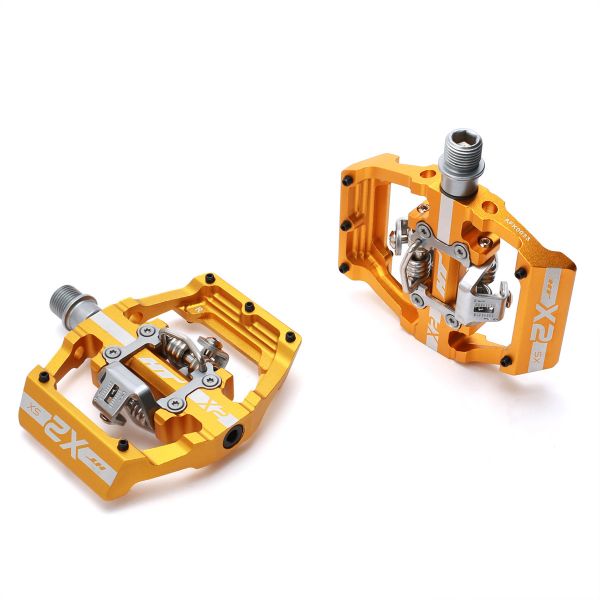

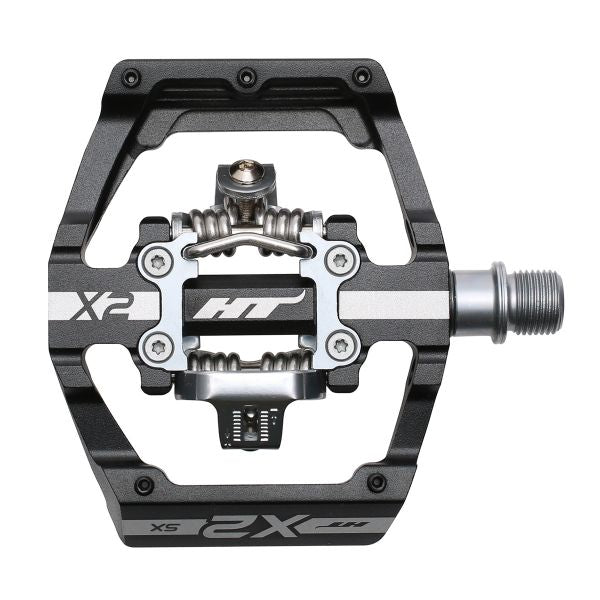

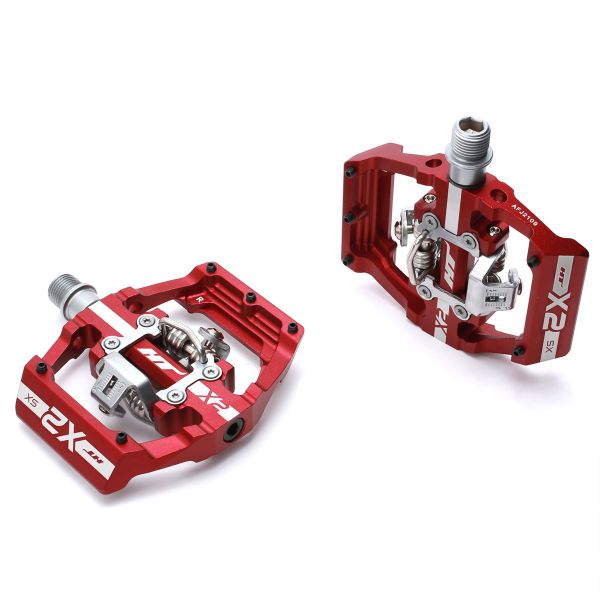

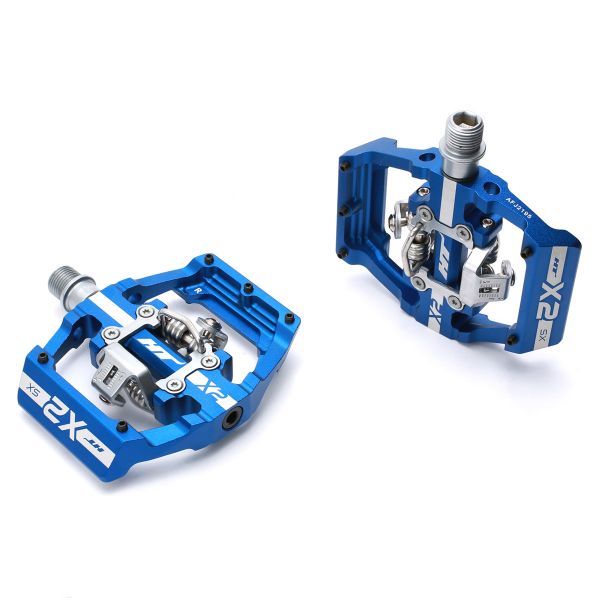

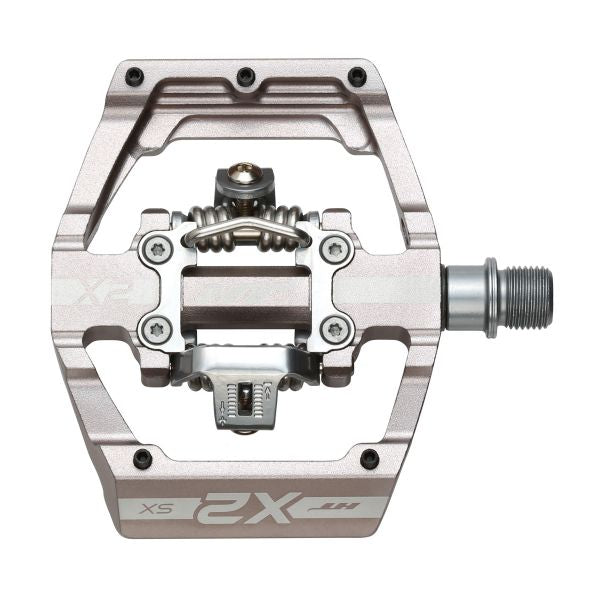

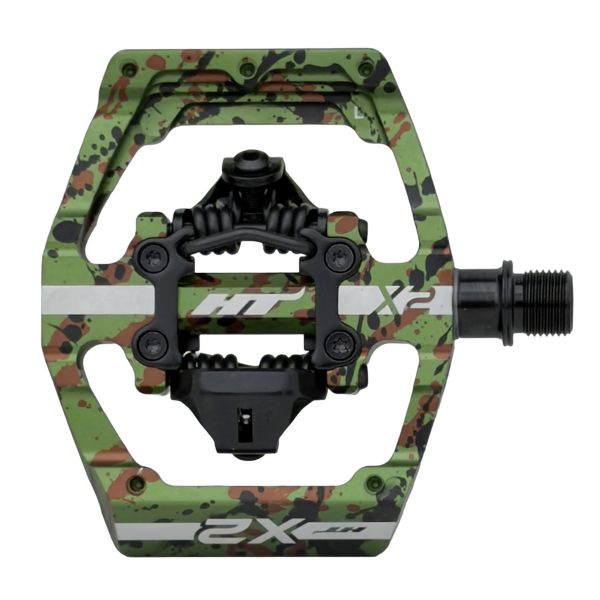

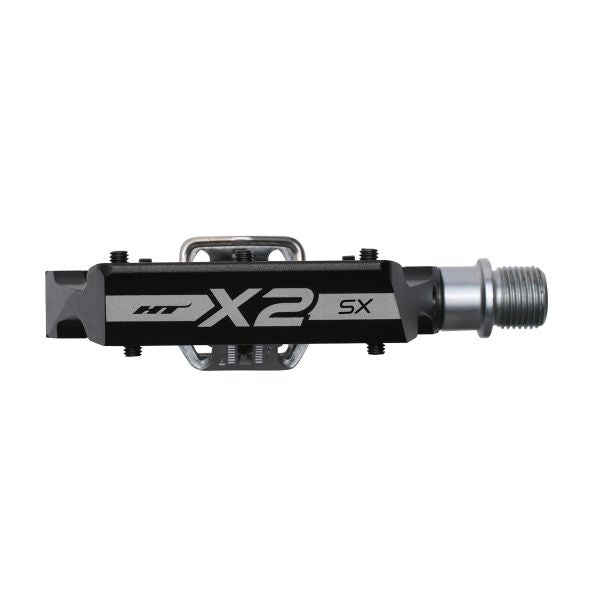

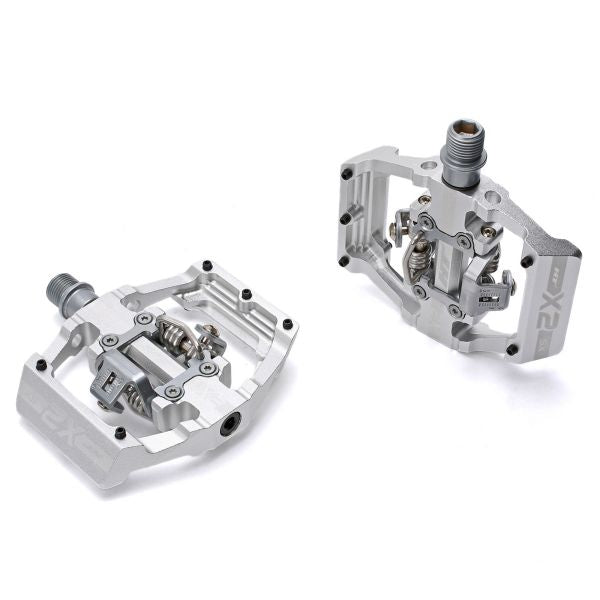

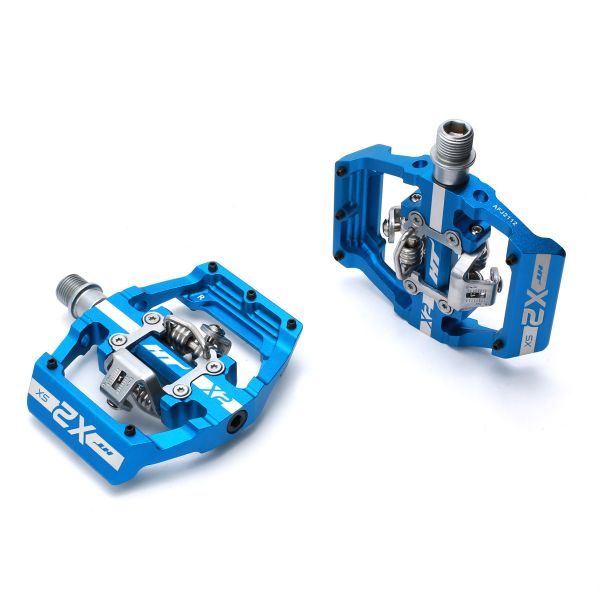

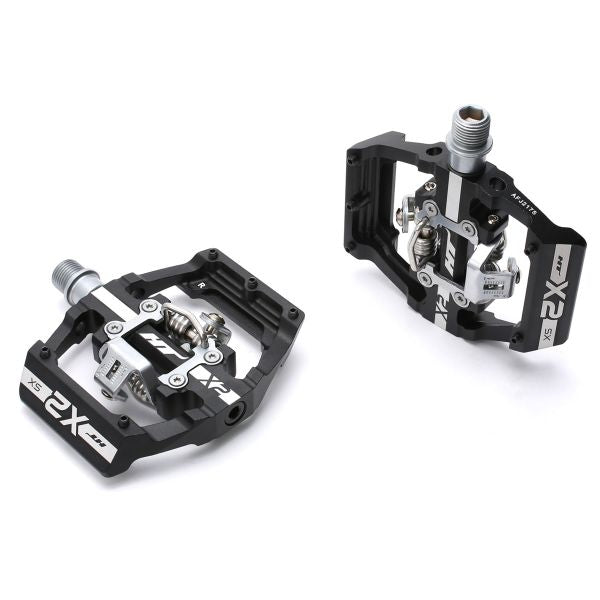

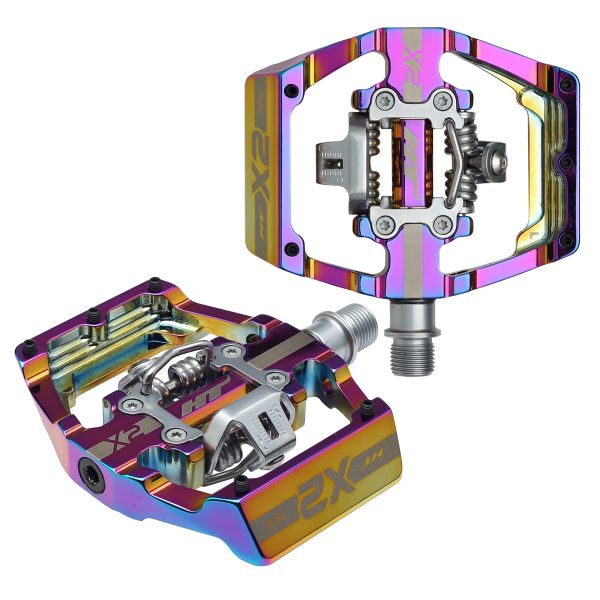

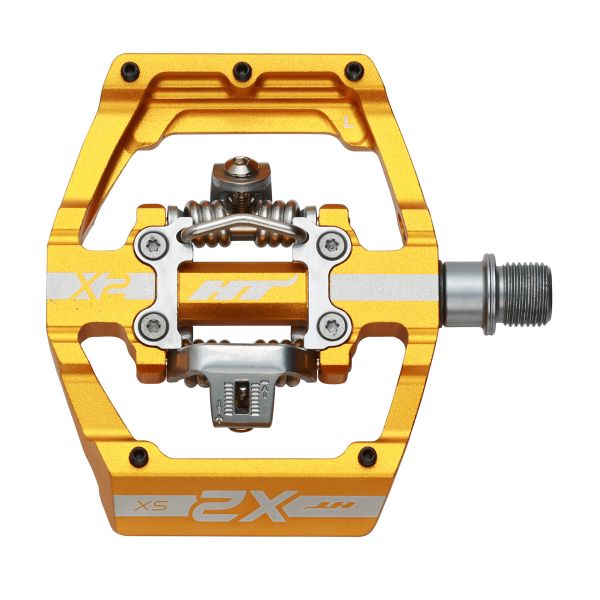

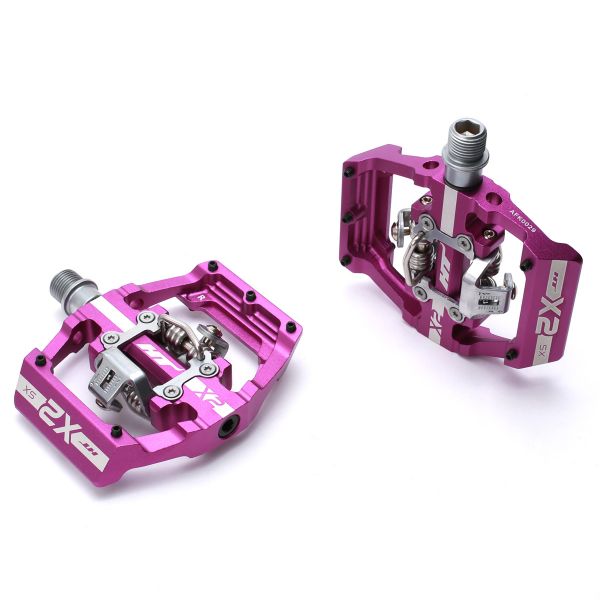

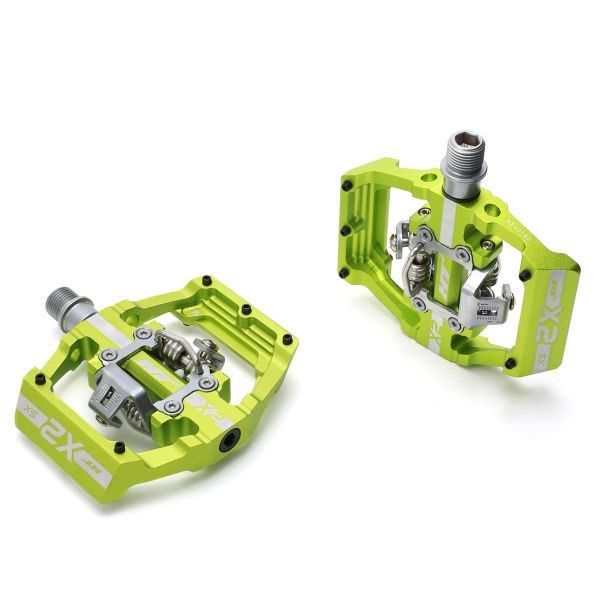

HT X2-SX Pedals

Product Overview

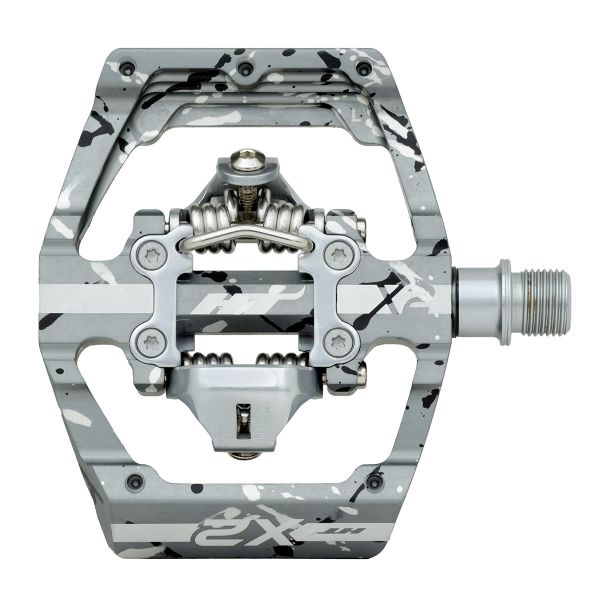

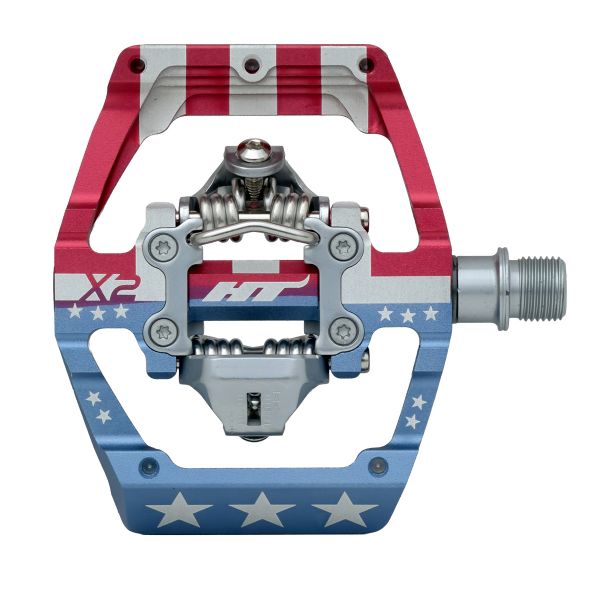

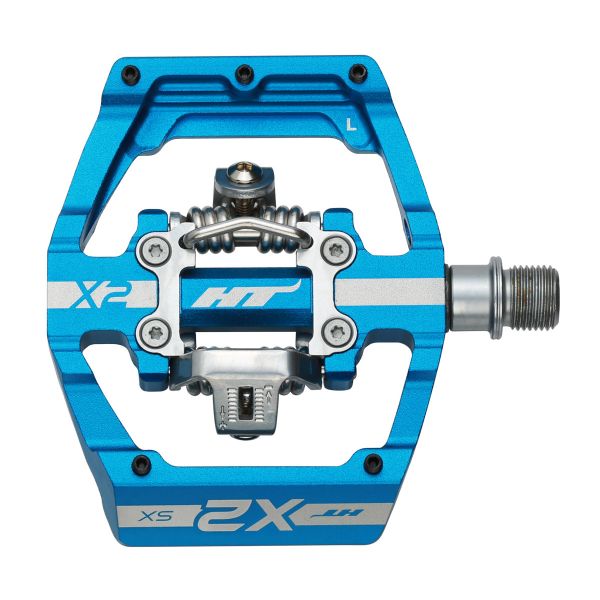

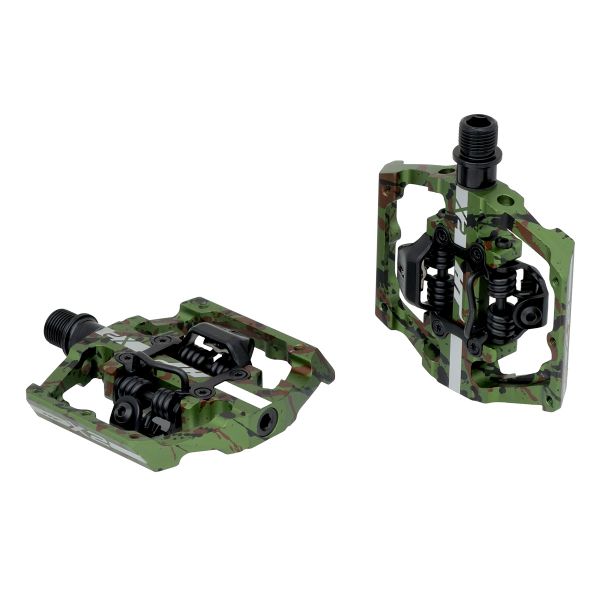

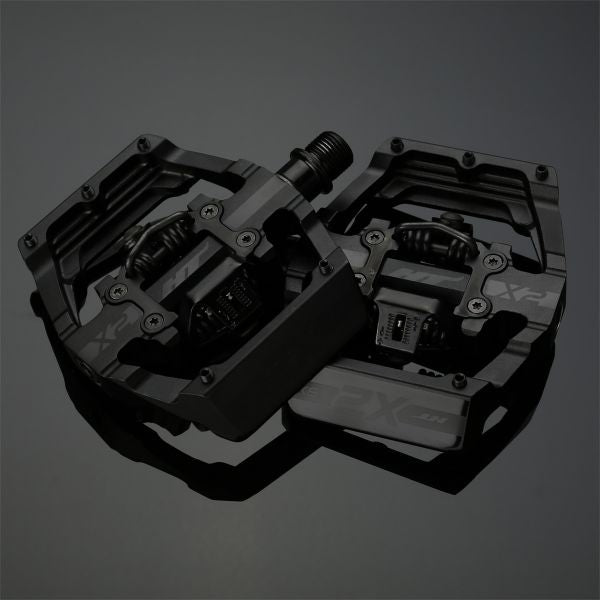

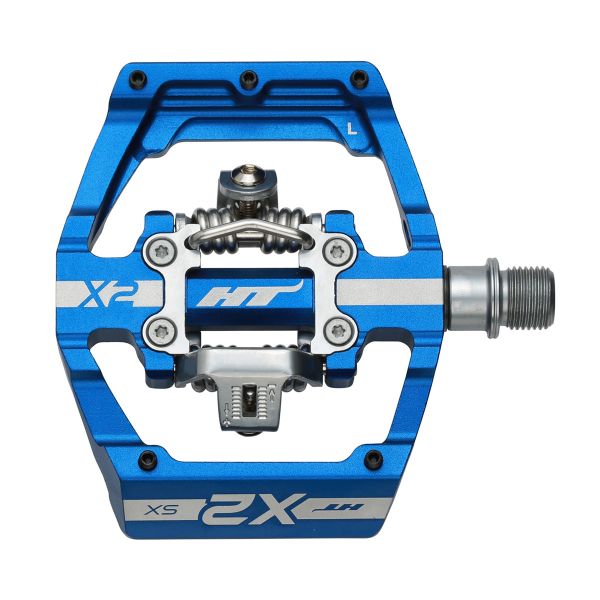

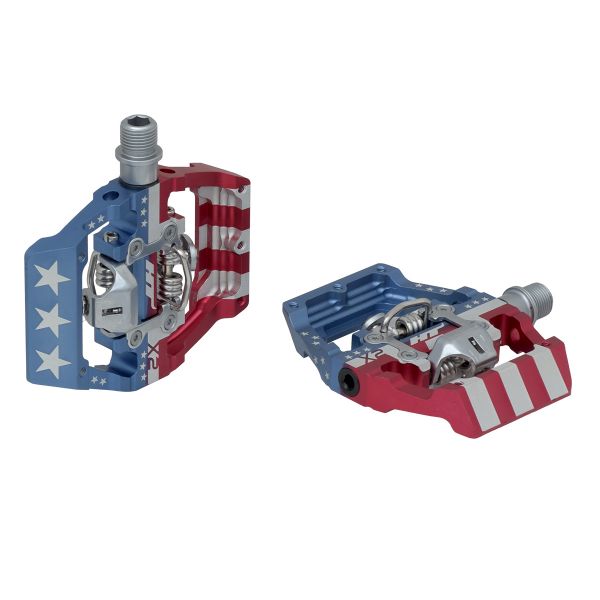

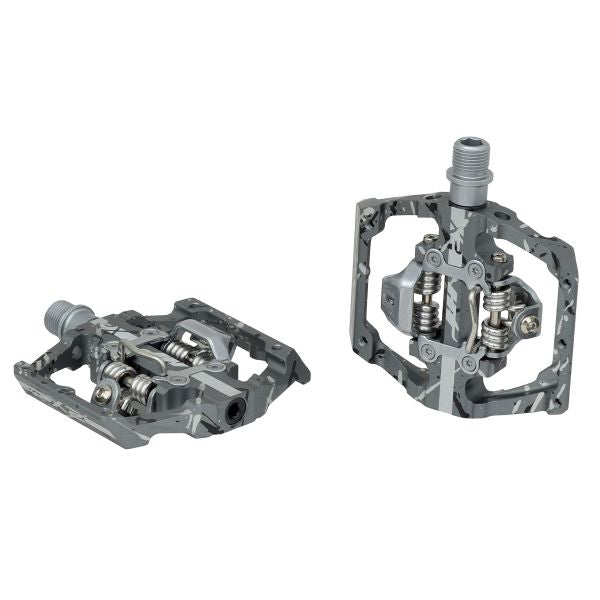

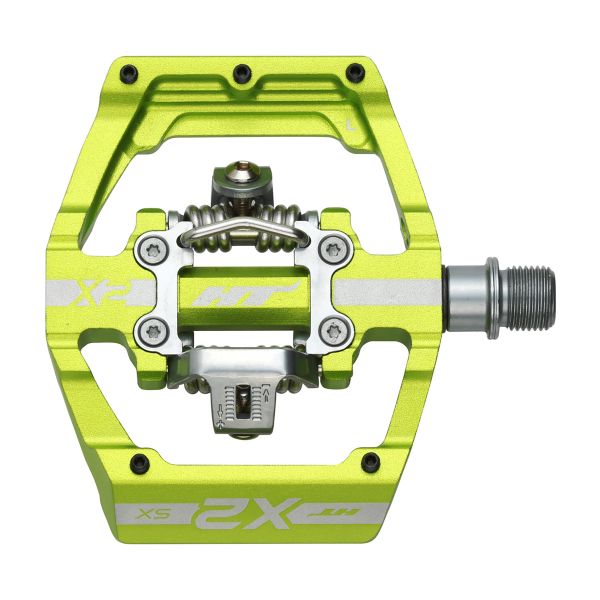

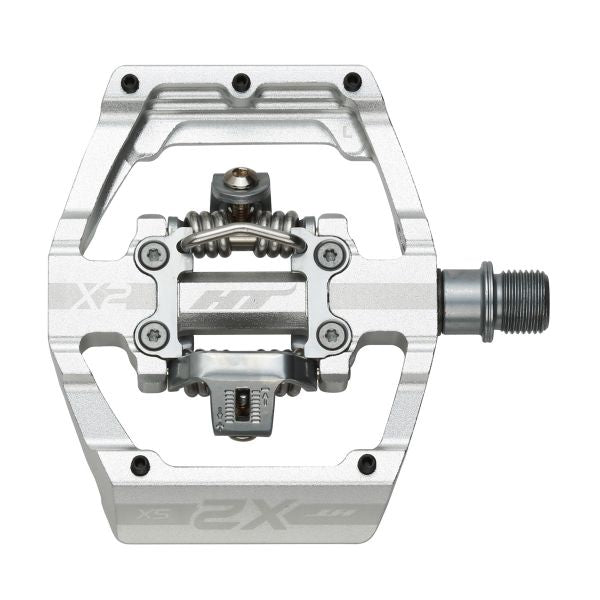

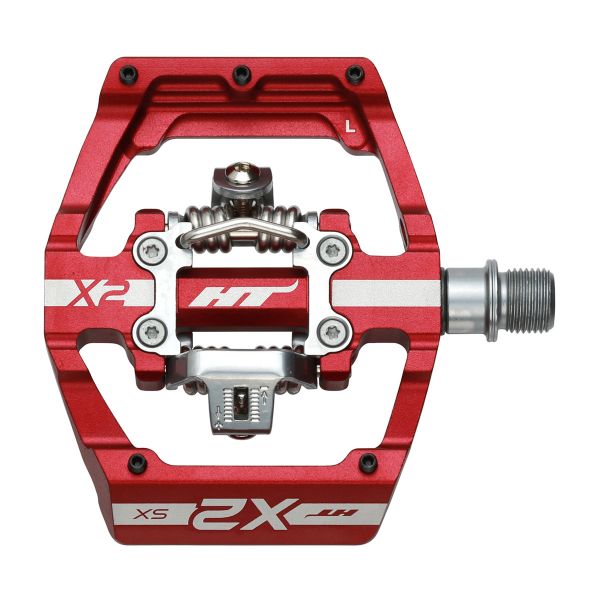

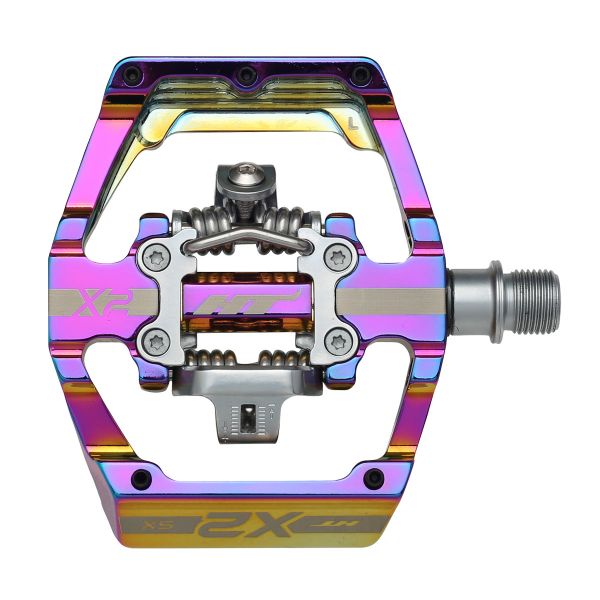

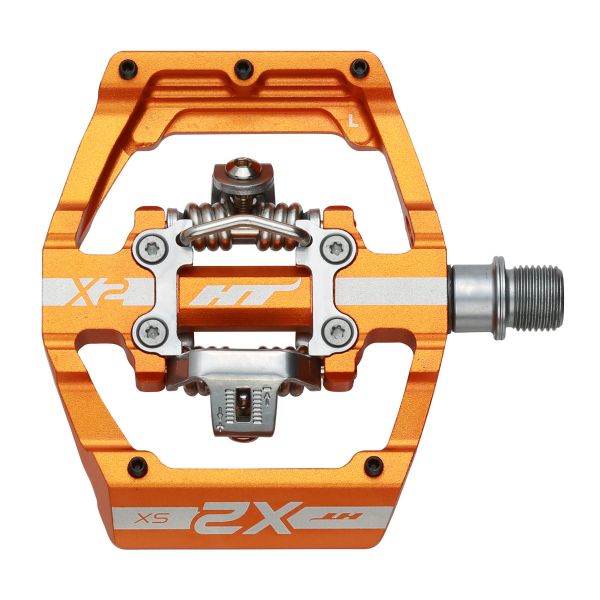

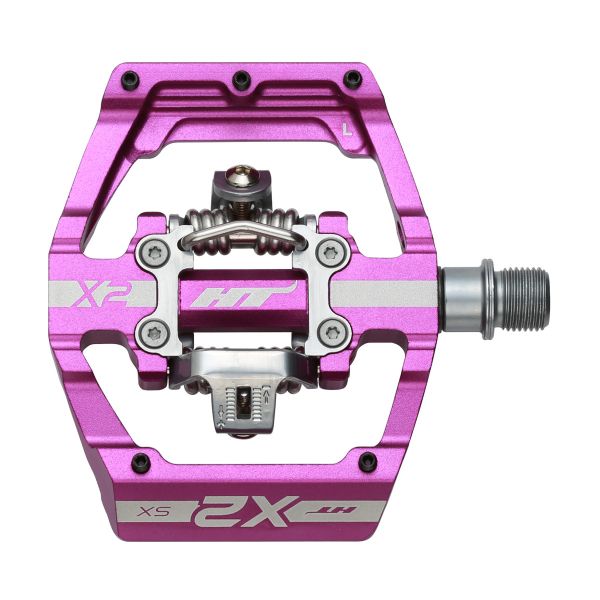

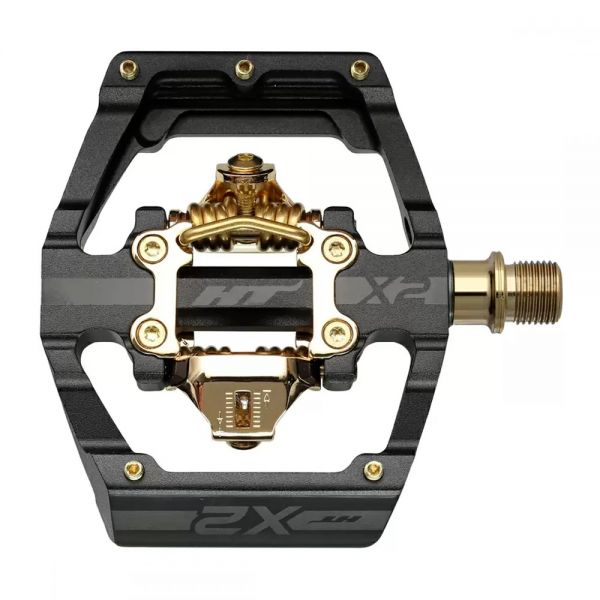

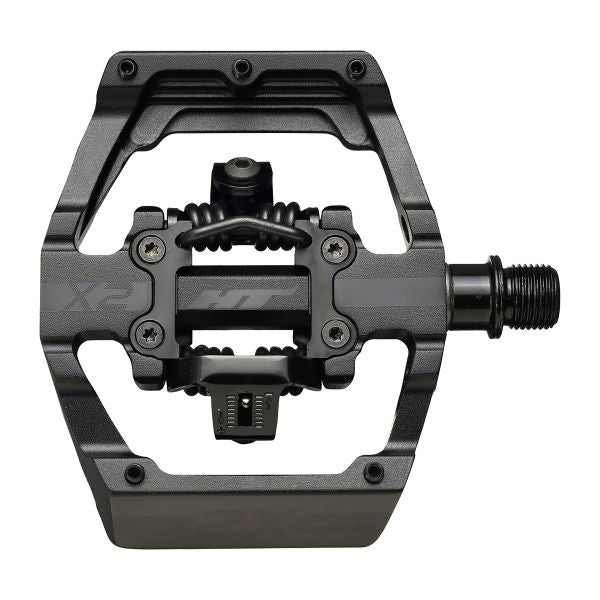

The HT X2-SX are BMX race-specific clipless pedals developed with input from professional riders to handle the unique demands of gate starts, jumps, and aggressive power transfer. Featuring CNC-machined aluminum bodies and chromoly spindles with sealed bearings, these pedals use HT's proprietary X2/X1/X1F cleat system designed for secure engagement during hard accelerations while providing controlled float for foot adjustment. The platform design includes replaceable grip pins for additional traction when unclipped.

Key Features

• BMX Race-Specific Design – Engineered for high-impact racing use with reinforced engagement mechanism that resists unintentional unclipping during gate starts, jumps, and hard pedaling
• Controlled Float System – Allows foot position adjustment while clipped in without accidental release, letting riders fine-tune positioning mid-race while maintaining secure connection
• CNC-Machined Aluminum Body – Extruded and machined construction provides strength and durability while keeping weight low for racing applications
• Chromoly Spindle – CNC-machined cr-moly steel axle handles pedaling loads and impact forces without bending
• Sealed Bearings with IGUS Bushings – Sealed bearing system keeps contamination out while IGUS bushings reduce friction and extend service life
• Replaceable Grip Pins – Integrated pins provide traction for shoe contact before clipping in or when riding unclipped
• HT Exclusive Cleat System – Compatible with X2, X1, and X1F cleats for customization of engagement tension and release characteristics

Technical Specifications

• Body Material: Extruded and CNC-machined aluminum
• Spindle Material: CNC-machined chromoly steel
• Bearing System: Sealed bearings with IGUS bushings
• Cleat Compatibility: HT X2, X1, X1F (HT proprietary system)
• Platform Pins: Replaceable grip pins
• Dimensions: 85mm x 94mm x 14mm (length x width x height)
• Weight (Pedals): 460g per pair
• Weight (Cleats): 64g per pair
• Pedal Type: Clipless
• Size Category: Pro

Compatibility and Ideal Use Cases

Compatibility Requirements: Requires HT-compatible cleats (X2, X1, or X1F) and cycling shoes with two-bolt cleat mounting patterns. Not compatible with SPD, Look, or other clipless systems. Verify your shoes have compatible cleat mounting before purchasing.

Designed specifically for competitive BMX racing where reliable clipping engagement and controlled release are critical. The stiffer engagement feel and float characteristics suit riders who need secure connection during explosive gate starts and hard sprints but want foot adjustment capability without unintentional release. The sealed bearing system and durable construction handle the repeated high-impact loads of jumps and rough tracks. Best suited for intermediate to advanced racers who are comfortable with clipless pedal systems and want pedals engineered specifically for BMX racing demands rather than adapted from mountain biking applications.
