Ikon Alloy 20" Rim 406x28 32h No Brake Surface

Overview

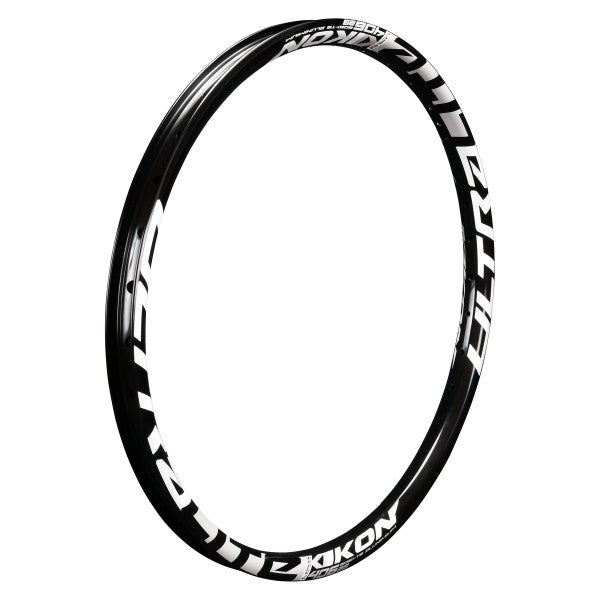

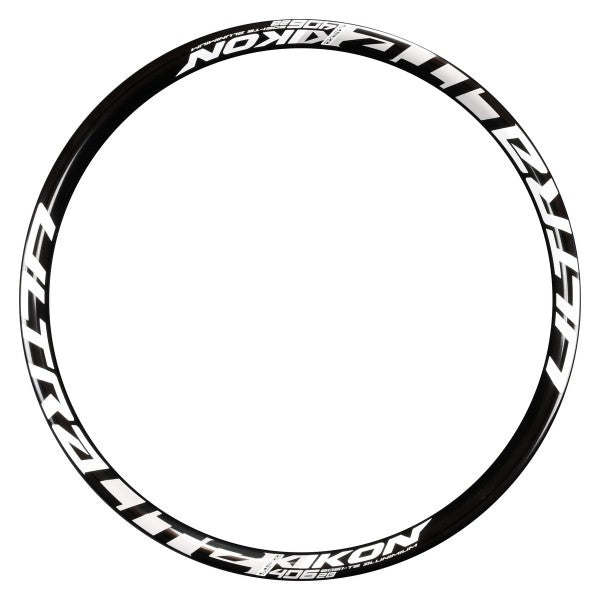

The Ikon UltraLite Alloy ETRO 406 rim is a pro-sized rim specifically engineered for BMX racing. At 28mm width and approximately 312g (11 oz), this double-walled 6061 T6 aluminum rim delivers the strength and size of a traditional 1.75" rim while weighing as little as a 1.5" rim. This model features a brakeless surface profile with an aero design, intended exclusively for disc brake use on either the front or rear wheel. The black anodized finish with double-polished base and water-transfer graphics is available in four colors including Neon Yellow.

Key Features

• UltraLite double-walled construction — 6061 T6 alloy with optimized internal geometry provides light weight without sacrificing structural strength

• Brakeless surface profile — Aero-designed rim with no machined brake track; intended exclusively for disc brake use

• Angled spoke nipple openings — Proprietary Ikon design creates a more direct spoke/nipple angle, resulting in a stronger wheel build

• Double-polished + black anodized finish — High-luster appearance achieved through a two-stage polishing method before anodizing

• Water-transfer graphics — Available in four colors (White, Neon Yellow, Red, Blue)

• Low-profile aero design — Reduces drag while maintaining structural integrity

• Tubeless Ready with Bead Lock System — Can be converted to tubeless with additional components (valve, rim tape, liquid sealant) to reduce rotational weight and add puncture self-repair

• Disc brake compatible — Designed for front or rear disc brake use without strength compromise

• Sleeved rim construction — Traditional joint method for reliable performance

Technical Specifications

• Material: 6061 T6 aluminum alloy

• Size: 406x28mm (20" x 1.50"/1.75")

• ERD: 384.2mm

• Drilling: 32 holes

• External width: 28mm

• Internal width: 21.9mm

• Height: 19mm

• Weight: 312g / 11 oz (314g / 11.07oz noted in feature list)

• Valve: Presta F/V (Schraeder valve hole noted in description)

• Spoke tension recommended: ≤115 KGF

• Brake surface: None (brakeless / disc only)

• Tubeless: Ready with Bead Lock System (requires conversion kit)

Compatibility & Ideal Use Cases

• Frame/fork compatibility: 20" BMX frames and forks designed for 406mm ISO/ETRO rims

• Brake compatibility: Disc brakes only (no rim brake surface)

• Spoke compatibility: 32-hole hubs only

• Tire compatibility: 20" x 1.50" to 1.75" tires; tubeless-ready tires required for tubeless conversion

• Wheel position: Front or rear wheel with disc brake mounting

• Best for: BMX racers running disc brake setups on both wheels; riders seeking 1.75" rim strength at near-1.5" rim weight

• Ideal use: Competitive BMX racing where weight savings and aero profile matter; front or rear disc brake wheelsets; brakeless race configurations

• Not suitable for: Rim brake systems (V-brake, caliper, U-brake); riders requiring a machined braking surface

NO BRAKE SURFACE RIM.

Disc Braking Compatible - Designed to be used as a front rim or a rear rim when using a disc brake.
