Ikon Alloy 20" Rim 451x19.5 28H – No Brake Surface

Product Overview

The Ikon UltraLite is a lightweight double-walled 6061-T6 alloy rim designed for BMX racing with brakeless surface profile. At 266g (9.34 oz), it provides optimized geometry for minimal weight and strength, featuring angled spoke holes for rigid wheel builds and tubeless compatibility.

Key Features

• Double-Walled 6061-T6 Aluminum – Optimized internal geometry reduces weight while maintaining strength for racing applications
• Brakeless Aero Design – Front profile without brake surface; optimized for speed-focused builds without rim brake compatibility
• Angled Spoke Holes – Slightly inclined openings create more direct spoke angle for stronger, more rigid wheel builds
• Double-Polished Finish – Hi-polish surface treatment creates brilliant shine before anodizing
• Black Anodized Coating – Durable protective finish resists corrosion and wear

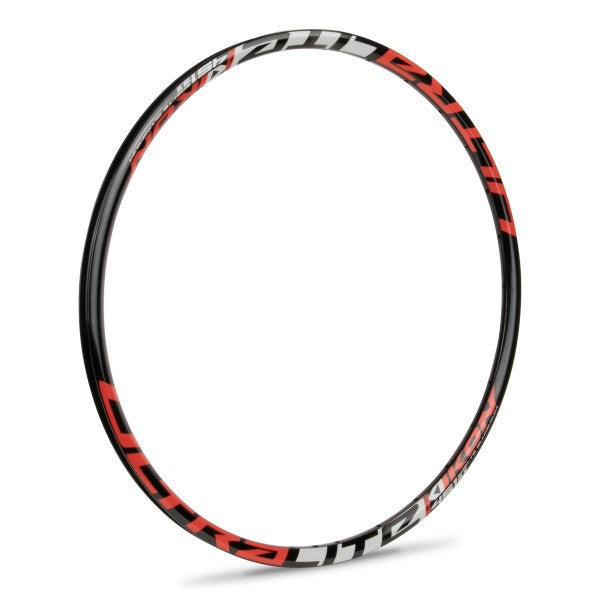

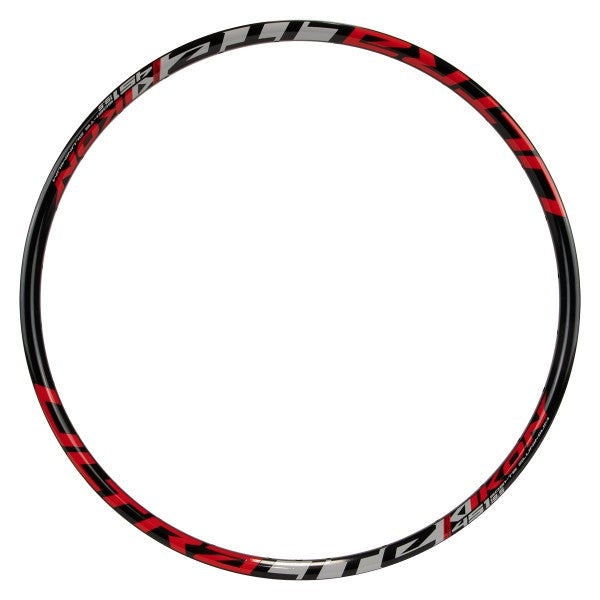

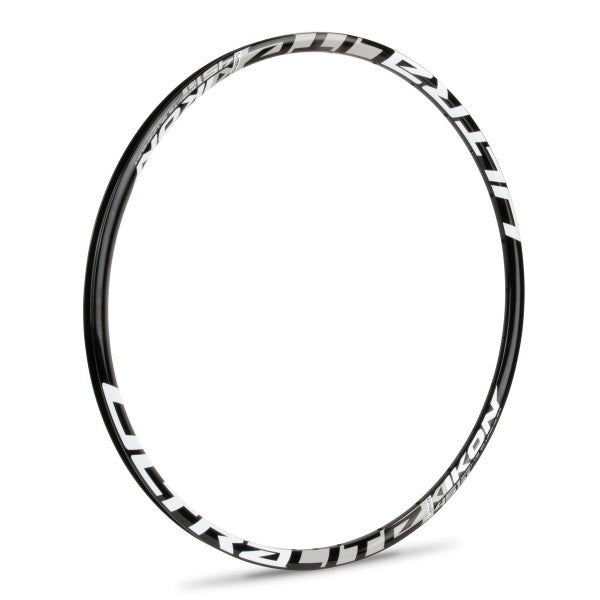

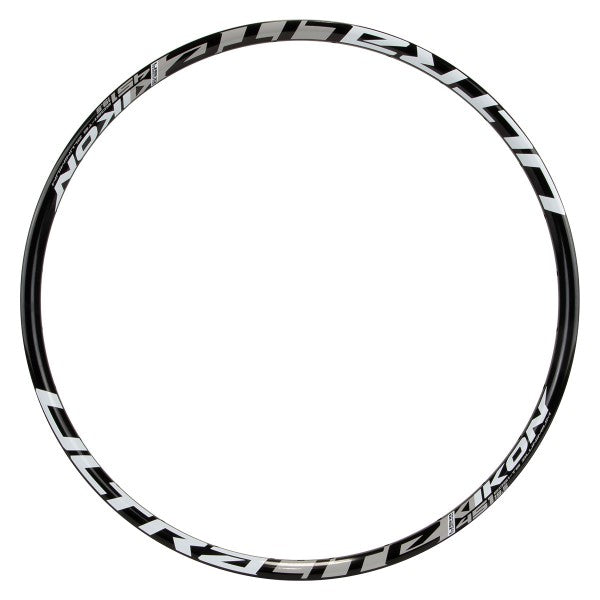

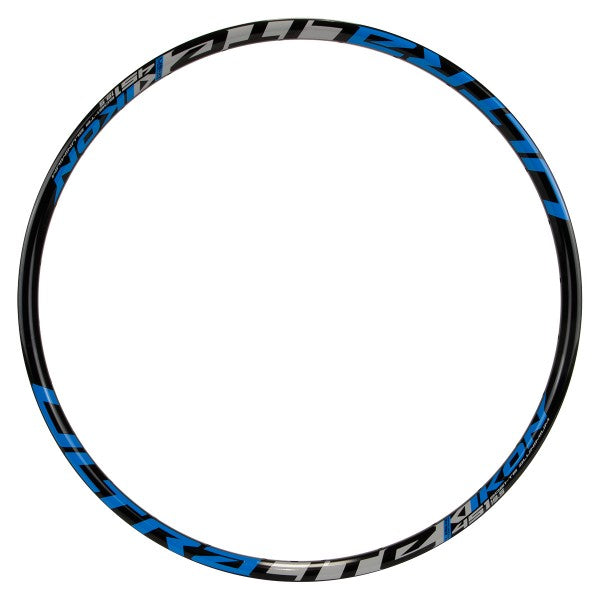

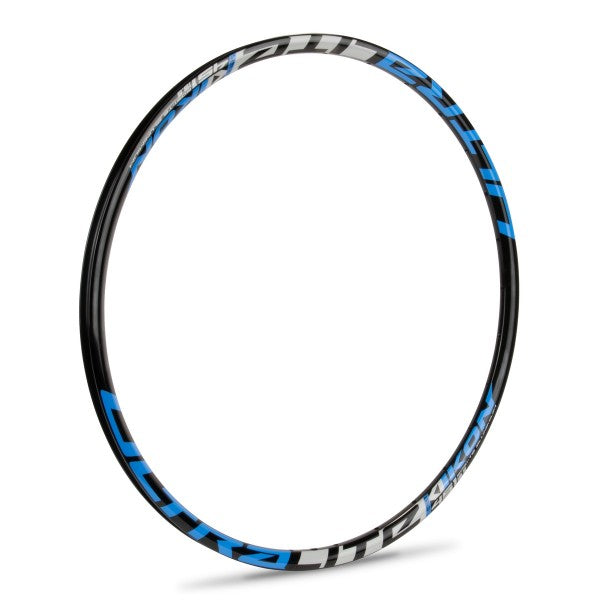

• Water Transfer Graphics – Four color options (white, neon yellow, red, blue) applied to black anodized surface
• 19.5mm Width – Compact rim width optimized for minimal weight while maintaining tire support
• Tubeless Ready – Bead lock system supports tubeless setup with additional tape, valve, sealant, and sealer (sold separately)
• Front or Rear Compatible – Brakeless design allows use as front or rear wheel without disc brake requirements
• Ultra-Lightweight – 266g (9.34 oz) weight ideal for weight-optimized racing builds

Technical Specifications

• Material: 6061-T6 aluminum, double-walled
• Size: 451x19.5mm (20"x1-1/8"/1-3/8")
• Drilling: 28 holes
• ERD (Effective Rim Diameter): 434mm
• Height: 16.3mm
• Internal rim width: 13.5mm
• External rim width: 19.5mm
• Weight: 266g (9.34 oz)
• Valve: Presta F/V compatible
• Finish: Double-polished black anodized with water transfer graphics
• Graphics: Four color options (white, neon yellow, red, blue)
• Maximum spoke tension: ≤115 kgf
• Maximum tire pressure: 110 PSI (7.58 bar)
• Tubeless compatible: Yes (bead lock system)
• Brake surface: None (brakeless profile)

Build Requirements & Compatibility

• Spoke Compatibility – Use with butted or bladed steel spokes; verify spoke length based on hub flange geometry (approximately 220–240mm range depending on hub)
• Spoke Tensioning – Use calibrated spoke tension meter; maximum 115 kgf spoke tension
• Lacing Patterns – Angled spoke holes support standard cross lacing; radial lacing not recommended
• Tire Compatibility – Designed for 20" BMX tires; verify tire bead diameter matches 451 ETRTO standard
• Valve Type – Presta valve compatible; verify tire valve type before assembly
• Tire Pressure Limit – Maximum 110 PSI; exceeding this may damage rim or tire
• Tubeless Setup – Requires tubeless-specific tire, rim tape, valve, sealant, and liquid sealer for conversion
• Hub Compatibility – Works with any 28-hole hub (front or rear); verify ERD and spoke hole count

Compatibility & Ideal Use Cases

• BMX racing – Lightweight, aerodynamic design optimized for racing performance
• Weight-optimized builds – 9.34 oz weight ideal for competitive racing setups
• Front or rear wheels – Brakeless design suitable for both positions without brake requirements
• Disc brake systems – Compatible with front and rear disc brake setups (alternative to brakeless use)
• Tubeless conversions – Bead lock system enables tubeless setup for reduced weight and puncture resistance
• Compact wheel builds – 19.5mm width and 28-hole drilling optimized for minimal weight
• All rider types – Suitable for racing-focused riders at any skill level

Important Notes

• Brakeless surface; not compatible with rim brakes or V-brakes
• Compatible with disc brake systems when used as front or rear wheel
• Maximum spoke tension 115 kgf; exceeding this may damage rim or spokes
• Maximum tire pressure 110 PSI; higher pressure may exceed rim design limits
• Angled spoke holes require proper spoke length calculation for correct build geometry
• Water transfer graphics applied to black anodized finish; select color option at checkout
• Tubeless setup requires additional components (tape, valve, sealant, sealer) sold separately
• Double-polished finish may require periodic cleaning to maintain shine

• Double Walled Rim
• Size : 451x19.5mm (20"x1-1/8"/1-3/8”) 28 Holes
• Material: 6061 Aluminum T6
• Finish: Double Polished and Black Anodized
• Weight - 266g / 9.4 oz
• ERD: 434mm
• Height : 16.3mm
• Internal Rim Width: 13.5mm
• External Rim Width: 19.5mm
• Spoke Tension Recommended ≤115KGF
• Disc Specific Design Brakeless surface rim can be used as front or rear rim without sacrificing strength
• Anodized Black Rims with Water Transfer Applied Graphics in 4 color options (White / Blue / Red / Neon Yellow)

Tubeless Ready System - Our rims feature a Bead Lock System, needed for the rim to be Tubeless Ready. With the installation of additional items needed you can get the rim ready for tubeless set up, along with the usage of a tubeless specific tire. With a tubeless set up, you can lighten up your wheels, saveing rotational weight, as well as have a sealant inside your tubeless ready tire to help automatically repair small punctures.
Additional items needed to convert to a Tubeless system include Special Valve, Sealant Rim Tape, and Liquid sealer.

Disc Braking Compatible - Designed to be used as a front rim or a rear rim when using a disc brake.
