Ikon Expert/Pro 20" 20mm 1-1/8" Carbon Fork

Ikon Expert/Pro 20" 1-1/8" Carbon Fork

Product Overview

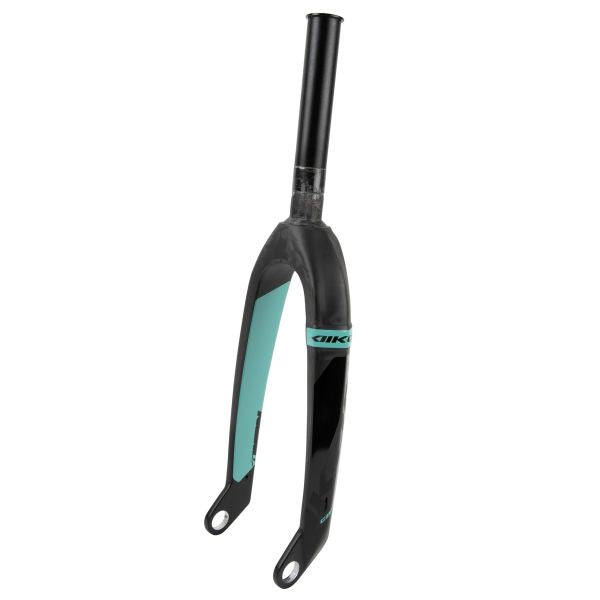

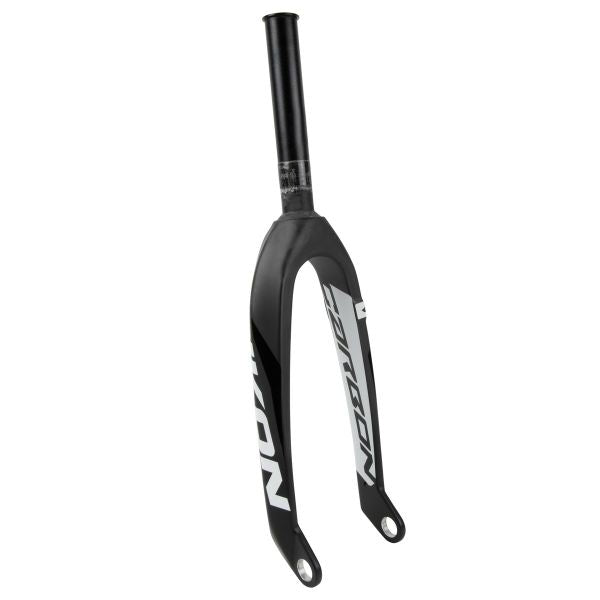

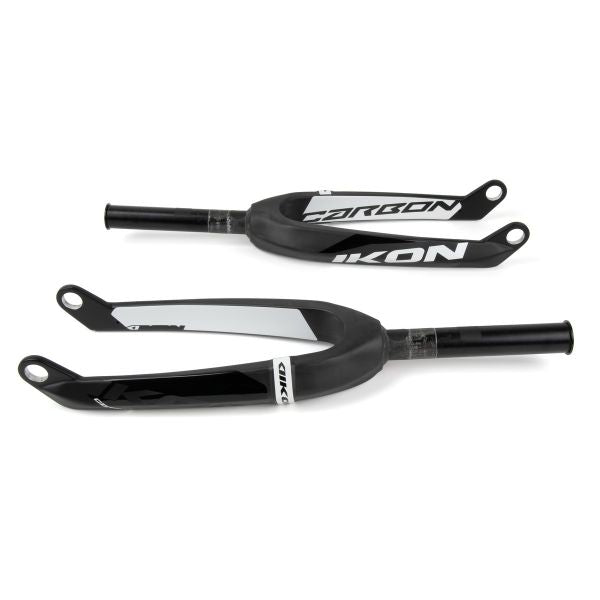

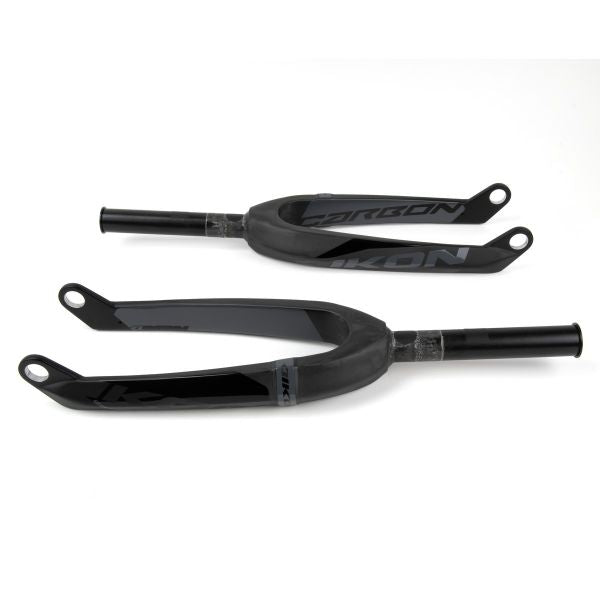

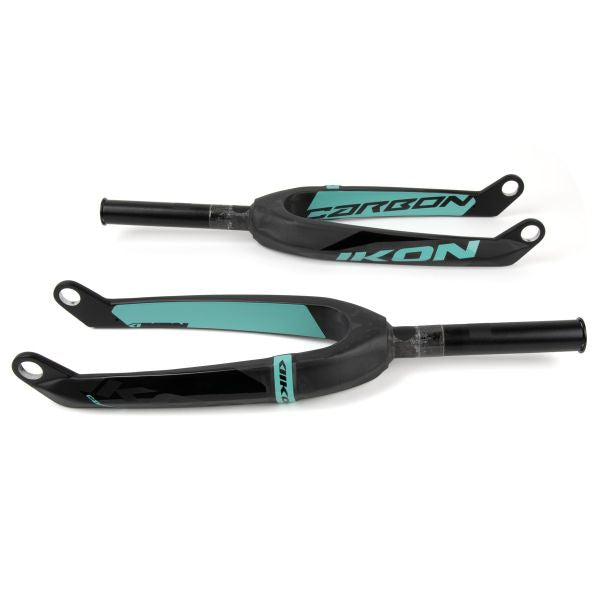

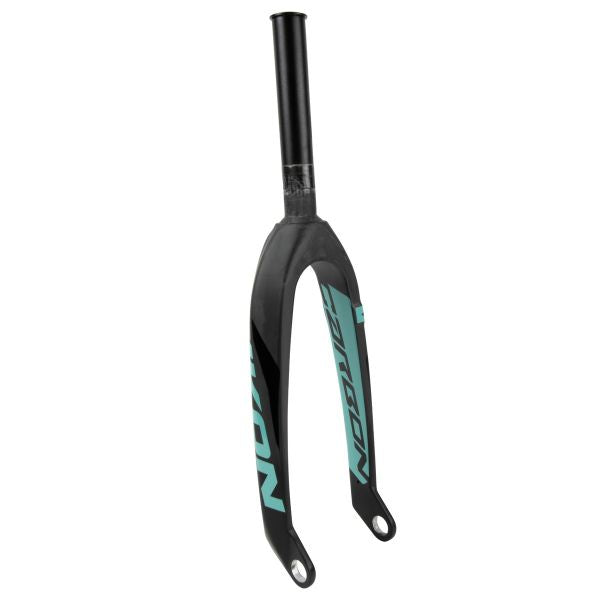

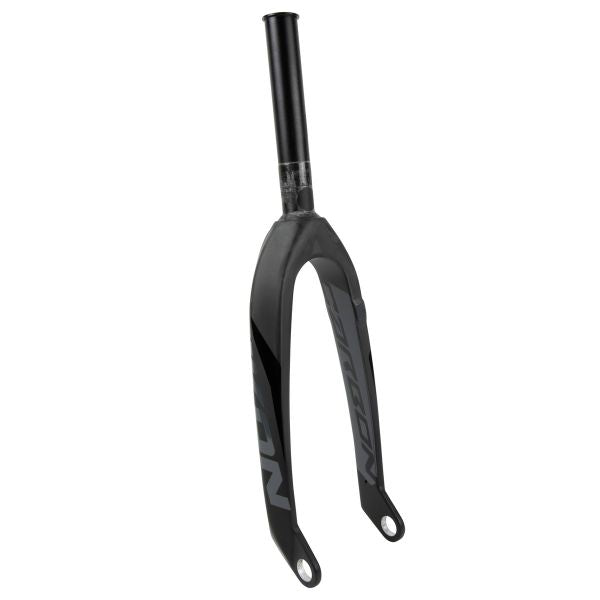

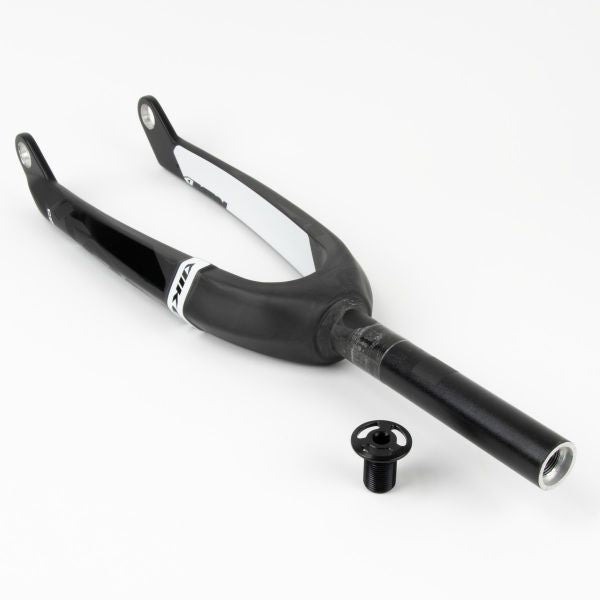

The Ikon Expert/Pro is a lightweight carbon fork engineered for 20" BMX frames with a full 1-1/8" threadless aluminum steer tube and 20mm thru-axle dropouts. Hand-laid Toray UD carbon construction and an integrated fork race deliver strength and precision optimized for modern BMX geometry.

Key Features

• Hand-Laid Toray UD Carbon – Directionally oriented carbon fiber maximizes strength-to-weight ratio; matte natural finish with unique non-uniform pattern that varies fork to fork
• 7075-T6 Aluminum Steer Tube – Full 1-1/8" threadless steer tube (7mm thickness) provides precise headtube fit and exceptional stiffness
• Integrated Fork Race – Built-in 45-degree bearing race eliminates need for separate fork race component
• CNC Machined Dropouts – 6061-T6 aluminum dropouts precision-cut for exact axle alignment and wheel centering
• 20mm Thru-Axle Compatible – Accepts 20mm thru-axles (114mm length suggested); optional 20mm-to-10mm/3/8" adapters available for alternative axle sizes
• Lightweight Construction – 533g (19.4 oz) without top cap; minimal rotational weight ideal for racing applications
• 31mm Offset – Geometry optimized for 20" BMX frames; provides responsive handling and predictable steering
• Professional Engineering – Contemporary design standards compatible with modern BMX wheel and frame specifications

Technical Specifications

• Material: Hand-laid Toray UD carbon fiber, matte natural finish
• Steer tube material: 7075-T6 aluminum
• Steer tube diameter: 1-1/8" (28.6mm) threadless
• Steer tube length: 172mm
• Fork race: Integrated 45-degree bearing race (no additional race required)
• Dropouts: CNC machined 6061-T6 aluminum
• Axle type: 20mm thru-axle (114mm length suggested)
• Axle-to-crown: 305mm (20" sizing)
• Offset: 31mm
• Weight: 533g (19.4 oz) without top cap
• Finish: Matte natural carbon with directional, non-uniform pattern

Compatibility & Ideal Use Cases

• 20" BMX frames – Axle-to-crown dimension optimized for 20" wheel sizing
• 1-1/8" threadless headtubes – Compatible with modern BMX frames using standard threadless steering systems
• 20mm thru-axle systems – Fits contemporary fork dropout spacing; optional adapters enable 10mm or 3/8" conversion
• Racing and freestyle – Lightweight carbon construction suitable for all BMX disciplines
• Weight-optimized builds – Sub-550g weight ideal for competitive racing setups
• Modern BMX geometry – Designed for current fork standards and wheel specifications

Build Requirements & Compatibility

• Axle requirements – 20mm thru-axle (114mm length suggested); purchase separately (part no. EXHUPAXFBKBK)
• Adapter options – Optional 20mm-to-10mm or 20mm-to-3/8" adapters available (part no. IKFKADDOBKBK) if converting to alternative axle sizes
• Headset compatibility – Requires 1-1/8" threadless headset; verify your frame's headtube specification and bearing size

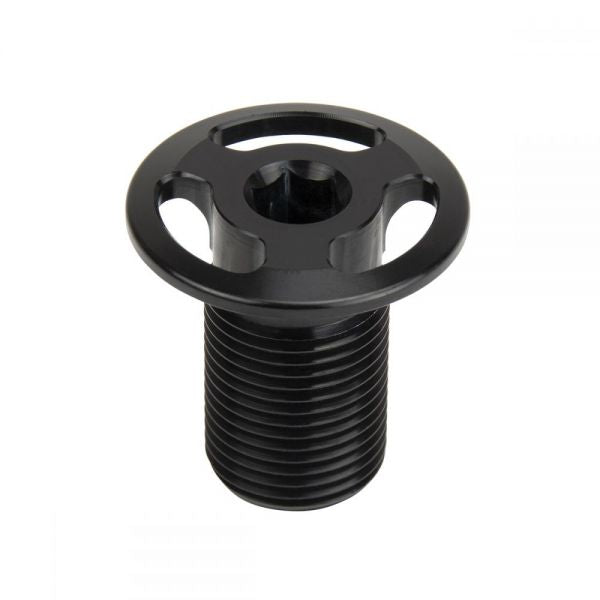

• Top cap – Top cap not included; purchase separately or verify inclusion with your frame's headset

Important Notes

• Hand-laid carbon construction produces unique non-uniform finish; appearance varies fork to fork due to directional fiber orientation
• Integrated fork race eliminates additional components; requires proper 45-degree bearing specification matching your headset
• 20mm axle length 114mm recommended; verify exact measurement before purchasing axle
• Carbon fiber construction requires careful handling to avoid impact damage; not designed for extreme abuse
• Lightweight design optimized for racing; handle with care during transportation and assembly
