IKON PRO 20" TAPERED CARBON FORK

Product Overview

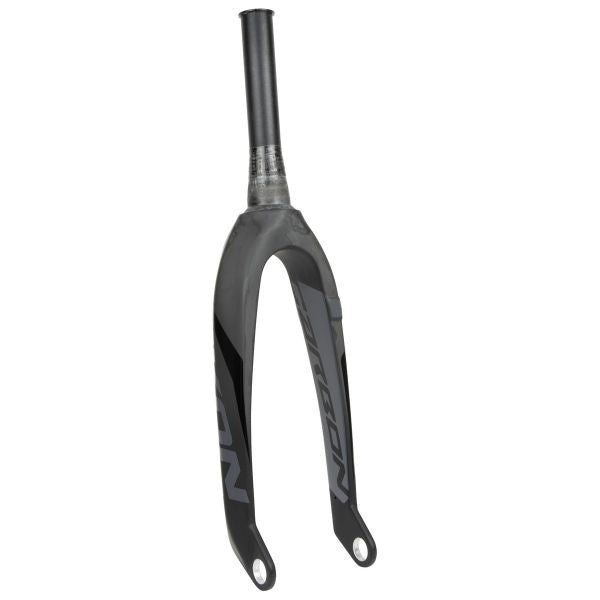

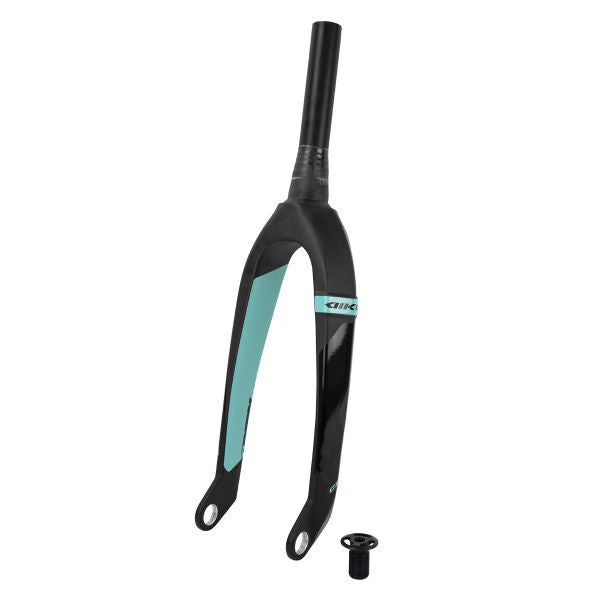

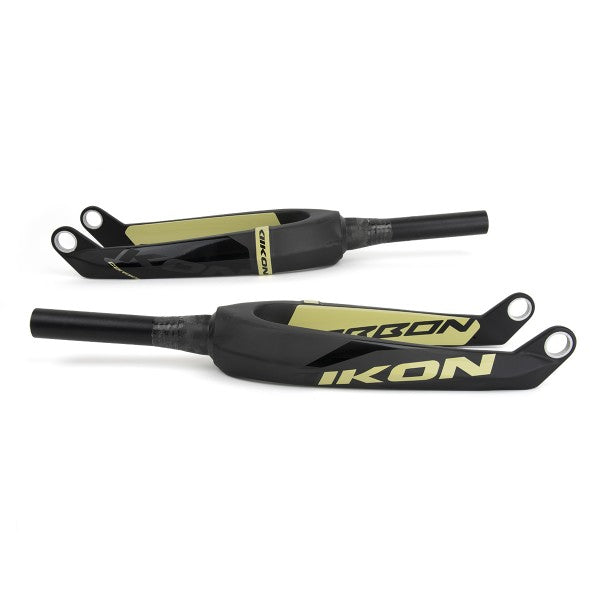

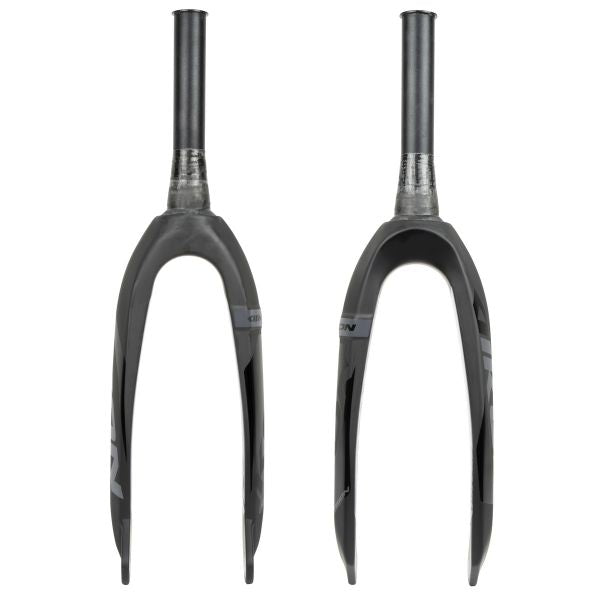

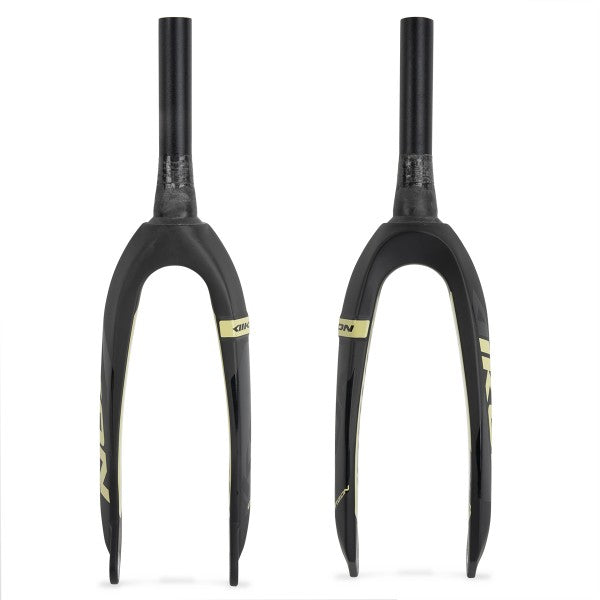

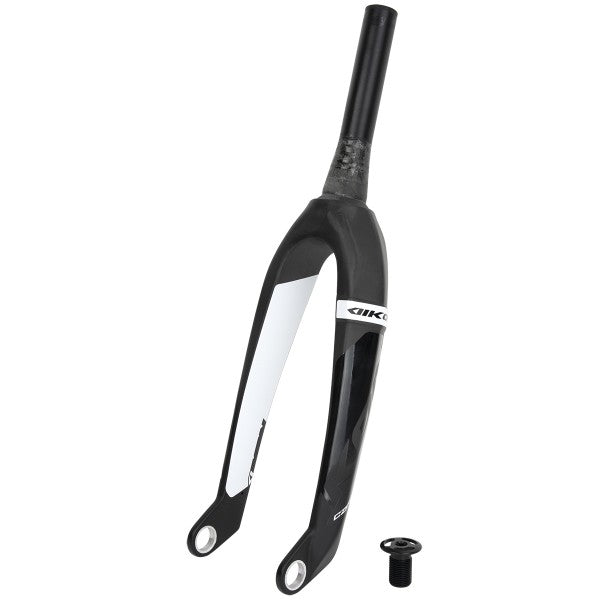

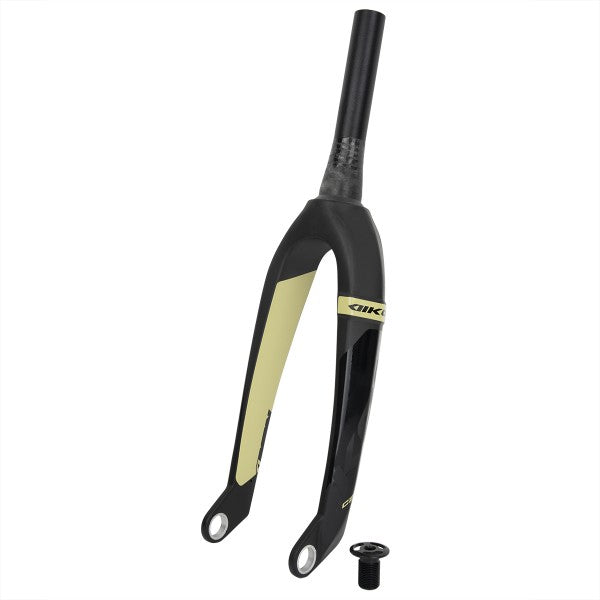

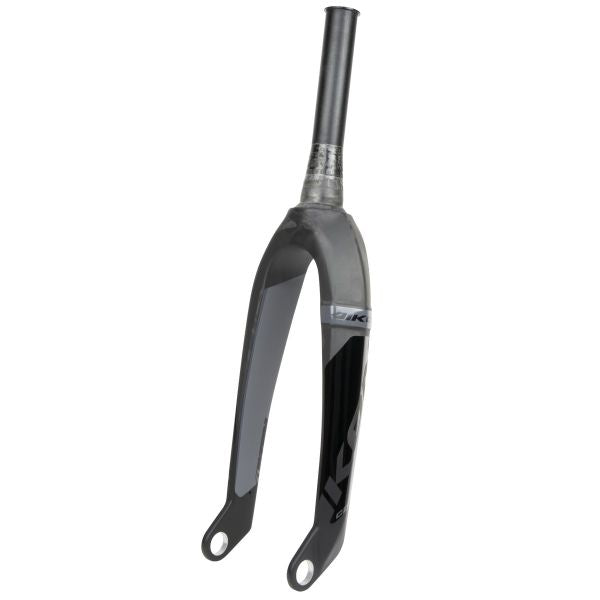

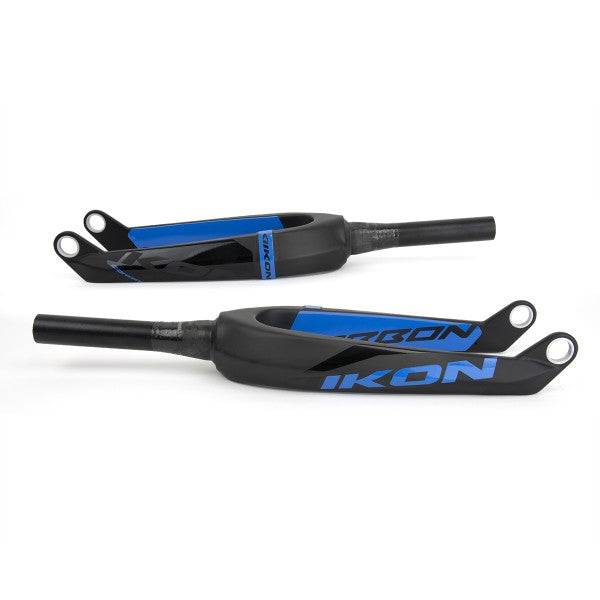

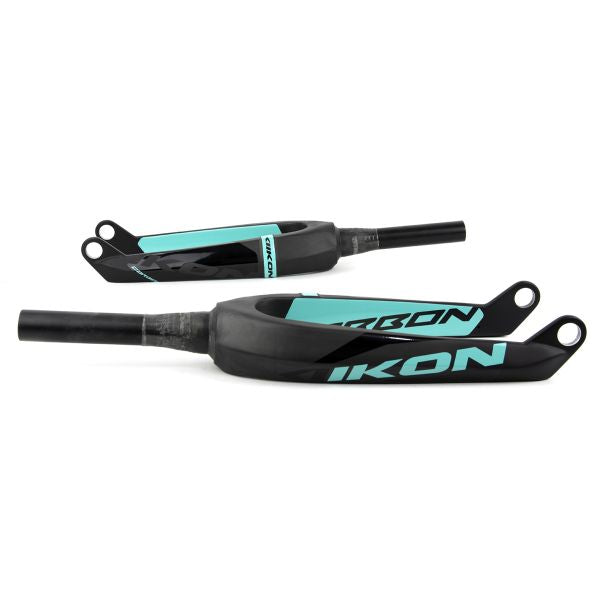

The Ikon Pro 20" Tapered Carbon Fork is a race-oriented carbon fiber fork with a tapered steerer tube (1-1/8" to 1.5") and 20mm through-axle dropouts. Built with Toray UD carbon legs and a 7076 T6 aluminum steerer tube, it features an integrated crown race, oversized crown design, and 6061 T6 aluminum-reinforced dropouts. At 641g with the top cap, it's designed for modern tapered headtube frames and disc brake setups.

Key Features

• Toray UD carbon fiber construction – Unidirectional carbon layup in the fork legs provides directional strength where needed; hand-laid process creates a unique carbon pattern that varies between forks

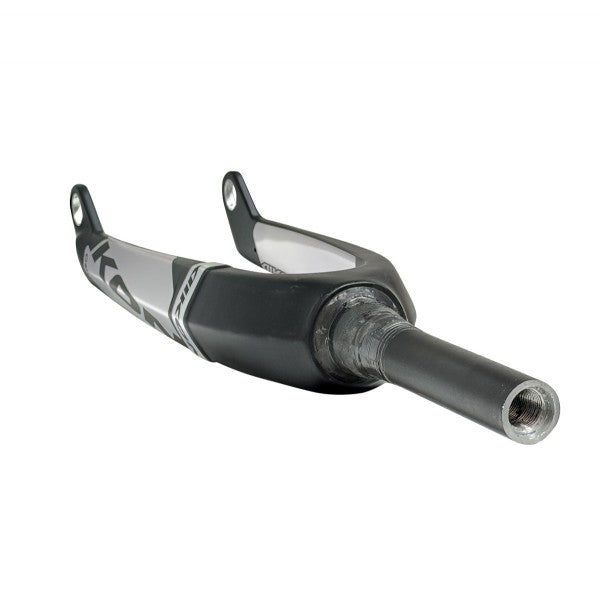

• 7076 T6 aluminum tapered steerer tube – 6mm wall thickness with 1-1/8" to 1.5" taper; bonded and keyed into the carbon crown for secure integration; stronger aluminum alloy than standard 6061
• Integrated crown race – Machined bearing seat eliminates the need for a pressed crown race, saving weight and simplifying headset installation

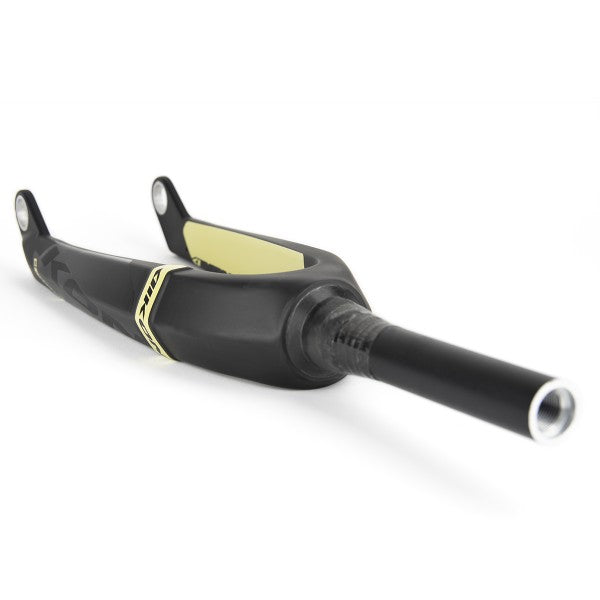

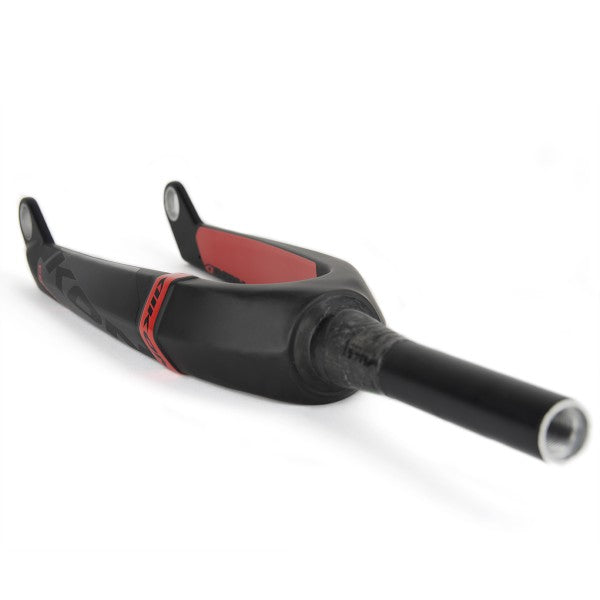

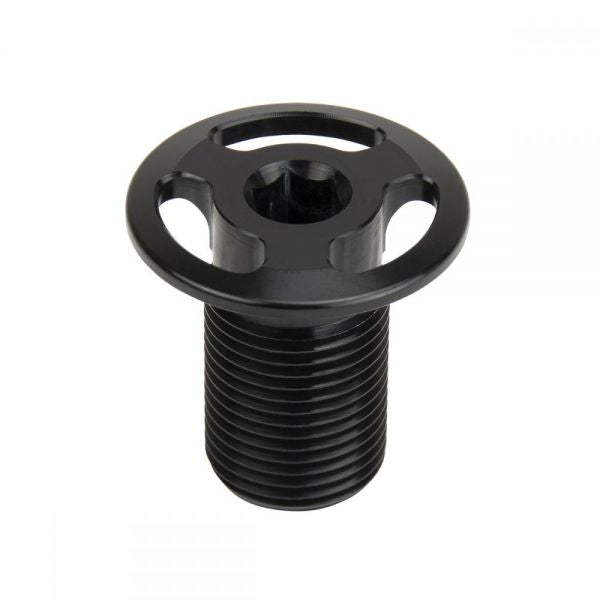

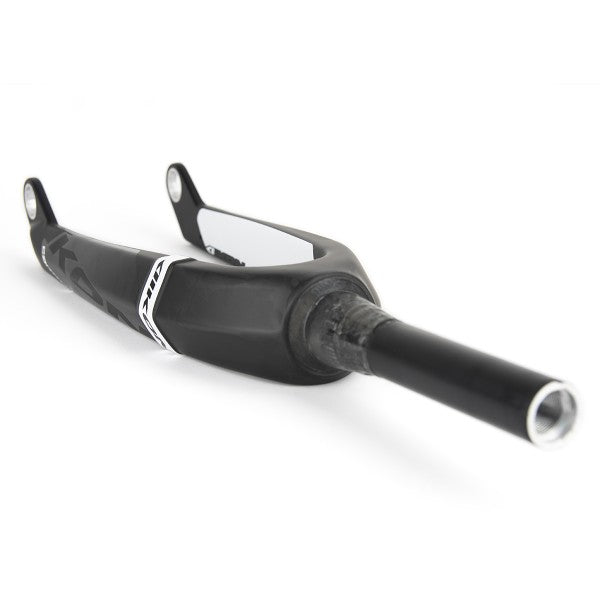

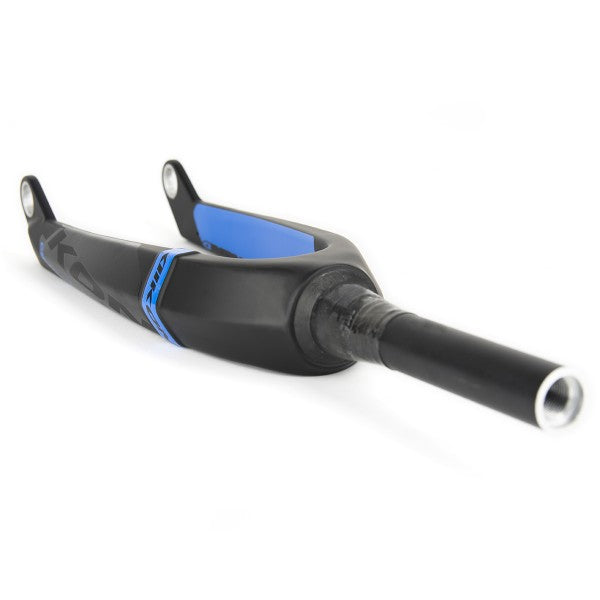

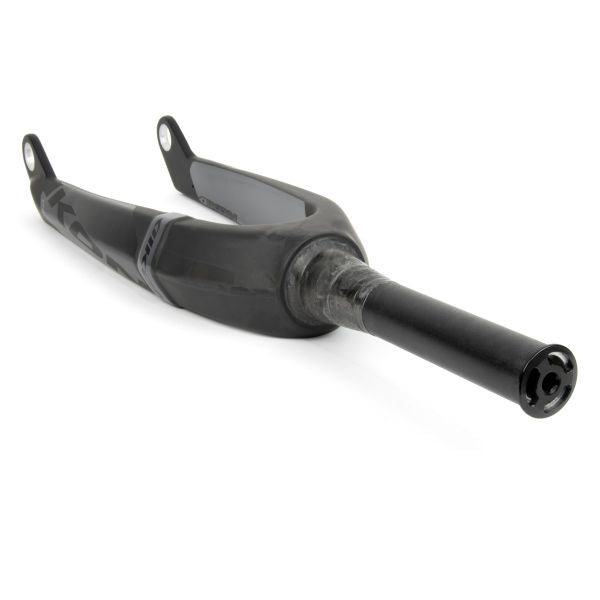

• Internal steerer tube threads – M18 threads accept the included 7075 T6 alloy top cap/compression bolt; no star nut or separate stem lock required

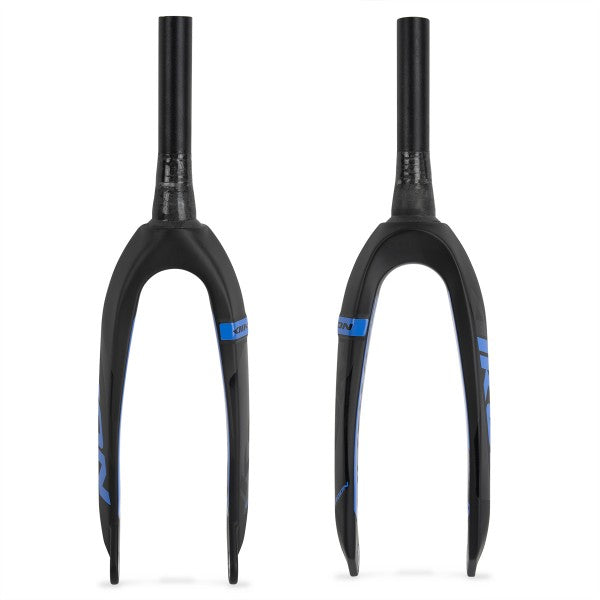

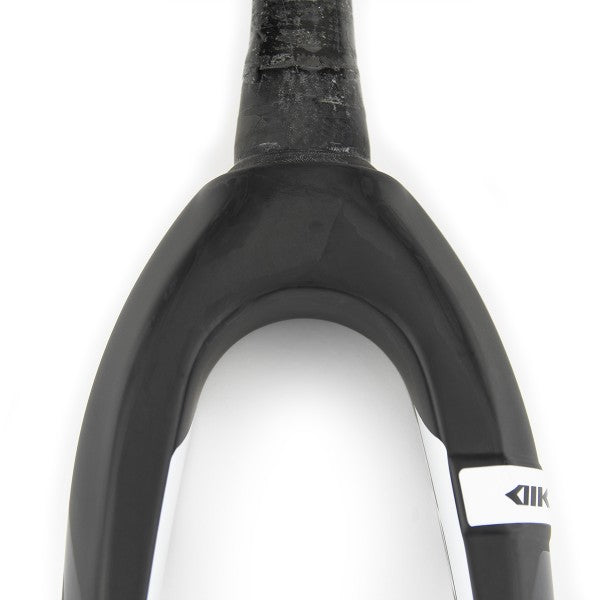

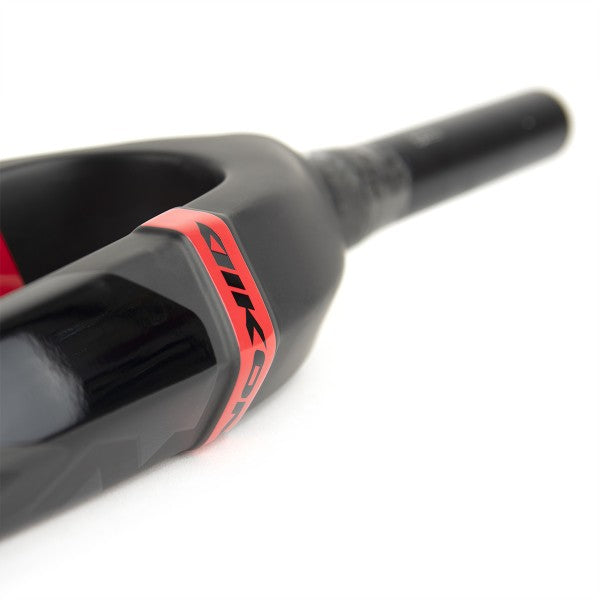

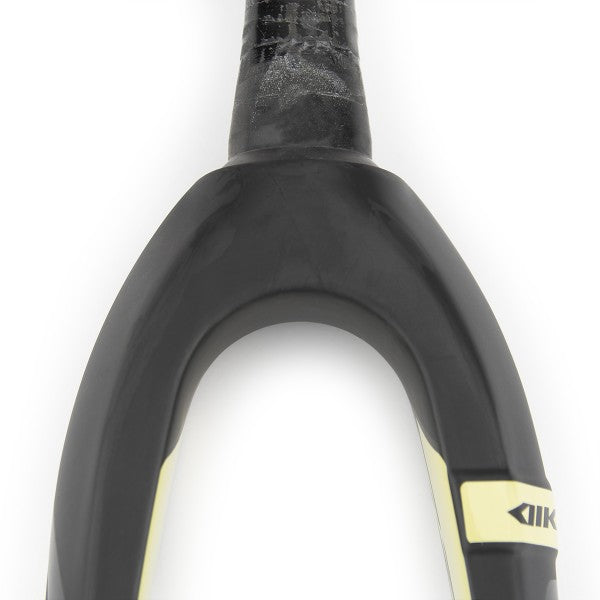

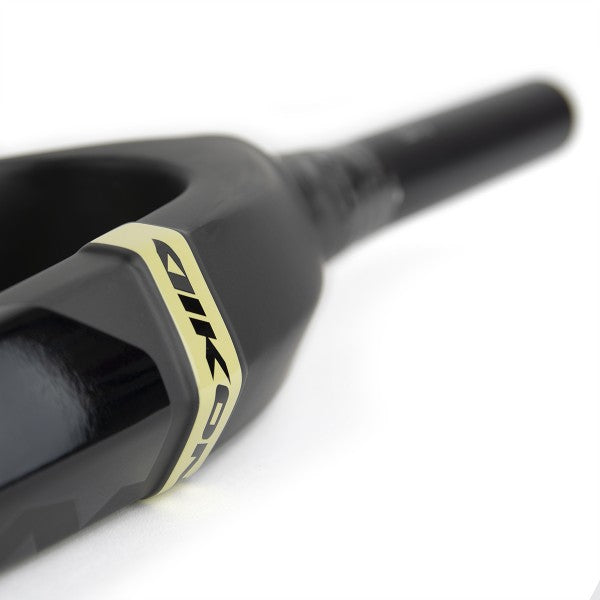

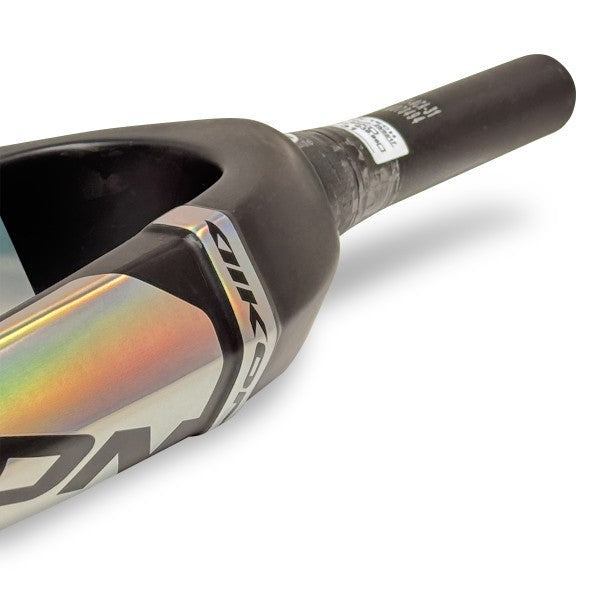

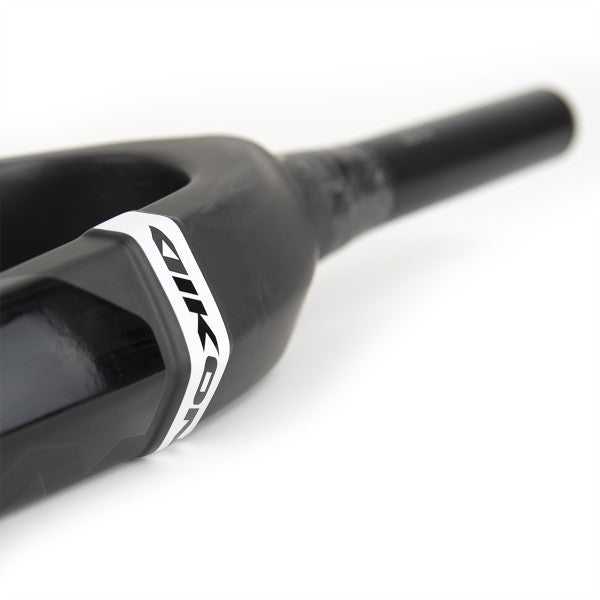

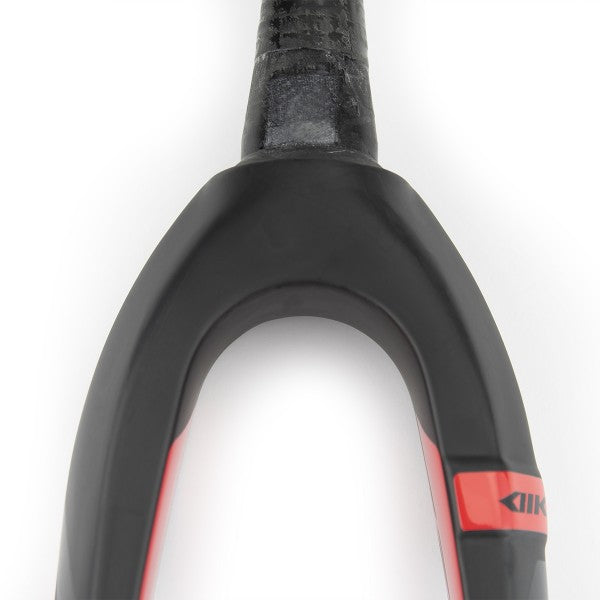

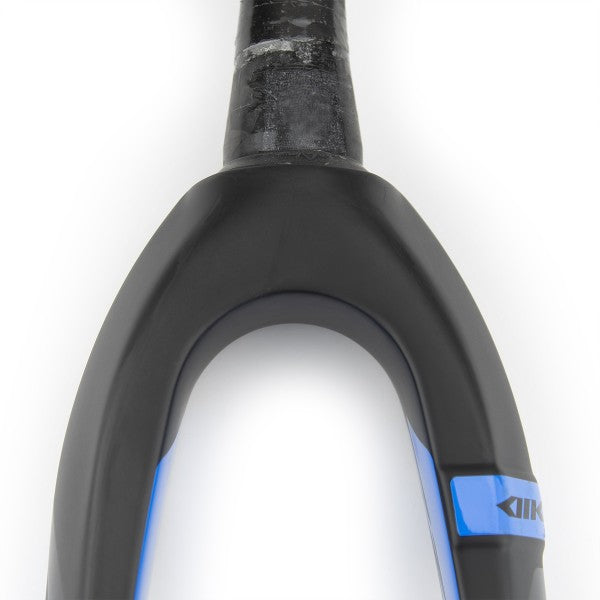

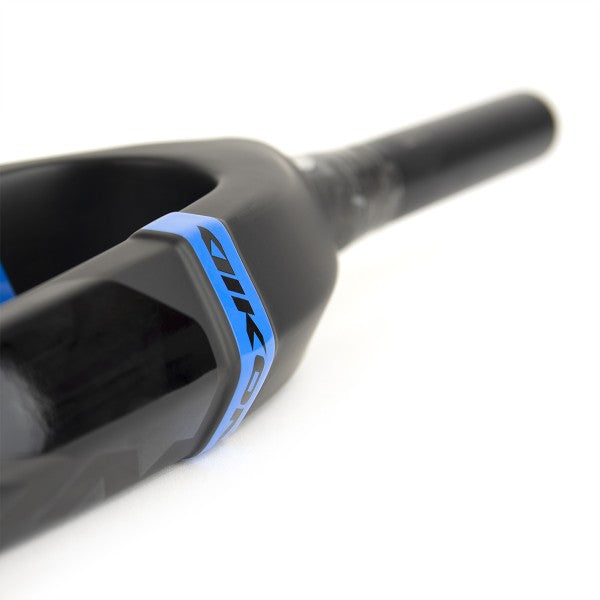

• Oversized carbon crown with tapered legs – Wide crown design matches modern tapered headtubes; embossed details on legs and aerodynamic rear profile reduce drag

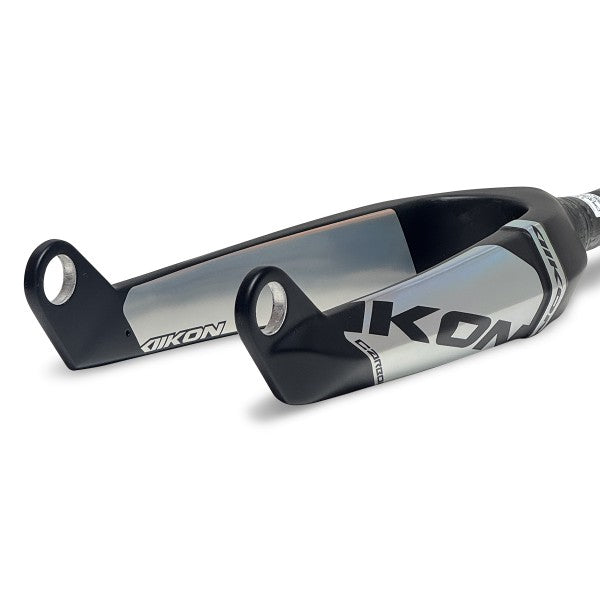

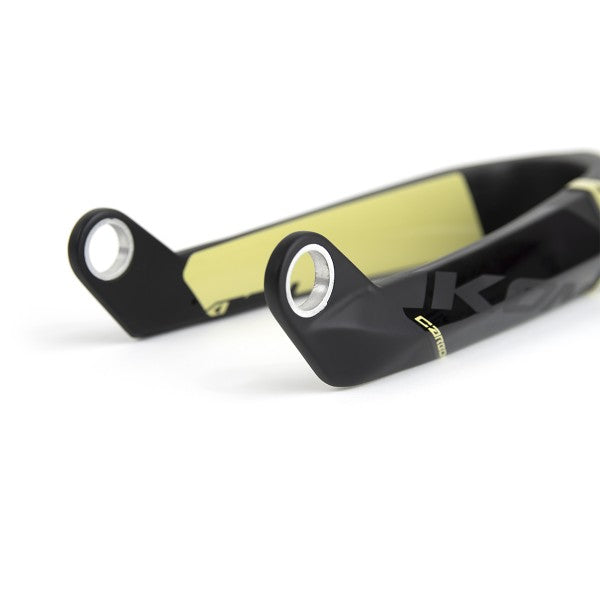

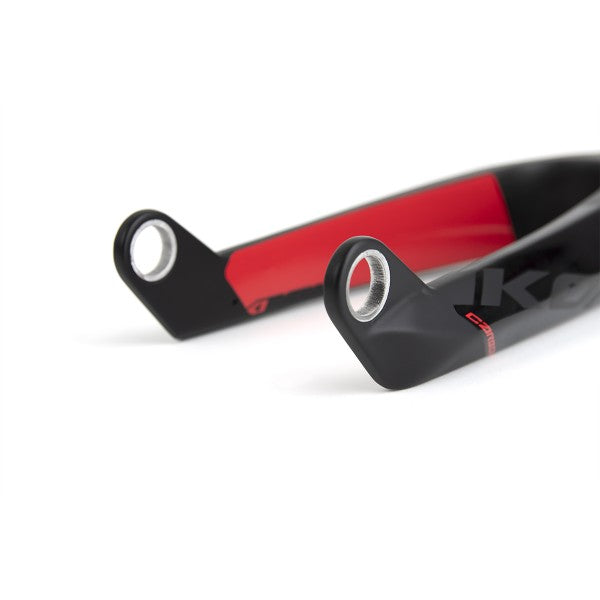

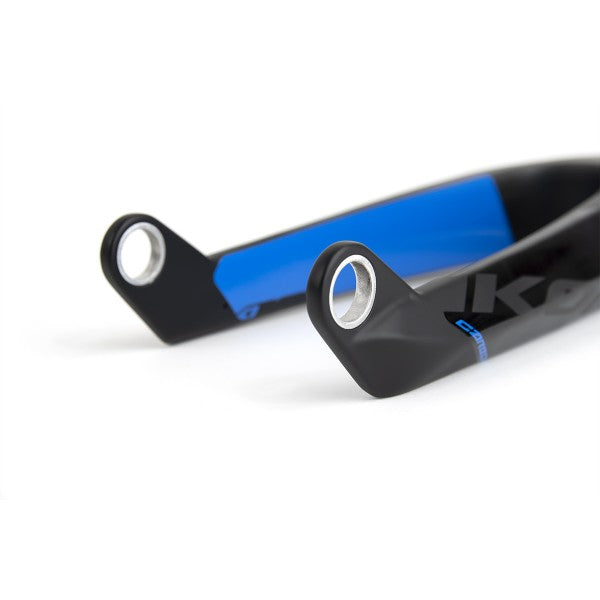

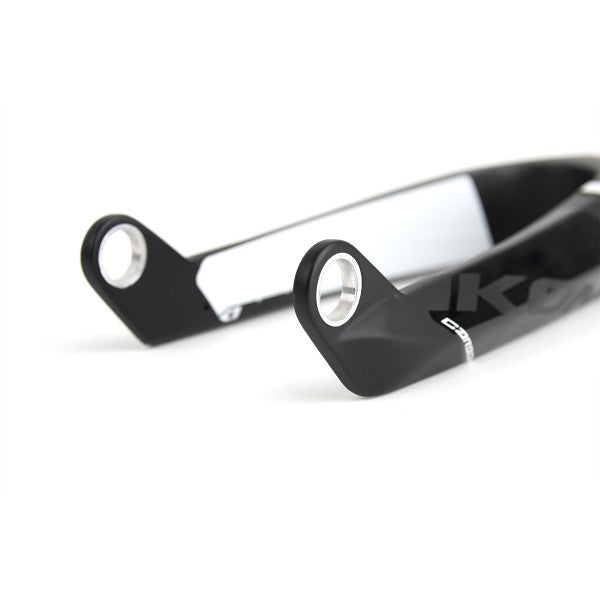

• 6061 T6 aluminum-reinforced 20mm dropouts – Alloy dropout inserts bonded and keyed into carbon legs for durability; accepts 114mm 20mm through-axles (axle not included)
• 173mm steerer tube length – Adequate length for most frames with tapered headtubes; can be cut shorter if needed
• 31mm dropout offset – Standard rake for predictable handling and front-end geometry

Technical Specifications

• Material: Toray UD carbon fiber (legs/crown), 7076 T6 aluminum (steerer tube), 6061 T6 aluminum (dropouts)
• Fork Size: 20"
• Steerer Tube: 1-1/8" to 1.5" tapered, 173mm length, 6mm wall thickness
• Steerer Tube Threads: Internal M18 threads for top cap
• Axle Type: 20mm through-axle (114mm recommended length, not included)
• Axle-to-Crown: 305mm
• Dropout Offset: 31mm
• Crown Race: Integrated 45-degree bearing seat
• Weight: 641g (with top cap) / 626g (without top cap)
• Finish: Matte UD carbon with glossy water-applied graphics

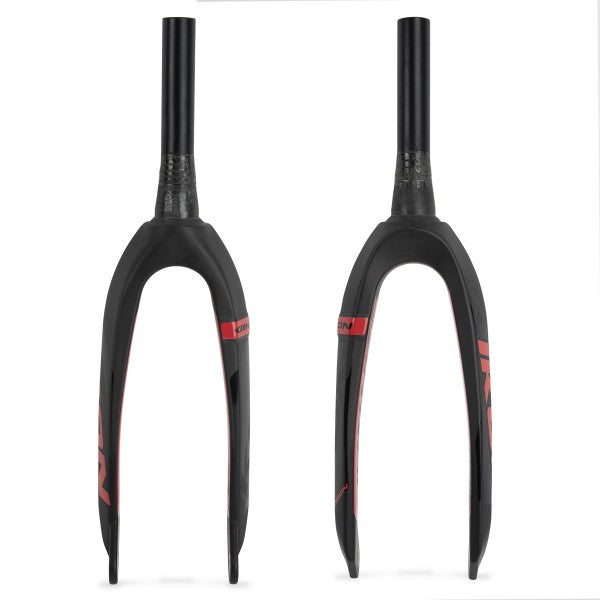

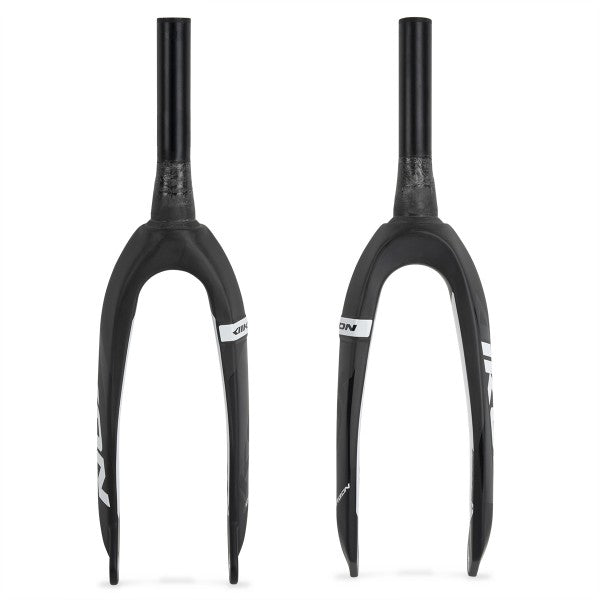

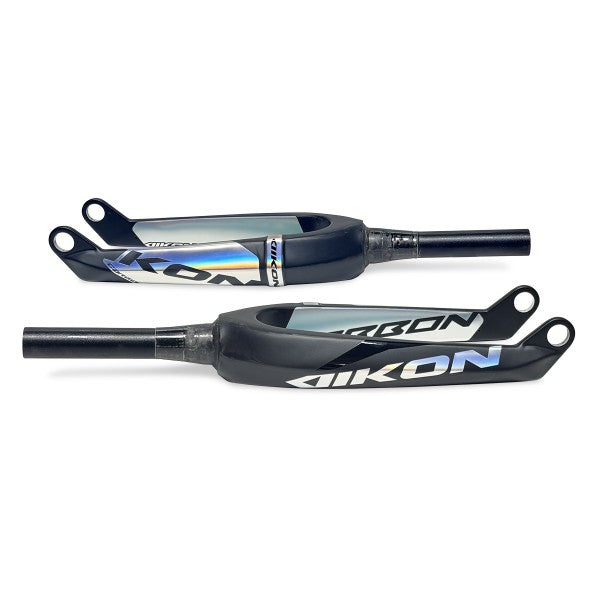

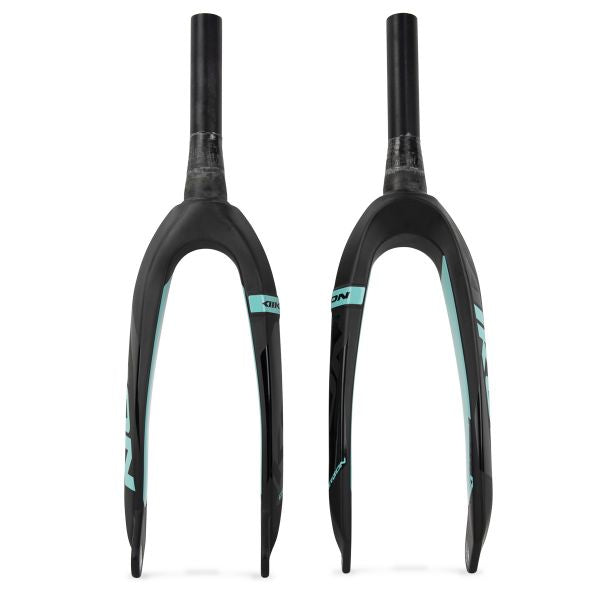

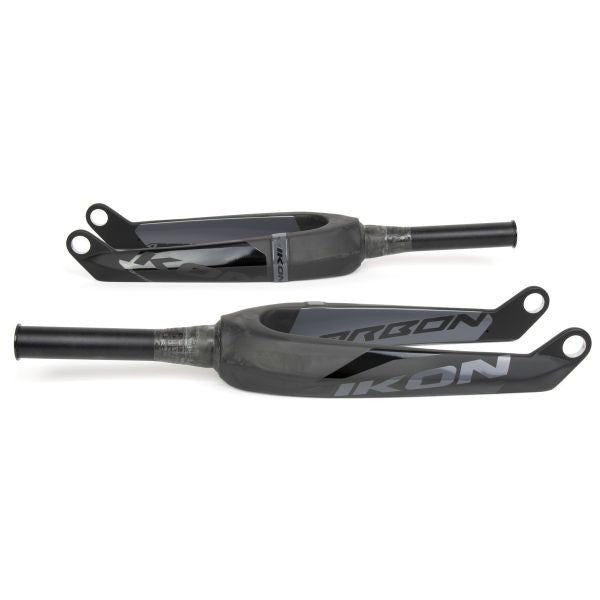

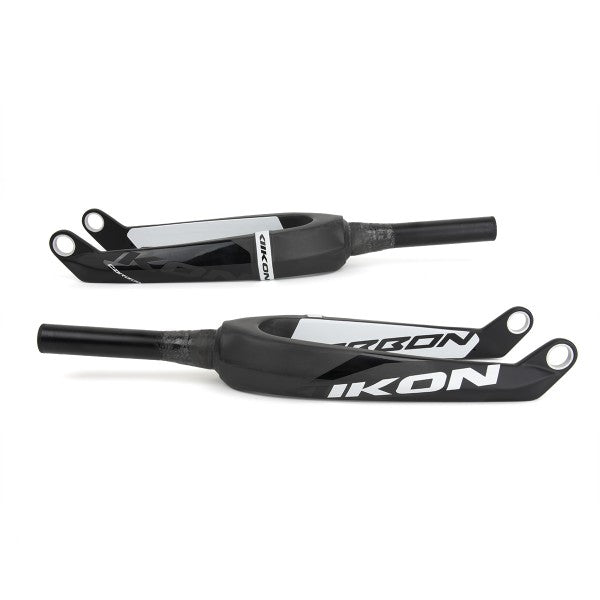

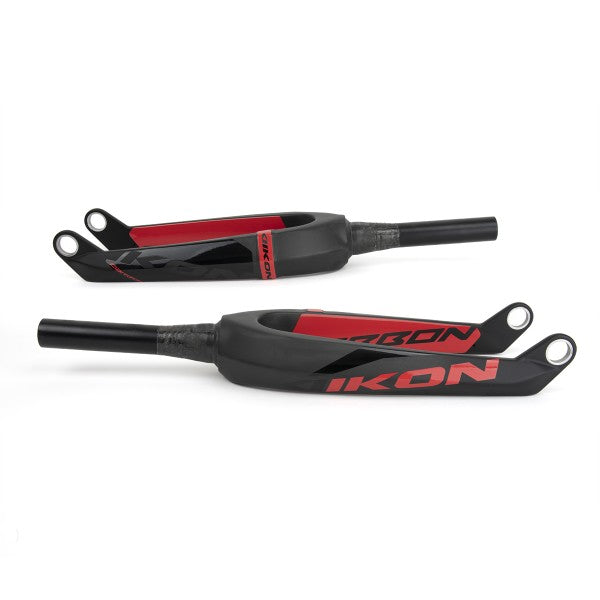

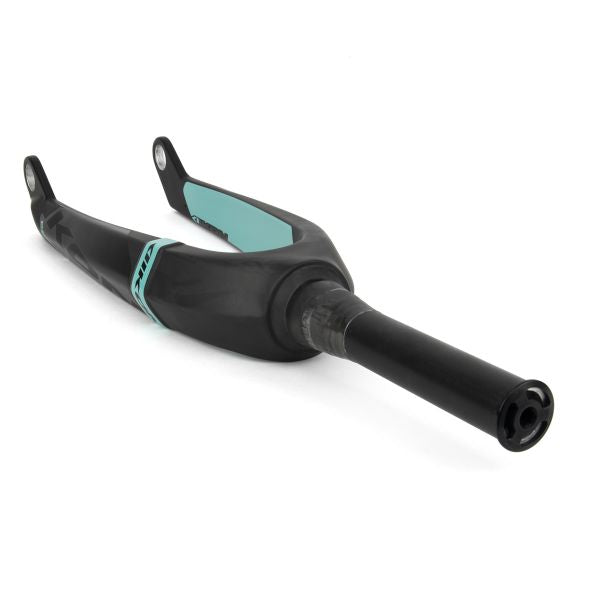

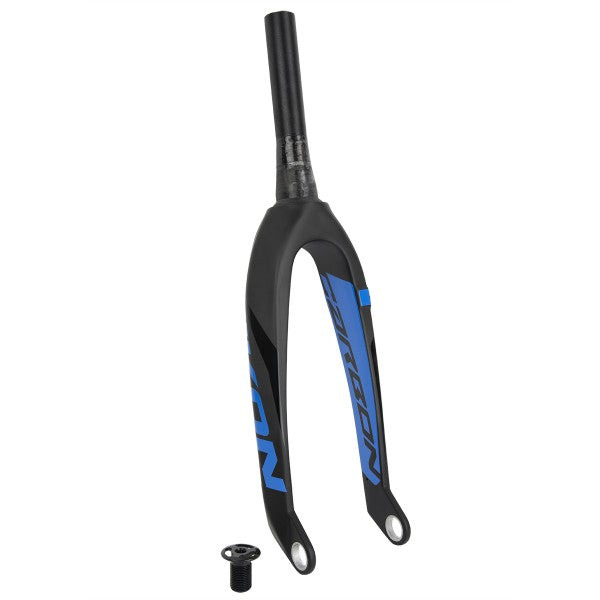

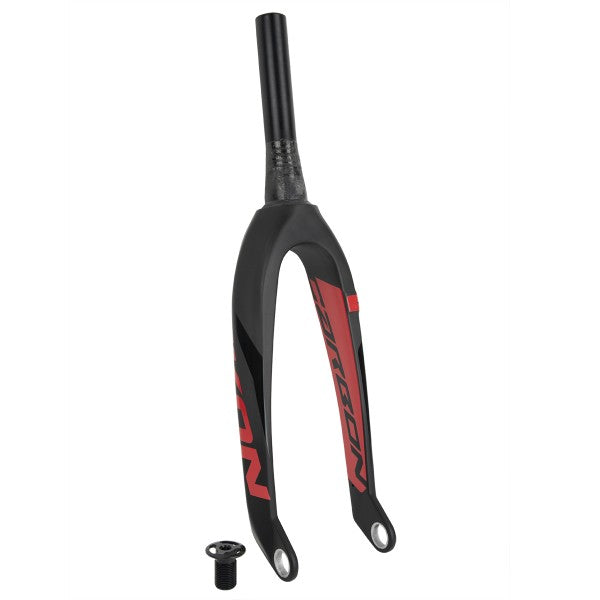

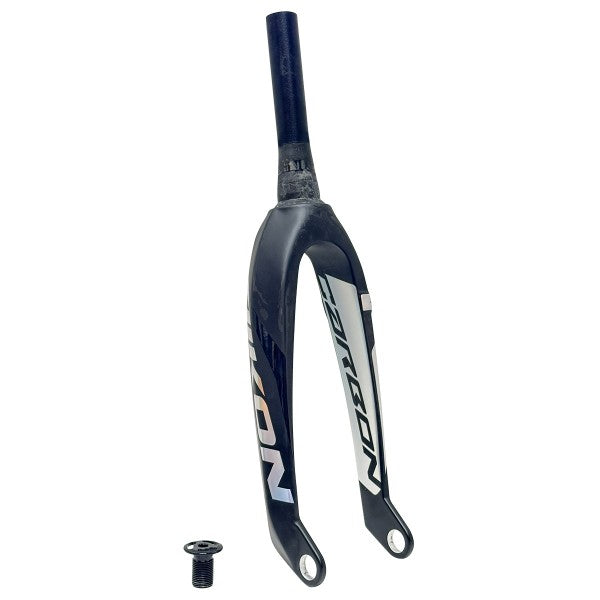

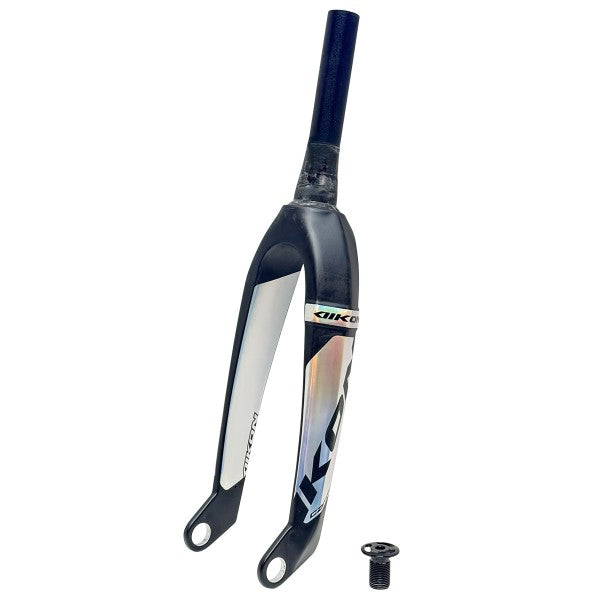

• Color Options: Carbon with white, neon yellow, blue, red, sand, or slate graphics

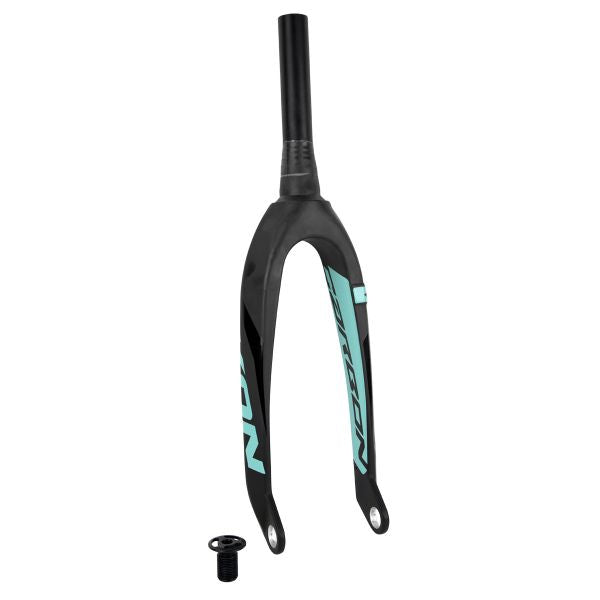

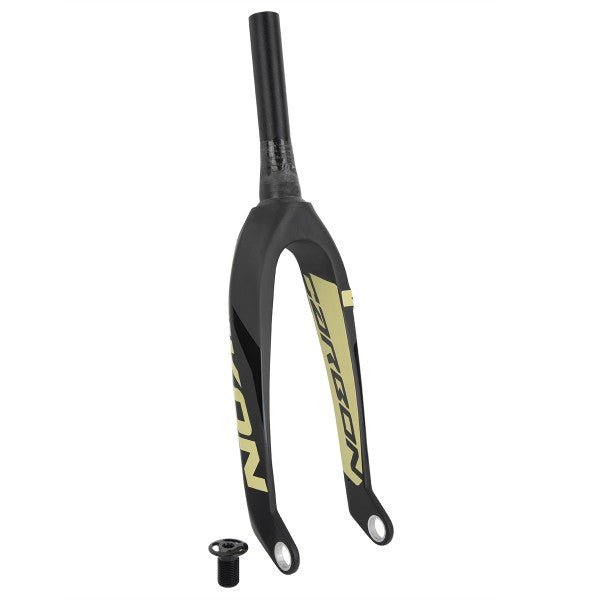

Included:

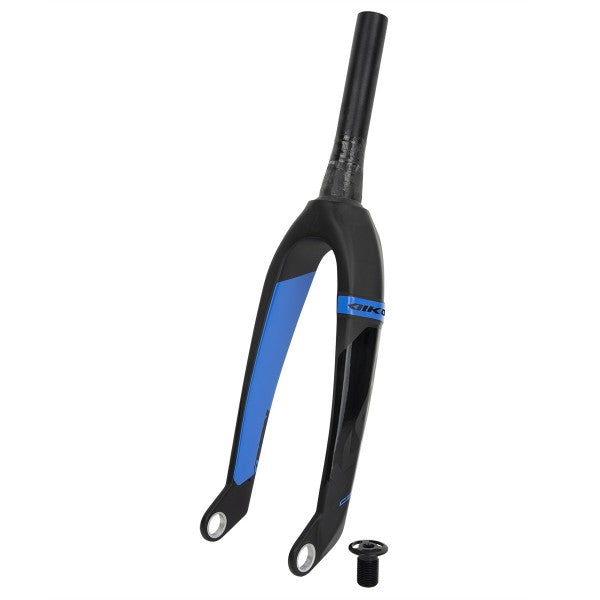

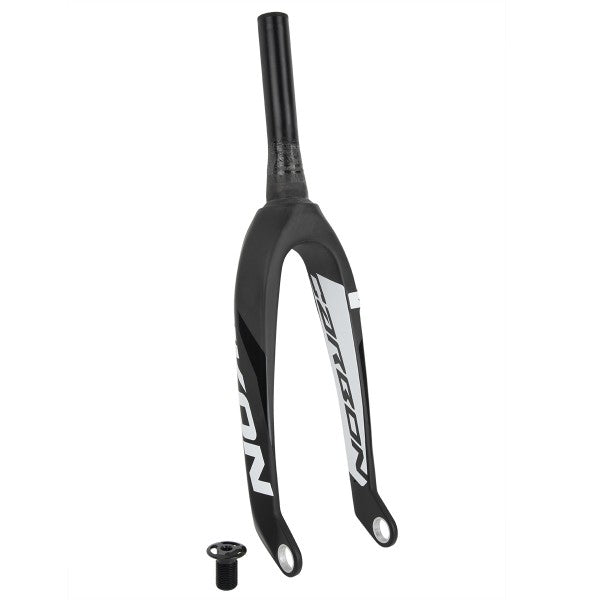

• 7075 T6 alloy top cap/compression bolt

Not Included (sold separately):

• 20mm front axle (114mm recommended; Excess or Onyx models compatible)
• 20mm to 10mm/3/8" axle adapters (optional)

Compatibility and Ideal Use Cases

This fork is compatible with frames that have integrated tapered headtubes (1-1/8" to 1.5") and requires a tapered headset with 45-degree bearings. Not compatible with standard 1-1/8" straight steerer frames or non-integrated headtubes. Requires a 20mm through-axle hub and 114mm axle length (sold separately). Optional adapters available to convert dropouts for 10mm or 3/8" axles. Designed for 20" wheels with disc brake compatibility. Ideal for racers using modern tapered headtube frames who want a lightweight, stiff carbon fork with integrated features that reduce weight and simplify assembly. The hand-laid UD carbon construction means each fork has a unique appearance due to the directional layup process.
