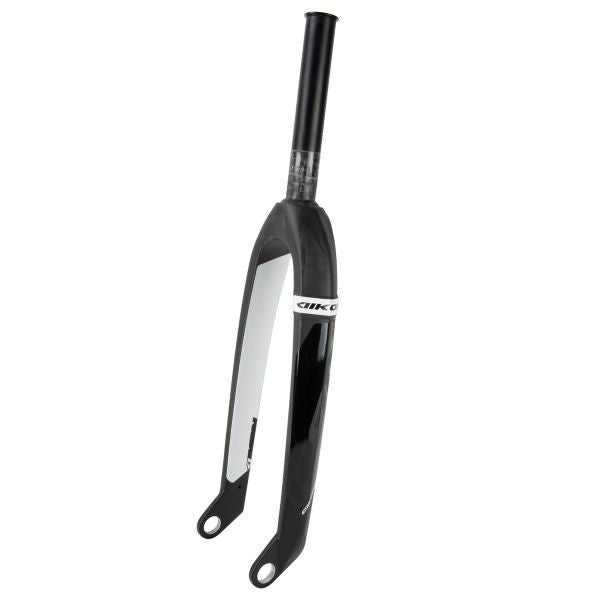

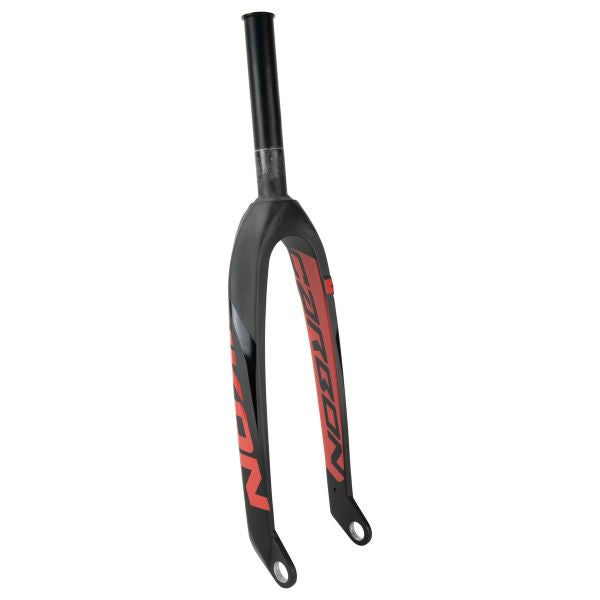

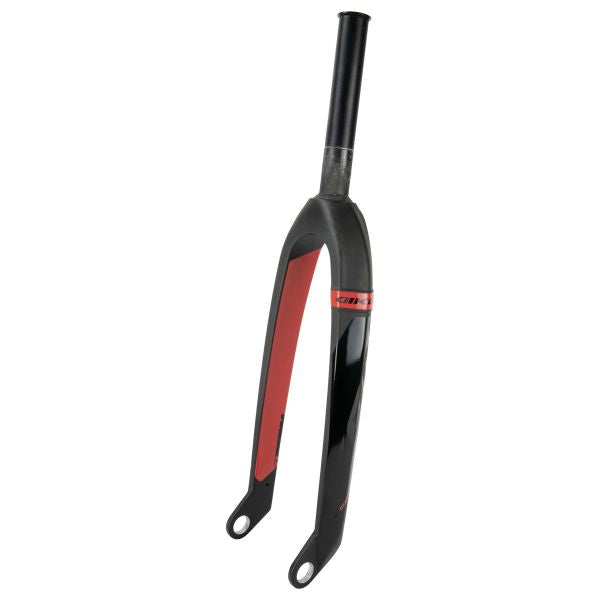

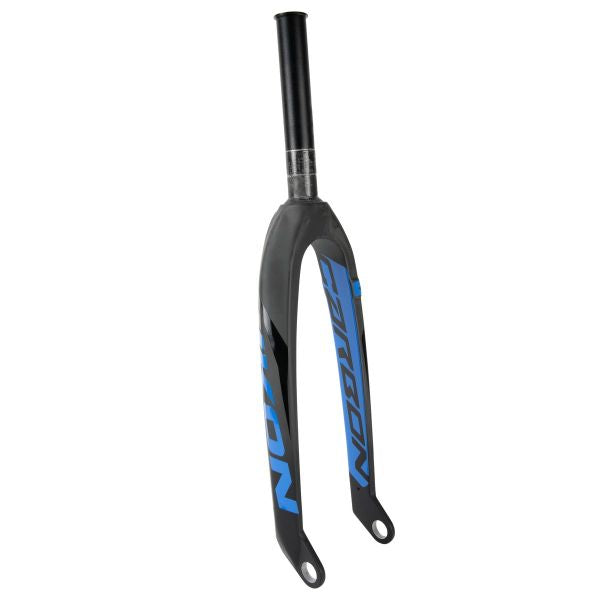

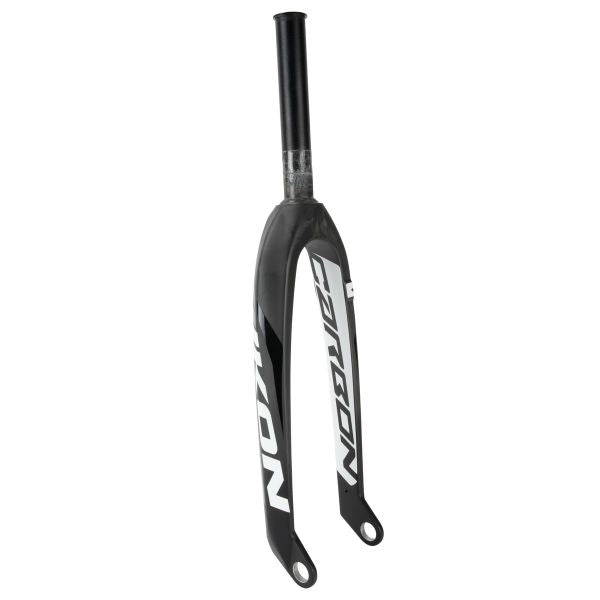

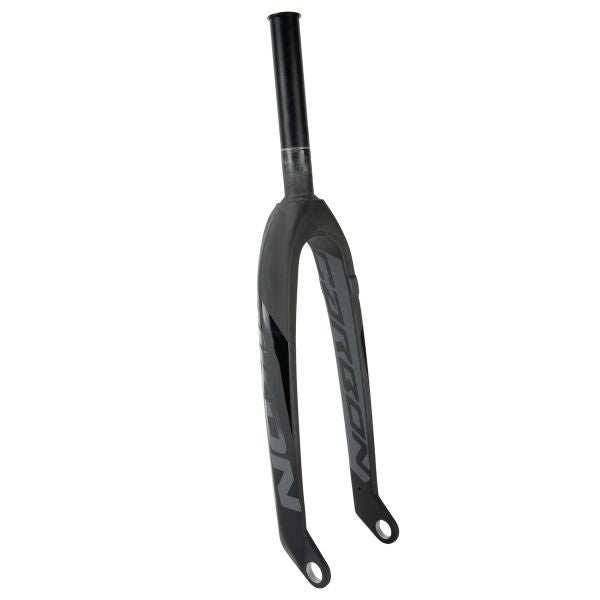

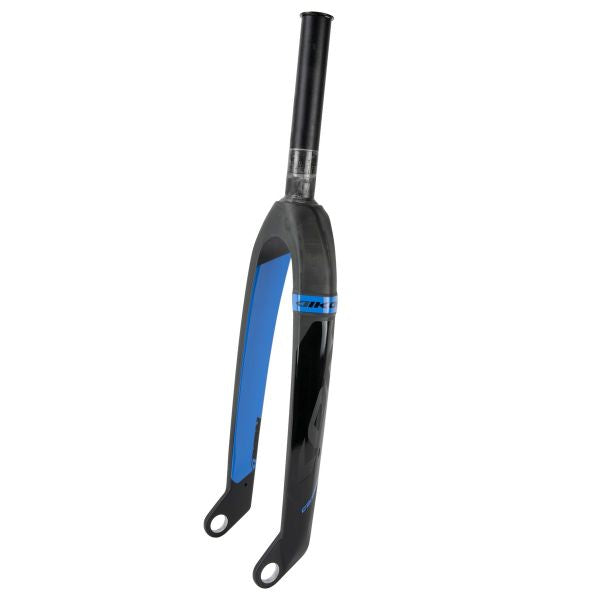

Ikon Pro 24" 20mm 1-1/8" Carbon Fork

Product Overview

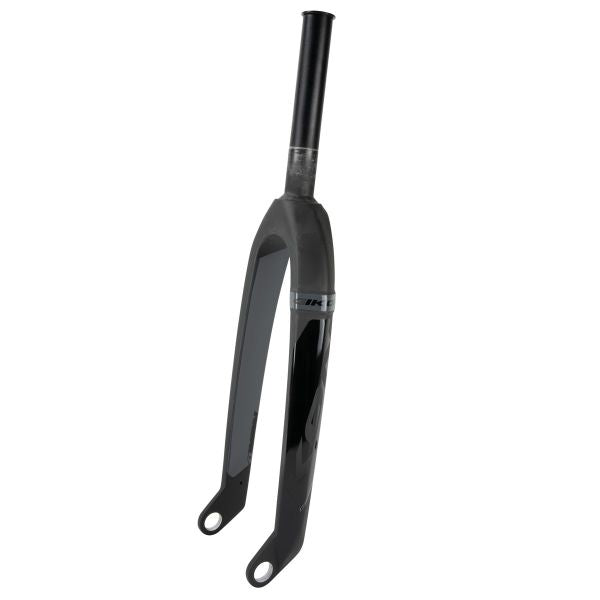

The Ikon Pro is a full-carbon fork designed for 24" BMX cruiser racing frames with 1-1/8" head tubes. Hand-laid from Toray UD carbon fiber with a 7075-T6 aluminum steerer tube, it features 20mm thru-axle dropouts and an integrated fork race for 45-degree bearings. Built for riders seeking lightweight front-end performance with increased stiffness from thru-axle mounting.

Key Features

• Toray UD carbon fiber construction – Hand-laid unidirectional carbon fibers oriented for optimal strength and stiffness provide impact resistance while minimizing fork weight

• 7075-T6 aluminum steerer tube – High-strength aluminum alloy steerer (7mm wall thickness) resists compression and impact loads at the headset interface

• Integrated 45-degree fork race – Built-in bearing seat eliminates need for separate fork crown race installation and ensures precise bearing alignment

• 20mm thru-axle dropouts – CNC-machined 6061-T6 aluminum dropouts accept 20mm thru-axles for increased front-end stiffness and wheel retention security

• Matte natural carbon finish – Hand-laid process creates unique non-uniform carbon pattern that varies between forks, providing distinctive visual appearance

• Optional 10mm adapter compatibility – Accepts separately sold adapters to convert from 20mm thru-axle to standard 10mm or 3/8" bolt-on axles

Technical Specifications

• Weight: 574 g (20.3 oz / 1.2 lbs) without top cap
• Material: Toray UD carbon fiber (legs and crown), 7075-T6 aluminum (steerer tube)
• Fork size: 24" (cruiser)
• Steerer tube: 1-1/8" threadless
• Steerer tube length: 172mm
• Steerer wall thickness: 7mm
• Axle to crown: 353.5mm
• Offset: 31mm
• Dropout material: CNC-machined 6061-T6 aluminum
• Axle type: 20mm thru-axle (suggested length: 112-114mm)
• Integrated fork race: 45-degree (for 1-1/8" headsets)
• Finish: Matte natural hand-laid carbon

Compatibility and Ideal Use Cases

Designed for 24" BMX cruiser race frames with 1-1/8" straight (non-tapered) head tubes and 45-degree headset bearings. Requires a 20mm front thru-axle (suggested length 112-114mm, sold separately—Excess 20mm front axle recommended). Best suited for Pro and Pro XL cruiser class racing where reduced fork weight and increased front-end stiffness from thru-axle mounting improve handling and reduce flex under hard braking and cornering. Optional 20mm to 10mm/3/8" adapters available for riders transitioning from standard bolt-on hubs. Not compatible with tapered head tubes, 1" steerer systems, or standard 10mm bolt-on dropouts without adapters—verify frame head tube diameter and headset bearing angle before ordering.

Note: 20mm front axle sold separately (Excess 20mm axle recommended, part EXHUPAXFBKBK). Optional 20mm to 10mm/3/8" adapters available separately (part IKFKADDOBKBK).
