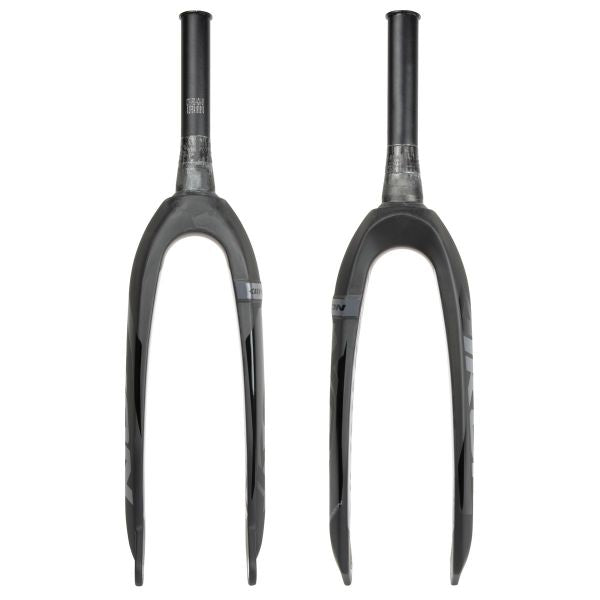

Ikon Pro 24" 20mm Tapered Carbon Fork

Product Overview

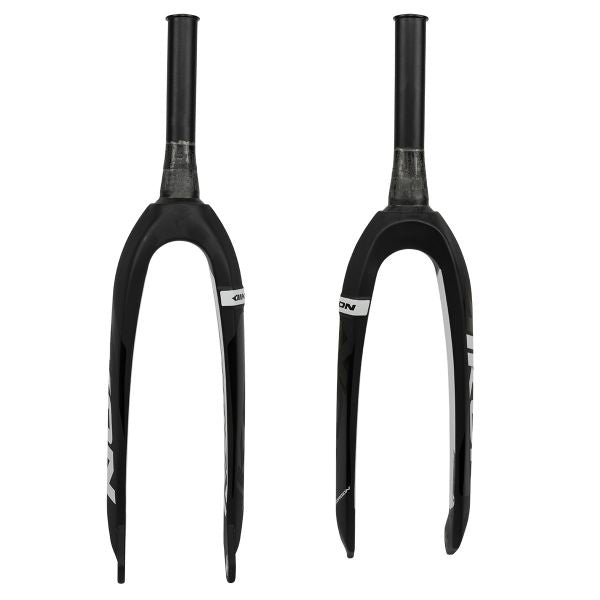

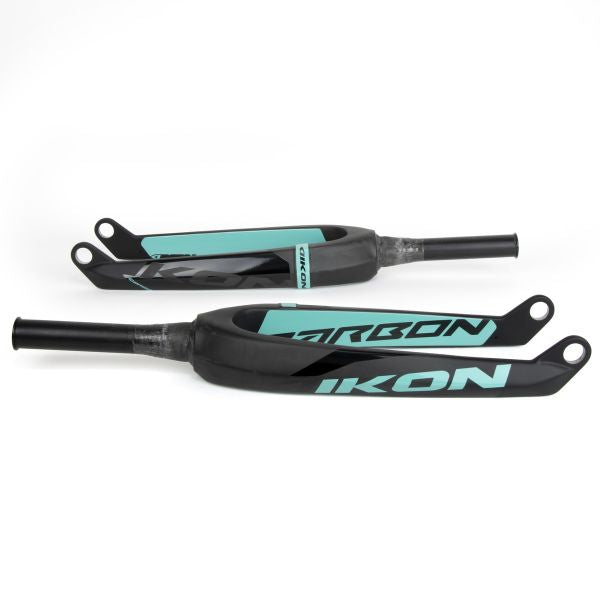

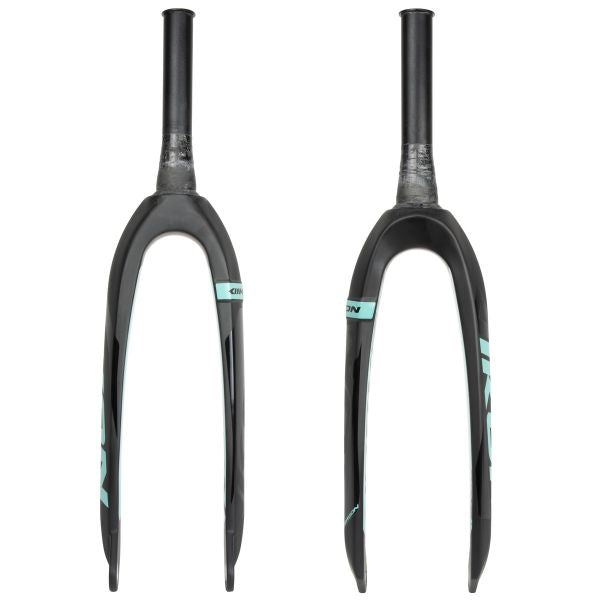

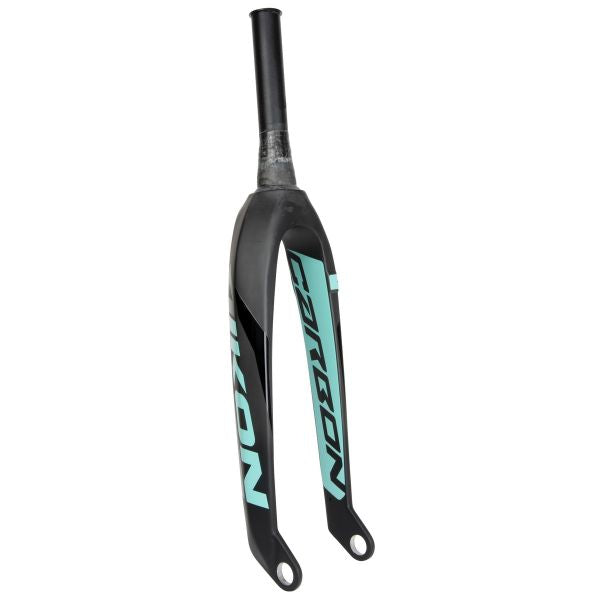

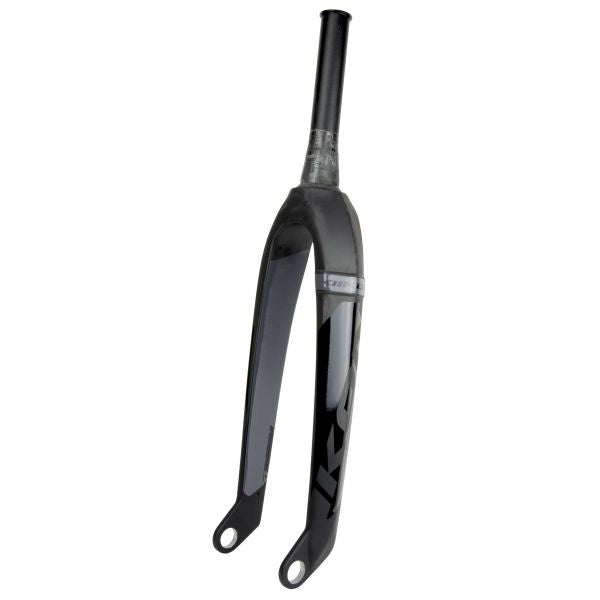

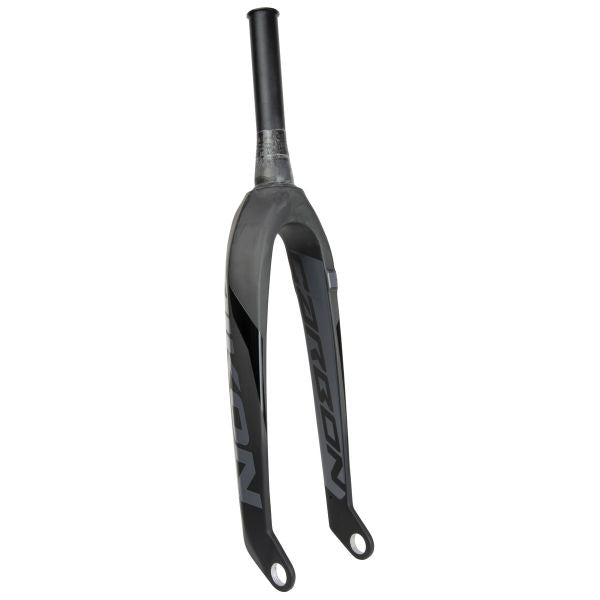

The Ikon Tapered Pro is a full-carbon fork designed for 24" BMX cruiser racing frames with tapered head tubes. Hand-laid from Toray UD carbon fiber with a 7075-T6 aluminum tapered steerer tube, it weighs 662 grams (without top cap) and features 20mm thru-axle dropouts. Developed and tested by pro riders Connor Fields and Joris Daudet, it combines aerodynamic crown design with integrated fork race and reinforced aluminum dropout inserts.

Key Features

• Toray UD carbon fiber construction – Hand-laid unidirectional carbon fibers in tapered fork legs and oversized crown provide maximum stiffness and impact resistance while minimizing weight

• 7075-T6 aluminum tapered steerer – High-strength aluminum steerer (6mm wall thickness) tapers from 1-1/8" to 1.5" and bonds into the carbon crown, providing compression resistance at the headset interface

• Integrated 45-degree fork race – Built-in bearing seat eliminates need for separate fork crown race installation, reduces weight, and ensures precise bearing alignment

• Reinforced 20mm aluminum dropouts – CNC-machined 6061-T6 aluminum inserts bonded and keyed into carbon legs provide durable thru-axle interface capable of handling pro-level racing loads

• Aerodynamic crown design – Oversized crown with aero spoiler-style rear profile and embossed fork leg features reduce drag and add visual distinction

• Internal steerer tube threads – Integrated threads accept M18 top cap/compressor bolt, eliminating need for star nut or compression plug

• Optional 10mm adapter compatibility – Accepts separately sold adapters to convert from 20mm thru-axle to standard 10mm or 3/8" bolt-on axles

• Matte natural carbon finish – Hand-laid process creates unique non-uniform carbon pattern that varies between forks, providing distinctive visual appearance

Technical Specifications

• Weight: 662 g (23.35 oz) without top cap; 677 g (23.88 oz) with top cap
• Material: Toray UD carbon fiber (legs and crown), 7075-T6 aluminum (steerer tube), 6061-T6 aluminum (dropout inserts)
• Fork size: 24" (cruiser)
• Steerer tube: 1-1/8" to 1.5" tapered
• Steerer tube length: 173mm
• Steerer wall thickness: 6mm
• Axle to crown: 353.5mm
• Dropout offset: 31mm
• Axle type: 20mm thru-axle (suggested length: 114mm)
• Dropout material: 6061-T6 aluminum inserts bonded into carbon legs
• Integrated fork race: 45-degree (for tapered headsets)

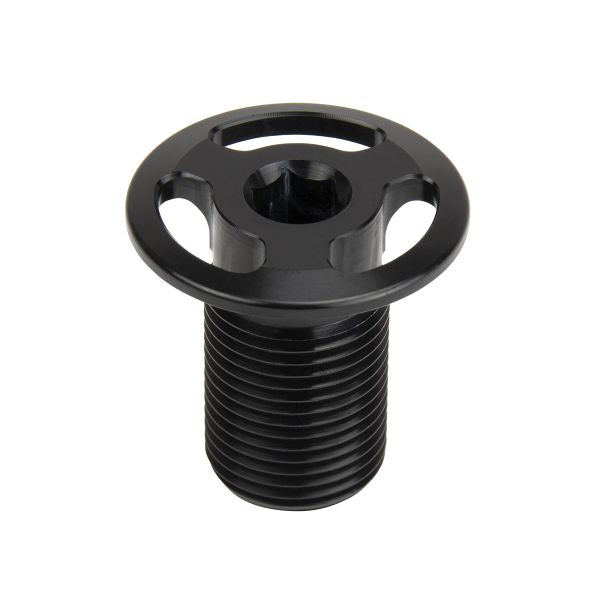

• Top cap: 7075-T6 aluminum M18 (included)
• Finish: Matte UD carbon with gloss water-applied graphics

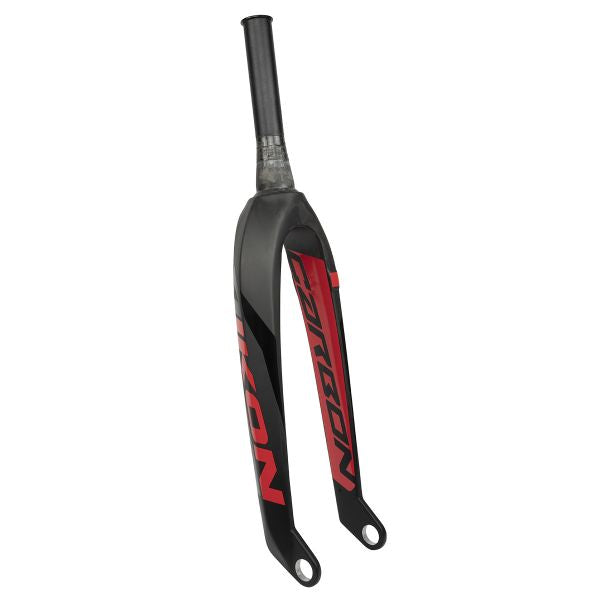

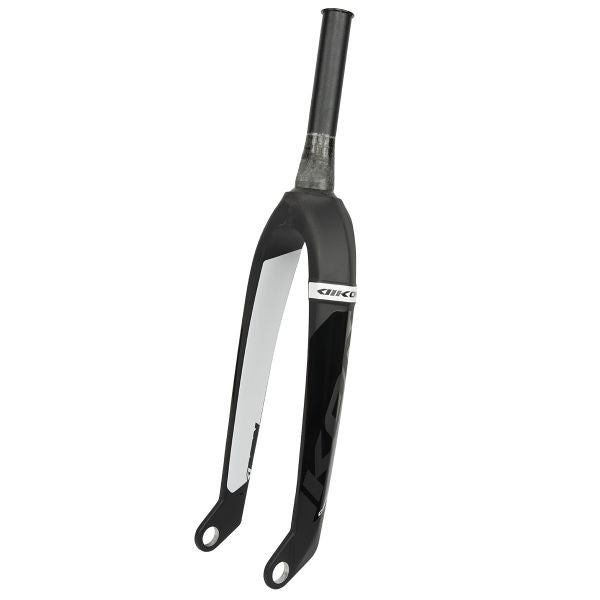

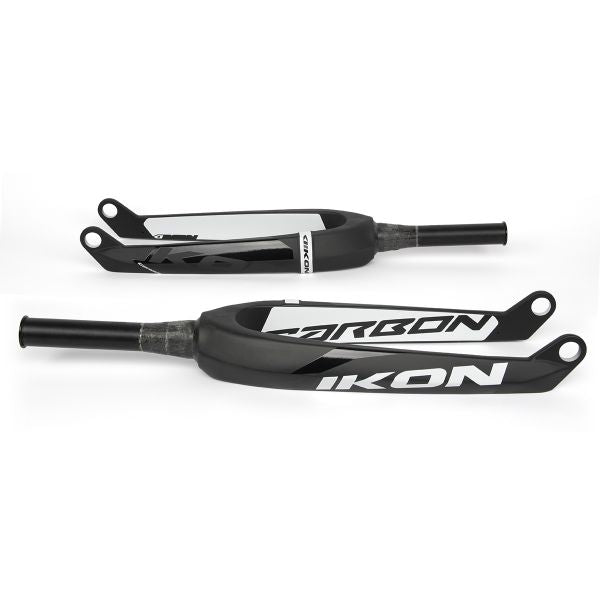

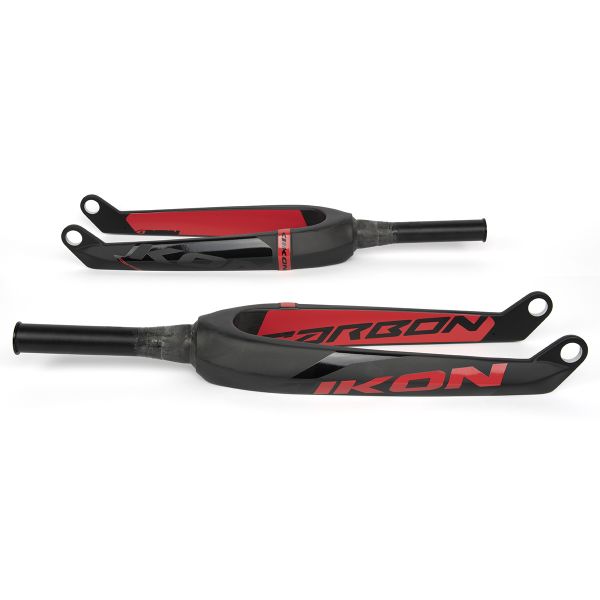

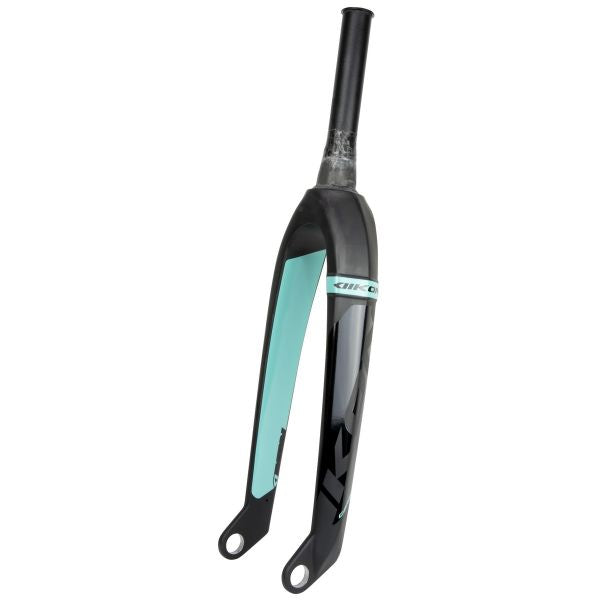

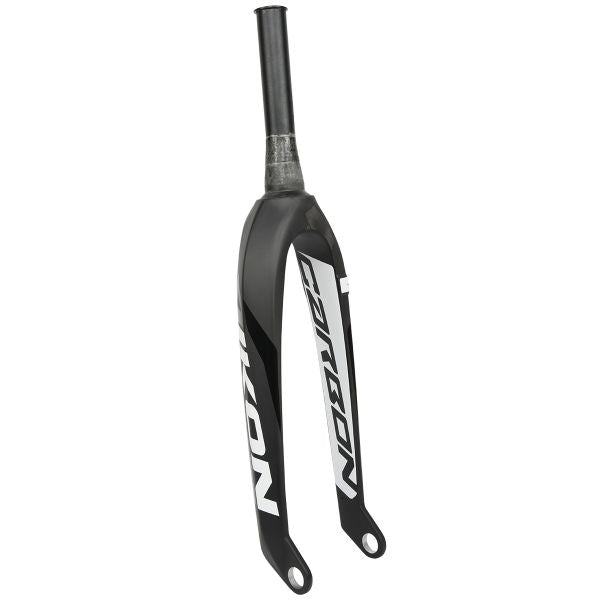

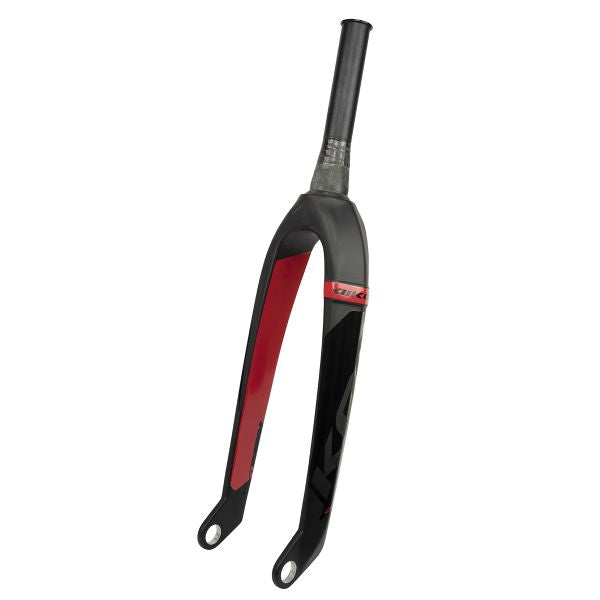

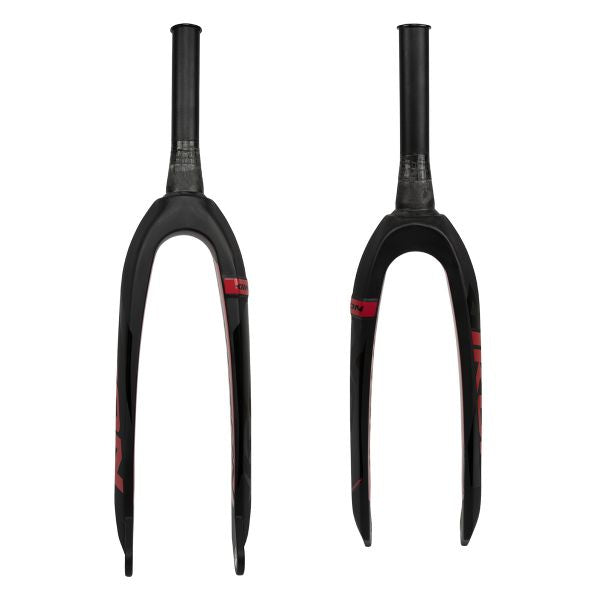

• Color options: Carbon with white, neon yellow, blue, or red graphics

Compatibility and Ideal Use Cases

Designed for 24" BMX cruiser race frames with tapered head tubes (1-1/8" upper, 1.5" lower) and 45-degree headset bearings. Requires a 20mm front thru-axle (suggested length 114mm, sold separately—Excess 20mm front axle recommended). Best suited for Pro and Pro XL cruiser class racing where reduced fork weight, increased front-end stiffness from thru-axle mounting, and aerodynamic advantages improve performance. Developed and tested by world-class pro riders for elite-level competition. Optional 20mm to 10mm/3/8" adapters available for riders transitioning from standard bolt-on hubs. Not compatible with straight 1-1/8" steerer systems or standard 10mm bolt-on dropouts without adapters—verify frame head tube taper and headset bearing angle before ordering.

Note: 20mm front axle sold separately (Excess 20mm axle recommended, part EXHUPAXFBKBK). Optional 20mm to 10mm/3/8" adapters available separately (part IKFKADDOBKBK).
