INSIGHT 22.2mm Stem 1-1/8"

Product Overview

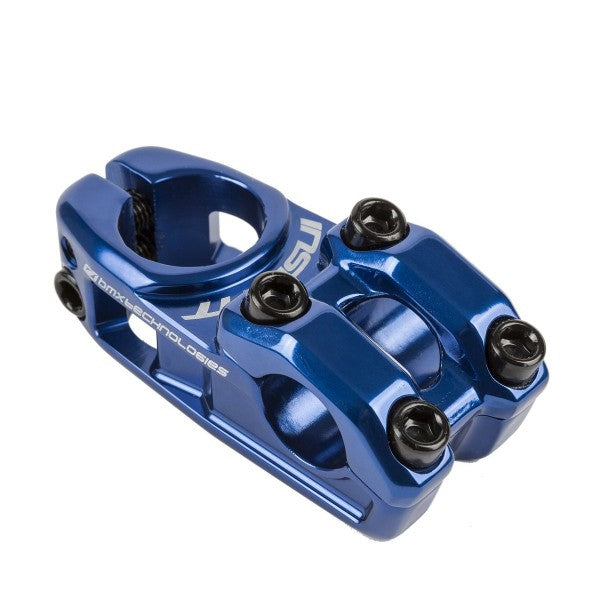

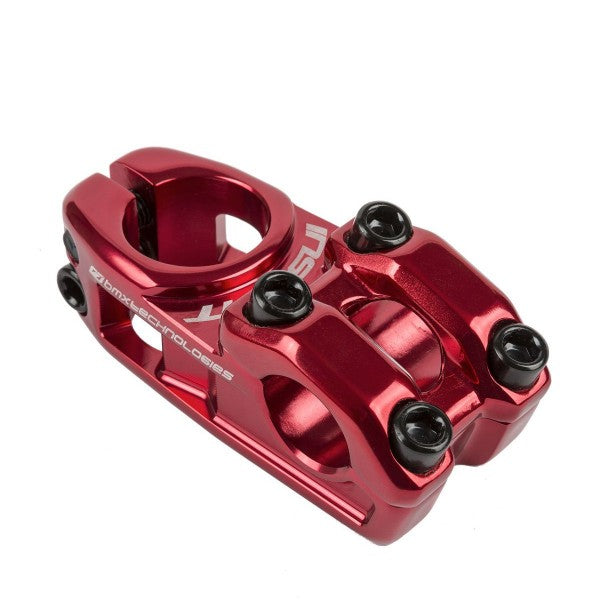

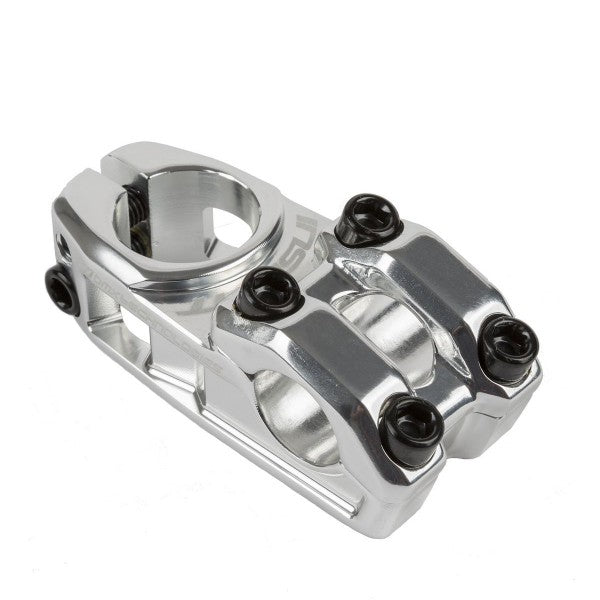

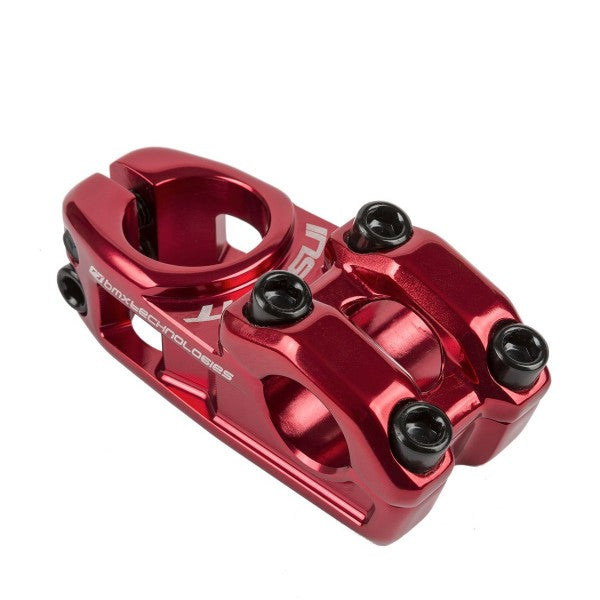

The INSIGHT 22.2mm Stem is a top-load BMX stem designed for riders using standard 22.2mm handlebars and 1-1/8" steerer tube forks. Constructed from forged and CNC-machined 6061-T6 aluminum, this stem features a single-piece top cap design and four-bolt handlebar clamp for secure bar and steerer tube attachment. Available in three reach lengths, it provides gearing options for cockpit positioning.

Key Features

• Forged and CNC-Machined 6061-T6 Aluminum – Forging process increases material density and strength compared to cast construction, while CNC machining ensures precise tolerances and weight reduction
• 30mm Stack Height – Low steerer tube stack allows for reduced handlebar height and lower cockpit positioning
• Single-Piece Top Cap – Integrated top cap design eliminates separate components and provides clean appearance
• Four 6mm Stem Bolts – Four-bolt handlebar clamp distributes clamping force evenly around bars for secure grip
• 24.18mm Rise – Distance from bar center to stem bottom provides consistent geometry across all reach lengths
• Laser-Etched Graphics – Durable logo application won't peel or fade from impacts or weather exposure

Technical Specifications

• Material: 6061-T6 aluminum alloy (forged and CNC-machined)
• Bar Clamp Diameter: 22.2mm (standard BMX)
• Steerer Tube Diameter: 1-1/8" only
• Clamping Type: Top load
• Bolt Size: 6mm Allen head (4 bolts for handlebar clamp)
• Top Cap: Single-piece integrated design
• Stack Height: 30mm
• Stem Rise: 24.18mm
• Available Lengths: 45mm, 50mm, 53mm
• Weight: Not specified by manufacturer
• Finish: Laser-etched logos

Compatibility and Ideal Use Cases

Compatibility Requirements: This stem requires standard 22.2mm BMX handlebars and a 1-1/8" steerer tube fork. It is not compatible with oversized 31.8mm bars or 1" steerer tubes. Verify your handlebar and fork specifications before purchasing.

Designed for BMX racing and freestyle riding where riders need a reliable, straightforward stem at an accessible price point. The forged construction and low stack height suit racers looking for front-end stiffness and lower handlebar positioning. The three available reach options allow riders to adjust cockpit length for body position and bike handling preferences. Suitable for riders at all levels running modern 1-1/8" steerer forks with standard 22.2mm handlebars who want a proven stem design without premium-tier pricing.
