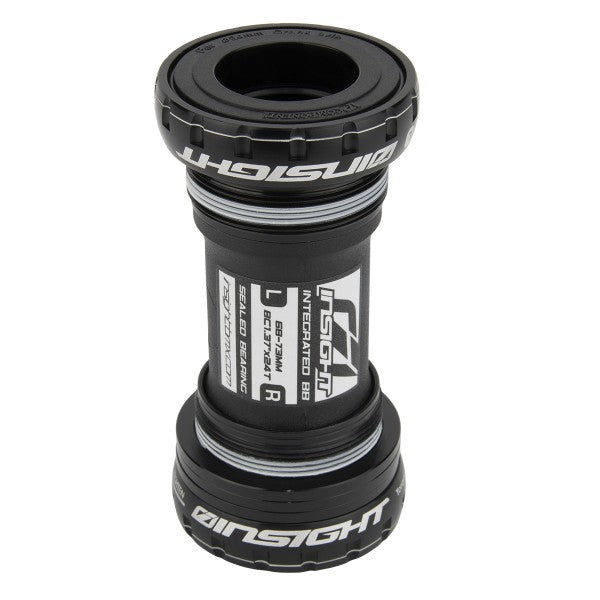

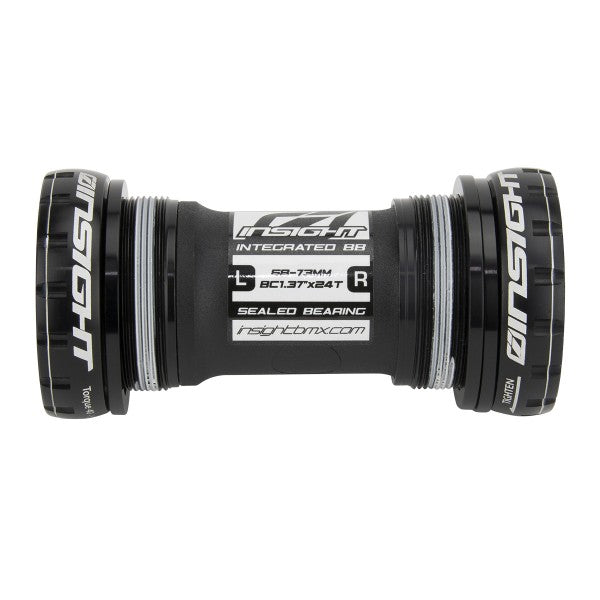

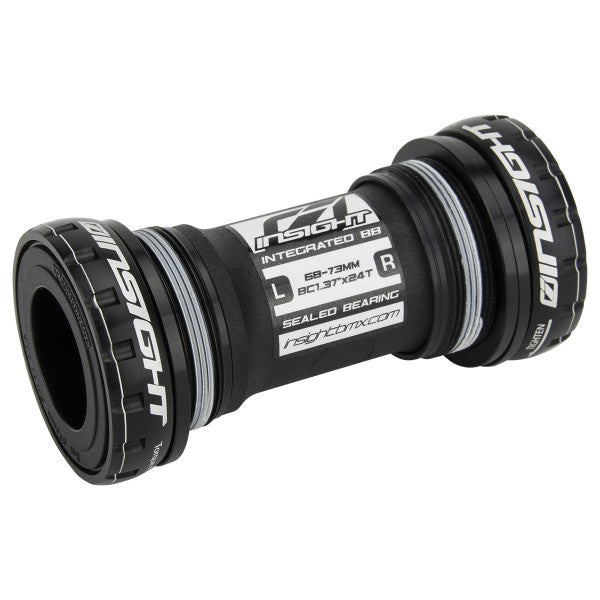

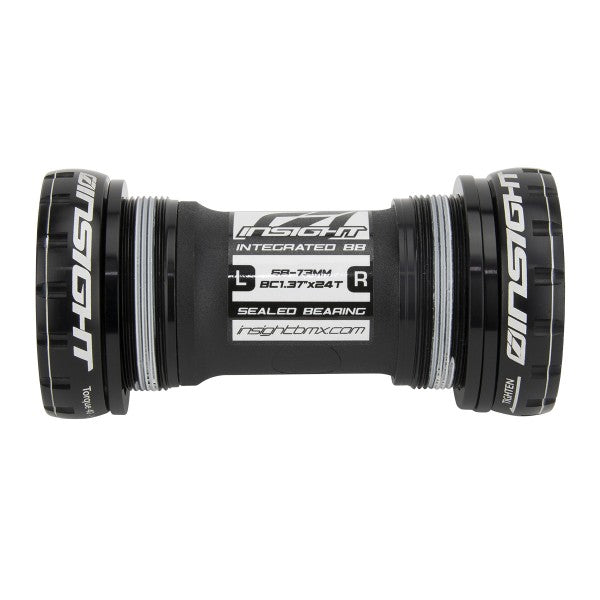

Insight Bottom Bracket Euro 68–73mm

Overview

The Insight Euro 68–73mm is a sealed bottom bracket designed for single-speed and multi-speed BMX cruisers and freestyle bikes with standard threaded shells. This lightweight component features sealed bearings and a 24mm spindle for reliable, low-maintenance performance across casual and recreational riding.

Key Features

• Dual Shell Compatibility — Fits both 68mm and 73mm × 1.37-inch (English) threaded bottom bracket shells; accommodates various frame geometries without requiring multiple components
• Sealed Bearing System — Protected bearings prevent dirt and moisture infiltration; extends component life and reduces maintenance requirements
• 24mm Spindle Diameter — Standard hollow axle size ensures compatibility with most BMX cruiser and freestyle cranksets
• 34.5mm Outside Diameter — Standard cup sizing ensures proper fit and engagement with threaded bottom bracket shells
• Lightweight Construction — 98g total weight keeps drivetrain rotating mass minimal; improves responsiveness on lighter builds
• Budget-Friendly Component — Affordable option for riders building entry-level bikes or seeking reliable replacement parts

Technical Specifications

• Type: External Euro bottom bracket
• Shell width: 68mm or 73mm
• Thread size: 1.37 inch × 24 TPI (English)
• Axle diameter: 24mm
• Cup diameter: 34.5mm
• Bearing system: Sealed bearings
• Weight: 98g

Compatibility & Ideal Use Cases

Compatible with BMX cruisers, freestyle bikes, and single-speed builds using 68mm or 73mm × 1.37-inch English-threaded bottom bracket shells and cranksets with 24mm spindles. The sealed bearing system makes this component ideal for casual riders, recreational cycling, and wet-weather conditions. Well-suited for budget-conscious builders and those seeking simple, reliable replacement bottom brackets. The lightweight construction benefits riders prioritizing responsiveness on lighter overall builds. A practical option for entry-level cruisers and general-purpose BMX bikes where premium performance is not required.
