Insight Integrated Headset 1"

Product Overview

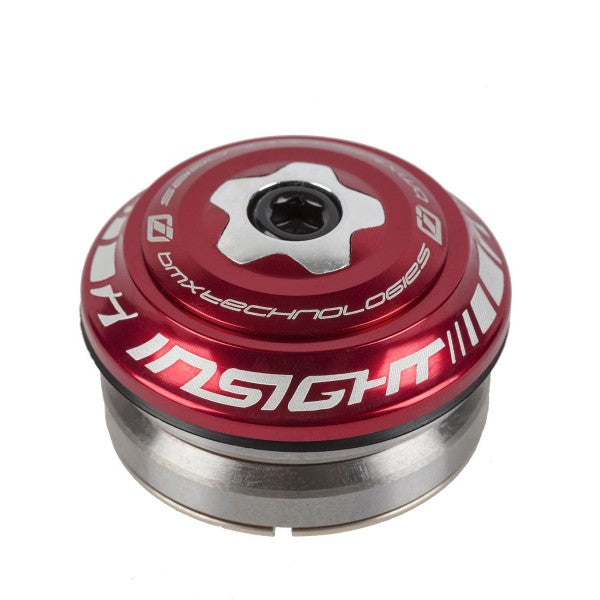

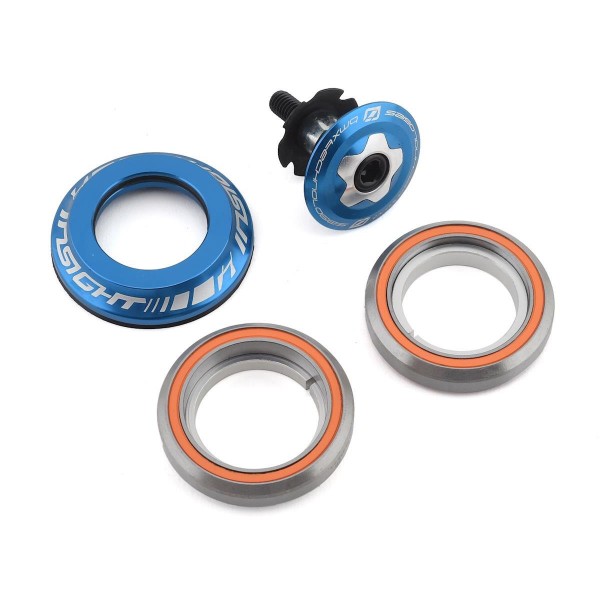

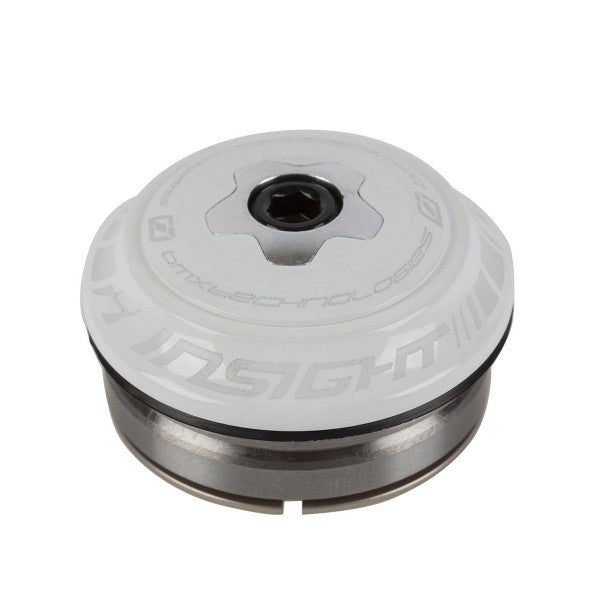

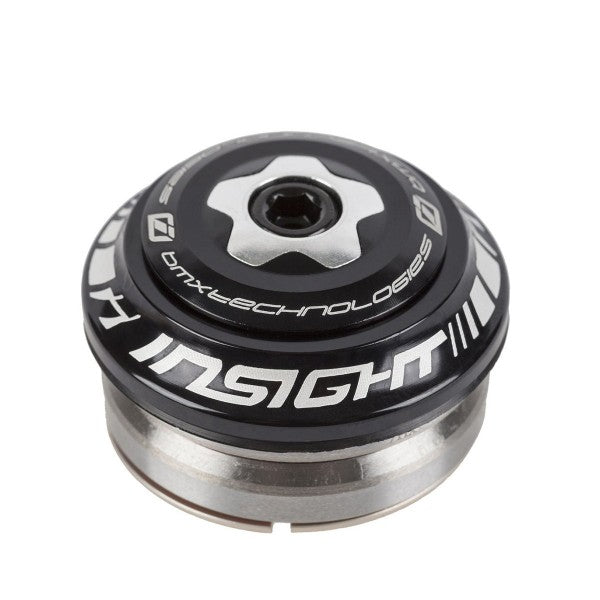

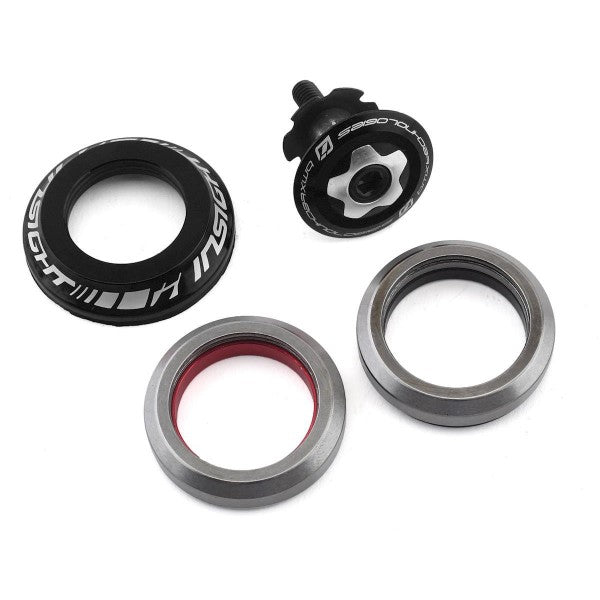

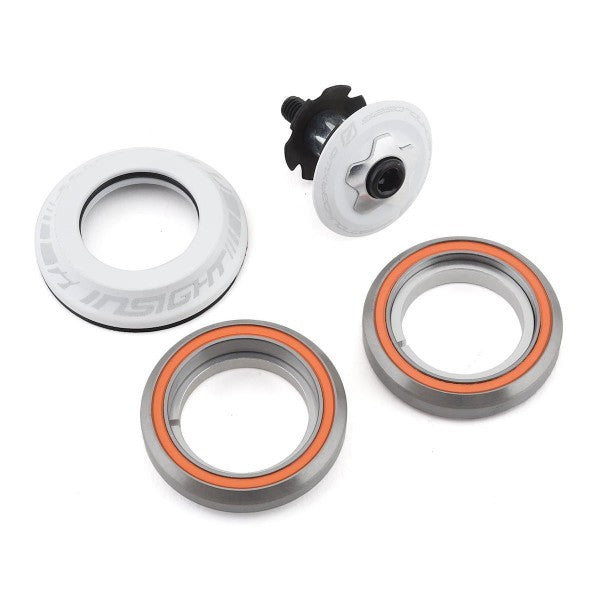

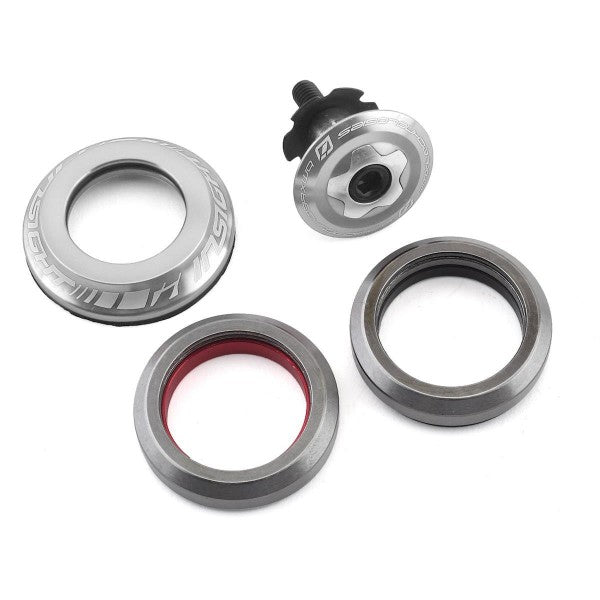

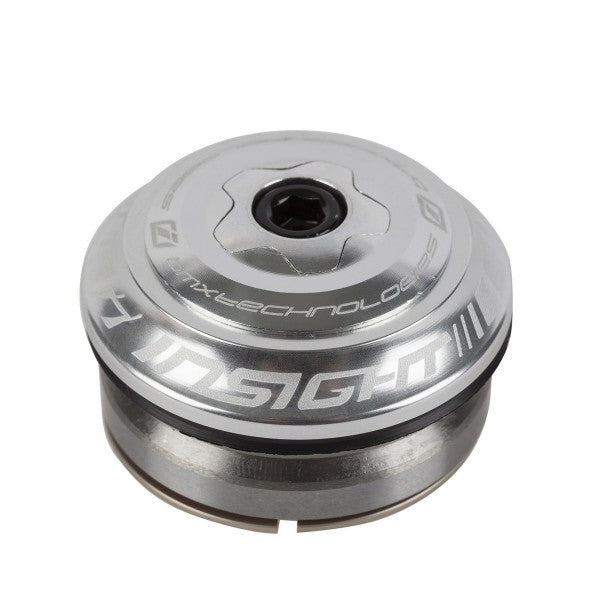

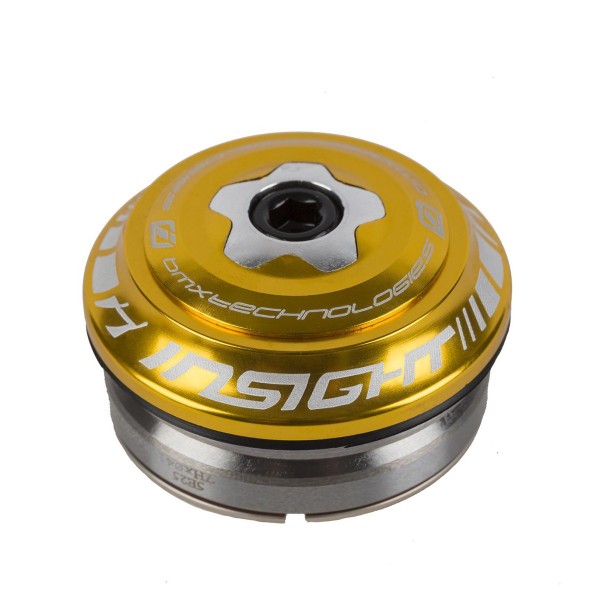

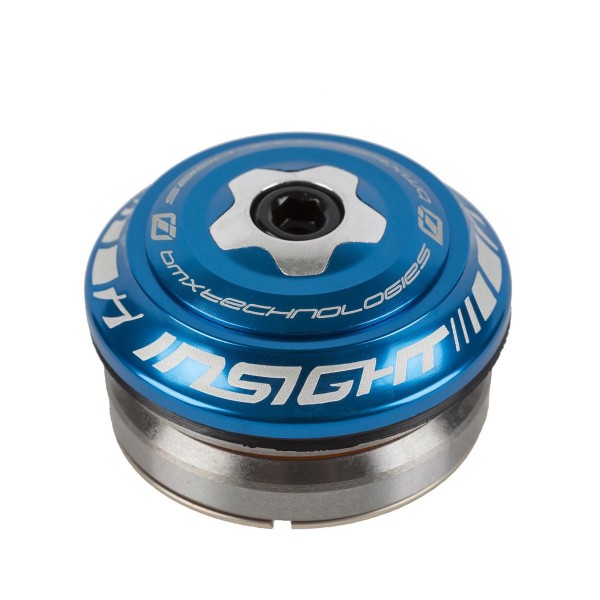

The Insight Integrated Headset is a low-profile headset designed for BMX race frames with 1-1/8" integrated head tubes and forks with 1" steerer tubes. CNC-machined from 6061 aluminum with 45/45-degree sealed bearings, it provides smooth steering and reliable performance. Features 41.8mm external diameter bearings for standard integrated head tube specifications.

Key Features

• 45/45-degree sealed bearings – Angular contact bearings at 45-degree angles improve load distribution and resistance to side loads during steering while protecting internals from contamination

• CNC-machined 6061 aluminum – Precision-machined aluminum components ensure consistent bearing seat interface and proper headset stack height

• Integrated design – Low-profile construction with bearings that press directly into frame head tube reduces overall headset stack height and weight

• 41.8mm external diameter – Standard integrated headset bearing size fits most BMX race frames with 1-1/8" integrated head tubes

Technical Specifications

• Headset type: Integrated (press-fit)

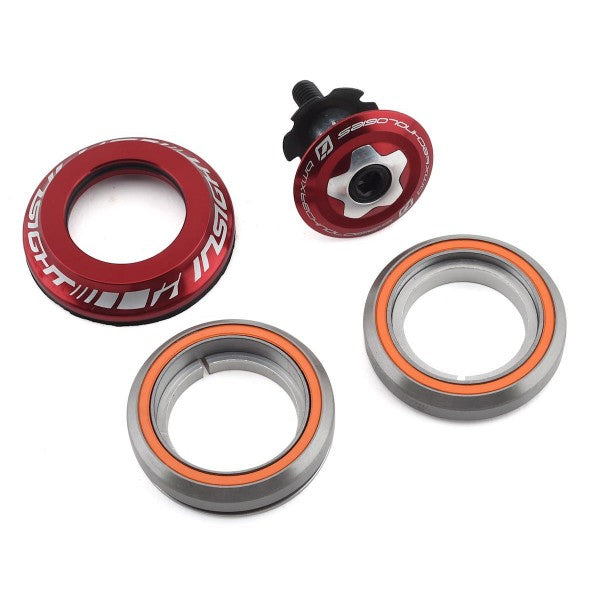

• Material: 6061 aluminum (compression ring, top cap), sealed bearings
• Steerer tube: 1" (25.4mm)
• Frame head tube: 1-1/8" integrated
• Bearing angle: 45/45-degree angular contact
• External bearing diameter: 41.8mm
• Bearings: Sealed cartridge bearings

Compatibility and Ideal Use Cases

Designed for BMX race frames with 1-1/8" integrated head tubes paired with forks using 1" steerer tubes. The 41.8mm bearing external diameter fits standard integrated head tube specifications common on Mini, Junior, and Expert class race frames. Best suited for competitive racing where low stack height and reliable steering are required. Not compatible with threaded headsets, external cup headsets, tapered steerer tubes, or frames with non-integrated head tube designs—verify frame head tube type and fork steerer diameter before ordering.
