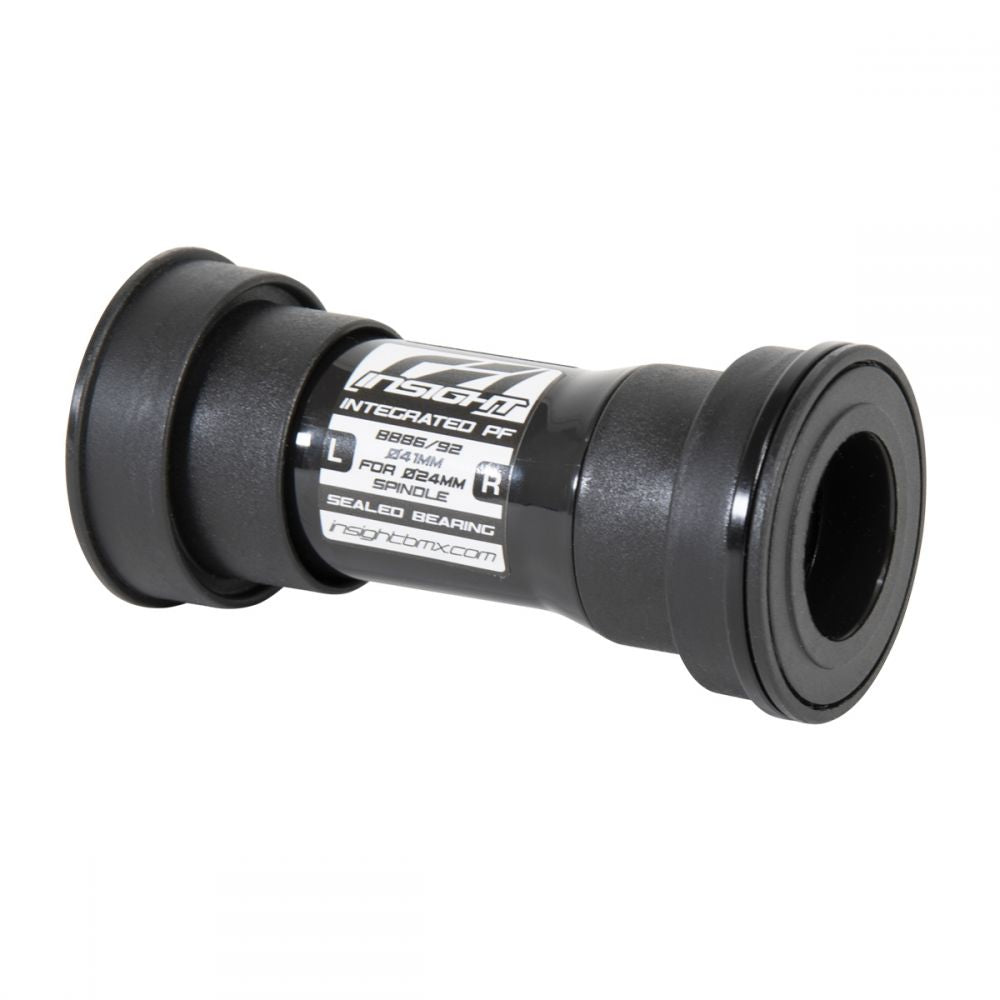

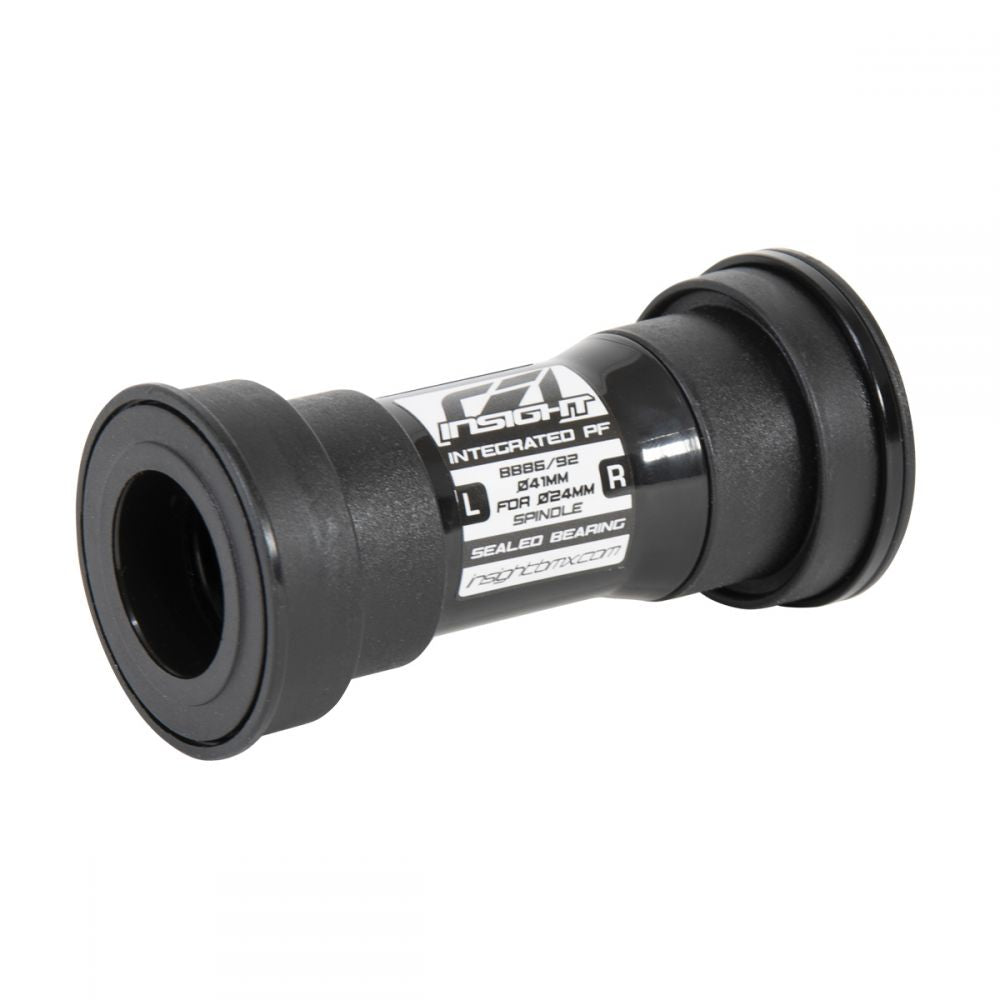

Insight PF24 86–92mm Bottom Bracket

Overview

The Insight PF24 is a sealed press-fit bottom bracket designed for modern frames with 86mm or 92mm threaded shells. This budget-friendly component features composite cups, sealed cartridge bearings, and a 24mm spindle for reliable performance across casual riding and entry-level builds.

Key Features

• Press-Fit BB86/BB92 Design — Engineered for both 86mm and 92mm threaded bottom bracket shells; provides flexibility for different frame geometries with simple, tool-free installation
• Composite Plastic Housing — Lightweight housing reduces overall weight; adequate durability for casual riding and budget-conscious builds
• Sealed Cartridge Bearings — Protected bearing system prevents dirt and moisture infiltration; extends component life and reduces maintenance in varied conditions
• 24mm Spindle Diameter — Standard hollow axle size ensures compatibility with most modern cranksets and provides adequate stiffness for general riding
• 41mm Internal Diameter — Standard sizing accommodates most frames and cranksets with 24mm spindles
• Budget-Friendly Option — Affordable component suitable for riders building entry-level bikes or seeking basic replacement parts

Technical Specifications

• Type: Press-fit (BB86/BB92)
• Shell width: 86mm or 92mm
• Internal diameter: 41mm
• Axle diameter: 24mm
• Cup material: Composite plastic
• Bearing system: Sealed cartridge bearings
• Shell thread: Compatible with standard press-fit shells

Compatibility & Ideal Use Cases

Compatible with frames featuring 86mm or 92mm press-fit bottom bracket shells and cranksets with 24mm spindles. Ideal for entry-level builds, casual riders, and budget-conscious builders seeking reliable, low-cost bottom bracket performance. The sealed cartridge bearings make this component suitable for recreational riding in varied conditions. Well-suited for riders prioritizing affordability without sacrificing basic functionality and sealed protection. Not recommended for competitive racing or high-stress riding where premium components are preferred.
