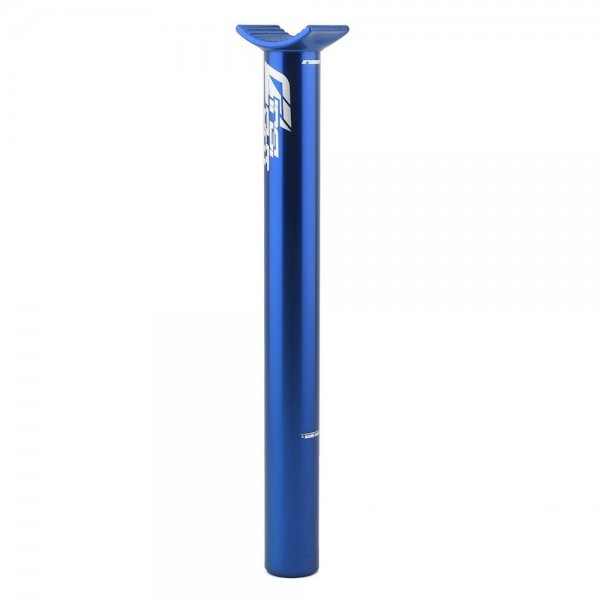

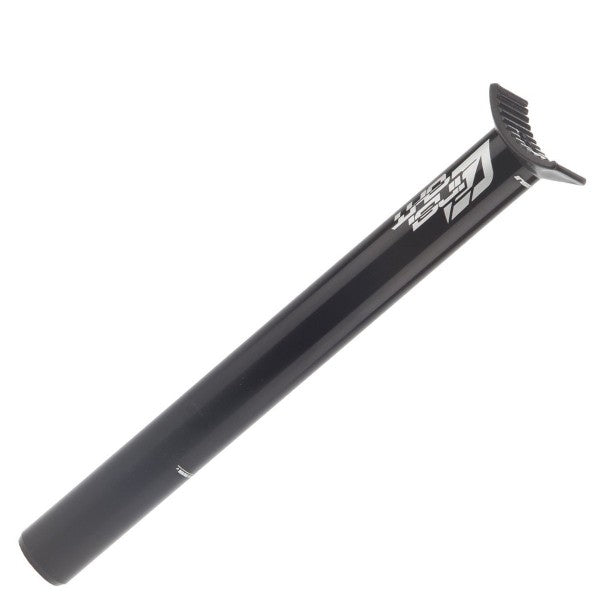

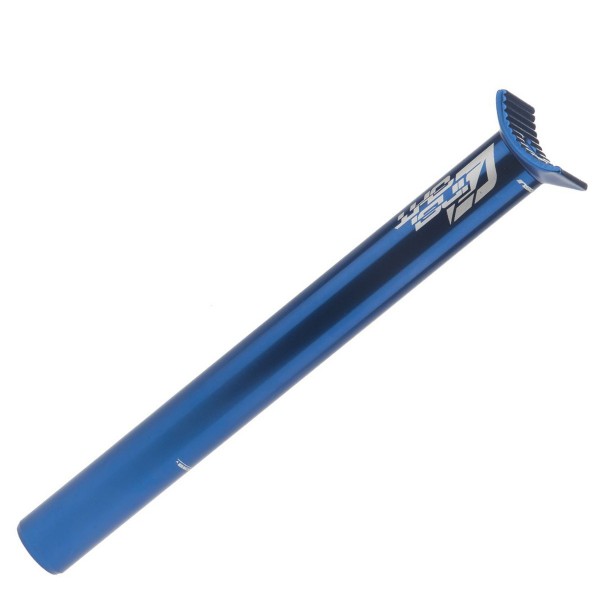

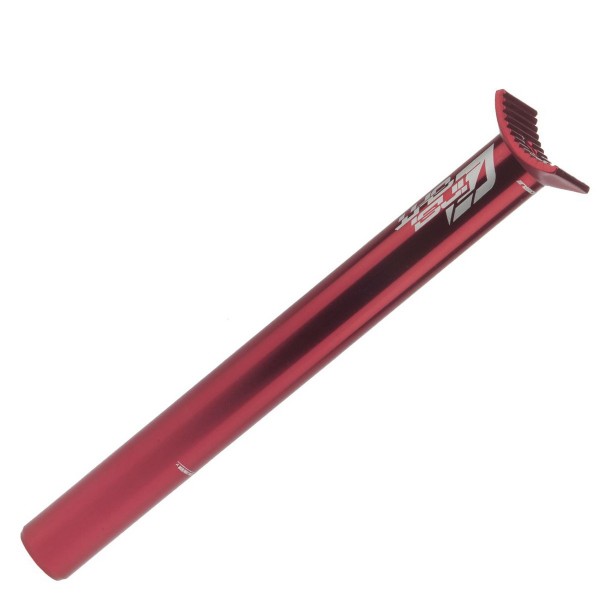

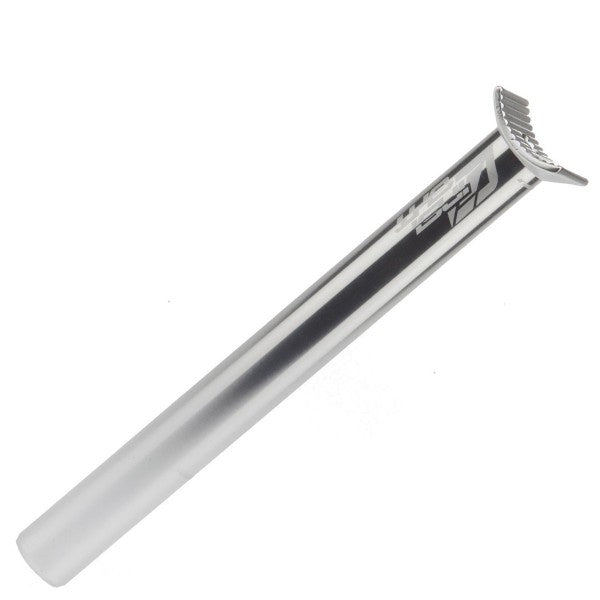

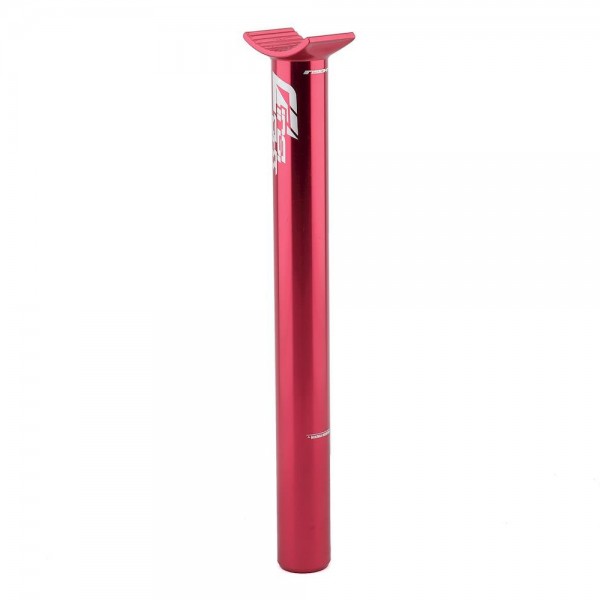

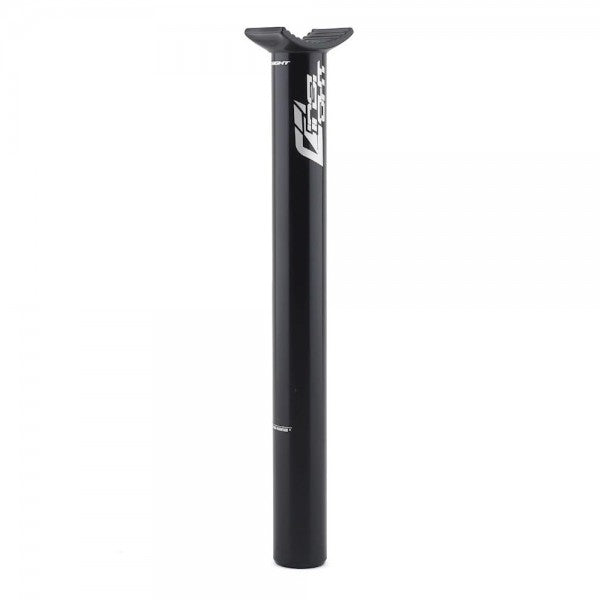

Insight Pivotal Alloy Seat Post 26.8mm

Product Overview

The Insight Pivotal Alloy Seat Post is a BMX race-specific seat post machined from 6061-T6 aluminum with anodized finish. Featuring pivotal seat mounting at 26.8mm diameter and 250mm length, this post provides lightweight performance at 162 grams. Designed for frames with standard round seat tube clamps.

Key Features

• 6061-T6 aluminum construction – Heat-treated alloy provides high strength-to-weight ratio for durability without excessive weight
• Anodized finish – Corrosion-resistant anodizing protects aluminum surface from oxidation and wear while adding color options
• Pivotal seat mounting – Top-mount pivotal design allows quick seat angle adjustment and secure attachment without separate clamp hardware
• 250mm length – Extended length provides ample adjustment range for growing riders or those who need higher seat positions
• 26.8mm diameter – Fits frames with 26.8mm (approximately 1.055") seat tube inner diameter—verify frame compatibility before ordering
• 162-gram weight – Lightweight construction reduces overall bike weight for competitive racing applications

Technical Specifications

• Material: 6061-T6 aluminum, anodized
• Seat post type: Pivotal (top-mount)
• Diameter: 26.8mm
• Length: 250mm (measured from minimum insertion point to top of post)
• Weight: 162 grams
• Clamp type: Standard round seat tube clamp
• Recommended use: BMX racing

Compatibility and Ideal Use Cases

This seat post fits frames with 26.8mm seat tube inner diameter only—a less common size in modern BMX but still found on certain race frames and older models. The more common BMX seat post sizes are 25.4mm and 27.2mm; verify your frame's seat tube diameter before ordering to avoid fitment issues. Use a caliper or check frame specifications to confirm—forcing an incorrect diameter post can damage the frame or clamp. The pivotal mounting system requires a pivotal seat (sold separately)—will NOT work with railed seats or integrated seat/post combos. The 250mm length provides substantial height adjustment, making it ideal for growing junior racers, taller riders, or anyone needing extended seat height for efficient pedaling. Best suited for BMX racing where seated pedaling and proper leg extension matter for power transfer and endurance. The lightweight aluminum construction balances durability with competitive weight for race applications. Always observe the minimum insertion line marked on the post—insufficient insertion depth can cause post failure or frame damage.
