Insight PL4 Crankset

Product Overview

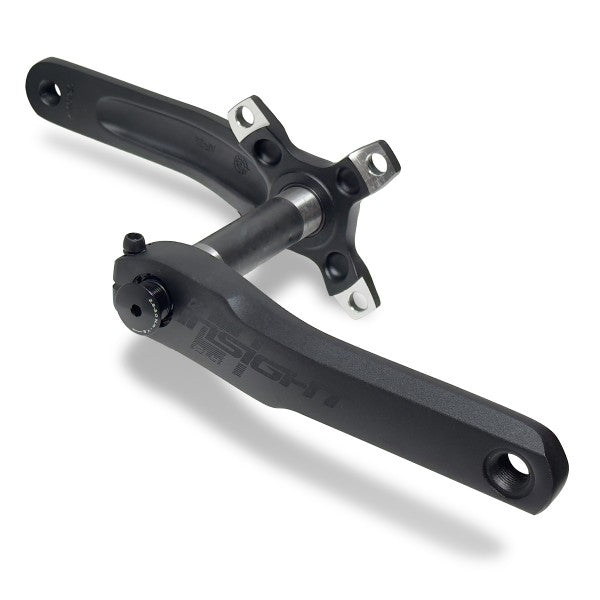

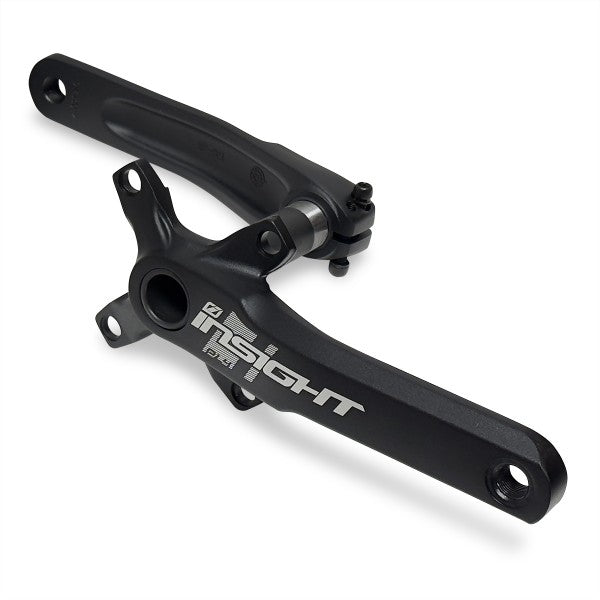

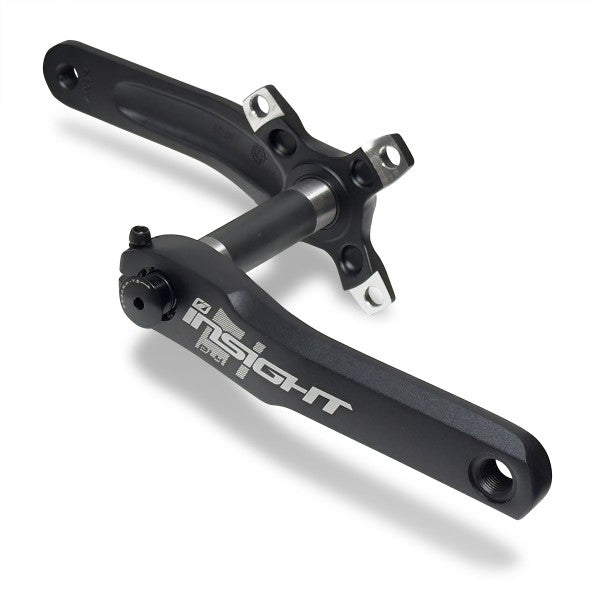

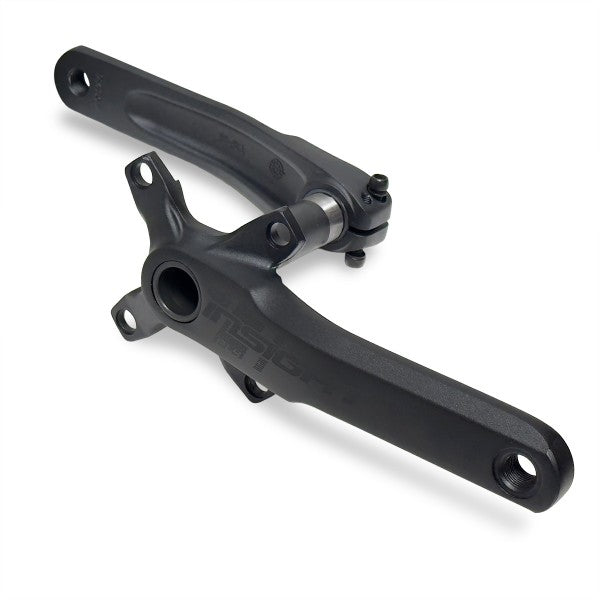

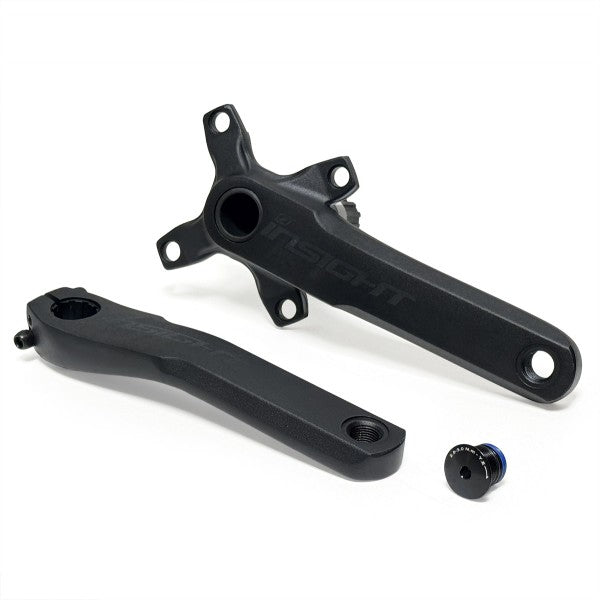

The Insight PL4 is a two-piece crankset designed for BMX racing. Built with forged 6061-T6 aluminum arms and a 24mm chromoly spindle, it features a 104mm BCD four-bolt spider for chainring compatibility. The drive-side spindle is press-fit into the crank arm, while the non-drive side uses a dual pinch bolt system for secure attachment.

Key Features

• Forged 6061-T6 aluminum arms – Forging process compresses aluminum grain structure for improved strength-to-weight ratio compared to cast or extruded cranks

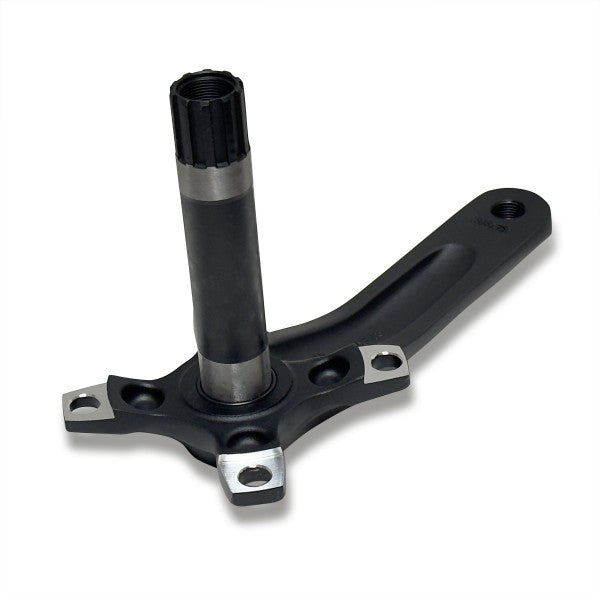

• 24mm chromoly spindle – Heat-treated steel axle press-fit into the drive-side arm provides stiff pedaling platform and resistance to bending under load

• Dual pinch bolt non-drive attachment – Two-bolt clamping system on the left arm distributes clamping force evenly around the spindle for secure retention without slippage

• 104mm BCD four-bolt spider – Standard four-bolt pattern accepts aftermarket chainrings from multiple manufacturers for gear ratio customization

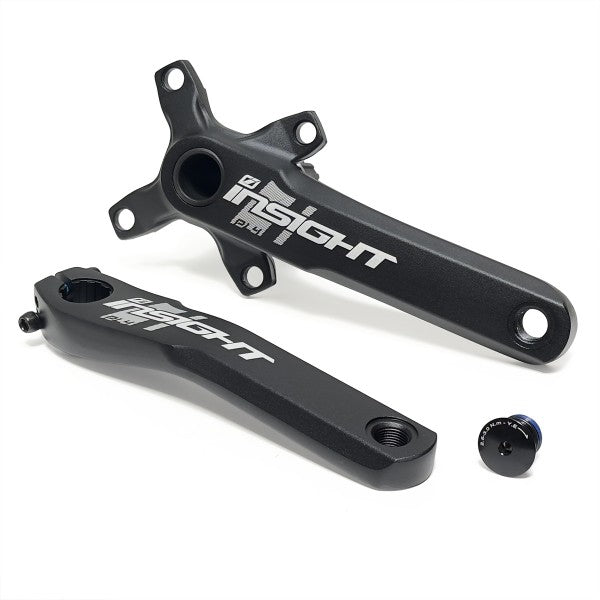

• Laser-etched graphics – Permanent branding applied via laser etching won't wear off from pedal strikes or cleaning

Technical Specifications

• Material: 6061-T6 aluminum (arms), chromoly steel (spindle)
• Crank type: Two-piece with press-fit spindle
• Spindle diameter: 24mm
• BCD (Bolt Circle Diameter): 104mm
• Chainring bolt pattern: 4-bolt
• Q-factor: 160mm
• Crank arm lengths: 170mm, 175mm, 180mm
• Weight:

• 170mm: 774 g (27.3 oz)
• 175mm: 785 g (27.6 oz)
• 180mm: 793 g (27.9 oz)
  • Color options: Black with black graphics, Black with silver graphics
  • Bottom bracket compatibility: 24mm (press-fit or Euro threaded BB, sold separately)

Compatibility and Ideal Use Cases

Designed for BMX race frames with 24mm bottom bracket shells. Compatible with both press-fit and Euro-style threaded 24mm bottom brackets (bottom bracket sold separately). The 104mm BCD accepts standard four-bolt chainrings for easy gear ratio changes. Best suited for competitive racing across all age classes where riders need reliable, lightweight cranks with common chainring compatibility. 160mm Q-factor fits most BMX race frames without clearance issues. Not compatible with one-piece cranks, three-piece systems, or non-24mm bottom bracket standards—verify frame bottom bracket spec before ordering.

Note: Bottom bracket and chainring sold separately.
