Insight Platform Mini 9/16" Pedals

Product Overview

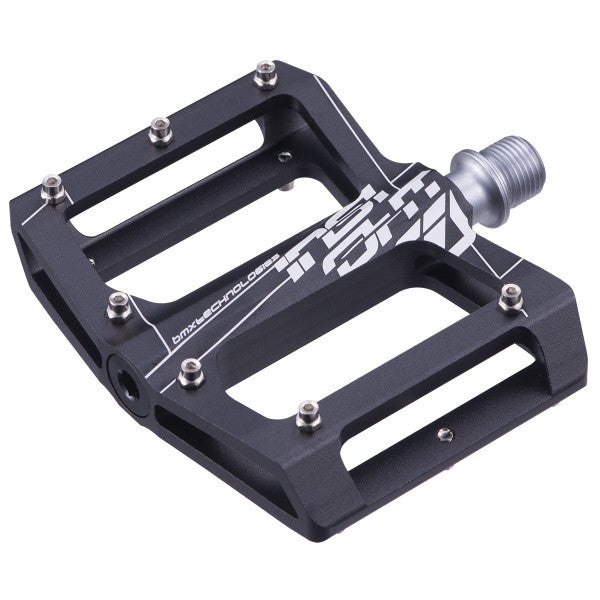

The Insight Platform Mini are compact platform pedals designed for young BMX racers. CNC-machined from 6061 aluminum with chromoly spindles, they weigh 169 grams per pedal and feature a sealed bearing and LSL bushing system for smooth rotation. Sized specifically for Mini class riders with smaller feet.

Key Features

• CNC-machined chromoly spindle – Heat-treated steel axle resists bending from hard landings and pedal strikes while maintaining 9/16" thread compatibility with two-piece cranks

• 6061 aluminum body – CNC-machined aluminum platform provides lightweight structure with sufficient durability for race applications

• Sealed bearing and LSL bushing – Outboard sealed industrial bearing and inboard low-friction LSL bushing reduce rotational resistance and protect internals from contamination

• Compact Mini sizing – 83mm × 94mm platform dimensions match the foot size and proportions of Mini class riders without excess weight or bulk

• Tight bushing tolerances – Precision-fit bushing maintains smooth pedal rotation over extended use by preventing play and maintaining bearing alignment

Technical Specifications

• Weight: 338 g per pair (169 g per pedal)
• Material: 6061 aluminum (body), chromoly steel (spindle)
• Pedal type: Platform
• Axle thread: 9/16"
• Bearings: 1 sealed industrial bearing (outboard), 1 LSL bushing (inboard) per pedal
• Dimensions: 83mm × 94mm (L × W)
• Pedal size category: Mini

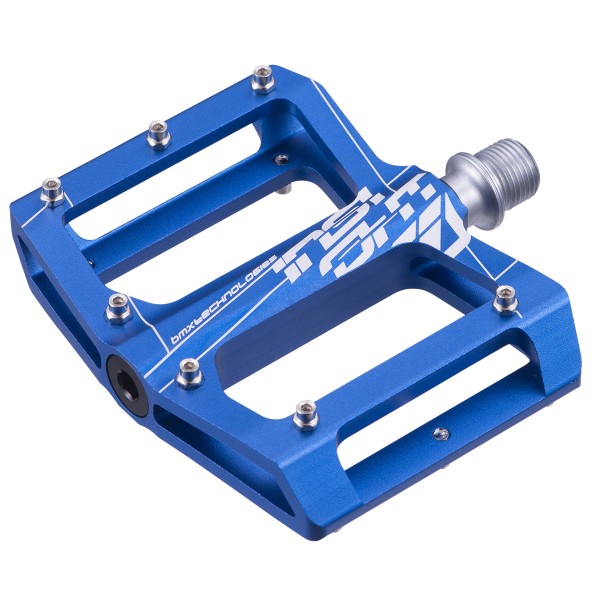

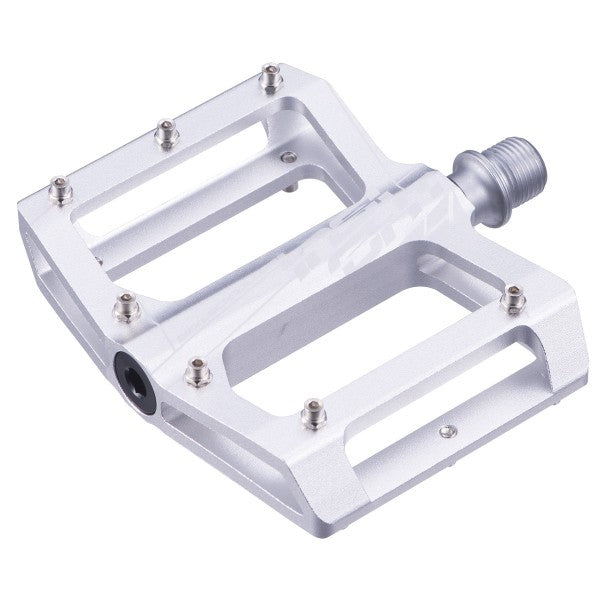

• Color options: Black, Silver, Red, Blue

Compatibility and Ideal Use Cases

Designed for BMX race bikes with 9/16" threaded crank arms (standard on two-piece and three-piece cranks). Not compatible with one-piece cranks using 1/2" pedal threads. Best suited for Mini class competitive racing where compact platform dimensions match younger riders' foot sizes and reduce unnecessary weight. The sealed bearing and bushing system provides reliable rotation with minimal maintenance requirements. Sized appropriately for riders with smaller feet who don't need full-size platform contact area. Verify crank arm pedal thread size before ordering.
