Insight Platform Pro 9/16" Pedals

Product Overview

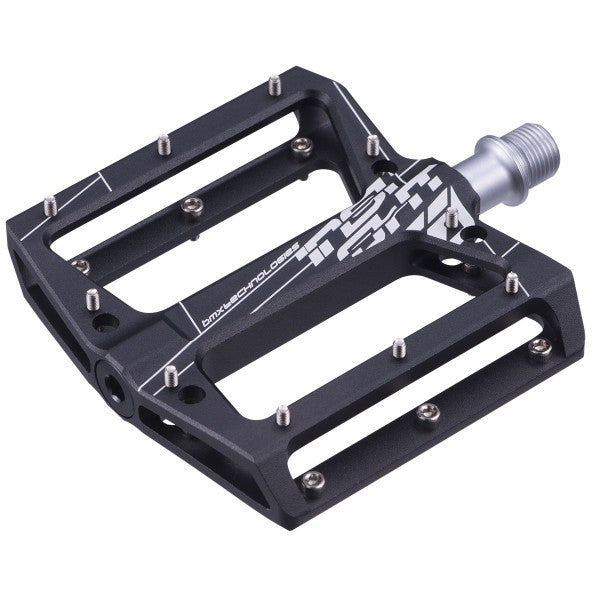

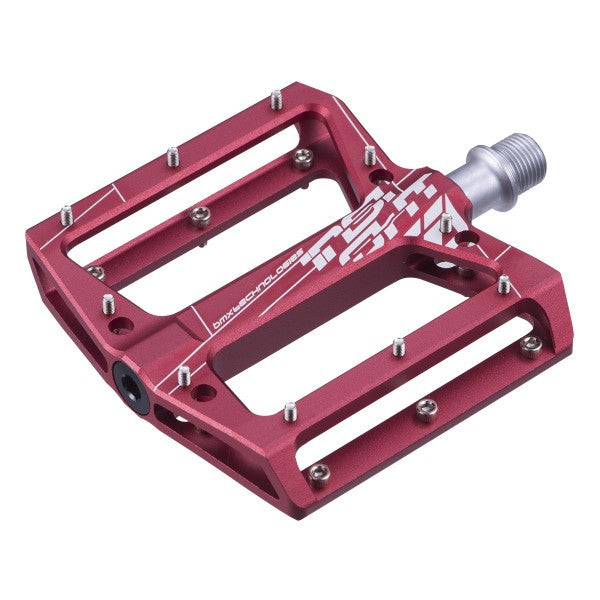

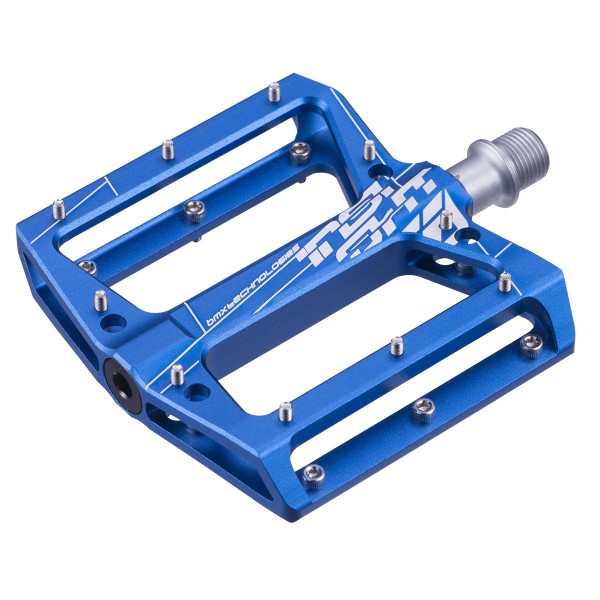

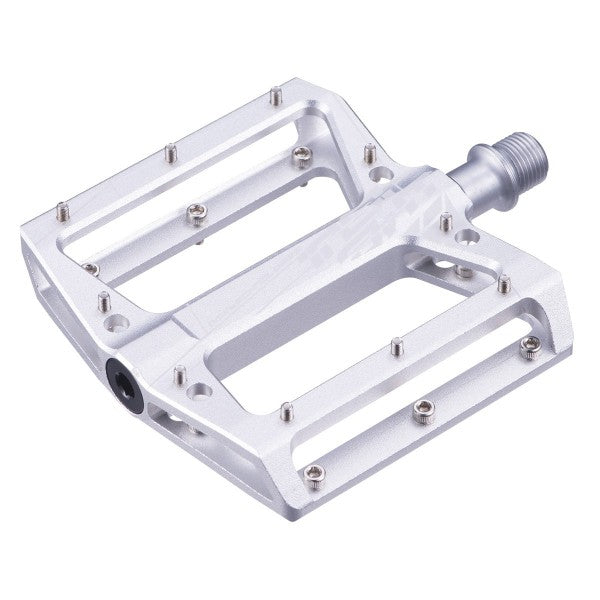

The Insight Platform Pro are full-size platform pedals designed for BMX racing. CNC-machined from 6061 aluminum with chromoly spindles, they weigh 205 grams per pedal and feature a sealed bearing and LSL bushing system for smooth rotation. Sized for Expert, Junior, and Pro class riders requiring a larger platform for foot stability.

Key Features

• CNC-machined chromoly spindle – Heat-treated steel axle resists bending from hard landings and pedal strikes while maintaining 9/16" thread compatibility with two-piece cranks

• 6061 aluminum body – CNC-machined aluminum platform provides lightweight structure with sufficient durability for race applications

• Sealed bearing and LSL bushing – Outboard sealed industrial bearing and inboard low-friction LSL bushing reduce rotational resistance and protect internals from contamination

• Pro sizing – 113mm × 105mm platform dimensions provide stable contact area for riders with larger feet or those seeking maximum support during standing starts

• Tight bushing tolerances – Precision-fit bushing maintains smooth pedal rotation over extended use by preventing play and maintaining bearing alignment

Technical Specifications

• Weight: 410 g per pair (205 g per pedal)
• Material: 6061 aluminum (body), chromoly steel (spindle)
• Pedal type: Platform
• Axle thread: 9/16"
• Bearings: 1 sealed industrial bearing (outboard), 1 LSL bushing (inboard) per pedal
• Dimensions: 113mm × 105mm (L × W)
• Pedal size category: Pro
• Color options: Black, Silver, Red, Blue

Compatibility and Ideal Use Cases

Designed for BMX race bikes with 9/16" threaded crank arms (standard on two-piece and three-piece cranks). Not compatible with one-piece cranks using 1/2" pedal threads. Best suited for Expert, Junior, and Pro class competitive racing where larger platform dimensions match older or taller riders' foot sizes and provide increased stability during gate starts and sprints. The sealed bearing and bushing system provides reliable rotation with minimal maintenance requirements. Appropriate for riders who need full-size platform contact area for optimal power transfer. Verify crank arm pedal thread size before ordering.
