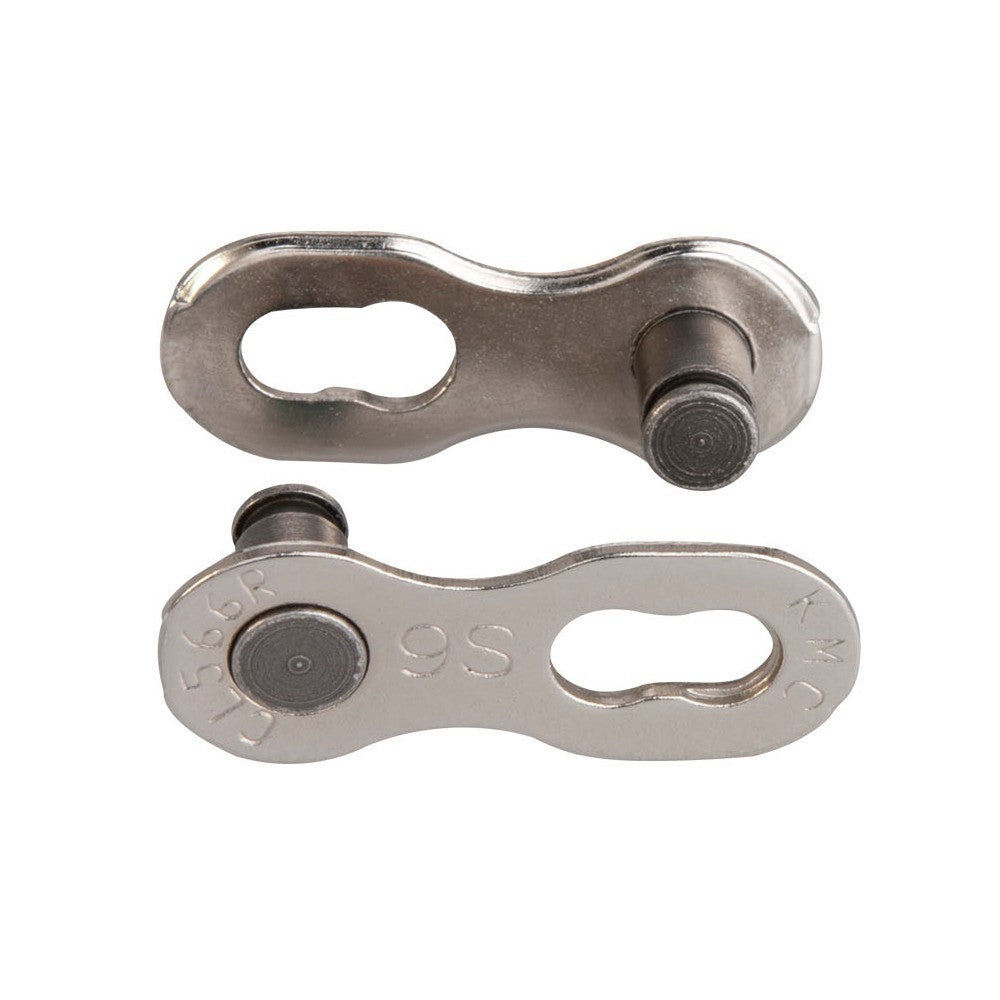

KMC Missing Link CL566R 9-Speed Chain Connector

Overview

The KMC Missing Link CL566R is a reusable connector designed for 9-speed chains from KMC, Shimano, and SRAM. This quick-link allows tool-free chain assembly and disassembly without permanently joining pins, making chain maintenance and replacement straightforward on BMX and multi-speed bikes.

Key Features

• Reusable Quick-Link Design - Snap-on connector eliminates the need for a chain tool to join or separate chain; can be removed and reinstalled multiple times without wear
• 9-Speed Compatibility - Works with all major 9-speed chain brands including KMC, Shimano, and SRAM; matches standard 9-speed chain width and pin spacing
• 6.6mm Pin Length - Precisely sized for 9-speed chains; ensures proper engagement with chain plates and prevents shifting or slippage
• Silver Finish - Corrosion-resistant plating maintains durability in wet and dry conditions; matches standard chain aesthetics
• Tool-Free Installation - No chain tool required; press together by hand or with light leverage until fully seated and locked

Technical Specifications

• Speed: 9-speed
• Pin length: 6.6mm
• Material: Steel with silver finish
• Connector type: Reusable quick-link
• Quantity: 2 sets per board
• Compatible brands: KMC, Shimano, SRAM

Compatibility & Ideal Use Cases

Compatible with all 9-speed chains from KMC, Shimano, and SRAM. Ideal for riders who frequently clean chains, swap configurations, or need quick repairs without carrying a chain tool. Essential for multi-speed BMX cruisers and freestyle bikes where chain maintenance is routine. Also useful as a backup connector for emergency chain repairs during rides.

9 SPEED CONNECTOR

6.6MM PIN LENGTH

SILVER COLOR
