S&M Pitchfork BMX Fork (18", 20", 22", 24", 26")

S&M Pitchfork BMX Fork (18", 20", 22", 24", 26")

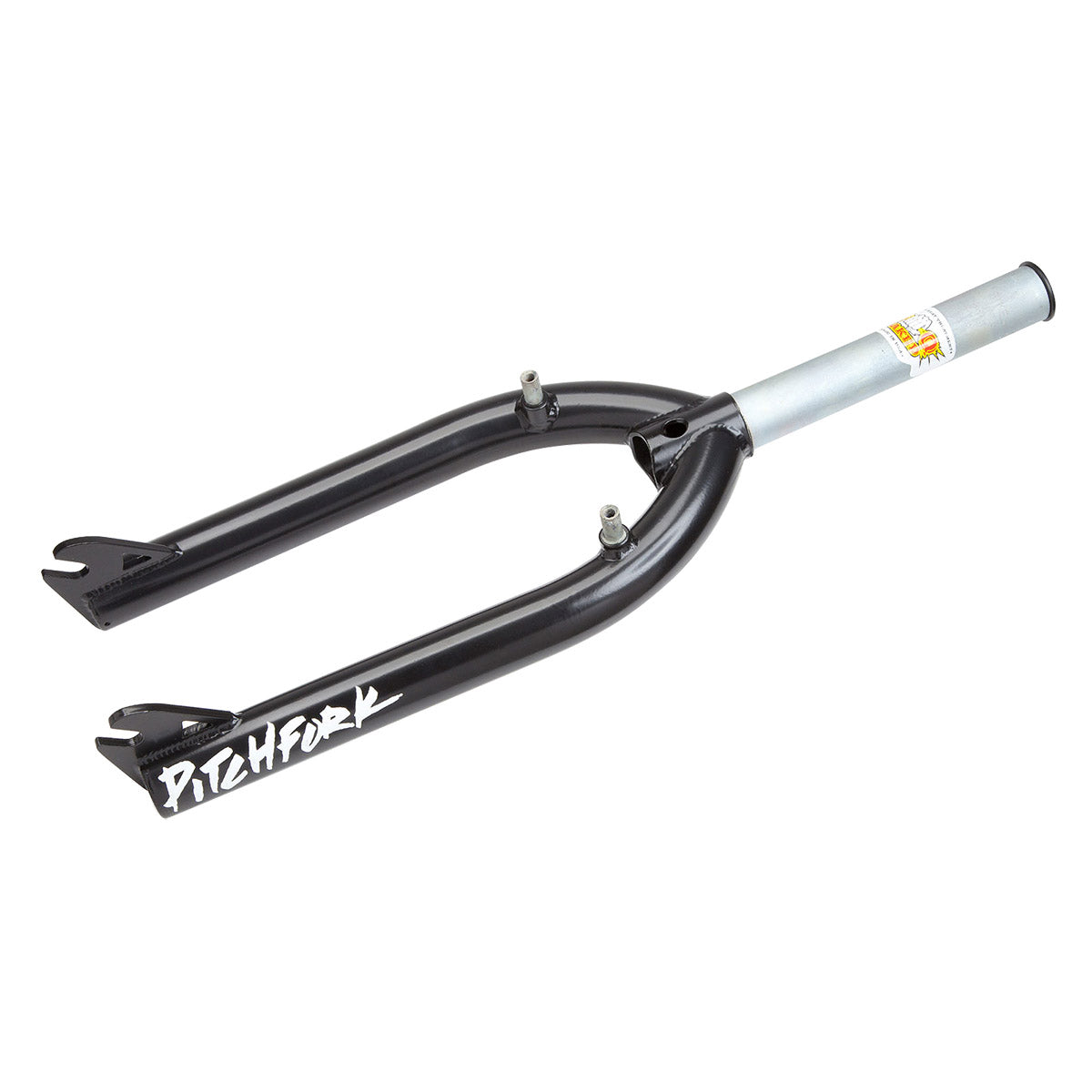

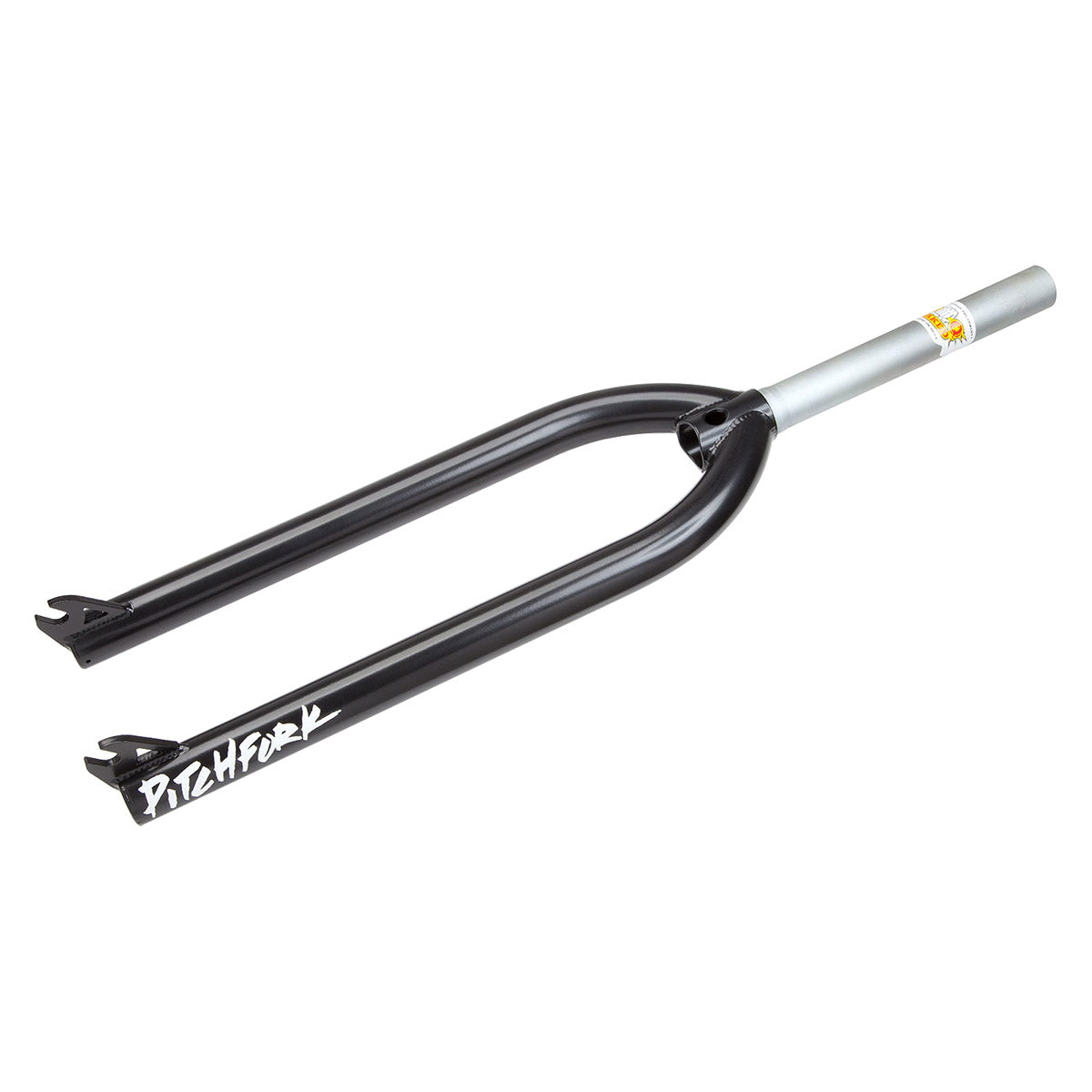

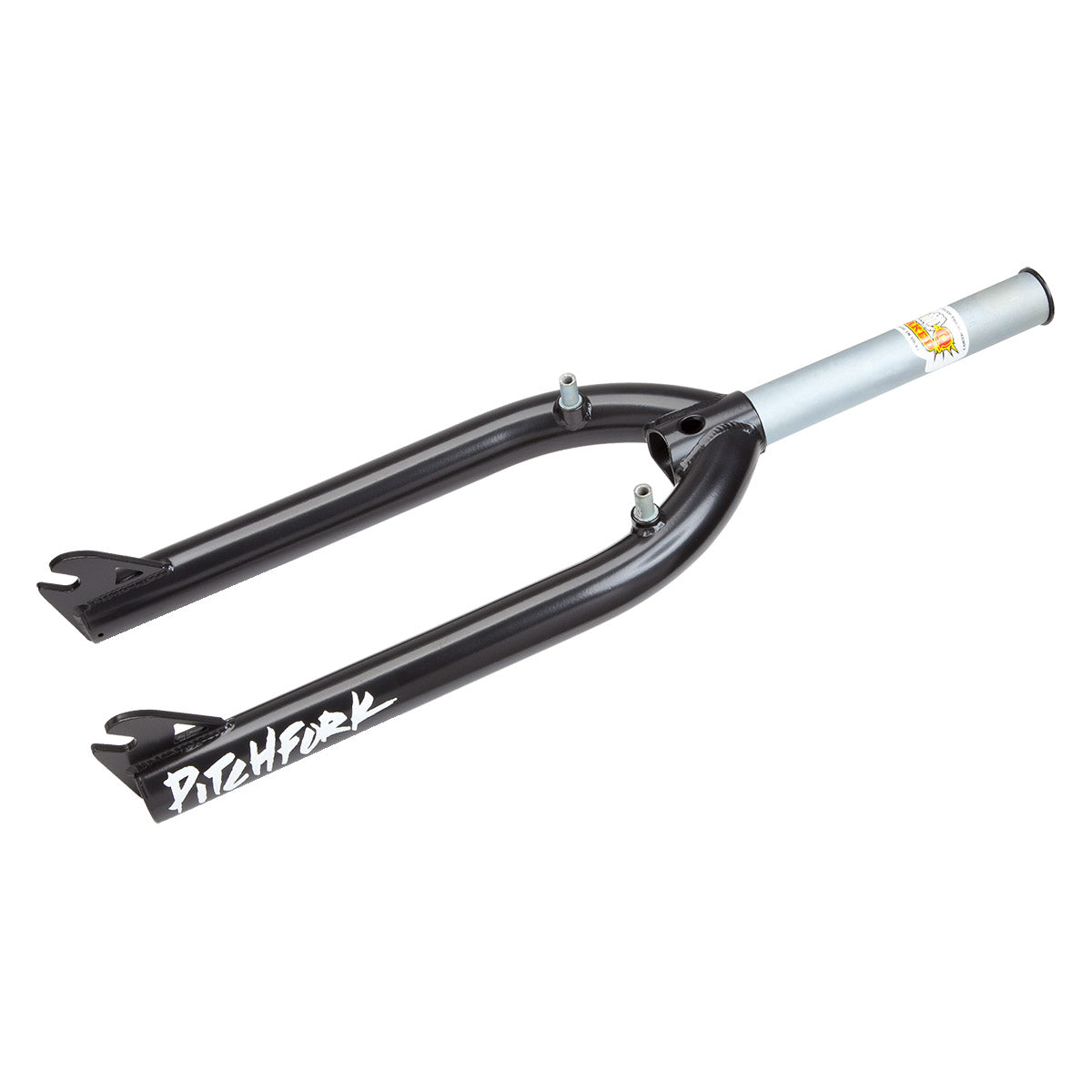

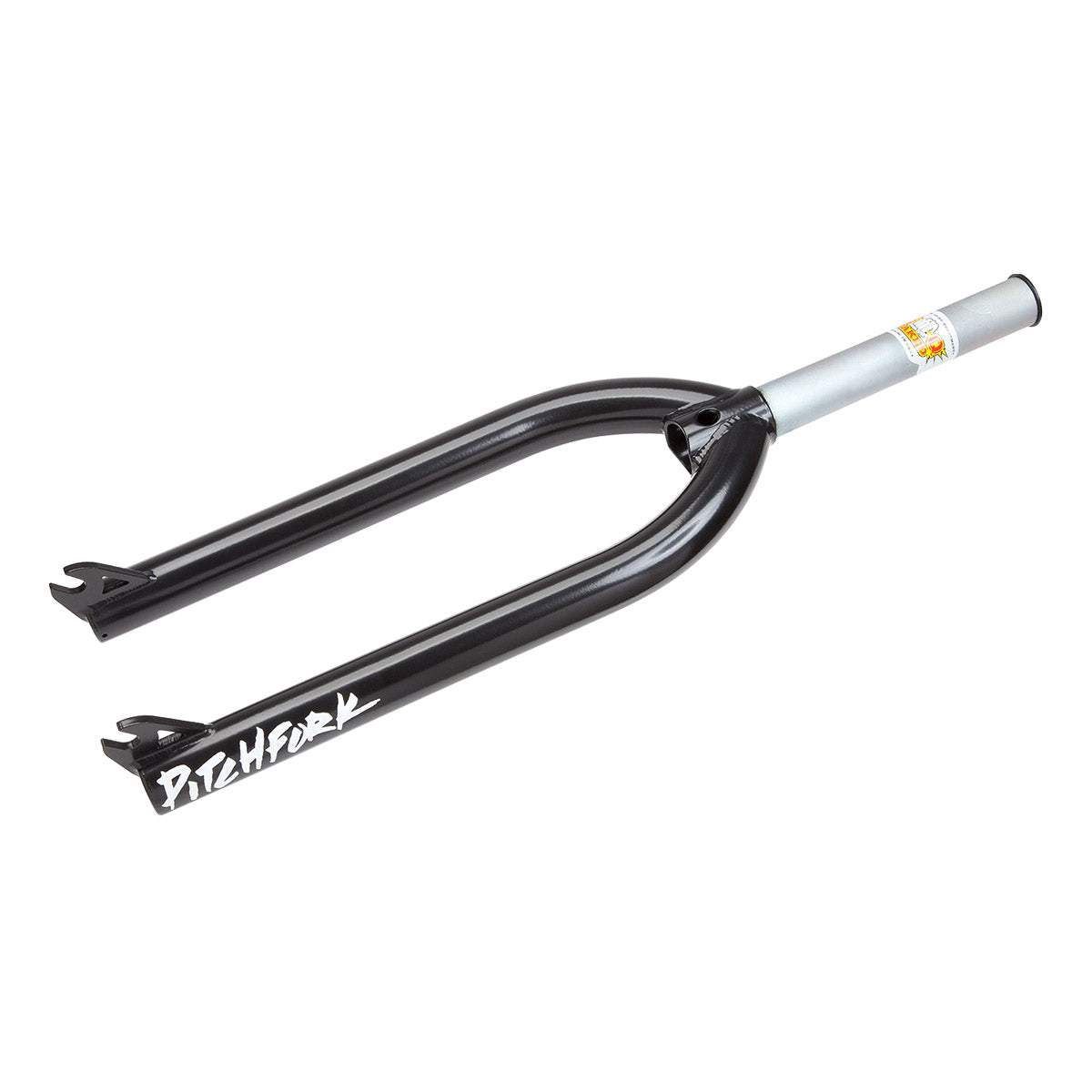

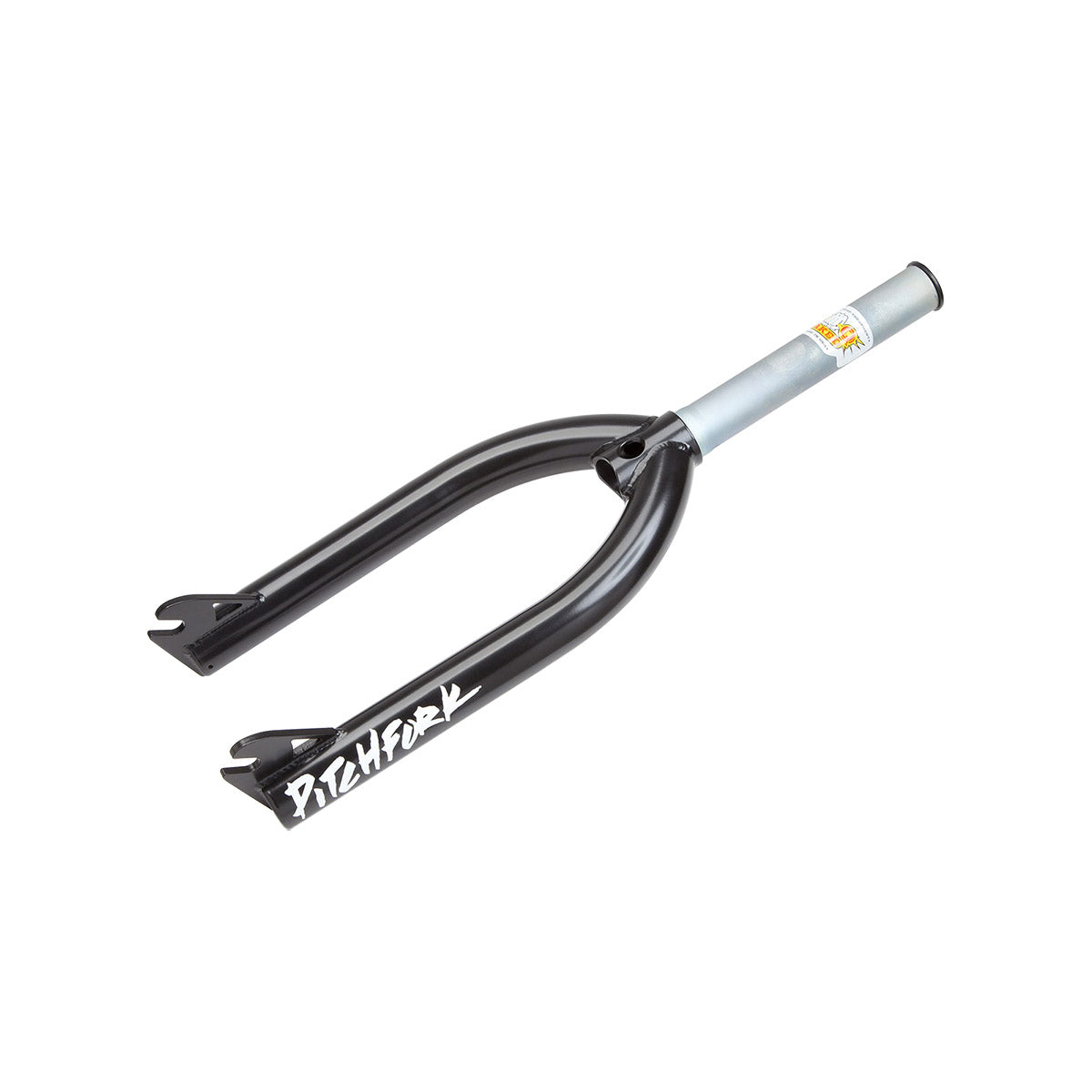

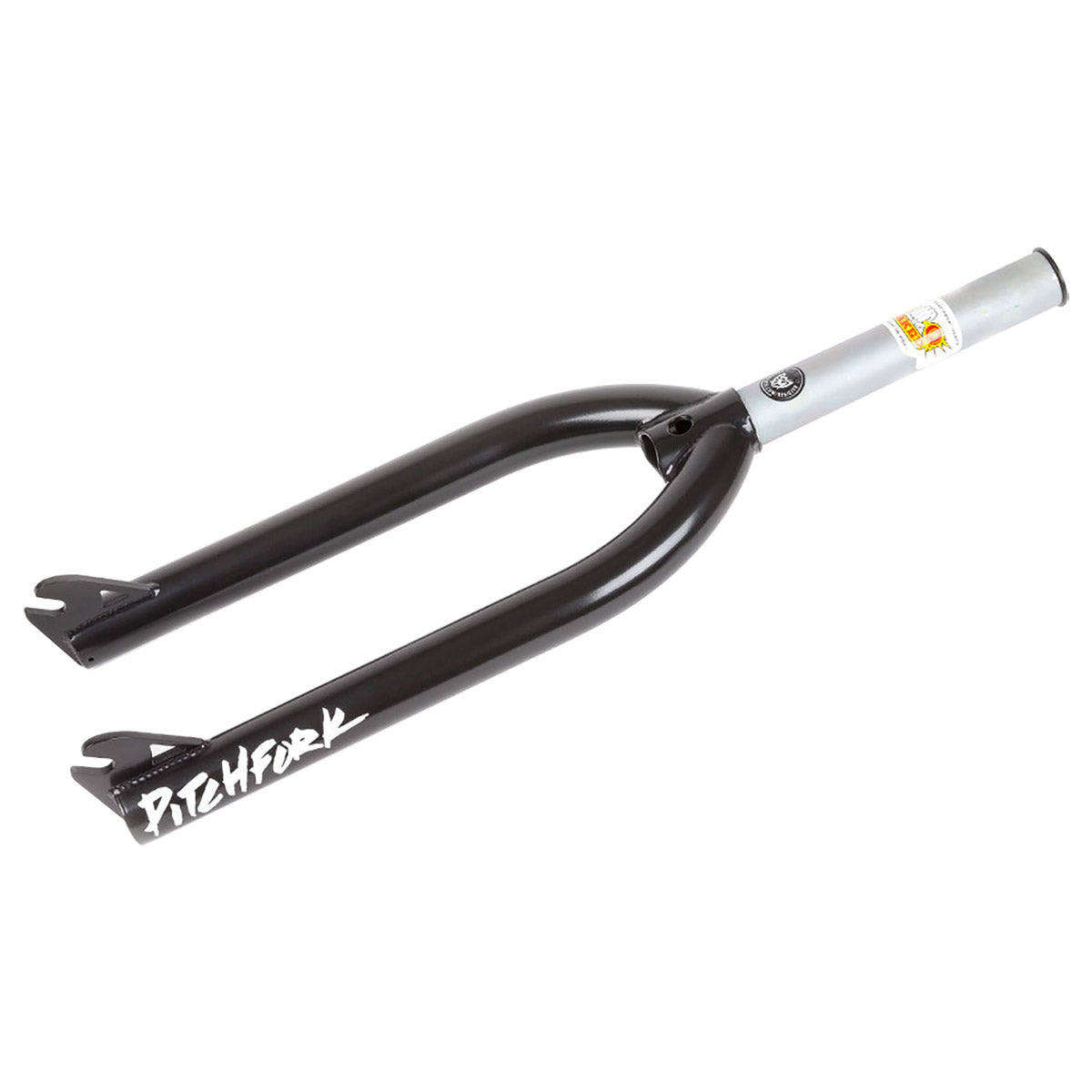

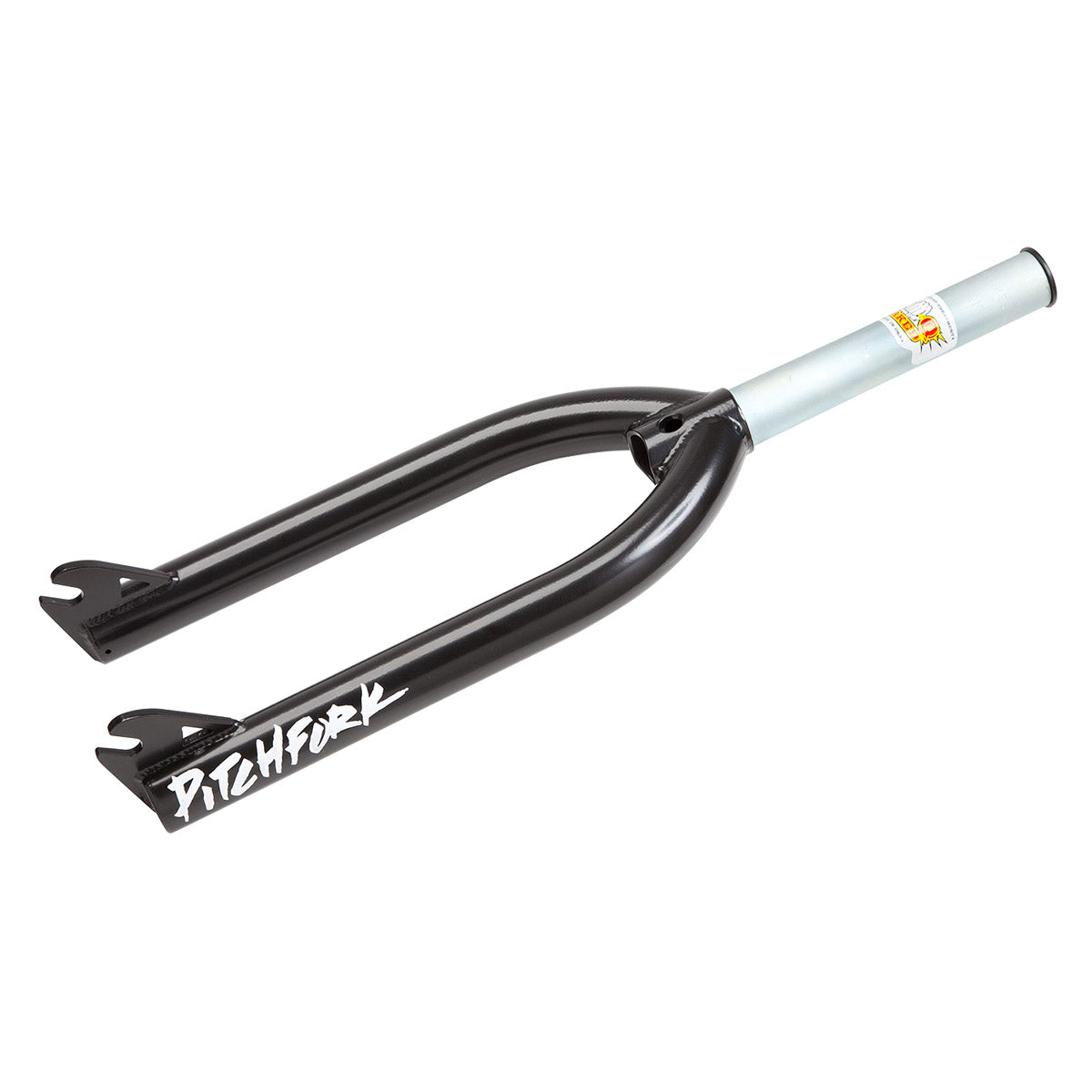

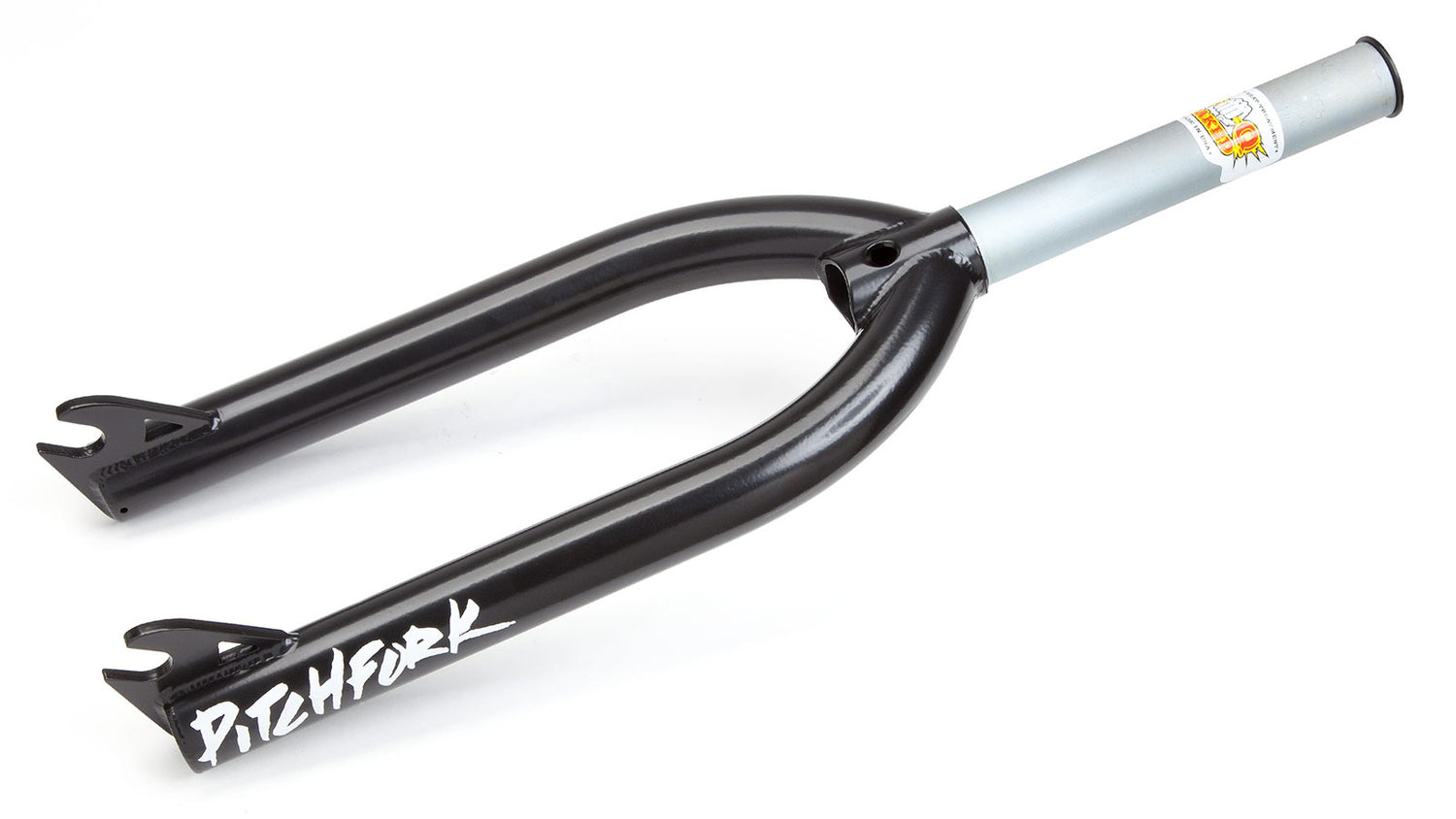

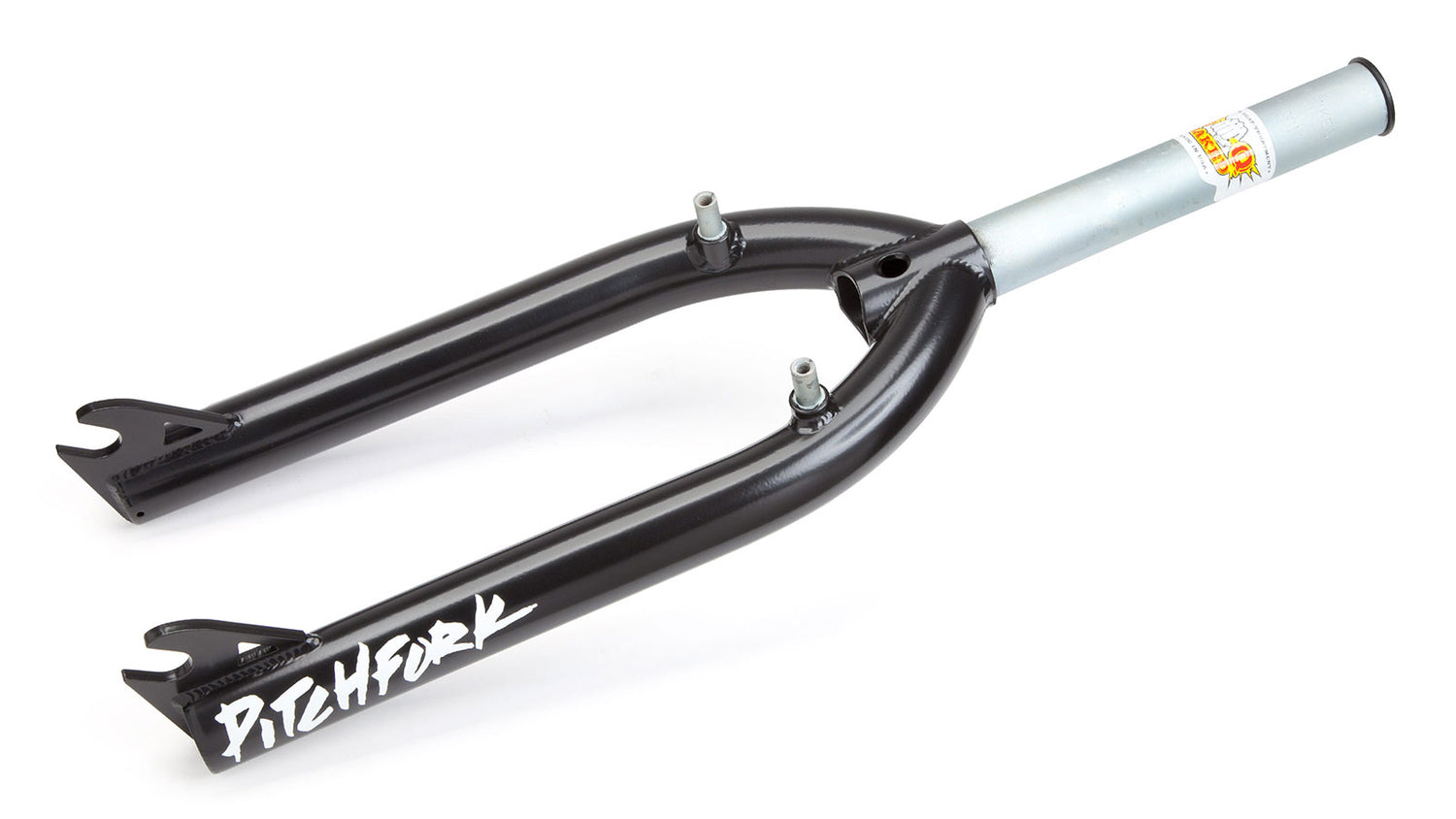

The S&M Pitchfork is a double-butted 4130 chromoly fork available in five wheel sizes from 18" to 26". Features laser-cut dropouts, one-piece CNC-machined steerer tube with extruded aluminum insert, and 4Q Baked post-weld heat treatment. Made in the USA with 33mm offset across all sizes.

Key Features

• Double-butted 4130 chromoly legs – Variable wall thickness reduces weight in low-stress areas while maintaining strength where needed, offering better strength-to-weight ratio than straight-gauge forks

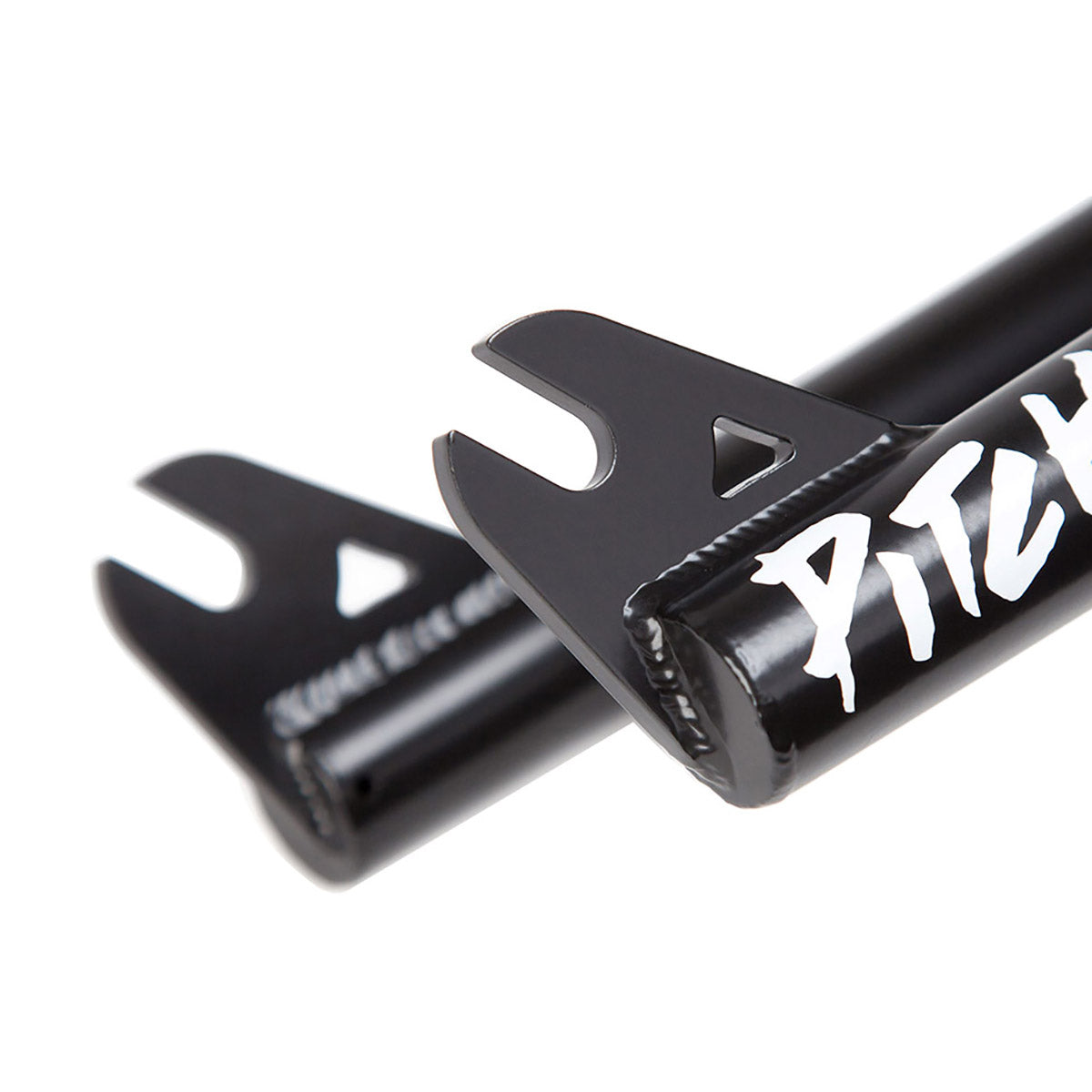

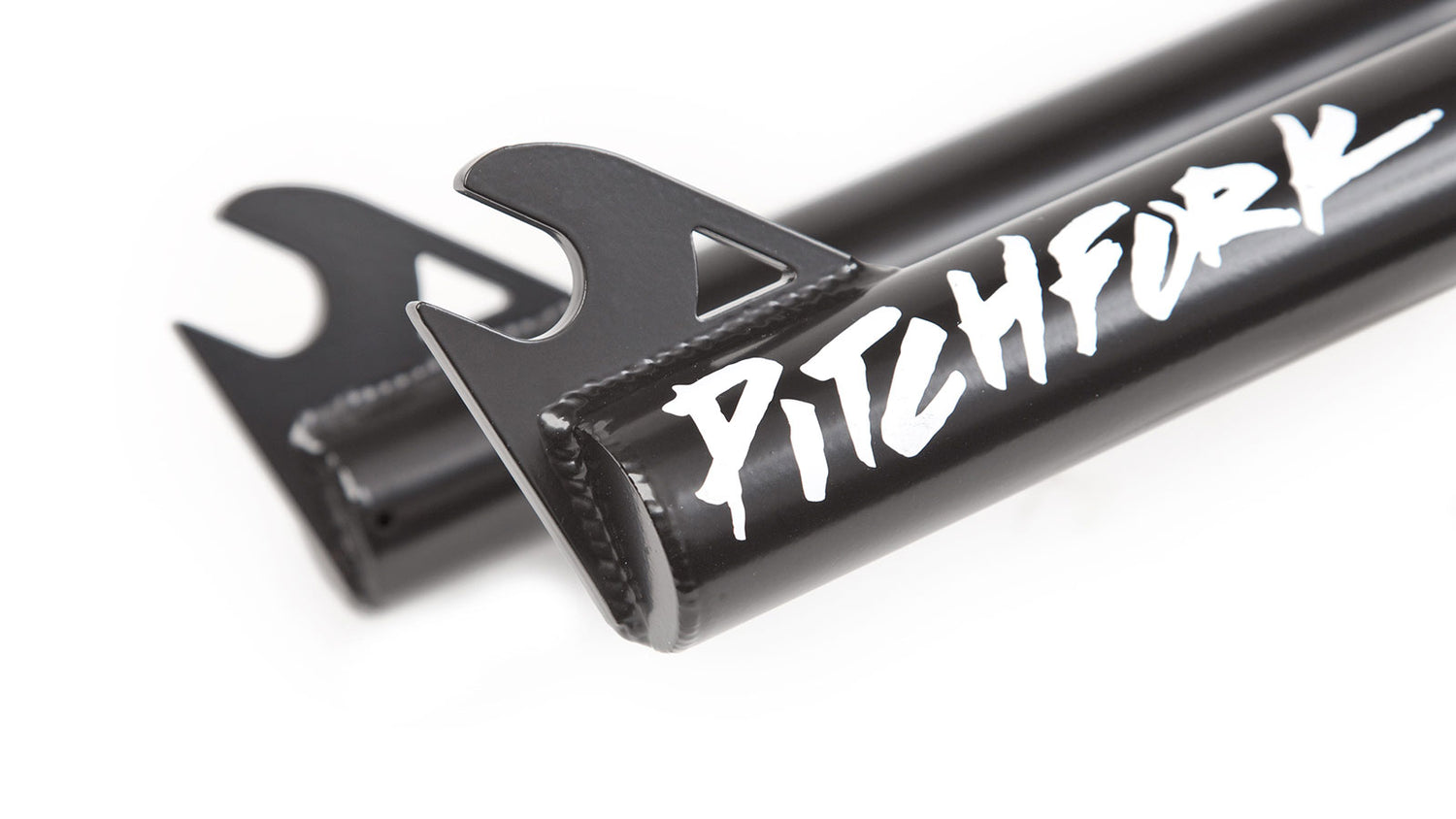

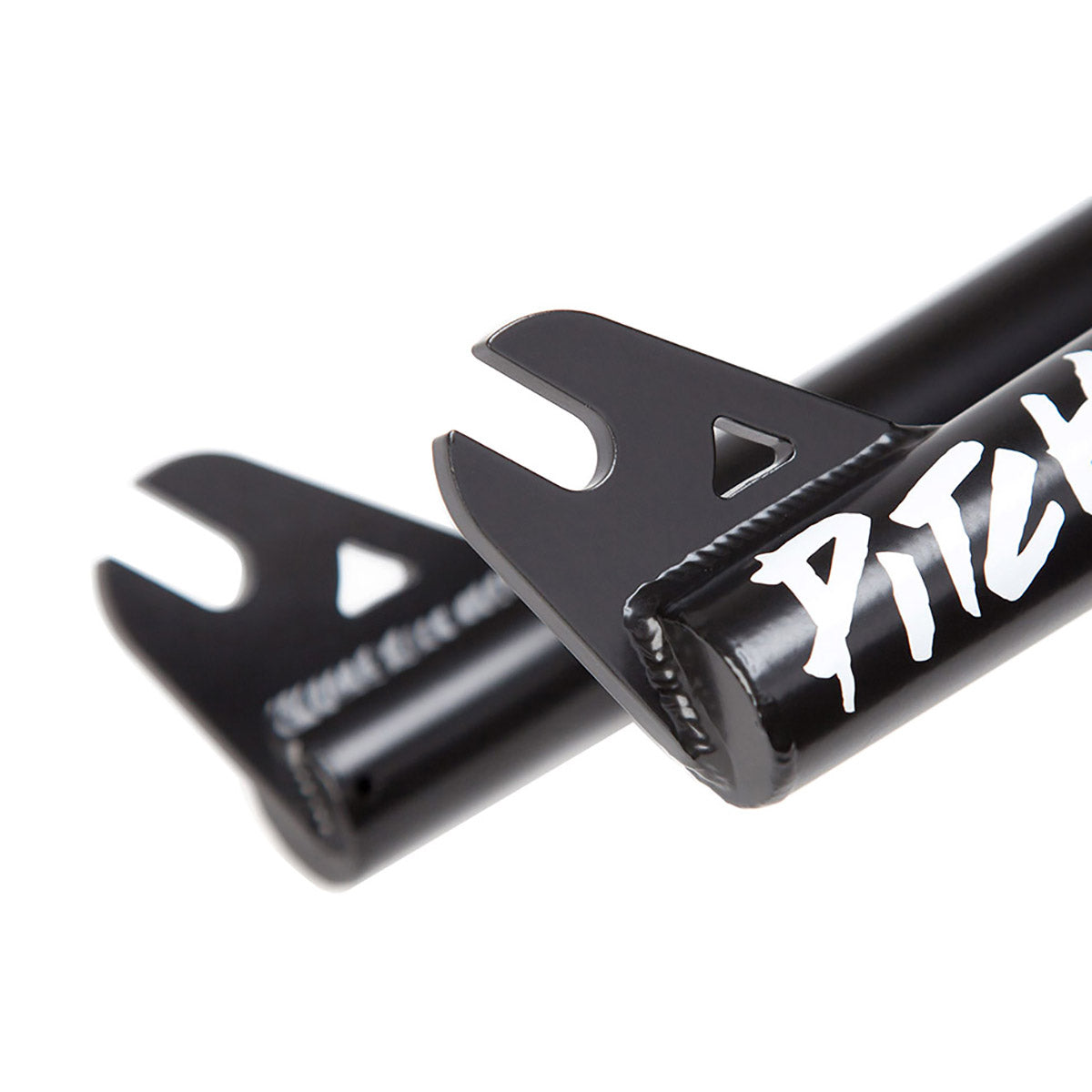

• Laser-cut 4130 chromoly dropouts – Precision cutting ensures accurate 3/8" axle slot alignment and clean edges that reduce stress concentrations

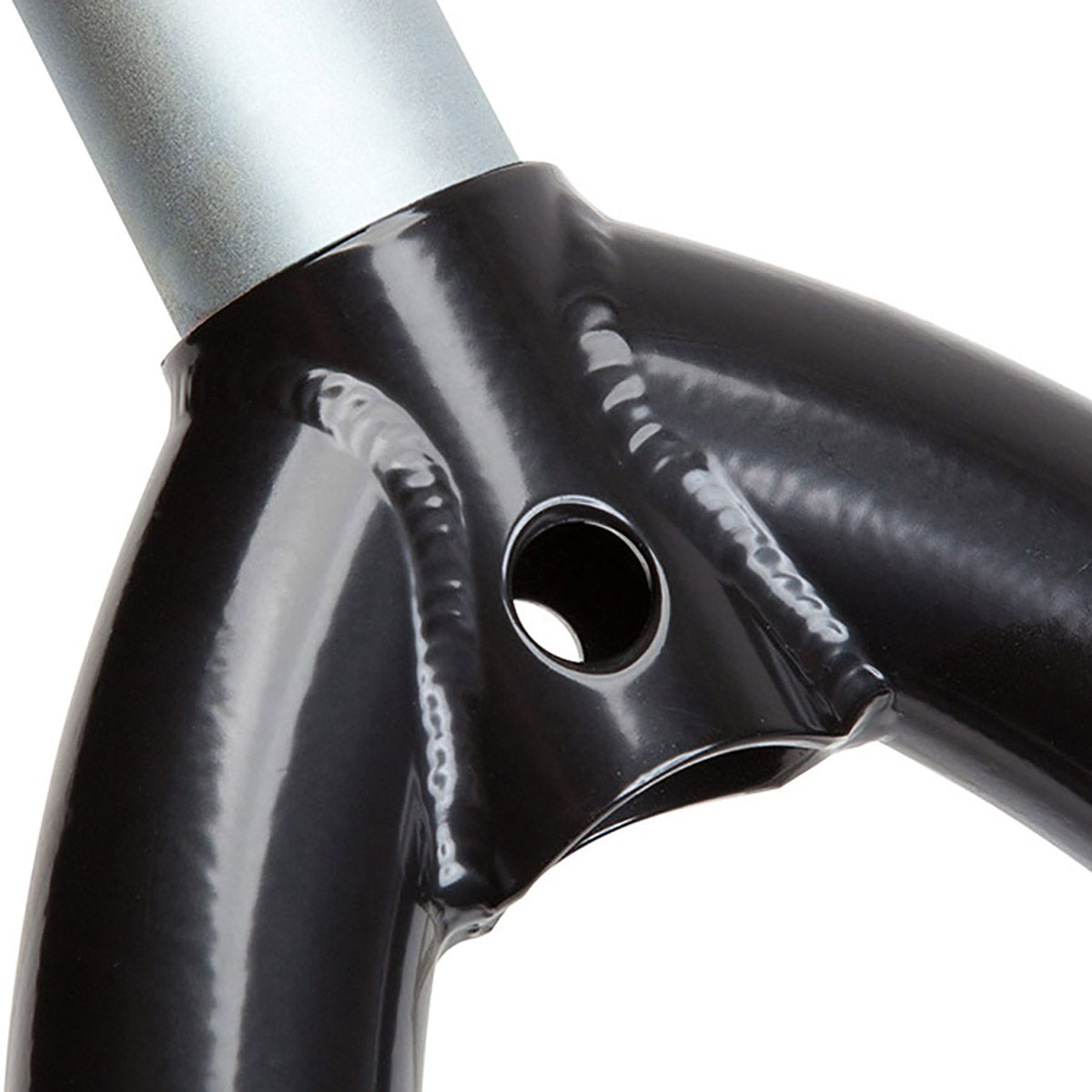

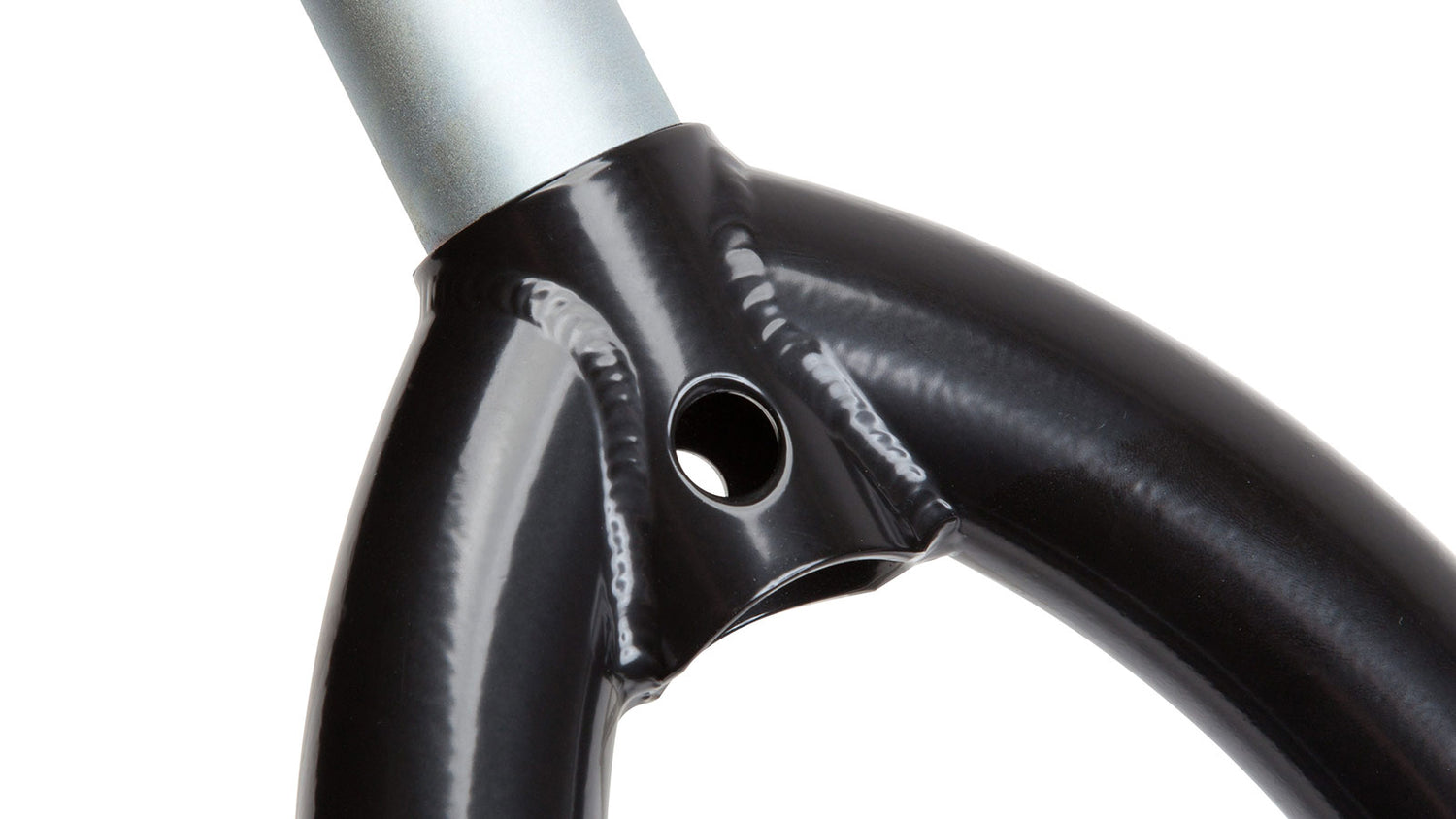

• One-piece CNC-machined steerer tube – Eliminates welds in the critical steerer area for increased structural integrity under steering loads and impacts

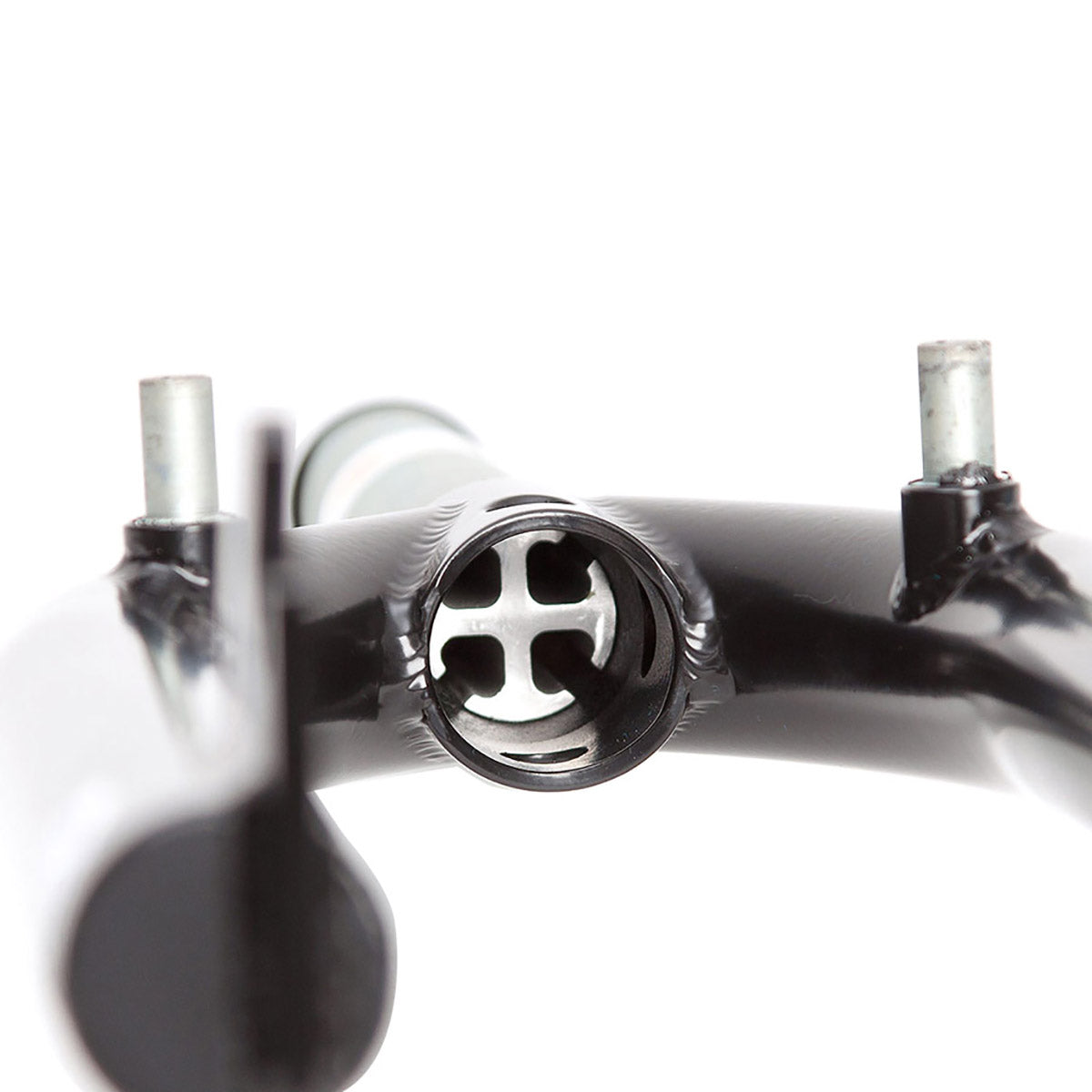

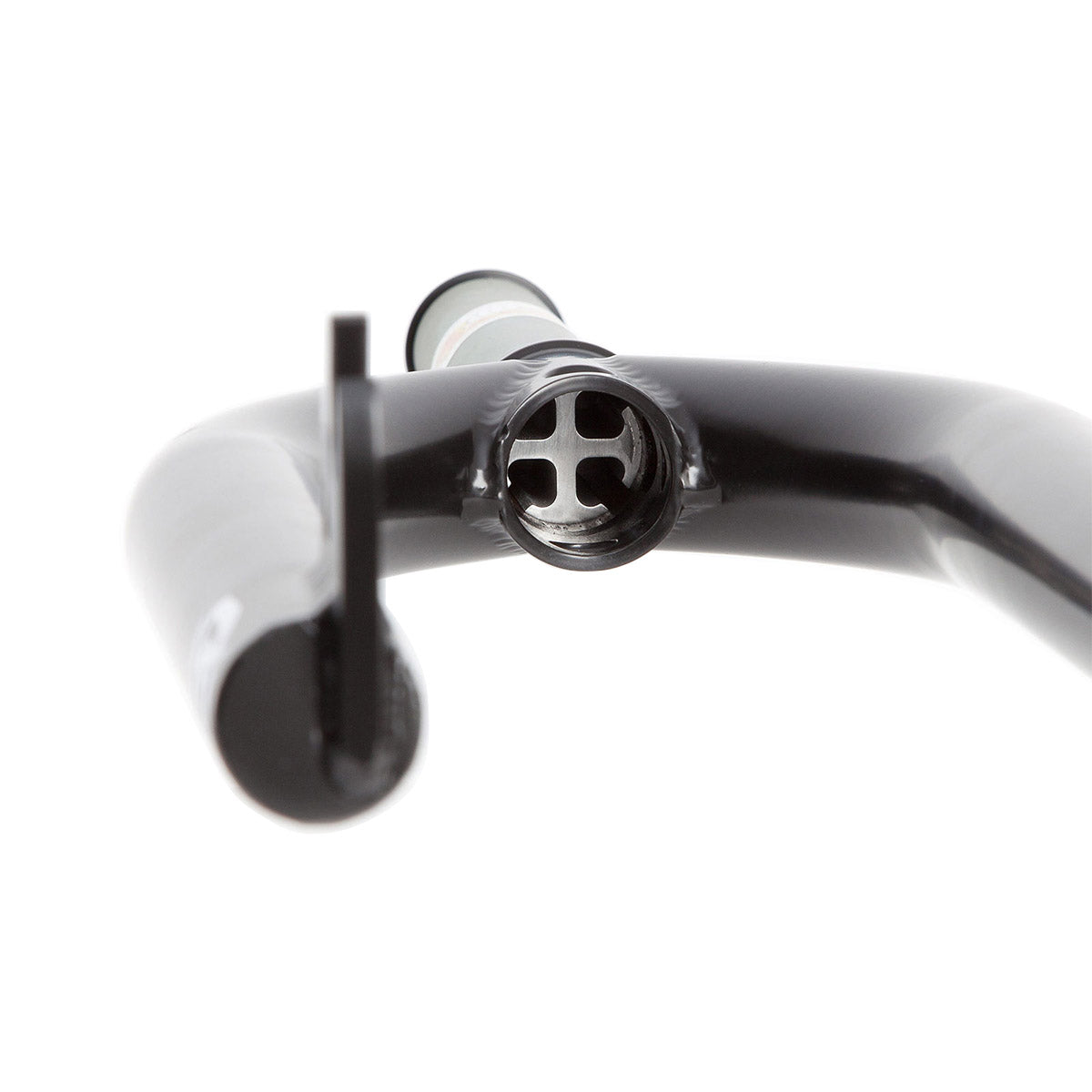

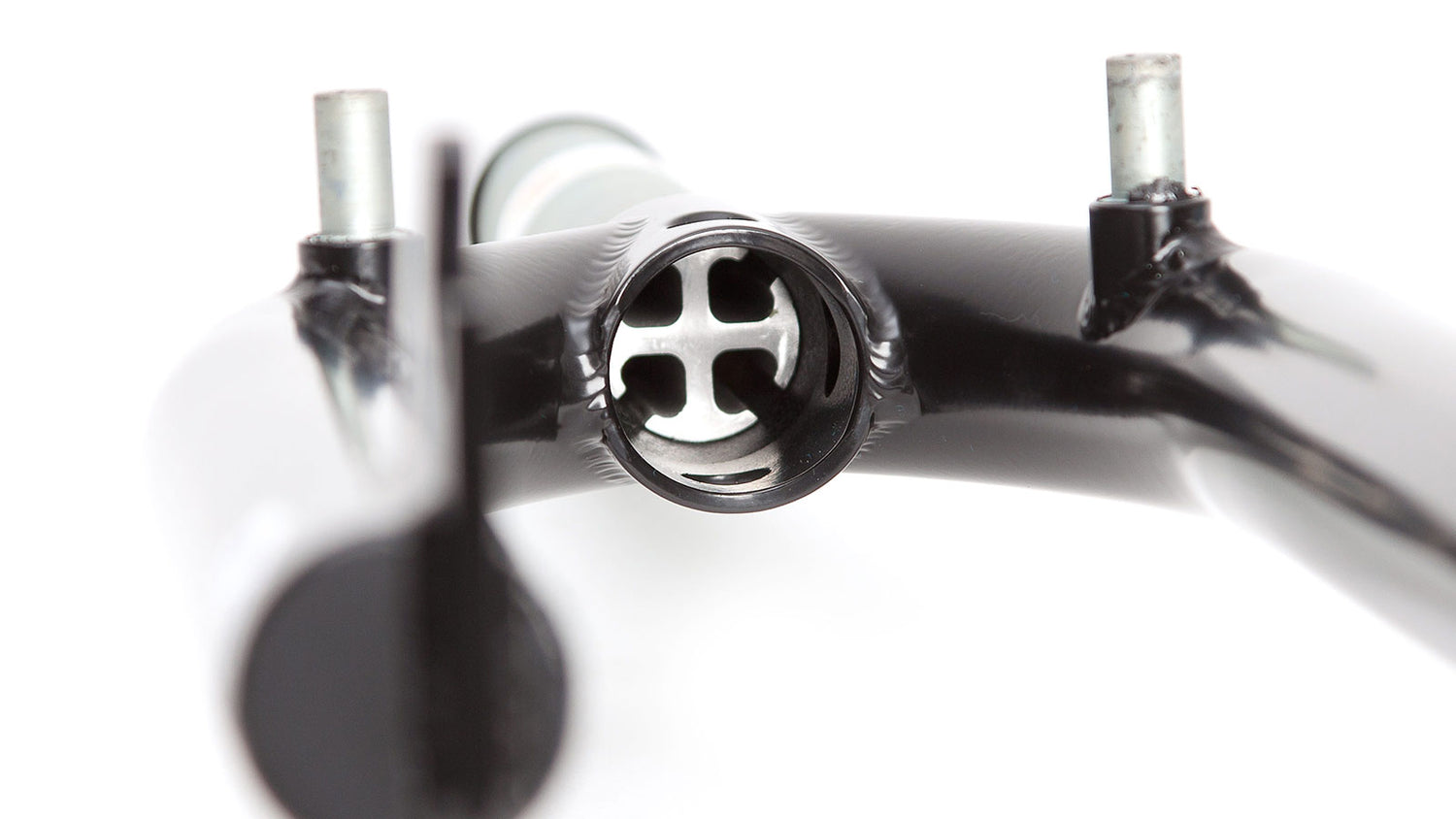

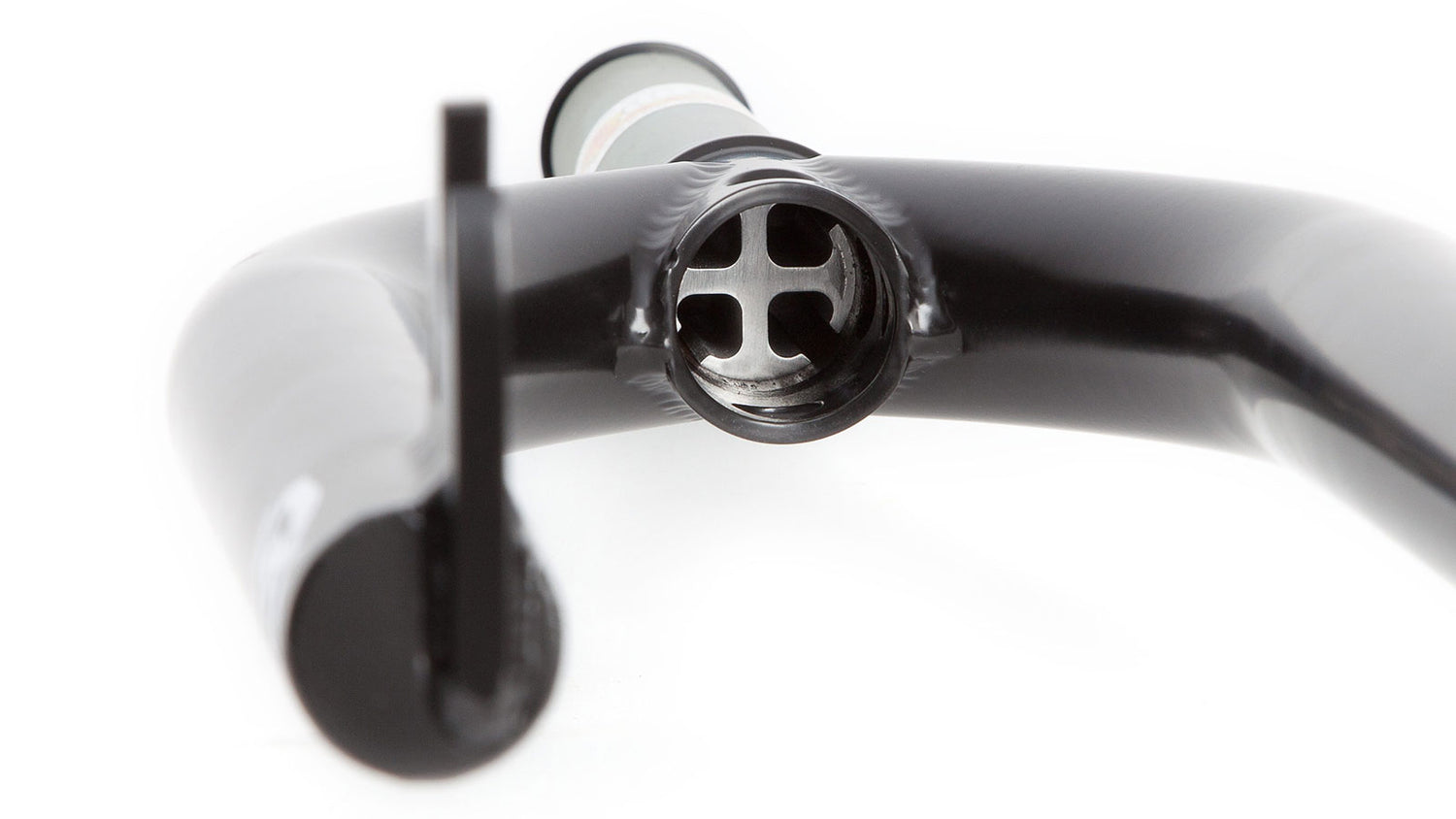

• Extruded 6061 aluminum steerer insert – Reduces weight in the steerer tube while maintaining strength where the headset bearings seat

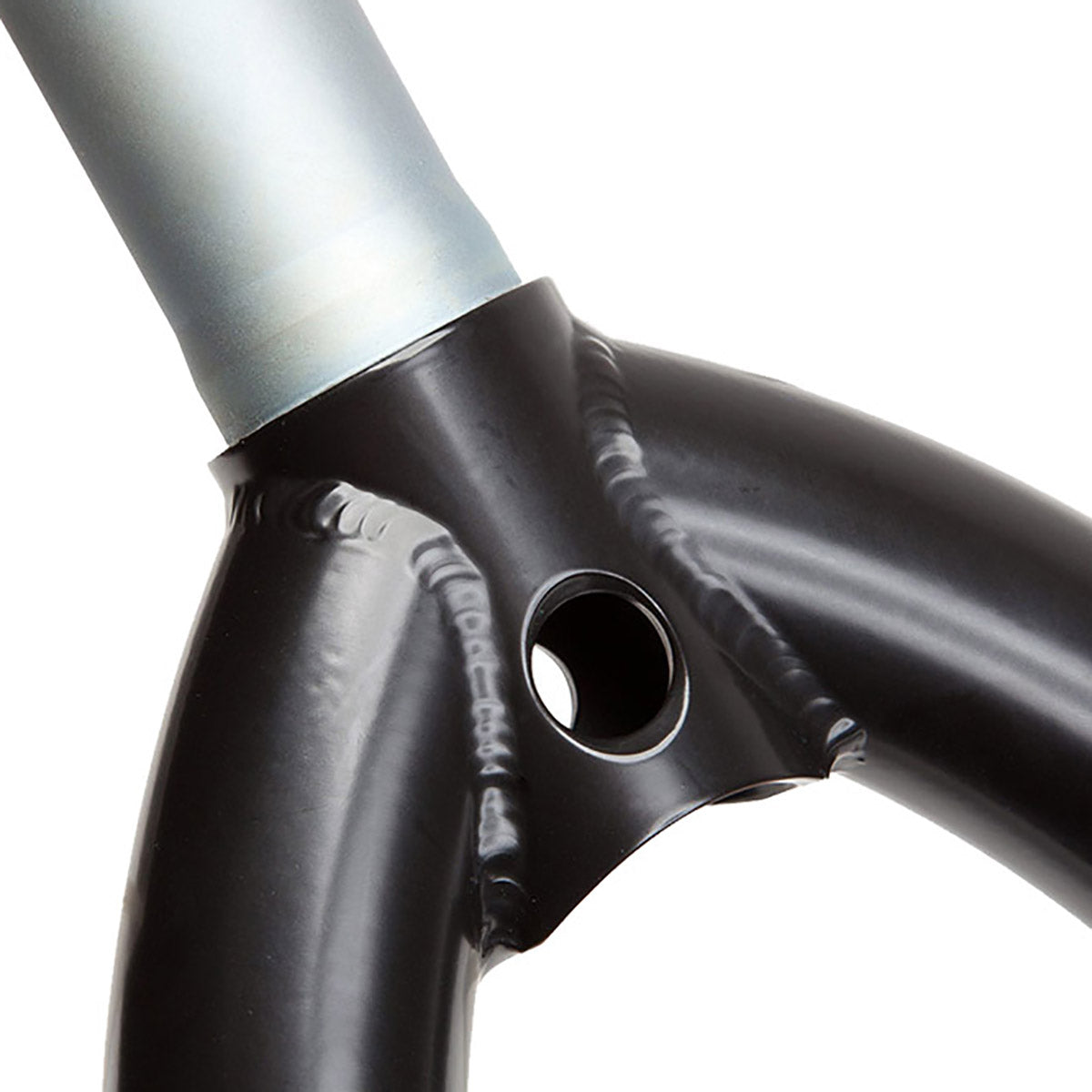

• 4Q Baked post-weld heat treatment – Heat treating after welding restores material strength lost during welding process, maximizing durability
• 33mm offset across all sizes – Consistent offset positioning provides stable handling and predictable steering response regardless of wheel size
• Five wheel size options – Available for 18", 20", 22", 24", and 26" wheels to accommodate different bike builds and rider ages

Technical Specifications

• Wheel sizes: 18", 20", 22", 24", 26"
• Material: Double-butted 4130 chromoly (legs, dropouts, steerer)
• Steerer insert: Extruded 6061 aluminum
• Dropout style: Laser-cut 3/8" slots
• Steerer tube: One-piece CNC-machined
• Steerer tube length: 162mm (18"-24"), 203mm (26")

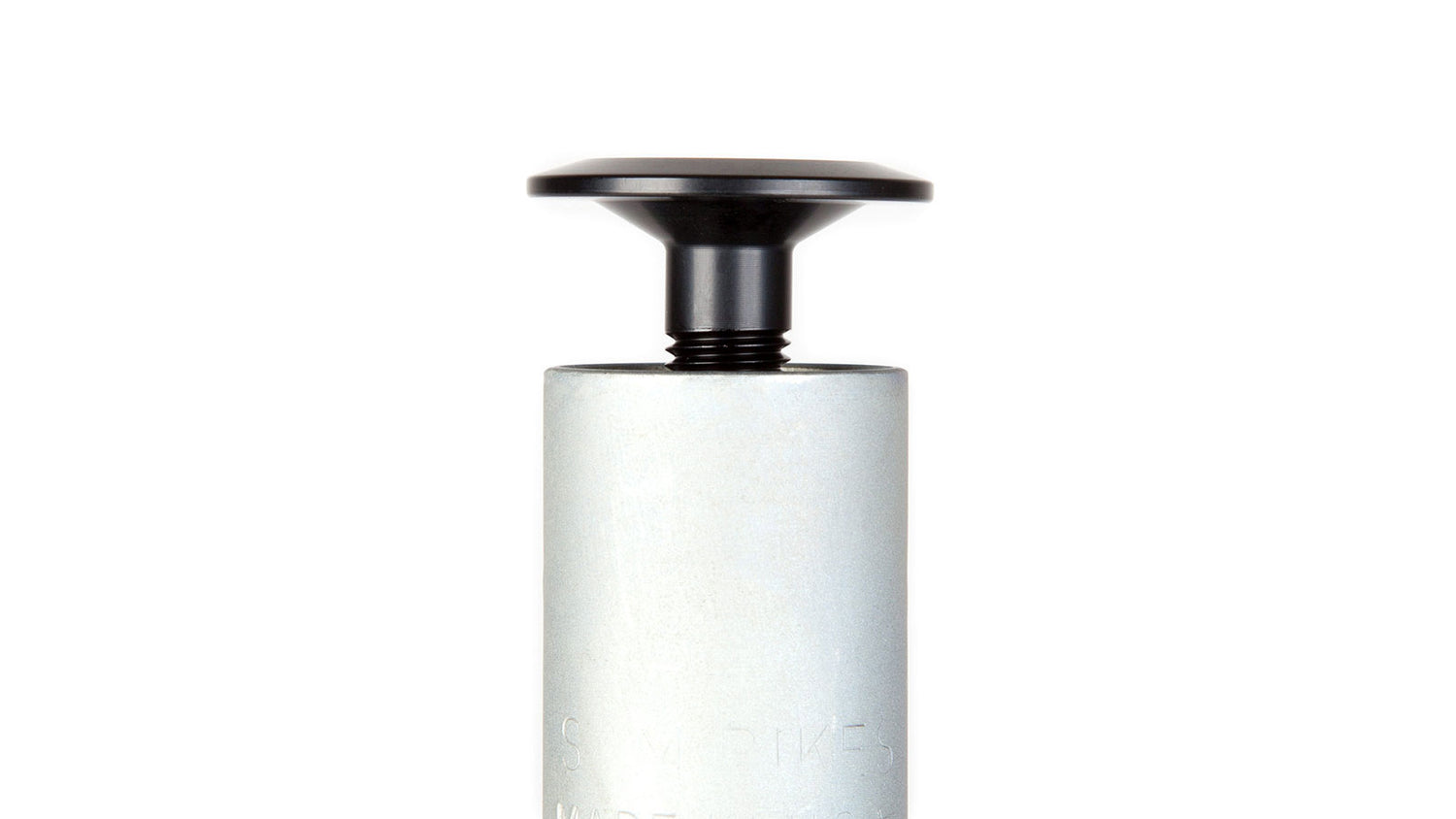

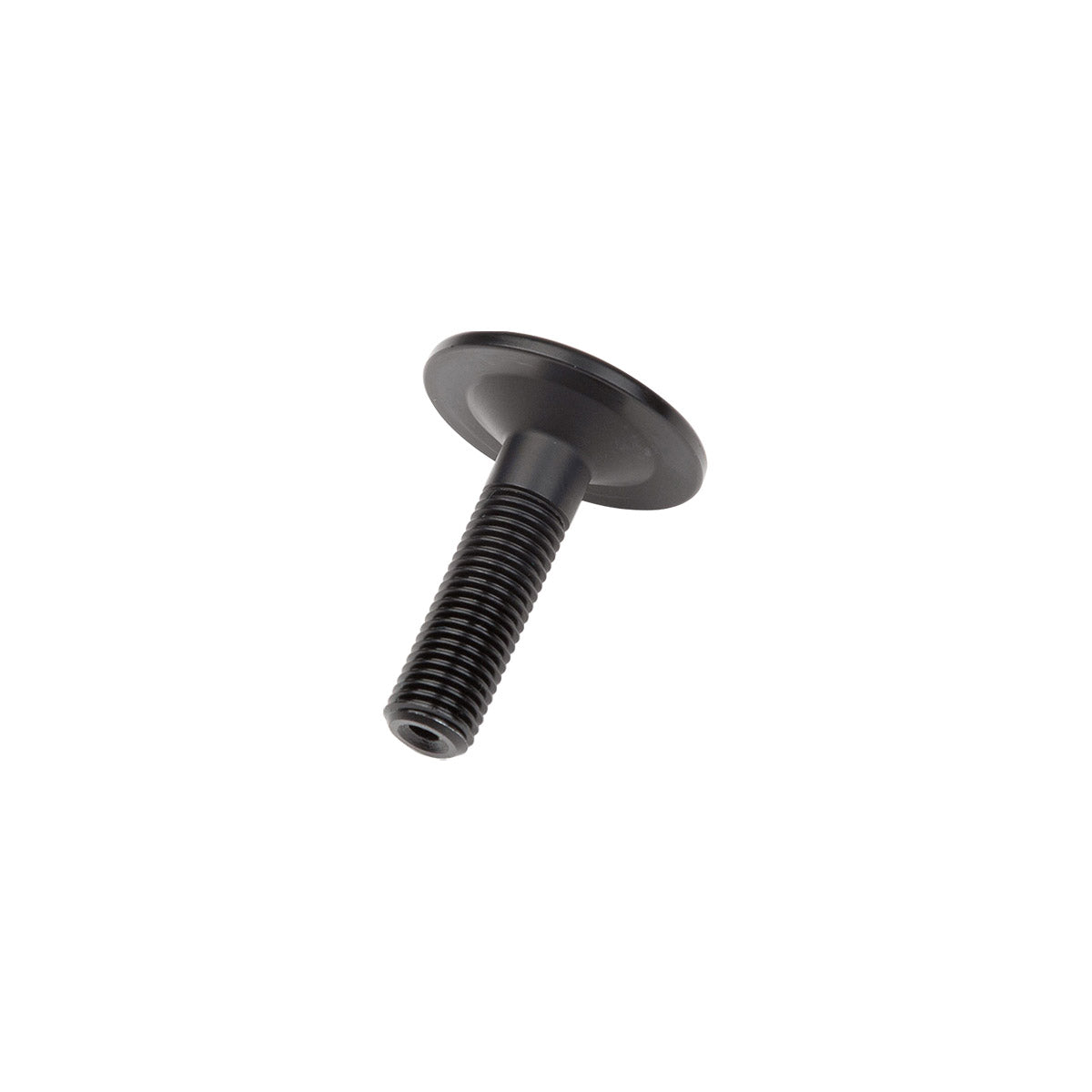

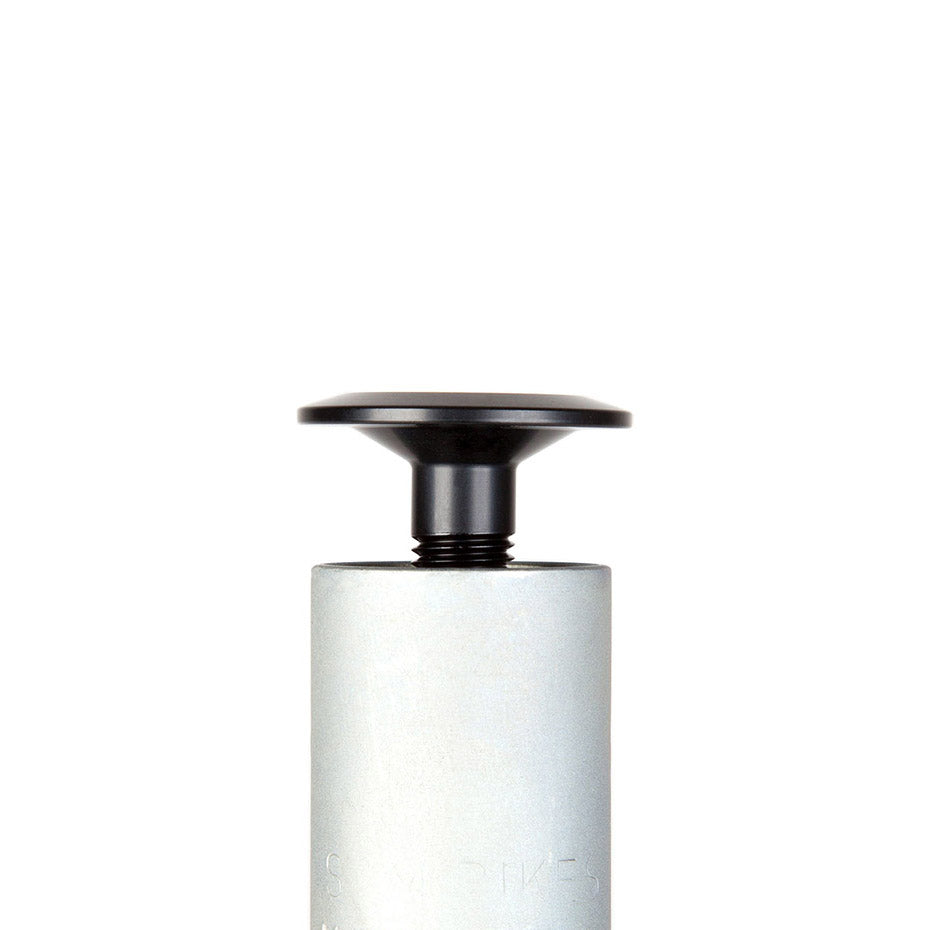

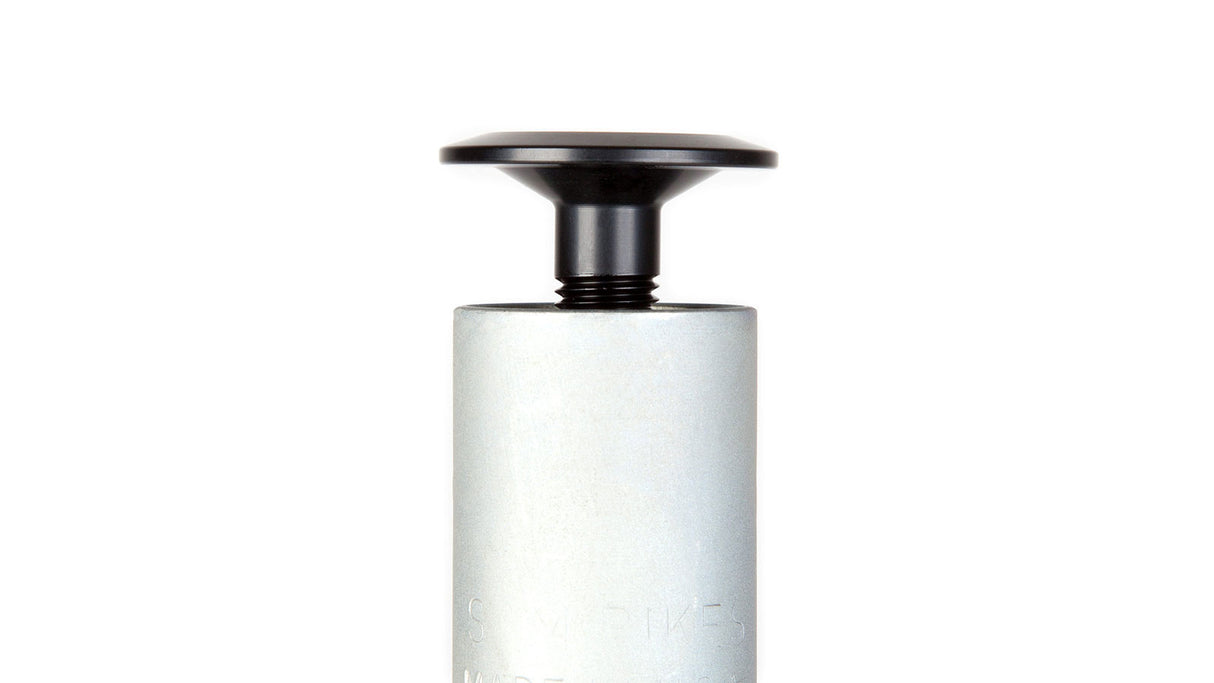

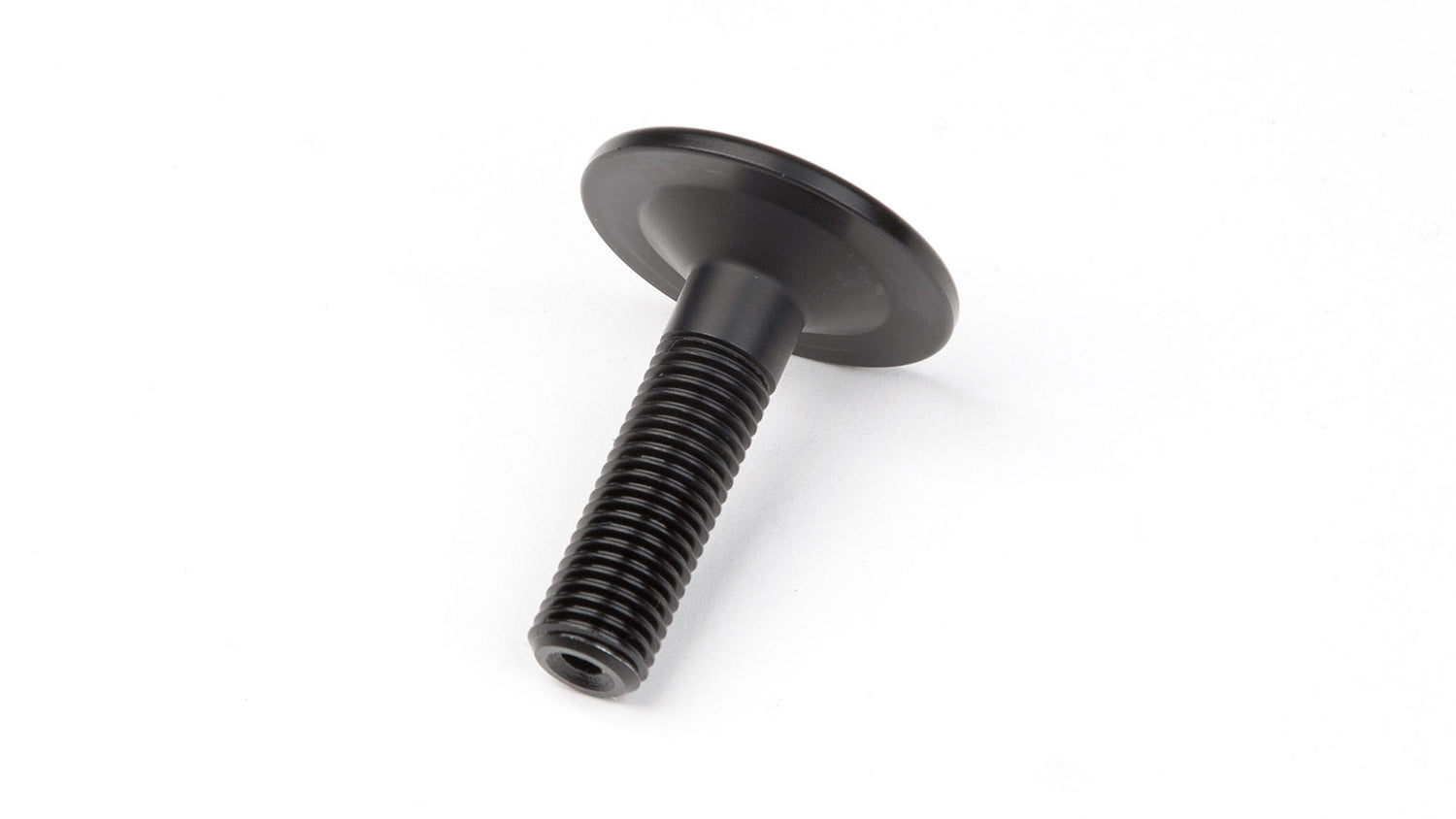

• Compression: M10 x 1.25 thread with 6mm allen slot (26" does not include compression nut/bolt)
• Axle to crown height: 290.1mm (18"), 315.5mm (20"), 340.9mm (22"), 366mm (24"), 425mm (26")
• Offset: 33mm
• Heat treatment: 4Q Baked post-weld
• Bearing race: Requires standard race (not integrated)
• Weight: 2.16 lbs (18"), 2.17 lbs (20"), 2.42 lbs (22"), 2.52 lbs (24"), 2.90 lbs (26")

Compatibility and Ideal Use Cases

Requires standard (non-integrated) headset with separate bearing race. Compatible with 3/8" axles. The 162mm steerer length (18"-24" sizes) works with most standard BMX frames but should be measured against head tube length and spacer requirements before ordering. The 26" version includes a longer 203mm steerer and does not include compression hardware. Double-butted construction and 4Q heat treatment make this fork suitable for riders seeking USA-made quality with optimized strength-to-weight ratio for street, park, dirt, and all-around riding. The multiple wheel size options accommodate youth bikes (18"), standard BMX (20"), cruisers (22"-24"), and larger wheel builds (26").
