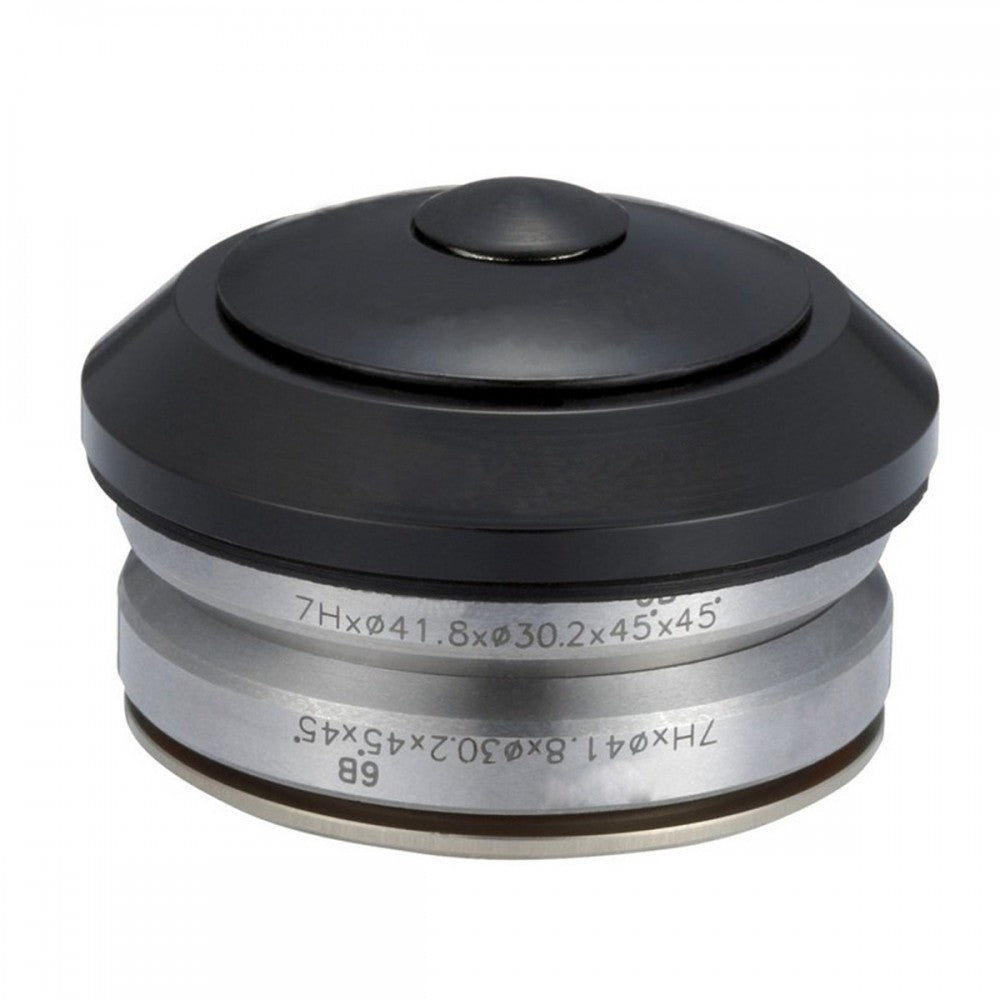

Position One Integrated Headset 1-1/8"

Product Overview

The Position One Integrated Headset is a sealed-bearing headset designed for 1-1/8" integrated headtube frames and forks. It features angular contact bearings and lightweight aluminum components, delivering reliable steering performance with minimal maintenance across trail and cross-country riding.

Key Features

• Angular Contact Bearings (45° x 45°) - Dual-angle bearing races distribute steering loads efficiently; reduces friction and improves handling precision during directional input
• Sealed Annular Bearing Cartridges - Labyrinth seals keep contaminants and moisture out while retaining grease; extends bearing life and reduces service intervals compared to open bearings
• Lightweight Design - 80 g total weight minimizes rotating mass at the front end without sacrificing stiffness or steering response

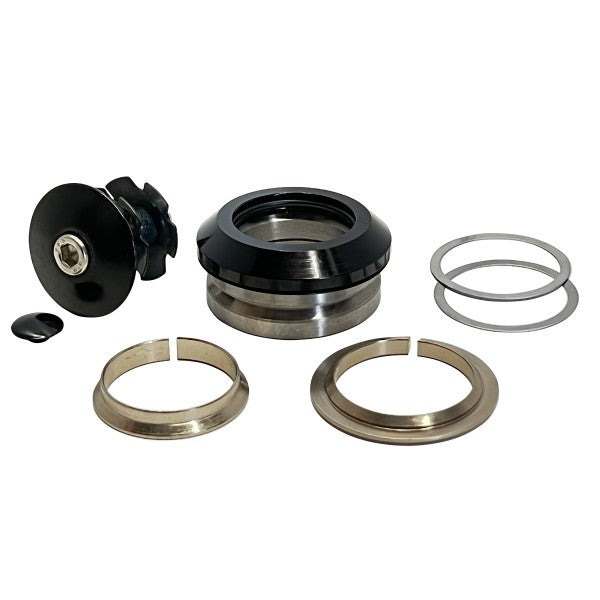

• Aluminum Cover and Compression Star - CNC-machined components ensure precise tolerancing and consistent bearing preload; eliminates play for crisp steering feel
• Integrated Mount System - Proven integrated headset architecture compatible with modern 1-1/8" standard frames and forks

Technical Specifications

• Headset Type - Integrated (press-fit)
• Steerer Tube Diameter - 1-1/8" standard
• Bearing Configuration - 45° x 45° (top and bottom)
• Bearing Style - Sealed annular cartridge
• Cup Sizes - IS42/28.6 (top) | IS42/30 (bottom)
• Materials - Aluminum cover and compression star; steel bearing races
• Weight - 80 g (complete headset)
• Installation - Requires headset press for installation and removal

Compatibility and Ideal Use Cases

• Frame Compatibility - Fits 1-1/8" integrated headtube frames only; not compatible with external or tapered headsets
• Fork Compatibility - Requires 1-1/8" steerer fork
• Ideal For - Trail, XC, and hardtail bikes where lightweight design and reliable steering performance are priorities
• Maintenance - Sealed bearings reduce service frequency; inspect for play annually and adjust preload if needed
• Not Compatible With - Tapered headtubes (1-1/8"-to-1.5"), external threadless headsets, or non-integrated headset frames
