S&M 19mm Aluminum Euro Bottom Bracket

Product Overview

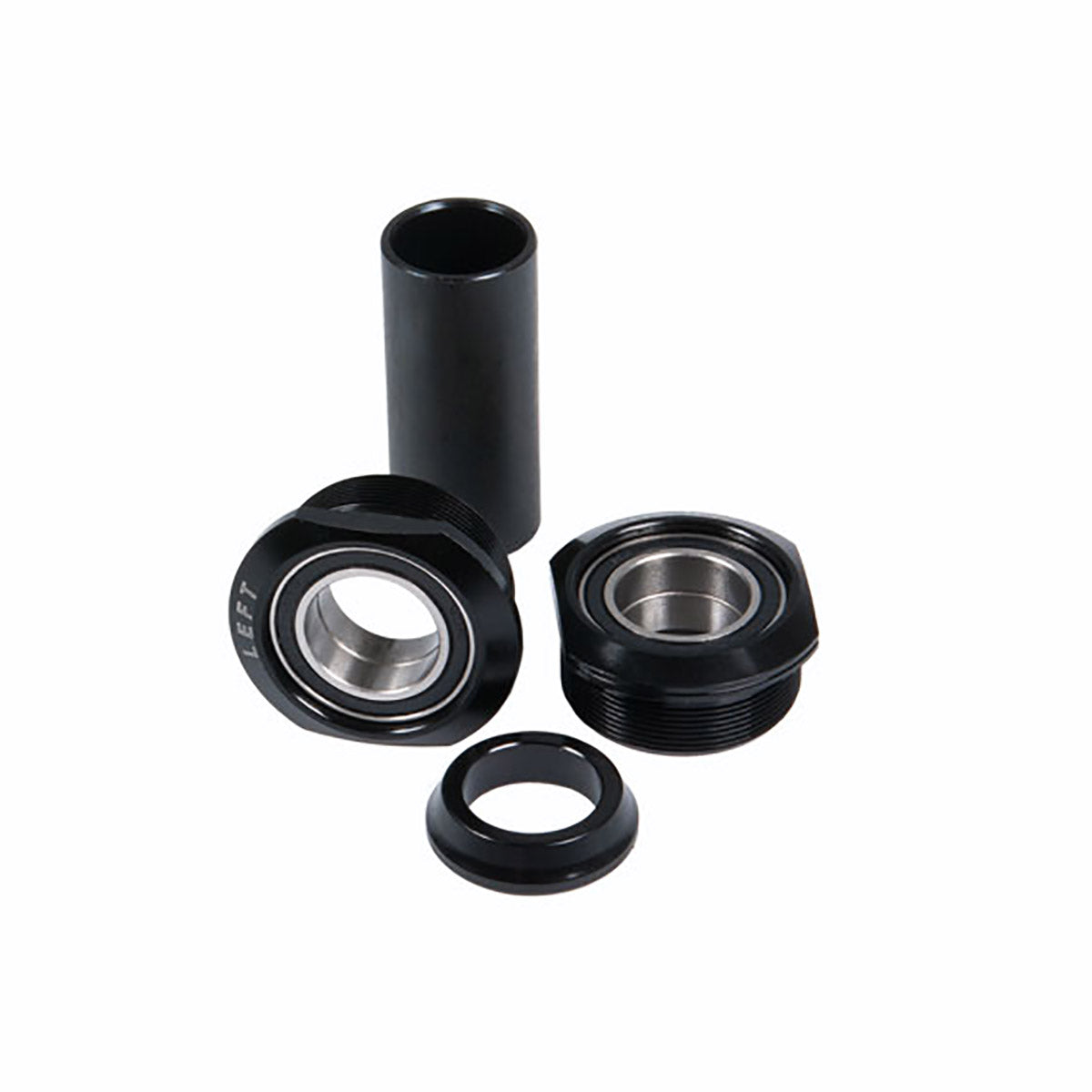

The S&M 19mm Aluminum Euro Bottom Bracket is a threaded external bearing bottom bracket designed for European-style frames with 19mm spindle cranks. Built with precision sealed bearings housed in threaded aluminum cups, this bottom bracket includes cone and tube-style spacers for proper crank alignment. The cups are clearly marked for left and right side installation to prevent cross-threading during setup.

Key Features

• Threaded aluminum bearing cups – Lightweight aluminum construction with precision threads screw directly into Euro-style bottom bracket shells
• Left/right side marking – Clear cup identification prevents installation errors and cross-threading that can damage frame threads
• Precision sealed bearings – Cartridge bearing system keeps contaminants out and reduces maintenance compared to loose-ball or unsealed systems
• Complete spacer kit included – Aluminum cone spacer and tube-style bearing spacer ensure proper crank spacing and chainline alignment
• Euro/external bearing design – Bearings mount outside the frame shell rather than inside, allowing larger bearing diameter for improved stiffness and durability

Technical Specifications

• Type: Euro (European) threaded bottom bracket
• Spindle compatibility: 19mm
• Cup material: Threaded aluminum
• Bearings: Precision sealed cartridge
• Included hardware: Aluminum cone spacer, tube-style bearing spacer
• Side marking: Left and right cups clearly labeled

Compatibility and Ideal Use Cases

This bottom bracket fits frames with Euro-style threaded bottom bracket shells, which use external cup threading rather than American or Mid bottom bracket standards. The 19mm spindle compatibility works with three-piece cranks that use 19mm spindles, which is common on many street and park setups. NOT compatible with 22mm, 24mm, or 48-spline spindle systems. Best suited for riders replacing worn Euro bottom brackets, building up frames with Euro BB shells, or upgrading from loose-ball systems to sealed bearings. The aluminum cups reduce weight compared to steel alternatives while maintaining thread durability under proper torque. Requires bottom bracket tools for installation—cups must be threaded into the frame with proper tools to avoid cross-threading. Apply anti-seize compound to threads during installation to prevent seizing and ensure smooth removal later. The sealed bearings require minimal maintenance but should be inspected periodically for play or roughness indicating bearing wear.
