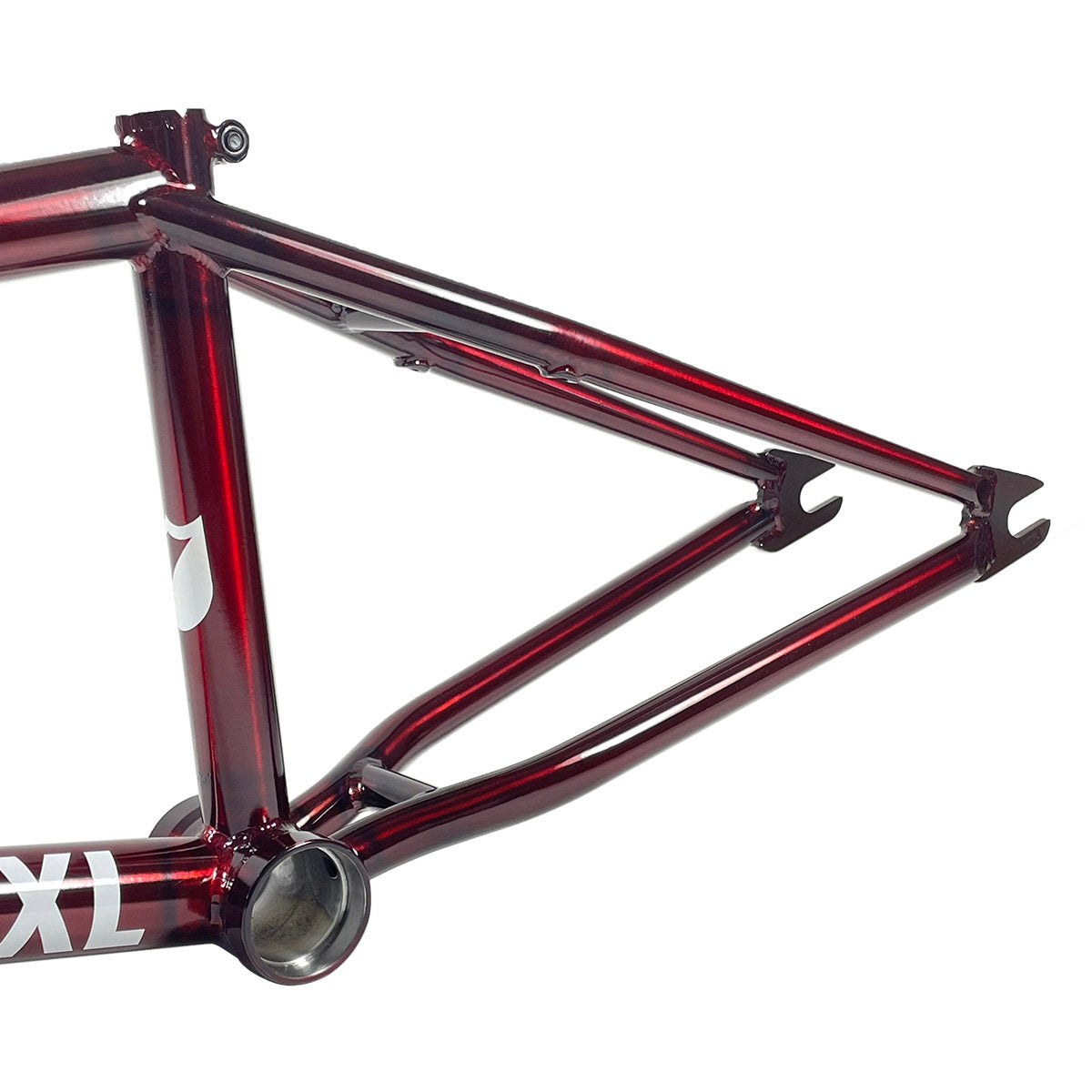

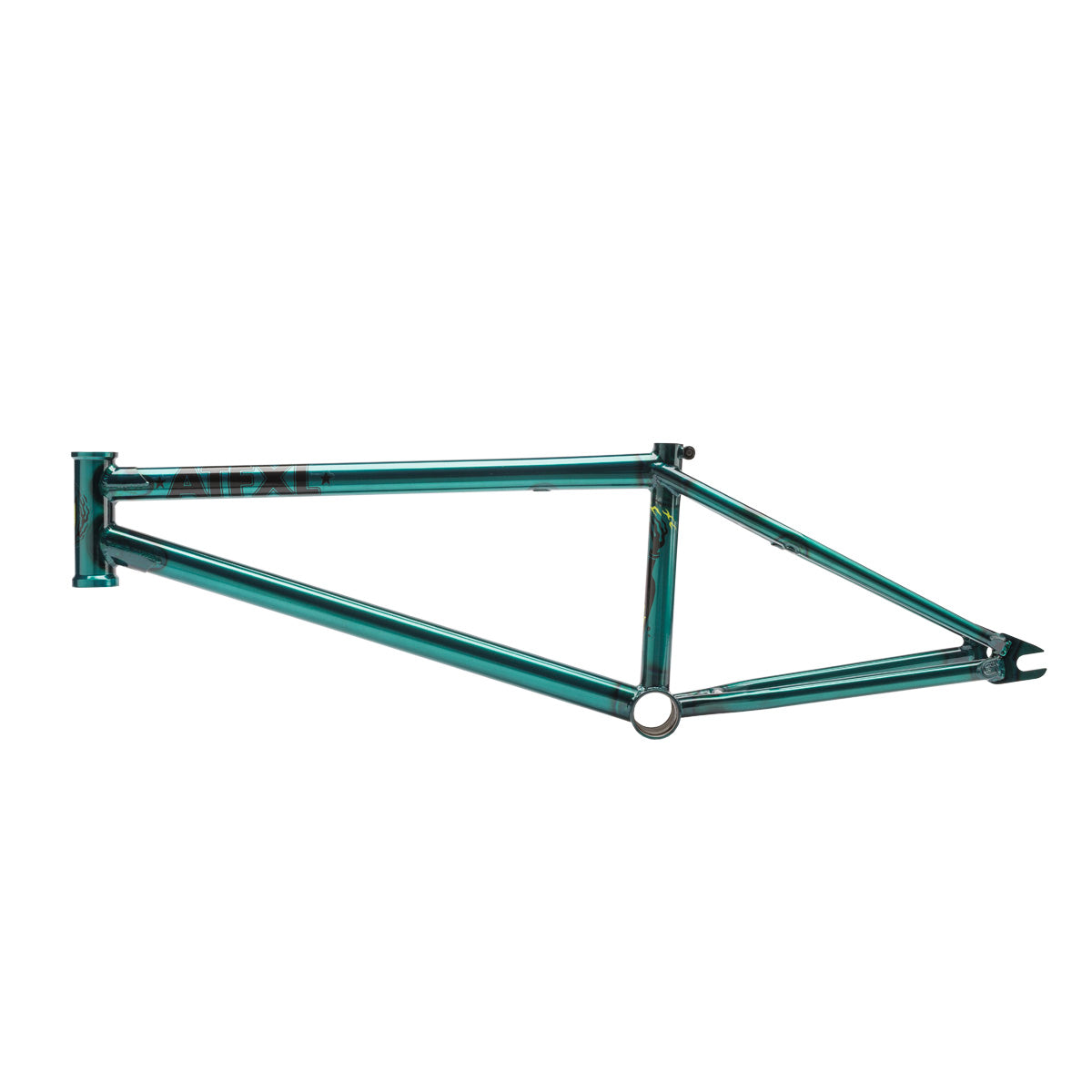

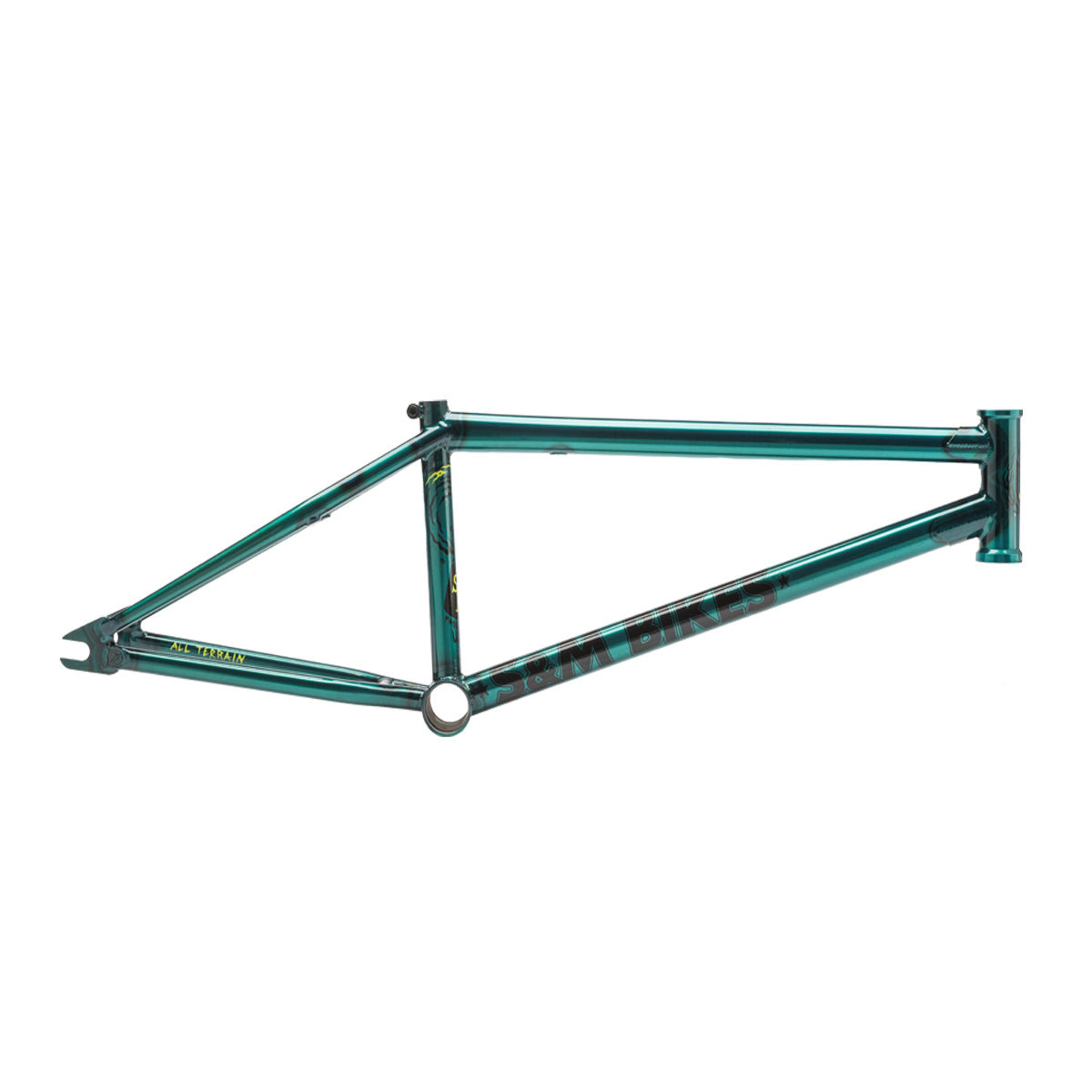

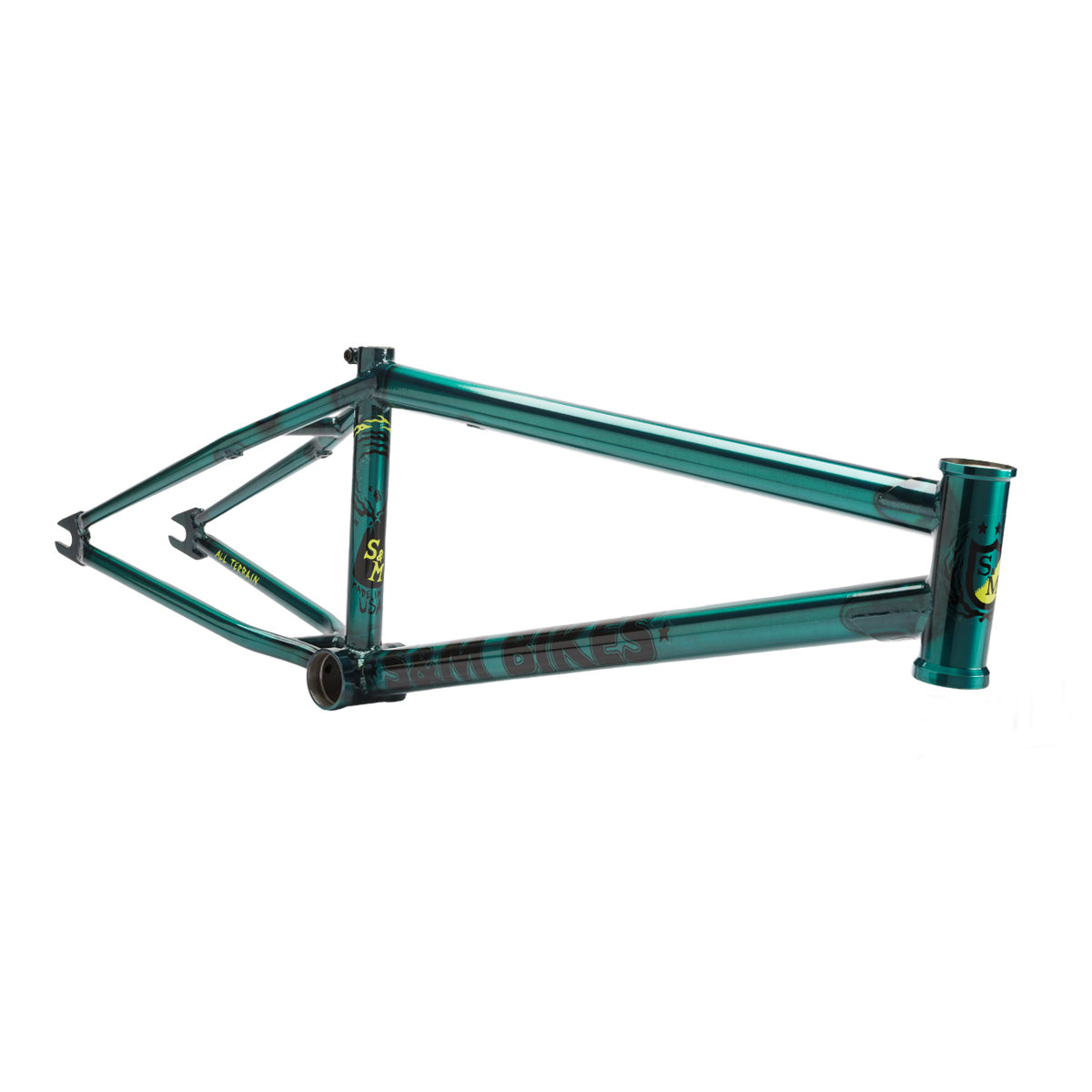

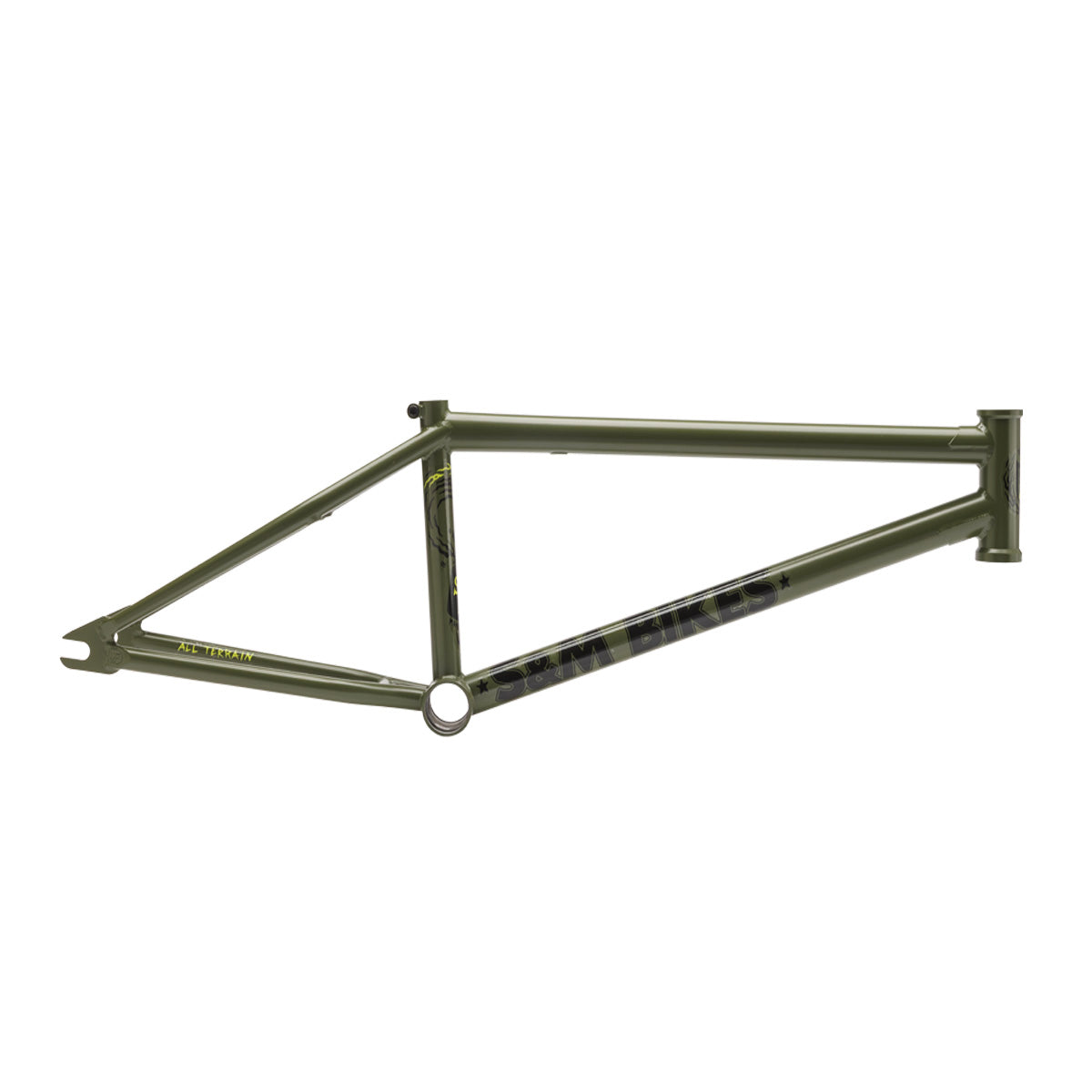

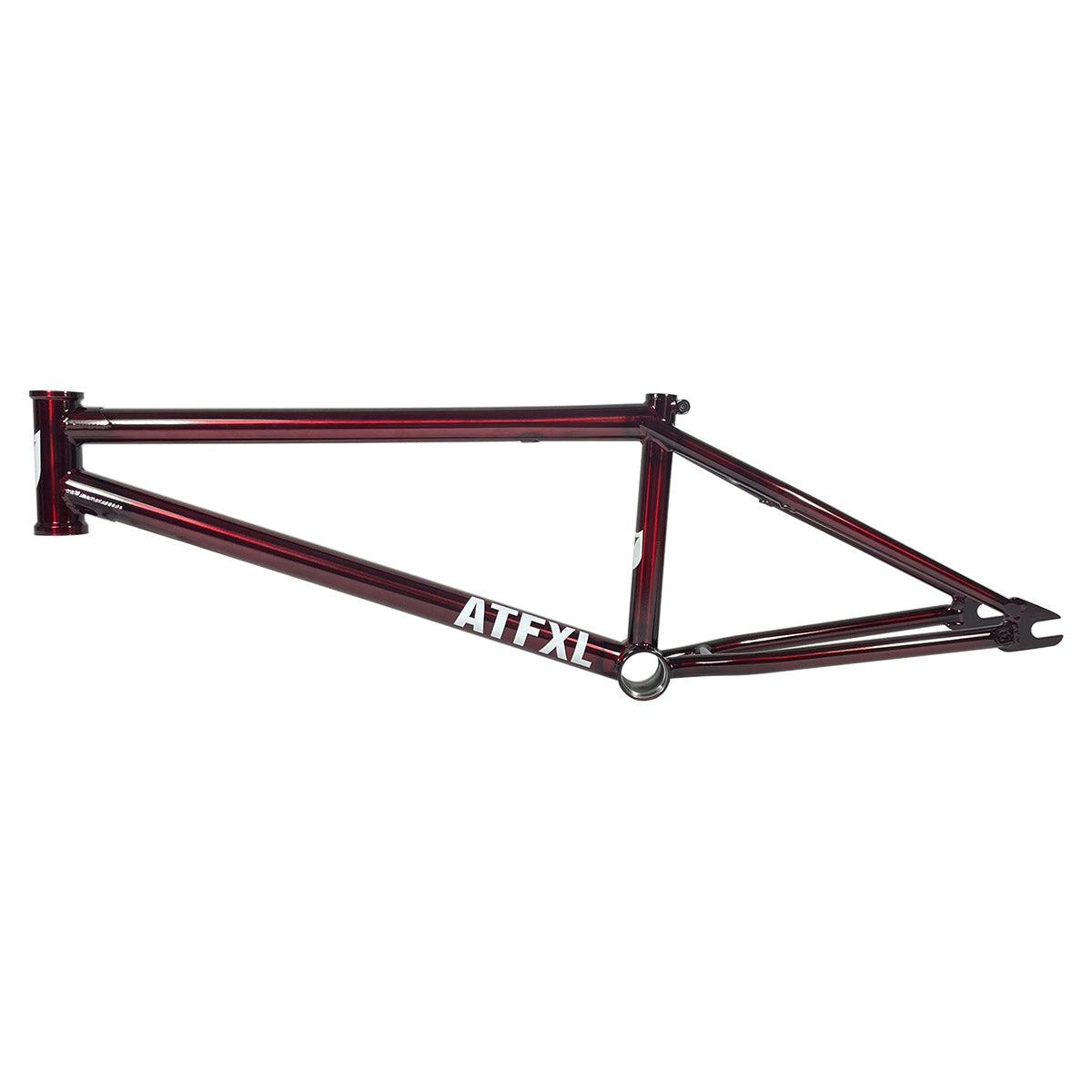

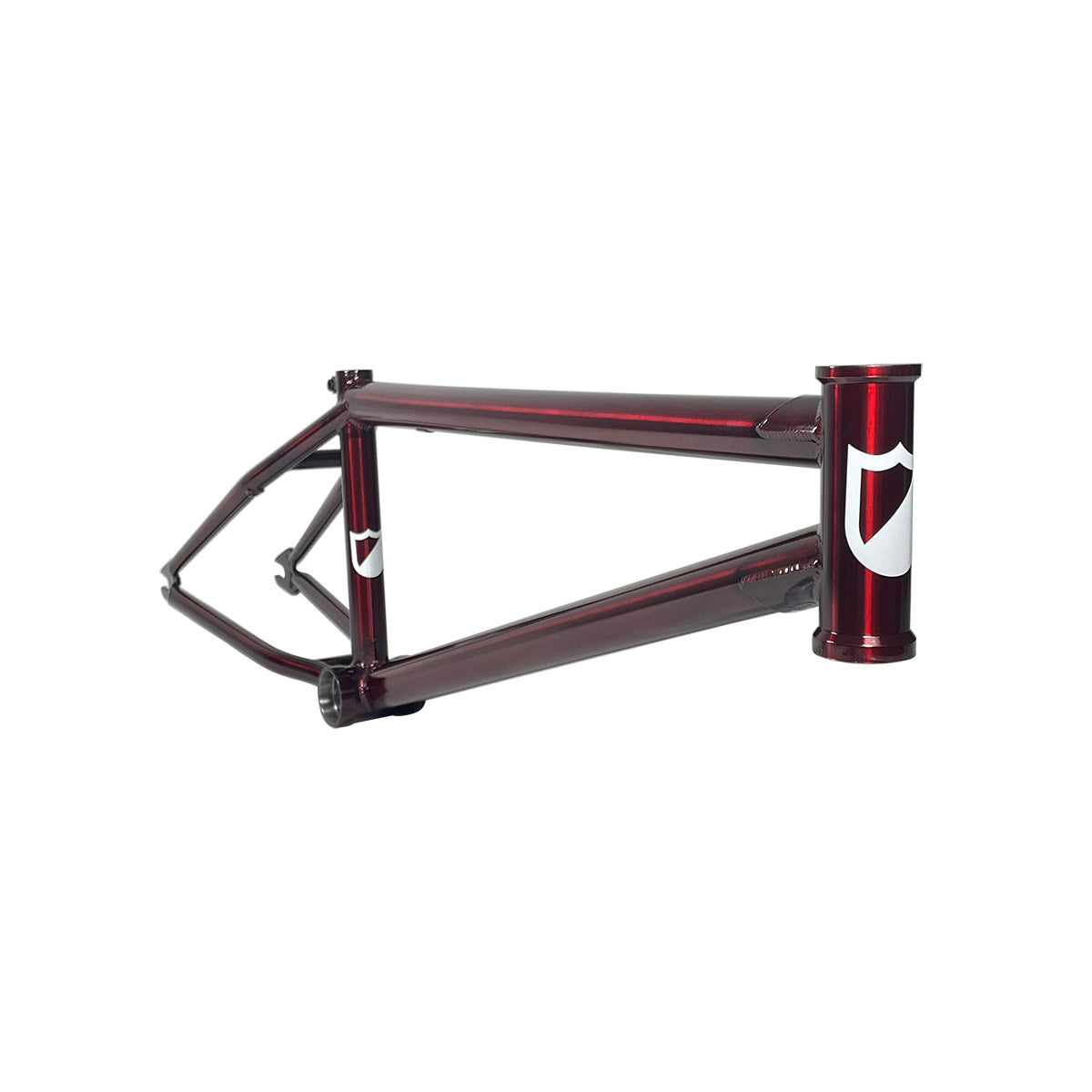

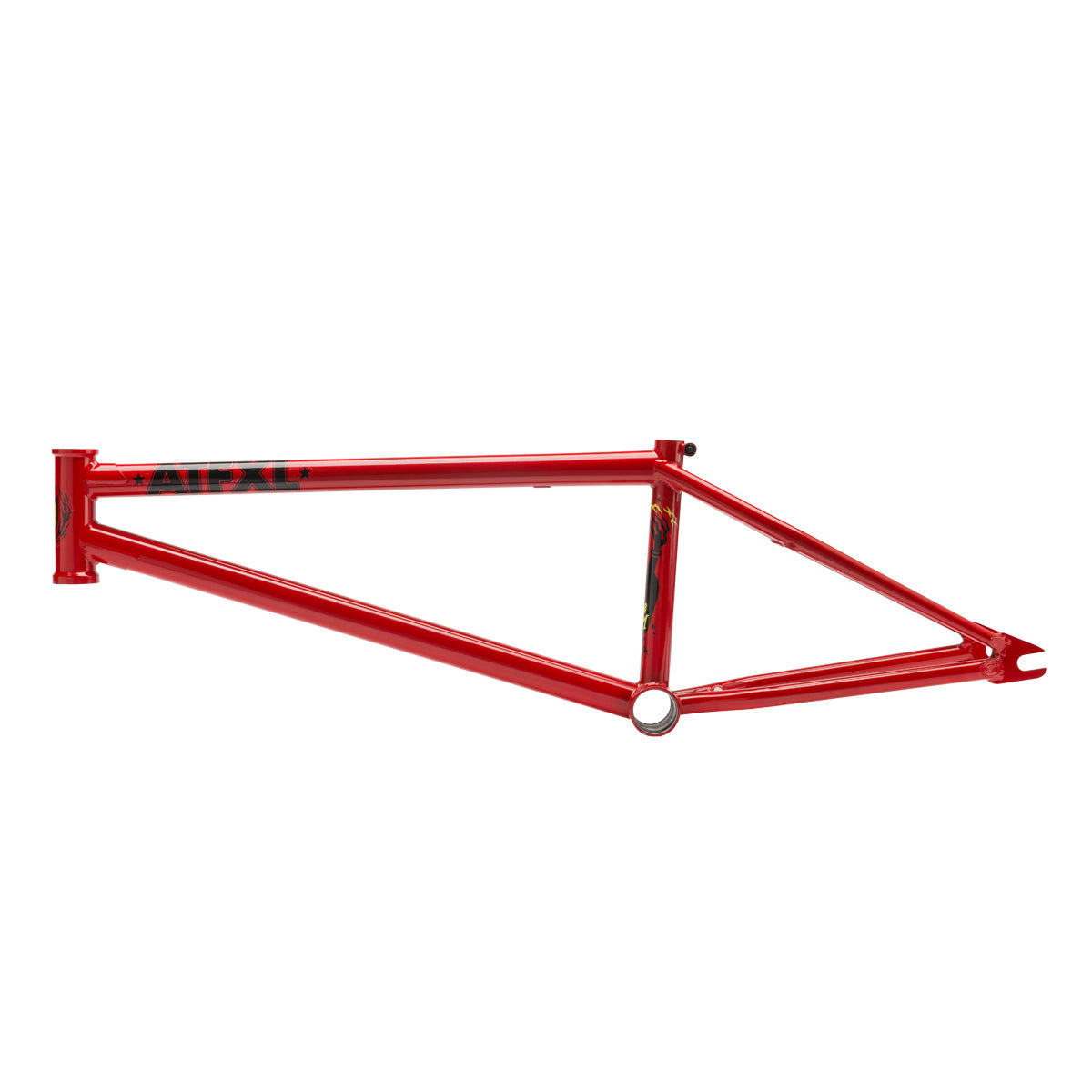

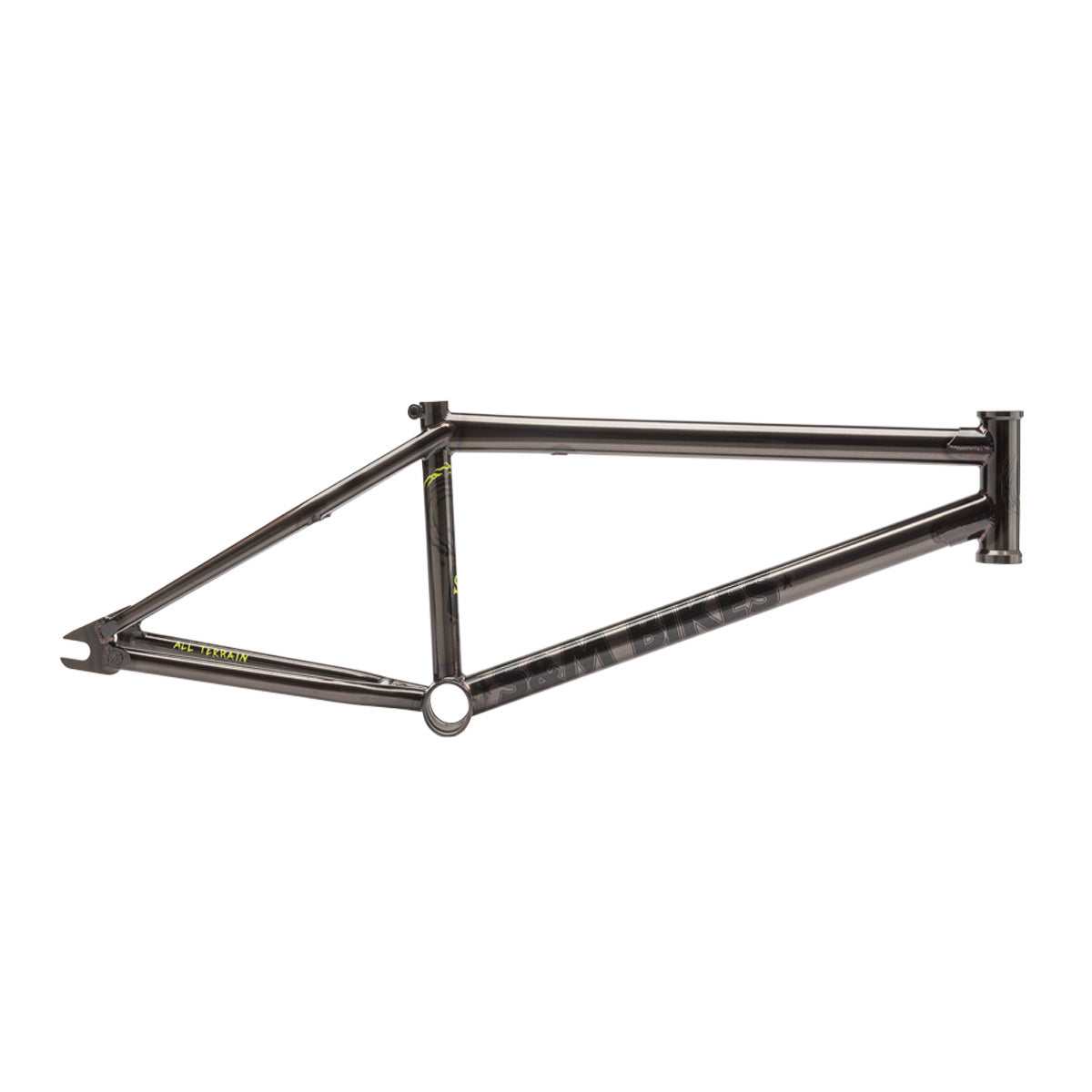

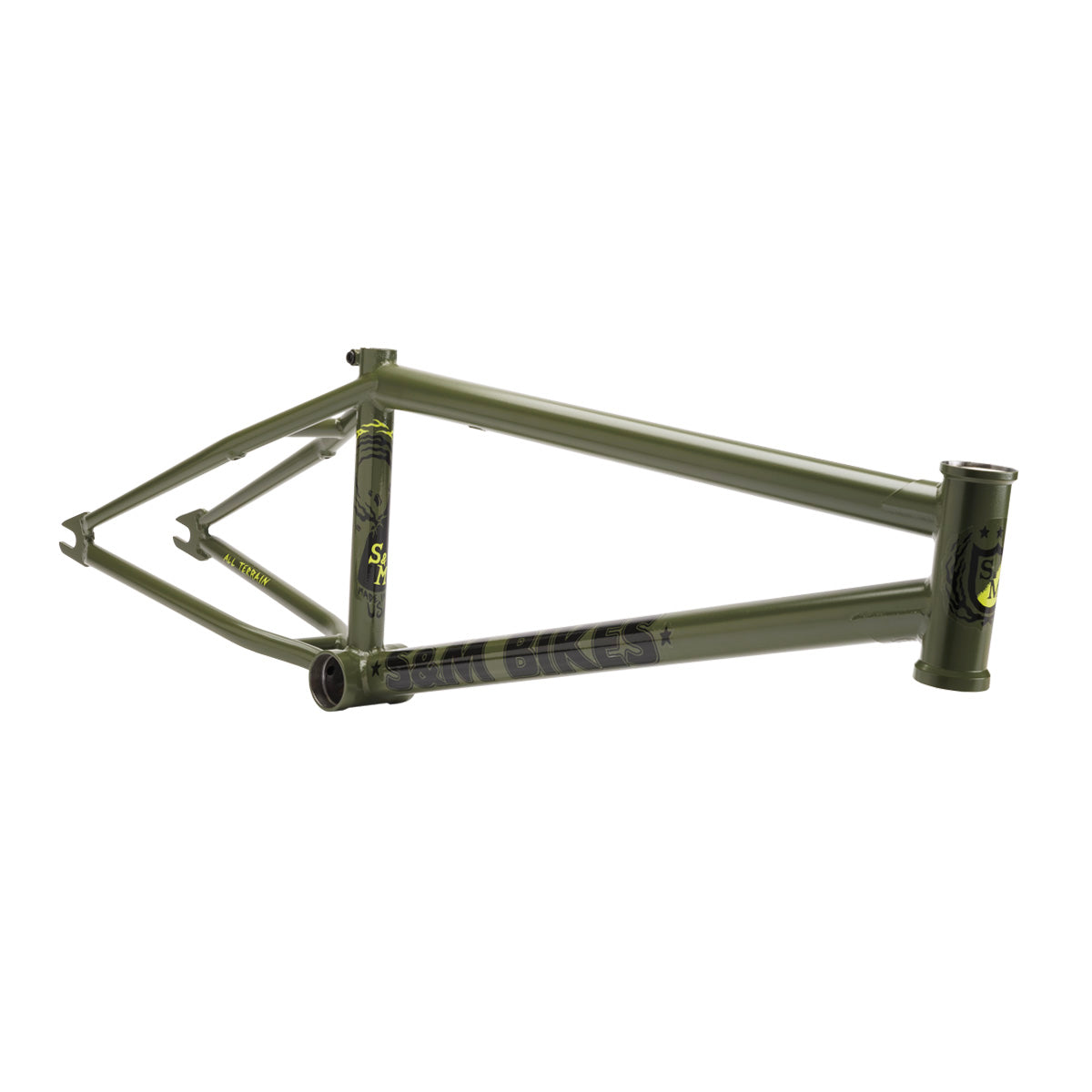

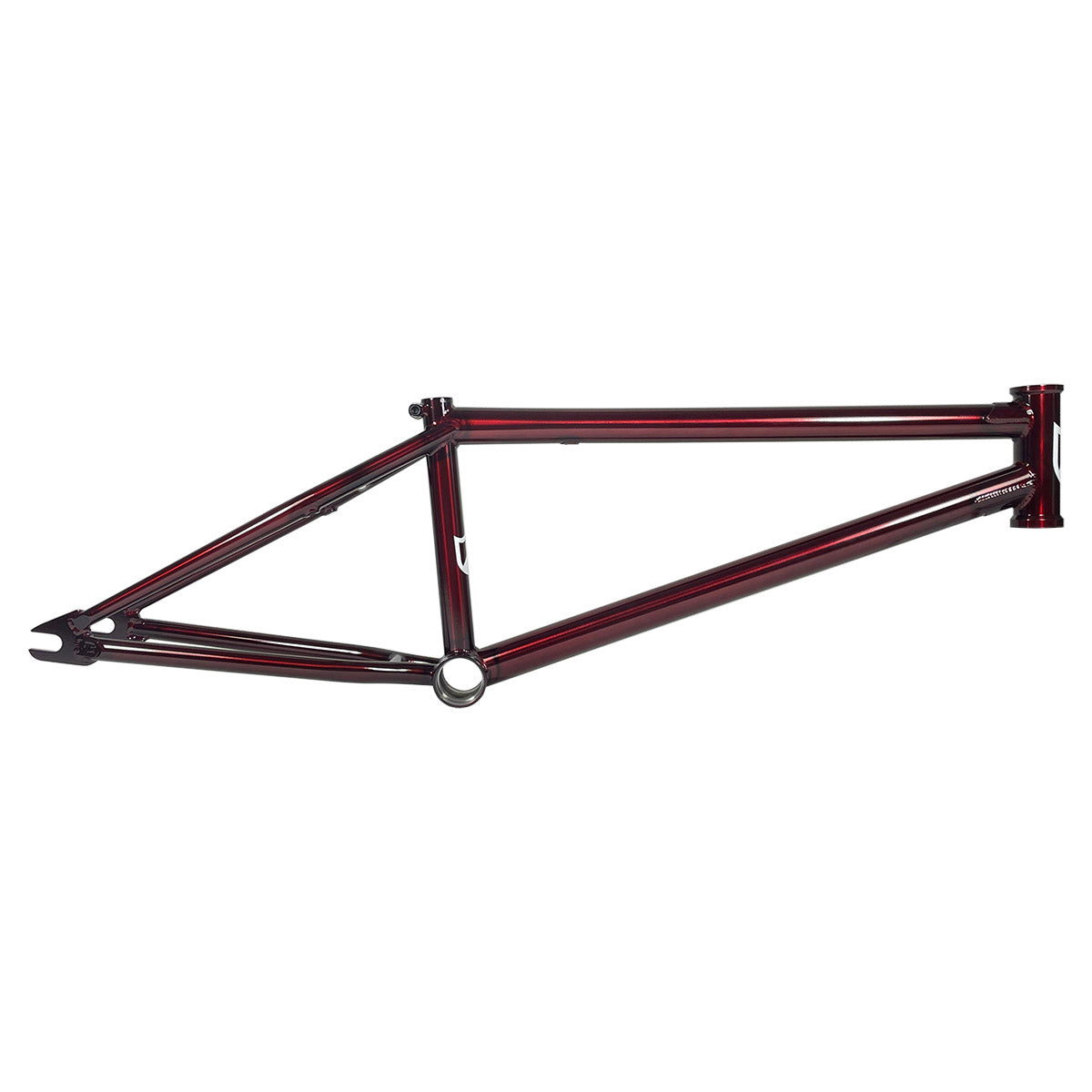

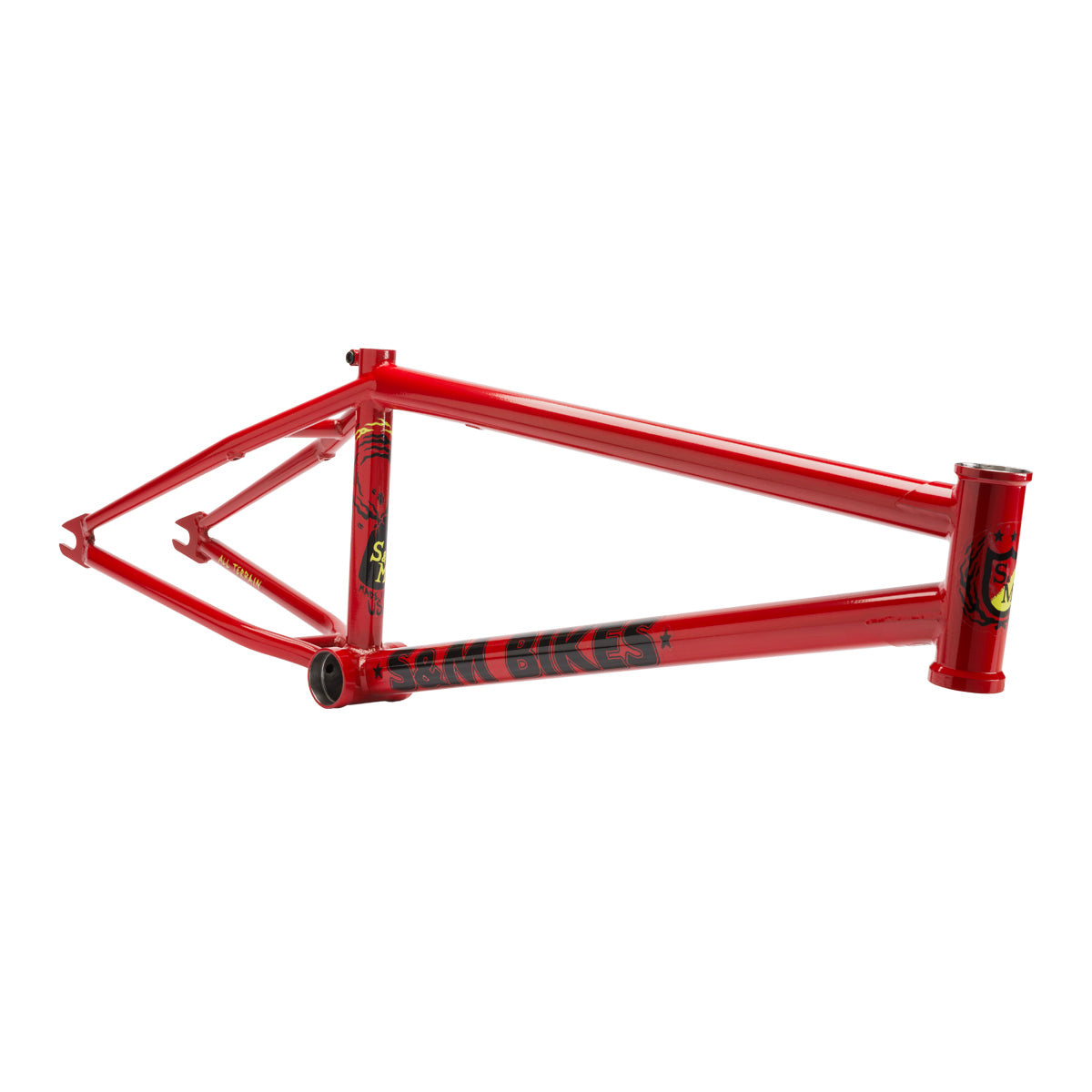

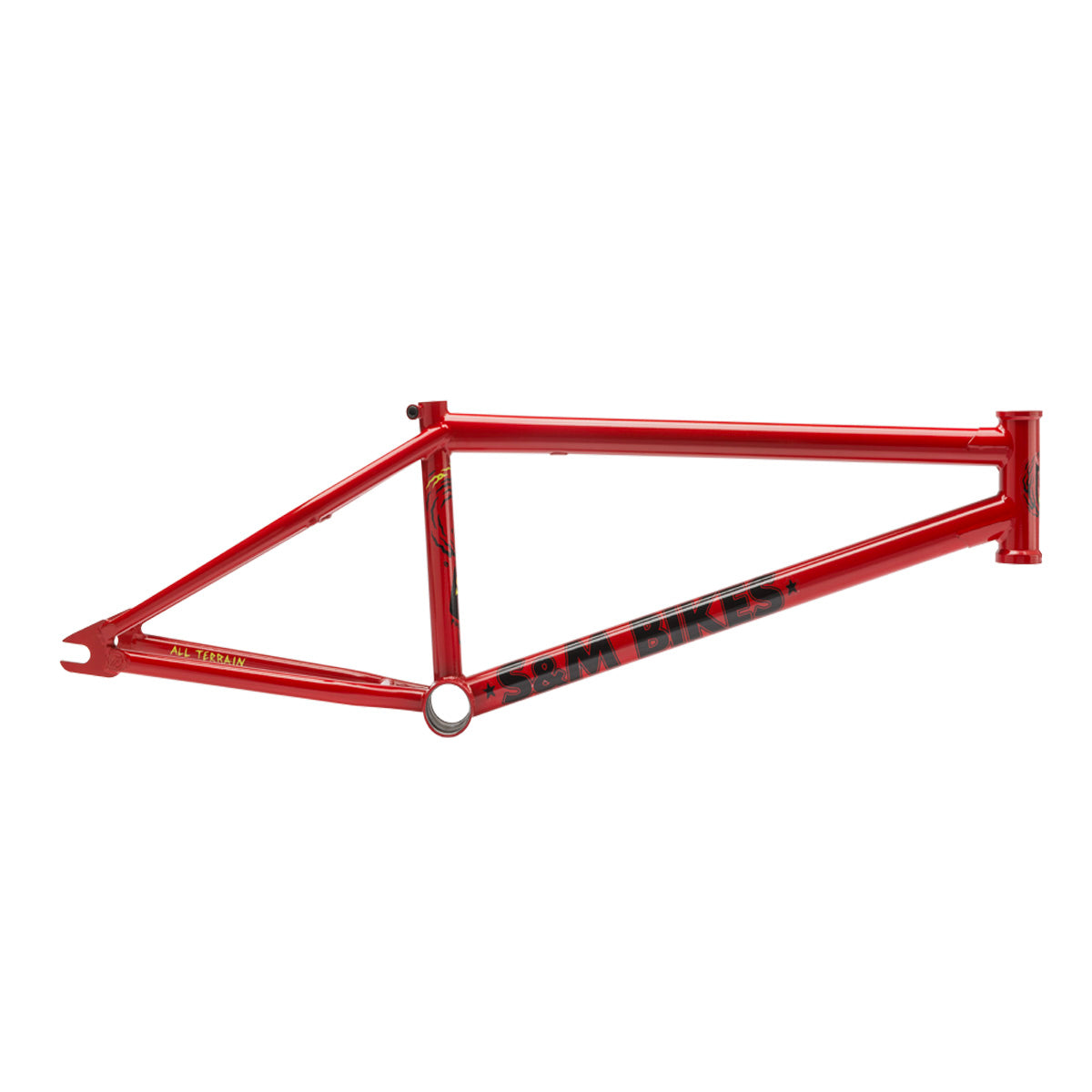

S&M ATF XL Frame (20" Wheels)
Regular price
$584.95
Unit price
/
Unavailable
Shipping calculated at checkout.
S&M ATF XL Frame (20" Wheels) - Army Green / 21" is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Final sale — this item can’t be returned or exchanged once it ships. Arrived damaged or wrong? We’ll make it right. Returns policy
Description
The S&M ATF XL takes the tried and true ATF frame to the next level for riders 21″ and up. With a taller 5″ head tube, 9″ standover and top tube lengths up to 22″, it's built for the tall team: the perfect blend of responsiveness and stability, ready for all terrains.
- Wheel size: 20″
- Top tube lengths: 21″, 21.25″, 21.5″, 22″
- Rear end length: 13.4″
- Head tube angle: 75°; seat tube angle: 71°

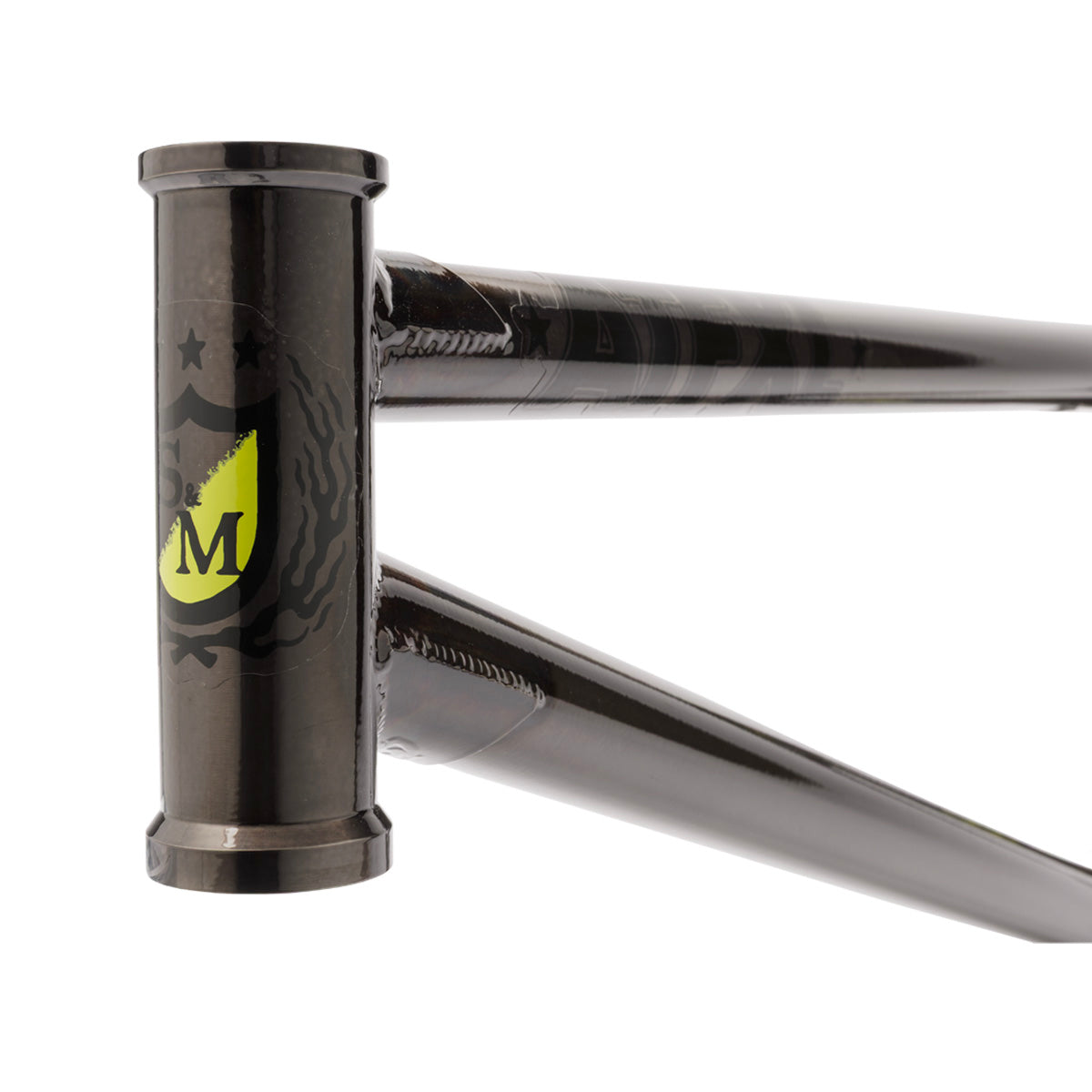

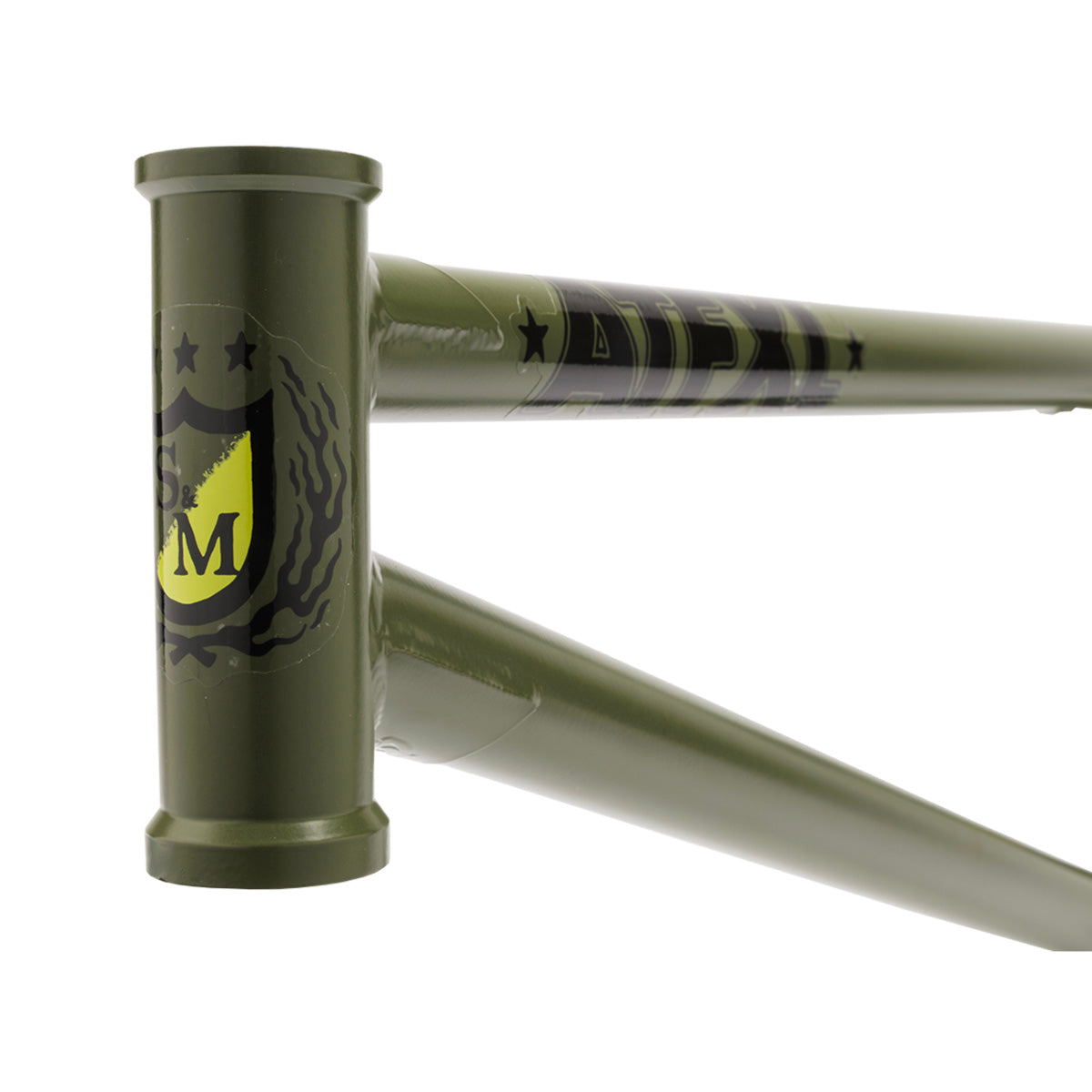

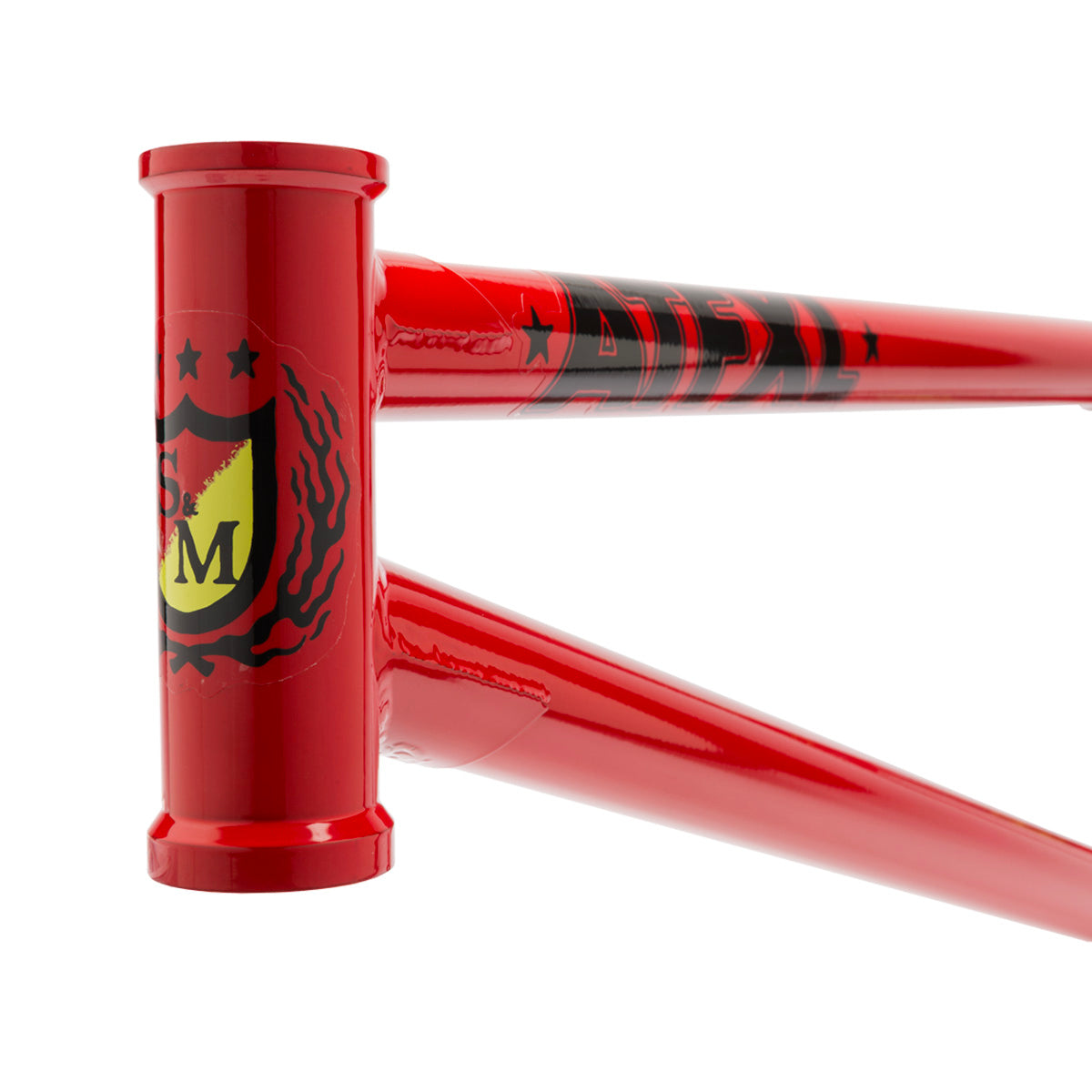

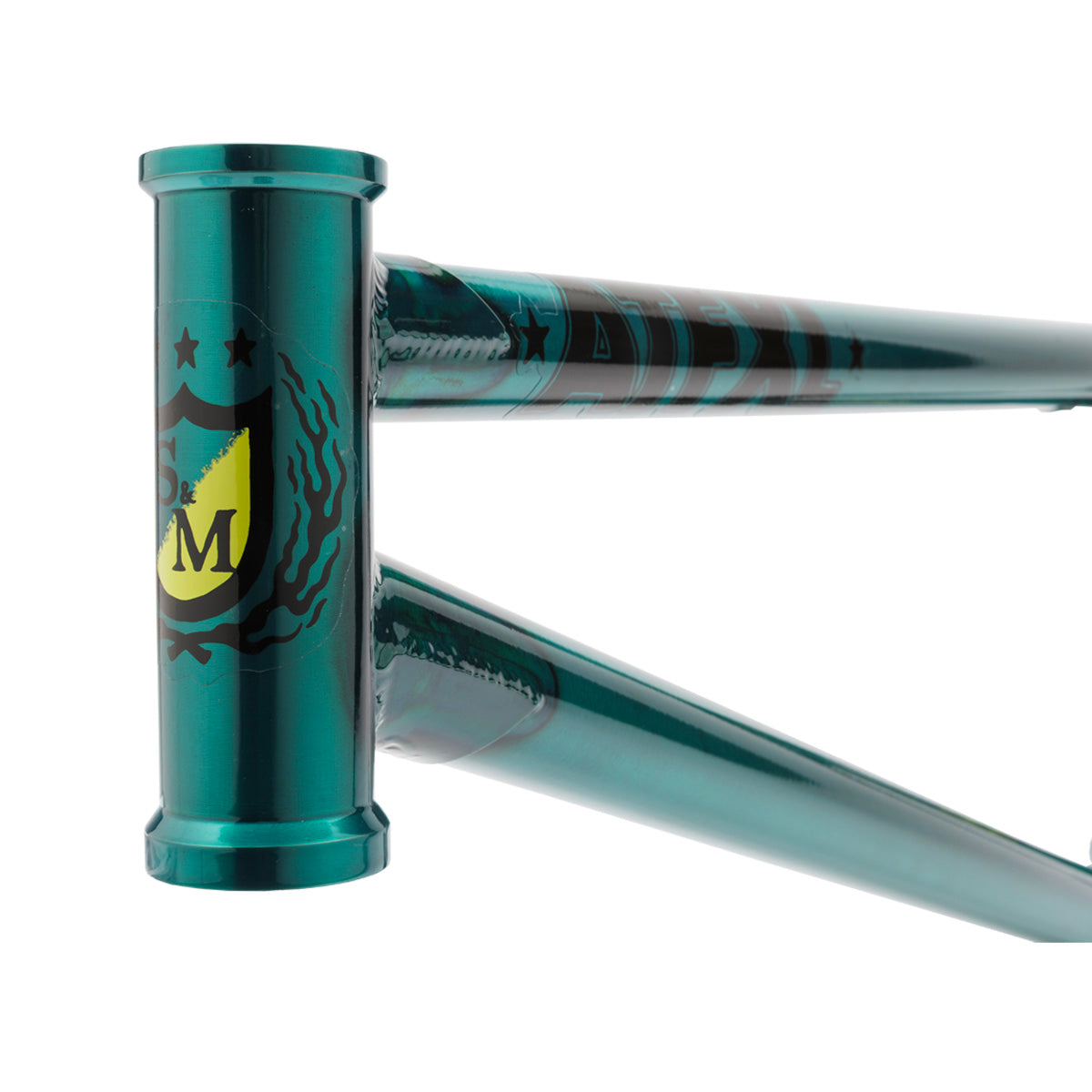

- Head tube: integrated (45°/45°, 41.8mm), 5″ tall
- BB height: 11.7″; BB style: Mid
- Standover height: 9″

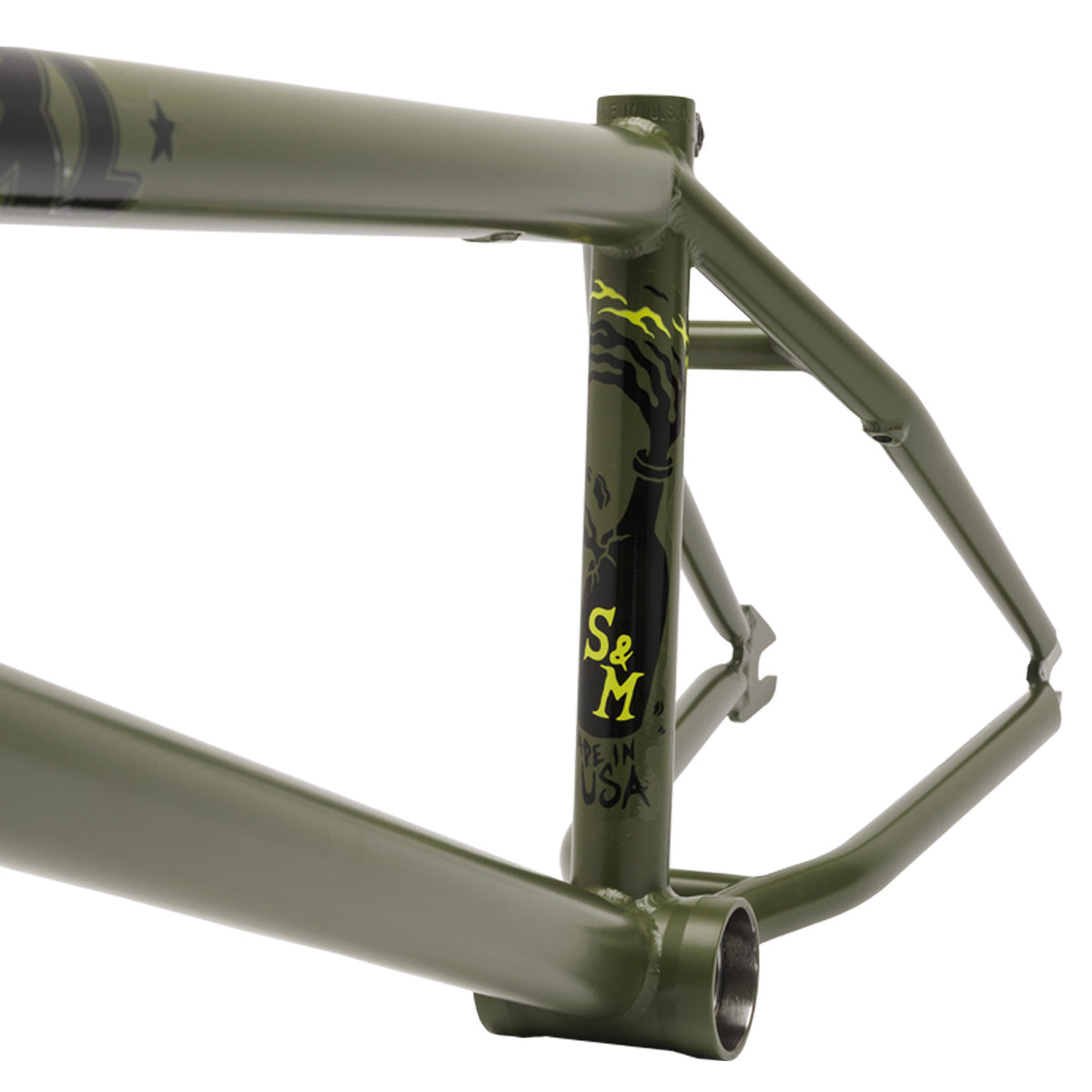

- Seat clamp: integrated; seat post size: 1″ (25.4mm)
- Brake mounts: thread-on 990 (mounts sold separately)
- Dropouts: 14mm slot, 4Q-baked; no gyro tabs
- Tubing: butted Thermal-X
- Weight: 4.75 lb (2.15 kg)
- Colors: Army Green, Challenger Red, Gloss Clear, Termite, Trans Black, Trans Burgundy, Trans Teal (sizes vary by color)
