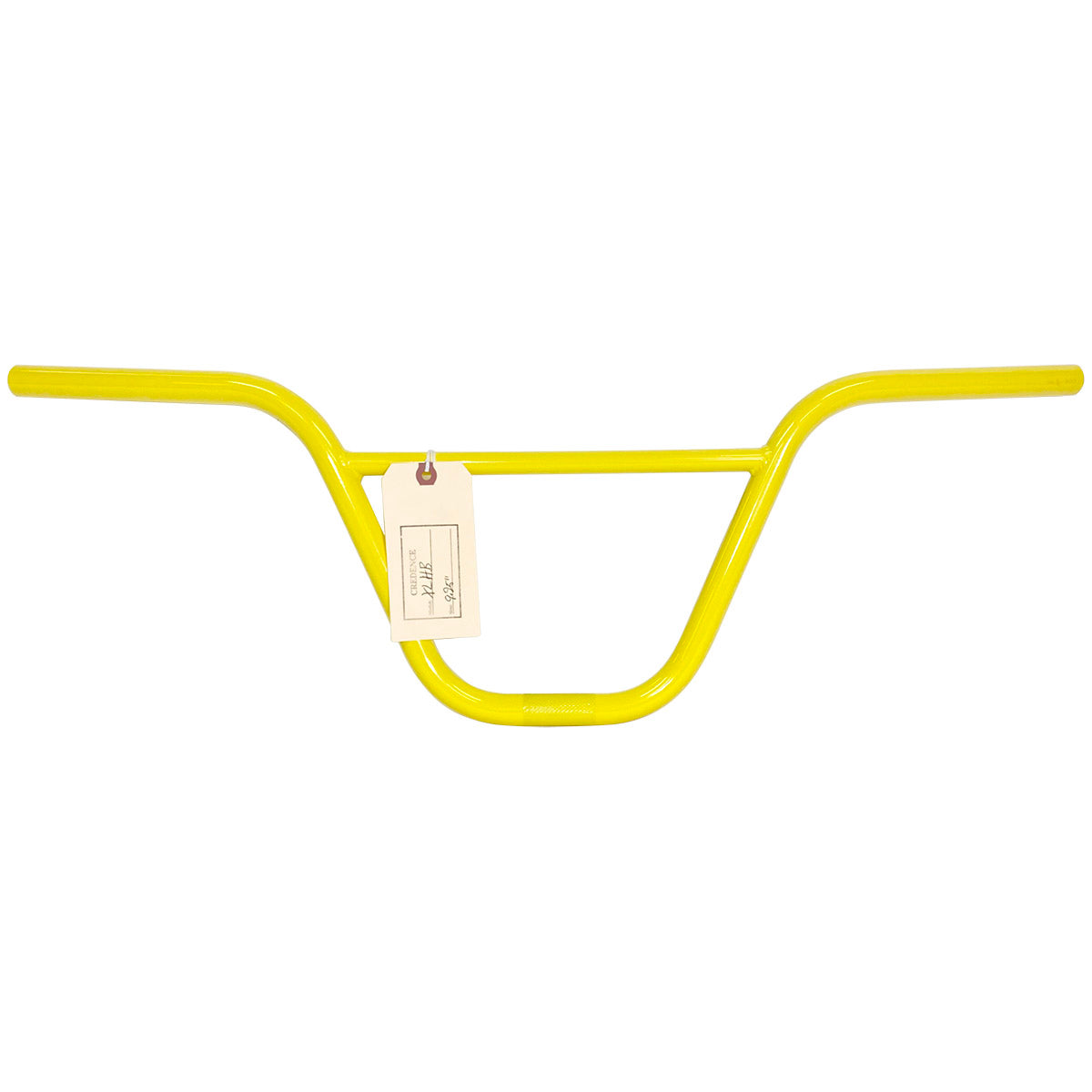

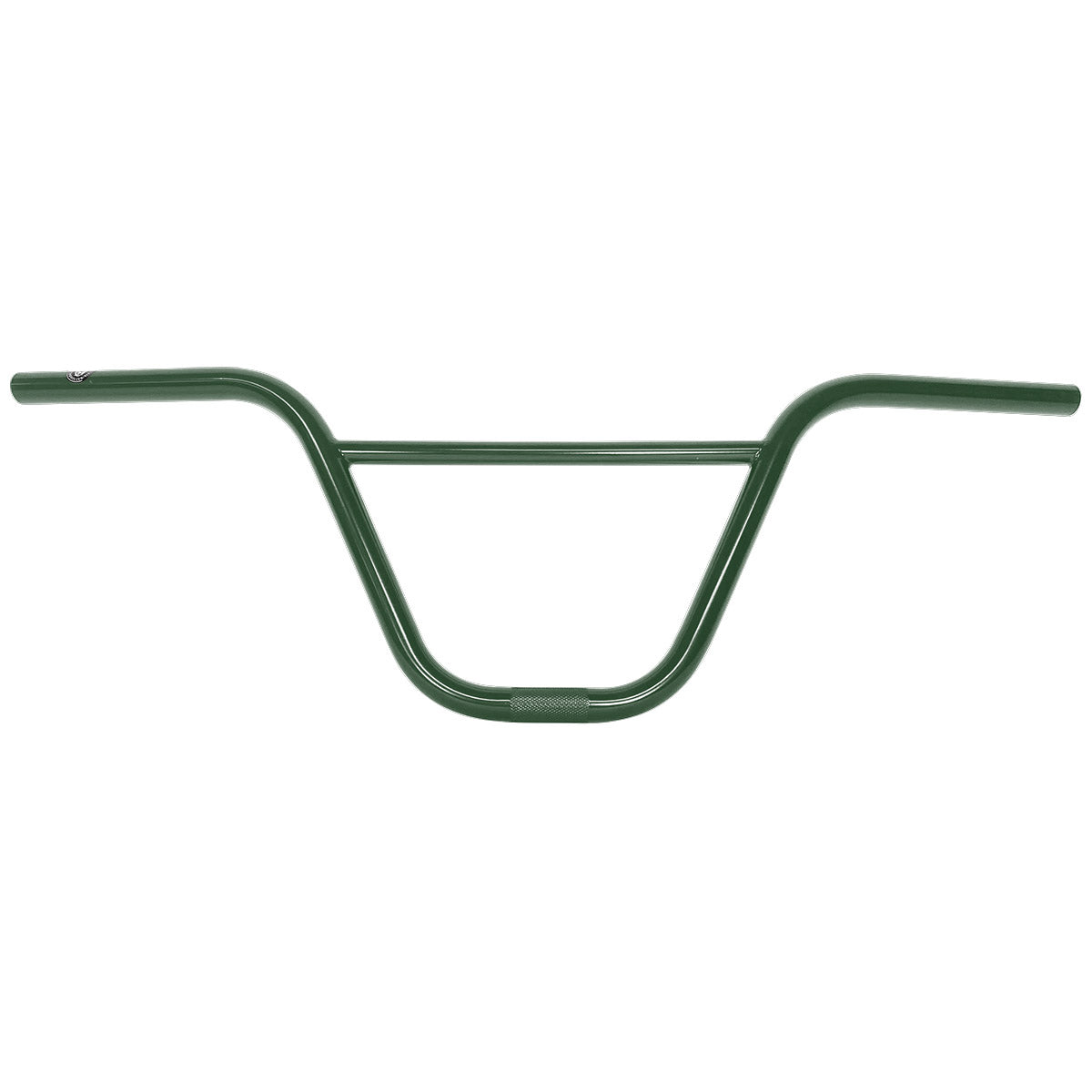

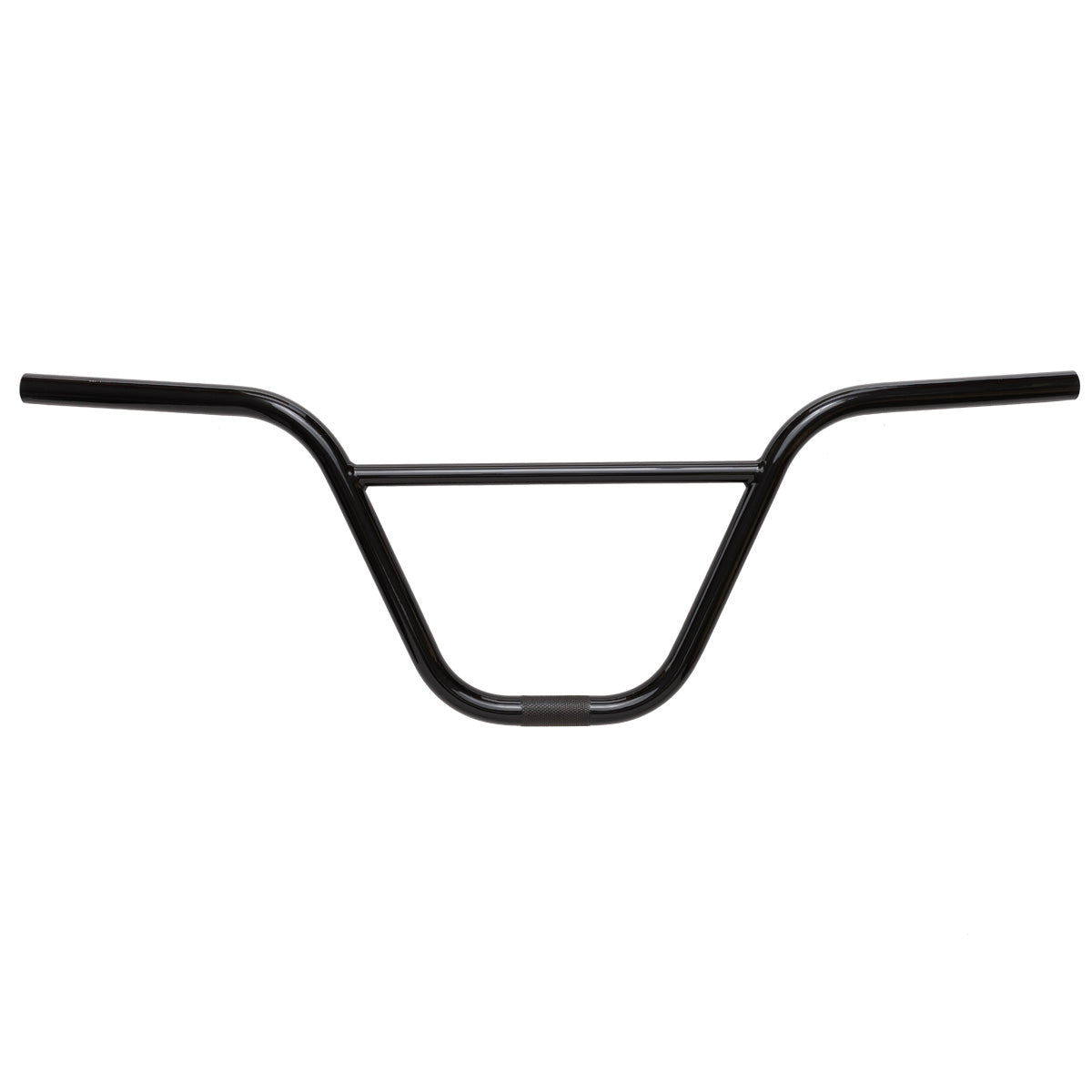

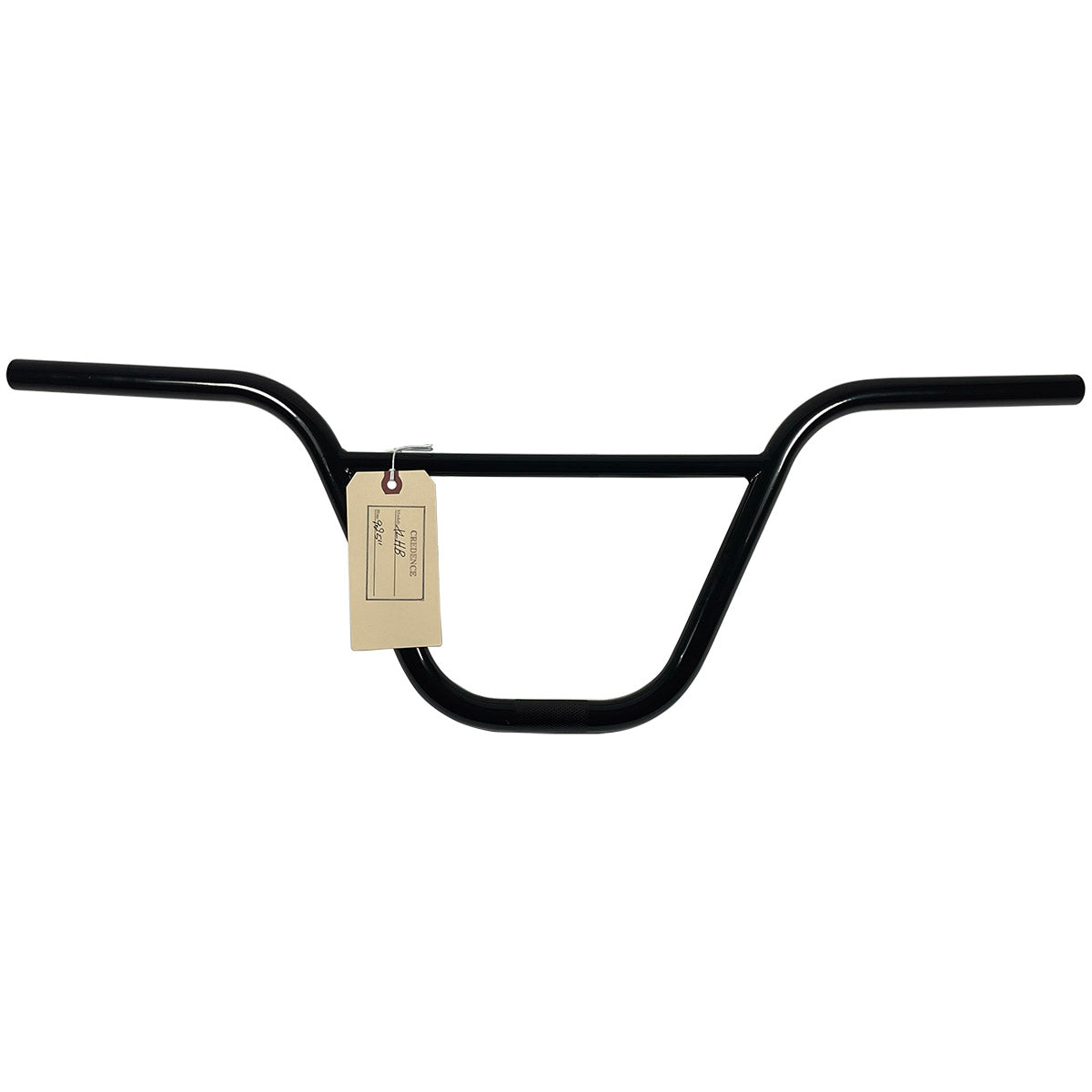

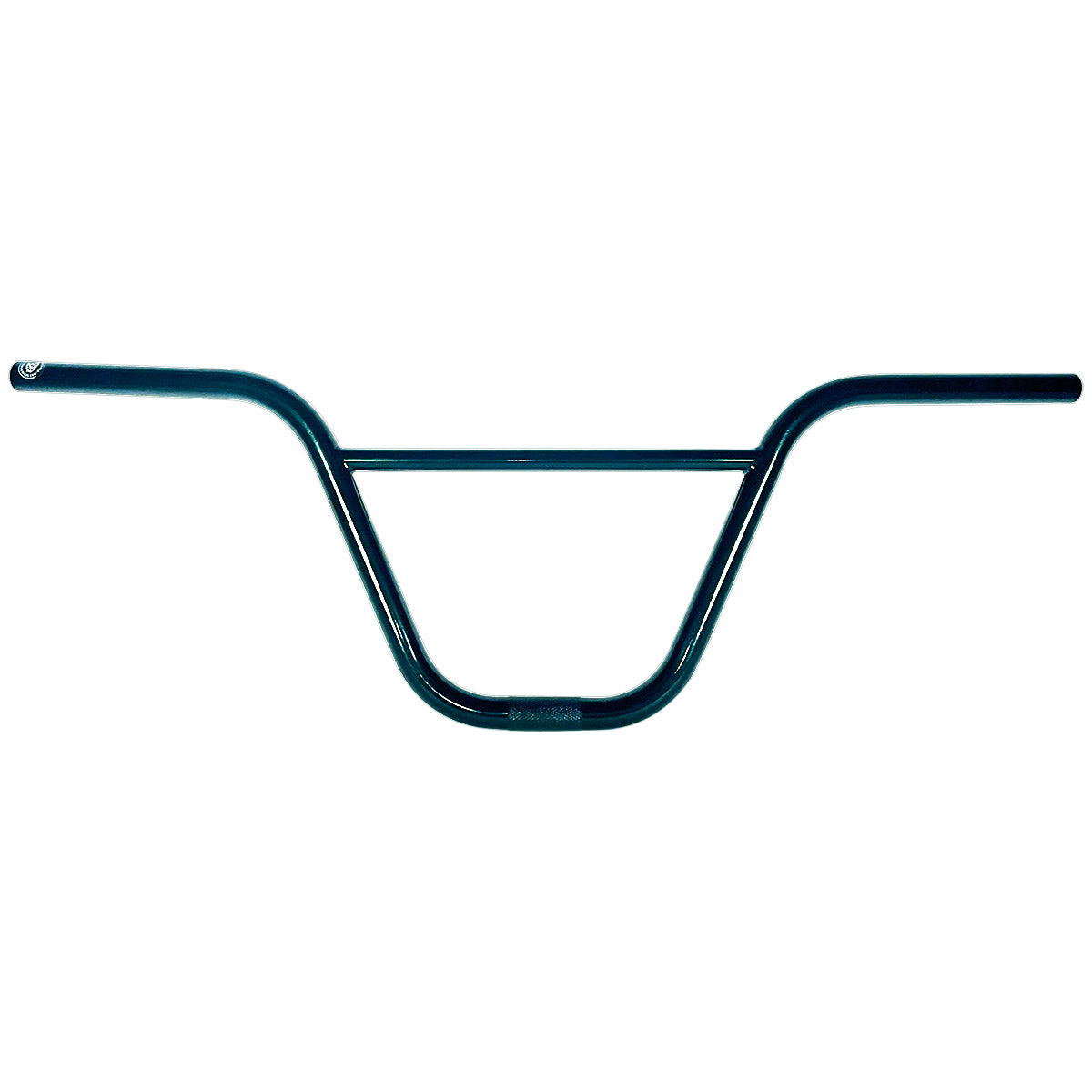

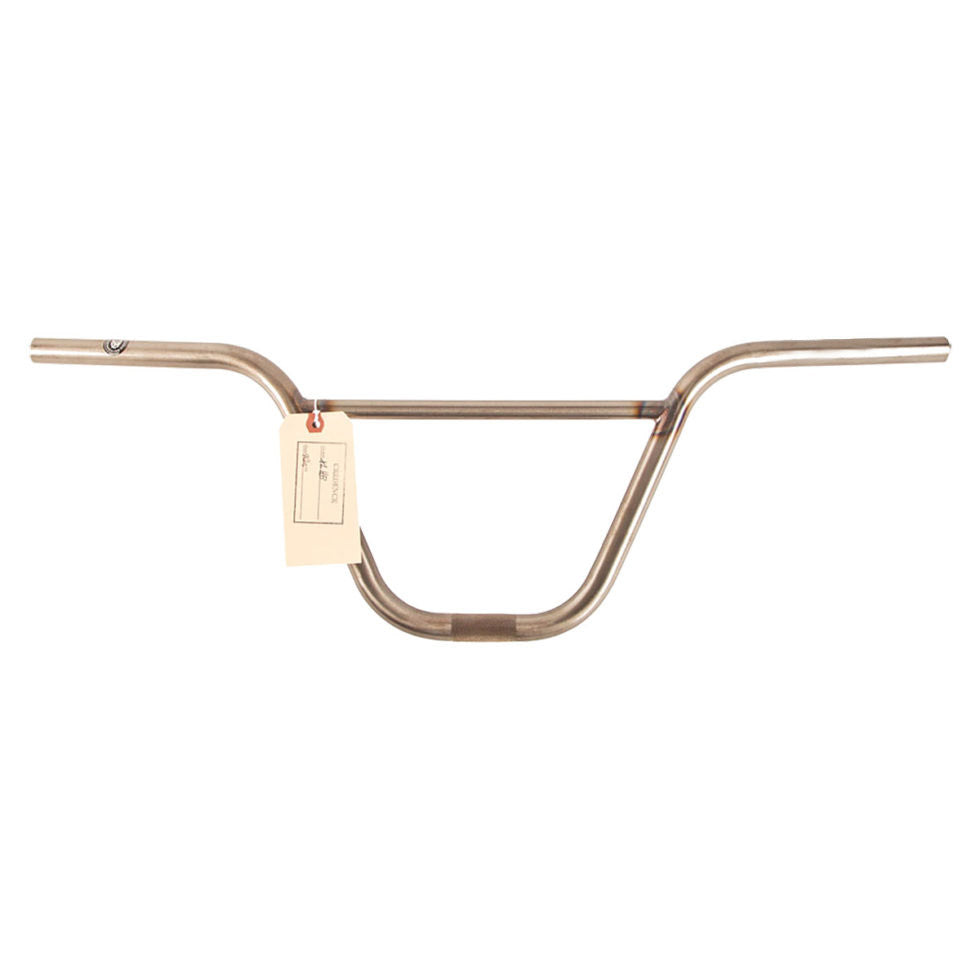

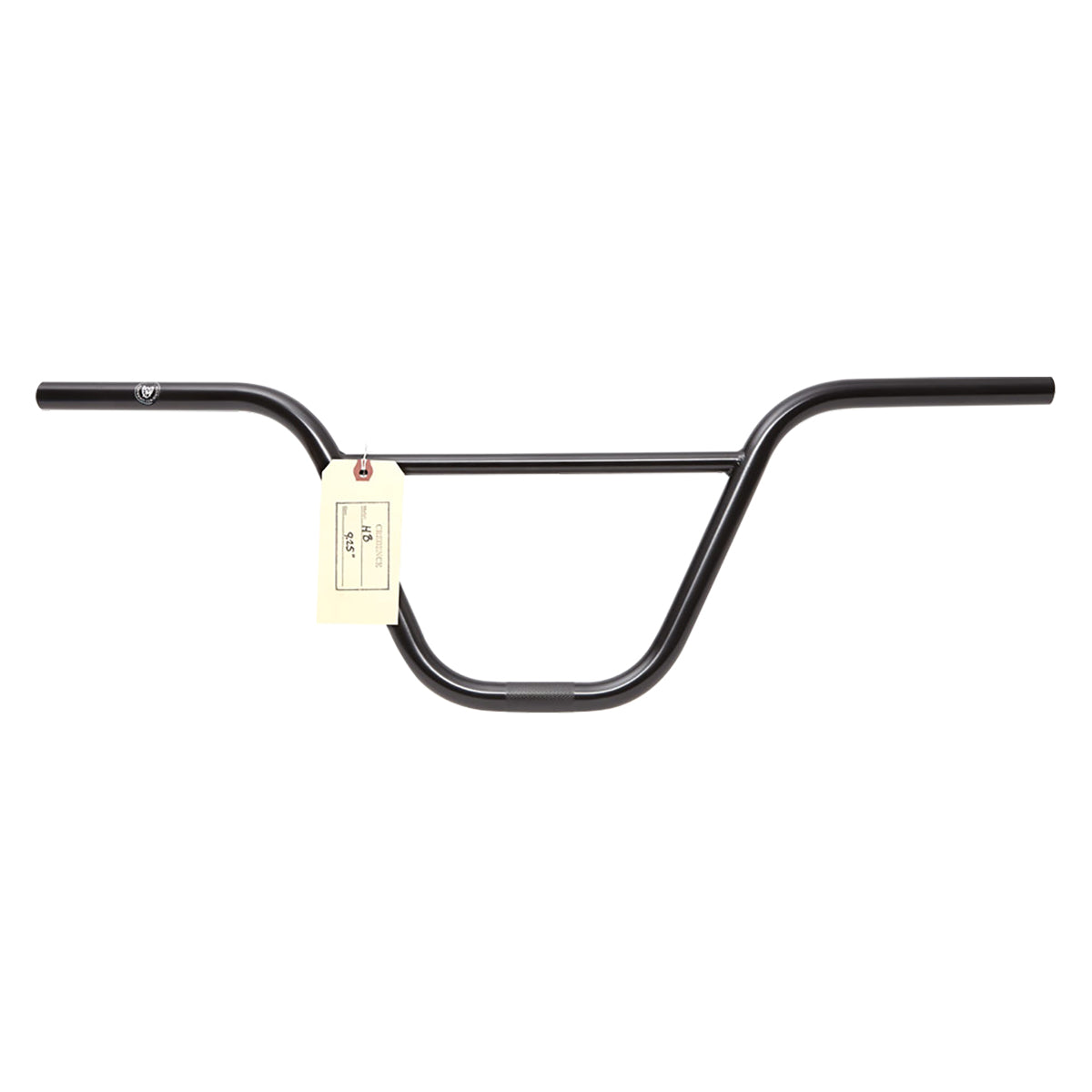

S&M Credence XL Reynolds Sig 9.25″ BMX Handlebars

S&M Credence XL Reynolds Signature Bar 9.25"

Clint Reynolds' signature handlebar with 9.25" rise and 30" width designed for taller riders seeking reasonable height without extreme dimensions. Built from 4130 chromoly tubing with dual-radius bends and 3° upsweep for reduced wrist angle. Width can be trimmed to rider preference. Made in the USA.

Key Features

• 4130 chromoly construction – Full chromoly tubing throughout provides strength and durability for aggressive street riding
• 9.25" rise – Tall rise positions grips higher for riders with longer torsos or those who prefer upright body position without going to extreme heights
• 30" width (trimmable) – Wide stance provides increased leverage and accommodates broader shoulder measurements; can be cut down to preferred width
• Dual-radius bends with reinforced top bend – Large-radius top bend distributes stress over wider area to reduce risk of failure at the bend, a common high-stress zone
• 3° upsweep – Lower upsweep angle compared to standard bars reduces wrist twist for more natural hand position during extended sessions
• 11° backsweep – Aggressive sweep angle rotates grips rearward for comfortable wrist position and relaxed arm angle
• 5/8" crossbar height – Lower-profile crossbar reduces weight while maintaining structural integrity

Technical Specifications

• Rise: 9.25"
• Width: 30" (trimmable)
• Upsweep: 3°
• Backsweep: 11°
• Crossbar height: 0.625" (measured from bottom of main tube)
• Material: 4130 chromoly steel
• Construction: Dual-radius bends
• Weight: 2.25 lbs (1.02 kg)
• Made in: USA

Compatibility and Ideal Use Cases

Fits standard front load and top load stems with 22.2mm (7/8") handlebar clamp diameter. The 9.25" rise and 30" width suit taller riders (approximately 5'11" to 6'1") who want elevated bars without going to 9.75" or 10" heights. The 3° upsweep provides more neutral wrist angle compared to bars with 1.5° or less, reducing strain during long sessions. Width can be trimmed with pipe cutter or hacksaw to accommodate narrower preferences while maintaining structural integrity. Best for street, park, and all-around riding where tall bars with comfortable geometry are preferred. The aggressive 11° backsweep works well for riders who prefer bars pulled closer to the body.
