S&M Enduro V.2 Top Load Stem (4 Size And 7 Color Options)

S&M Enduro V.2 Top Load Stem

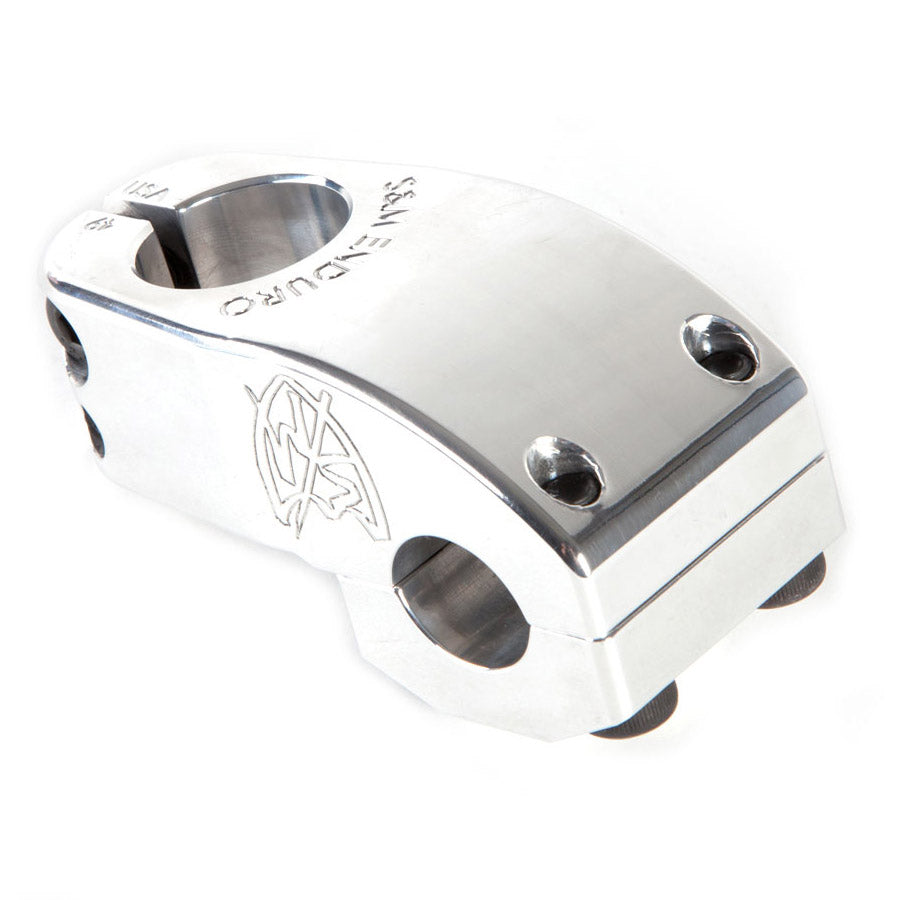

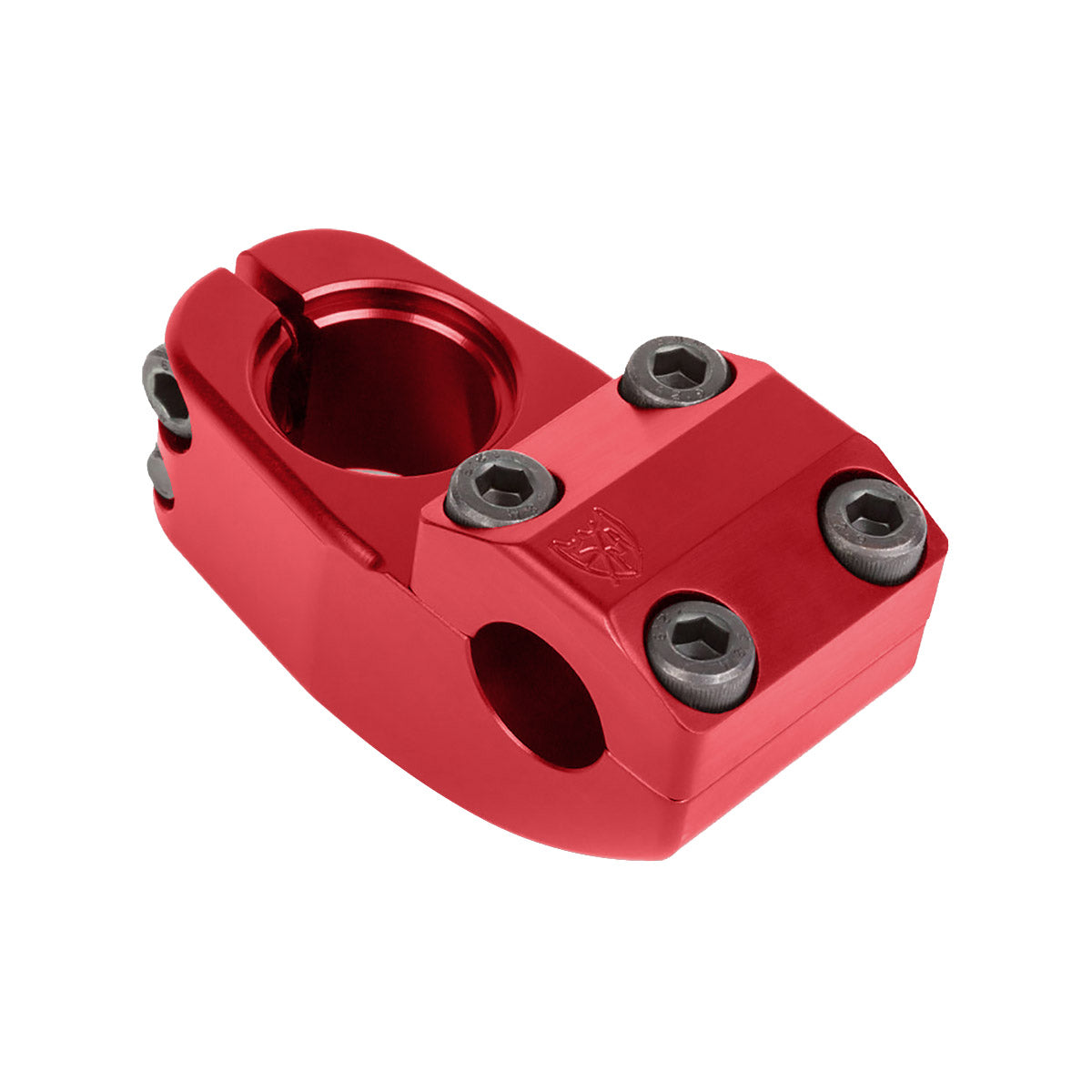

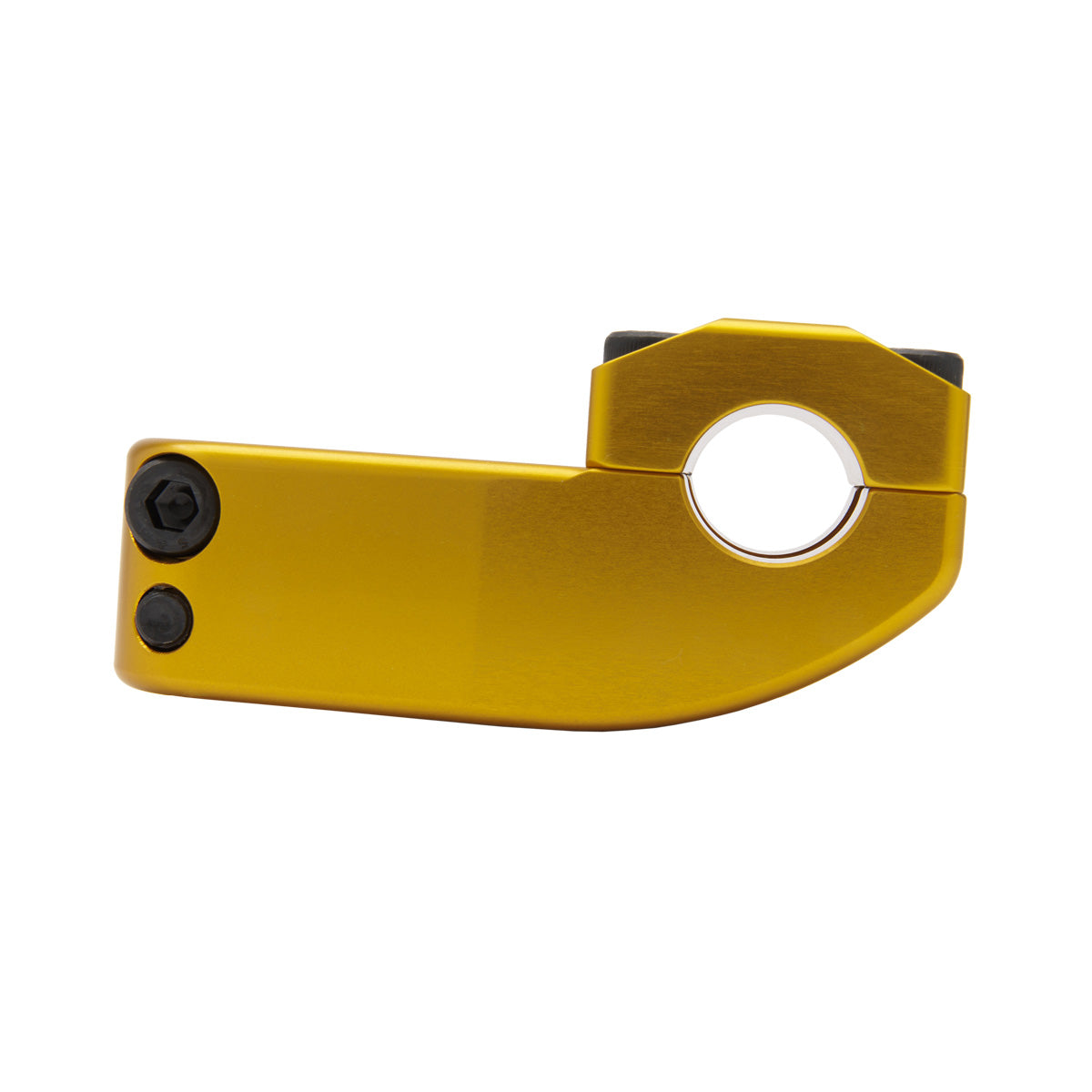

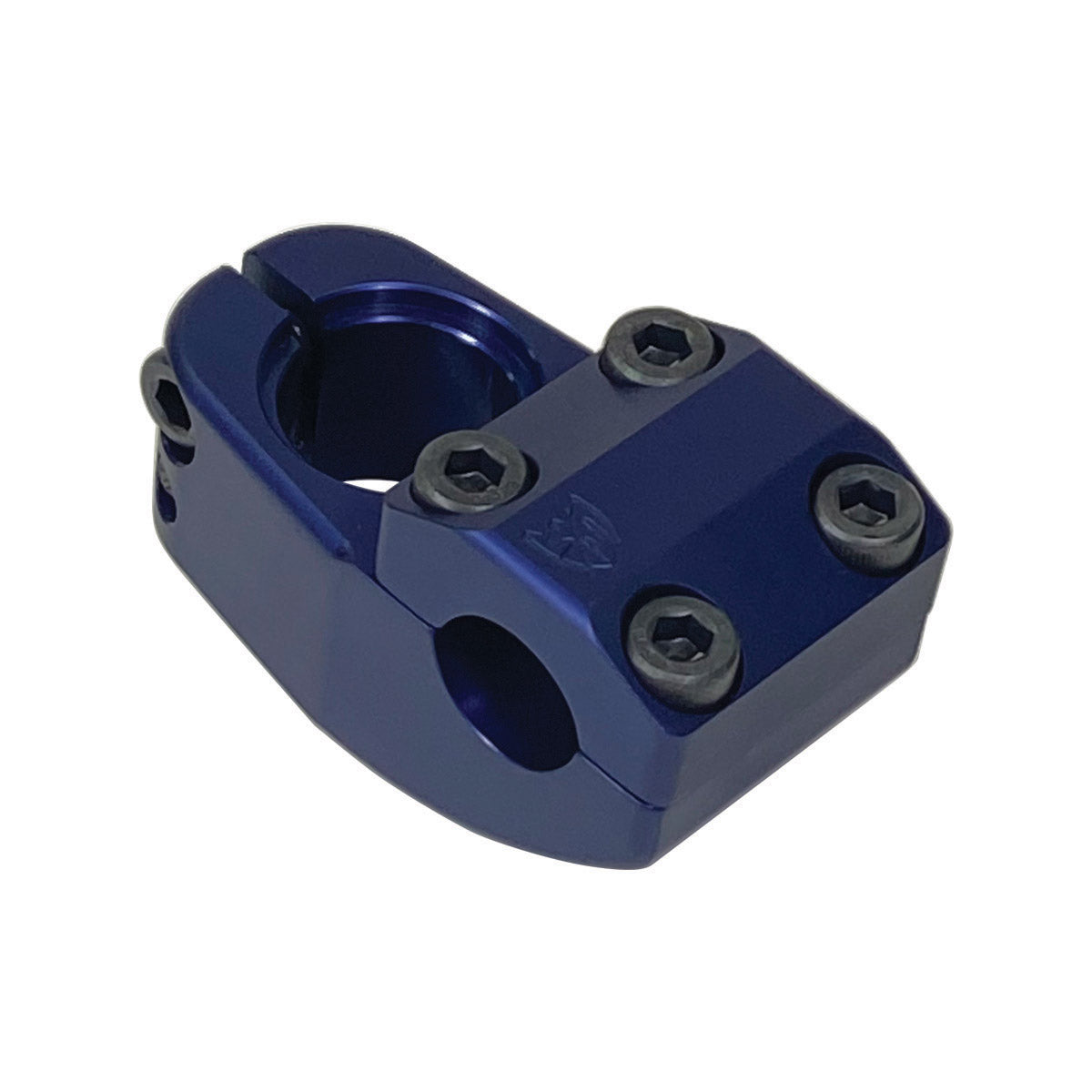

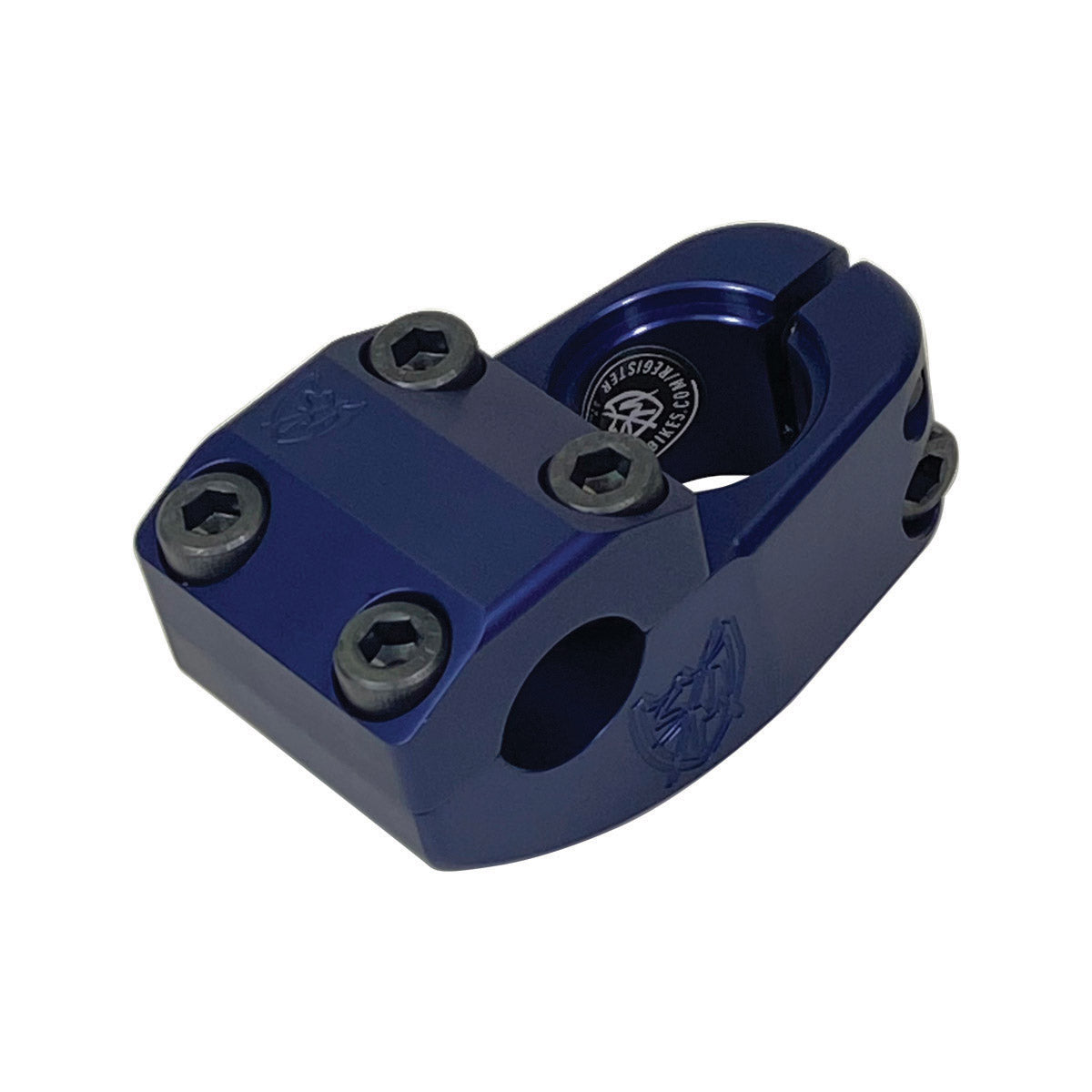

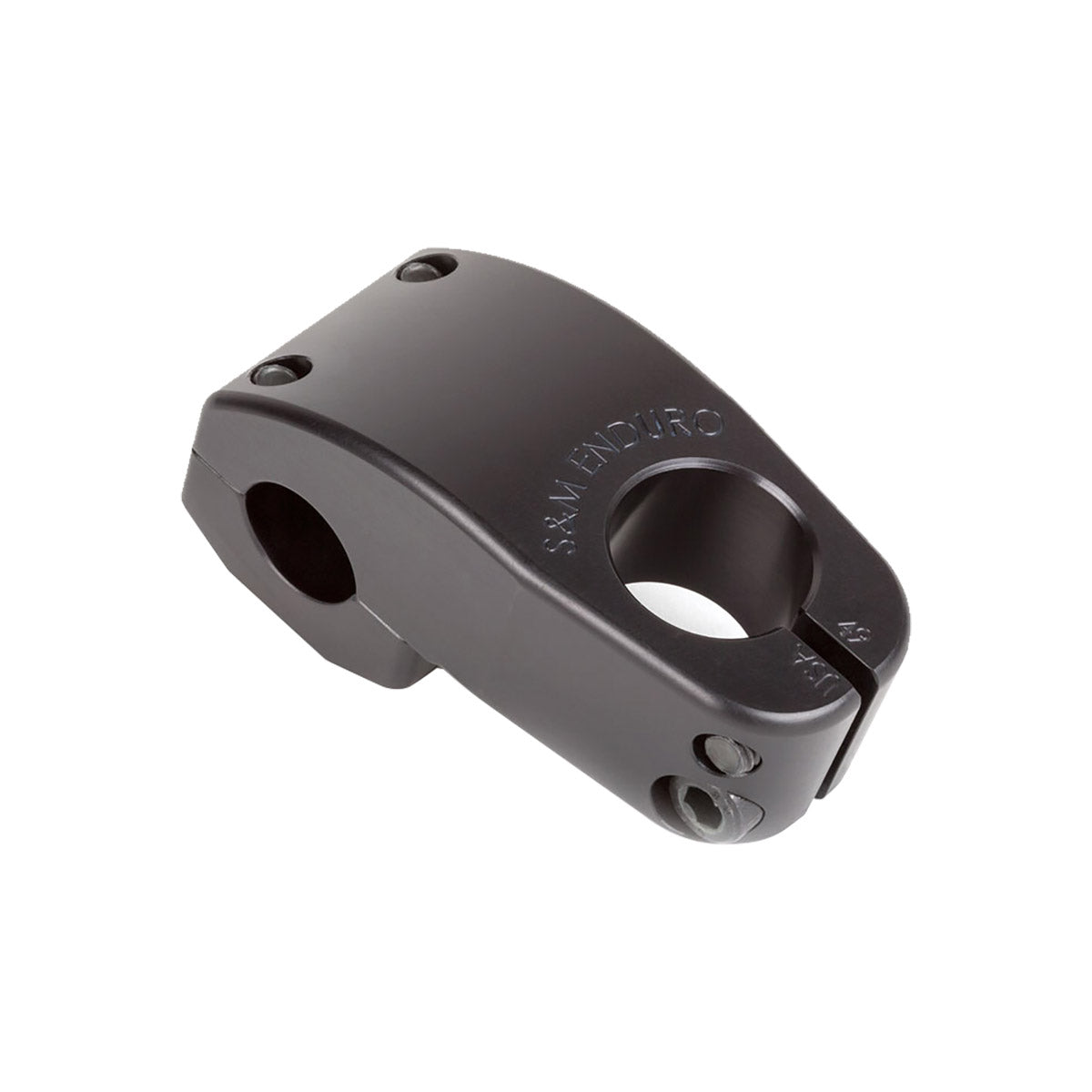

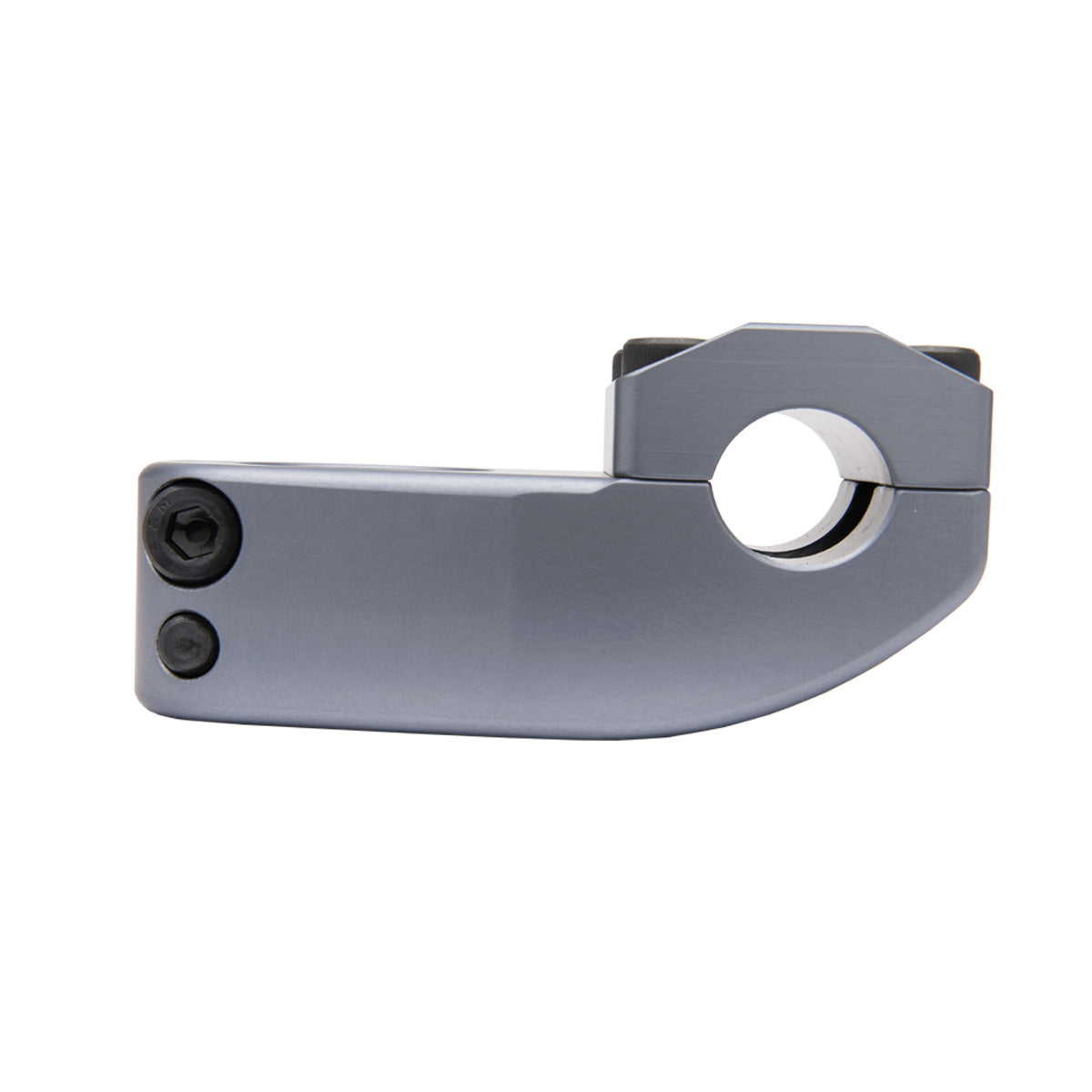

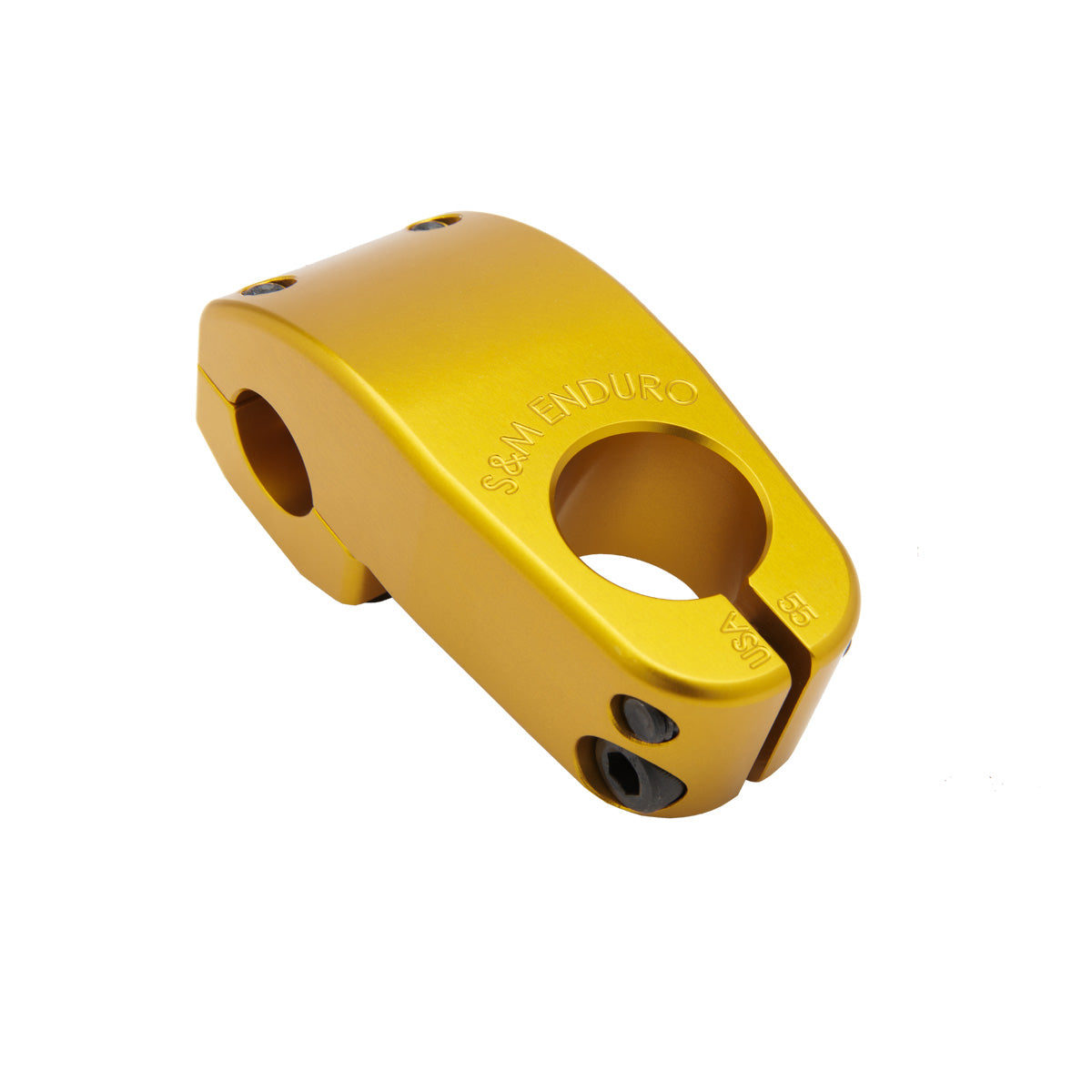

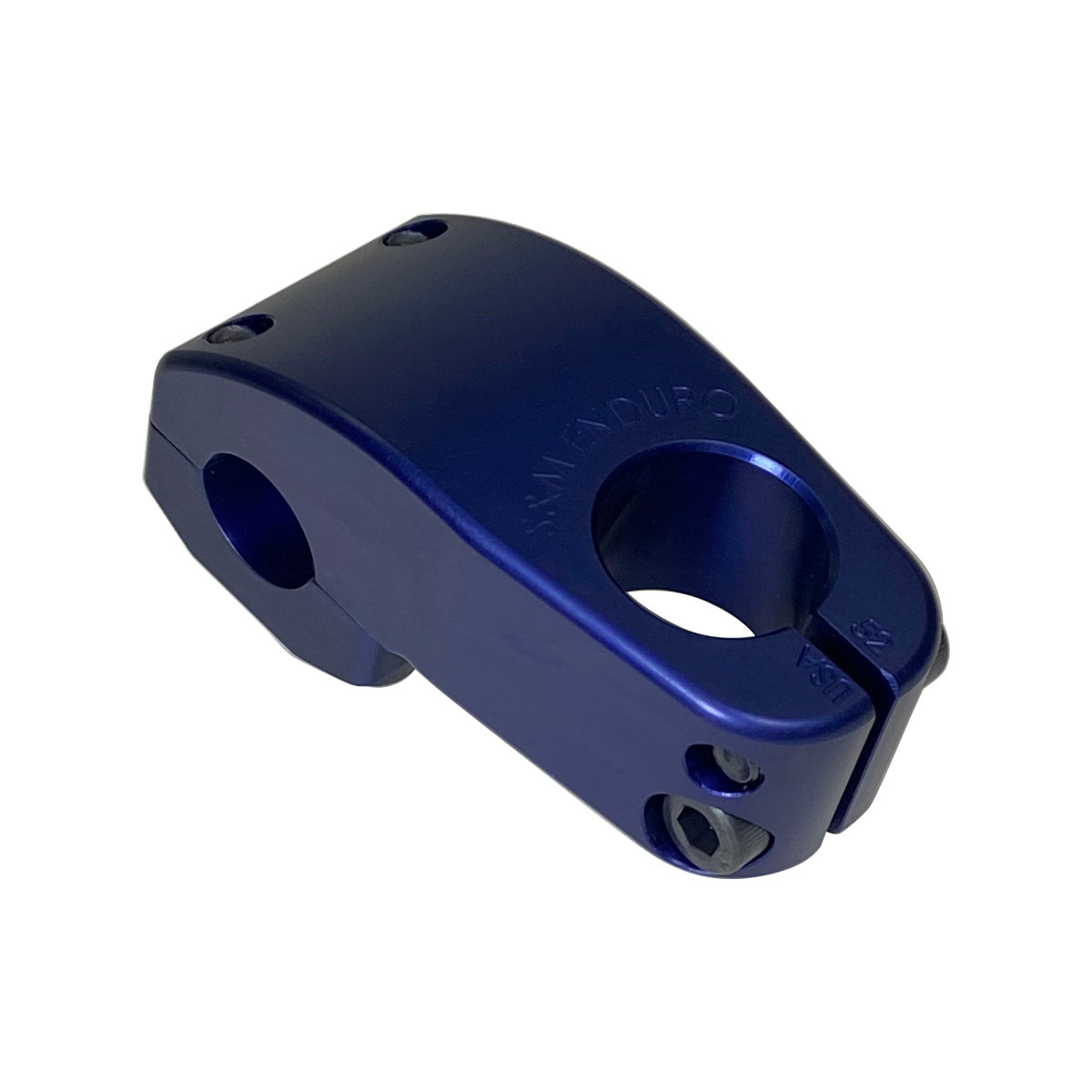

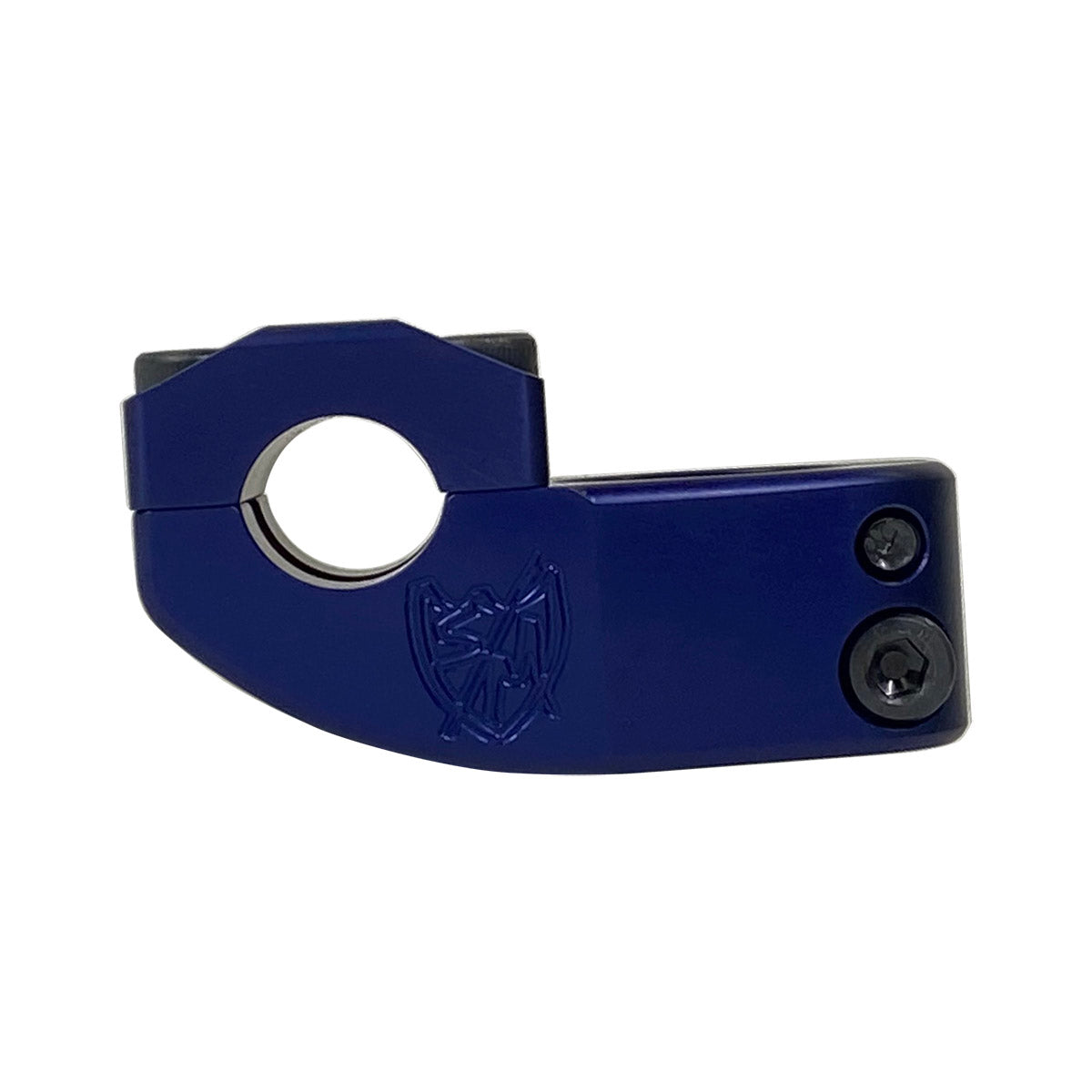

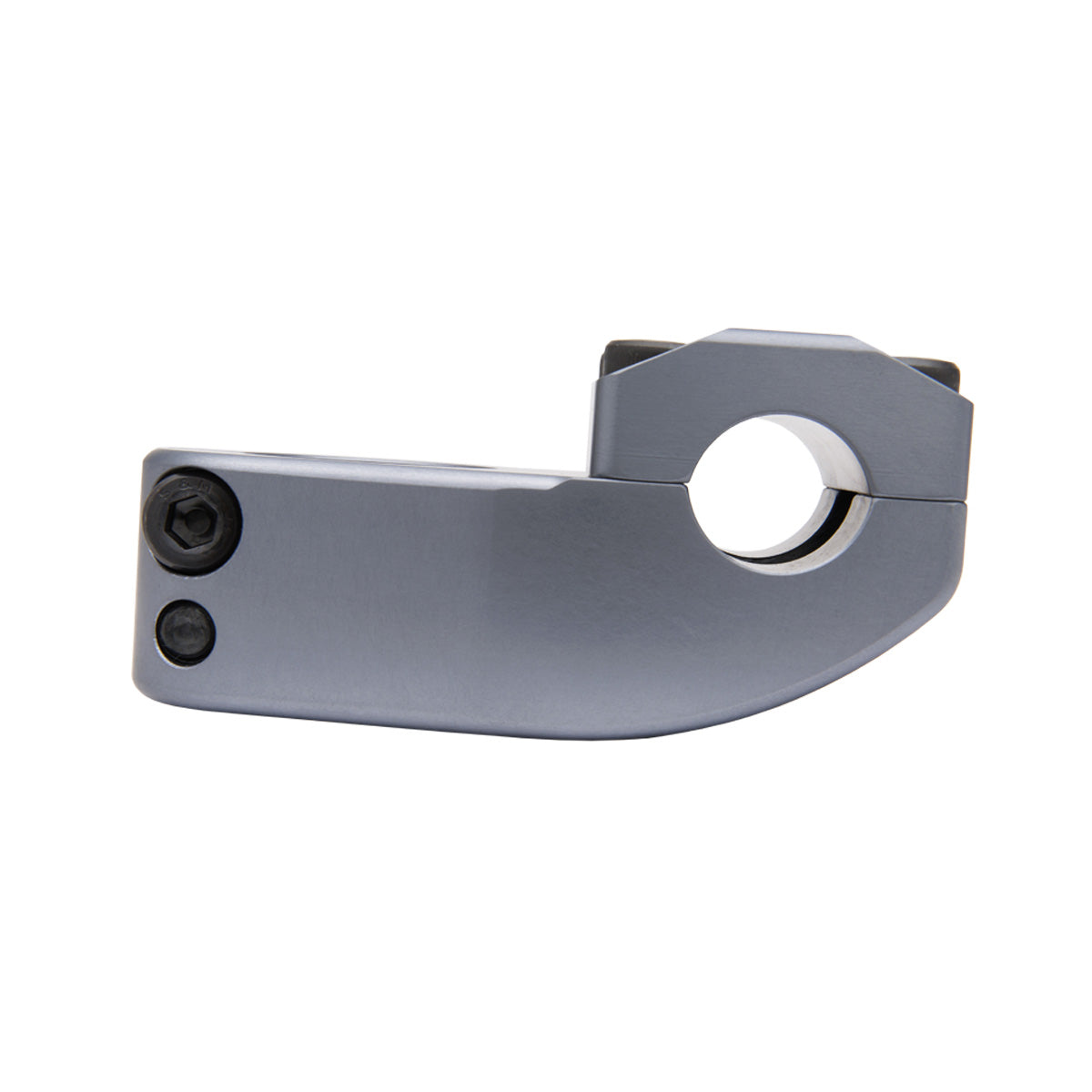

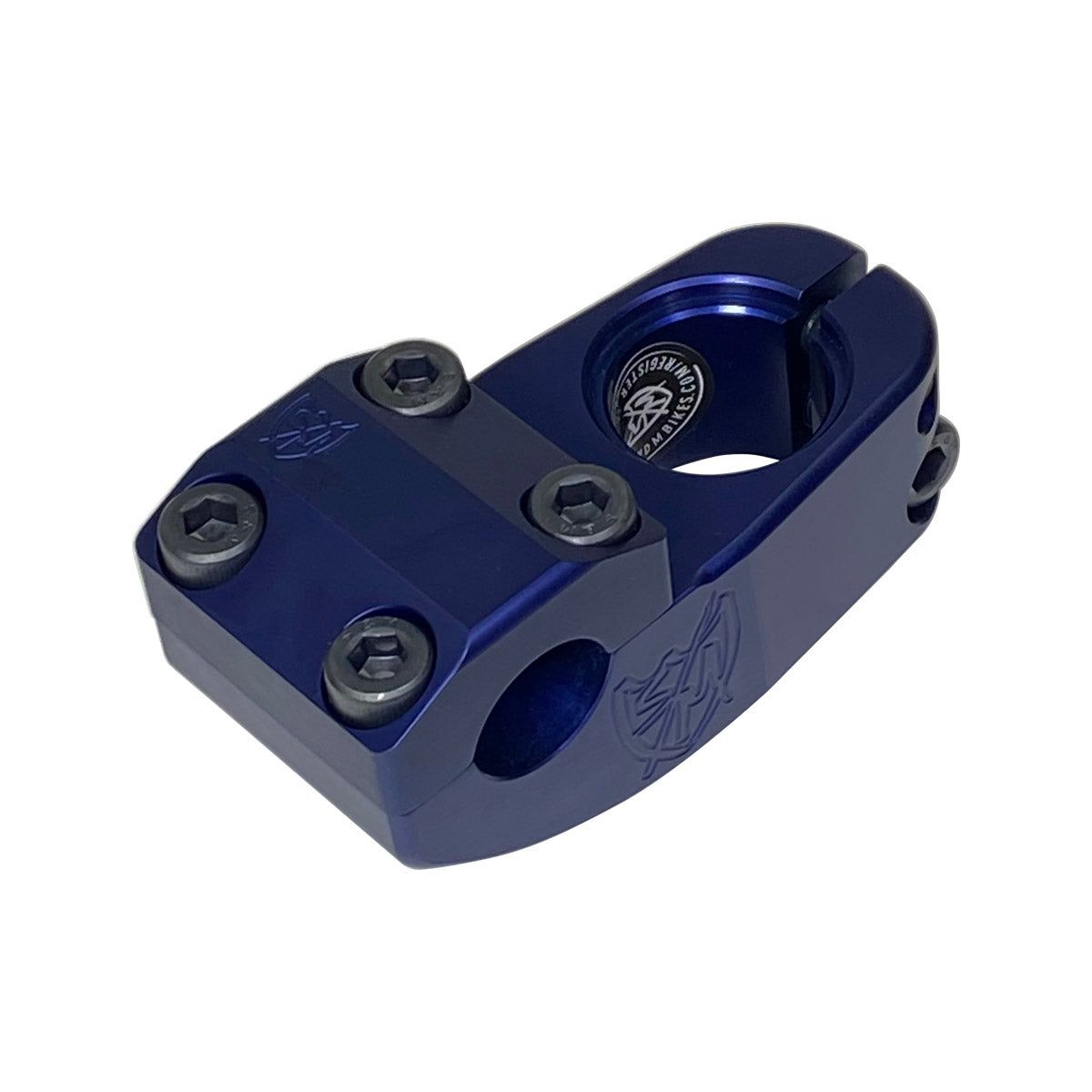

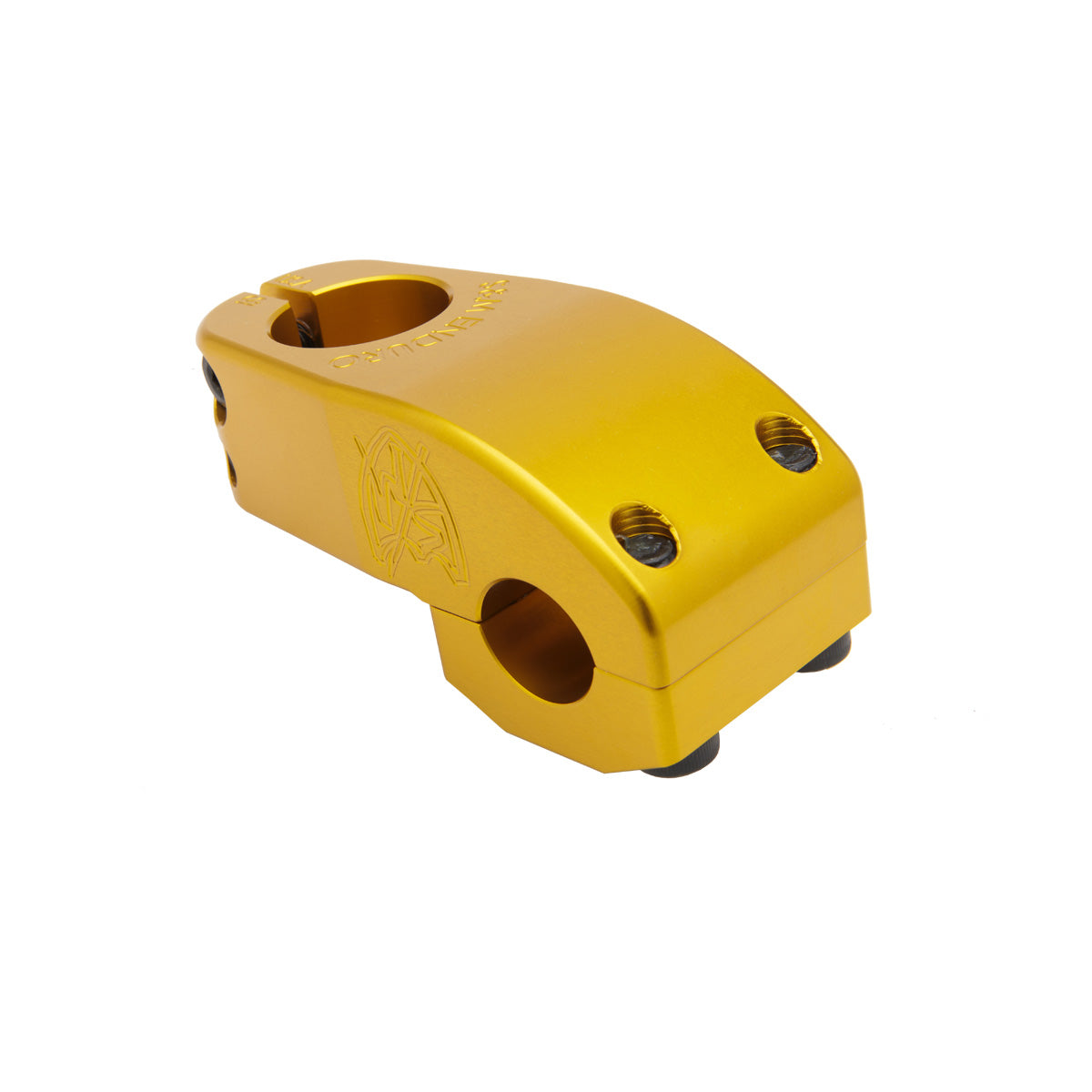

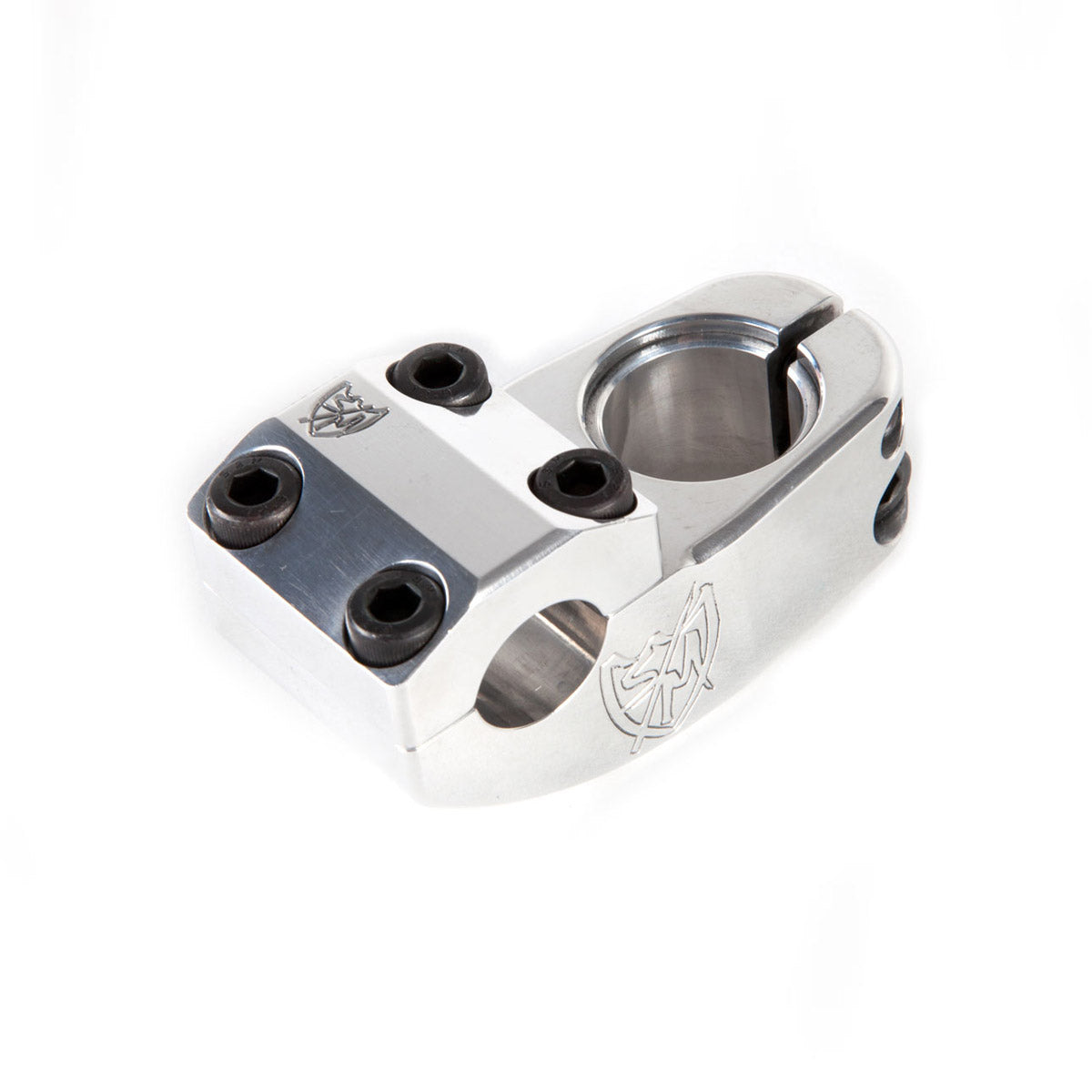

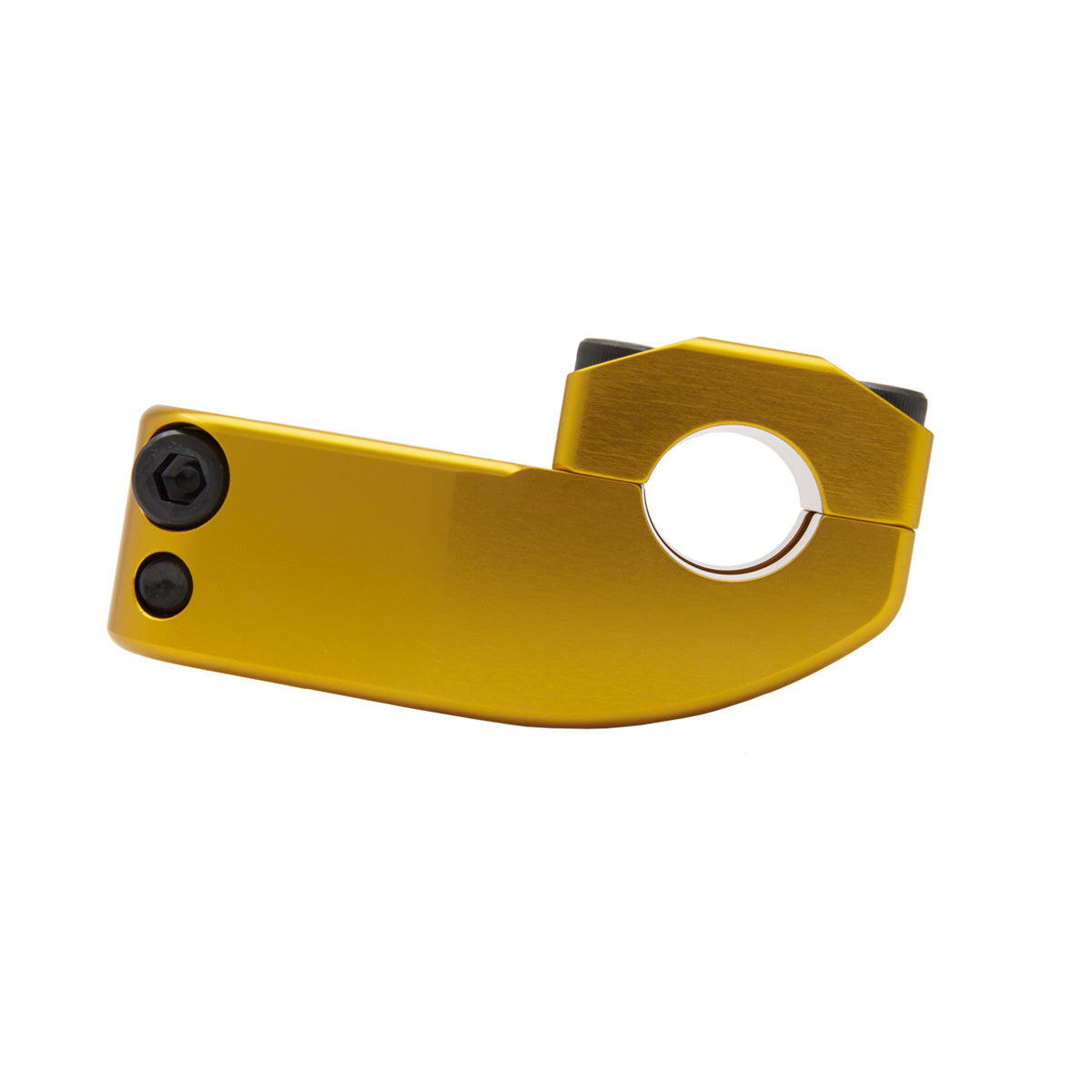

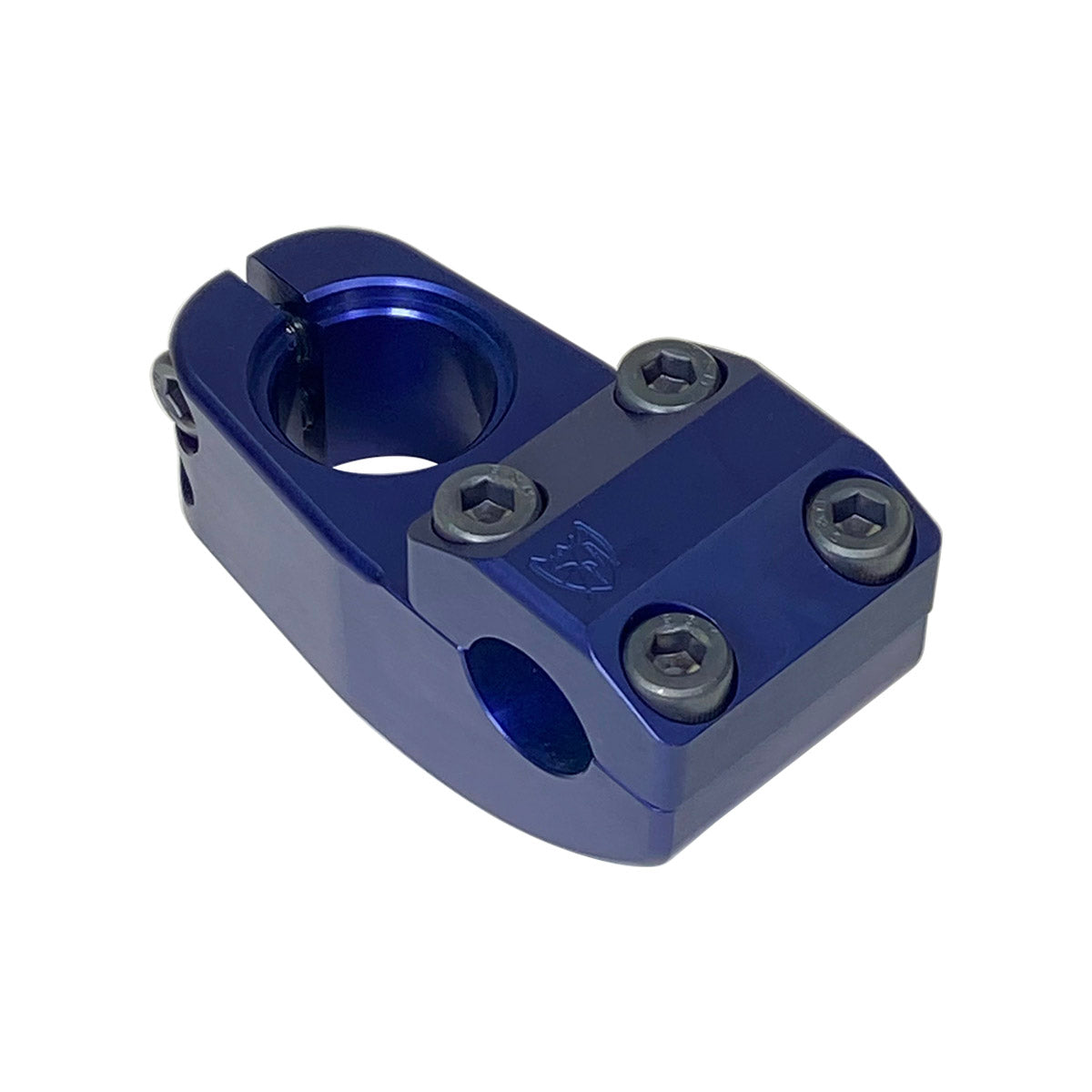

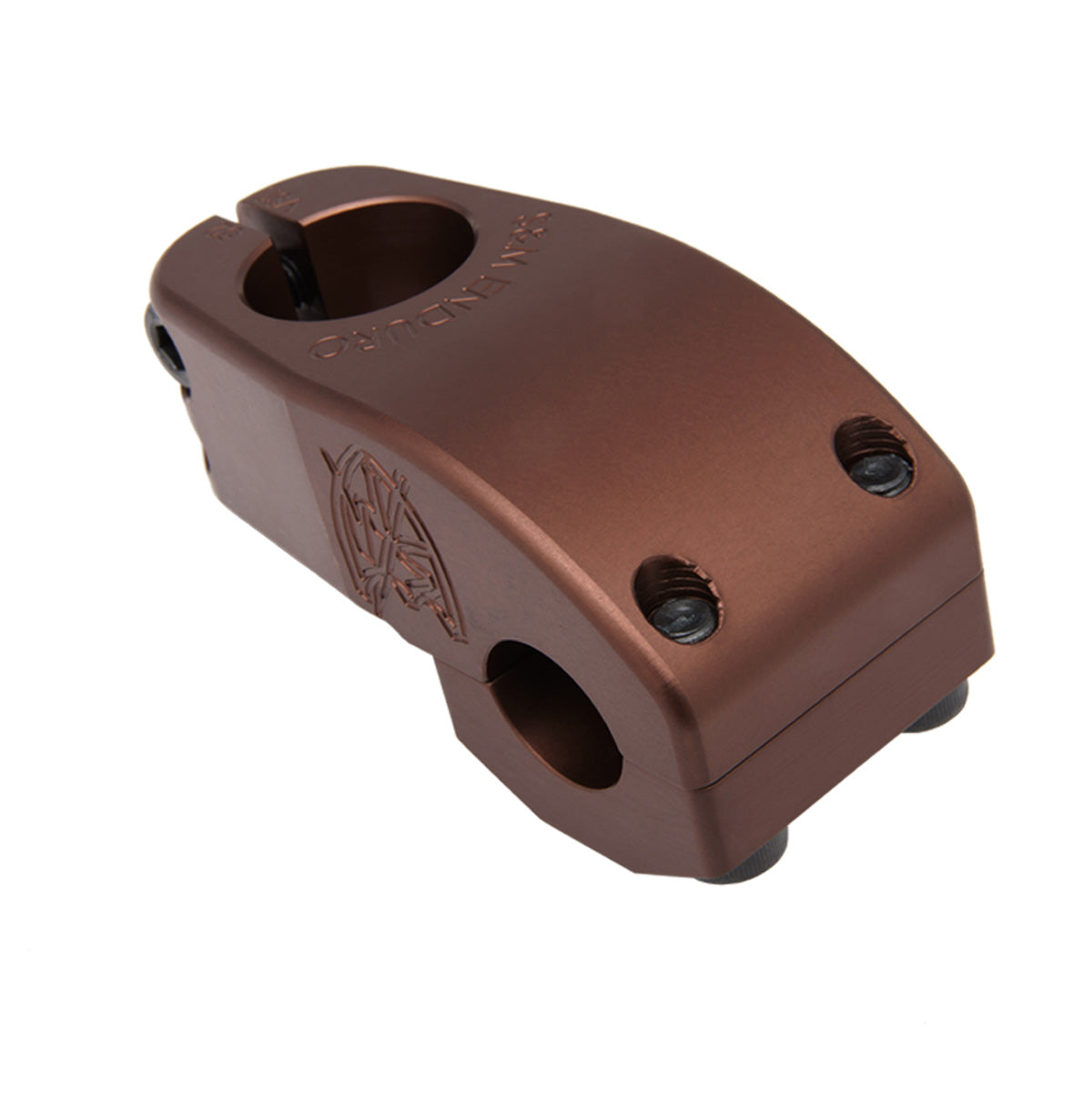

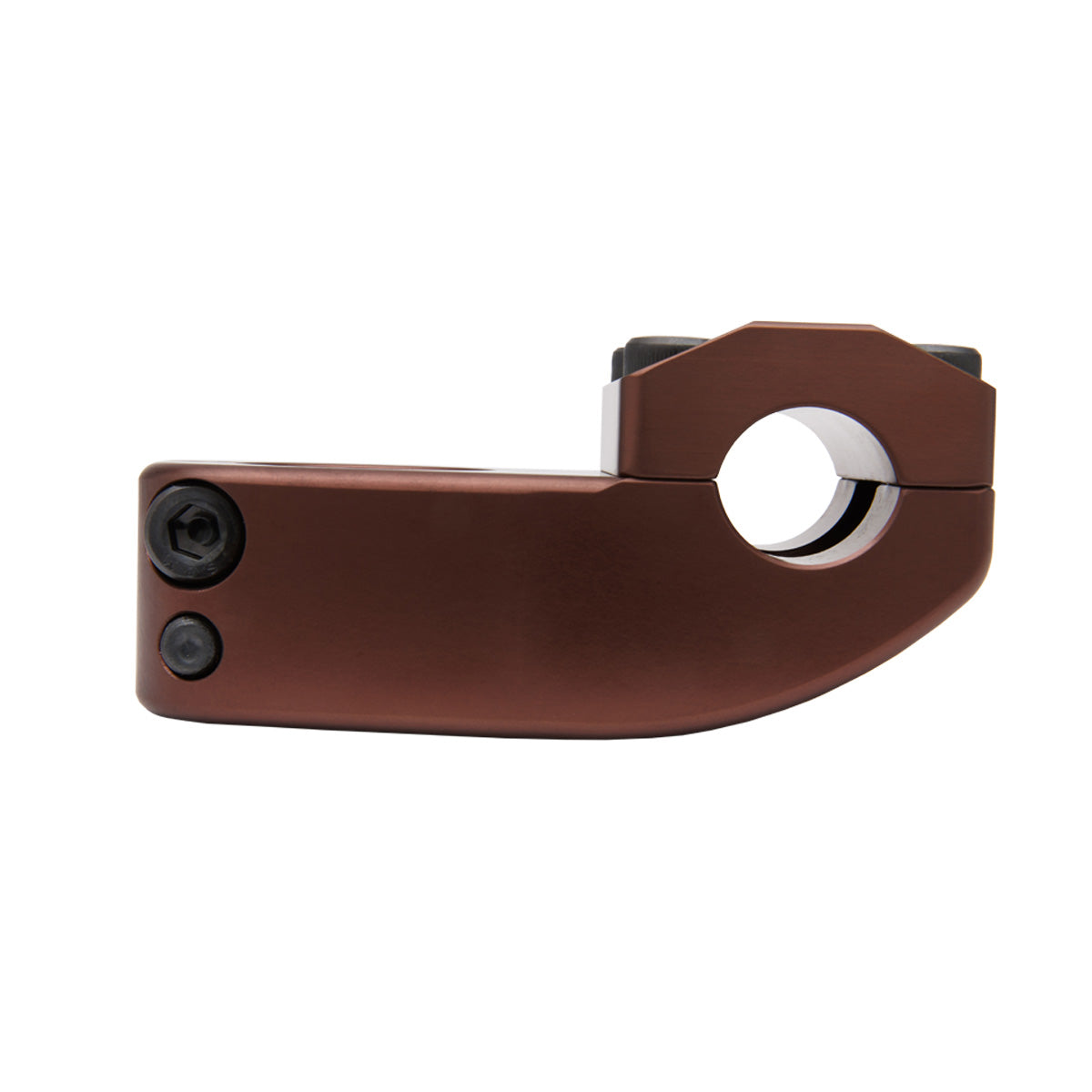

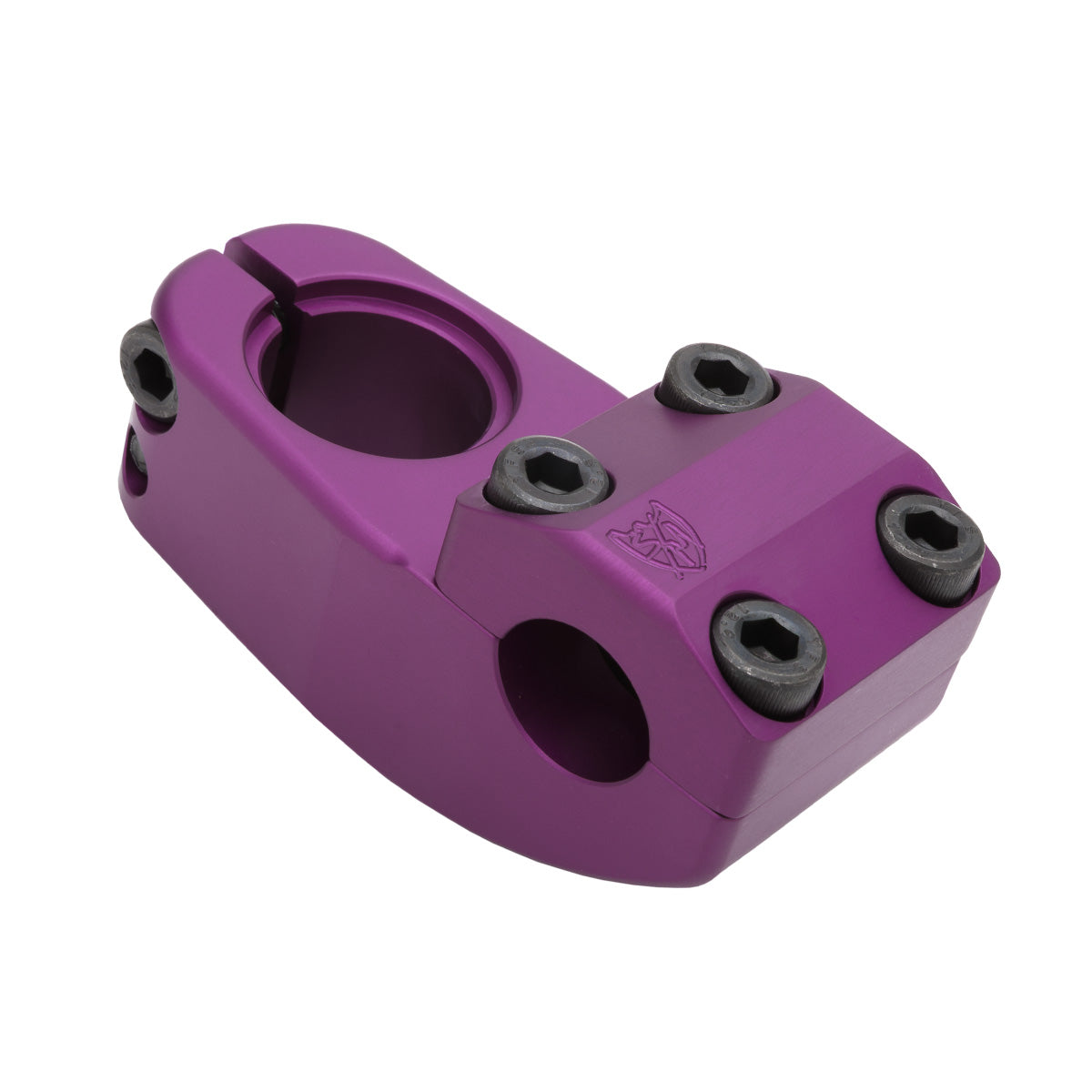

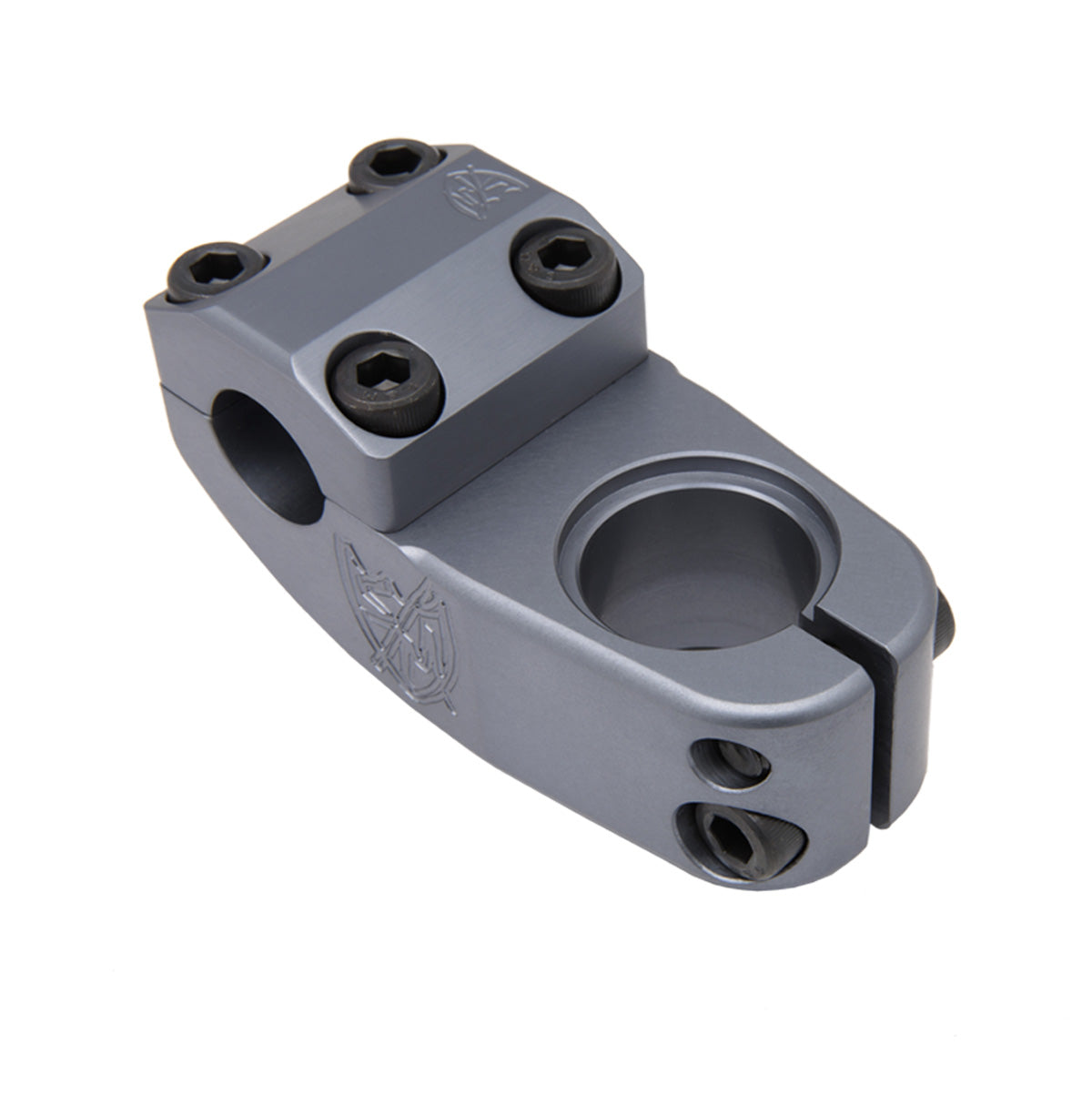

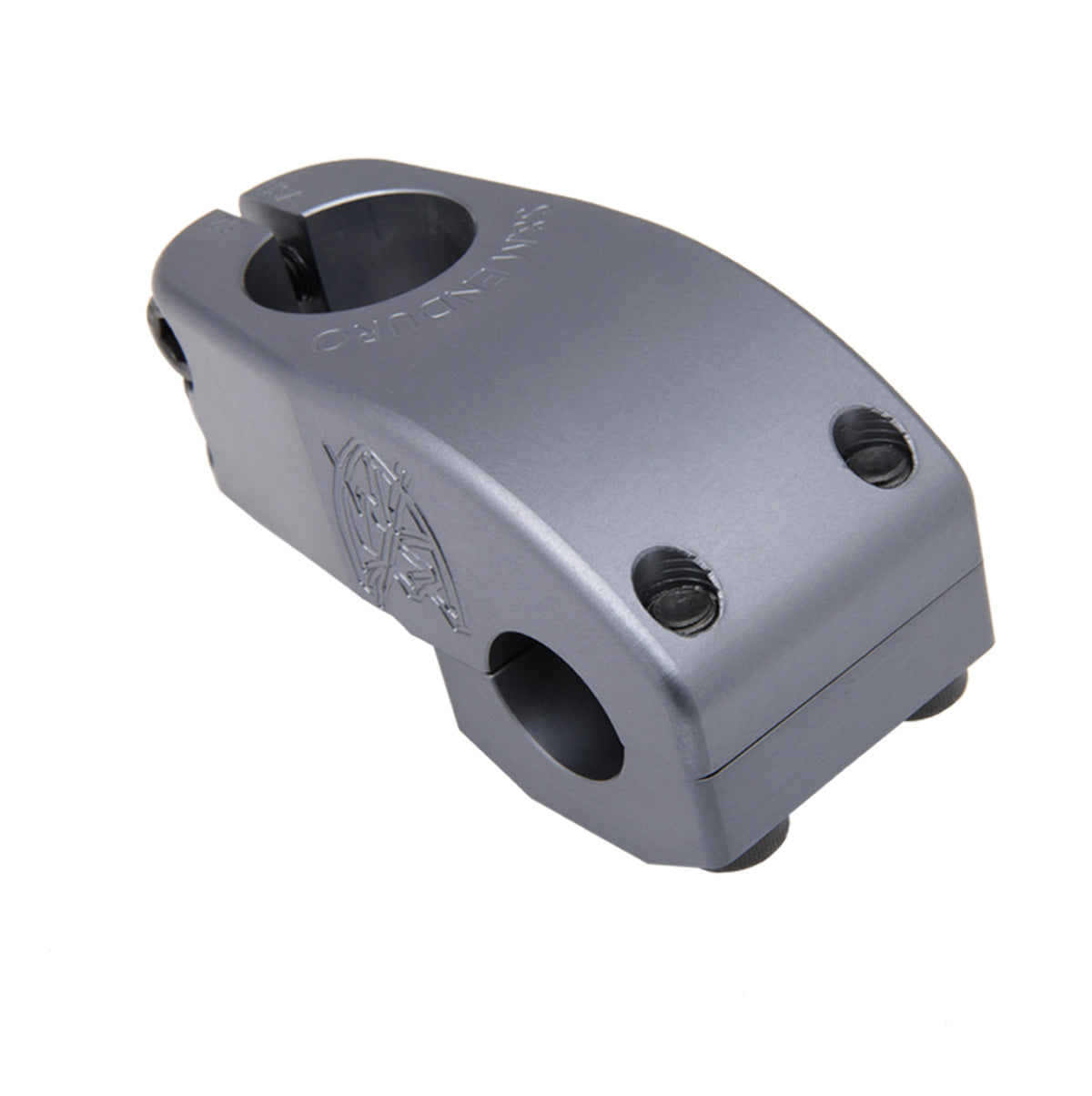

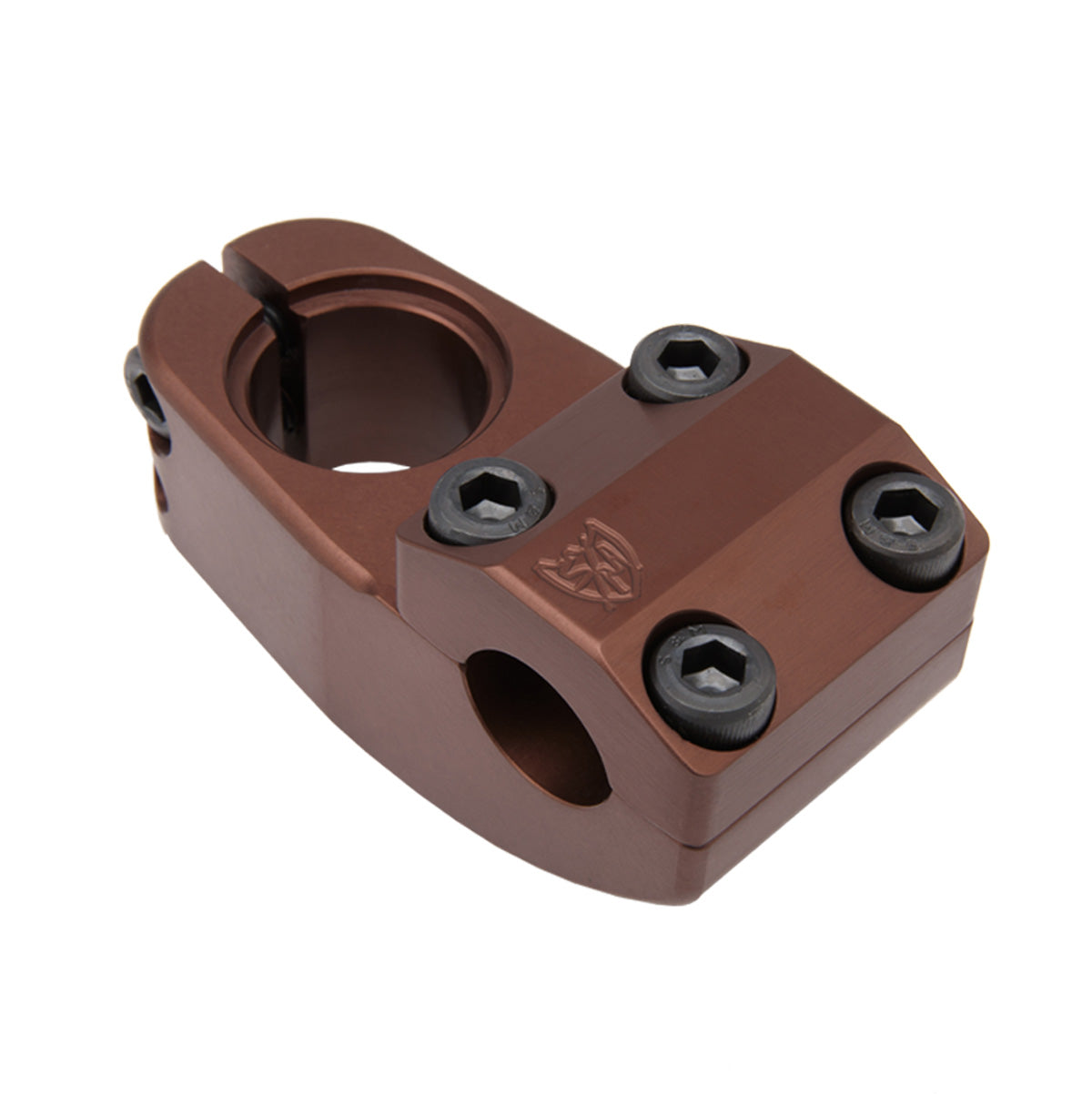

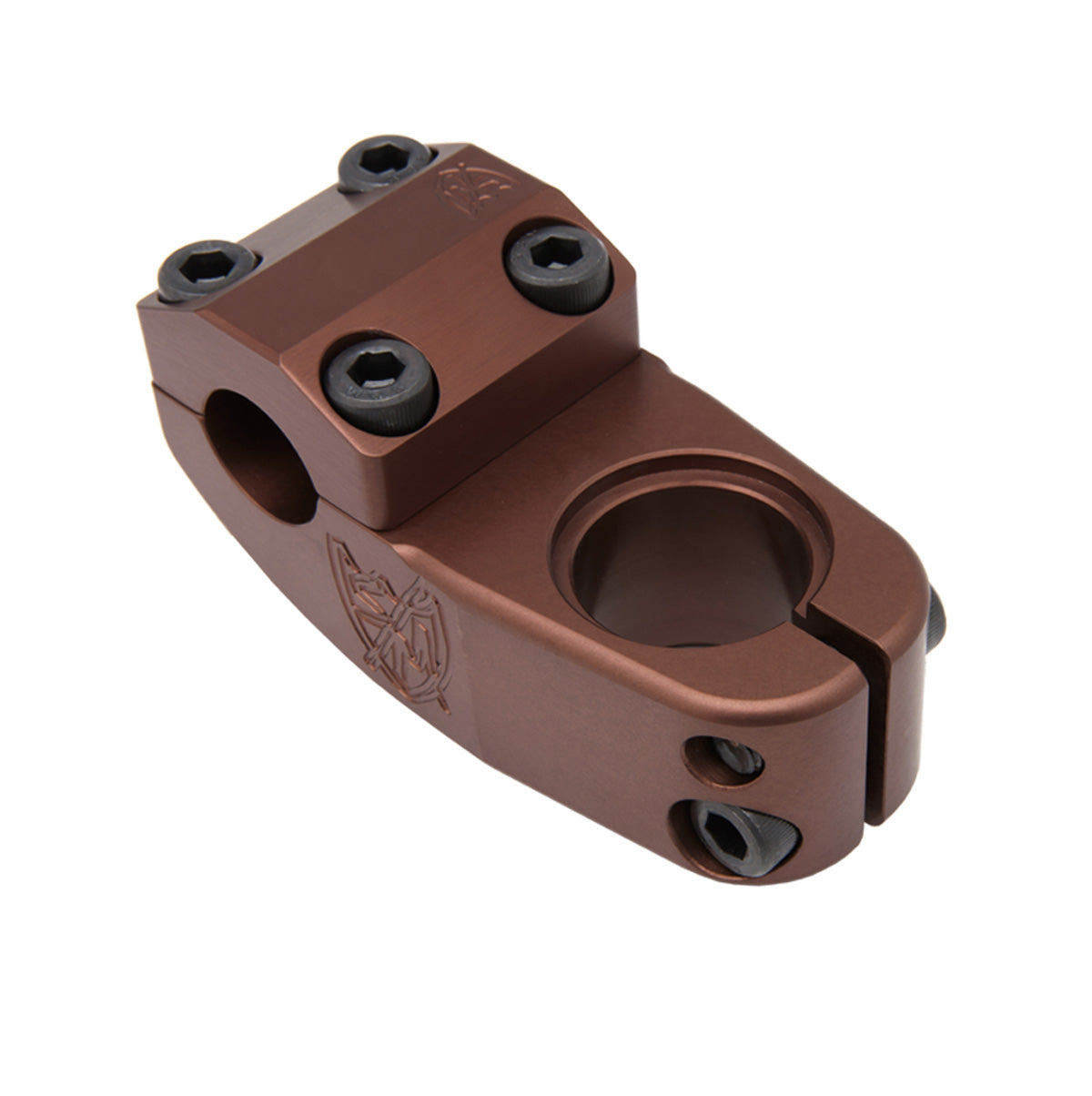

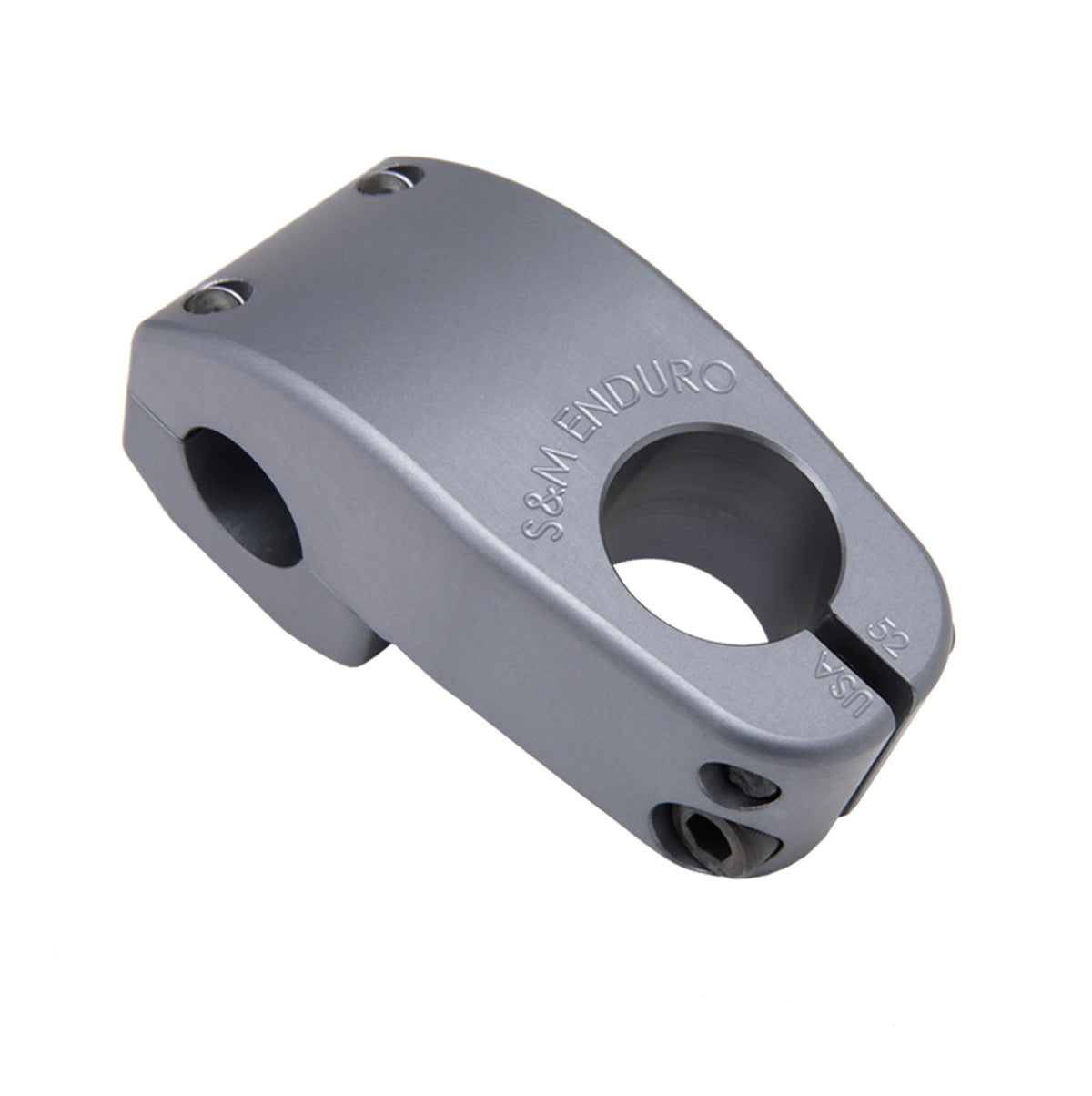

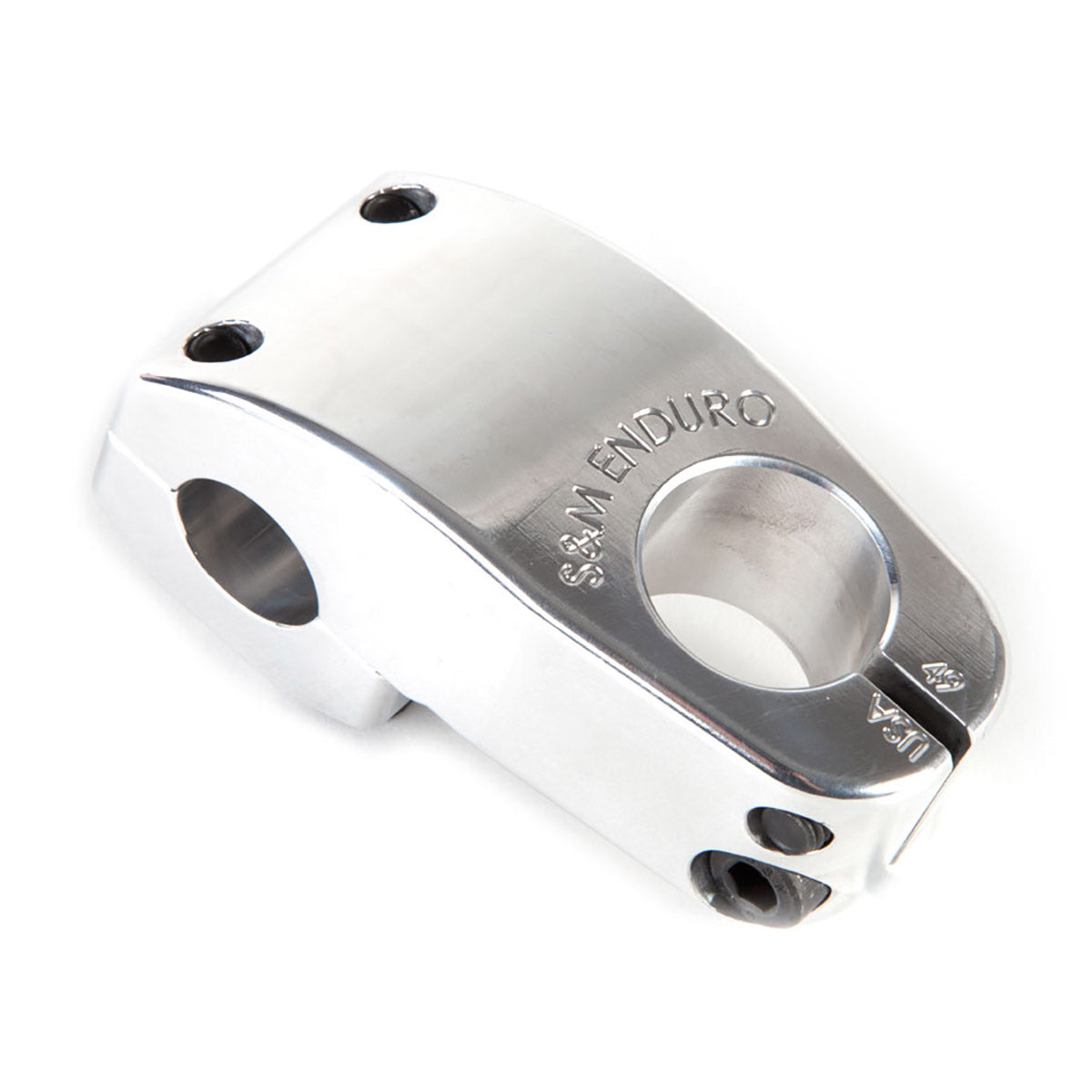

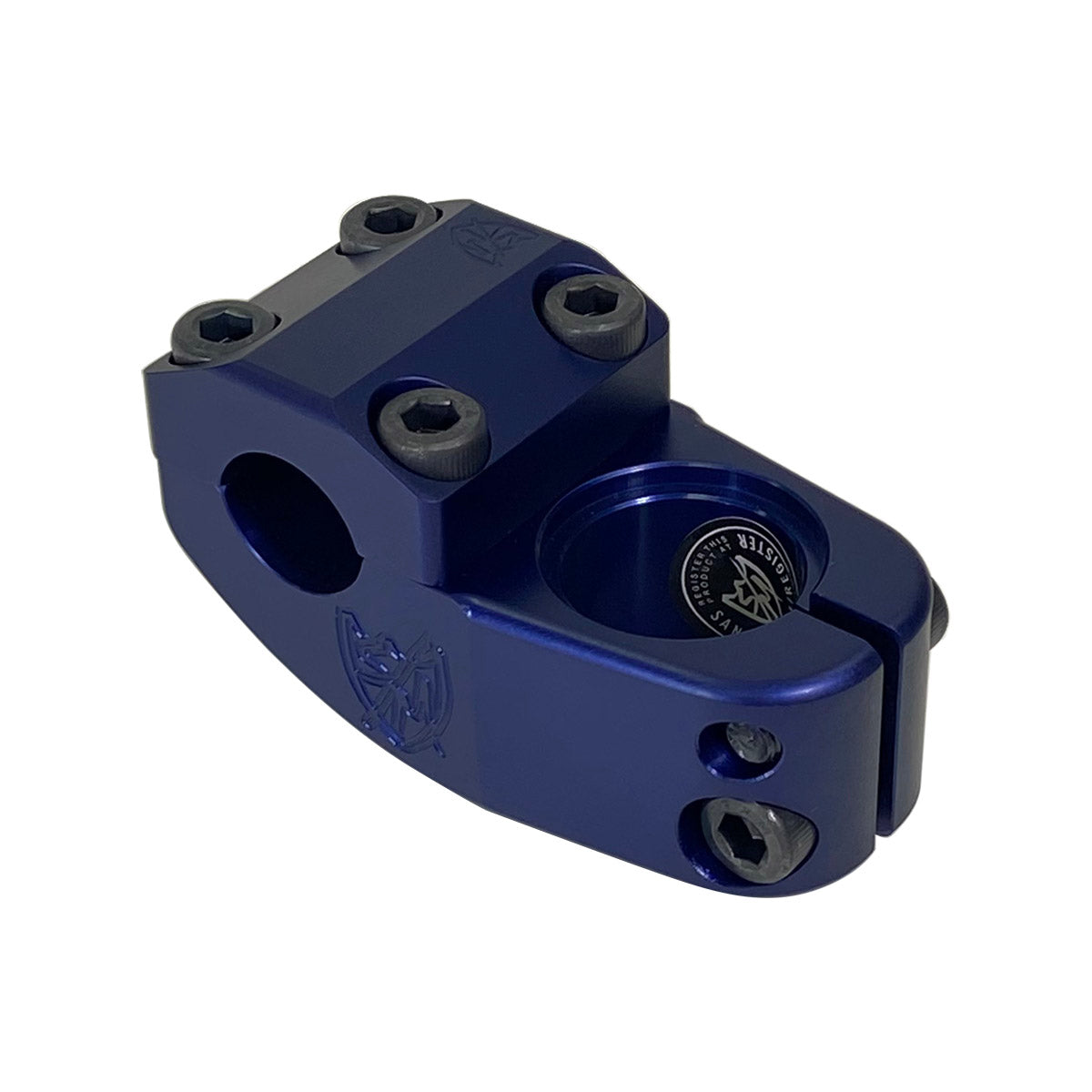

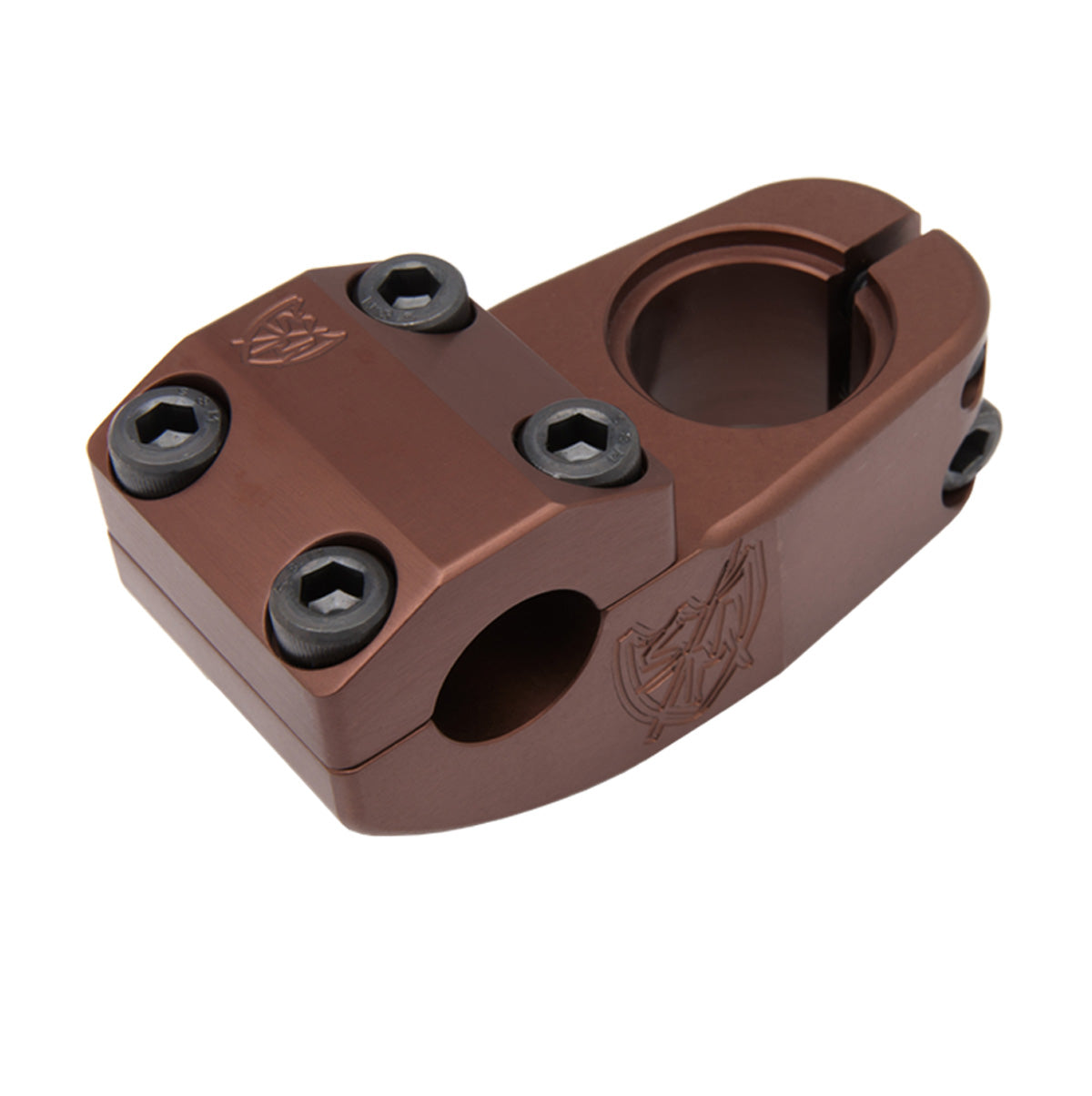

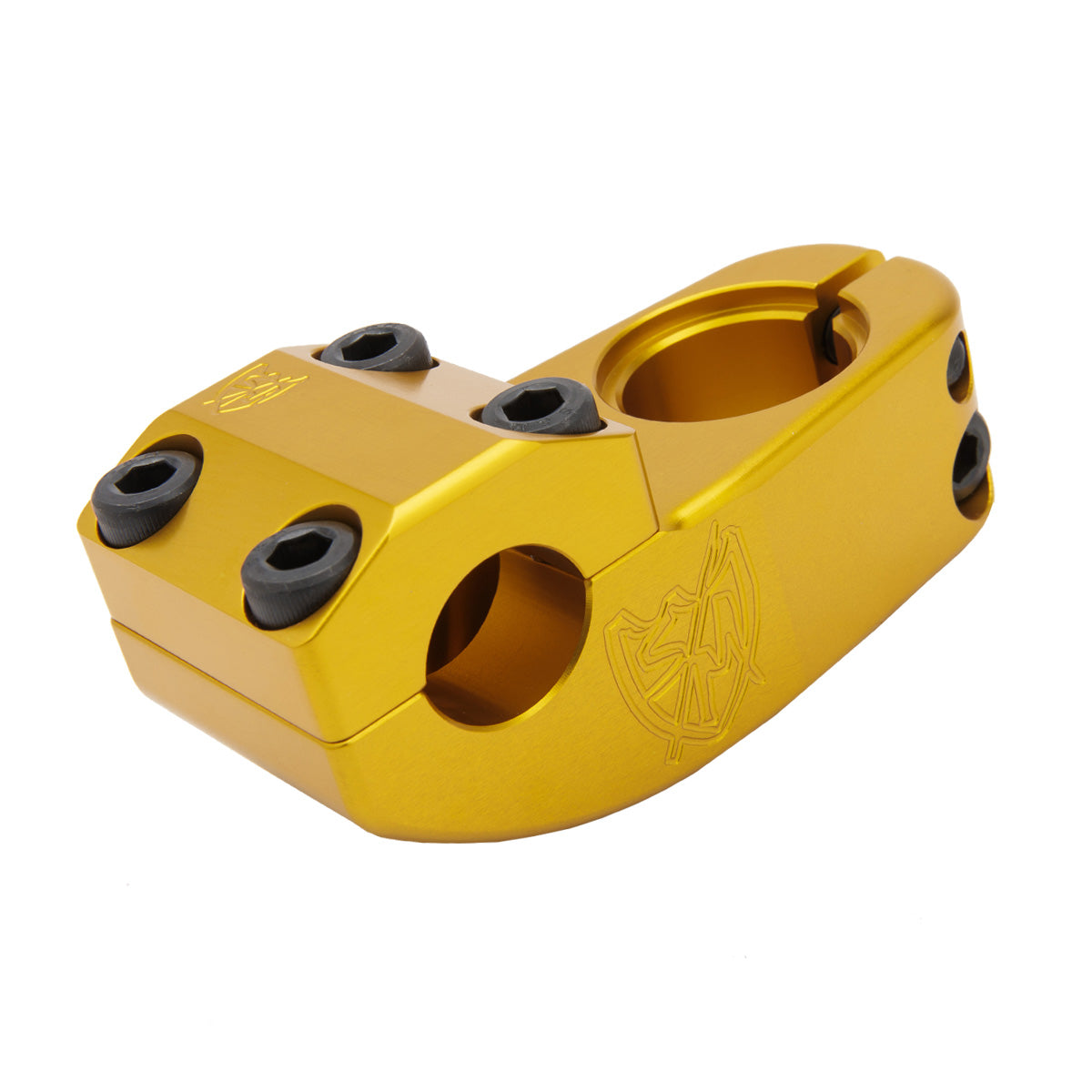

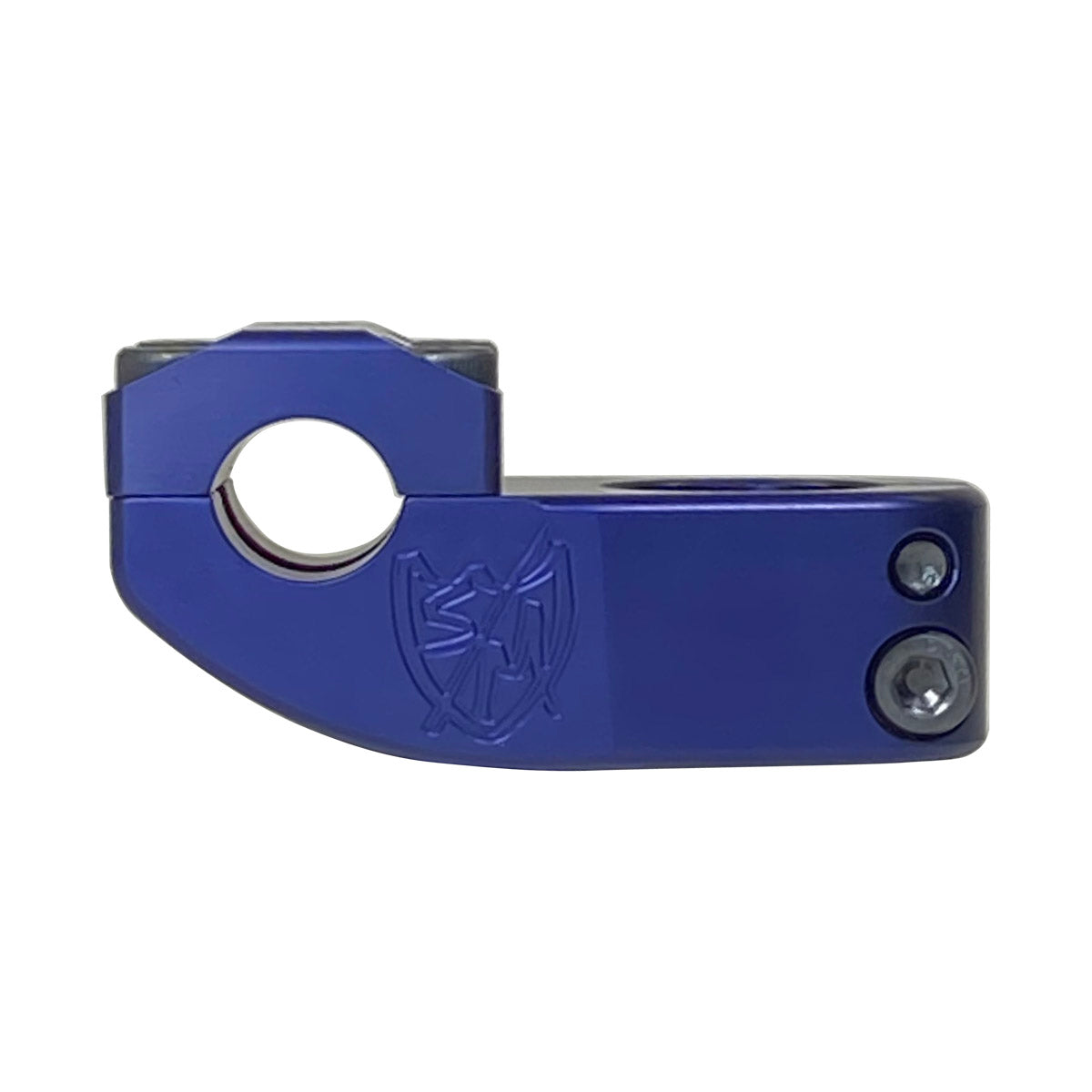

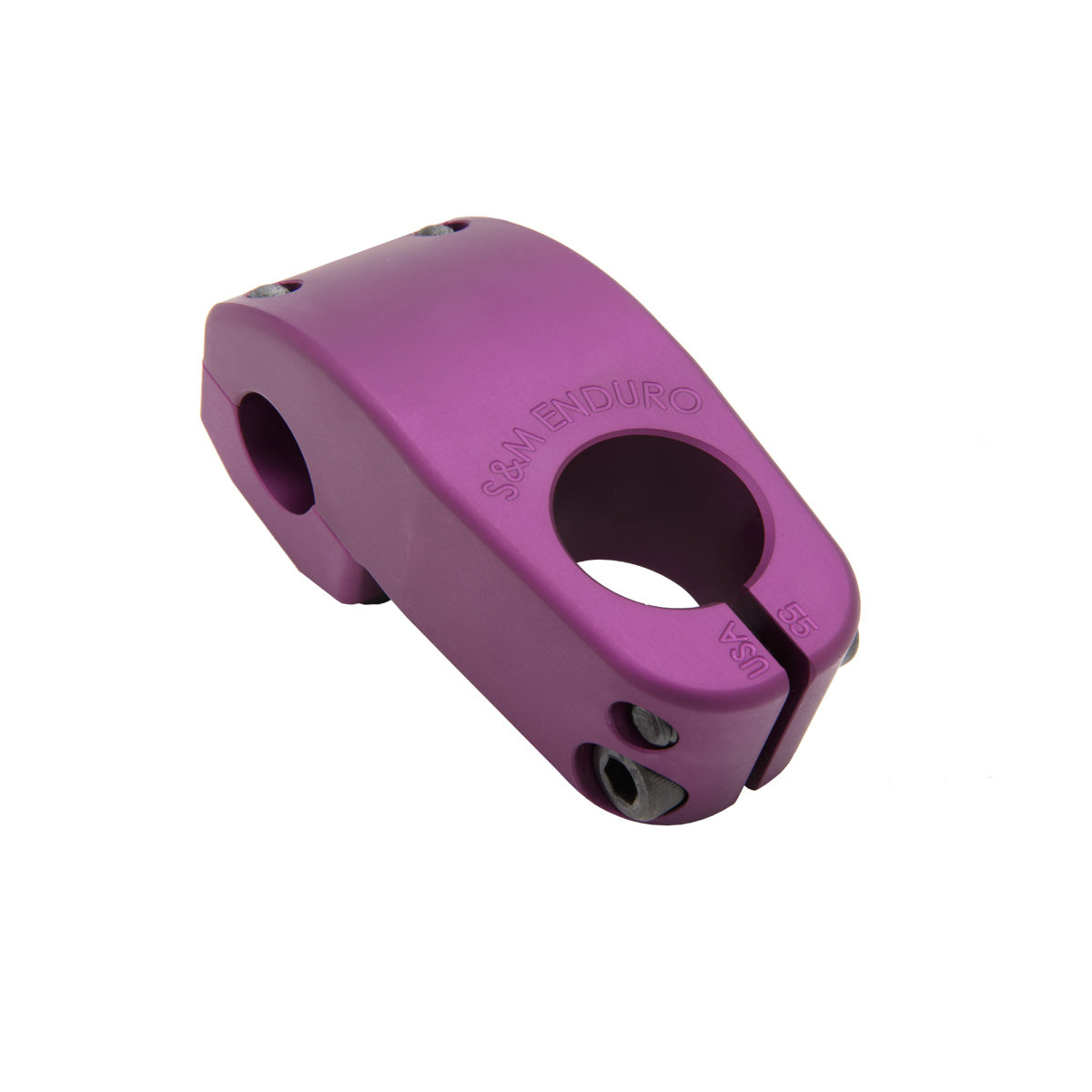

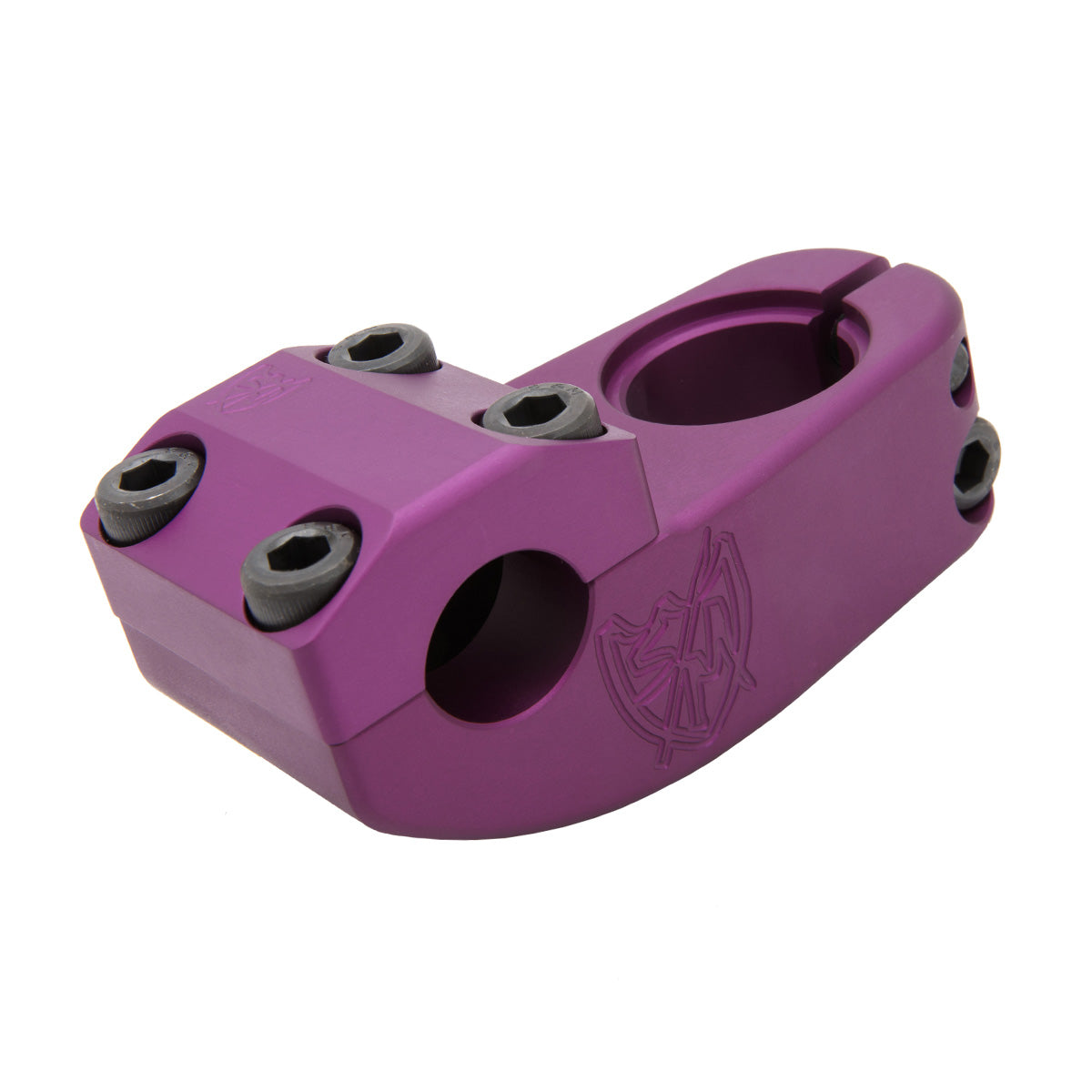

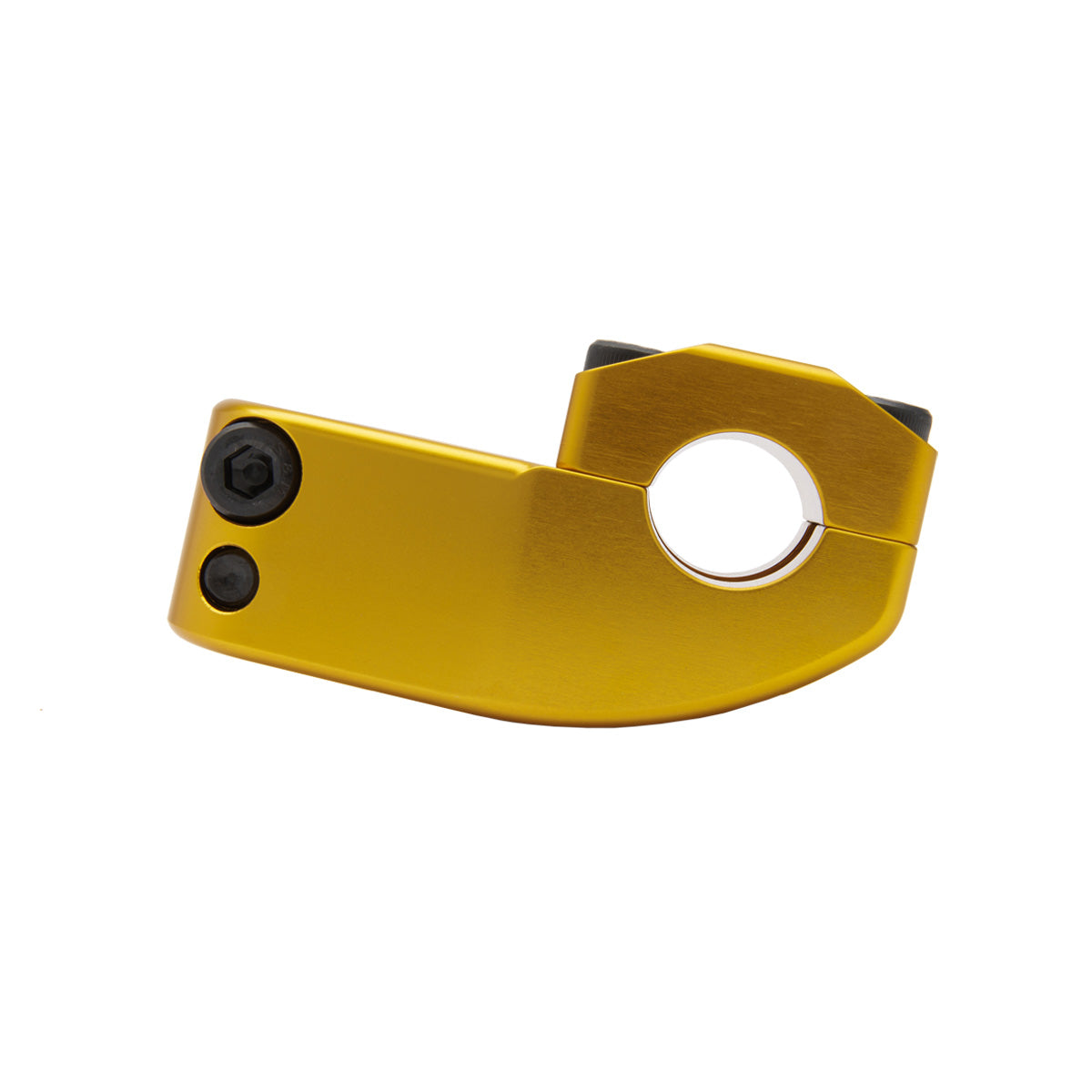

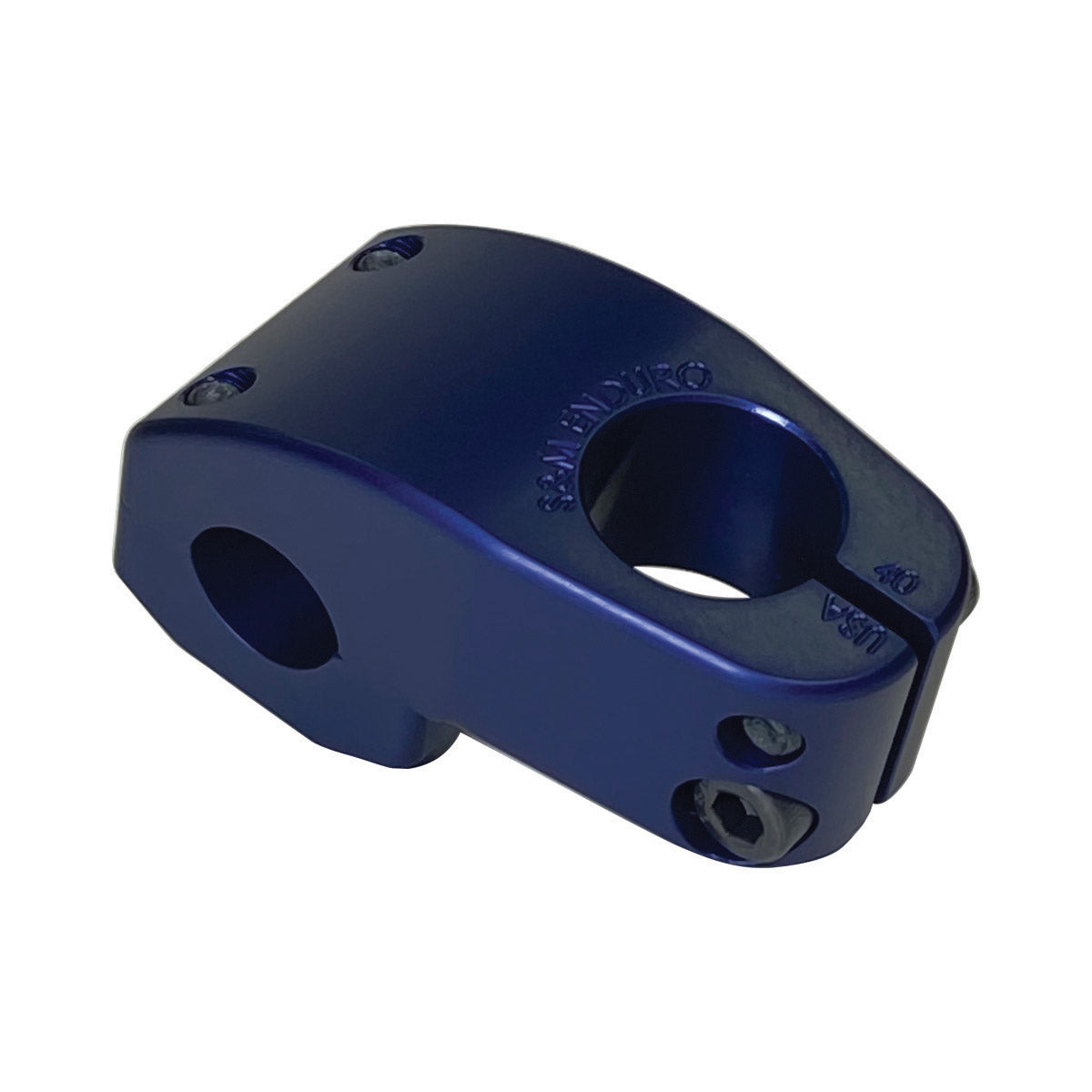

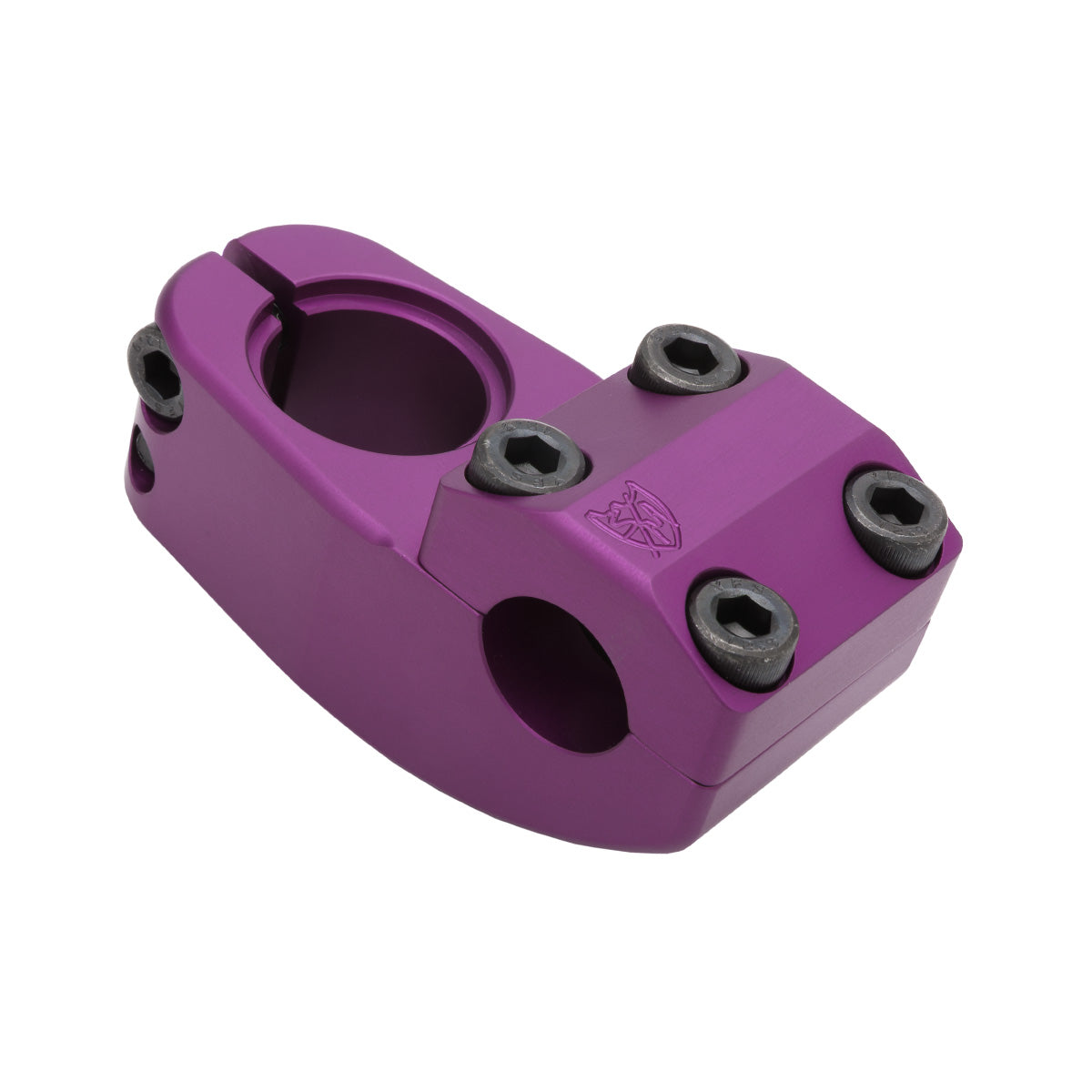

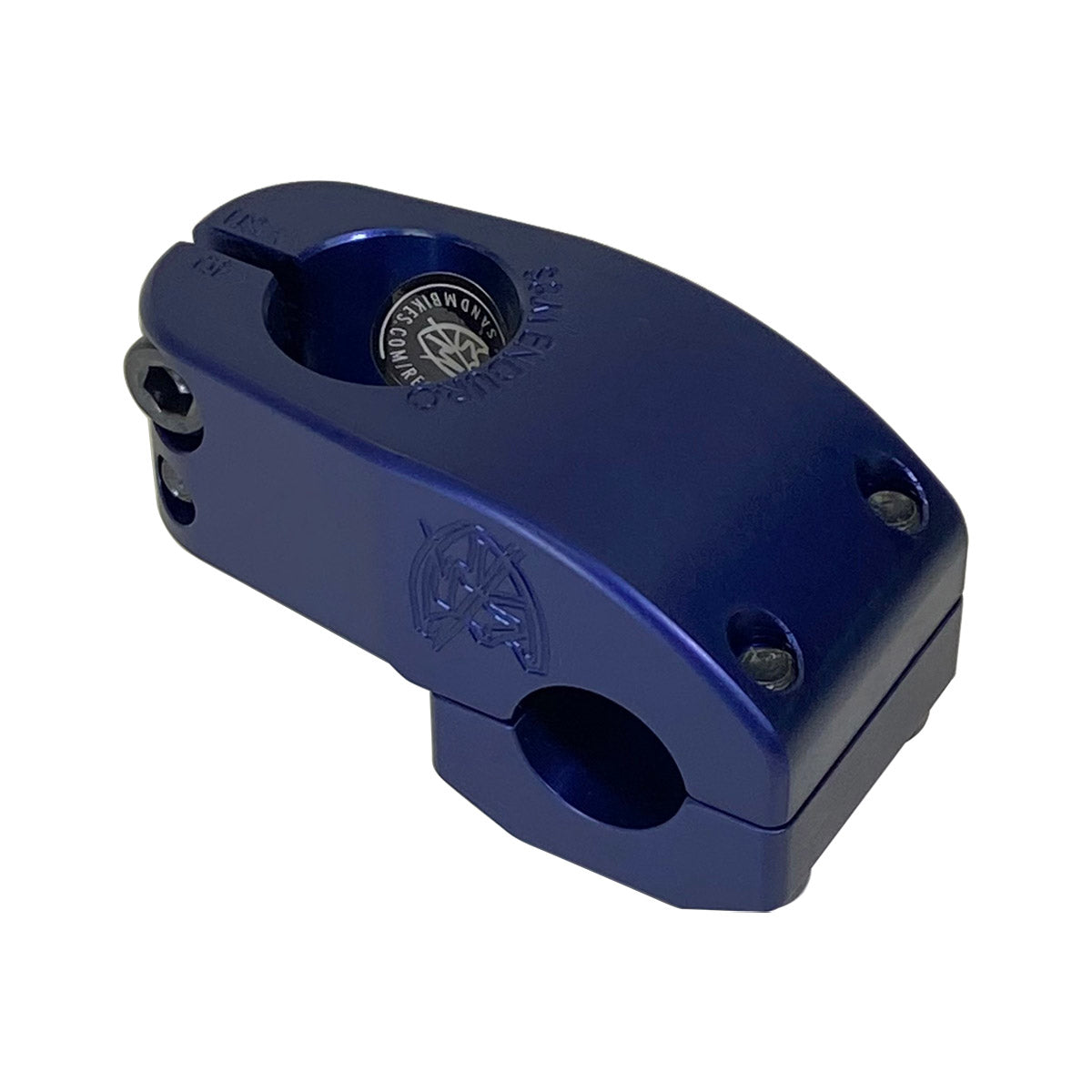

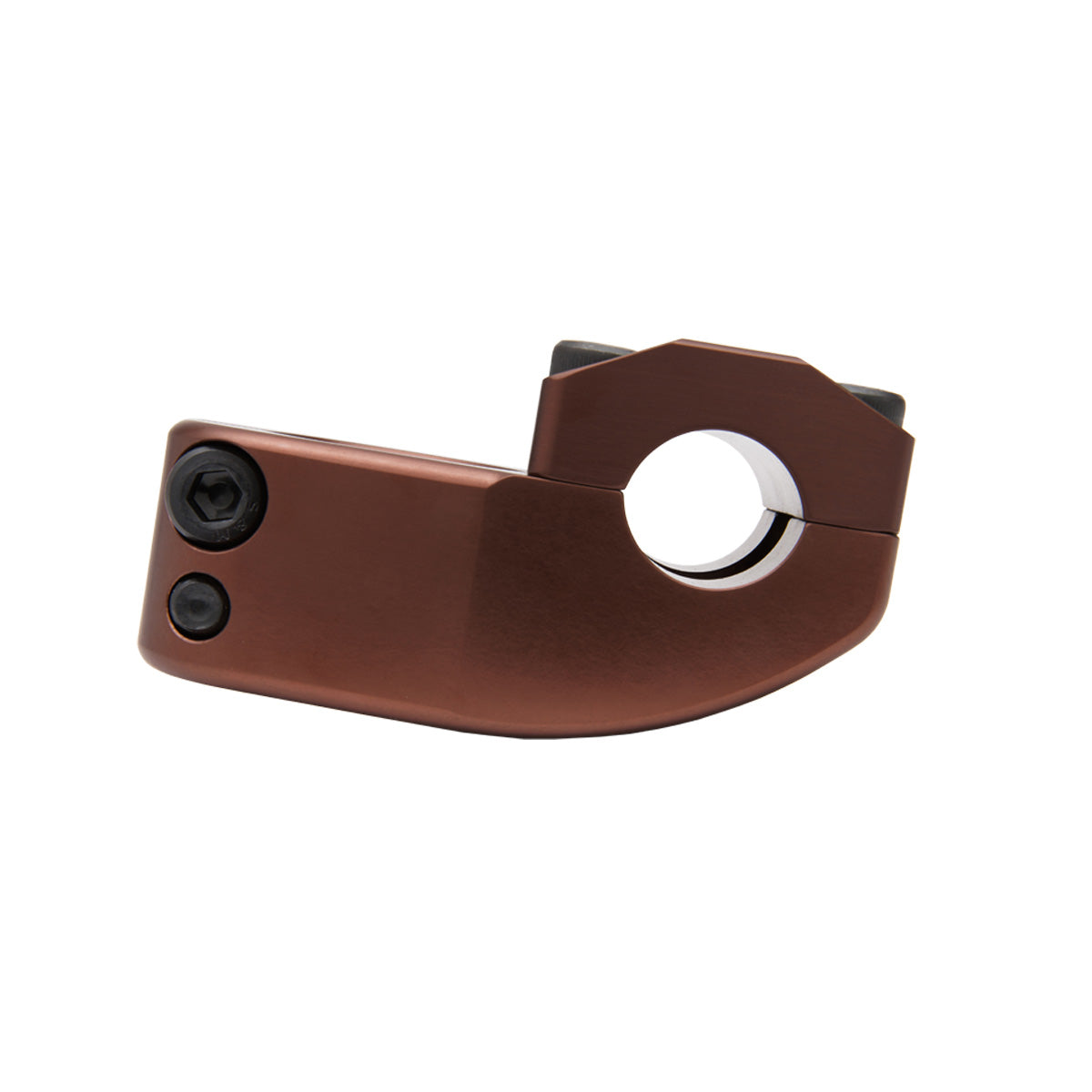

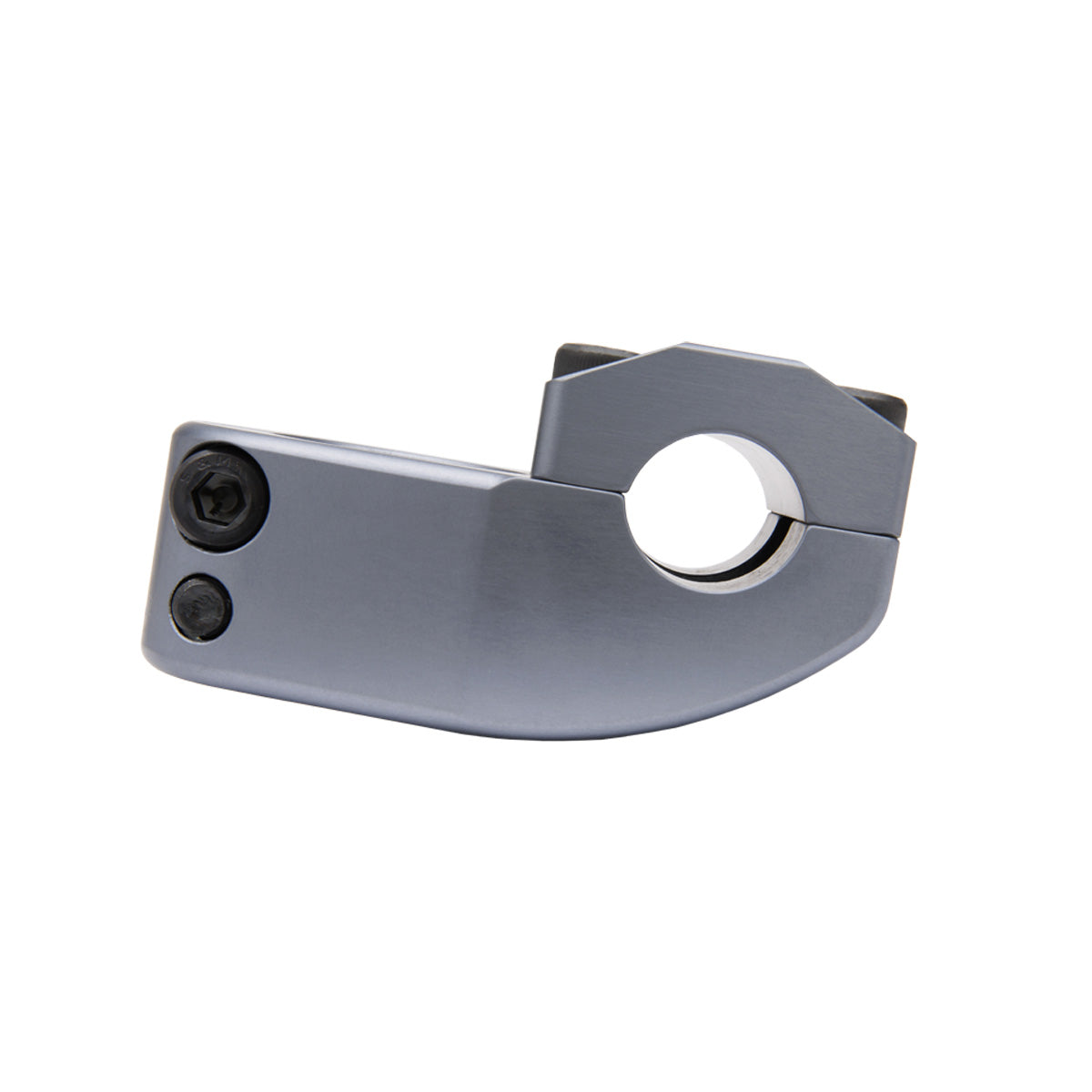

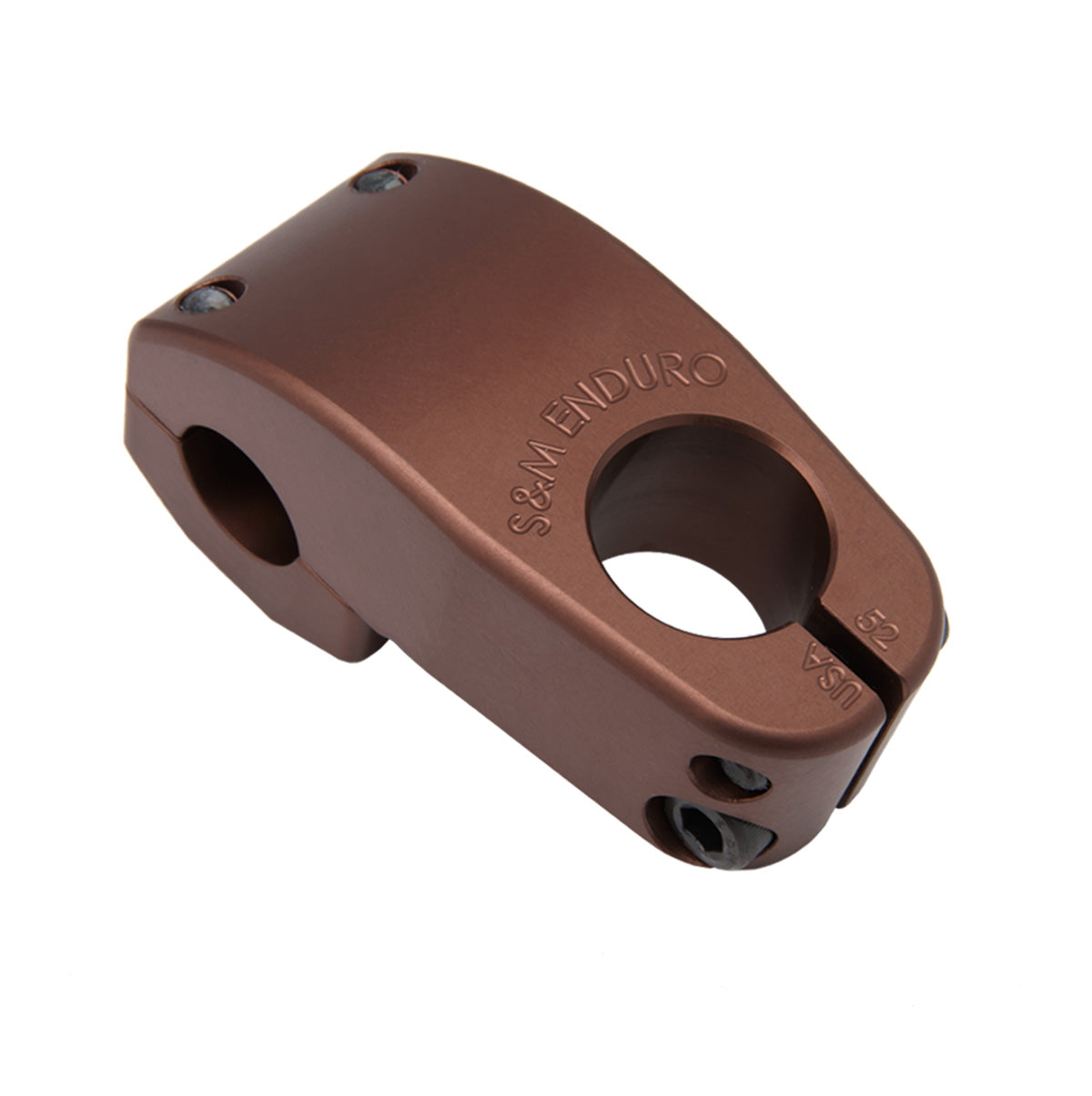

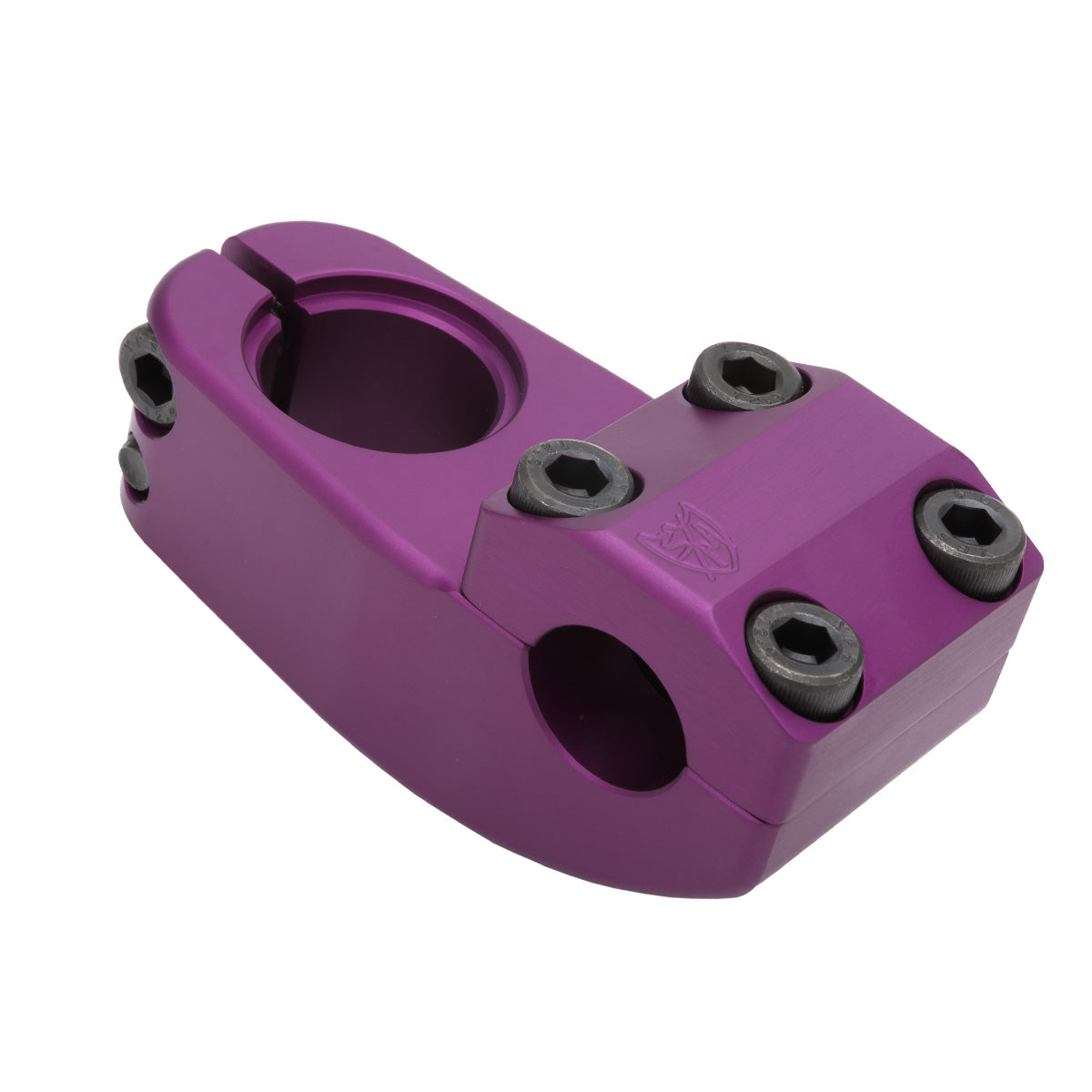

The Enduro V.2 is a CNC-machined top load stem with 34mm rise and available in four reach options (40mm, 49mm, 52mm, 55mm). Features internal machining for weight reduction, counter-bored top cap area for clean fork cap mounting, and engraved S&M Shield logos. Made in the USA and available in seven color options.

Key Features

• 34mm rise in standard orientation – Positions bars higher for upright riding position; can be inverted for 0mm rise when lower bar height is needed

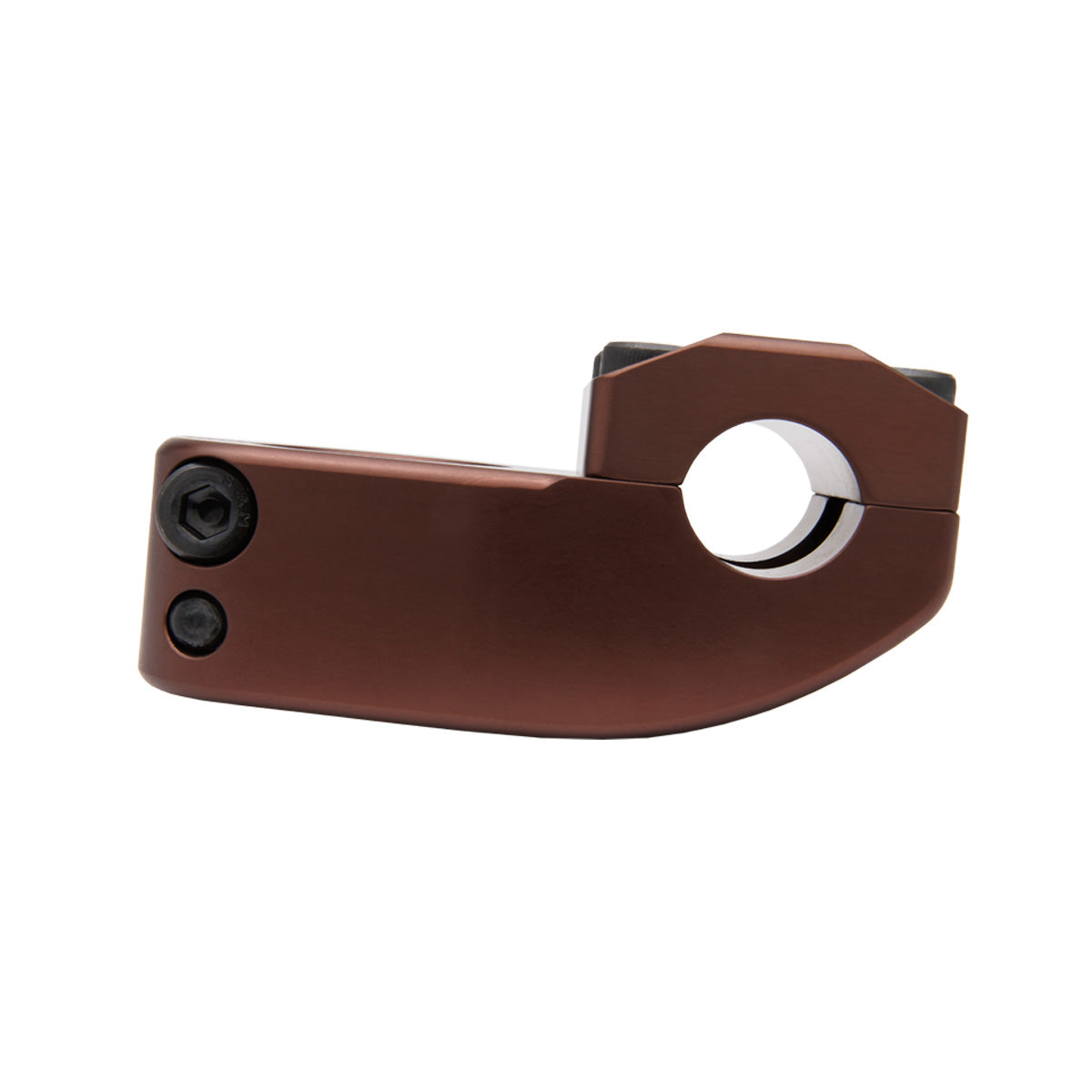

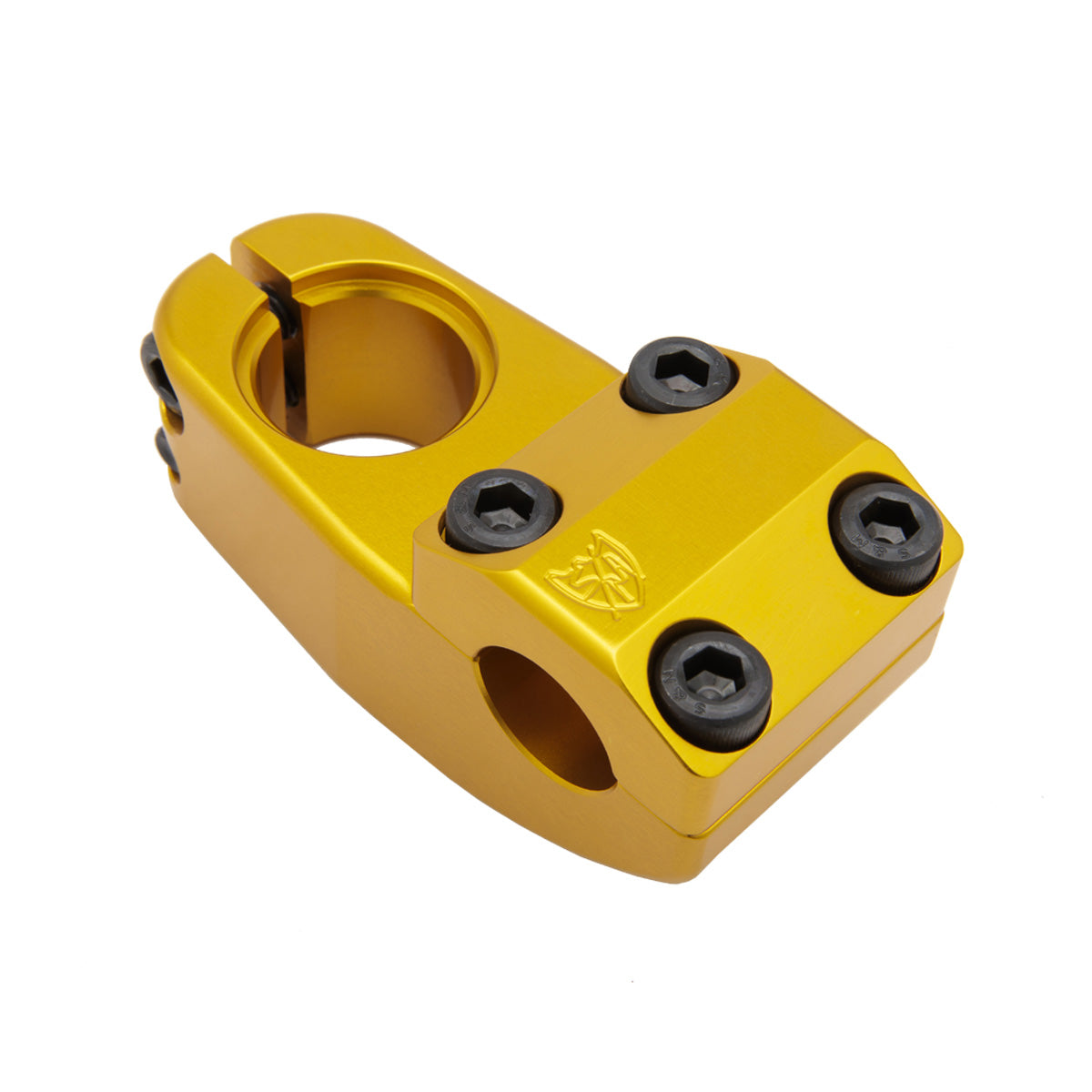

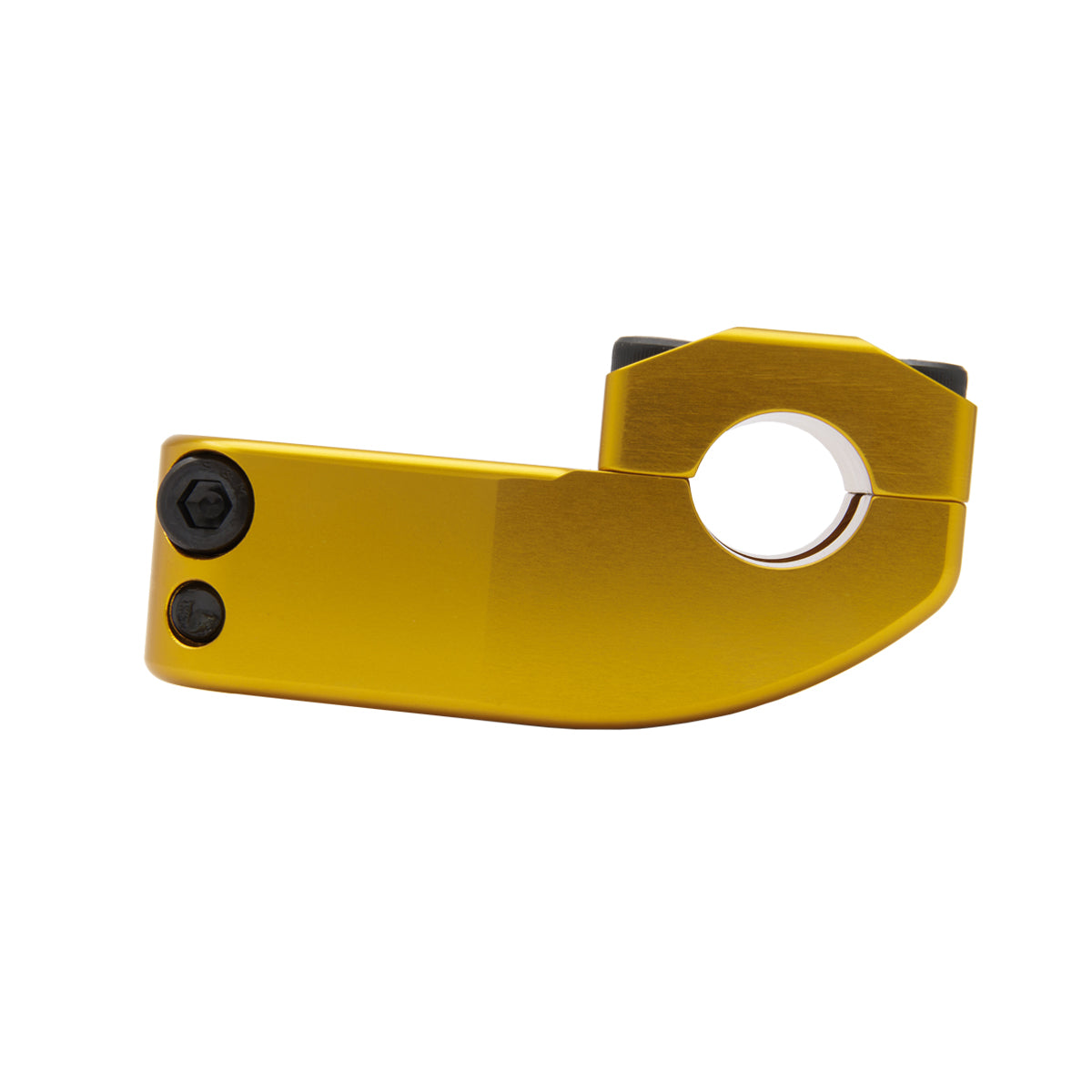

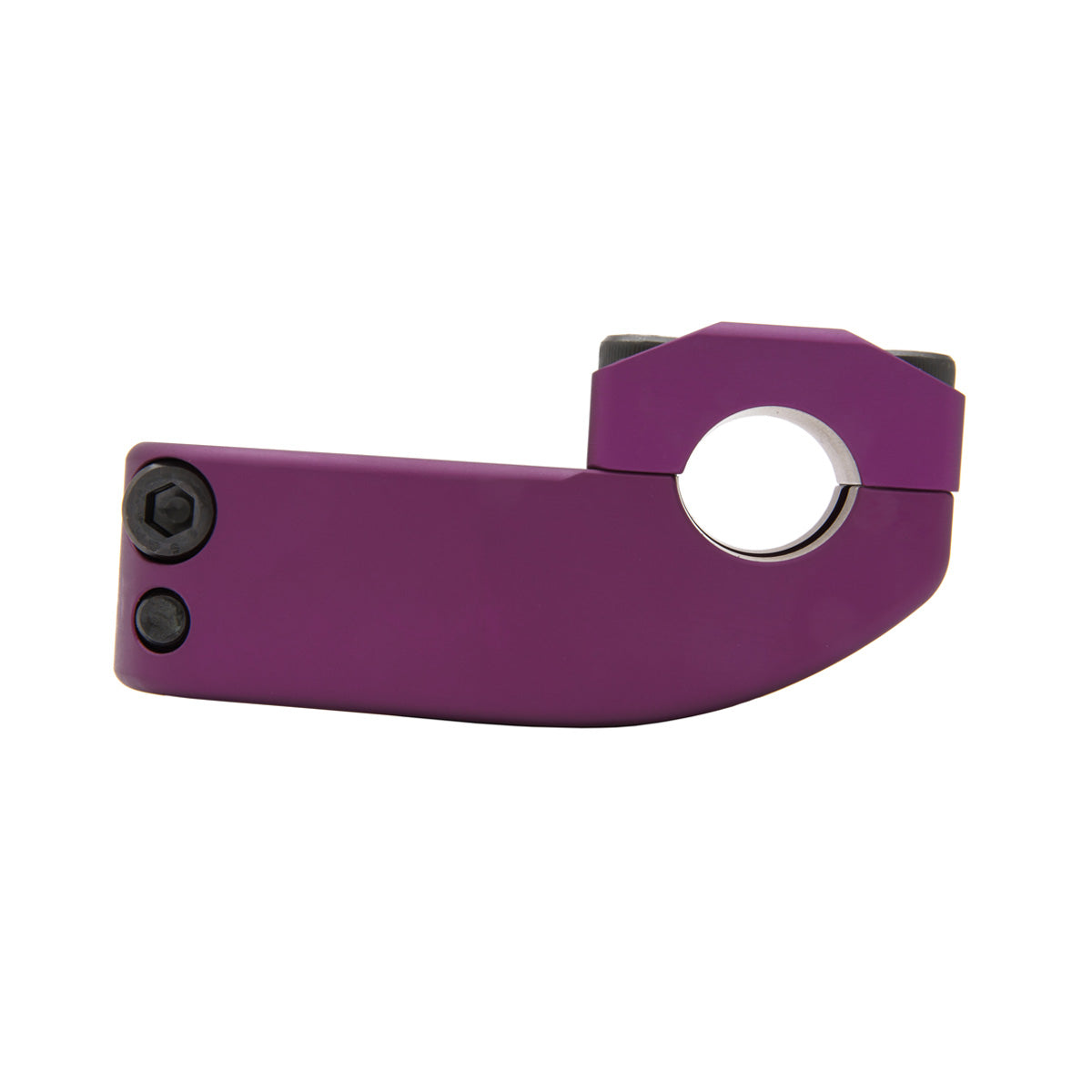

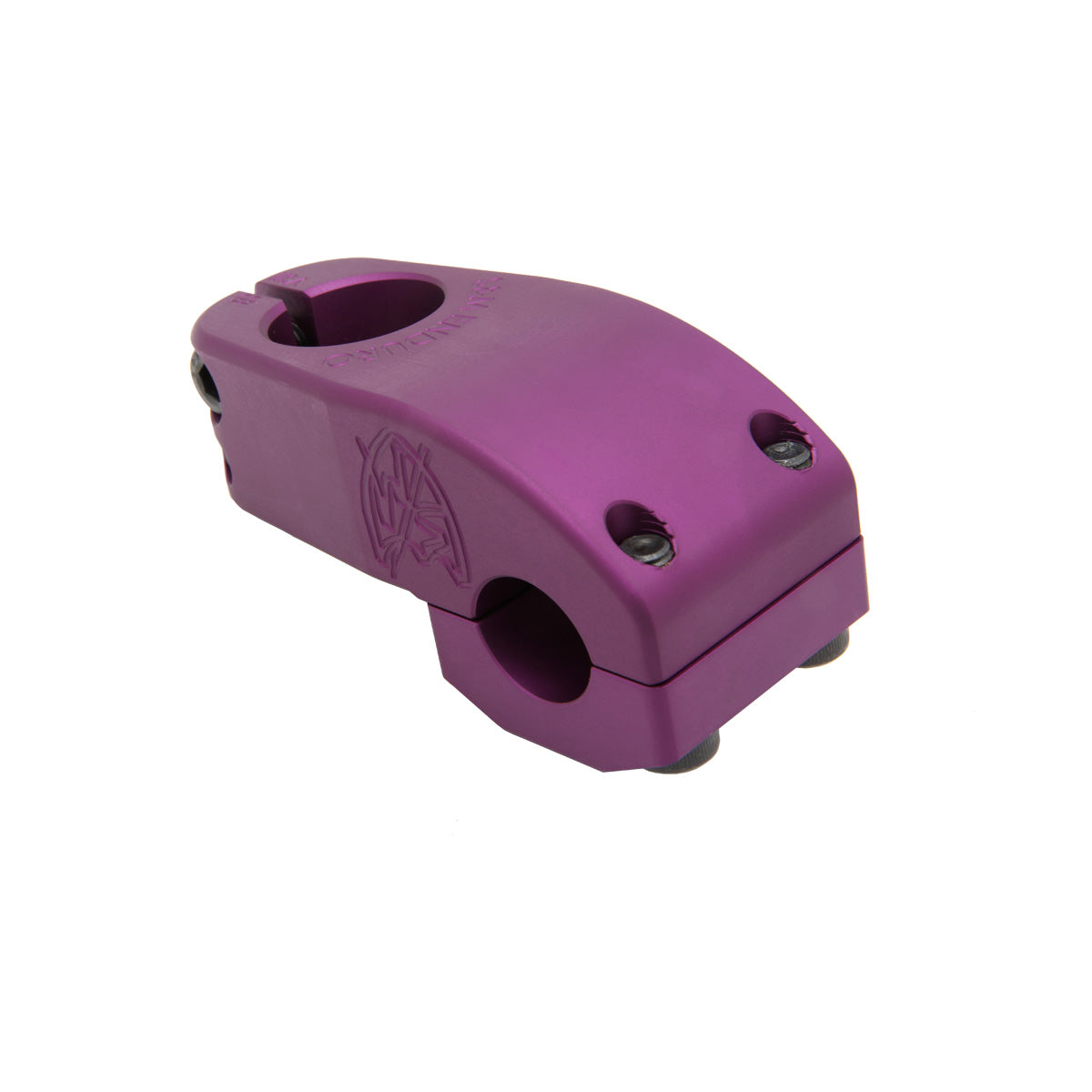

• Four reach options – Choose from 40mm, 49mm, 52mm, or 55mm to fine-tune cockpit length based on frame geometry and rider preference

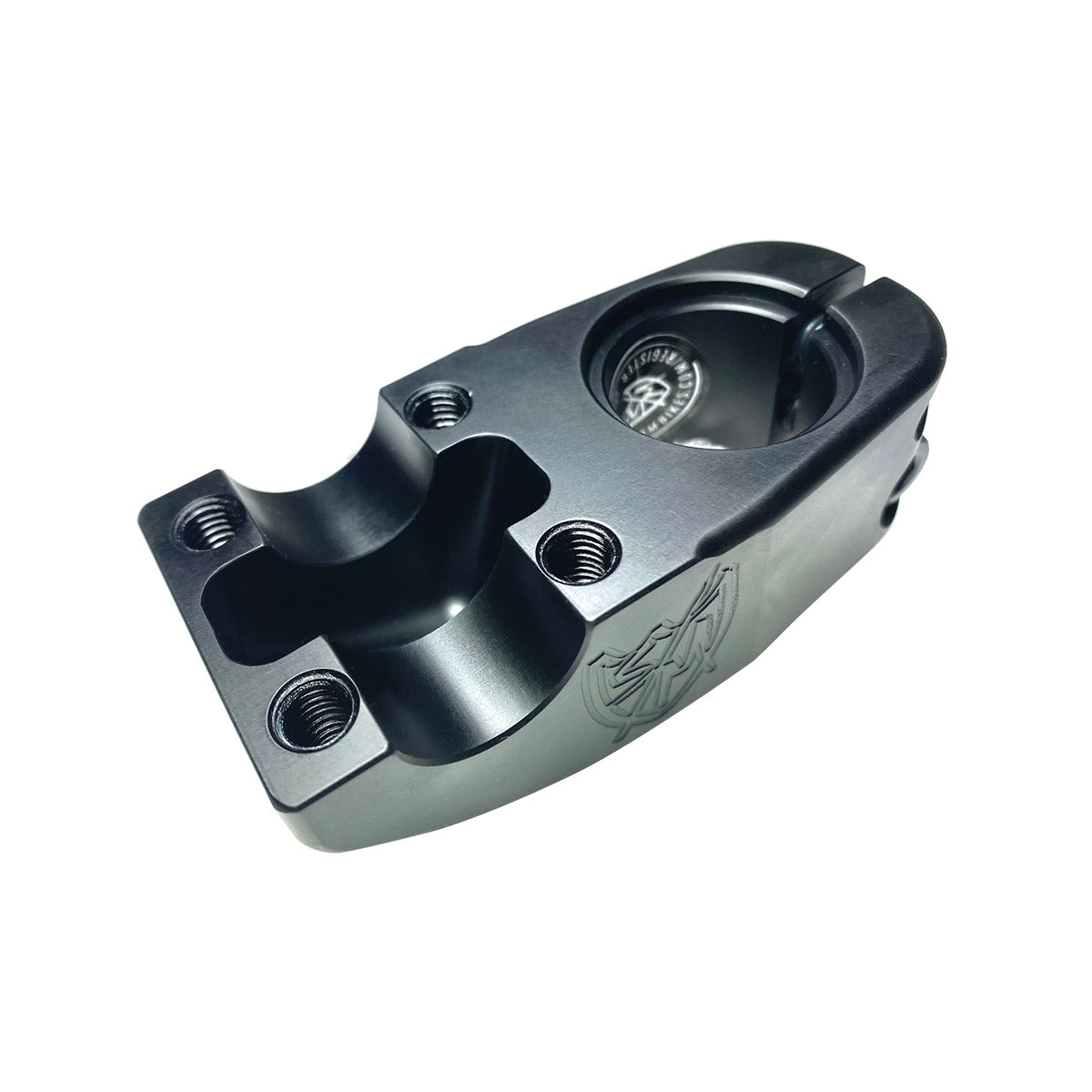

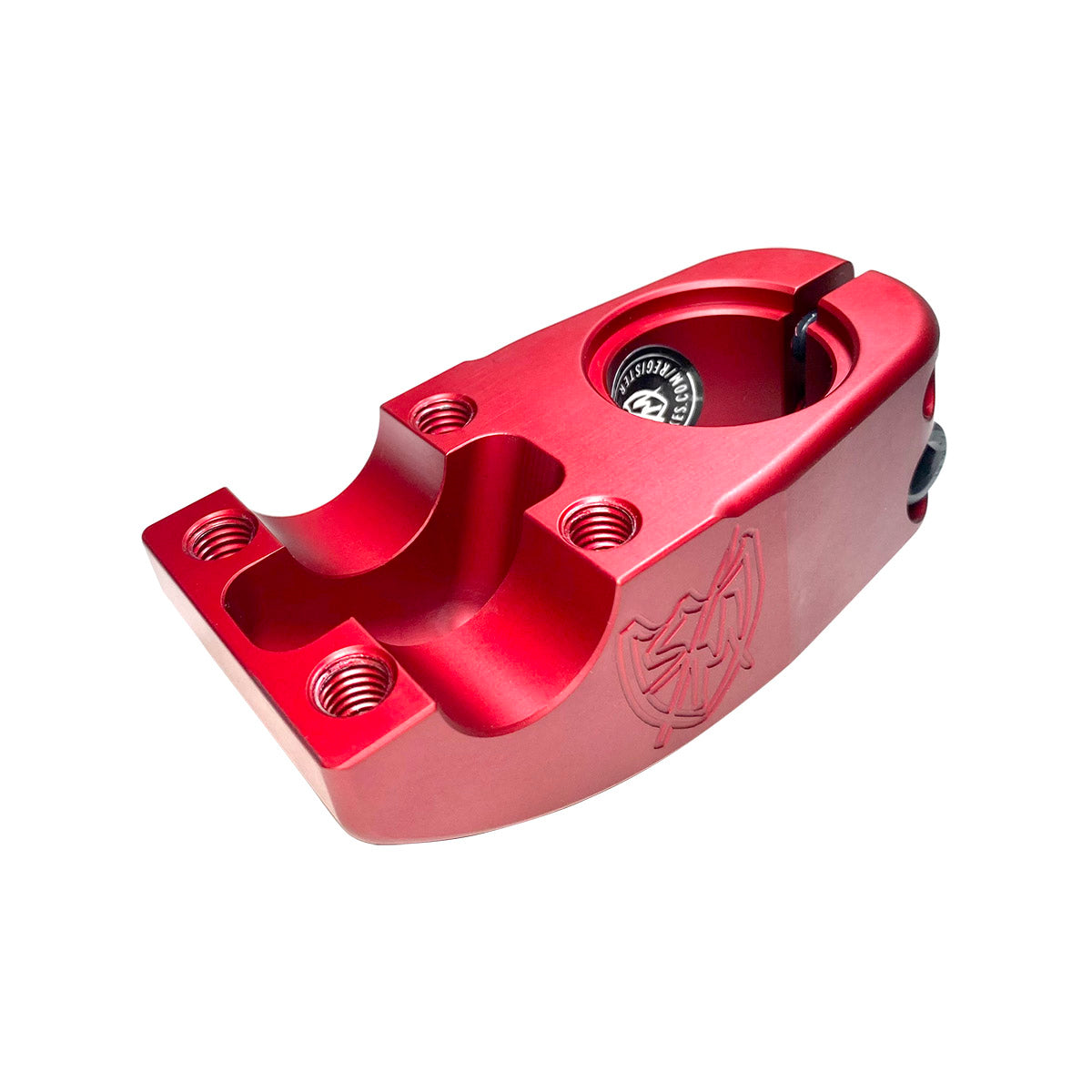

• Counter-bored top cap recess – Machined pocket allows fork cap hardware to sit flush with stem body for cleaner appearance and reduced snag points

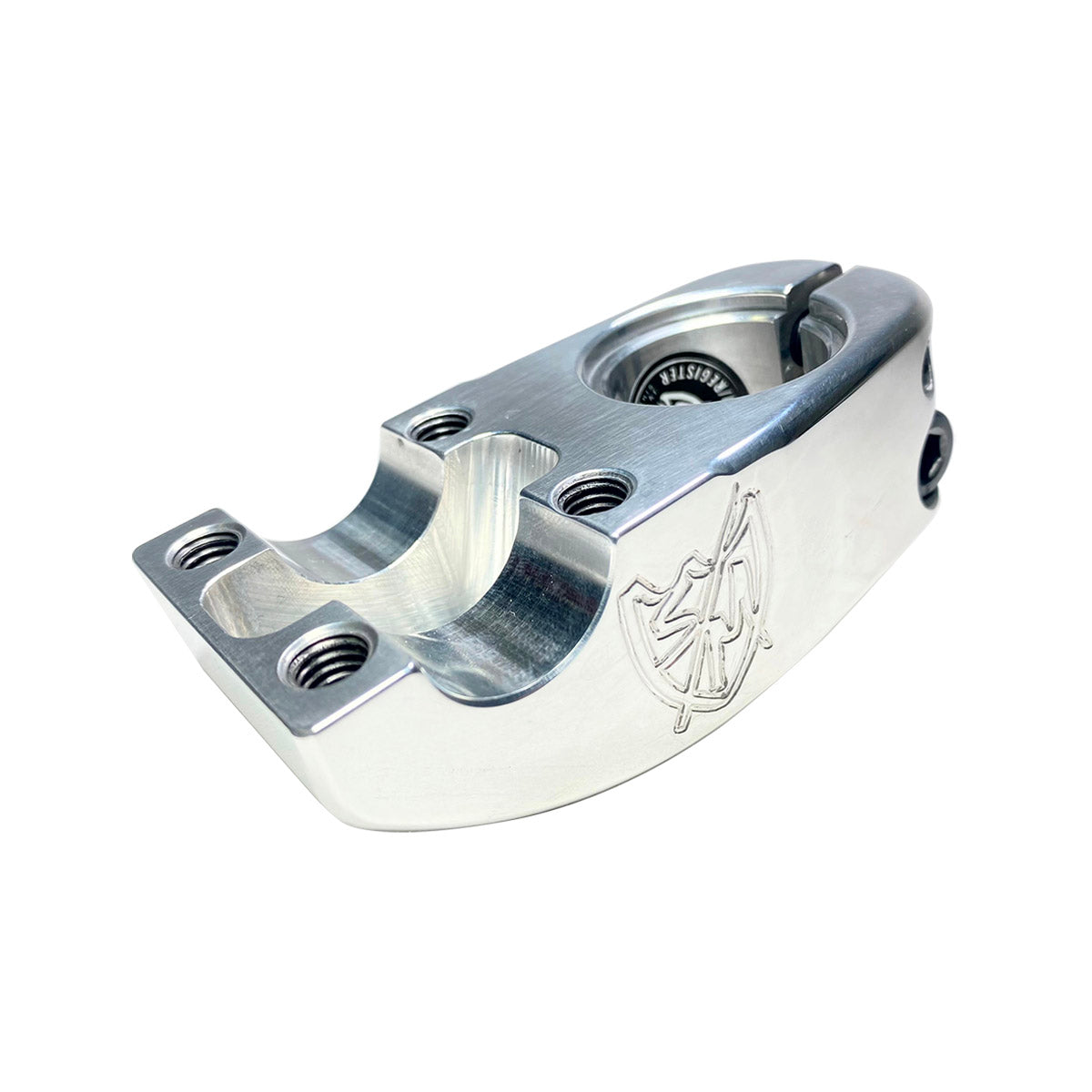

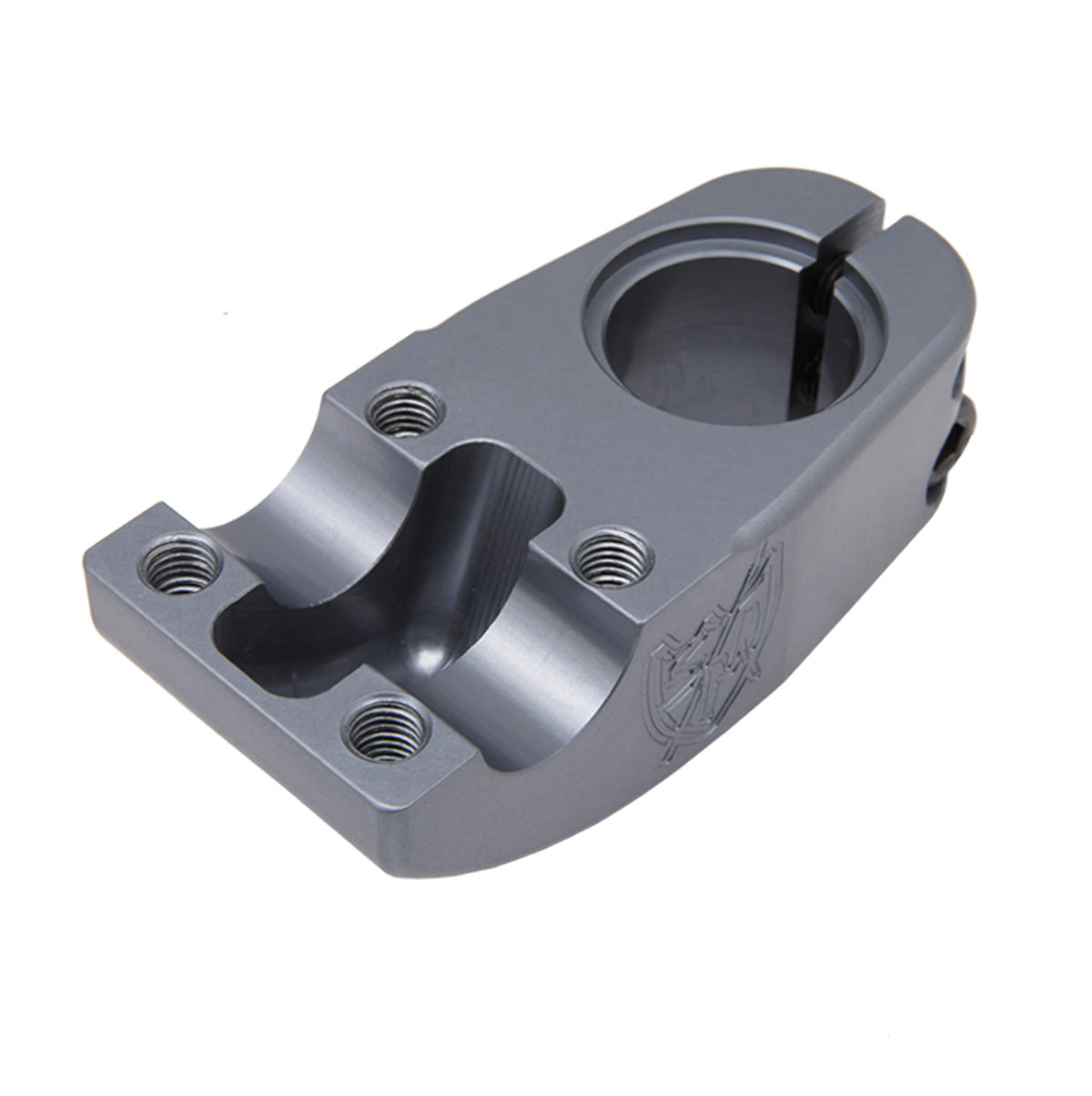

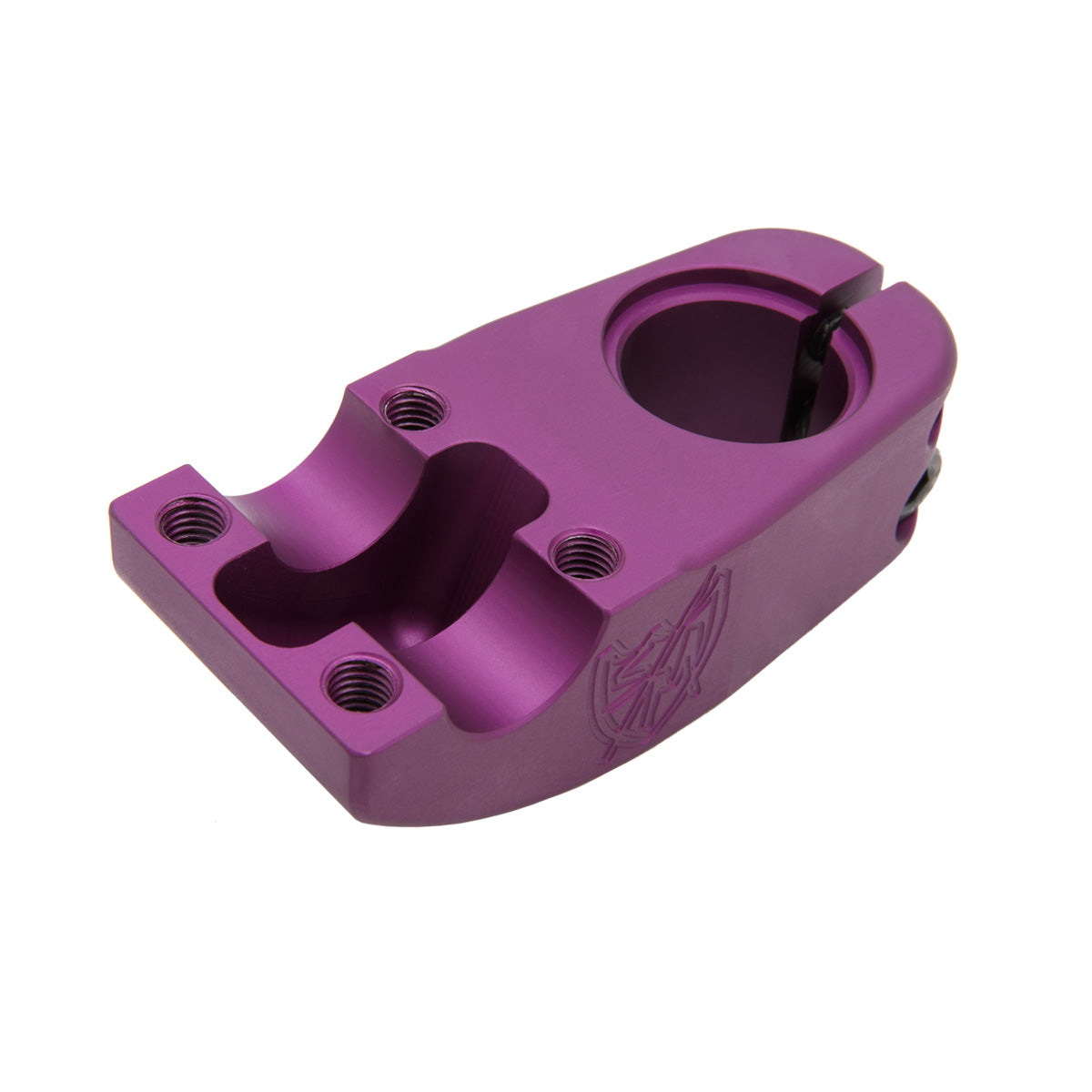

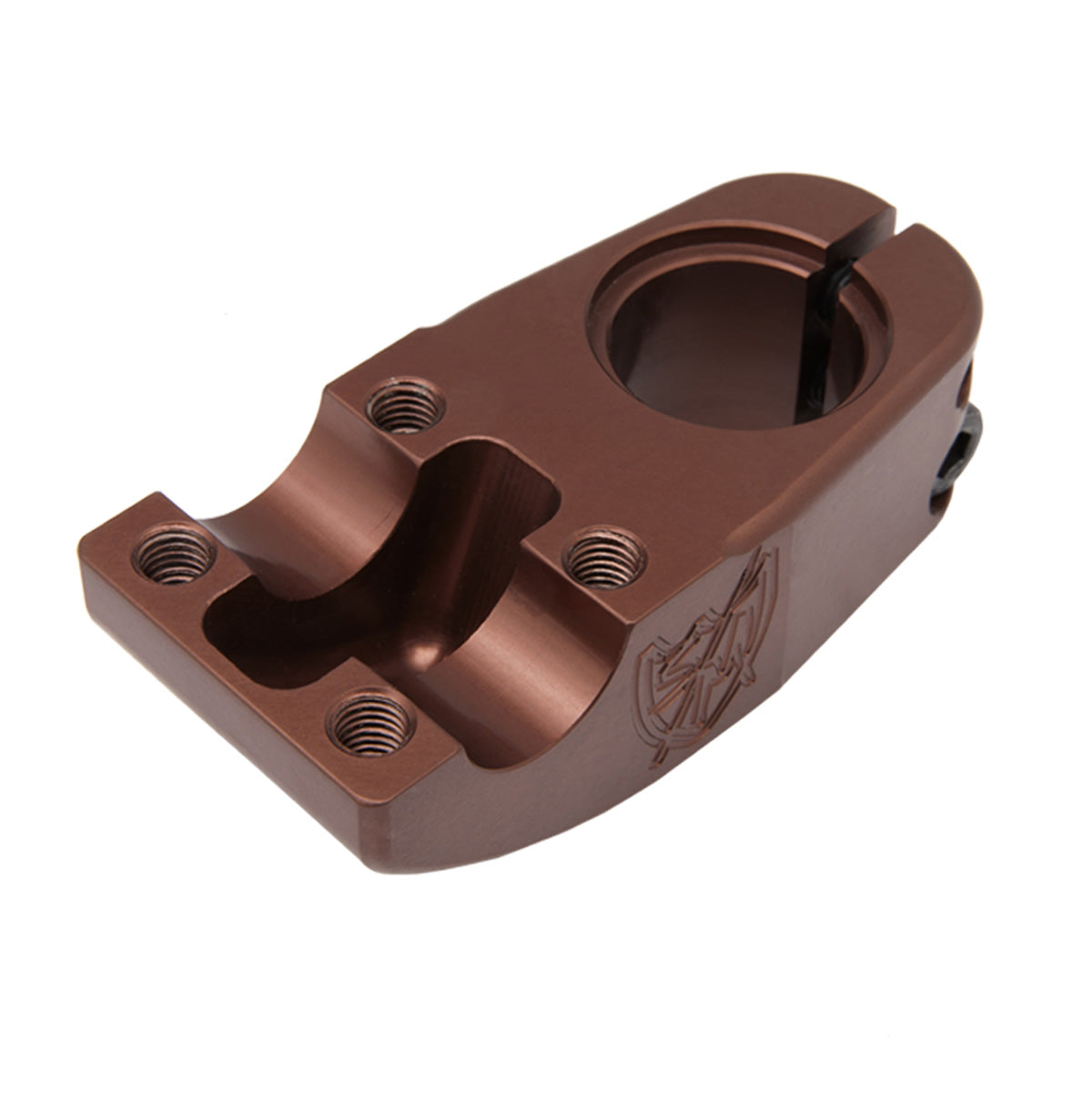

• Internal machining – Material removed from internal surfaces reduces weight without compromising external strength or clamping surface area

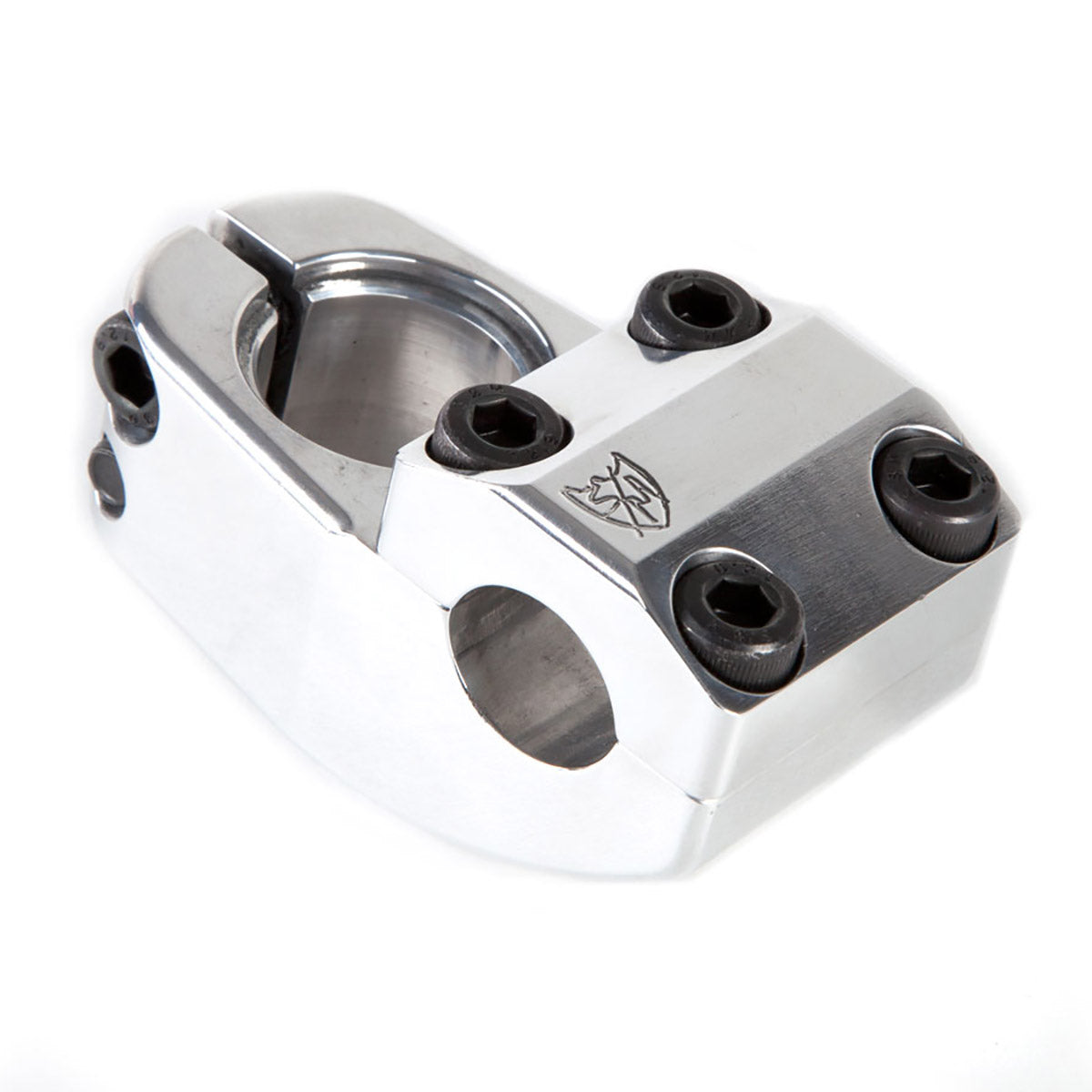

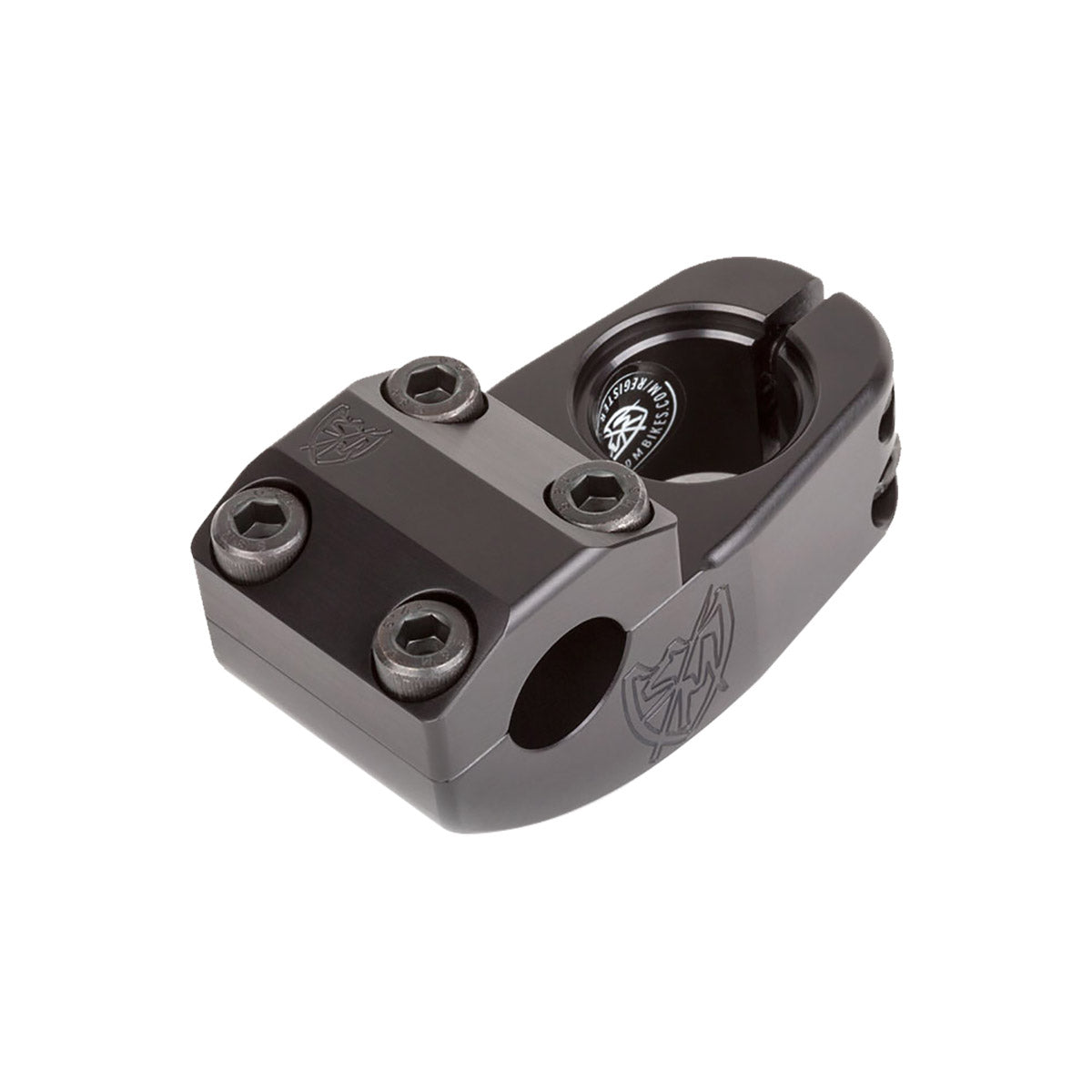

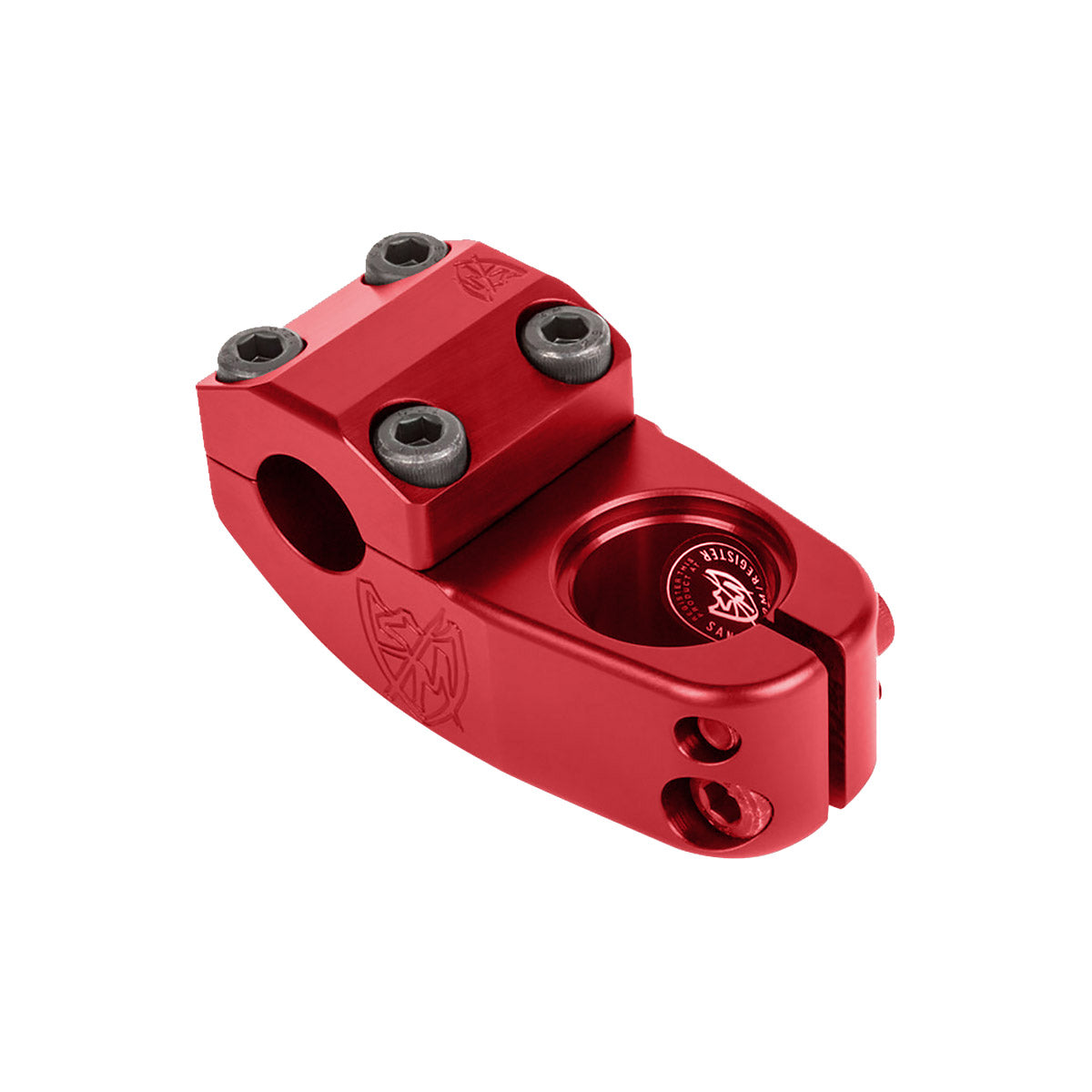

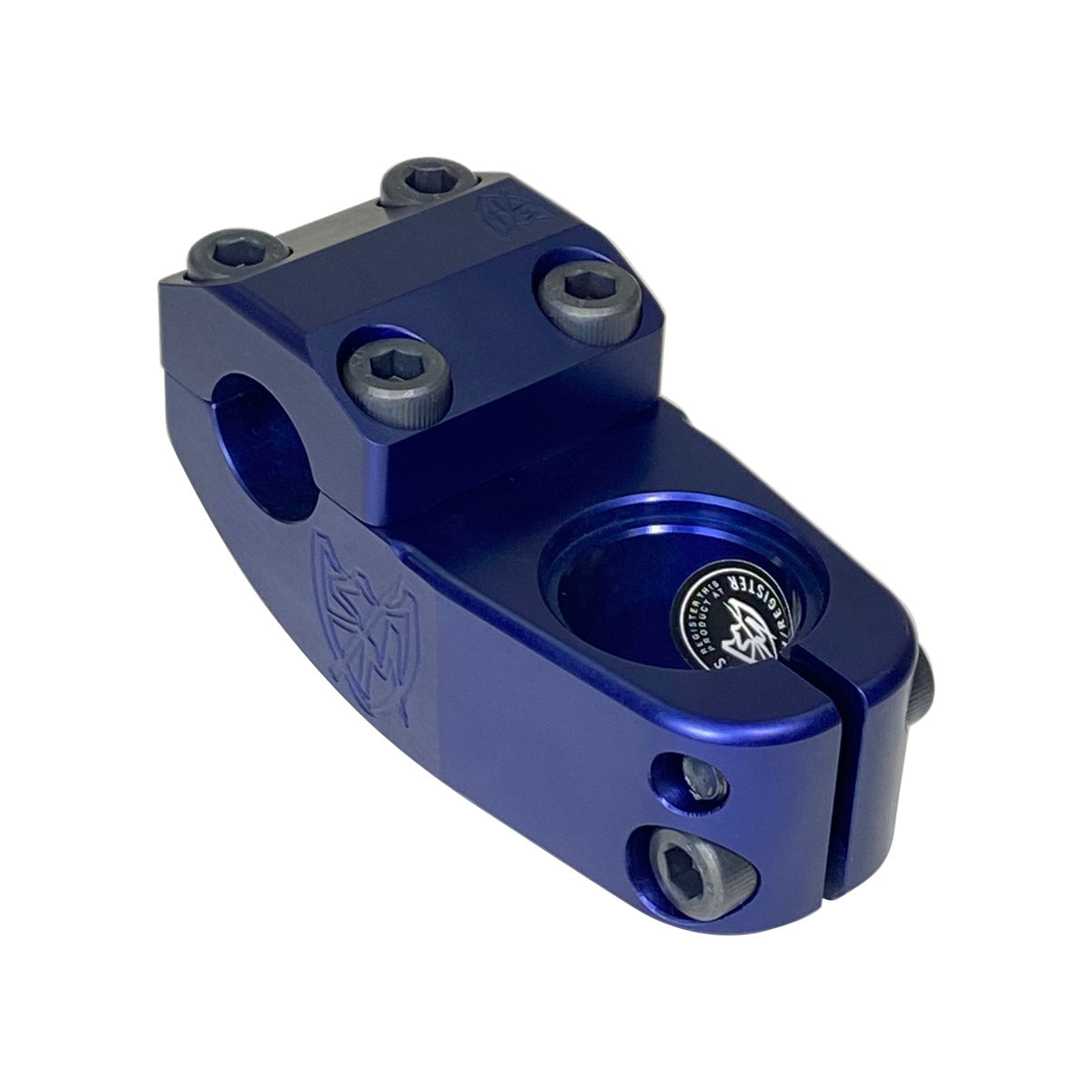

• Top load design – Bar clamps from the top for increased stiffness and easier bar installation compared to front load stems
• CNC-machined construction – Precision machining ensures consistent tolerances and eliminates weak points found in cast or forged stems

Technical Specifications

• Style: Top load
• Rise: 34mm (upright), 0mm (inverted)
• Reach options: 40mm, 49mm, 52mm, 55mm
• Weight: 11.7 oz (40mm), 12.9 oz (49mm), 13.4 oz (52mm), 13.8 oz (55mm)
• Features: Counter-bored top cap area, internal machining, engraved logos
• Color options: 7
• Made in: USA

Compatibility and Ideal Use Cases

Fits integrated and standard headsets with appropriate steerer tube diameter. Compatible with standard 22.2mm (7/8") handlebar clamping diameter. The 34mm rise works well with lower-rise bars or riders seeking more upright position for street and park riding. Four reach options accommodate different frame geometries and rider arm lengths—shorter reach (40mm-49mm) suits compact frames or riders preferring bars closer to the body, while longer reach (52mm-55mm) works for larger frames or stretched-out riding positions. Invertible design adds versatility for dialing in exact bar height.
