S&M Hucker Frame

Product Overview

The S&M Hucker is Mike "Hucker" Clark's signature frame built for aggressive riding across dirt jumps, park transitions, and technical flatland combinations. Features all-chromoly construction with an integrated Campy-style head tube and mid bottom bracket with EZ-out punch slots. Made in the USA for riders who demand durability at high speeds and impact zones.

Key Features

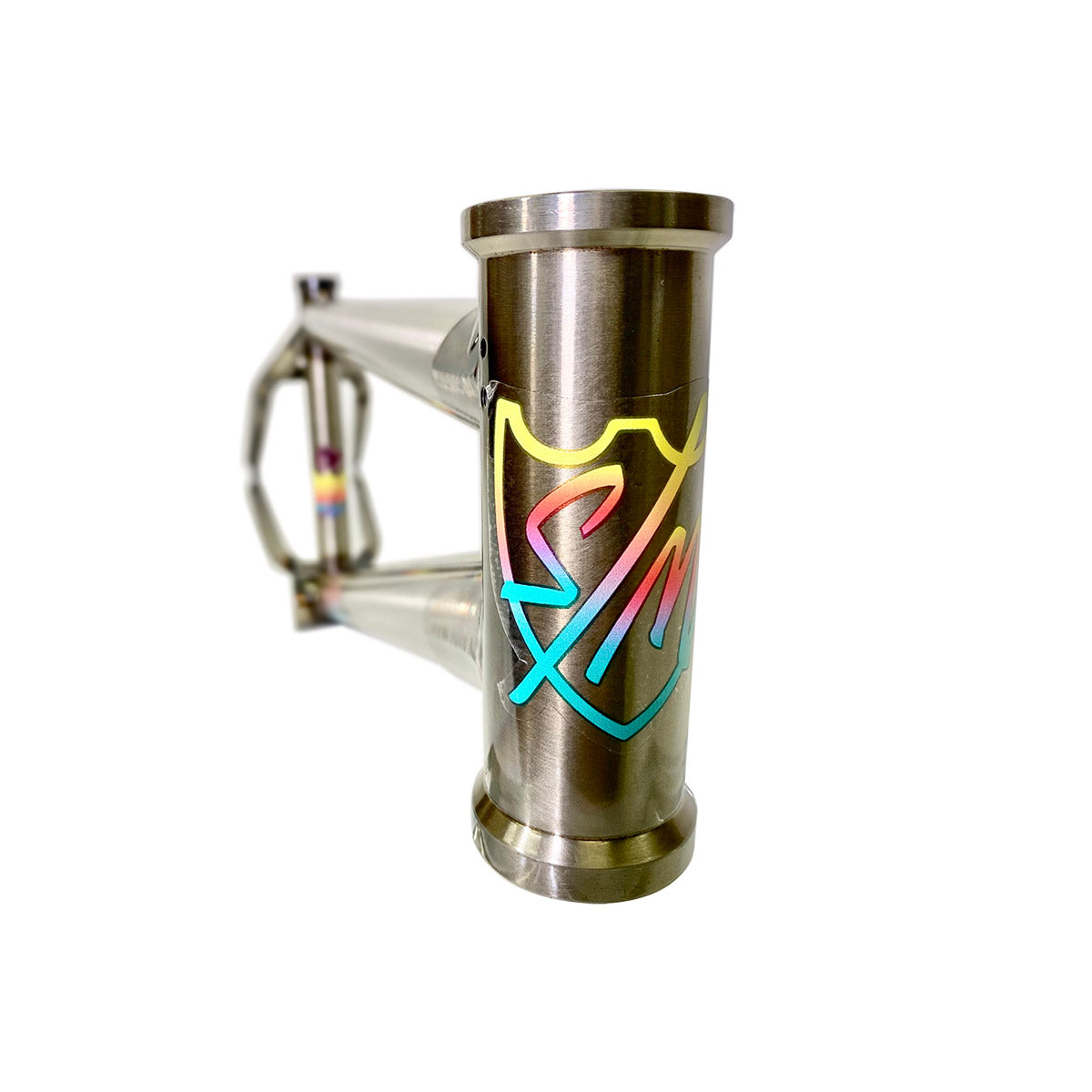

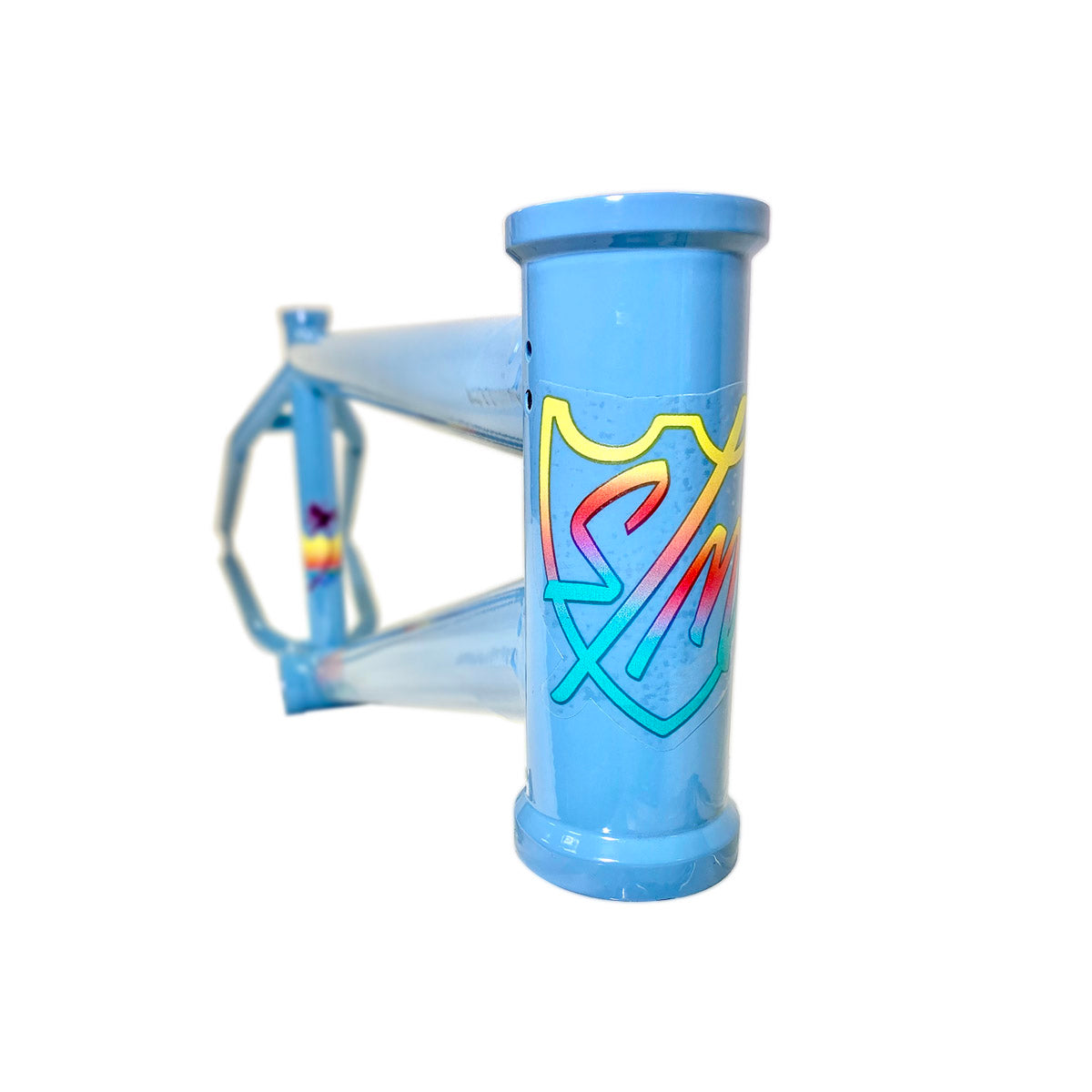

• Integrated Campy-style head tube – Classic S&M bearing cup design allows for headset customization and serviceability while maintaining structural strength at the head tube junction
• Mid BB with EZ-out punch slots (11.7") – Balanced bottom bracket height provides stability without excessive pedal strike risk, while punch slots allow direct sprocket bolt removal without pulling the crankarm during maintenance
• 14mm dropouts – Accepts 14mm bolt-on axles for increased stiffness and strength compared to 3/8" axle systems, reducing flex during hard landings and high-torque pedaling
• All-chromoly construction – Full 4130 chromoly tubeset throughout frame provides consistent strength and fatigue resistance across welds and stress points
• 75° head tube angle – Steeper geometry delivers responsive steering input for technical tricks while maintaining predictable handling when riding transitions or hitting jumps at speed
• Thread-on 990 brake mounts – Removable U-brake bosses keep frame clean when running brakeless, sold separately for riders who need stopping power
• 13.3" rear end length – Shorter chainstay measurement improves maneuverability and manual balance point without sacrificing stability on transitions

Technical Specifications

• Top Tube Lengths: 20.75", 21", 21.25"
• Rear End Length: 13.3"
• Head Tube Angle: 75°
• Standover Height: 8.8"
• Bottom Bracket Height: 11.7"
• Seat Tube Angle: 71°

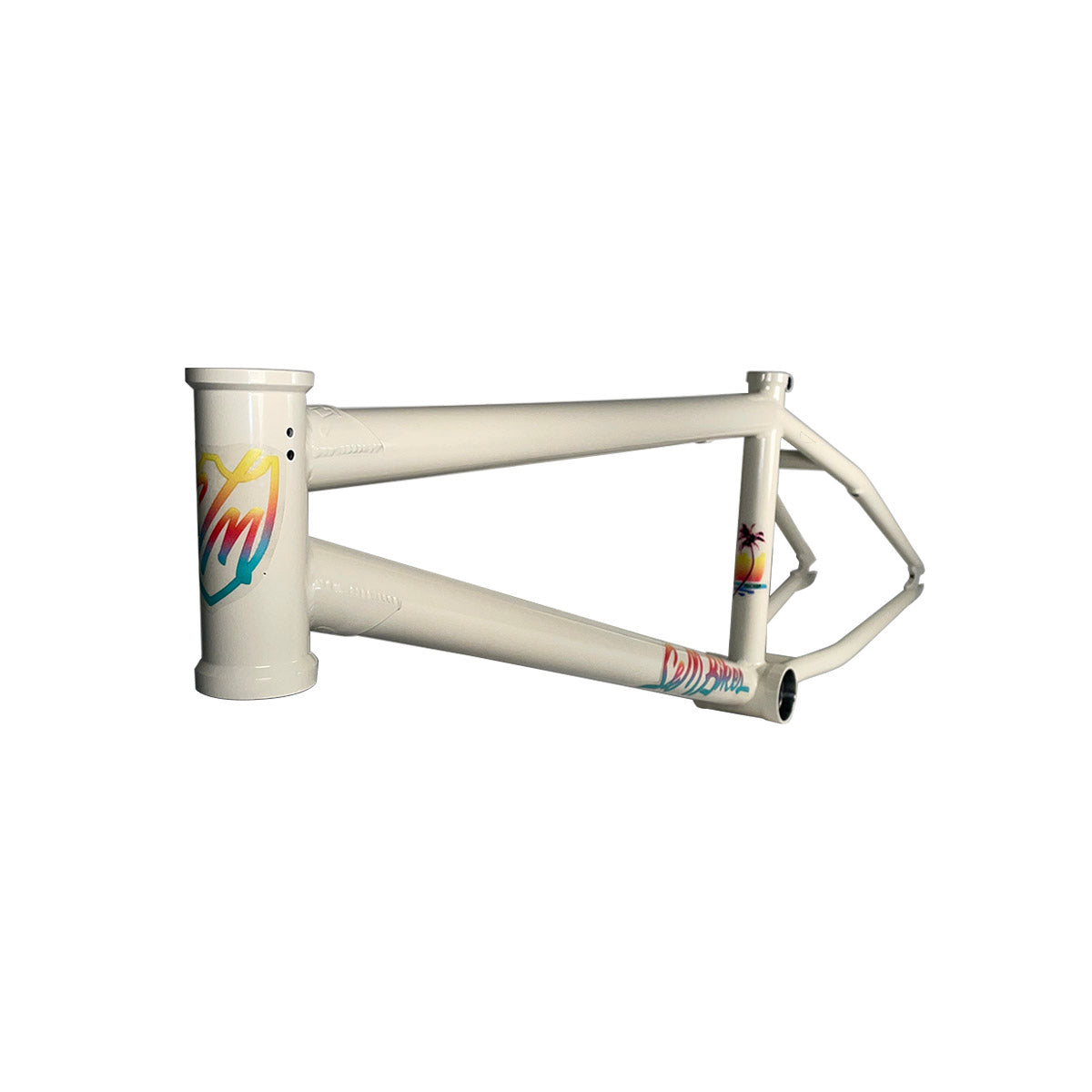

• Head Tube: Integrated Campy style
• Bottom Bracket Style: Mid with EZ-out punch slots
• Brake Mounts: Thread-on 990 mounts (sold separately)
• Dropouts: 14mm
• Seat Post Size: 1" (25.4mm)
• Weight: 4.86 lb (2.15 kg)

Compatibility and Ideal Use Cases

This frame is designed for standard 20" BMX wheels and suits riders who prioritize aggressive all-terrain riding. The integrated Campy-style head tube requires compatible headsets with bearing cups that press into the frame—verify headset compatibility before ordering. Accepts 1" (25.4mm) diameter seat posts only. The 14mm dropouts accommodate 14mm bolt-on axles exclusively, not 3/8" axles. Thread-on 990 brake mounts must be purchased separately if running brakes. The 13.3" rear end and 75° head tube angle create responsive geometry suited for quick direction changes, technical flatland tricks, and precise control on transitions. Best suited for experienced riders who need one frame capable of handling dirt jumps, vert and park riding, and flatland-inspired technical street riding without geometry compromises. The 8.8" standover height fits riders approximately 5'7" to 6'0" tall.
