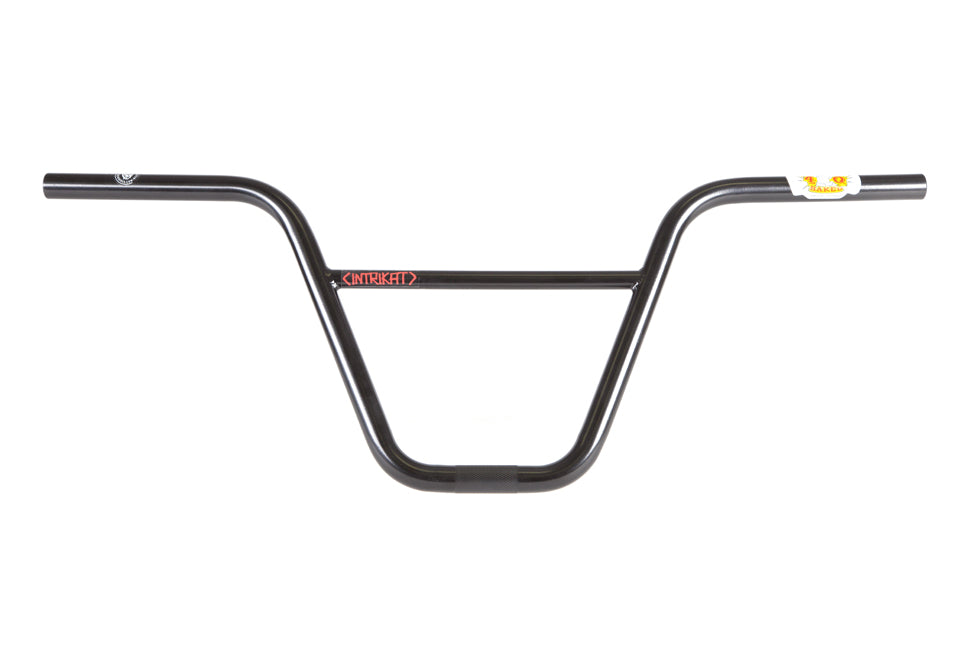

S&M Intrikat 10" BMX Handlebars  Flatland

The S&M Intrikat is a 100% 4130 chromoly handlebar built specifically for flatland BMX riding, developed with input from S&M flatland rider Chad Johnston. The geometry — sweep, upsweep, and crossbar drop — is tuned for the precise, multi-directional control flatland riding demands, where bar geometry directly affects balance and body positioning during technical maneuvers.

Key Features

• Flatland-specific geometry — The combination of 6° backsweep, 3° upsweep, and crossbar drop is deliberately dialed for flatland use, where precise bar feel and neutral hand positioning matter more than in street or park riding
• Crossbar drop at 0.625" — A lowered crossbar reduces interference during body varials and technical flatland tricks where limbs pass around or over the bars frequently
• 4130 CrMo with post-weld heat treatment — 4Q baked post-weld heat treating relieves stress built up during welding, resulting in a stronger, more consistent weld zone and improved overall bar durability
• Chad Johnston collaboration — Geometry developed with direct input from an experienced flatland rider, ensuring the specs reflect practical flatland performance rather than general-purpose compromise
• Made in USA — Domestic production with consistent material and manufacturing standards

Technical Specifications

• Brand: S&M Bikes
• Model: Intrikat
• Rise: 10"
• Width: 28.5"
• Upsweep: 3°
• Backsweep: 6°
• Crossbar drop: 0.625"
• Material: 4130 CrMo
• Heat treatment: 4Q baked post-weld
• Weight: 1.85 lbs (0.84 kg)
• Country of manufacture: USA

Compatibility and Ideal Use Cases

Compatible with standard 22.2mm BMX stem clamps — verify clamp diameter before ordering. Designed primarily for flatland riders who need precise, repeatable bar geometry for technical ground-based riding. The 28.5" width and specific sweep angles are not optimized for street or park use, where wider bars and different sweep profiles are typically preferred. Best suited to dedicated flatland riders or those transitioning into flatland from other disciplines.
