S&M BMX Mad Dog Frame

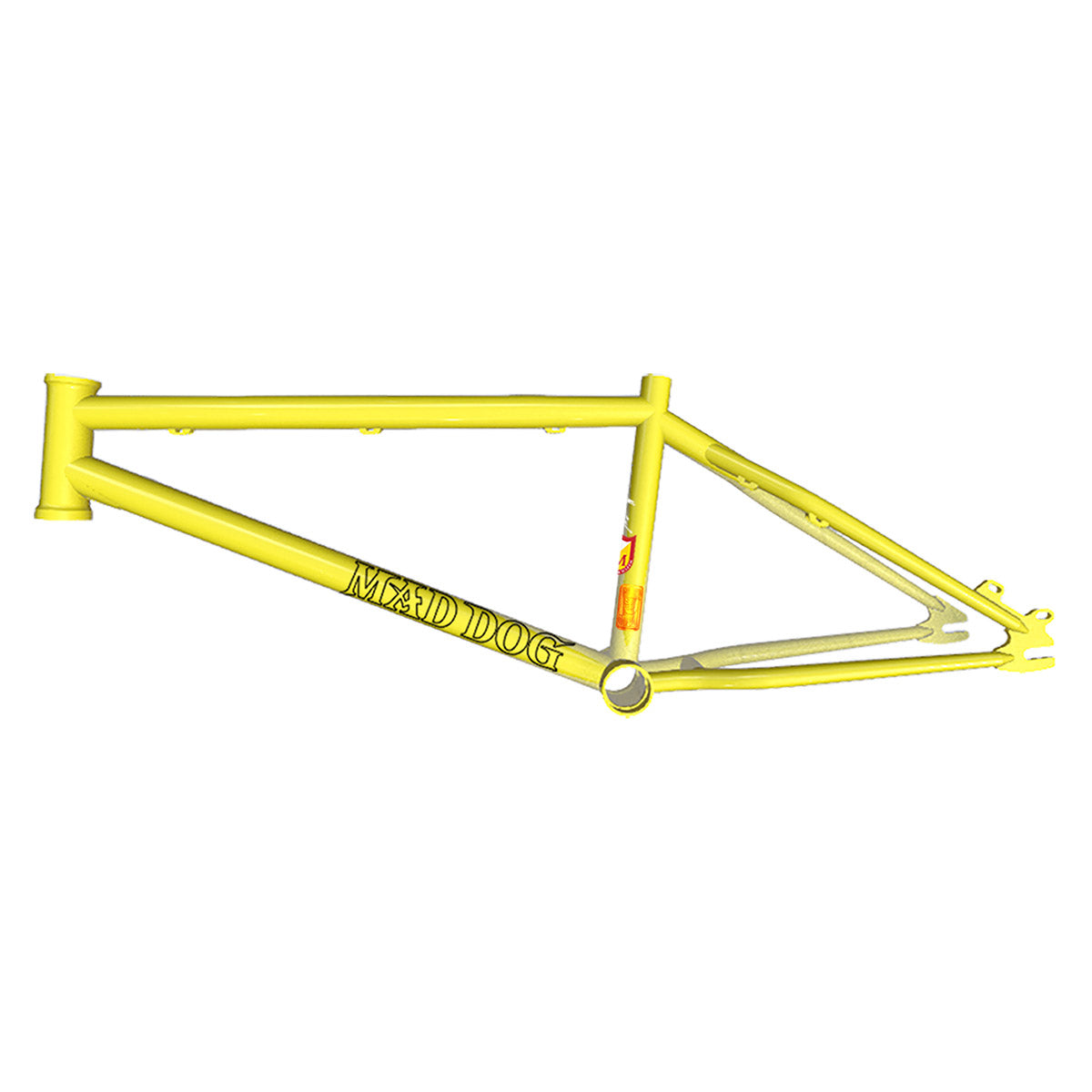

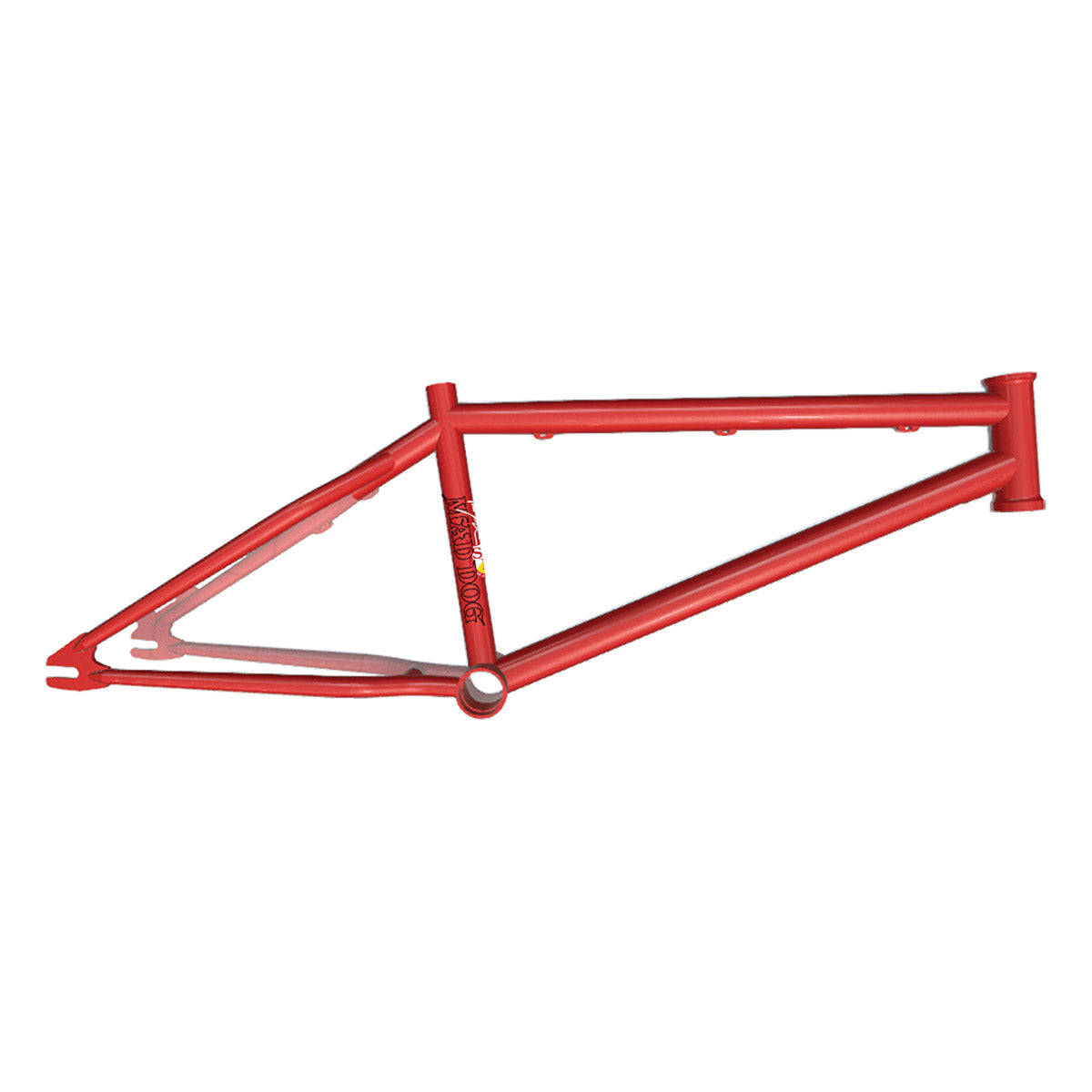

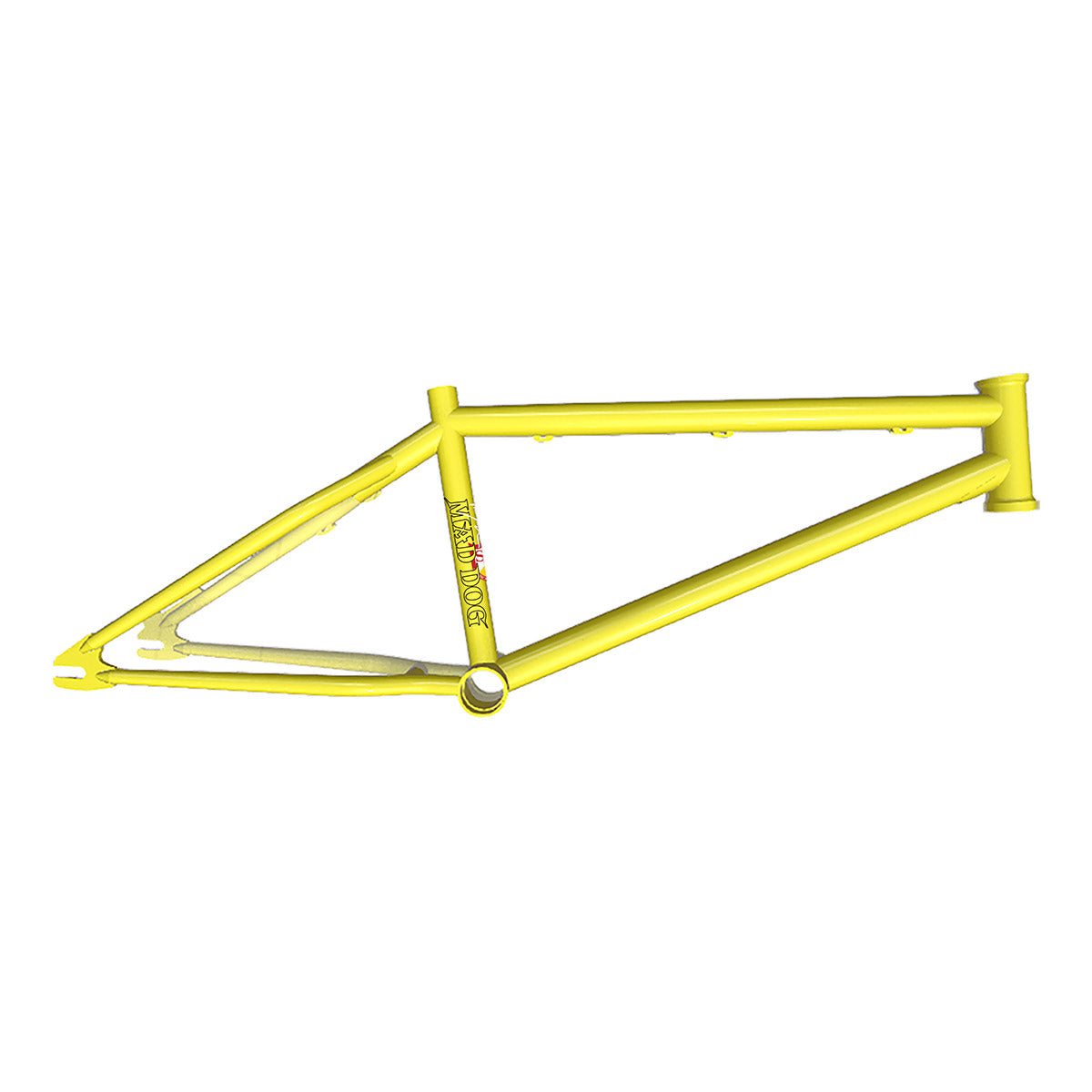

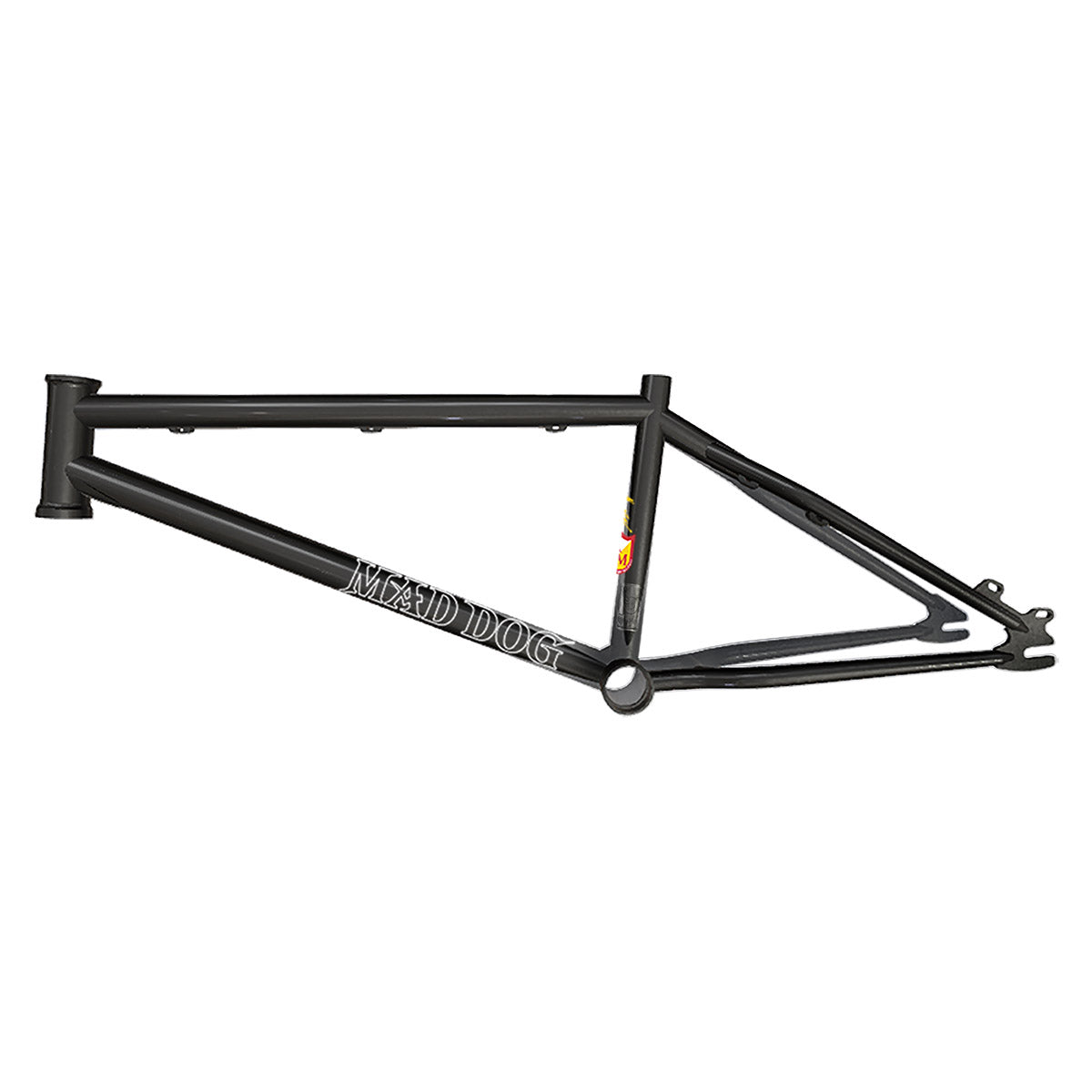

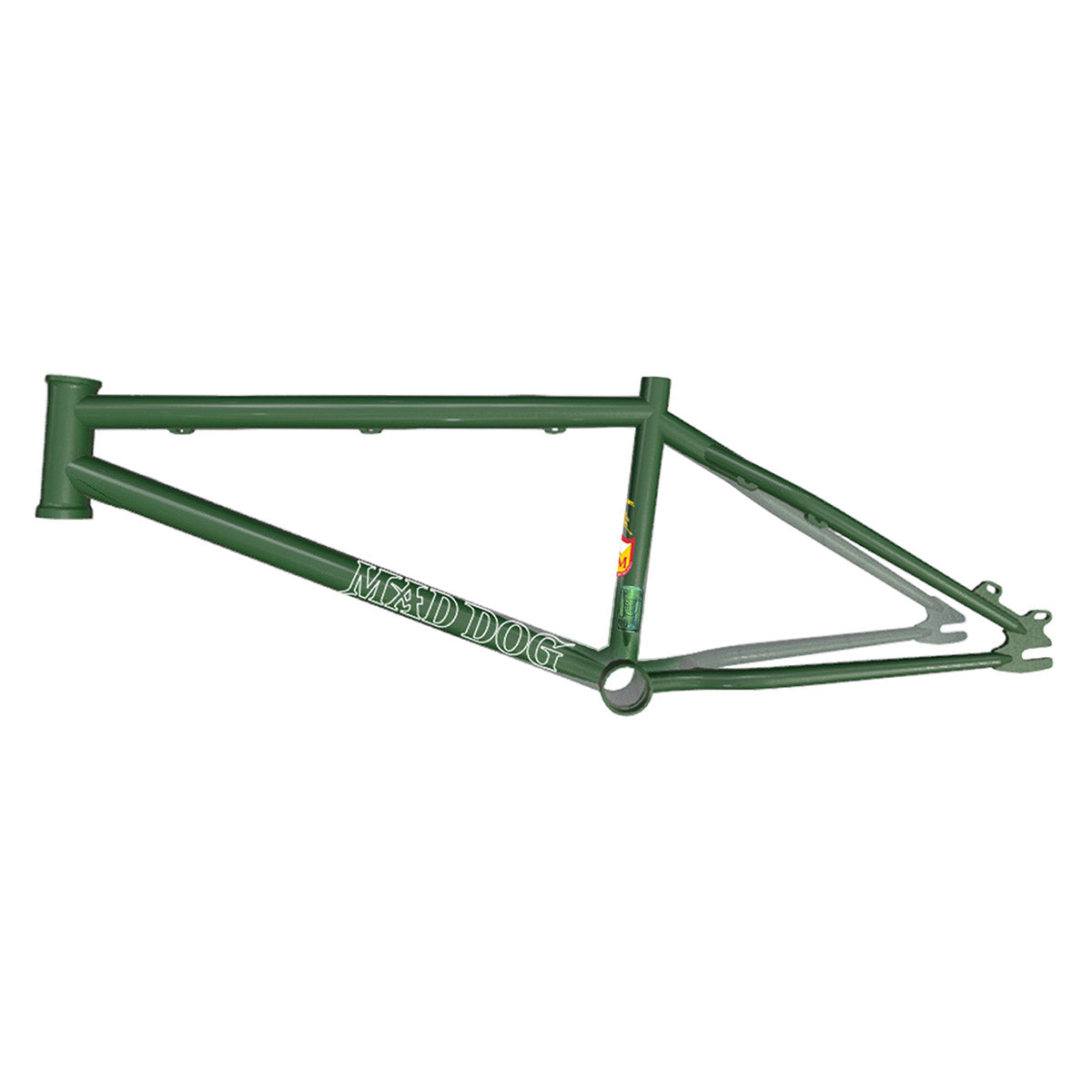

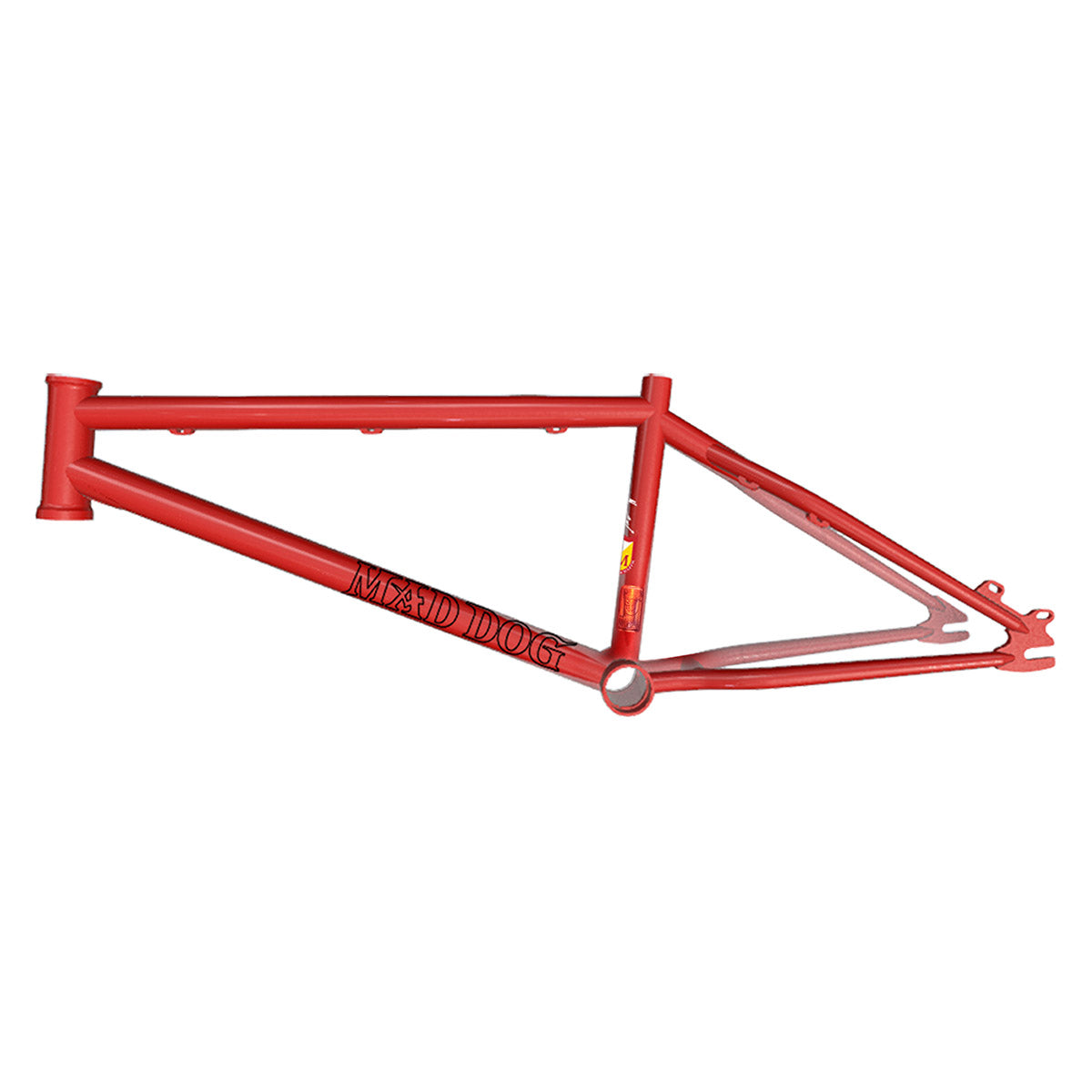

The S&M Mad Dog is Chris "Mad Dog" Moeller's signature frame, reissued 36 years after the original. It is a sub-5 lb, made in USA frame with a 10" standover and an IS disc mount, offered in seven top tube lengths from 20.5" to 22" and four colors: Challenger Red, Gloss Black, Holmes Yellow and OG Green.

Features

• 4.9 lb frame weight with disc brake mount

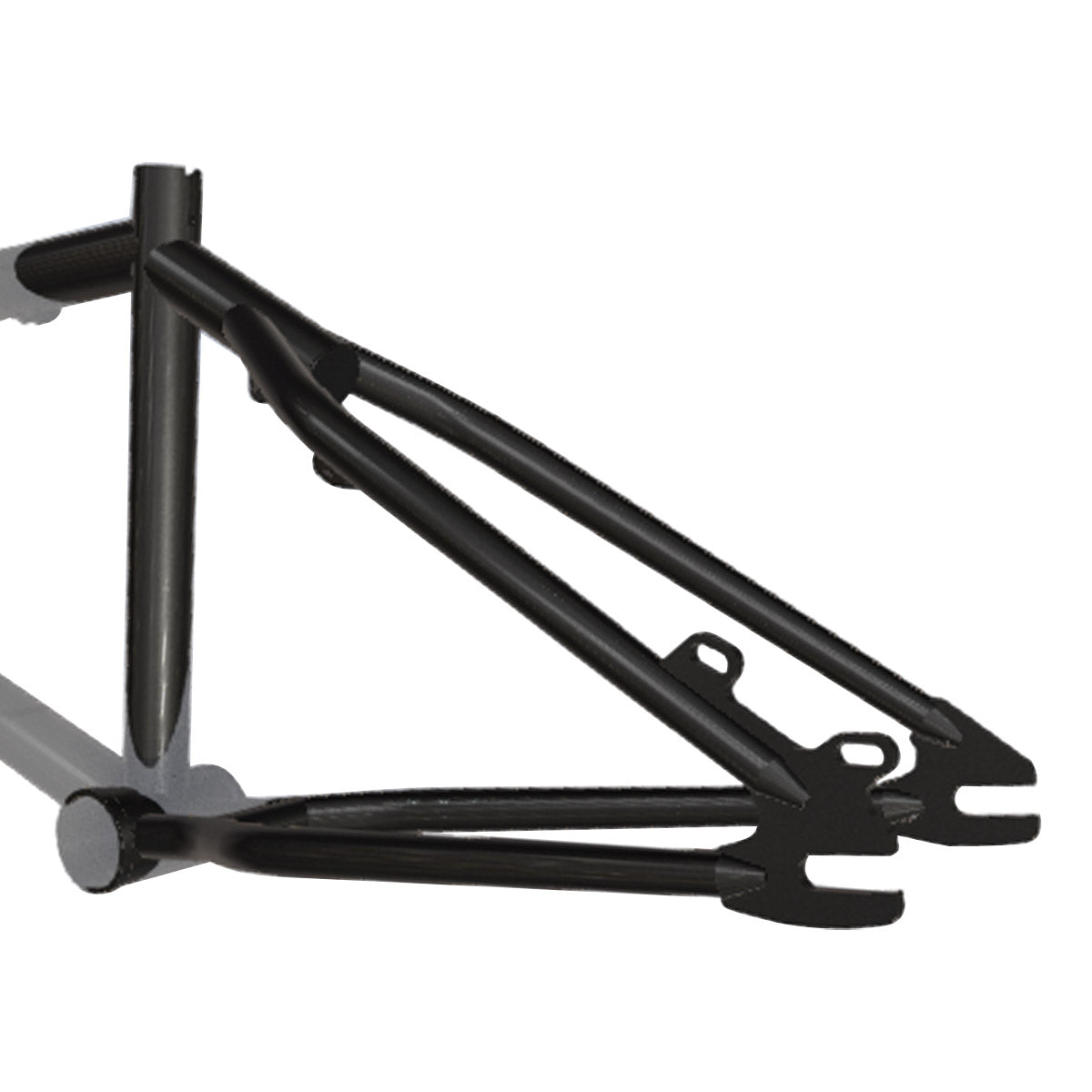

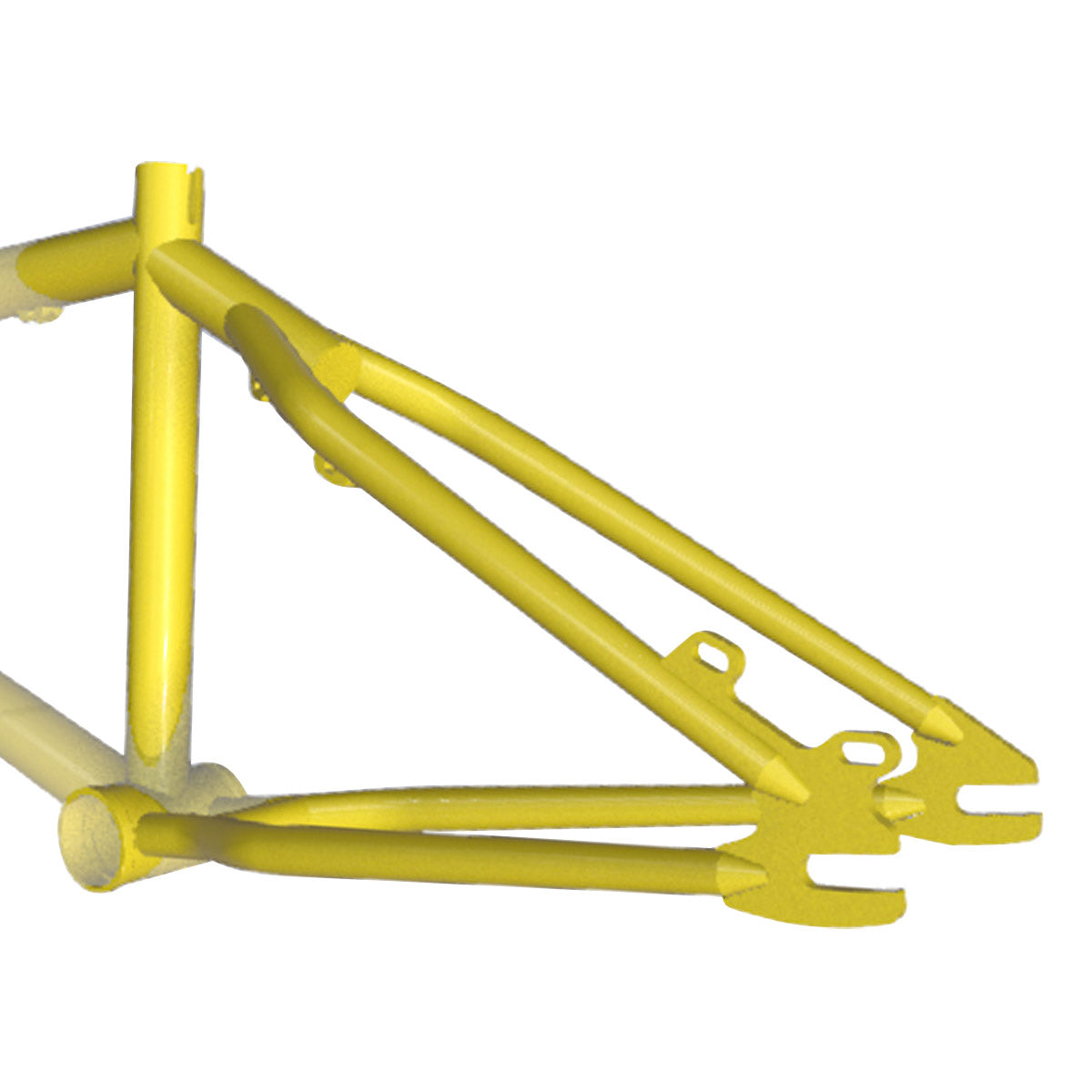

• IS-mount disc tab for 120mm rotors with a 0mm IS-to-post adapter, or 140mm rotors with a 20mm adapter
• Works with hydraulic or mechanical disc systems; narrow-flange hubs recommended for spoke-to-caliper clearance
• Tall 10" standover for manuals and aggressive body positioning
• Traditional 110mm rear spacing with 3/8" dropouts, so no disc-specific wheels needed
• Slotted seat tube for a traditional or quick-release 28.6mm clamp
• Engraved Shield on the head tube, engraved '87' on the bottom bracket shell and Mad Dog tag on the seat tube, so the graphics won't wear off

Specs

• Top tube lengths: 20.5", 20.75", 21", 21.25", 21.5", 21.75", 22"
• Rear end (chainstay): 13.9"
• Head tube angle: 74.25°
• Seat tube angle: 71°
• Bottom bracket height: 11.6"
• Standover height: 10"
• Head tube: 5" tall, integrated campy-style
• Bottom bracket: Mid
• Dropouts: 3/8" with 110mm spacing
• Brake mount: IS disc (120mm rotor with 0mm adapter, 140mm with 20mm adapter)
• Seatpost: 1" (25.4mm)
• Seat clamp: 28.6mm, not integrated
• Maximum sprocket: 39T
• Weight: 4.9 lbs
• Made in: USA

Fitment

Takes an integrated campy-style headset, mid bottom bracket, 110mm rear hub with 3/8" axle, 25.4mm (1") seatpost and 28.6mm seat clamp.
